Quanta 400 Schematic

5

4

3

2

1

Reilly 13"/Rourke 14" KabyLake -U (UMA/DIS) Schematics

D D

DDR4 2133DDR4 2133MHz

16GB

PAGE 16

eDP X 2

HD and FHD

eDP

PAGE 26

01

KabyLake U

gDDR3

SATA3/PCIeprimary HDD

LPC Interface

SPI Interface

System BIOS SPI ROM 16MB

SPI Interface

DDR4 2133DDR4 2133MHz

24MHz

32.768KHz

PAGE 44

Processor

Processor : Daul Core Power : 15 (Watt)

SKL PCH-LP

Package : BGA1356

Size : 40 X 24 (mm)

Ball pitch:0.65mm

PAGE 2~14

4

GT2

DP

USB2.0 Interface

PCIE Gen 1 x 1 Lane

SATA0 6GB/s

HD Audio

DP to VGA

RTD2166

USB2.0 Interface

USB3.0 Interface

USB3.0*2 Interface

PAGE 37NGFF

WLAN Combo

10/100/1000 NIC

Realtek RTL8111HSH

PAGE 32

PCIE *4

Audio Codec

Conaxant CX7700

PAGE 30

3

Display Port

HDMI

Display Port

PAGE 27

VGA

SIM Card

PAGE 39

NGFF

WWAN Combo

PAGE 38

Camera

Port 26

NGFF SSD

Package : 22*80 (mm)

Power :

PAGE 38

Digital MIC

Speaker

Combo Jack

PAGE 31

PAGE 26

RJ45

PAGE 52

PAGE 29

PAGE 27

Touch Screen

PAGE 26

Fingerprint

VFS495

Port 4

PAGE 26

PAGE 30

2

PAGE 24

USB 2.0 standard port

for external ODD support

PAGE 31

USB 3.0 standard port

PAGE 35

USB Type C Port

PAGE 50

USB Type-C Controller

Cypress CCG4

PAGE 49

NB5

PCB 6L STACK UP(1.2mm)

LAYER 1 : TOP LAYER 2 : SGND LAYER 3 : IN1(High) LAYER 4 : IN2(Low) LAYER 5 : SVCC LAYER 6 : BOT

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

Block Diagram

Date: Sheet of

1

1 65Thursday, May 12, 2016

1A

16GB

PAGE 17

DIS only for Riata 14"

gDDR3

C C

1GB/2GB

gDDR3

1GB/2GB

gDDR3

1GB/2GB

4 pcs of x16 PAGE 22,23

64bit

Graphics Controller

nVidia N16S-GMR DDR3 M/B down dGPU GB2b-64 Package 17W TDP

23mm x 23mm 595 balls

B B

Keyboard

Battery

PAGE 40

PAGE 49

FAN PAGE 42

Function Conn. PAGE 33

A A

5

PAGE 18~21

2.5" / 7, 9.5mm

PAGE 43

KBC Nuvoton

NPCE586HA0MX

Embedded Controller

PAGE 45~46

128TQFP

TPM Infineon

PAGE 34SLB 9670VQ2.0

5

4

3

2

1

02

D D

?

4 OF 20

Need apply PN

JTAG

PROC_TCK

PROC_TDI PROC_TDO PROC_TMS

PROC_TRST#

PCH_JTAG_TCK

PCH_JTAG_TDI PCH_JTAG_TDO PCH_JTAG_TMS

PCH_TRST#

JTAGX

PDC

?

Maximum Trace length: 1ns (approx 6000 mil or 154mm)

B61

H_TCK

D60

H_TDI

A61

H_TDO

C60

H_TMS

B59

H_TRST#

B56

PCH_TCK

D59

PCH_TDI

A56

PCH_TDO

C59

PCH_TMS

C61

H_TRST#

A59

JTAGX_PCH

Test Points Placement: placed to within 250ps (1375mil) of the repetitive Kaby Lake pins, and the distance between TP and termination (if any) must be within 200ps (1100mil).

TP1028 TP1029 TP1030 TP1031

TP1027 TP1032 TP1033 TP1034

TP39

TP36

THERM_SCI# OCP_OC# KBL_DET# GPS_XMIT_OFF#

R50449.9/F_4

CATERR#

CPU_PROCHOT#_R

PM_THRMTRIP#

PROC_POPIRCOMP PCH_OPI_RCOMP EDRAM_OPIO_RCOMP EOPIO_RCOMP

+VCCSFR

THERM_SCI#[42]PROCHOT_KBC[45]

OCP_OC#[46]

KBL_DET#[40]

GPS_XMIT_OFF#[38]

+VCCSFR

EC_PECI[45]

EC_PECI

R514 1K/F_4

R234 49.9/F_4 R231 49.9/F_4 R561 49.9/F_4 R101 49.9/F_4

H_PROCHOT#

R490 499/F_4

3

Q1 2N7002K

2

1

C26 47P/50V_4

CPU_PROCHOT#[51,56,62]

PROCHOT_KBC

R27

*100K_4

R485 1K/F_4

+1.0V_STG

C C

B B

D63

CATERR#

A54

PECI

C65

PROCHOT#

C63

THERMTRIP#

A65

SKTOCC#

C55

BPM#[0]

D55

BPM#[1]

B54

BPM#[2]

C56

BPM#[3]

A6

GPP_E3/CPU_GP0

A7

GPP_E7/CPU_GP1

BA5

GPP_B3/CPU_GP2

AY5

GPP_B4/CPU_GP3

AT16

PROC_POPIRCOMP

AU16

PCH_OPIRCOMP

H66

OPCE_RCOMP

H65

OPC_RCOMP

U25D

*SKL_ULT

REV = 1

CPU MISC

SKL_ULT

H_TCK

JTAGX_PCH H_TDI PCH_TDI H_TDO PCH_TDO H_TMS PCH_TMS

Placed R515 to within 200ps (1100 mil) or PROC_TCK pin(B61)

R11550_4

R11560_4

R11570_4

R11580_4

R515 51_4

R47 51_4

Placed R47 to within 200ps (1100 mil) or PCH_JTAG_TDO pin(A56)

OCP_OC# THERM_SCI# KBL_DET# GPS_XMIT_OFF#

OCP_OC#

Rc

R524 10K_4 R500 10K/F_4 R287 200K_4 R334 10K_4

R779 *100K/F_4

Rd

+1.0V_STG

+3V

A A

PROJECT:400 Series

Quanta Computer Inc.

+1.0V_STG [11,13] +VCCSFR [3,9,11,13,45] +3V [3,4,5,7,8,9,10,16,17,18,19,20,24,26,27,28,29,30,31,32,33,34,36,38,42,44,45,47,51,56,58,59,63]

5

NB5

4

3

2

NB5

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

02 -- SKYLAKE 2/20(MISC/ JTAG)

Date: Sheet of

1

2 65Thursday, May 12, 2016

1A

5

C678 *15P/50V_4

R552 0_4

R288 100K_4

PCH_SPI1_CLK_L PCH_SPI1_SO PCH_SPI1_SI_L PCH_SPI_IO2_L PCH_SPI_IO3_L PCH_SPI_CS0#

SPI_TPM_CS#_L

GPP_A0

PCH_SPI1_CLK[34,45,47] PCH_SPI1_SO[34,45,47]

D D

PCH_SPI1_SI[34,45,47] PCH_SPI_IO2[47] PCH_SPI_IO3[47] PCH_SPI_CS0#[45,47]

TP66

SPI_TPM_CS#[34]

TPM_PIRQ#[34] WWAN_CONFIG_1[38] WWAN_CONFIG_2[38]

LANLINK_STATUS[32]

+1.8V_DEEP_SUS

PCI_3S_SERIRQ[45]

R218 0_4 R610 0_4

R611 0_4 R609 0_4

R607 0_4

TPM_PIRQ# WWAN_CONFIG_1 WWAN_CONFIG_2 LANLINK_STATUS

AW3 AW2

AW13

AY11

AV2 AV3 AU4

AU3 AU2 AU1

M2 M3

J4 V1 V2

M1

G3 G2 G1

U25E

SPI0_CLK SPI0_MISO SPI0_MOSI SPI0_IO2 SPI0_IO3 SPI0_CS0# SPI0_CS1# SPI0_CS2#

GPP_D1/SPI1_CLK GPP_D2/SPI1_MISO GPP_D3/SPI1_MOSI GPP_D21/SPI1_IO2 GPP_D22/SPI1_IO3 GPP_D0/SPI1_CS#

CL_CLK CL_DATA CL_RST#

GPP_A0/RCIN# GPP_A6/SERIRQ

*SKL_ULT

REV = 1

SPI - FLASH

SPI - TOUCH

C LINK

4

?

SKL_ULT

LPC

5 OF 20

PDC

Need apply PN

SMBUS, SMLINK

GPP_A14/SUS_STAT#/ESPI_RESET#

GPP_C0/SMBCLK

GPP_C1/SMBDATA

GPP_C2/SMBALERT#

GPP_C3/SML0CLK

GPP_C4/SML0DATA

GPP_C5/SML0ALERT#

GPP_C6/SML1CLK

GPP_C7/SML1DATA

GPP_B23/SML1ALERT#/PCHHOT#

GPP_A1/LAD0/ESPI_IO0 GPP_A2/LAD1/ESPI_IO1 GPP_A3/LAD2/ESPI_IO2 GPP_A4/LAD3/ESPI_IO3

GPP_A5/LFRAME#/ESPI_CS#

GPP_A9/CLKOUT_LPC0/ESPI_CLK

GPP_A10/CLKOUT_LPC1

GPP_A8/CLKRUN#

3

R7

PCH_SMB_CLK

R8

PCH_SMB_DATA

R10

TLS_ENCRYPTION

R9

SMB_ME0_CLK

W2

SMB_ME0_DAT

W1 W3

SMB_PCH_CLK

V3

SMB_PCH_DAT

AM7

GPP_B23 TPM_PIRQ#

R7749 *0_4

AY13

LAD0_L

BA13

LAD1_L

BB13

LAD2_L

AY12

LAD3_L

BA12 BA11

ESPI_RESET#

AW9

CLK_PCI_EC_R

AY9

CLK_PCI_LPC_R

AW11

CLKRUN#

?

ESPI_LPC#

R620 15_4 R621 15_4 R633 15_4 R634 15_4

R636 *0_4/S

SMB_PCH_CLK [45] SMB_PCH_DAT [45]

LPC_ESPI_RESET# [44,45]

R624 22/F_4

C234

15P/50V_4

EC

LAD0 [44,45] LAD1 [44,45] LAD2 [44,45] LAD3 [44,45]

LFRAME# [37,44,45]

LPC_ESPI_CLK [37,44,45]

TP71

2

SMB_PCH_CLK SMB_PCH_DAT

SMB_ME0_CLK SMB_ME0_DAT

PCH_SMB_CLK PCH_SMB_DATA

LANLINK_STATUS

TPM_PIRQ#

TLS_ENCRYPTION WWAN_CONFIG_1 WWAN_CONFIG_2

GPP_B23

PCI_3S_SERIRQ GPP_A11 SUSWARN#

CLKRUN#

ESPI_LPC# ESPI_RESET#

R551 10K_4

R548 *10K_4

R137 1K/F_4

R568 10K_4 R565 10K_4

R7751 150K/F_4

R622 10K_4

R292 *100K/F_4

R298 *10K_4

R638 *8.2K/F_4 R637 *10K_4

Rg

R61 10K_4 R67 *10K_4 R623 100K_4

R5732.2K_4 R5692.2K_4

R142499/F_4 R574499/F_4

R682.2K_4 R622.2K_4

1

+3V_DEEP_SUS

+1.8V_DEEP_SUS

+3V_DEEP_SUS

Rh

03

5

2 6

GPP_B12/SLP_S0#

GPD4/SLP_S3# GPD5/SLP_S4#

GPD10/SLP_S5#

SLP_SUS# SLP_LAN#

GPD9/SLP_WLAN#

GPD6/SLP_A#

GPD3/PWRBTN#

GPD1/ACPRESENT

GPD0/BATLOW#

GPP_A11/PME#

INTRUDER#

PCI_PLTRST# [31,32,34,37,38,46]

+3V

PCH_SMB_CLK

PCH_SMB_DATA

AT11 AP15 BA16 AY16

AN15 AW15 BB17 AN16

BA15 AY15 AU13

AU11 AP16

AM10 AM11

?

PCH_SLP_SUS# SLP_LAN#_C

SLP_WLAN_PCH#

PM_SLP_A#

GPP_A11 SM_INTRUDER#

EXT_PWR_GATE#

GPP_B2

VRPPM_SLP_S0_N

R259 *0_4

PWR_BTN_OUT# ADP_PRES_OUT BATLOW#

VRPPM_SLP_S0_N [44,58] SLP_S3#_3R [44,46,58,63] SLP_S4#_3R [31,35,44,46,48,53,58]

SLP_S5#_3R [44]

SLP_LAN# [45]

TP68

PM_SLP_A# [44,45,63]

PWR_BTN_OUT# [46]

ADP_PRES_OUT [45]

BATLOW# [45,46]

R3251M_4

EXT_PWR_GATE# [48]

PCH_SLP_SUS# [46]

+3V_RTC

SM_INTRUDER# [38]

System PWR_OK(CLG)

R510 *0_4

+3V_DEEP_SUS [4,5,6,8,10,28,37,44,45,47,55,58,63] +3VPCU [10,33,37,38,40,41,42,44,45,46,48,49,51,52,53,55,58,60,62,63] +3V [2,4,5,7,8,9,10,16,17,18,19,20,24,26,27,28,29,30,31,32,33,34,36,38,42,44,45,47,51,56,58,59,63] +VCCSFR [2,9,11,13,45] +3V_RTC [9,10,45]

PM_PWROKPCH_PWROK

2

PCI_3S_SERIRQ

R7750 *10K_4

PCH Pull-high/low(CLG)

BATLOW# ADP_PRES_OUT

INTLWAKE# PCH_WAKE# PCH_WAKE#_R

SUSACK# GPP_B2

For DS3 Sequence

DPWROK[46,63]

NB5

R140 10K_4 R157 100K/F_4 R799 10K/F_4 R800 10K/F_4 R151 *100K/F_4

R286 *100K/F_4

R200 *100K/F_4

For DS3 -->Ra Non-DS3 -->Rb

DPWROK

Rb

Ra

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

03 -- SKYLAKE (SPI/LPC/SMB/PM)

Date: Sheet of

+3V

+3V_DEEP_SUS

1

+3VPCU

1A

3 65Thursday, May 12, 2016

2 1

R7747 0_4

DPWROK

Q7A 2N7002KDW

5 2

6 1

2N7002KDW Q7B

+3V

U1 *MC74VHC1G08DFT2G

4

3 5

PLTRST#[8,18,34]

XDP_DBRESET#[44]

RSMRST#[46]

PM_PWROK[46]

PCH_WAKE#[32,37,38,45]

+VCCSFR

R52 1K/F_4

34

H_VCCST_PWRGD

PWR_GOOD_3

PCH_PWROK

R2 *470K_4

PLTRST# XDP_DBRESET#

R489 *10K_4

H_VCCST_PWRGD PM_PWROK

PCH_PWROK

R789 0_4

PWR_GOOD_3 [46,48,63]

DDR/DRAM/GPU/Touch PAD

PCH_SMBCLK[16,17,27,47]

PCH_SMBDATA[16,17,27,47]

U25K

Ri

AN10

GPP_B13/PLTRST#

B5

SYS_RESET#

H_PWRGD

SUSWARN# SUSACK#

PCH_WAKE#_R

PLTRST#

AY17

RSMRST#

A68

PROCPWRGD

B65

VCCST_PWRGD

B6

SYS_PWROK

BA20

PCH_PWROK

BB20

DSW_PWROK

AR13

GPP_A13/SUSWARN#/SUSPWRDNACK

AP11

GPP_A15/SUSACK#

BB15

WAKE#

AM15

GPD2/LAN_WAKE#

AW17

GPD11/LANPHYPC

AT15

GPD7/RSVD

*SKL_ULT

REV = 1

RSMRST#

R491 60.4/F_4

DPWROK

R266*0_4

INTLWAKE#

4

R63 2.2K_4

+3V

R74 2.2K_4

+3V

SKL_ULT

SYSTEM POWER MANAGEMENT

+3V

C280

0.1U/10V/X7R_4

U13

2 1

R347 *0_4

4

MC74VHC1G08DFT2G

3 5

?

11 OF 20

PCI_PLTRST#

Q11

4 3

1

2N7002DW

Need apply PN

GPP_B11/EXT_PWR_GATE#

GPP_B2/VRALERT#

R348 20K/F_4

3

C C

VCCIO_PG[55,63]

R7746 0_4

PVCORE_PG[56]

B B

R243 100K/F_4

A A

+3V_DEEP_SUS

R38 4.7K/F_4

5

4

3

2

1

Skylake (GPIO)

?

U25F

LPSS ISH

NFC_DWL_REQ

TP26

CR_RST#[31]

D D

FPR_OFF[24]

HDD_HALTLED[31]

ACCEL_INT[36]

C C

CAMERA_ON[26] NMI_SMI_DBG#[44,46]

IR_ENABLE[26]

UART0_RXD[44] UART0_TXD[44] FPR_LOCK#[24]

TP19

FPR_OFF HDD_HALTLED ACCEL_INT

TP1039 TP1040

TP15

TP20

GPP_B16 CR_RST# IR_ENABLE

CAMERA_ON NMI_SMI_DBG# NFC_HOST_INT BOOT_SPI#

UART0_RXD UART0_TXD

FPR_LOCK#

UART0_CTS#

R167 1K/F_4

RUNSCI_EC#

GPP_C16 GPP_C17

GPP_C19

GPP_F8 GPP_F9

AN8

GPP_B15/GSPI0_CS#

AP7

GPP_B16/GSPI0_CLK

AP8

GPP_B17/GSPI0_MISO

AR7

GPP_B18/GSPI0_MOSI

AM5

GPP_B19/GSPI1_CS#

AN7

GPP_B20/GSPI1_CLK

AP5

GPP_B21/GSPI1_MISO

AN5

GPP_B22/GSPI1_MOSI

AB1

GPP_C8/UART0_RXD

AB2

GPP_C9/UART0_TXD

W4

GPP_C10/UART0_RTS#

AB3

GPP_C11/UART0_CTS#

AD1

GPP_C20/UART2_RXD

AD2

GPP_C21/UART2_TXD

AD3

GPP_C22/UART2_RTS#

AD4

GPP_C23/UART2_CTS#

U7

GPP_C16/I2C0_SDA

U6

GPP_C17/I2C0_SCL

U8

GPP_C18/I2C1_SDA

U9

GPP_C19/I2C1_SCL

AH9

GPP_F4/I2C2_SDA

AH10

GPP_F5/I2C2_SCL

AH11

GPP_F6/I2C3_SDA

AH12

GPP_F7/I2C3_SCL

AF11

GPP_F8/I2C4_SDA

AF12

GPP_F9/I2C4_SCL

*SKL_ULT

REV = 1

SKL_ULT

GPP_D13/ISH_UART0_RXD/SML0BDATA/I2C4B_SDA

GPP_D14/ISH_UART0_TXD/SML0BCLK/I2C4B_SCL

6 OF 20

Need apply PN

GPP_D9 GPP_D10 GPP_D11 GPP_D12

GPP_D5/ISH_I2C0_SDA GPP_D6/ISH_I2C0_SCL

GPP_D7/ISH_I2C1_SDA GPP_D8/ISH_I2C1_SCL

GPP_F10/I2C5_SDA/ISH_I2C2_SDA

GPP_F11/I2C5_SCL/ISH_I2C2_SCL

GPP_D15/ISH_UART0_RTS#

GPP_D16/ISH_UART0_CTS#/SML0BALERT#

GPP_C12/UART1_RXD/ISH_UART1_RXD

GPP_C13/UART1_TXD/ISH_UART1_TXD GPP_C14/UART1_RTS#/ISH_UART1_RTS# GPP_C15/UART1_CTS#/ISH_UART1_CTS#

GPP_A18/ISH_GP0 GPP_A19/ISH_GP1 GPP_A20/ISH_GP2 GPP_A21/ISH_GP3 GPP_A22/ISH_GP4 GPP_A23/ISH_GP5

GPP_A12/BM_BUSY#/ISH_GP6

P2 P3

GPP_D10

P4 P1

M4 N3

N1 N2

AD11 AD12

U1 U2 U3 U4

AC1 AC2 AC3 AB4

AY8 BA8 BB7 BA7 AY7 AW7 AP13

?

NFC_DWL_REQ

WWAN_TRANSMIT_OFF#

GPP_D12 CR_PWREN#

GPP_F10 GPP_F11

BT_OFF MSATA_DET MPHY_PWREN WWANSSD_M2

PCH_LAN_RST# PCH_WLAN_RST# PCH_SLP_S0IX# GPP_C15

GPP_A18 GPP_A19 SWD_CLK_PCH SWD_IO_PCH SWD_XRES_PCH

ISH_GP6

R304 0_4

Rc

R206 *100K_4

R207 100K_4

Rd

TP51 TP1046

TP18

+3V_DEEP_SUS

WWAN_TRANSMIT_OFF# [33,38]

CR_PWREN# [31]

BT_OFF [37] MSATA_DET [43]

WWANSSD_M2 [38]

PCH_SLP_S0IX# [45]

TP60

SWD_CLK_PCH [49]

SWD_IO_PCH [49]

SWD_XRES_PCH [49]

SX_EXIT_HOLDOFF# [45]

GPIO Pull-up/Pull-down(CLG)

R285 *10K_4

BT_OFF WWAN_TRANSMIT_OFF# CR_PWREN# MSATA_DET WWANSSD_M2

PCH_LAN_RST# PCH_WLAN_RST# GPP_D14

RUNSCI_EC# CR_RST# FPR_OFF PCH_SLP_S0IX# IR_ENABLE CAMERA_ON NMI_SMI_DBG# MPHY_PWREN ACCEL_INT HDD_HALTLED

GPP_A18 GPP_A19

ISH_GP6

R555 *10K_4 R556 100K/F_4 R284 10K_4 R563 10K_4 R566 10K_4

R583 100K/F_4 R582 100K/F_4

R560 100K/F_4

R183 *10K_4 R282 10K_4

R184 10K_4 R581 100K_4 R290 10K_4 R14 10K_4 R612 10K_4 R562 10K_4 R359 8.2K/F_4

R350 10K_4

R629 *100K/F_4 R625 *100K/F_4

R305 *100K/F_4

Codec table

B B

R206 R207

UNINSTAL

UNINSTALINSTAL

INSTAL

CX7700 CX7501

GPP_F8 GPP_F10

NMI_SMI_DBG# BOOT_SPI# NFC_HOST_INT

MPHY_PWREN

R191 *100K_4 R190 *100K_4

C9186 *0.1U/16V_4

R202 10K_4

R201 10K_4 R480 *10K_4

04

+3V_DEEP_SUS

+3V

+1.8V_DEEP_SUS

+1.8V

A A

+3V[2,3,5,7,8,9,10,16,17,18,19,20,24,26,27,28,29,30,31,32,33,34,36,38,42,44,45,47,51,56,58,59,63]

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

04 -- SKYLAKE (GPIO)

NB5

5

4

3

2

NB5

04 -- SKYLAKE (GPIO)

Date: Sheet of

1

1A

4 65Thursday, May 12, 2016

5

4

3

2

1

BRD_ID1 BRD_ID2 BRD_ID3 BRD_ID4 GPIO201

GPIO202 GPIO203 GPIO204 GPIO34 GPIO35 GPIO40GPIO14

GPIO15 GPIO34 GPIO35 GPIO40

BOARD REVISION

D D

GPIO76 GPIO77 GPIO78 GPIO79

DB0 DB1 DB2

0 0 0 0 0 0 0 1 0 0 1 0 0 0 1 1

SI1 SIB SI2

0 1 0 0 0 1 0 1 0 1 1 0 0 1 1 1

Pre-PV PV

1 0 0 0 1 0 0 1 1 0 1 0 1 10 1

MV1

1 1 0 0

111 0

C C

HDMI eDP/LVDS

VGA

B B

eDP_COMPIO and ICOMPO signals should be shorted near balls and routed with typical impedance <25 mohms

AMD_FCH PPMT LPI-H LPT-LP

111 0

C38 D38 C36 D36

C31 D31 C33 D33

C28 D28

C27 D27

A36 B36

A38 B38

A31 B31 A33 B33

A29 B29

A27 B27

U25I

CSI-2

CSI2_DN0 CSI2_DP0 CSI2_DN1 CSI2_DP1 CSI2_DN2 CSI2_DP2 CSI2_DN3 CSI2_DP3

CSI2_DN4 CSI2_DP4 CSI2_DN5 CSI2_DP5 CSI2_DN6 CSI2_DP6 CSI2_DN7 CSI2_DP7

CSI2_DN8 CSI2_DP8 CSI2_DN9 CSI2_DP9 CSI2_DN10 CSI2_DP10 CSI2_DN11 CSI2_DP11

*SKL_ULT

1111

U25A

+VCC_IO

DPB_DDCDATA[29]

GPU_EVENT#[21]

WLAN_LED_EN[33]

IN_D2#[29] IN_D2[29] IN_D1#[29] IN_D1[29] IN_D0#[29] IN_D0[29] IN_CLK#[29] IN_CLK[29]

DDI2_TX0_N[27] DDI2_TX0_P[27] DDI2_TX1_N[27] DDI2_TX1_P[27]

DPB_DDCCLK[29]

R97 24.9/F_4

IN_D2# IN_D2 IN_D1# IN_D1 IN_D0# IN_D0 IN_CLK# IN_CLK

DDI2_TX0_N DDI2_TX0_P DDI2_TX1_N DDI2_TX1_P

DPB_DDCCLK DPB_DDCDATA

DPC_DDCCLK DPC_DDCDATA

GPU_EVENT# WLAN_LED_EN

eDP_RCOMP

E55

DDI1_TXN[0]

F55

DDI1_TXP[0]

E58

DDI1_TXN[1]

F58

DDI1_TXP[1]

F53

DDI1_TXN[2]

G53

DDI1_TXP[2]

F56

DDI1_TXN[3]

G56

DDI1_TXP[3]

C50

DDI2_TXN[0]

D50

DDI2_TXP[0]

C52

DDI2_TXN[1]

D52

DDI2_TXP[1]

A50

DDI2_TXN[2]

B50

DDI2_TXP[2]

D51

DDI2_TXN[3]

C51

DDI2_TXP[3]

L13

GPP_E18/DDPB_CTRLCLK

L12

GPP_E19/DDPB_CTRLDATA

N7

GPP_E20/DDPC_CTRLCLK

N8

GPP_E21/DDPC_CTRLDATA

N11

GPP_E22/DDPD_CTRLCLK

N12

GPP_E23/DDPD_CTRLDATA

E52

EDP_RCOMP

*SKL_ULT

REV = 1

SKL_ULT

DDI

DISPLAY SIDEBANDS

?

GPP_F13/EMMC_DATA0 GPP_F14/EMMC_DATA1 GPP_F15/EMMC_DATA2 GPP_F16/EMMC_DATA3 GPP_F17/EMMC_DATA4 GPP_F18/EMMC_DATA5 GPP_F19/EMMC_DATA6 GPP_F20/EMMC_DATA7

PDC

9 OF 20

?

1 OF 20

CSI2_CLKN0

CSI2_CLKP0

CSI2_CLKN1

CSI2_CLKP1

CSI2_CLKN2

CSI2_CLKP2

CSI2_CLKN3

CSI2_CLKP3 CSI2_COMP

GPP_D4/FLASHTRIG

EMMC

GPP_F21/EMMC_RCLK

GPP_F22/EMMC_CLK

GPP_F12/EMMC_CMD

EMMC_RCOMP

?

EDP

EDP_DISP_UTIL

GPP_E13/DDPB_HPD0 GPP_E14/DDPC_HPD1 GPP_E15/DDPD_HPD2 GPP_E16/DDPE_HPD3

GPP_E17/EDP_HPD

C37 D37 C32 D32 C29 D29 B26 A26

E13 B7

AP2 AP1 AP3 AN3 AN1 AN2 AM4 AM1

AM2 AM3 AP4

AT1

EDP_TXN[0] EDP_TXP[0] EDP_TXN[1] EDP_TXP[1] EDP_TXN[2] EDP_TXP[2] EDP_TXN[3] EDP_TXP[3]

EDP_AUXN EDP_AUXP

DDI1_AUXN DDI1_AUXP DDI2_AUXN DDI2_AUXP DDI3_AUXN DDI3_AUXP

EDP_BKLTEN

EDP_BKLTCTL

EDP_VDDEN

?

CR_WAKE#

BRD_ID2 BRD_ID3 BRD_ID4 PLT_ID1 PLT_ID2 PLT_ID3 SG_IN MD_ID1

MD_ID2 MD_ID3 BRD_ID1

C47 C46 D46 C45 A45 B45 A47 B47

E45 F45

B52 G50

F50 E48 F48 G46 F46

L9 L7 L6 N9 L10

R12 R11 U13

PLT_ID1

Ra Rb

INT_eDP_TXN0 INT_eDP_TXP0 INT_eDP_TXN1 INT_eDP_TXP1

INT_eDP_AUXN INT_eDP_AUXP

EDP_DISP_UTIL

INT_DDI2_AUXN INT_DDI2_AUXP

HDMI_HPD_CON

DDI_HPD_CON

RTD3_WAKE#

EXT_SMI#

ULT_EDP_HPD

PCH_LVDS_BLON

PCH_DPST_PWM

PCH_DISP_ON

CR_WAKE# [31]

TP65 TP64

TP63

0 0 0

INT_eDP_TXN0 [26] INT_eDP_TXP0 [26] INT_eDP_TXN1 [26] INT_eDP_TXP1 [26]

INT_eDP_AUXN [26] INT_eDP_AUXP [26]

TP8

CABLE_SIZE_DET[26]

PLT_ID2 PLT_ID3

Rc Re Rd Rf

00 0

1 0 1 1

INT_DDI2_AUXN [27] INT_DDI2_AUXP [27]

HDMI_HPD_CON [29] DDI_HPD_CON [27]

EXT_SMI# [45] ULT_EDP_HPD [26]

PCH_LVDS_BLON [26]

PCH_DPST_PWM [26]

PCH_DISP_ON [26]

+1.8V

Rc Re

CR_WAKE#

R605 100K_4 R603 *100K_4 R593 *100K_4 R592 *100K_4

Ra

R589 *100K_4 R590 *100K_4 R591 100K_4

CABLE_SIZE_DET

R588 10K_4

R525 10K_4

BRD_ID1 BRD_ID2 BRD_ID3 BRD_ID4

PLT_ID1 PLT_ID2 PLT_ID3

SG_IN

H L

13.3" 14"0 1

15.6"

17.3"

DPB_DDCCLK DPB_DDCDATA DPC_DDCCLK DPC_DDCDATA

RTD3_WAKE# EXT_SMI# GPU_EVENT# WLAN_LED_EN

HDMI_HPD_CON DDI_HPD_CON

ULT_EDP_HPD

+3V

R604 *100K_4 R602 100K_4 R601 100K_4 R600 100K_4

R597 100K_4 R598 100K_4 R599 *100K_4

R596 *10K_4

DIS=1 UMA=0

R233 *10K_4 R214 *10K_4

+3V

R1292.2K_4 R1302.2K_4

R553100K_4 R119100K_4 R118100K_4

R136*100K/F_4

R217 *100K_4 R437 100K_4

R87 *10K_4

Rb Rd Rf

SG_IN

R588 (Default) R596

UNINSTAL

+3V

+3V_DEEP_SUS

05

SG_IN

R88 100K_4

A A

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

05 -- SKYLAKE (eDP/DDI/Board ID)

NB5

5

4

3

2

NB5

05 -- SKYLAKE (eDP/DDI/Board ID)

Date: Sheet of

1

1A

5 65Thursday, May 12, 2016

5

M_A_DQ[63:0][16]

M_B_DQ[63:0][17]

M_A_DQSN[7:0][16]

M_A_DQSP[7:0][16]

M_B_DQSN[7:0][17]

M_B_DQSP[7:0][17]

?

D D

C C

B B

A A

M_A_DQ0 M_A_DQ1 M_A_DQ2 M_A_DQ3 M_A_DQ4 M_A_DQ5 M_A_DQ6 M_A_DQ7 M_A_DQ8 M_A_DQ9 M_A_DQ10 M_A_DQ11 M_A_DQ12 M_A_DQ13 M_A_DQ14 M_A_DQ15 M_A_DQ32 M_A_DQ33 M_A_DQ50 M_A_DQ34 M_A_DQ35 M_A_DQ36 M_A_DQ37 M_A_DQ38 M_A_DQ39 M_A_DQ40 M_A_DQ41 M_A_DQ42 M_A_DQ43 M_A_DQ44 M_A_DQ45 M_A_DQ46 M_A_DQ47 M_B_DQ0 M_B_DQ1 M_B_DQ2 M_B_DQ3 M_B_DQ4 M_B_DQ5 M_B_DQ6 M_B_DQ7 M_B_DQ8 M_B_DQ9 M_B_DQ10 M_B_DQ11 M_B_DQ12 M_B_DQ13 M_B_DQ14 M_B_DQ15 M_B_DQ32 M_B_DQ33 M_B_DQ34 M_B_DQ35 M_B_DQ36 M_B_DQ37 M_B_DQ38 M_B_DQ39 M_B_DQ40 M_B_DQ41 M_B_DQ42 M_B_DQ43 M_B_DQ44 M_B_DQ45 M_B_DQ46 M_B_DQ47

5

U25B

AL71

DDR0_DQ[0]

AL68

DDR0_DQ[1]

AN68

DDR0_DQ[2]

AN69

DDR0_DQ[3]

AL70

DDR0_DQ[4]

AL69

DDR0_DQ[5]

AN70

DDR0_DQ[6]

AN71

DDR0_DQ[7]

AR70

DDR0_DQ[8]

AR68

DDR0_DQ[9]

AU71

DDR0_DQ[10]

AU68

DDR0_DQ[11]

AR71

DDR0_DQ[12]

AR69

DDR0_DQ[13]

AU70

DDR0_DQ[14]

AU69

DDR0_DQ[15]

BB65

DDR0_DQ[16]/DDR0_DQ[32]

AW65

DDR0_DQ[17]/DDR0_DQ[33]

AW63

DDR0_DQ[18]/DDR0_DQ[34]

AY63

DDR0_DQ[19]/DDR0_DQ[35]

BA65

DDR0_DQ[20]/DDR0_DQ[36]

AY65

DDR0_DQ[21]/DDR0_DQ[37]

BA63

DDR0_DQ[22]/DDR0_DQ[38]

BB63

DDR0_DQ[23]/DDR0_DQ[39]

BA61

DDR0_DQ[24]/DDR0_DQ[40]

AW61

DDR0_DQ[25]/DDR0_DQ[41]

BB59

DDR0_DQ[26]/DDR0_DQ[42]

AW59

DDR0_DQ[27]/DDR0_DQ[43]

BB61

DDR0_DQ[28]/DDR0_DQ[44]

AY61

DDR0_DQ[29]/DDR0_DQ[45]

BA59

DDR0_DQ[30]/DDR0_DQ[46]

AY59

DDR0_DQ[31]/DDR0_DQ[47]

AY39

DDR0_DQ[32]/DDR1_DQ[0]

AW39

DDR0_DQ[33]/DDR1_DQ[1]

AY37

DDR0_DQ[34]/DDR1_DQ[2]

AW37

DDR0_DQ[35]/DDR1_DQ[3]

BB39

DDR0_DQ[36]/DDR1_DQ[4]

BA39

DDR0_DQ[37]/DDR1_DQ[5]

BA37

DDR0_DQ[38]/DDR1_DQ[6]

BB37

DDR0_DQ[39]/DDR1_DQ[7]

AY35

DDR0_DQ[40]/DDR1_DQ[8]

AW35

DDR0_DQ[41]/DDR1_DQ[9]

AY33

DDR0_DQ[42]/DDR1_DQ[10]

AW33

DDR0_DQ[43]/DDR1_DQ[11]

BB35

DDR0_DQ[44]/DDR1_DQ[12]

BA35

DDR0_DQ[45]/DDR1_DQ[13]

BA33

DDR0_DQ[46]/DDR1_DQ[14]

BB33

DDR0_DQ[47]/DDR1_DQ[15]

AY31

DDR0_DQ[48]/DDR1_DQ[32]

AW31

DDR0_DQ[49]/DDR1_DQ[33]

AY29

DDR0_DQ[50]/DDR1_DQ[34]

AW29

DDR0_DQ[51]/DDR1_DQ[35]

BB31

DDR0_DQ[52]/DDR1_DQ[36]

BA31

DDR0_DQ[53]/DDR1_DQ[37]

BA29

DDR0_DQ[54]/DDR1_DQ[38]

BB29

DDR0_DQ[55]/DDR1_DQ[39]

AY27

DDR0_DQ[56]/DDR1_DQ[40]

AW27

DDR0_DQ[57]/DDR1_DQ[41]

AY25

DDR0_DQ[58]/DDR1_DQ[42]

AW25

DDR0_DQ[59]/DDR1_DQ[43]

BB27

DDR0_DQ[60]/DDR1_DQ[44]

BA27

DDR0_DQ[61]/DDR1_DQ[45]

BA25

DDR0_DQ[62]/DDR1_DQ[46]

BB25

DDR0_DQ[63]/DDR1_DQ[47]

*SKL_ULT

REV = 1

SKL_ULT

DDR0_MA[12]/DDR0_CAA[6]/DDR0_MA[12] DDR0_MA[11]/DDR0_CAA[7]/DDR0_MA[11]

DDR0_MA[13]/DDR0_CAB[0]/DDR0_MA[13]

DDR0_MA[10]/DDR0_CAB[7]/DDR0_MA[10]

DDR CH - A

4

Need apply PN

DDR0_CKN[0] DDR0_CKP[0] DDR0_CKN[1] DDR0_CKP[1]

DDR0_CKE[0] DDR0_CKE[1] DDR0_CKE[2] DDR0_CKE[3]

DDR0_CS#[0] DDR0_CS#[1] DDR0_ODT[0]

4

DDR0_ODT[1]

DDR0_MA[3] DDR0_MA[4]

DDR0_DQSN[0] DDR0_DQSP[0] DDR0_DQSN[1] DDR0_DQSP[1]

DDR0_ALERT#

DDR0_PAR

DDR_VREF_CA DDR0_VREF_DQ DDR1_VREF_DQ

DDR_VTT_CNTL

DDR0_MA[5]/DDR0_CAA[0]/DDR0_MA[5] DDR0_MA[9]/DDR0_CAA[1]/DDR0_MA[9] DDR0_MA[6]/DDR0_CAA[2]/DDR0_MA[6] DDR0_MA[8]/DDR0_CAA[3]/DDR0_MA[8] DDR0_MA[7]/DDR0_CAA[4]/DDR0_MA[7] DDR0_BA[2]/DDR0_CAA[5]/DDR0_BG[0]

DDR0_MA[15]/DDR0_CAA[8]/DDR0_ACT# DDR0_MA[14]/DDR0_CAA[9]/DDR0_BG[1]

DDR0_CAS#/DDR0_CAB[1]/DDR0_MA[15]

DDR0_WE#/DDR0_CAB[2]/DDR0_MA[14]

DDR0_RAS#/DDR0_CAB[3]/DDR0_MA[16]

DDR0_BA[0]/DDR0_CAB[4]/DDR0_BA[0] DDR0_MA[2]/DDR0_CAB[5]/DDR0_MA[2] DDR0_BA[1]/DDR0_CAB[6]/DDR0_BA[1]

DDR0_MA[1]/DDR0_CAB[8]/DDR0_MA[1] DDR0_MA[0]/DDR0_CAB[9]/DDR0_MA[0]

DDR0_DQSN[2]/DDR0_DQSN[4] DDR0_DQSP[2]/DDR0_DQSP[4] DDR0_DQSN[3]/DDR0_DQSN[5] DDR0_DQSP[3]/DDR0_DQSP[5] DDR0_DQSN[4]/DDR1_DQSN[0] DDR0_DQSP[4]/DDR1_DQSP[0] DDR0_DQSN[5]/DDR1_DQSN[1] DDR0_DQSP[5]/DDR1_DQSP[1] DDR0_DQSN[6]/DDR1_DQSN[4] DDR0_DQSP[6]/DDR1_DQSP[4] DDR0_DQSN[7]/DDR1_DQSN[5] DDR0_DQSP[7]/DDR1_DQSP[5]

2 OF 20

3

2

SkyLake ULT Processor (DDR4)

?

SKL_ULT

U25C

AU53 AT53 AU55 AT55

BA56 BB56 AW56 AY56

AU45 AU43 AT45 AT43

BA51

M_A_A5

BB54

M_A_A9

BA52

M_A_A6

AY52

M_A_A8

AW52

M_A_A7

AY55

M_A_BG#0

AW54

M_A_A12

BA54

M_A_A11

BA55 AY54

AU46

M_A_A13

AU48 AT46 AU50 AU52 AY51

M_A_A2

AT48 AT50

M_A_A10

BB50

M_A_A1

AY50

M_A_A0

BA50

M_A_A3

BB52

M_A_A4

AM70

M_A_DQSN0

AM69

M_A_DQSP0

AT69

M_A_DQSN1

AT70

M_A_DQSP1

BA64

M_A_DQSN4

AY64

M_A_DQSP4

AY60

M_A_DQSN5

BA60

M_A_DQSP5

BA38

M_B_DQSN0 M_B_DQSN2

AY38

M_B_DQSP0

AY34

M_B_DQSN1

BA34

M_B_DQSP1

BA30

M_B_DQSN4

AY30

M_B_DQSP4

AY26

M_B_DQSN5

BA26

M_B_DQSP5

AW50 AT52

AY67 AY68

SMDDR_VREF_DQ0_M3

BA67

SMDDR_VREF_DQ1_M3

AW67

?

DDR_PG_CNTL

M_A_ALERT# M_A_PARITY

SM_VREF

20mils width

DDR_PG_CNTL

M_A_CLKN0 [16] M_A_CLKP0 [16] M_A_CLKN1 [16] M_A_CLKP1 [16]

M_A_CKE0 [16] M_A_CKE1 [16]

M_A_CS#0 [16] M_A_CS#1 [16] M_A_ODT0 [16] M_A_ODT1 [16]

M_A_A5 [16] M_A_A9 [16] M_A_A6 [16] M_A_A8 [16] M_A_A7 [16]

M_A_BG#0 [16]

M_A_A12 [16] M_A_A11 [16]

M_A_ACT# [16]

M_A_BG#1 [16]

M_A_A13 [16]

M_A_CAS# [16]

M_A_WE# [16]

M_A_RAS# [16] M_A_BS#0 [16] M_A_A2 [16] M_A_BS#1 [16] M_A_A10 [16] M_A_A1 [16] M_A_A0 [16] M_A_A3 [16] M_A_A4 [16]

R875 10K/F_4

M_A_ALERT# [16] M_B_ALERT# [17] M_A_PARITY [16]

SM_VREF [16]

TP127

SMDDR_VREF_DQ1_M3 [17]

+3V_DEEP_SUS

R876 10K/F_4

2

Q66 PMST3904_SOT-323

1 3

R877 100K/F_4

3

M_A_DQ16 M_A_DQ17 M_A_DQ18 M_A_DQ19 M_A_DQ20 M_A_DQ21 M_A_DQ22 M_A_DQ23 M_A_DQ24 M_A_DQ25 M_A_DQ26 M_A_DQ27 M_A_DQ28 M_A_DQ29 M_A_DQ30 M_A_DQ31 M_A_DQ48 M_A_DQ49

M_A_DQ51 M_A_DQ52 M_A_DQ53 M_A_DQ54 M_A_DQ55 M_A_DQ56 M_A_DQ57 M_A_DQ58 M_A_DQ59 M_A_DQ60 M_A_DQ61 M_A_DQ62 M_A_DQ63 M_B_DQ16 M_B_DQ17 M_B_DQ18 M_B_DQ19 M_B_DQ20 M_B_DQ21 M_B_DQ22 M_B_DQ23 M_B_DQ24 M_B_DQ25 M_B_DQ26 M_B_DQ27 M_B_DQ28 M_B_DQ29 M_B_DQ30 M_B_DQ31 M_B_DQ48 M_B_DQ49 M_B_DQ50 M_B_DQ51 M_B_DQ52 M_B_DQ53 M_B_DQ54 M_B_DQ55 M_B_DQ56 M_B_DQ57 M_B_DQ58 M_B_DQ59 M_B_DQ60 M_B_DQ61 M_B_DQ62 M_B_DQ63

AF65 AF64 AK65 AK64 AF66 AF67 AK67 AK66 AF70 AF68 AH71 AH68 AF71 AF69 AH70 AH69 AT66 AU66 AP65 AN65 AN66 AP66 AT65 AU65 AT61 AU61 AP60 AN60 AN61 AP61 AT60 AU60 AU40 AT40 AT37 AU37 AR40 AP40 AP37 AR37 AT33 AU33 AU30 AT30 AR33 AP33 AR30 AP30 AU27 AT27 AT25 AU25 AP27 AN27 AN25 AP25 AT22 AU22 AU21 AT21 AN22 AP22 AP21 AN21

+3V_DEEP_SUS

3

2

1

DDR1_DQ[0]/DDR0_DQ[16] DDR1_DQ[1]/DDR0_DQ[17] DDR1_DQ[2]/DDR0_DQ[18] DDR1_DQ[3]/DDR0_DQ[19] DDR1_DQ[4]/DDR0_DQ[20] DDR1_DQ[5]/DDR0_DQ[21] DDR1_DQ[6]/DDR0_DQ[22] DDR1_DQ[7]/DDR0_DQ[23] DDR1_DQ[8]/DDR0_DQ[24] DDR1_DQ[9]/DDR0_DQ[25] DDR1_DQ[10]/DDR0_DQ[26] DDR1_DQ[11]/DDR0_DQ[27] DDR1_DQ[12]/DDR0_DQ[28] DDR1_DQ[13]/DDR0_DQ[29] DDR1_DQ[14]/DDR0_DQ[30] DDR1_DQ[15]/DDR0_DQ[31] DDR1_DQ[16]/DDR0_DQ[48] DDR1_DQ[17]/DDR0_DQ[49] DDR1_DQ[18]/DDR0_DQ[50] DDR1_DQ[19]/DDR0_DQ[51] DDR1_DQ[20]/DDR0_DQ[52] DDR1_DQ[21]/DDR0_DQ[53] DDR1_DQ[22]/DDR0_DQ[54] DDR1_DQ[23]/DDR0_DQ[55] DDR1_DQ[24]/DDR0_DQ[56] DDR1_DQ[25]/DDR0_DQ[57] DDR1_DQ[26]/DDR0_DQ[58] DDR1_DQ[27]/DDR0_DQ[59] DDR1_DQ[28]/DDR0_DQ[60] DDR1_DQ[29]/DDR0_DQ[61] DDR1_DQ[30]/DDR0_DQ[62] DDR1_DQ[31]/DDR0_DQ[63] DDR1_DQ[32]/DDR1_DQ[16] DDR1_DQ[33]/DDR1_DQ[17] DDR1_DQ[34]/DDR1_DQ[18] DDR1_DQ[35]/DDR1_DQ[19] DDR1_DQ[36]/DDR1_DQ[20] DDR1_DQ[37]/DDR1_DQ[21] DDR1_DQ[38]/DDR1_DQ[22] DDR1_DQ[39]/DDR1_DQ[23] DDR1_DQ[40]/DDR1_DQ[24] DDR1_DQ[41]/DDR1_DQ[25] DDR1_DQ[42]/DDR1_DQ[26] DDR1_DQ[43]/DDR1_DQ[27] DDR1_DQ[44]/DDR1_DQ[28] DDR1_DQ[45]/DDR1_DQ[29] DDR1_DQ[46]/DDR1_DQ[30] DDR1_DQ[47]/DDR1_DQ[31] DDR1_DQ[48] DDR1_DQ[49] DDR1_DQ[50] DDR1_DQ[51] DDR1_DQ[52] DDR1_DQ[53] DDR1_DQ[54] DDR1_DQ[55] DDR1_DQ[56] DDR1_DQ[57] DDR1_DQ[58] DDR1_DQ[59] DDR1_DQ[60] DDR1_DQ[61] DDR1_DQ[62] DDR1_DQ[63]

*SKL_ULT

REV = 1

R874 10K/F_4

Q65 2N7002K

R873 *100K/F_4

Need apply PN

DDR1_MA[5]/DDR1_CAA[0]/DDR1_MA[5] DDR1_MA[9]/DDR1_CAA[1]/DDR1_MA[9] DDR1_MA[6]/DDR1_CAA[2]/DDR1_MA[6] DDR1_MA[8]/DDR1_CAA[3]/DDR1_MA[8] DDR1_MA[7]/DDR1_CAA[4]/DDR1_MA[7]

DDR1_BA[2]/DDR1_CAA[5]/DDR1_BG[0] DDR1_MA[12]/DDR1_CAA[6]/DDR1_MA[12] DDR1_MA[11]/DDR1_CAA[7]/DDR1_MA[11]

DDR1_MA[15]/DDR1_CAA[8]/DDR1_ACT# DDR1_MA[14]/DDR1_CAA[9]/DDR1_BG[1]

DDR1_MA[13]/DDR1_CAB[0]/DDR1_MA[13]

DDR1_CAS#/DDR1_CAB[1]/DDR1_MA[15]

DDR1_WE#/DDR1_CAB[2]/DDR1_MA[14]

DDR1_RAS#/DDR1_CAB[3]/DDR1_MA[16]

DDR1_BA[0]/DDR1_CAB[4]/DDR1_BA[0]

DDR1_MA[2]/DDR1_CAB[5]/DDR1_MA[2]

DDR1_BA[1]/DDR1_CAB[6]/DDR1_BA[1] DDR1_MA[10]/DDR1_CAB[7]/DDR1_MA[10]

DDR1_MA[1]/DDR1_CAB[8]/DDR1_MA[1] DDR1_MA[0]/DDR1_CAB[9]/DDR1_MA[0]

DDR1_DQSN[0]/DDR0_DQSN[2] DDR1_DQSP[0]/DDR0_DQSP[2] DDR1_DQSN[1]/DDR0_DQSN[3] DDR1_DQSP[1]/DDR0_DQSP[3] DDR1_DQSN[2]/DDR0_DQSN[6] DDR1_DQSP[2]/DDR0_DQSP[6] DDR1_DQSN[3]/DDR0_DQSN[7] DDR1_DQSP[3]/DDR0_DQSP[7] DDR1_DQSN[4]/DDR1_DQSN[2] DDR1_DQSP[4]/DDR1_DQSP[2] DDR1_DQSN[5]/DDR1_DQSN[3] DDR1_DQSP[5]/DDR1_DQSP[3]

DDR CH - B

DDR_VTT_PG_CTRL [48,53]

3 OF 20

PDC

2

DDR1_CKN[0] DDR1_CKN[1] DDR1_CKP[0] DDR1_CKP[1]

DDR1_CKE[0] DDR1_CKE[1] DDR1_CKE[2] DDR1_CKE[3]

DDR1_CS#[0] DDR1_CS#[1] DDR1_ODT[0] DDR1_ODT[1]

DDR1_MA[3] DDR1_MA[4]

DDR1_DQSN[6] DDR1_DQSP[6] DDR1_DQSN[7] DDR1_DQSP[7]

DDR1_ALERT#

DDR1_PAR DRAM_RESET# DDR_RCOMP[0] DDR_RCOMP[1] DDR_RCOMP[2]

1

06

AN45 AN46 AP45 AP46

AN56 AP55 AN55 AP53

BB42 AY42 BA42 AW42

AY48

M_B_A5

AP50

M_B_A9

BA48

M_B_A6

BB48

M_B_A8

AP48

M_B_A7

AP52 AN50

M_B_A12

AN48

M_B_A11

AN53 AN52

BA43

M_B_A13

AY43 AY44 AW44 BB44 AY47

M_B_A2

BA44 AW46

M_B_A10

AY46

M_B_A1

BA46

M_B_A0

BB46

M_B_A3

BA47

M_B_A4

AH66

M_A_DQSN2

AH65

M_A_DQSP2

AG69

M_A_DQSN3

AG70

M_A_DQSP3

AR66

M_A_DQSN6

AR65

M_A_DQSP6

AR61

M_A_DQSN7

AR60

M_A_DQSP7

AT38 AR38

M_B_DQSP2

AT32

M_B_DQSN3

AR32

M_B_DQSP3

AR25

M_B_DQSN6

AR27

M_B_DQSP6

AR22

M_B_DQSN7

AR21

M_B_DQSP7

AN43 AP43 AT13 AR18

SM_RCOMP_0

AT18

SM_RCOMP_1

AU18

SM_RCOMP_2

?

M_B_ALERT# M_B_PARITY

M_B_CLKN0 [17] M_B_CLKN1 [17] M_B_CLKP0 [17] M_B_CLKP1 [17]

M_B_CKE0 [17] M_B_CKE1 [17]

M_B_CS#0 [17] M_B_CS#1 [17] M_B_ODT0 [17] M_B_ODT1 [17]

M_B_A5 [17] M_B_A9 [17] M_B_A6 [17] M_B_A8 [17] M_B_A7 [17]

M_B_BG#0 [17]

M_B_A12 [17] M_B_A11 [17]

M_B_ACT# [17]

M_B_BG#1 [17]

M_B_A13 [17]

M_B_CAS# [17]

M_B_WE# [17]

M_B_RAS# [17] M_B_BS#0 [17] M_B_A2 [17] M_B_BS#1 [17] M_B_A10 [17] M_B_A1 [17] M_B_A0 [17] M_B_A3 [17] M_B_A4 [17]

R237 121/F_4 R870 80.6/F_4 R869 100/F_4

NB5

+1.2VSUS

R871 470_4

M_B_PARITY [17]

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

06 -- SKYLAKE (DDR3-A/B I/F)

Date: Sheet of

1

DDR3_DRAMRST# [16,17]

1A

6 65Thursday, May 12, 2016

1A

5

4

3

2

1

07

?

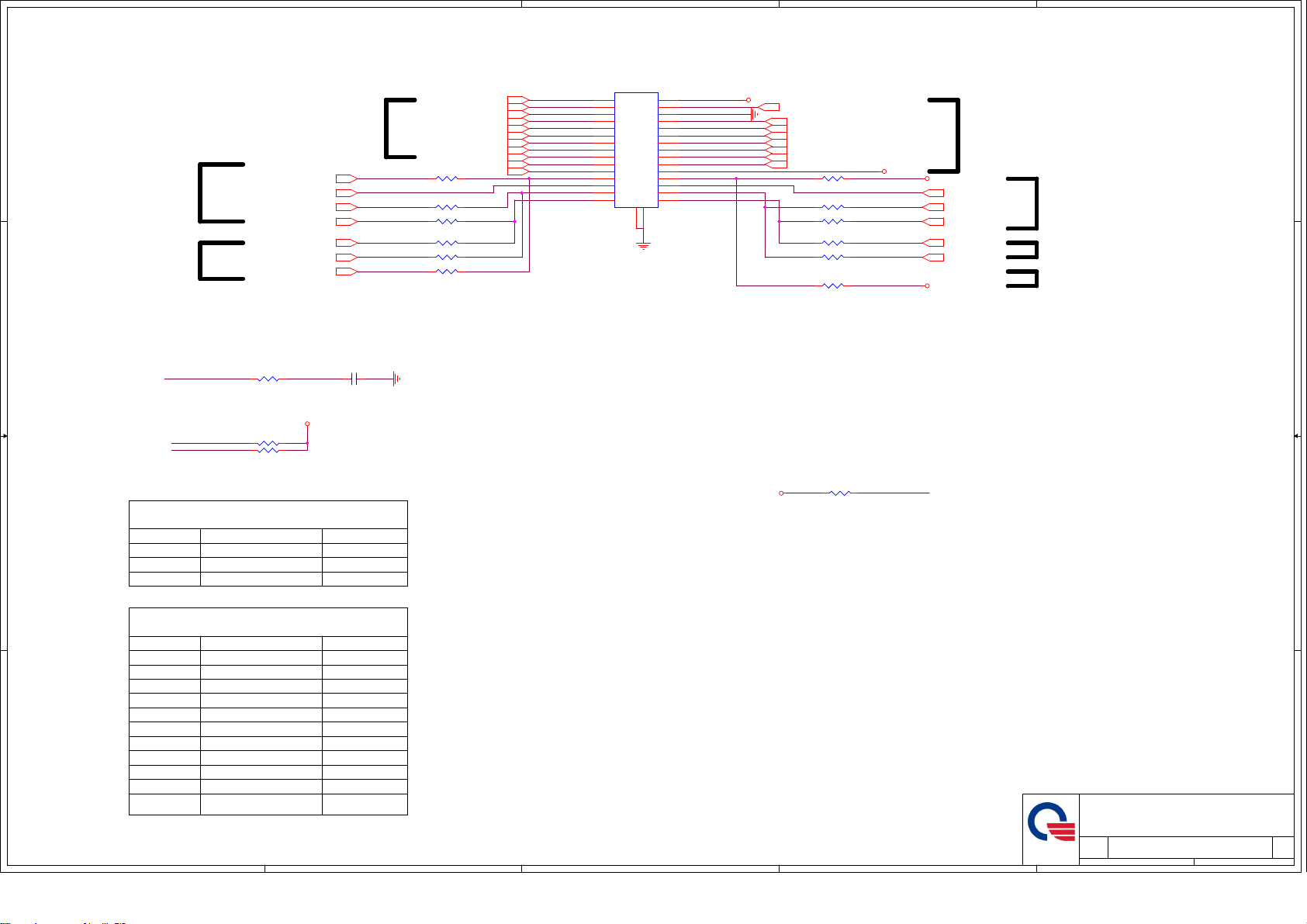

U25H

D D

PEG_RXN1[18] PEG_RXP1[18]

PEG_TXN1[18]

dGPU

LAN(NIC)

C C

WLAN

HDD

SSD

Cardreader

mSATA / NGFF (SATA4 6Gb/s)

B B

SSD

PEG_TXP1[18]

PEG_RXN2[18]

PEG_RXP2[18] PEG_TXN2[18] PEG_TXP2[18]

PEG_RXN3[18]

PEG_RXP3[18] PEG_TXN3[18] PEG_TXP3[18]

PEG_RXN4[18]

PEG_RXP4[18] PEG_TXN4[18] PEG_TXP4[18]

PCIE_RXN5_LAN[32] PCIE_RXP5_LAN[32]

PCIE_TXN5_LAN[32] PCIE_TXP5_LAN[32]

PCIE_RXN6_WLAN[37] PCIE_RXP6_WLAN[37]

PCIE_TXN6_WLAN[37] PCIE_TXP6_WLAN[37]

SATA_RXN7[43] SATA_RXP7[43]

SATA_TXN7[43] SATA_TXP7[43]

PCIE_RXN8_SSD[38] PCIE_RXP8_SSD[38]

PCIE_TXN8_SSD[38] PCIE_TXP8_SSD[38]

PCIE_RXN2_CARD[31]

PCIE_RXP2_CARD[31] PCIE_TXN2_CARD[31]

PCIE_TXP2_CARD[31]

PCIE_RXN11_SSD[38] PCIE_RXP11_SSD[38]

PCIE_TXN11_SSD[38]

PCIE_TXP11_SSD[38] PCIE_RXN12_SSD[38] PCIE_RXP12_SSD[38]

PCIE_TXN12_SSD[38]

PCIE_TXP12_SSD[38]

C609 0.22U/10V_4 C608 0.22U/10V_4

C628 0.22U/10V_4 C629 0.22U/10V_4

C626 0.22U/10V_4 C627 0.22U/10V_4

C624 0.22U/10V_4

C613 0.1U/16V_4 C614 0.1U/16V_4

C612 0.1U/16V_4 C611 0.1U/16V_4

C622 0.1U/16V_4 C623 0.1U/16V_4

R96 100/F_4

TP1025 TP1026

PEG_TXN1_C PEG_TXP1_C

PEG_TXN2_C PEG_TXP2_C

PEG_TXN3_C PEG_TXP3_C

PEG_TXN4_C PEG_TXP4_C

PCIE_RXN5_LAN PCIE_RXP5_LAN PCIE_TXN5_LAN_C PCIE_TXP5_LAN_C

PCIE_RXN6_WLAN PCIE_RXP6_WLAN PCIE_TXN6_WLAN_C PCIE_TXP6_WLAN_C

SATA_RXN7 SATA_RXP7 SATA_TXN7 SATA_TXP7

PCIE_RXN8_SSD PCIE_RXP8_SSD PCIE_TXN8_SSD PCIE_TXP8_SSD

PCIE_TXN2_CARD_C PCIE_TXP2_CARD_C

PCIE_RCOMPN PCIE_RCOMPP

H_PRDY# DGPU_PRSNT# H_PREQ# PIRQA#

PCIE_RXN11_SSD PCIE_RXP11_SSD PCIE_TXN11_SSD

PCIE_TXP11_SSD PCIE_RXN12_SSD PCIE_RXP12_SSD PCIE_TXN12_SSD PCIE_TXP12_SSD

PCIE/USB3/SATA

H13

PCIE1_RXN/USB3_5_RXN

G13

PCIE1_RXP/USB3_5_RXP

B17

PCIE1_TXN/USB3_5_TXN

A17

PCIE1_TXP/USB3_5_TXP

G11

PCIE2_RXN/USB3_6_RXN

F11

PCIE2_RXP/USB3_6_RXP

D16

PCIE2_TXN/USB3_6_TXN

C16

PCIE2_TXP/USB3_6_TXP

H16

PCIE3_RXN

G16

PCIE3_RXP

D17

PCIE3_TXN

C17

PCIE3_TXP

G15

PCIE4_RXN

F15

PCIE4_RXP

B19

PCIE4_TXN

A19

PCIE4_TXP

F16

PCIE5_RXN

E16

PCIE5_RXP

C19

PCIE5_TXN

D19

PCIE5_TXP

G18

PCIE6_RXN

F18

PCIE6_RXP

D20

PCIE6_TXN

C20

PCIE6_TXP

F20

PCIE7_RXN/SATA0_RXN

E20

PCIE7_RXP/SATA0_RXP

B21

PCIE7_TXN/SATA0_TXN

A21

PCIE7_TXP/SATA0_TXP

G21

PCIE8_RXN/SATA1A_RXN

F21

PCIE8_RXP/SATA1A_RXP

D21

PCIE8_TXN/SATA1A_TXN

C21

PCIE8_TXP/SATA1A_TXP

E22

PCIE9_RXN

E23

PCIE9_RXP

B23

PCIE9_TXN

A23

PCIE9_TXP

F25

PCIE10_RXN

E25

PCIE10_RXP

D23

PCIE10_TXN

C23

PCIE10_TXP

F5

PCIE_RCOMPN

E5

PCIE_RCOMPP

D56

PROC_PRDY#

D61

PROC_PREQ#

BB11

GPP_A7/PIRQA#

E28

PCIE11_RXN/SATA1B_RXN

E27

PCIE11_RXP/SATA1B_RXP

D24

PCIE11_TXN/SATA1B_TXN

C24

PCIE11_TXP/SATA1B_TXP

E30

PCIE12_RXN/SATA2_RXN

F30

PCIE12_RXP/SATA2_RXP

A25

PCIE12_TXN/SATA2_TXN

B25

PCIE12_TXP/SATA2_TXP

*SKL_ULT

REV = 1

SKL_ULT

PDC

8 OF 20

Need apply PN

SSIC / USB3

USB3_2_RXN/SSIC_1_RXN USB3_2_RXP/SSIC_1_RXP USB3_2_TXN/SSIC_1_TXN

USB3_2_TXP/SSIC_1_TXP

USB3_3_RXN/SSIC_2_RXN USB3_3_RXP/SSIC_2_RXP USB3_3_TXN/SSIC_2_TXN

USB3_3_TXP/SSIC_2_TXP

USB2

USB2_VBUSSENSE

GPP_E9/USB2_OC0# GPP_E10/USB2_OC1# GPP_E11/USB2_OC2# GPP_E12/USB2_OC3#

GPP_E4/DEVSLP0 GPP_E5/DEVSLP1 GPP_E6/DEVSLP2

GPP_E0/SATAXPCIE0/SATAGP0 GPP_E1/SATAXPCIE1/SATAGP1 GPP_E2/SATAXPCIE2/SATAGP2

GPP_E8/SATALED#

USB3_1_RXN USB3_1_RXP USB3_1_TXN

USB3_1_TXP

USB3_4_RXN USB3_4_RXP USB3_4_TXN

USB3_4_TXP

USB2N_1

USB2P_1

USB2N_2

USB2P_2

USB2N_3

USB2P_3

USB2N_4

USB2P_4

USB2N_5

USB2P_5

USB2N_6

USB2P_6

USB2N_7

USB2P_7

USB2N_8

USB2P_8

USB2N_9

USB2P_9

USB2N_10 USB2P_10

USB2_COMP

USB2_ID

?

H8 G8 C13 D13

J6 H6 B13 A13

J10 H10 B15 A15

E10 F10 C15 D15

AB9 AB10

AD6 AD7

AH3 AJ3

AD9 AD10

AJ1 AJ2

AF6 AF7

AH1 AH2

AF8 AF9

AG1 AG2

AH7 AH8

AB6

USB_BIAS

AG3

USB2_ID

AG4

USB2_VBUSSENSE

A9

DGPU_HOLD_RST#

C9 D9

DGPU_PWR_EN#

B9

DGPU_PWROK

J1 J2 J3

H2

DOCK_ID1

H3

GPP_E1

G4

mSATA_DET#

H1

LED_3S_SATA#

USB30_RX1USB30_RX1+ USB30_TX1USB30_TX1+

USB30_RX2USB30_RX2+ USB30_TX2USB30_TX2+

USB30_RX3USB30_RX3+ USB30_TX3USB30_TX3+

USBP1USBP1+

USBP2USBP2+

USBP3-_TS USBP3+_TS

USBP4USBP4+

USBP6USBP6+

USBP7USBP7+

USBP8USBP8+

USBP-_IRCAMERA USBP+_IRCAMERA

USBP3-_WWAN USBP3+_WWAN

R174

113/F_4

DEVSLP0 DEVSLP1 DEVSLP2

USB30_RX1- [35]

USB30_RX1+ [35]

USB30_TX1- [35]

USB30_TX1+ [35] USB30_RX2- [50]

USB30_RX2+ [50]

USB30_TX2- [50]

USB30_TX2+ [50] USB30_RX3- [50]

USB30_RX3+ [50]

USB30_TX3- [50]

USB30_TX3+ [50]

USBP1- [35] USBP1+ [35]

USBP2- [50] USBP2+ [50]

R35110K_4

LED_3S_SATA# [31,38]

USB3.0 (M/B-1)

USB3.0 (Type-C)

USB2.0(M/B-1)

USB2.0(M/B-2)

USBP3-_TS [26] USBP3+_TS [26]

USBP4- [31]

Daugther Board

USBP4+ [31]

USBP6- [26] USBP6+ [26]

USBP7- [37] USBP7+ [37]

USBP8- [24] USBP8+ [24]

USBP-_IRCAMERA [26] USBP+_IRCAMERA [26]

USBP3-_WWAN [38] USBP3+_WWAN [38]

TIE TRACES TOGETHER CLOSE TO PINS WITH LENGTH TO RESISTOR

DGPU_HOLD_RST# [18]

DGPU_PWROK [20,61]

DEVSLP0 [43] DEVSLP1 [38] DEVSLP2 [38]

DOCK_ID1 [8]

TP48

mSATA_DET# [38]

+3V

Camera

FPR

(USBP1)

(USBP2)

TS

(USBP3_TS)

(USBP6)

BT

IR

WWAN DG require 112.5 ohm

(USBP4)

(USBP7) (USBP8) (USBP9 IR Camera) (USBP10_WWAN)

DGPU_PWR_EN#

DOCK_ID1 mSATA_DET#

DEVSLP0

DGPU_PWR_EN# DGPU_PWROK DGPU_HOLD_RST# DGPU_HOLD_RST#

PIRQA#

DGPU_PRSNT# DGPU_PWR_EN# USB2_ID USB2_VBUSSENSE

2

R521 100K_4

+3V

R673 10K_4

3

Q39

2N7002K

1

+3V

R541*10K_4 R328100K/F_4

R546*10K_4

R495*10K_4 R49710K_4 R496*10K_4

+1.8V_DEEP_SUS

R635100K/F_4C625 0.22U/10V_4

11/11 Change Net from +VCC_ESPI_LPC to +1.8V_DEEP_SUS

+3V

R498*10K_4

R52310K_4

R49410K_4 R7651K/F_4 R7661K/F_4

DGPU_PRSNT#

R4981=UMA R5230=DIS (Default)

DGPU_PWR_EN [19,60]

A A

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

+3V[2,3,4,5,8,9,10,16,17,18,19,20,24,26,27,28,29,30,31,32,33,34,36,38,42,44,45,47,51,56,58,59,63]

+3V_DEEP_SUS[3,4,5,6,8,10,28,37,44,45,47,55,58,63]

5

4

3

2

Size Document Number Rev Custom

Custom

07 -- SKYLAK (PCIE/USB)

NB5

07 -- SKYLAK (PCIE/USB)

Date: Sheet of

1

1A

7 65Thursday, May 12, 2016

5

4

3

2

1

SKL_ULT

U25G

AUDIO

HDA_SYNC/I2S0_SFRM HDA_BLK/I2S0_SCLK HDA_SDO/I2S0_TXD HDA_SDI0/I2S0_RXD HDA_SDI1/I2S1_RXD HDA_RST#/I2S1_SCLK GPP_D23/I2S_MCLK I2S1_SFRM I2S1_TXD

GPP_F1/I2S2_SFRM GPP_F0/I2S2_SCLK GPP_F2/I2S2_TXD GPP_F3/I2S2_RXD

GPP_D19/DMIC_CLK0 GPP_D20/DMIC_DATA0

GPP_D17/DMIC_CLK1 GPP_D18/DMIC_DATA1

GPP_B14/SPKR

*SKL_ULT

ACZ_SDO

3

Q25

1

REV = 1

2

ACZ_SDOUT_G

R311

10K_4

GC6_FB_EN

ACZ_SDOUT

BA22 AY22 BB22 BA21 AY21

AW22

AY20

AW20

AK7 AK6 AK9

AK10

AW5

2N7002K

J5

H5 D7

D8 C8

ACZ_SYNC ACZ_BCLK ACZ_SDO

ACZ_RST# GPP_D23

GPP_F1 AMD_VBIOS_SEL# GPP_F2 GPP_F3

GPP_D19 GPP_D20

WLAN_TRANSMIT_OFF#

A_3S_ICHSPKR

R312 33_4

WLAN_TRANSMIT_OFF#[37]

ACZ_SDOUT_AUDIO[30]

R631 33_4 R645 33_4

R619 33_4

GC6_FB_EN[19,21]

A_3S_ICHSPKR[30]

TP22

ACZ_SYNC_AUDIO

BIT_CLK_AUDIO[30]

D D

C C

ACZ_RST#_AUDIO[30]

C661 22P/50V_4

ACZ_SDIN0[30]

?

GPP_D19 GPP_D20

SDIO/SDXC

GPP_G0/SD_CMD GPP_G1/SD_DATA0 GPP_G2/SD_DATA1 GPP_G3/SD_DATA2 GPP_G4/SD_DATA3

GPP_G5/SD_CD#

GPP_G6/SD_CLK

GPP_A17/SD_PW R_EN#/ISH_GP7

7 OF 20

+5V

GPP_G7/SD_W P

GPP_A16/SD_1P8_SEL

?

SD_RCOMP

GPP_F23

AB11 AB13 AB12 W12 W11 W10 W8 W7

BA9 BB9

AB7

AF13

GPP_G0 SATA_ODD_DA

GPP_G3

GPP_A17 GPP_A16

ESDIO_RCOMP

GPP_F23

TP67

R175 200/F_4

DOCK_ID1[7]

GPP_G0 GPP_G3

GPP_A17

GPP_F1 GPP_F2 GPP_F23

AMD_VBIOS_SEL#

DOCK_ID1

GC6_FB_EN SATA_ODD_DA GPP_D23

R507 100K/F_4 R493 100K/F_4 R159 100K/F_4 R160 100K/F_4

R639 *100K/F_4

R196 *100K/F_4 R189 *100K/F_4 R188 100K/F_4 R192 *10K_4

R595 *10K_4 R594 10K_4

R542 *10K_4 R543 10K_4

R578 8.2K/F_4 R82 100K/F_4

AMD_VBIOS_SEL#

+3V_DEEP_SUS

+1.8V_DEEP_SUS

R499*10K_4

DOCK_ID1

08

+1.8V

+3V

00= VBIOS 1 01 = VBIOS 2 (Reserve for new die) 10 = VBIOS 3 (Reserve for new die)

+3V_DEEP_SUS

11=UMA

R595,R542

B B

ME_UNLOCK#[46]

PLTRST#[3,18,34]

A A

5

4

R343 1K/F_4

2

1

3 1

3

ACZ_SDO

Q31 ME2303T1

Q29 ME2303T1

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

08 -- SKYLAKE (HDA)

NB5

3

2

NB5

08 -- SKYLAKE (HDA)

Date: Sheet of

1

1A

8 65Thursday, May 12, 2016

5

RTC Clock 32.768KHz

C402 15P/50V_4

D D

C394 15P/50V_4

XTAL24_IN XTAL24_OUT

C C

RTC Circuitry(RTC)

R794 47K/F_4

+3V_RTC_0

B B

12

CN20 BAT_CONN

DFHS02FS080

BAT-23_2-4_2

A A

Y2

32.768KHz

R509 1M_4

+3V_ALW

R180 1K/F_4

+3V_RTC_2

RTC Power trace width 20mils.

CFG4

R550 1K/F_4

RTC_X1

12

R319 10M_4

RTC_X2

TP41

C631 33P/50V_4

1

2

24MHZ +-30PPM Y4

4

3

C632 33P/50V_4

TP42

30mils

R795

1.5K/_4

+3V_RTC_1+3V_RTC_0

D8

BAT54C

1U/6.3V_4

+VCCSFR [2,3,11,13,45] +1.0V_DEEP_SUS [10,54,55,58] +3V [2,3,4,5,7,8,10,16,17,18,19,20,24,26,27,28,29,30,31,32,33,34,36,38,42,44,45,47,51,56,58,59,63]

5

+3V_RTC

R228 22K/F_4

+3V_RTC

R661 22K/F_4

C306

RTC_RST#

C328 1U/6.3V_4

SRTC_RST#

C673 1U/6.3V_4

Cardreader

C25 *10P/50V_4

C23 *10P/50V_4

SSD

LAN

WLAN

dGPU

C1023

0.1U/16V_4

4

CLK_PCIE_SSDN[38] CLK_PCIE_SSDP[38]

PCIE_CLKREQ_SSD#[38]

CLK_PCIE_CRN[31] CLK_PCIE_CRP[31]

PCIE_CLKREQ_CR#[31]

CLK_PCIE_LANN[32] CLK_PCIE_LANP[32]

PCIE_CLKREQ_LAN#[32]

CLK_PCIE_WLANN[37]

CLK_PCIE_WLANP[37]

PCIE_CLKREQ_WLAN#[37]

PCIE_REQ_GPU#[18]

R10 *0_4

R9 *0_4

RTC_RST# [44]

4

CLK_PCIE_SSDN CLK_PCIE_SSDP

PCIE_CLKREQ_SSD# CLK_PCIE_CRN

CLK_PCIE_CRP PCIE_CLKREQ_CR#

CLK_PCIE_LANN CLK_PCIE_LANP PCIE_CLKREQ_LAN#

CLK_PCIE_WLANN CLK_PCIE_WLANP PCIE_CLKREQ_WLAN#

CLK_GFX_N[18]

CLK_GFX_P[18]

CLK_GFX_N CLK_GFX_P PCIE_REQ_GPU#

PCIE_CLKREQ5#

CLK_PCIE_LANN CLK_PCIE_LANP

CFG0-19 need Reserve TP

TP1020

R86 49.9/F_4

TP1035

ITP_PMODE

D42 C42

AR10

B42 A42 AT7

D41 C41 AT8

D40 C40

AT10

B40 A40 AU8

E40 E38 AU7

CFG3 CFG4

CFG_RCOMP

3

U25J

CLKOUT_PCIE_N0 CLKOUT_PCIE_P0 GPP_B5/SRCCLKREQ0#

CLKOUT_PCIE_N1 CLKOUT_PCIE_P1 GPP_B6/SRCCLKREQ1#

CLKOUT_PCIE_N2 CLKOUT_PCIE_P2 GPP_B7/SRCCLKREQ2#

CLKOUT_PCIE_N3 CLKOUT_PCIE_P3 GPP_B8/SRCCLKREQ3#

CLKOUT_PCIE_N4 CLKOUT_PCIE_P4 GPP_B9/SRCCLKREQ4#

CLKOUT_PCIE_N5 CLKOUT_PCIE_P5 GPP_B10/SRCCLKREQ5#

*SKL_ULT

REV = 1

U25S

E68

CFG[0]

B67

CFG[1]

D65

CFG[2]

D67

CFG[3]

E70

CFG[4]

C68

CFG[5]

D68

CFG[6]

C67

CFG[7]

F71

CFG[8]

G69

CFG[9]

F70

CFG[10]

G68

CFG[11]

H70

CFG[12]

G71

CFG[13]

H69

CFG[14]

G70

CFG[15]

E63

CFG[16]

F63

CFG[17]

E66

CFG[18]

F66

CFG[19]

E60

CFG_RCOMP

E8

ITP_PMODE

AY2

RSVD_AY2

AY1

RSVD_AY1

D1

RSVD_D1

D3

RSVD_D3

K46

RSVD_K46

K45

RSVD_K45

AL25

RSVD_AL25

AL27

RSVD_AL27

C71

RSVD_C71

B70

RSVD_B70

F60

RSVD_F60

A52

RSVD_A52

BA70

RSVD_TP_BA70

BA68

RSVD_TP_BA68

J71

RSVD_J71

J68

RSVD_J68

F65

VSS_F65

G65

VSS_G65

F61

RSVD_F61

E61

RSVD_E61

*SKL_ULT

REV = 1

3

SKL_ULT

CLOCK SIGNALS

SKL_ULT

RESERVED SIGNALS-1

PDC

?

10 OF 20

?

19 OF 20

Need apply PN

CLKOUT_ITPXDP_N CLKOUT_ITPXDP_P

GPD8/SUSCLK

XTAL24_OUT

XCLK_BIASREF

SRTCRST#

RSVD_TP_BB68 RSVD_TP_BB69

RSVD_TP_AK13 RSVD_TP_AK12

RSVD_BB2 RSVD_BA3

RSVD_D5 RSVD_D4 RSVD_B2 RSVD_C2

RSVD_B3 RSVD_A3

RSVD_AW1

RSVD_E1 RSVD_E2

RSVD_BA4 RSVD_BB4

RSVD_A4 RSVD_C4

RSVD_A69

RSVD_B69 RSVD_AY3 RSVD_D71

RSVD_C70 RSVD_C54

RSVD_D54

VSS_AY71

RSVD_TP_AW71 RSVD_TP_AW70

PROC_SELECT#

XTAL24_IN

RTCX1 RTCX2

RTCRST#

TP5 TP6

TP4

TP1 TP2

ZVM#

MSM#

?

BB68 BB69

AK13 AK12

BB2 BA3

AU5 AT5

D5 D4 B2 C2

B3 A3

AW1 E1

E2 BA4

BB4 A4

C4 BB5 A69

B69 AY3 D71

C70 C54

D54 AY4

BB3 AY71

AR56 AW71

AW70 AP56

C64

F43 E43

BA17 E37

E35 E42 AM18

AM20 AN18

AM16

2

XTAL24_IN XTAL24_OUT

XCLK_BIASREF

RTC_X1 RTC_X2

SRTC_RST# RTC_RST#

R508 *100K_4

2

R117 2.7K/F_4

RTC_RST# [44]

TP1051

+1.8V_DEEP_SUS

+VCCSFR

1

SUSCLK32_KBC [46]

+1.0V_DEEP_SUS

TO KBC

CLK_REQ/Strap Pin(CLG)

PCIE_REQ_GPU# PCIE_CLKREQ5# PCIE_CLKREQ_WLAN# PCIE_CLKREQ_LAN# PCIE_CLKREQ_CR# PCIE_CLKREQ_SSD#

SKL_ULT

U25T

SPARE

RSVD_AW69 RSVD_AW68 RSVD_AU56 RSVD_AW48 RSVD_C7 RSVD_U12 RSVD_U11 RSVD_H11

*SKL_ULT

REV = 1

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

09 -- SKYLAKE (CLK/RSV/RTC)

Date: Sheet of

NB5

AW69 AW68

AU56

AW48

C7 U12 U11 H11

?

20 OF 20

R241 10K_4 R291 *10K_4 R229 10K_4 R260 10K_4 R262 10K_4 R242 10K_4

RSVD_F6

RSVD_E3 RSVD_C11 RSVD_B11 RSVD_A11 RSVD_D12 RSVD_C12 RSVD_F52

?

1

F6 E3 C11 B11 A11 D12 C12 F52

09

+3V

9 65Thursday, May 12, 2016

1A

5

4

3

2

1

10

D D

+1.0V_DEEP_SUS

PCH Internal VRM

C C

B B

+VCCDSW_1.0V

+1.0V_DEEP_SUS

+3VPCU

+3V_DEEP_SUS

+1.0V_DEEP_SUS

+3V_DEEP_SUS

+1.0V_DEEP_SUS

+3V

C578 1U/6.3V_4

C263 1U/6.3V_4 C224 0.1U/16V_4

C651 1U/6.3V_4

C198 1U/6.3V_4

C604 *1U/6.3V_4 C239 1U/6.3V_4 C251 *0.1U/16V_4 C216 0.1U/16V_4

C233 22U/6.3V_6

C433 1U/6.3V_4

C606 1U/6.3V_4

C57 1U/6.3V_4 C559 *1U/6.3V_4

C262 1U/6.3V_4 C603 *1U/6.3V_4 C238 0.1U/16V_4 C605 *0.1U/16V_4

+VCCPRIM

+VCCDSW_1.0V

C265 1U/6.3V_4

C290 *0.1U/16V_4

U25O

AB19

VCCPRIM_1P0

AB20

VCCPRIM_1P0

P18

VCCPRIM_1P0

AF18

VCCPRIM_CORE

AF19

VCCPRIM_CORE

V20

VCCPRIM_CORE

V21

VCCPRIM_CORE

AL1

DCPDSW_1P0

K17

VCCMPHYAON_1P0

L1

VCCMPHYAON_1P0

N15

VCCMPHYGT_1P0_N15

N16

VCCMPHYGT_1P0_N16

N17

VCCMPHYGT_1P0_N17

P15

VCCMPHYGT_1P0_P15

P16

VCCMPHYGT_1P0_P16

K15

VCCAMPHYPLL_1P0

L15

VCCAMPHYPLL_1P0

V15

VCCAPLL_1P0

AB17

VCCPRIM_1P0_AB17

Y18

VCCPRIM_1P0_Y18

AD17

VCCDSW_3P3_AD17

AD18

VCCDSW_3P3_AD18

AJ17

VCCDSW_3P3_AJ17

AJ19

VCCHDA

AJ16

VCCSPI

AF20

VCCSRAM_1P0

AF21

VCCSRAM_1P0

T19

VCCSRAM_1P0

T20

VCCSRAM_1P0

AJ21

VCCPRIM_3P3_AJ21

AK20

VCCPRIM_1P0_AK20

N18

VCCAPLLEBB

*SKL_ULT

REV = 1

CPU POWER 4 OF 4

SKL_ULT

0.696A

2.574A

22mA

2A

88mA 26mA

118mA

68mA 11mA

642mA

33mA

?

75mA

6mA 1mA

1mA

35mA 29mA 24mA 33mA 4mA 10mA

15 OF 20

20mA 4mA 6mA 8mA 6mA 161mA 41mA

VCCPRIM_3P3_V19

VCCPRIM_1P0_T1

VCCATS_1P8

VCCRTCPRIM_3P3

VCCRTC_AK19 VCCRTC_BB14

GPP_B0/CORE_VID0 GPP_B1/CORE_VID1

VCCPGPPA VCCPGPPB VCCPGPPC VCCPGPPD VCCPGPPE

VCCPGPPF

VCCPGPPG

DCPRTC VCCCLK1 VCCCLK2 VCCCLK3 VCCCLK4 VCCCLK5 VCCCLK6

AK15 AG15 Y16 Y15 T16 AF16 AD15

V19 T1 AA1 AK17 AK19

BB14 BB10

DCPRTC

A14

+VCCCLK1

K19

+VCCCLK2

L21

+VCCCLK3

N20

+VCCCLK4

L19

+VCCCLK5

A10

+VCCCLK6

AN11 AN13

?

+3V_DEEP_SUS

+1.8V_DEEP_SUS

C368

1U/6.3V_4

C657 0.1U/16V_4

+1.0V_DEEP_SUS

C558 22U/6.3V_6

+1.8V_DEEP_SUS

+3V_RTC

C401 0.1U/16V_4 C292 1U/6.3V_4

+1.8V_DEEP_SUS

+1.0V_DEEP_SUS

+3V_DEEP_SUS

C274

1U/6.3V_4

C266

0.1U/16V_4

A A

PROJECT:400 Series

+3V_DEEP_SUS [3,4,5,6,8,28,37,44,45,47,55,58,63] +3VPCU [3,33,37,38,40,41,42,44,45,46,48,49,51,52,53,55,58,60,62,63] +1.0V_DEEP_SUS [9,54,55,58] +VCC_PRIM +3V [2,3,4,5,7,8,9,16,17,18,19,20,24,26,27,28,29,30,31,32,33,34,36,38,42,44,45,47,51,56,58,59,63] +1.8V_DEEP_SUS [3,4,7,8,9,45,54,63]

5

NB5

4

3

2

NB5

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

10 -- SKYLAKE (PCH POWER)

Date: Sheet of

1

10 65Thursday, May 12, 2016

1A

5

4

3

2

1

?

28A

Under U9052 Under U9052

C193 10U/6.3V_6

C174 10U/6.3V_4

C589 22U/6.3V_6

22U/6.3V_6

D D

C C

C206

C296 10U/6.3V_4

C598 22U/6.3V_6

C220

22U/6.3V_6

C102 10U/6.3V_4

C204 22U/6.3V_6

22U/6.3V_6

C95 10U/6.3V_4

C599 22U/6.3V_6

22U/6.3V_6

C192

C232 10U/6.3V_4

C218 22U/6.3V_6

C205

22U/6.3V_6

C258 10U/6.3V_4

C191 22U/6.3V_6

C219

22U/6.3V_6

C259 10U/6.3V_4

TP21

+VCC_CORE +VCC_CORE

A30 A34 A39 A44

+VCCG1

AK33 AK35 AK37 AK38 AK40

AL33 AL37

AL40 AM32 AM33 AM35 AM37 AM38

G30

AK32 AB62

G61

AC63 AE63

AE62 AG62

AL63

AJ62

K32

P62 V62

H63

C229

22U/6.3V_6

SKL_ULT

U25L

CPU POWER 1 OF 4

VCC_A30 VCC_A34 VCC_A39 VCC_A44 VCC_AK33 VCC_AK35 VCC_AK37 VCC_AK38 VCC_AK40 VCC_AL33 VCC_AL37 VCC_AL40 VCC_AM32 VCC_AM33 VCC_AM35 VCC_AM37 VCC_AM38 VCC_G30

RSVD_K32 RSVD_AK32 VCCOPC_AB62

VCCOPC_P62 VCCOPC_V62

VCC_OPC_1P8_H63 VCC_OPC_1P8_G61 VCCOPC_SENSE

VSSOPC_SENSE VCCEOPIO

VCCEOPIO VCCEOPIO_SENSE

VSSEOPIO_SENSE

*SKL_ULT

REV = 1

12 OF 20

VCC_G32 VCC_G33 VCC_G35 VCC_G37 VCC_G38 VCC_G40 VCC_G42

VCC_J30 VCC_J33 VCC_J37

VCC_J40 VCC_K33 VCC_K35 VCC_K37 VCC_K38 VCC_K40 VCC_K42 VCC_K43

VCC_SENSE

VSS_SENSE

VIDALERT#

VIDSCK

VIDSOUT

VCCSTG_G20

PDC

?

G32 G33 G35 G37 G38 G40 G42 J30 J33 J37 J40 K33 K35 K37 K38 K40 K42 K43

E32 E33

B63

H_CPU_SVIDALRT#

A63

VR_SVID_CLK

D64

VR_SVID_DATA

G20

C91 1U/6.3V_4

C176 1U/6.3V_4

C213 1U/6.3V_4

C268 1U/6.3V_4

R519 100/F_4

R518 100/F_4

+1.0V_STG

C167 1U/6.3V_4

C231 1U/6.3V_4

+VCC_CORE

VCCSENSE [56] VSSSENSE [56]

C189

C201

1U/6.3V_4

C281

C92

1U/6.3V_4

100- ±1% pull-up to VCC near processor. Trace Length Match <25mil

+VCC_CORE

C619 47U/6.3V_8

+VCC_CORE

C282 10U/6.3V_4

C255 1U/6.3V_4

C247 1U/6.3V_4

Close U9052

C587 47U/6.3V_8

C269 10U/6.3V_4

C175 1U/6.3V_4C590

C166 1U/6.3V_4

47U/6.3V_8

C586

C242 10U/6.3V_4

C256 1U/6.3V_4

47U/6.3V_8

C621

C63 10U/6.3V_4

C596

47U/6.3V_8

C271 10U/6.3V_4

C243 10U/6.3V_4

C248 10U/6.3V_4

C565

47U/6.3V_8

C230 10U/6.3V_4

11

Layout note: need routing together and ALERT need between CLK and DATA.

B B

A A

5

4

CLOSE TO CPU PLACE THE PU RESISTORS

H_CPU_SVIDALRT#

PLACE THE PU RESISTORS CLOSE TO VR PULL UP IS IN THE VR MODULE

VR_SVID_CLK

R512 220/F_4

07/16 for EE shortpad

CLOSE TO CPU PLACE THE PU RESISTORS

VR_SVID_DATA

3

+VCCSFR

R502

56.2/F_4

C615 *0.1U/16V_4

+VCCSFR

R503 *54.9/F_4

+VCCSFR

Place PU resistor close to VR

R511 100/F_4

07/16 for EE shortpad

SVID ALERT

SVID CLK

SVID DATA

VR_SVID_ALERT# [56]

VR_SVID_CLK [56]

VR_SVID_DATA [56]

2

+1.8V [4,5,8,30,54,63] +VCC_CORE [56] +VCCSFR [2,3,9,13,45] +1.0V_STG [2,13]

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

11 -- SKYLAKE (POWER-1)

NB5

11 -- SKYLAKE (POWER-1)

Date: Sheet of

1

1A

11 65Thursday, May 12, 2016

5

4

3

2

1

31A 31A

+VCCGT

Under U1

C283 1U/6.3V_4

C270 1U/6.3V_4

C246 10U/6.3V_4

C200 10U/6.3V_4

C212 1U/6.3V_4

C184 1U/6.3V_4

VGT_VCCSENSE[56] VGT_VSSSENSE[56]

10U/6.3V_4

C88 10U/6.3V_4

C188 1U/6.3V_4

C172 1U/6.3V_4

C209 10U/6.3V_4

10U/6.3V_4

D D

C C

C253 10U/6.3V_4

C568 10U/6.3V_4

C171 1U/6.3V_4

C257 1U/6.3V_4

C227 10U/6.3V_4

C235 10U/6.3V_4

C208 1U/6.3V_4

C228 1U/6.3V_4

Trace Length Match <25mil

B B

C221 1U/6.3V_4

C185 1U/6.3V_4

AA63 AA64 AA66 AA67 AA69 AA70 AA71 AC64 AC65 AC66 AC67 AC68 AC69 AC70 AC71

M62 N63 N64 N66 N67 N69

A48 A53 A58 A62 A66

J43 J45 J46 J48 J50 J52 J53 J55 J56 J58 J60 K48 K50 K52 K53 K55 K56 K58 K60 L62 L63 L64 L65 L66 L67 L68 L69 L70 L71

J70 J69

U25M

CPU POWER 2 OF 4

VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT

VCCGT_SENSE VSSGT_SENSE

*SKL_ULT

REV = 1

SKL_ULT

PDC

VCCGTX_AK42 VCCGTX_AK43 VCCGTX_AK45 VCCGTX_AK46 VCCGTX_AK48 VCCGTX_AK50 VCCGTX_AK52 VCCGTX_AK53 VCCGTX_AK55 VCCGTX_AK56 VCCGTX_AK58 VCCGTX_AK60 VCCGTX_AK70

VCCGTX_AL43 VCCGTX_AL46 VCCGTX_AL50 VCCGTX_AL53 VCCGTX_AL56

VCCGTX_AL60 VCCGTX_AM48 VCCGTX_AM50 VCCGTX_AM52 VCCGTX_AM53 VCCGTX_AM56 VCCGTX_AM58 VCCGTX_AU58 VCCGTX_AU63 VCCGTX_BB57 VCCGTX_BB66

VCCGTX_SENSE VSSGTX_SENSE

13 OF 20

VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT VCCGT

+VCCGT

C97

22U/6.3V_6C173

C641

22U/6.3V_6

Close U9052

C267 47U/6.3V_8

C640

22U/6.3V_6

C646

22U/6.3V_6

C291 47U/6.3V_8

C642

22U/6.3V_6

C639

22U/6.3V_6

C637 47U/6.3V_8

C98

22U/6.3V_6

C647

22U/6.3V_6

C241 47U/6.3V_8

C620

22U/6.3V_6

C197 47U/6.3V_8C89

C636

22U/6.3V_6

C99

22U/6.3V_6

C217 47U/6.3V_8

C645

22U/6.3V_6

N70 N71 R63 R64 R65 R66 R67 R68 R69 R70 R71 T62 U65 U68 U71 W63 W64 W65 W66 W67 W68 W69 W70 W71 Y62

AK42 AK43 AK45 AK46 AK48 AK50 AK52 AK53 AK55 AK56 AK58 AK60 AK70 AL43 AL46 AL50 AL53 AL56 AL60 AM48 AM50 AM52 AM53 AM56 AM58 AU58 AU63 BB57 BB66

AK62 AL61

?

12

A A

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

12 -- SKYLAKE (POWER-2)

NB5

5

4

3

2

NB5

12 -- SKYLAKE (POWER-2)

Date: Sheet of

1

1A

12 65Thursday, May 12, 2016

5

4

3

2

1

Need apply PN

+1.2VSUS

C485

C323

C366

D D

C445

*10U/6.3V_4

*1U/6.3V_4

1U/6.3V_4

C356

1U/6.3V_4

C333

1U/6.3V_4

Close U9052

C363

10U/6.3V_4

+1.2VSUS

R239 *0_4/S

C C

+VCCSTG +1.0V_STG

+VDDQC +1.0V_STG+1.0V_STG

C295

*1U/6.3V_4

R477 *0_4/S

R45 *0_6/S

C325 *10U/6.3V_4

C96

1U/6.3V_4

+VDDQC

+VCCSFR+VCCST

C101

1U/6.3V_4

C329

10U/6.3V_4

Under U9052

C351

10U/6.3V_4

10U/6.3V_6

C361

10U/6.3V_4

+1.2V_VCCPLL_OC

+1.2VSUS

C369

10U/6.3V_6

+VCCSFR

+1.0V_STG

R182 *0_4/S

+VCCSFR

C491

+VDDQC

C287 1U/6.3V_4

C183

1U/6.3V_4

C378

10U/6.3V_6

AU23 AU28 AU35 AU42 BB23 BB32 BB41 BB47 BB51

AM40

A18 A22

AL23

K20 K21

C379

10U/6.3V_6

U25N

VDDQ_AU23 VDDQ_AU28 VDDQ_AU35 VDDQ_AU42 VDDQ_BB23 VDDQ_BB32 VDDQ_BB41 VDDQ_BB47 VDDQ_BB51

VDDQC VCCST VCCSTG_A22 VCCPLL_OC VCCPLL_K20

VCCPLL_K21

*SKL_ULT

REV = 1

10U/6.3V_6

SKL_ULT

CPU POWER 3 OF 4

2A 2.73A

0.12A

0.04A

0.12A

C353

?

14 OF 20

C488

10U/6.3V_6

VCCIO VCCIO VCCIO VCCIO VCCIO VCCIO VCCIO

VCCSA

4.5A

VCCSA VCCSA VCCSA VCCSA VCCSA VCCSA VCCSA VCCSA VCCSA VCCSA VCCSA VCCSA VCCSA

VCCIO_SENSE VSSIO_SENSE

VSSSA_SENSE VCCSA_SENSE

*1U/6.3V_4

?

C365

AK28 AK30 AL30 AL42 AM28 AM30 AM42

AK23 AK25 G23 G25 G27 G28 J22 J23 J27 K23 K25 K27 K28 K30

AM23 AM22

H21 H20

VCCIO_VCCSENSE VCCIO_VSSSENSE

C324

1U/6.3V_4

+VCC_IO

C297 1U/6.3V_4

+VCCSA

C190 1U/6.3V_4

1U/6.3V_4

C330

Under U9052 Close U9052Under U9052

C284 1U/6.3V_4

C202 1U/6.3V_4

C76 10U/6.3V_4

VCCIO_VCCSENSE [55] VCCIO_VSSSENSE [55]

VCCSA_VSSSENSE [56] VCCSA_VCCSENSE [56]

C322

1U/6.3V_4

C249 1U/6.3V_4

C62 1U/6.3V_4

C163 10U/6.3V_4

C222

C236

1U/6.3V_4

10U/6.3V_4

C79

C215

1U/6.3V_4

C168

C250

10U/6.3V_4

Trace Length Match <25mil

C285 10U/6.3V_4

C273 1U/6.3V_4

C203 10U/6.3V_4

C298 1U/6.3V_4

Under U9052

C214 1U/6.3V_4

C261 10U/6.3V_4

C260 1U/6.3V_4

C237

C77

10U/6.3V_4

Close U9052

C294 1U/6.3V_4

C69 10U/6.3V_4

C272 1U/6.3V_4

C286 10U/6.3V_4

C223 10U/6.3V_4

C72 10U/6.3V_4

C65 10U/6.3V_4

13

Close to CPU

B B

+VCCSFR [2,3,9,11,45] +1.0V_STG [2,11] +VCC_IO [5,55] +VCCSA [56,57]

A A

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

13 -- SKYLAKE (POWER-3)

NB5

5

4

3

2

NB5

13 -- SKYLAKE (POWER-3)

Date: Sheet of

1

1A

13 65Thursday, May 12, 2016

5

?

SKL_ULT

GND 1 OF 3

Need apply PN

VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS

16 OF 20

?

AL65 AL66 AM13 AM21 AM25 AM27 AM43 AM45 AM46 AM55 AM60 AM61 AM68 AM71 AM8 AN20 AN23 AN28 AN30 AN32 AN33 AN35 AN37 AN38 AN40 AN42 AN58 AN63 AP10 AP18 AP20 AP23 AP28 AP32 AP35 AP38 AP42 AP58 AP63 AP68 AP70 AR11 AR15 AR16 AR20 AR23 AR28 AR35 AR42 AR43 AR45 AR46 AR48 AR5 AR50 AR52 AR53 AR55 AR58 AR63 AR8 AT2 AT20 AT23 AT28 AT35 AT4 AT42 AT56 AT58

U25P

A5

VSS

A67

VSS

A70

VSS

AA2

VSS

AA4

VSS

AA65

D D

C C

B B

AA68 AB15 AB16 AB18 AB21

AD13 AD16 AD19 AD20 AD21 AD62

AE64 AE65 AE66 AE67 AE68 AE69

AF10 AF15 AF17

AF63 AG16 AG17 AG18 AG19 AG20 AG21 AG71

AH13

AH63

AH64

AH67

AJ15

AJ18

AJ20

AK11

AK16

AK18

AK21

AK22

AK27

AK63

AK68

AK69

AL28

AL32

AL35

AL38

AL45

AL48

AL52

AL55

AL58

AL64

AB8

AD8

AF1

AF2 AF4

AH6

AJ4

AK8 AL2

AL4

VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS

*SKL_ULT

REV = 1

4

AT63 AT68

AT71 AU10 AU15 AU20 AU32 AU38

AV68 AV69 AV70 AV71

AW10 AW12 AW14 AW16 AW18 AW21 AW23 AW26 AW28 AW30 AW32 AW34 AW36 AW38 AW41 AW43 AW45 AW47 AW49 AW51 AW53 AW55 AW57

AW6

AW60 AW62 AW64 AW66

AW8 AY66

BA10 BA14 BA18

BA23 BA28 BA32 BA36

BA45

3

?

Need apply PN Need apply PN

SKL_ULT

?

U25Q

GND 2 OF 3

VSS VSS VSS VSS VSS VSS VSS VSS

AV1

VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS

B10

VSS

B14

VSS

B18

VSS

B22

VSS

B30

VSS

B34

VSS

B39

VSS

B44

VSS

B48

VSS

B53

VSS

B58

VSS

B62

VSS

B66

VSS

B71

VSS

BA1

VSS VSS VSS VSS

BA2

VSS VSS VSS VSS VSS

F68

VSS VSS

17 OF 20

*SKL_ULT

REV = 1

VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS

PDC

BA49 BA53 BA57 BA6 BA62 BA66 BA71 BB18 BB26 BB30 BB34 BB38 BB43 BB55 BB6 BB60 BB64 BB67 BB70 C1 C25 C5 D10 D11 D14 D18 D22 D25 D26 D30 D34 D39 D44 D45 D47 D48 D53 D58 D6 D62 D66 D69 E11 E15 E18 E21 E46 E50 E53 E56 E6 E65 E71 F1 F13 F2 F22 F23 F27 F28 F32 F33 F35 F37 F38 F4 F40 F42 BA41

?

SKL_ULT

U25R

GND 3 OF 3

F8

VSS

G10

VSS

G22

VSS

G43

VSS

G45

VSS

G48

VSS

G5

VSS

G52

VSS

G55

VSS

G58

VSS

G6

VSS

G60

VSS

G63

VSS

G66

VSS

H15

VSS

H18

VSS

H71

VSS

J11

VSS

J13

VSS

J25

VSS

J28

VSS

J32

VSS

J35

VSS

J38

VSS

J42

VSS

J8

VSS

K16

VSS

K18

VSS

K22

VSS

K61

VSS

K63

VSS

K64

VSS

K65

VSS

K66

VSS

K67

VSS

K68

VSS

K70

VSS

K71

VSS

L11

VSS

L16

VSS

L17

VSS

18 OF 20

*SKL_ULT

REV = 1

VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS

L18 L2 L20 L4 L8 N10 N13 N19 N21 N6 N65 N68 P17 P19 P20 P21 R13 R6 T15 T17 T18 T2 T21 T4 U10 U63 U64 U66 U67 U69 U70 V16 V17 V18 W13 W6 W9 Y17 Y19 Y20 Y21

?

2

1

14

A A

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

14 -- SKYLAKE (GND)

NB5

5

4

3

2

NB5

14 -- SKYLAKE (GND)

Date: Sheet of

1

1A

14 65Thursday, May 12, 2016

5

4

3

2

1

15

D D

C C

B B

A A

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

15 -- HSW XDP & APS

NB5

5

4

3

2

NB5

15 -- HSW XDP & APS

Date: Sheet of

15 65Thursday, May 12, 2016

1

1A

5

M_A_A[13:0][6]

D D

M_A_WE#[6] M_A_CAS#[6] M_A_RAS#[6]

DDR3_DRAMRST#[6,17]

+1.2VSUS

R862 *10K_4

R848 10K_4

5

M_A_ACT#[6] M_A_PARITY[6] M_A_ALERT#[6]

M_A_BS#0[6] M_A_BS#1[6]

M_A_BG#0[6] M_A_BG#1[6]

M_A_CS#0[6] M_A_CS#1[6] M_A_CKE0[6] M_A_CKE1[6]

M_A_CLKP0[6] M_A_CLKN0[6] M_A_CLKP1[6] M_A_CLKN1[6]

M_A_ODT0[6] M_A_ODT1[6]

PCH_SMBCLK[3,17,27,47]

PCH_SMBDATA[3,17,27,47]

R740 240_4 R742 240_4 R741 240_4 R743 240_4 R744 240_4 R746 240_4 R745 240_4 R747 240_4

R844 10K/F_4

+3V

PM_EXTTS#0[17]

C C

B B

+3V

A A

R846 *10K_4

CHA_SA0 CHA_SA2CHA_SA1

R850 10K_4

Follow reference board DIMM0 SA0,1,2=LLL 20150527

R847 *10K_4

R849 10K_4

M_A_A0 M_A_A1 M_A_A2 M_A_A3 M_A_A4 M_A_A5 M_A_A6 M_A_A7 M_A_A8 M_A_A9 M_A_A10 M_A_A11 M_A_A12 M_A_A13

PM_EXTTS#0

C1040 *0.1U/10V_4

PCH_SMBCLK PCH_SMBDATA

CHA_SA0 CHA_SA1 CHA_SA2

+1.2VSUS

TP123 TP124

M_A_CB0

M_A_CB1 M_A_CB2 M_A_CB3

M_A_CB4 M_A_CB5 M_A_CB6 M_A_CB7

JDIM2A

144

A0

133

A1

132

A2

131

A3

128

A4

126

A5

127

A6

122

A7

125

A8

121

A9

146

A10/AP

120

A11

119

A12

158

A13

151

A14/WE#

156

A15/CAS#

152

A16/RAS#

162

S2#/C0

165

S3#/C1

114

ACT#

143

PARITY

116

ALERT#

134

EVENT#

108

RESET#

150

BA0

145

BA1

115

BG0

113

BG1

149

S0#

157

S1#

109

CKE0

110

CKE1

137

CK0

139

CK0#

138

CK1

140

CK1#

155

ODT0

161

ODT1

253

SCL

254

SDA

256

SA0

260

SA1

166

SA2

92

CB0

91

CB1

101

CB2

105

CB3

88

CB4

87

CB5

100

CB6

104

CB7

12

DM0

33

DM1

54

DM2

75

DM3

178

DM4

199

DM5

220

DM6

241

DM7

96

DM8

4

M_A_DQ[63:0] [6]

8 7 20 21 4 3 16 17 28 29 41 42 24 25 38 37 50 49 62 63 46 45 58 59 70 71 83 84 66 67 79 80 174 173 187 186 170 169 183 182 195 194 207 208 191 190 203 204 216 215 228 229 211 212 224 225 237 236 249 250 232 233 245 246

13 34 55 76 179 200 221 242 97

11 32 53 74 177 198 219 240 95

M_A_DQ4 M_A_DQ1 M_A_DQ3 M_A_DQ6 M_A_DQ0 M_A_DQ5 M_A_DQ7 M_A_DQ2 M_A_DQ29 M_A_DQ24 M_A_DQ31 M_A_DQ27 M_A_DQ25 M_A_DQ28 M_A_DQ30 M_A_DQ26 M_A_DQ17 M_A_DQ16 M_A_DQ18 M_A_DQ22 M_A_DQ20 M_A_DQ21 M_A_DQ19 M_A_DQ23 M_A_DQ9 M_A_DQ13 M_A_DQ10 M_A_DQ11 M_A_DQ8 M_A_DQ12 M_A_DQ14 M_A_DQ15 M_A_DQ52 M_A_DQ49 M_A_DQ51 M_A_DQ55 M_A_DQ53 M_A_DQ48 M_A_DQ50 M_A_DQ54 M_A_DQ32 M_A_DQ33 M_A_DQ38 M_A_DQ35 M_A_DQ36 M_A_DQ37 M_A_DQ39 M_A_DQ34 M_A_DQ45 M_A_DQ40 M_A_DQ43 M_A_DQ42 M_A_DQ41 M_A_DQ44 M_A_DQ47 M_A_DQ46 M_A_DQ60 M_A_DQ57 M_A_DQ63 M_A_DQ59 M_A_DQ56 M_A_DQ61 M_A_DQ62 M_A_DQ58

M_A_DQSP0 M_A_DQSP3 M_A_DQSP2 M_A_DQSP1 M_A_DQSP6 M_A_DQSP4 M_A_DQSP5 M_A_DQSP7 M_A_DQSP8

M_A_DQSN0 M_A_DQSN3 M_A_DQSN2 M_A_DQSN1 M_A_DQSN6 M_A_DQSN4 M_A_DQSN5 M_A_DQSN7 M_A_DQSN8

M_A_DQSP8

M_A_DQSN8

M_A_DQSP[7:0] [6]

M_A_DQSN[7:0] [6]

R722

240_4

R723

240_4

DQ0 DQ1 DQ2 DQ3 DQ4 DQ5 DQ6 DQ7 DQ8

DQ9 DQ10 DQ11 DQ12 DQ13 DQ14 DQ15 DQ16 DQ17 DQ18 DQ19 DQ20 DQ21 DQ22 DQ23 DQ24 DQ25 DQ26 DQ27 DQ28 DQ29 DQ30 DQ31 DQ32 DQ33 DQ34 DQ35 DQ36 DQ37 DQ38 DQ39 DQ40 DQ41 DQ42 DQ43 DQ44 DQ45 DQ46 DQ47 DQ48

(260P)

DDR4 SODIMM 260 PIN

DQ49 DQ50 DQ51 DQ52 DQ53 DQ54 DQ55 DQ56 DQ57 DQ58 DQ59 DQ60 DQ61 DQ62 DQ63

EZIW

DQS0 DQS1 DQS2 DQS3 DQS4 DQS5 DQS6 DQS7 DQS8

DQS#0 DQS#1 DQS#2 DQS#3 DQS#4 DQS#5 DQS#6 DQS#7 DQS#8

4

+1.2VSUS

3

2.48A

3

2

+1.2VSUS

SM_VREF[6]

JDIM2B

111

VDD1

112

VDD2

117

VDD3

118

VDD4

123

VDD5

124

VDD6

129

VDD7

130

VDD8

135

VDD9

136

VDD10

141

VDD11

142

VDD12

147

VDD13

148

VDD14

153

VDD15

154

VDD16

159

VDD17

160

VDD18

163

VDD19

1

VSS1

5

VSS2

9

VSS3

15

VSS4

19

VSS5

23

VSS6

27

VSS7

31

VSS8

35

VSS9

39

VSS10

43

VSS11

47

VSS12

51

VSS13

57

VSS14

61

VSS15

65

VSS16

69

VSS17

73

VSS18

77

VSS19

81

VSS20

85

VSS21

89

VSS22

93

VSS23

99

VSS24

103

VSS25

107

VSS26

167

VSS27

171

VSS28

175

VSS29

181

VSS30

185

VSS31

189

VSS32

193

VSS33

197

VSS34

201

VSS35

205

VSS36

209

VSS37

213

VSS38

217

VSS39

223

VSS40

227

VSS41

231

VSS42

235

VSS43

239

VSS44

243

VSS45

247

VSS46

251

VSS47

VDDSPD

VPP1 VPP2

VREF_CA

VSS48 VSS49 VSS50 VSS51 VSS52 VSS53 VSS54 VSS55 VSS56 VSS57 VSS58 VSS59 VSS60 VSS61 VSS62 VSS63 VSS64 VSS65 VSS66 VSS67 VSS68

(260P)

DDR4 SODIMM 260 PIN

VSS69 VSS70 VSS71 VSS72 VSS73 VSS74 VSS75 VSS76 VSS77 VSS78 VSS79 VSS80 VSS81 VSS82 VSS83 VSS84 VSS85 VSS86 VSS87 VSS88 VSS89 VSS90 VSS91 VSS92 VSS93 VSS94

GND GND

VREF DQ0 M1 Solution

R863 2/F_6

C1041

0.022U/25V_4

2 1

R349 24.9/F_4

255

257 259

258

VTT

164

2 6 10 14 18 22 26 30 36 40 44 48 52 56 60 64 68 72 78 82 86 90 94 98 102 106 168 172 176 180 184 188 192 196 202 206 210 214 218 222 226 230 234 238 244 248 252

261 262

+1.2VSUS

+3V

+2.5VSUS

DDR_VTT

+SMDDR_VREF_DQ0 +SMDDR_VREF_DIMM

R345 1K/F_4

+SMDDR_VREF_DIMM

R346 1K/F_4

DDR_VTT[17,53,58]

2

R861 *0_6/S

+1.2VSUS

+SMDDR_VREF_DIMM

+2.5VSUS[17,53]

+3V[2,3,4,5,7,8,9,10,17,18,19,20,24,26,27,28,29,30,31,32,33,34,36,38,42,44,45,47,51,56,58,59,63]

+1.2VSUS[6,13,17,28,53,58,60]

DDR_VTT

+2.5VSUS

Place these Caps near So-Dimm0.

1uF/10uF 4pcs on each side of connector

C437 1U/6.3V_4 C443 1U/6.3V_4 C487 1U/6.3V_4 C435 1U/6.3V_4 C467 1U/6.3V_4 C457 1U/6.3V_4 C462 1U/6.3V_4 C434 1U/6.3V_4

C452 10U/6.3V_6 C455 10U/6.3V_6 C494 10U/6.3V_6 C430 10U/6.3V_6 C493 10U/6.3V_6 C492 10U/6.3V_6 C469 10U/6.3V_6 C475 10U/6.3V_6

C482 1U/6.3V_4 C484 1U/6.3V_4 C461 1U/6.3V_4 C456 1U/6.3V_4 C468 10U/6.3V_6

C497 *0.1U/16V_4 C1168 *2.2U/6.3V_4

C478 0.1U/16V_4 C479 2.2U/6.3V_4

+3V

C472 0.1U/16V_4 C480 2.2U/6.3V_4

NB5

+1.2VSUS

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

17 -- DDR4 DIMM0-STD(4.0H)

Date: Sheet of

1

For EMI RESERVE

EC5 *120P/50V_4 EC7 *120P/50V_4 EC9 *120P/50V_4 EC10 *0.1U/16V_4 EC19 *0.1U/16V_4 EC12 *0.1U/16V_4 EC11 2.2U/6.3V_4 EC17 *120P/50V_4 EC8 *120P/50V_4 EC2 *120P/50V_4 EC20 120P/50V_4 EC18 *120P/50V_4 EC22 82P/50V_4 EC21 *120P/50V_4

EC1 *120P/50V_4 EC3 *120P/50V_4

DDR_VTT

EC14 2200P/50V_4

EC6 2.2U/6.3V_4 EC15 2.2U/6.3V_4

EC13 82P/50V_4

1

17

16 65Thursday, May 12, 2016

1A

5

M_B_A[13:0][6]

D D

M_B_WE#[6] M_B_CAS#[6] M_B_RAS#[6]

M_B_ACT#[6] M_B_PARITY[6] M_B_ALERT#[6]

PM_EXTTS#0[16]

DDR3_DRAMRST#[6,16]

C C

+3V

10K_4

R750 *10K_4

R752 *10K_4

10K_4

R751 *10K_4

CHB_SA0 CHB_SA1 CHB_SA2

R749 10K_4

Follow reference board DIMM1 SA0,1,2=LHL 20150527

B B

M_B_BS#0[6] M_B_BS#1[6]

M_B_BG#0[6] M_B_BG#1[6]

M_B_CS#0[6] M_B_CS#1[6] M_B_CKE0[6] M_B_CKE1[6]

M_B_CLKP0[6] M_B_CLKN0[6] M_B_CLKP1[6] M_B_CLKN1[6]

M_B_ODT0[6] M_B_ODT1[6]

PCH_SMBCLK[3,16,27,47]

PCH_SMBDATA[3,16,27,47]

+1.2VSUS +1.2VSUS

R851 240_4 R856 240_4 R857 240_4 R855 240_4 R858 240_4 R854 240_4 R852 240_4 R853 240_4

M_B_A0 M_B_A1 M_B_A2 M_B_A3 M_B_A4 M_B_A5 M_B_A6 M_B_A7 M_B_A8 M_B_A9 M_B_A10 M_B_A11 M_B_A12 M_B_A13

PM_EXTTS#0

C1032 *0.1U/10V_4

PCH_SMBCLK PCH_SMBDATA

CHB_SA0 CHB_SA1 CHB_SA2

+1.2VSUS

TP125 TP126

M_B_ODT0 M_B_ODT1

M_B_CB0 M_B_CB1 M_B_CB2 M_B_CB3 M_B_CB4 M_B_CB5 M_B_CB6 M_B_CB7

144 133 132 131 128 126 127 122 125 121 146 120 119 158 151 156 152

162 165

114 143 116 134 108

150 145 115 113

149 157 109 110

137 139 138 140

155 161

253 254

256 260 166

92

91 101 105

88

87 100 104

12

33

54

75 178 199 220 241

96

JDIM1A

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10/AP A11 A12 A13 A14/WE# A15/CAS# A16/RAS#

S2#/C0 S3#/C1

ACT# PARITY ALERT# EVENT# RESET#

BA0 BA1 BG0 BG1

S0# S1# CKE0 CKE1

CK0 CK0# CK1 CK1#

ODT0 ODT1

SCL SDA

SA0 SA1 SA2

CB0 CB1 CB2 CB3 CB4 CB5 CB6 CB7

DM0 DM1 DM2 DM3 DM4 DM5 DM6 DM7 DM8

4

8

DQ0 DQ1 DQ2 DQ3 DQ4 DQ5 DQ6 DQ7 DQ8

DQ9 DQ10 DQ11 DQ12 DQ13 DQ14 DQ15 DQ16 DQ17 DQ18 DQ19 DQ20 DQ21 DQ22 DQ23 DQ24 DQ25 DQ26 DQ27 DQ28 DQ29 DQ30 DQ31 DQ32 DQ33 DQ34 DQ35 DQ36 DQ37 DQ38 DQ39 DQ40 DQ41 DQ42 DQ43 DQ44 DQ45 DQ46 DQ47 DQ48

(260P)

DDR4 SODIMM 260 PIN

DQ49 DQ50 DQ51 DQ52 DQ53 DQ54 DQ55 DQ56 DQ57 DQ58 DQ59 DQ60 DQ61 DQ62 DQ63

DQS0 DQS1 DQS2 DQS3 DQS4 DQS5 DQS6 DQS7 DQS8

DQS#0 DQS#1 DQS#2 DQS#3 DQS#4 DQS#5 DQS#6 DQS#7 DQS#8

M_B_DQ20

7

M_B_DQ17

20

M_B_DQ23

21

M_B_DQ18

4

M_B_DQ21

3

M_B_DQ16

16

M_B_DQ22

17

M_B_DQ19

28

M_B_DQ5

29

M_B_DQ0

41

M_B_DQ6

42

M_B_DQ3

24

M_B_DQ1

25

M_B_DQ4

38

M_B_DQ2

37

M_B_DQ7

50

M_B_DQ36

49

M_B_DQ32

62

M_B_DQ39

63

M_B_DQ38

46

M_B_DQ33

45

M_B_DQ37

58

M_B_DQ34

59

M_B_DQ35

70

M_B_DQ15

71

M_B_DQ14

83

M_B_DQ8

84

M_B_DQ12

66

M_B_DQ9

67

M_B_DQ10

79

M_B_DQ11

80

M_B_DQ13

174

M_B_DQ42

173

M_B_DQ43

187

M_B_DQ40

186

M_B_DQ41

170

M_B_DQ46

169

M_B_DQ47

183

M_B_DQ45

182

M_B_DQ44

195

M_B_DQ28

194

M_B_DQ24

207

M_B_DQ26

208

M_B_DQ31

191

M_B_DQ29

190

M_B_DQ25

203

M_B_DQ27

204

M_B_DQ30

216

M_B_DQ53

215

M_B_DQ48

228

M_B_DQ54

229

M_B_DQ51

211

M_B_DQ49

212

M_B_DQ52

224

M_B_DQ55

225

M_B_DQ50

237

M_B_DQ60

236

M_B_DQ57

249

M_B_DQ58

250

M_B_DQ63

232

M_B_DQ56

233

M_B_DQ61

245

M_B_DQ59

246

M_B_DQ62

13

M_B_DQSP2

34

M_B_DQSP0

55

M_B_DQSP4

76

M_B_DQSP1

179

M_B_DQSP5

200

M_B_DQSP3

221

M_B_DQSP6

242

M_B_DQSP7

97

M_B_DQSP8

11

M_B_DQSN2

32

M_B_DQSN0

53

M_B_DQSN4

74

M_B_DQSN1

177

M_B_DQSN5

198

M_B_DQSN3

219

M_B_DQSN6

240

M_B_DQSN7

95

M_B_DQSN8

M_B_DQSP[7:0] [6]

M_B_DQSN[7:0] [6]

3

M_B_DQ[63:0] [6]

+1.2VSUS

R753

240_4

M_B_DQSP8

+1.2VSUS

R754

240_4

M_B_DQSN8

2.48A

+1.2VSUS

2

JDIM1B

111

VDD1

112

VDD2

117

VDD3

118

VDD4

123

VDD5

124

VDD6

129

VDD7

130

VDD8

135

VDD9

136

VDD10

141

VDD11

142

VDD12

147

VDD13

148

VDD14

153

VDD15

154

VDD16

159

VDD17

160

VDD18

163

VDD19

1

VSS1

5

VSS2

9

VSS3

15

VSS4

19

VSS5

23

VSS6

27

VSS7

31

VSS8

35

VSS9

39

VSS10

43

VSS11

47

VSS12

51

VSS13

57

VSS14

61

VSS15

65

VSS16

69

VSS17

73

VSS18

77

VSS19

81

VSS20

85

VSS21

89 93

99 103 107 167 171 175 181 185 189 193 197 201 205 209 213 217 223 227 231 235 239 243 247 251

VSS22 VSS23 VSS24 VSS25 VSS26 VSS27 VSS28 VSS29 VSS30 VSS31 VSS32 VSS33 VSS34 VSS35 VSS36 VSS37 VSS38 VSS39 VSS40 VSS41 VSS42 VSS43 VSS44 VSS45 VSS46 VSS47

DDR4 SODIMM 260 PIN

VDDSPD

VREF_CA

(260P)

VPP1 VPP2

VSS48 VSS49 VSS50 VSS51 VSS52 VSS53 VSS54 VSS55 VSS56 VSS57 VSS58 VSS59 VSS60 VSS61 VSS62 VSS63 VSS64 VSS65 VSS66 VSS67 VSS68 VSS69 VSS70 VSS71 VSS72 VSS73 VSS74 VSS75 VSS76 VSS77 VSS78 VSS79 VSS80 VSS81 VSS82 VSS83 VSS84 VSS85 VSS86 VSS87 VSS88 VSS89 VSS90 VSS91 VSS92 VSS93 VSS94

GND GND

255

257 259

258

VTT

164

2 6 10 14 18 22 26 30 36 40 44 48 52 56 60 64 68 72 78 82 86 90 94 98 102 106 168 172 176 180 184 188 192 196 202 206 210 214 218 222 226 230 234 238 244 248 252

261 262

+3V

+2.5VSUS

DDR_VTT

R860 *0_6/S

SMDDR_VREF_DQ1_M1+SMDDR_VREF_DQ1

Place these Caps near So-Dimm1.

1uF/10uF 4pcs on each side of connector

+1.2VSUS

C495 1U/6.3V_4 C438 1U/6.3V_4 C490 1U/6.3V_4 C446 1U/6.3V_4 C477 1U/6.3V_4 C447 1U/6.3V_4 C496 1U/6.3V_4 C449 1U/6.3V_4 C470 10U/6.3V_6

C476 10U/6.3V_6 C426 10U/6.3V_6

C465 10U/6.3V_6 C444 10U/6.3V_6

C454 10U/6.3V_6 C429 10U/6.3V_6R748

C459 10U/6.3V_6

DDR_VTT

For RF RESERVE For RF RESERVE

EC23 82P/50V_4 EC26 2200P/50V_4

1

18

DDR_VTT

C453 1U/6.3V_4 C448 1U/6.3V_4 C440 1U/6.3V_4 C474 1U/6.3V_4 C464 10U/6.3V_6

+3V

C441 0.1U/16V_4 C436 2.2U/6.3V_6

+2.5VSUS

C499 *0.1U/16V_4 C460 *2.2U/6.3V_6

SMDDR_VREF_DQ1_M1

C450 *0.1U/16V_4 C458 *2.2U/6.3V_6R859

EC24 2.2U/6.3V_4 EC16 82P/50V_4

+1.2VSUS

VREF DQ1 M1 Solution

R867 1K/F_4

SMDDR_VREF_DQ1_M1

SMDDR_VREF_DQ1_M3[6]

A A

+1.2VSUS[6,13,16,28,53,58,60]

DDR_VTT[16,53,58]

+2.5VSUS[16,53]

+3V[2,3,4,5,7,8,9,10,16,18,19,20,24,26,27,28,29,30,31,32,33,34,36,38,42,44,45,47,51,56,58,59,63]

5

4

3

2

SMDDR_VREF_DQ1_M3

NB5

R865 2/F_6

C1039

0.022U/25V_4

2 1

R868

24.9/F_4

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

18 -- DDR3 DIMM1-RVS(4.0H)

Date: Sheet of

R864 1K/F_4

1A

17 65Thursday, May 12, 2016

1

17 65Thursday, May 12, 2016

1

2

3

4

5

6

7

8

+1.05V_GFX

A A

Near GPU

C1025 22U/6.3V_6 C1001 *22U/6.3VS_6 C1002 10U/6.3V_6 C1003 *10U/6.3VS_6 C1004 *4.7U/6.3V_6

C1169 1U/6.3V_4 C1009 *1U/6.3V_4

Under GPU

PEX_IOVDD + PEX_IOVDDQ = 1.042A

+1.05V_GFX

PEX_PLL_HVDD + PEX_SVDD_3V3 = 143mA

B B

GPU_VCC_SENSE[59]

C C

+1.05V_GFX

Near GPU

D D

Under GPU

1

C1014 *22U/6.3VS_6 C1016 *22U/6.3VS_6 C1036 *10U/6.3VS_6 C1019 *10U/6.3VS_6 C1020 4.7U/6.3V_6

Near GPU

Under GPU

C1024 *1U/6.3V_4 C1173 *1U/6.3V_4

C1052 0.1U/16V_4 C1053 4.7U/6.3V_6

C10544.7U/6.3V_6

Near GPU

GPU_VSS_SENSE[59]

PEX_TSTCLK

R1007*200/F_4

PEX_TSTCLK#

CX300T30001 Change to 0ohm

C10574.7U/6.3V_6 C10581U/6.3V_4

C10590.1U/16V_4

PEX_PLLVDD = 130mA

10K/F_4

R1010

R10112.49K/F_4

+3V_AON

TESTMODE

PEX_TERMP

AA22 AB23 AC24 AD25 AE26 AE27

AA10 AA12 AA13 AA16 AA18 AA19 AA20 AA21 AB22 AC23 AD24 AE25

AF26 AF27

AA8 AA9

AB8

AF22

AE22

AA14 AA15

AD9

AF25

F2

F1

U1001A

PEX_IOVDD PEX_IOVDD PEX_IOVDD PEX_IOVDD PEX_IOVDD PEX_IOVDD

PEX_IOVDDQ PEX_IOVDDQ PEX_IOVDDQ PEX_IOVDDQ PEX_IOVDDQ PEX_IOVDDQ PEX_IOVDDQ PEX_IOVDDQ PEX_IOVDDQ PEX_IOVDDQ PEX_IOVDDQ PEX_IOVDDQ PEX_IOVDDQ PEX_IOVDDQ

PEX_PLL_HVDD PEX_PLL_HVDD

PEX_SVDD_3V3

VDD_SENSE

GND_SENSE

PEX_TSTCLK_OUT PEX_TSTCLK_OUT

PEX_PLLVDD PEX_PLLVDD

TESTMODE

PEX_TERMP

2

NC NC

1/14 PCI_EXPRESS

PEX_WAKE

PEX_RST

PEX_CLKREQ

PEX_REFCLK PEX_REFCLK

PEX_TX0 PEX_TX0

PEX_RX0 PEX_RX0

PEX_TX1 PEX_TX1

PEX_RX1 PEX_RX1

PEX_TX2 PEX_TX2

PEX_RX2 PEX_RX2

PEX_TX3 PEX_TX3

PEX_RX3 PEX_RX3

PEX_TX4 PEX_TX4

PEX_RX4 PEX_RX4

PEX_TX5 PEX_TX5

PEX_RX5 PEX_RX5

PEX_TX6 PEX_TX6

PEX_RX6 PEX_RX6

PEX_TX7 PEX_TX7

PEX_RX7 PEX_RX7

PEX_TX8 PEX_TX8

PEX_RX8 PEX_RX8

PEX_TX9 PEX_TX9

PEX_RX9 PEX_RX9

PEX_TX10 PEX_TX10

PEX_RX10 PEX_RX10

PEX_TX11 PEX_TX11

PEX_RX11 PEX_RX11

PEX_TX12 PEX_TX12

PEX_RX12 PEX_RX12

PEX_TX13 PEX_TX13

PEX_RX13 PEX_RX13

PEX_TX14 PEX_TX14

PEX_RX14 PEX_RX14

PEX_TX15 PEX_TX15

PEX_RX15 PEX_RX15

GF119GF117

COMMONbga595-nvidia-n13p-gv2-s-a2

+3V_AON

+3V_GFX

8

14

Under GPU

Near GPU

18 65Thursday, May 12, 2016

1A

+VGACORE

12

+

Ca

C1055 *0.1U/16V_4

4

PEGX_RST#

Rc

R1004 10K_4

Rb

PEGX_RST#

U1001E

K10

VDD

K12

VDD

K14

VDD

K16

VDD

K18

VDD

L11

VDD

L13

VDD

L15

VDD

L17

VDD

M10

VDD

M12

VDD

M14

VDD

M16

VDD

M18

VDD

N11

VDD

N13

VDD

N15

VDD

N17

VDD

P10

VDD

P12

VDD

P14

VDD

P16

VDD

P18

VDD

R11

VDD

R13

VDD

R15

VDD

R17

VDD

T10

VDD

T12

VDD

T14

VDD

T16

VDD

T18

VDD

U11

VDD

U13

VDD

U15

VDD

U17

VDD

V10

VDD

V12

VDD

V14

VDD

V16

VDD

V18

VDD

bga595-nvidia-n13p-gv2-s-a2 COMMON

R1006 *100K/F_4

+3V_AON

6

11/14 NVVDD

AD10

AD7

B19

F11

V5 V6

G1 G2 G3 G4 G5 G6 G7

V1 V2

W1 W2 W3 W4

ALL 3.3V +3VGFX & +3V3_AON

+VGACORE

PEX_VDD +1.05V_GFX

FBVDDQ +1.35V_GFX

PEX_CLKREQ#

2

Q1002

DRC5144E0L

U1001C

14/14 XVDD/VDD33

NC NC NC

3V3AUX_NC

FERMI_RSVD1_NC FERMI_RSVD2_NC

CONFIGURABLE POWER CHANNELS * nc on substrate

XPWR_G1 XPWR_G2 XPWR_G3 XPWR_G4 XPWR_G5 XPWR_G6 XPWR_G7

XPWR_V1 XPWR_V2

XPWR_W1 XPWR_W2 XPWR_W3 XPWR_W4

bga595-nvidia-n13p-gv2-s-a2 COMMON

VDD33 VDD33

t>0NVVDD

t>=0

+3V_GFX

R1009

4.7K_4

2

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

N16S-GMR (PCIE I/F) /NVDD

Date: Sheet of

NB5

CLKREQ_C1

1 3

7

VDD33 = 56mA

G10 G12

C1010 0.1U/16V_4

C1035 4.7U/6.3V_6 C1015 1U/6.3V_4

G8 G9

C1021 4.7U/6.3V_6 C1022 1U/6.3V_4

C1170 0.1U/16V_4 C1042 0.1U/16V_4

Under GPU

Power up sequence

t>=0

PCIE_REQ_GPU# [9]

Q1001 DRC5144E0L

1 3

Rd

+3V_AON

Da

5

NVDD = 32.22 ~ 26.66 A

Under GPU

C1005 1U/6.3V_4 C1026 1U/6.3V_4 C1006 1U/6.3V_4 C1028 1U/6.3V_4 C1007 4.7U/6.3V_6 C1033 4.7U/6.3V_6 C1029 4.7U/6.3V_6 C1008 4.7U/6.3V_6 C1034 4.7U/6.3V_6 C1012 4.7U/6.3V_6 C1013 4.7U/6.3V_6 C1031 4.7U/6.3V_6 C1172 4.7U/6.3V_6 C1018 4.7U/6.3V_6

C1038 *330u_2.5V_3528

C1043 22U/6.3V_6 C1045 47U/6.3VS_8

C1047 4.7U/6.3V_6 C1048 4.7U/6.3V_6 C1049 4.7U/6.3V_6 C1050 4.7U/6.3V_6 C1051 4.7U/6.3V_6

Near GPU

SYS_PEX_RST_MON# [21]

+3V

Ua

U1000

*MC74VHC1G08DFT2G

2

SYS_PEX_RST_MON#

1

3 5

D1000

2

3

1

BAT54AW

AB6

AC7

VGA_RST#

AC6

PEX_CLKREQ#

AE8 AD8

AC9

PEG_RXP1_C

AB9

PEG_RXN1_C

AG6 AG7

AB10

PEG_RXP2_C

AC10

PEG_RXN2_C

AF7 AE7

AD11

PEG_RXP3_C

AC11

PEG_RXN3_C

AE9 AF9

AC12

PEG_RXP4_C

AB12

PEG_RXN4_C

AG9 AG10

AB13 AC13

AF10 AE10

AD14 AC14

AE12 AF12

AC15 AB15

AG12 AG13

AB16 AC16

AF13 AE13

AD17 AC17

AE15 AF15

AC18 AB18

AG15 AG16

AB19 AC19

AF16 AE16

AD20 AC20

AE18 AF18

AC21 AB21

AG18 AG19

AD23 AE23

AF19 AE19

AF24 AE24

AE21 AF21

AG24 AG25

AG21 AG22

3

C1000 *0.1U/16V_4

R1001 0_4

R1002 10K/F_4

C1030 0.22U/10V_4 C1011 0.22U/10V_4

C1017 0.22U/10V_4 C1037 0.22U/10V_4

C1171 0.22U/10V_4 C1174 0.22U/10V_4

C1044 0.22U/10V_4 C1046 0.22U/10V_4

PLTRST#[3,8,34]

DGPU_HOLD_RST#[7]

PLTRST#

DGPU_HOLD_RST#

PEGX_RST# [21]

+3V_AON

CLK_GFX_P [9] CLK_GFX_N [9]

PEG_RXP1 [7] PEG_RXN1 [7]

PEG_TXP1 [7] PEG_TXN1 [7]

PEG_RXP2 [7] PEG_RXN2 [7]

PEG_TXP2 [7] PEG_TXN2 [7]

PEG_RXP3 [7] PEG_RXN3 [7]

PEG_TXP3 [7] PEG_TXN3 [7]

PEG_RXP4 [7] PEG_RXN4 [7]

PEG_TXP4 [7] PEG_TXN4 [7]

Ub

*MC74VHC1G08DFT2G

U1002

2 1

GPU_PEX_RST_HOLD#[21]

D1003

2

1

Db

BAT54AW

+3V

3 5

R1085 10K_4

3

Cb

C1056 *0.1U/16V_4

4

R1005 *0_4

R1000 *0_4

GPU_PEX_RST_HOLD#

Ra

SYS_PEX_RST_MON#

GPU_PEX_RST_HOLD#

if stuff Da,Db,Ra,Rb, do not stuff Ua,Ub,Ca,Cb,Rc,Rd

4

1

R1012 10K/F_4

A A

FBA_ODT_L FBA_ODT_H FBA_RST# FBA_CKE_L FBA_CKE_H

B B

C C

FBA_CMD2 FBA_CMD18 FBA_CMD5 FBA_CMD3 FBA_CMD19

+1.5V_GFX

VMA_CLK0[22]

VMA_CLK0#[22]

VMA_CLK1[23]

VMA_CLK1#[23]

R1014 10K/F_4 R1016 10K/F_4 R1013 10K/F_4 R1017 10K/F_4 R1015 10K/F_4

FBA_CMD0[22] FBA_CMD1[22] FBA_CMD2[22] FBA_CMD3[22] FBA_CMD4[22,23] FBA_CMD5[22,23] FBA_CMD6[22,23] FBA_CMD7[22,23] FBA_CMD8[22,23]

FBA_CMD9[22,23] FBA_CMD10[22,23] FBA_CMD11[22,23] FBA_CMD12[22,23] FBA_CMD13[22,23] FBA_CMD14[22,23] FBA_CMD15[22,23] FBA_CMD16[23] FBA_CMD17[23] FBA_CMD18[23] FBA_CMD19[23] FBA_CMD20[22,23] FBA_CMD21[22,23] FBA_CMD22[22,23] FBA_CMD23[22,23] FBA_CMD24[22,23] FBA_CMD25[22,23] FBA_CMD26[22,23] FBA_CMD27[22,23] FBA_CMD28[22,23] FBA_CMD29[22,23] FBA_CMD30[22,23]

R1021 *60.4_4 R1022 *60.4_4

FB_PLLAVDD = 55mA

Add La (0402) for co-lay

L1001 *PBY160808T-300Y-N

+1.05V_GFX

D D

L1002 HCB1005KF-330T30

La

C1069 22U/6.3VS_6 C1070 0.1U/16V_4 C1071 0.1U/16V_4 C1072 0.1U/16V_4

+FB_PLLAVDD

PS_FB_CLAMP

2

U1001B

F3

FB_CLAMP

C27

FBA_CMD0

C26

FBA_CMD1

E24

FBA_CMD2

F24

FBA_CMD3

D27

FBA_CMD4

D26

FBA_CMD5

F25

FBA_CMD6

F26

FBA_CMD7

F23

FBA_CMD8

G22

FBA_CMD9

G23

FBA_CMD10

G24

FBA_CMD11

F27

FBA_CMD12

G25

FBA_CMD13

G27

FBA_CMD14

G26

FBA_CMD15

M24

FBA_CMD16

M23

FBA_CMD17

K24

FBA_CMD18

K23

FBA_CMD19

M27

FBA_CMD20

M26

FBA_CMD21

M25

FBA_CMD22

K26

FBA_CMD23

K22

FBA_CMD24

J23

FBA_CMD25

J25

FBA_CMD26

J24

FBA_CMD27

K27

FBA_CMD28

K25

FBA_CMD29

J27

FBA_CMD30

J26

FBA_CMD31

F22

FBA_DEBUG0

J22

FBA_DEBUG1

D24

FBA_CLK0

D25

FBA_CLK0

N22

FBA_CLK1

M22

FBA_CLK1

D18

FBA_WCK01

C18

FBA_WCK01

D17

FBA_WCK23

D16

FBA_WCK23

T24

FBA_WCK45

U24

FBA_WCK45

V24

FBA_WCK67

V25

FBA_WCK67

F16

FB_PLLAVDD

P22

FB_PLLAVDD

H22

FB_DLLAVDD

GF119NC

GF117

GF119

GF117FB_PLLAVDD

3

2/14 FBA

E18 F18 E16 F17 D20 D21 F20 E21 E15 D15 F15 F13 C13 B13 E13 D13 B15 C16 A13 A15 B18 A18 A19 C19 B24 C23 A25 A24 A21 B21 C20 C21 R22 R24 T22 R23 N25 N26 N23 N24 V23 V22 T23 U22 Y24 AA24 Y22 AA23 AD27 AB25 AD26 AC25 AA27 AA26 W26 Y25 R26 T25 N27 R27 V26 V27 W27 W25

D19 D14 C17 C22 P24 W24 AA25 U25

E19 C15 B16 B22 R25 W23 AB26 T26

F19 C14 A16 A22 P25 W22 AB27 T27

VMA_DQ0 VMA_DQ1 VMA_DQ2 VMA_DQ3 VMA_DQ4 VMA_DQ5 VMA_DQ6 VMA_DQ7 VMA_DQ8 VMA_DQ9 VMA_DQ10 VMA_DQ11 VMA_DQ12 VMA_DQ13 VMA_DQ14 VMA_DQ15 VMA_DQ16 VMA_DQ17 VMA_DQ18 VMA_DQ19 VMA_DQ20 VMA_DQ21 VMA_DQ22 VMA_DQ23 VMA_DQ24 VMA_DQ25 VMA_DQ26 VMA_DQ27 VMA_DQ28 VMA_DQ29 VMA_DQ30 VMA_DQ31 VMA_DQ32 VMA_DQ33 VMA_DQ34 VMA_DQ35 VMA_DQ36 VMA_DQ37 VMA_DQ38 VMA_DQ39 VMA_DQ40 VMA_DQ41 VMA_DQ42 VMA_DQ43 VMA_DQ44 VMA_DQ45 VMA_DQ46 VMA_DQ47 VMA_DQ48 VMA_DQ49 VMA_DQ50 VMA_DQ51 VMA_DQ52 VMA_DQ53 VMA_DQ54 VMA_DQ55 VMA_DQ56 VMA_DQ57 VMA_DQ58 VMA_DQ59 VMA_DQ60 VMA_DQ61 VMA_DQ62 VMA_DQ63

VMA_WDQS0 VMA_WDQS1 VMA_WDQS2 VMA_WDQS3 VMA_WDQS4 VMA_WDQS5 VMA_WDQS6 VMA_WDQS7

VMA_RDQS0 VMA_RDQS1 VMA_RDQS2 VMA_RDQS3 VMA_RDQS4 VMA_RDQS5 VMA_RDQS6 VMA_RDQS7

FBA_D0 FBA_D1 FBA_D2 FBA_D3 FBA_D4 FBA_D5 FBA_D6 FBA_D7 FBA_D8

FBA_D9 FBA_D10 FBA_D11 FBA_D12 FBA_D13 FBA_D14 FBA_D15 FBA_D16 FBA_D17 FBA_D18 FBA_D19 FBA_D20 FBA_D21 FBA_D22 FBA_D23 FBA_D24 FBA_D25 FBA_D26 FBA_D27 FBA_D28 FBA_D29 FBA_D30 FBA_D31 FBA_D32 FBA_D33 FBA_D34 FBA_D35 FBA_D36 FBA_D37 FBA_D38 FBA_D39 FBA_D40 FBA_D41 FBA_D42 FBA_D43 FBA_D44 FBA_D45 FBA_D46 FBA_D47 FBA_D48 FBA_D49 FBA_D50 FBA_D51 FBA_D52 FBA_D53 FBA_D54 FBA_D55 FBA_D56 FBA_D57 FBA_D58 FBA_D59 FBA_D60 FBA_D61 FBA_D62 FBA_D63

FBA_DQM0 FBA_DQM1 FBA_DQM2 FBA_DQM3 FBA_DQM4 FBA_DQM5 FBA_DQM6 FBA_DQM7

FBA_DQS_WP0 FBA_DQS_WP1 FBA_DQS_WP2 FBA_DQS_WP3 FBA_DQS_WP4 FBA_DQS_WP5 FBA_DQS_WP6 FBA_DQS_WP7

FBA_DQS_RN0 FBA_DQS_RN1 FBA_DQS_RN2 FBA_DQS_RN3 FBA_DQS_RN4 FBA_DQS_RN5 FBA_DQS_RN6 FBA_DQS_RN7

VMA_DM0 VMA_DM1 VMA_DM2 VMA_DM3 VMA_DM4 VMA_DM5 VMA_DM6 VMA_DM7

4

VMA_DQ[63:0]

FBVDDQ + FBVDD = 3.116A

C1060 0.1U/16V_4 C1061 0.1U/16V_4

C1062 1U/6.3V_4 C1065 1U/6.3V_4 C1066 4.7U/6.3V_6 C1063 4.7U/6.3V_6 C1067 10U/6.3V_6 C1064 22U/6.3V_6

VMA_DM[7:0] [22,23]

VMA_WDQS[7:0] [22,23]

VMA_RDQS[7:0] [22,23]

5

VMA_DQ[63:0] [22,23]

+1.5V_GFX

B26 C25 E23 E26 F14 F21 G13 G14 G15 G16 G18 G19 G20 G21 H24 H26

J21

K21

L22 L24

L26 M21 N21 R21

T21

V21

W21

if stuff Da,Ra, do not stuff Ua,Ca,Rb,Rc

For support GC6 2.0

PVPCIE_PG[60]

DGPU_PWR_EN[7,60]

DGPU_VC_EN[59,60]

GC6_FB_EN[8,21]

U1001D

12/14 FBVDDQ

FBVDDQ FBVDDQ FBVDDQ FBVDDQ FBVDDQ FBVDDQ FBVDDQ FBVDDQ FBVDDQ FBVDDQ FBVDDQ FBVDDQ FBVDDQ FBVDDQ FBVDDQ FBVDDQ FBVDDQ FBVDDQ FBVDDQ FBVDDQ FBVDDQ FBVDDQ FBVDDQ FBVDDQ FBVDDQ FBVDDQ FBVDDQ

FB_CAL_PD_VDDQ

FB_CAL_PU_GND

FB_CALTERM_GND

bga595-nvidia-n13p-gv2-s-a2 COMMON

GC6_FB_EN DGPU_VC_EN

R7748 0_4 R1023 *0_4 R1024 *0_4

D1004

*BAT54CW-7-F

Da

Rc

U1003

NL17SZ32DFT2G

6

D22

FB_CAL_PD_VDDQ

C24

FB_CAL_PU_GND

B25

FB_CAL_TERM_GND

+3V

Ua

2 1

3 5

R1123

*100K/F_4

Ca

C1068

0.1U/16V_4

4

Rb

R1018 40.2/F_4

R1019 42.2/F_4

R1020 51.1/F_4

DGPU_FB_EN

Ra

R1025 100K/F_4

7

+1.5V_GFX

DGPU_FB_EN [61]

U1001F

13/14 GND

A2

GND

AB17

GND

AB20

GND

AB24

GND

AC2

GND

AC22

GND

AC26

GND

AC5

GND

AC8

GND

AD12

GND

AD13

GND

A26

GND

AD15

GND

AD16

GND

AD18

GND

AD19

GND

AD21

GND

AD22

GND

AE11

GND

AE14

GND

AE17

GND

AE20

GND

AB11

GND

AF1

GND

AF11

GND

AF14

GND

AF17

GND

AF20

GND

AF23

GND

AF5

GND

AF8

GND

AG2

GND

AG26

GND

AB14

GND

B1

GND

B11

GND

B14

GND

B17

GND

B20

GND

B23

GND

B27

GND

B5

GND

B8

GND

E11

GND

E14

GND

E17

GND

E2

GND

E20

GND

E22

GND

E25

GND

E5

GND

E8

GND

H2

GND

H23

GND

H25

GND

H5

GND

K11

GND

K13

GND

K15

GND

K17

GND

L10

GND

L12

GND

L14

GND

L16

GND

L18

GND

L2

GND

L23

GND

L25

GND

L5

GND

M11

GND

bga595-nvidia-n13p-gv2-s-a2 COMMON

GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND

GND GND

8

15

M13 M15 M17 N10 N12 N14 N16 N18 P11 P13 P15 P17 P2 P23 P26 P5 R10 R12 R14 R16 R18 T11 T13 T15 T17 U10 U12 U14 U16 U18 U2 U23 U26 U5 V11 V13 V15 V17 Y2 Y23 Y26 Y5

AA7 AB7

FB_DLLAVDD = 15mA

1

2

bga595-nvidia-n13p-gv2-s-a2

3

FB_VREF_PROBE

COMMON

PROJECT:400 Series

D23

NB5

4

5

6

NB5

7

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

N16S-GMR (MEMORY/GND)

Date: Sheet of

19 65Thursday, May 12, 2016

8

1A

1

U1001G

4/14 IFPAB

GF117GF119

NC

GF117

NC

NC NC

NC

GF119

AA6

IFPAB_RSET

V7

IFPAB_PLLVDD

W7

A A

B B

C C

IFPAB_PLLVDD

W6

IFPA_IOVDD

Y6

IFPB_IOVDD

IFPAB

bga595-nvidia-n13p-gv2-s-a2

U1001H

5/14 IFPC

T6

IFPC_RSET

M7

IFPC_PLLVDD

N7

IFPC_PLLVDD

P6

IFPC_IOVDD

bga595-nvidia-n13p-gv2-s-a2

U1001I

6/14 IFPD

U6

IFPD_RSET

T7

IFPD_PLLVDD

R7

IFPD_PLLVDD

GF119

IFPD

D D

R6

IFPD_IOVDD

1

GF119 GF117

NC

2

GF117

NC NC

NC

DVI/HDMI DP

I2CW_SDA

NC

I2CW_SCL

NC

NC NC

NC

GF117

NC NC

NC

2

GF119

IFPA_TXC IFPA_TXC

IFPA_TXD0 IFPA_TXD0

IFPA_TXD1 IFPA_TXD1

IFPA_TXD2 IFPA_TXD2

IFPA_TXD3 IFPA_TXD3

IFPB_TXC IFPB_TXC

IFPB_TXD4 IFPB_TXD4

IFPB_TXD5 IFPB_TXD5

IFPB_TXD6 IFPB_TXD6

IFPB_TXD7 IFPB_TXD7

GPIO14

COMMON

AC4 AC3

Y3 Y4

AA2 AA3

AA1 AB1

AA5 AA4

AB4 AB5

AB2 AB3

AD2 AD3

AD1 AE1

AD5 AD4

B3

IFPC

GF119GF117

IFPC_AUX IFPC_AUX

GF119

IFPC_L3 IFPC_L3

IFPC_L2 IFPC_L2

IFPC_L1 IFPC_L1

IFPC_L0 IFPC_L0

GPIO15

COMMON

DPDVI/HDMI

IFPD_AUX IFPD_AUX

IFPD_L3 IFPD_L3

IFPD_L2 IFPD_L2

IFPD_L1 IFPD_L1

IFPD_L0 IFPD_L0

GPIO17

COMMONbga595-nvidia-n13p-gv2-s-a2

TXC TXC

TXD0 TXD0

TXD1 TXD1

TXD2 TXD2

Add Lb (0402) for co-lay

I2CX_SDA I2CX_SCL

TXC TXC

TXD0 TXD0

TXD1 TXD1

TXD2 TXD2

3

J7

K7

K6

U1001J

7/14 IFPEF

IFPEF_PLLVDD

IFPEF_RSET

GF119

IFPE

GF119

H6

IFPE_IOVDD

J6

IFPF_IOVDD

IFPF

N5 N4

N3 N2

R3 R2

R1 T1

T3 T2

C3

bga595-nvidia-n13p-gv2-s-a2

PLLVDD = 38mA

L1003 *PBY160808T-300Y-N

+1.05V_GFX

L1004

SP_PLLVDD = 17mA

Lb

+1.05V_GFX

HCB1005KF-330T30 C1073 0.1U/16V_4 C1074 22U/6.3VS_6

La

L1005 HCB1005KF-330T30

*HCB1608KF-301T20(300,2A)

L1000

C1076 0.1U/16V_4 C1077 0.1U/16V_4 C1078 10U/6.3V_6 C1079 47U/6.3VS_8

VID_PLLVDD = 41mA

P4 P3

R5 R4

T5 T4

U4 U3

V4 V3

D4

3

+1.05V_GFX

+1.5V_GFX

GF117

4

GF117

DVI-DL

I2CY_SDA

NC NC

GF117

I2CY_SCL

NC

TXC

NC

TXC

TXD0

NC NC

TXD0

NC

TXD1

NC

TXD1

NC

TXD2

NC

TXD2

HPD_ENC

DVI-DL

NC NC

NC

TXD3

NC

TXD3

NC

TXD4

NC

TXD4

TXD5

NC

TXD5

NC

DVI-SL/HDMI

I2CY_SDA I2CY_SCL

TXC TXC

TXD0 TXD0

TXD1 TXD1

TXD2

HPD_E

GF119

DVI-SL/HDMI

I2CZ_SDA I2CZ_SCL

TXC TXC

TXD0 TXD0

TXD1 TXD1

TXD2 TXD2

HPD_F

GF119

5

DP

J3

IFPE_AUX

J2

IFPE_AUX

J1

IFPE_L3

K1

IFPE_L3

K3

IFPE_L2

K2

IFPE_L2

M3

IFPE_L1

M2

IFPE_L1

M1

IFPE_L0

N1

IFPE_L0

GPIO18

C2

DP

H4

IFPF_AUX

H3

IFPF_AUX

J5

IFPF_L3

J4

IFPF_L3

K5

IFPF_L2

K4

IFPF_L2

L4

IFPF_L1

L3

IFPF_L1

M5

IFPF_L0

M4

IFPF_L0

GPIO19

F7

COMMON

Add La (0402) for co-lay

NV_PLLVDD

U1001M

9/14 XTAL_PLL

XTAL_SSIN

C1081 *1000P/50V_4

C1083 *1000P/50V_4

L6

M6 N6

A10

C11

bga595-nvidia-n13p-gv2-s-a2

2

1 3

2

1 3

PLLVDD SP_PLLVDD

VID_PLLVDD

XTALSSIN

XTALIN

DGPU_PGOK-1

Q1003 METR3904-G

Q1000 *METR3904-G

GF119

NC

GF117

XTALOUTBUFF

XTALOUT

COMMON

+3V_GFX

R1036 0_4

+3V

R1033

4.7K_4

C1082 1000P/50V_4

5

R1031 *4.7K_4

2

Q1004 DRC5144E0L

1 3

SP_PLLVDD

R1028 10K/F_4

27M_XTAL_IN_R 27M_XTAL_OUT

R1032 4.7K_4

R1035 *4.7K_4

DGPU_POK4

DGPU_POK2

4

6

U1001K

3/14 DACA

W5

DACA_VDD

AE2

DACA_VREF

AF2

DACA_RSET

bga595-nvidia-n13p-gv2-s-a2

C10

BXTALOUT

B10

DGPU_PWROK [7,61]

R1034 100K/F_4

6

GF119

GF117

NC

TSEN_VREF

NC

R1029 10K/F_4

GF117

NC NC

NC

NC NC

7

GF119

DACA_HSYNC DACA_VSYNC

DACA_RED

DACA_GREEN

DACA_BLUE

27M_XTAL_IN_R 27M_XTAL_OUT

NB5

7

8

16

B7

I2CA_SCL

I2CA_SDA

COMMON

Size Document Number Rev

Size Document Number Rev Custom

Custom

Custom Date: Sheet of

Date: Sheet of

R1026 1.8K_4

A7

I2CA_SDA

R1027 1.8K_4

AE3 AE4

AG3 AF4 AF3

C1075

41

2 3

10P/50V_4

C1080

Y1000

27MHZ +-10PPM

10P/50V_4

PROJECT:400 Series

Quanta Computer Inc.

N16S-GMR (DISPLAY)

20 65Thursday, May 12, 2016

8

1A

1

TP1001 TP1000

A A

R1053 40.2K/F_4

U1001N

8/14 MISC1

B B

E12

TP1003 TP1004

TP1005 TP1006 TP1007 TP1008

C C

THERMTHERM+

JTAG_TCK JTAG_TMS JTAG_TDI JTAG_TDO JTAG_TRST#

AE5 AD6 AE6 AF6 AG4

THERMDN

F12

THERMDP

JTAG_TCK JTAG_TMS JTAG_TDI JTAG_TDO JTAG_TRST

STRAP0 STRAP1 STRAP2 STRAP3 STRAP4

2

U1001L

10/14 MISC2

E10

VMON_IN0

F10

VMON_IN1

D1

STRAP0

D2

STRAP1

E4

STRAP2

E3

STRAP3

D3

STRAP4

GF119

C1

STRAP5_NC

F6

MULTISTRAP_REF0_GND

F4

MULTISTRAP_REF1_GND

F5

MULTISTRAP_REF2_GND

bga595-nvidia-n13p-gv2-s-a2 COMMON

GF117

NC NC

GF117

NC NC

NC

GF119

I2CS_SDA

I2CC_SCL I2CC_SDA

GF119

I2CB_SDA

GF119

I2CS_SCL

I2CB_SCL

GPIO0 GPIO1 GPIO2 GPIO3 GPIO4 GPIO5 GPIO6 GPIO7 OVERT

GPIO9 GPIO10 GPIO11 GPIO12 GPIO13

GPIO16 GPIO20 GPIO21

GF117

NC

D9 D8

A9 B9

C9 C8

C6 B2 D6 C7 F9 A3 A4 B6 A6 F8 C5 E7 D7 B4

D5 E6 C4

3

GF117

NC

GPUT_CLK_L GPUT_DATA_L

DGPU_EDIDCLK DGPU_EDIDDATA

N12E_SCL

R1059 1.8K_4

N12E_SDA

R1060 1.8K_4

R1061 0_4

+3V_MAIN_EN GPU_EVENT#_GPU

VGA_OVT# ALERT

2 1

PWR_LEVEL PSI

D1002 RB500V-40

GPU_GPIO16

GPU_PEX_RST_HOLD#

ROM_CS

ROM_SI

ROM_SO

ROM_SCLK

BUFRST

PGOOD

CEC

R1056 1.8K_4 R1058 1.8K_4

GC6_FB_ENGPU_GPIO0

2 1

D1001 RB500V-40

GPU_EVENT#

TP1009

GPU_PEX_RST_HOLD# [18]

4

D12

ROM_CS

B12

ROM_SI

A12

ROM_SO

C12

ROM_SCLK

D11 D10

E9

SYS_PEX_RST_MON#

R1054 *10K_4

PCH_KBC_DATA[42,45,49]

PCH_KBC_CLK[42,45,49]

GC6_FB_EN [8,19]

+3V_MAIN_EN [59,60]

GPU_EVENT# [5]

GPU_VID [59]

DGPU_PROCHOT_EC# [45,59]

PSI [59]

TP1002

5

SYS_PEX_RST_MON# [18]

Q1005A 2N7002DW

Dual

3 4

5 2

6 1

Dual

Q1005B 2N7002DW

Default: Samsung

ROM_SI STRAP0 ROM_SO ROM_SCLK

R1055 4.7K_4

R1057 4.7K_4

R1037 *10K/F_4

R1045

24.9K/F_4

GPUT_DATA_L

GPUT_CLK_L

VRAM Configuration Table

ROM_SI

0000 0101

0011 DDR3 - 256Mx16, 1.5V, 1.1Ghz/1.35V 1Ghz Micron

0100 SAMSUNGDDR3 - 256Mx16, 1.5V, 1Ghz/1.35V 900Mhz

DESCRIPTION

DDR3 - 256Mx16, 1.5V, 1.1Ghz/1.35V 1Ghz

+3V_GFX +3V_GFX +3V_GFX

R1038 *4.99K/F_4

R1046

4.99K/F_4

Vendor

HYNIX

6

R1039 *4.99K/F_4

STRAP1 STRAP2 STRAP3 STRAP4

R1047

4.99K/F_4

Vendor P/N

H5TC4G63CFR-N0C

MT41J256M16LY-091G:N

K4W4G1646E-BC1A

R1040

49.9K/F_4

R1048 *24.9K/F_4

0x5

0x3

0x4

7

R1041 *10K/F_4

R1049 *45.3K/F_4

Straping

+3V_AON+3V_GFX

R1042 *30.1K/F_4

R1050

*15K/F_4

1 2

TOP B/S

AKD5PZDTW01

AKD5PGDT500 AKD5PGDT501

R1043 *10K/F_4

R1051 *4.99K/F_4

R1044 *10K/F_4

R1052 *45.3K/F_4

QBC

AKD5PZDTW02

AKD59GSTL00AKD59GSTL01

8

17

4.99k CS24992FB26 10k CS31002FB26 15k CS31502FB24 20k CS32002FB29

24.9k CS32492FB16

30.1k CS33012FB18

34.8k CS33482FB06

45.3k CS34532FB18

bga595-nvidia-n13p-gv2-s-a2

PEGX_RST#[18]

2

VGA_OVT# DGPU_OVT#

D D

1

DGPU_OVT#

1

Q1006 2N7002K

3

R1159 *0_4

EN_5V_3V [41,42,48]

2

COMMON

PWR_LEVEL

PSI

VGA_OVT#

ALERT

GPU_PEX_RST_HOLD#

GPU_EVENT#_GPU

+3V_MAIN_EN

GC6_FB_EN

JTAG_TRST#

R1062 10K/F_4

R1063 *10K/F_4

R1064 10K/F_4

R1065 10K/F_4

R1066 10K/F_4

R1067 10K/F_4

R1068 10K/F_4

R1069 10K/F_4

R1070 10K/F_4

3

+3V_AON

GPIO ASSIGNMENTS

GPIO

0 1

3 4 5 6 7 8

9 10 11 12 13

4

I/O IN

OUT OUT OUT2LCD_VCC OUT OUT OUT OUT I/O I/O OUT OUT IN OUT

FB_CLAMP_MON MEM_VDD_CTL LCD_BL_PWM

LCD_BLEN Reserved FB_CLAMP_TGL_REQ 3D VISION OVERT ALERT MEM VREF_CTL PWR_VID GPU CORE_VDD PWM Control signal PWR_LEVEL PSI Phase Shedding

5

USAGE FB Clamp monitor

Memory VDD VID Panel Backlight PWM PANEL POWER ENABLE PANEL BACKLIGHT ENABLE

-Active low FB Clamp toggle request 3D VISION LEFT/RIGHT signal ACTIVE LOW THERMAL OVER TEMP ACTIVE LOW THERMAL ALERT MEMMORY VREF CONTROL

AC Power detect or power supply overdraw input

6

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

N16S-GMR (GPIO/STRAPS)

NB5

7

N16S-GMR (GPIO/STRAPS)

Date: Sheet of

1A

21 65Thursday, May 12, 2016

8

5

VREFC_VMA1 VREFD_VMA1

FBA_CMD9[19,23] FBA_CMD11[19,23] FBA_CMD8[19,23] FBA_CMD25[19,23] FBA_CMD10[19,23] FBA_CMD24[19,23] FBA_CMD22[19,23] FBA_CMD7[19,23]

D D

C C

B B

FBA_CMD21[19,23] FBA_CMD6[19,23] FBA_CMD29[19,23] FBA_CMD23[19,23] FBA_CMD28[19,23] FBA_CMD20[19,23] FBA_CMD4[19,23] FBA_CMD14[19,23]

FBA_CMD12[19,23] FBA_CMD27[19,23] FBA_CMD26[19,23]

VMA_CLK0[19] VMA_CLK0#[19] FBA_CMD3[19]

FBA_CMD2[19] FBA_CMD0[19] FBA_CMD30[19,23] FBA_CMD15[19,23] FBA_CMD13[19,23]

VMA_WDQS1[19] VMA_RDQS1[19]

VMA_DM1[19] VMA_DM2[19]

VMA_WDQS2[19] VMA_RDQS2[19]

FBA_CMD5[19,23]

GND

FBA_CMD1[19]

GND

stuff R1124 for Hynix 8Gb DDP VRAM

R1072243_4

R1124243_4

FBA_ZQ0

FBA_CMD2 FBA_CMD1 FBA_CMD3 FBA_ZQ2

U1004

M8

VREFCA

H1

VREFDQ

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

A15

M2

BA0 BA1 BA2

CK CK CKE

ODT CS RAS CAS WE

DQSL DQSL

DML DMU

DQSU DQSU

RESET ZQ

NC#J1 NC#L1 NC#J9 NC#L9

96-BALL SDRAM DDR3

VDD#B2 VDD#D9

VDD#G7

VDD#K2 VDD#K8 VDD#N1 VDD#N9 VDD#R1 VDD#R9

VDDQ#A1 VDDQ#A8 VDDQ#C1 VDDQ#C9 VDDQ#D2 VDDQ#E9 VDDQ#F1 VDDQ#H2 VDDQ#H9

VSS#A9 VSS#B3 VSS#E1 VSS#G8

VSS#J2

VSS#J8 VSS#M1 VSS#M9 VSS#P1 VSS#P9 VSS#T1 VSS#T9

VSSQ#B1 VSSQ#B9 VSSQ#D1 VSSQ#D8 VSSQ#E2 VSSQ#E8

VSSQ#F9 VSSQ#G1 VSSQ#G9

N8

M3

J7 K7 K9

K1 L2 J3 K3 L3

F3 G3

E7 D3

C7 B7

T2 L8

J1 L1 J9 L9

VRAM _DDR3_HYNIX_256MX16

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1

GND B9 D1 D8 E2 E8 F9 G1 G9

reserve for Hynix 8Gb DDP VRAM

4

+1.5V_GFX

VMA_DQ11 [19] VMA_DQ14 [19] VMA_DQ8 [19] VMA_DQ13 [19] VMA_DQ10 [19] VMA_DQ12 [19] VMA_DQ9 [19] VMA_DQ15 [19]

VMA_DQ17 [19] VMA_DQ21 [19] VMA_DQ18 [19] VMA_DQ22 [19] VMA_DQ19 [19] VMA_DQ23 [19] VMA_DQ16 [19] VMA_DQ20 [19]

C10844.7U/6.3V_6

C10850.1U/16V_4 C10860.1U/16V_4

C10904.7U/6.3V_6

C10910.1U/16V_4 C10920.1U/16V_4

GND

+1.5V_GFX

3

Rank0

162_1% ohm CS11622FB07 RES CHIP 162 1/16W +-1%(0402) CS11622FB15 RES CHIP 162 1/16W +-1%(0402)

+1.5V_GFX +1.5V_GFX

C1103 1U/6.3V_4 C1108 1U/6.3V_4

C1111 1U/6.3V_4

VMA_CLK0

VMA_CLK0#

R1073

1.33K/F_4

VREFC_VMA1 VREFD_VMA1

R1076

1.33K/F_4

C1096

0.01U/50V_4

+1.5V_GFX

R1071 162_4

R1074

1.33K/F_4

R1077

1.33K/F_4

C1104 1U/6.3V_4 C1107 1U/6.3V_4C1106 1U/6.3V_4 C1109 1U/6.3V_4

HYU 256Mx16, H5TC4G63AFR-11C QBC PN MIC 256Mx16, MT41J256M16HA-093G:E QBC PN SAM 256Mx16, K4W4G1646D-BC1A QBC PN

C1097

0.01U/50V_4

+1.5V_GFX

VMA_WDQS0[19] VMA_RDQS0[19]

VMA_DM0[19] VMA_DM3[19]

VMA_WDQS3[19] VMA_RDQS3[19]

GND

stuff R1125 for Hynix 8Gb DDP VRAM

C1098 10U/6.3V_6 C1099 10U/6.3V_6 C1100 10U/6.3V_6 C1101 0.1U/16V_4

C1102 0.1U/16V_4 C1105 0.1U/16V_4

C1110 0.1U/16V_4 C1113 0.1U/16V_4C1112 1U/6.3V_4 C1114 0.1U/16V_4

FBA_CMD9 FBA_CMD11 FBA_CMD8 FBA_CMD25 FBA_CMD10 FBA_CMD24 FBA_CMD22 FBA_CMD7 FBA_CMD21 FBA_CMD6 FBA_CMD29 FBA_CMD23 FBA_CMD28 FBA_CMD20 FBA_CMD4 FBA_CMD14

FBA_CMD12 FBA_CMD27 FBA_CMD26

VMA_CLK0 VMA_CLK0# FBA_CMD3

FBA_CMD2 FBA_CMD0 FBA_CMD30 FBA_CMD15 FBA_CMD13

FBA_CMD5

R1075243_4

R1125243_4

2

󶁪󶁪󶁪󶁪

AKD5PGWTW08---TOP B/S PN : AKD5PGWTW07

󶁪󶁪󶁪󶁪

AKD5PZSTL01---TOP B/S PN : AKD5PZSTL00

󶁪󶁪󶁪󶁪

AKD5PGWT501---TOP B/S PN : AKD5PGWT502

U1005

FBA_ZQ1

FBA_CMD2 FBA_CMD1 FBA_CMD3 FBA_ZQ3

M8

VREFCA

H1

VREFDQ

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

A15

M2

BA0 BA1 BA2

CK CK CKE

ODT CS RAS CAS WE

DQSL DQSL

DML DMU

DQSU DQSU

RESET ZQ

NC#J1 NC#L1 NC#J9 NC#L9

96-BALL SDRAM DDR3

VDD#B2 VDD#D9 VDD#G7 VDD#K2 VDD#K8 VDD#N1 VDD#N9 VDD#R1 VDD#R9

VDDQ#A1 VDDQ#A8 VDDQ#C1 VDDQ#C9 VDDQ#D2 VDDQ#E9 VDDQ#F1 VDDQ#H2 VDDQ#H9

VSS#A9

VSS#B3

VSS#E1 VSS#G8

VSS#J2

VSS#J8 VSS#M1 VSS#M9

VSS#P1

VSS#P9

VSS#T1

VSS#T9

VSSQ#B1 VSSQ#B9 VSSQ#D1 VSSQ#D8 VSSQ#E2 VSSQ#E8 VSSQ#F9 VSSQ#G1 VSSQ#G9

N8 M3

J7 K7 K9

K1 L2 J3 K3 L3

F3

G3

E7

D3

C7

B7

T2 L8

J1 L1 J9 L9

VRAM _DDR3_HYNIX_256MX16

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

VREFC_VMA1 VREFD_VMA1

1

18

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1

GND B9 D1 D8 E2 E8 F9 G1 G9

+1.5V_GFX

VMA_DQ1 [19] VMA_DQ4 [19] VMA_DQ3 [19] VMA_DQ6 [19] VMA_DQ0 [19] VMA_DQ7 [19] VMA_DQ2 [19] VMA_DQ5 [19]

VMA_DQ25 [19] VMA_DQ28 [19] VMA_DQ24 [19] VMA_DQ29 [19] VMA_DQ26 [19] VMA_DQ30 [19] VMA_DQ27 [19] VMA_DQ31 [19]

C10874.7U/6.3V_6

C10880.1U/16V_4 C10890.1U/16V_4

C10934.7U/6.3V_6

C10940.1U/16V_4 C10950.1U/16V_4

GND

A A

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

DDR3 - RANK0

NB5

5

4

3

2

NB5

DDR3 - RANK0

Date: Sheet of

1

1A

22 65Thursday, May 12, 2016

5

4

3

2

1

U1006

FBA_ZQ4

FBA_CMD18 FBA_CMD17 FBA_CMD19 FBA_ZQ6

M8

VREFCA

H1

VREFDQ

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

K1

ODT

L2

CS

J3

RAS

K3

CAS

L3

WE

F3

DQSL

G3

DQSL

E7

DML

D3

DMU

C7

DQSU

B7

DQSU

T2

RESET

L8

ZQ

J1

NC#J1

L1

NC#L1

J9

NC#J9

L9

NC#L9

96-BALL SDRAM DDR3

VRAM _DDR3_HYNIX_256MX16

VREFC_VMA3 VREFD_VMA3

FBA_CMD9[19,22] FBA_CMD11[19,22] FBA_CMD8[19,22] FBA_CMD25[19,22] FBA_CMD10[19,22] FBA_CMD24[19,22]

D D

C C

B B

FBA_CMD22[19,22] FBA_CMD7[19,22] FBA_CMD21[19,22] FBA_CMD6[19,22] FBA_CMD29[19,22] FBA_CMD23[19,22] FBA_CMD28[19,22] FBA_CMD20[19,22] FBA_CMD4[19,22] FBA_CMD14[19,22]

FBA_CMD12[19,22] FBA_CMD27[19,22] FBA_CMD26[19,22]

VMA_CLK1[19] VMA_CLK1#[19] FBA_CMD19[19]

FBA_CMD18[19] FBA_CMD16[19] FBA_CMD30[19,22] FBA_CMD15[19,22] FBA_CMD13[19,22]

VMA_WDQS4[19]

VMA_RDQS4[19]

VMA_DM4[19] VMA_DM7[19]

VMA_WDQS7[19]

VMA_RDQS7[19]

FBA_CMD5[19,22]

GND

FBA_CMD17[19] GND

stuff R1124 for Hynix 8Gb DDP VRAM

R1079243_4

R1126243_4

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

VDD#B2 VDD#D9 VDD#G7 VDD#K2 VDD#K8 VDD#N1 VDD#N9 VDD#R1 VDD#R9

VDDQ#A1 VDDQ#A8 VDDQ#C1 VDDQ#C9 VDDQ#D2 VDDQ#E9

VDDQ#F1 VDDQ#H2 VDDQ#H9

VSS#A9 VSS#B3 VSS#E1 VSS#G8

VSS#J2

VSS#J8 VSS#M1 VSS#M9 VSS#P1 VSS#P9

VSS#T1

VSS#T9

VSSQ#B1 VSSQ#B9 VSSQ#D1 VSSQ#D8 VSSQ#E2 VSSQ#E8

VSSQ#F9 VSSQ#G1 VSSQ#G9

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

+1.5V_GFX

GND

VMA_DQ34 [19] VMA_DQ37 [19] VMA_DQ33 [19] VMA_DQ39 [19] VMA_DQ32 [19] VMA_DQ38 [19] VMA_DQ35 [19] VMA_DQ36 [19]

VMA_DQ57 [19] VMA_DQ61 [19] VMA_DQ58 [19] VMA_DQ62 [19] VMA_DQ59 [19] VMA_DQ63 [19] VMA_DQ56 [19] VMA_DQ60 [19]

C11154.7U/6.3V_6

C11160.1U/16V_4 C11170.1U/16V_4

C11214.7U/6.3V_6

C11220.1U/16V_4 C11230.1U/16V_4

Rank0

GND

162_1% ohm CS11622FB07 RES CHIP 162 1/16W +-1%(0402) CS11622FB15 RES CHIP 162 1/16W +-1%(0402)

VMA_CLK1

VMA_CLK1#

+1.5V_GFX +1.5V_GFX

R1081

1.33K/F_4

VREFC_VMA3 VREFD_VMA3

R1083

1.33K/F_4

+1.5V_GFX

C1134 1U/6.3V_4 C1137 1U/6.3V_4 C1138 1U/6.3V_4 C1139 1U/6.3V_4 C1142 1U/6.3V_4

C1127

0.01U/50V_4

+1.5V_GFX

C1135 1U/6.3V_4 C1140 1U/6.3V_4

C1143 1U/6.3V_4

HYU 256Mx16, H5TC4G63AFR-11C QBC PN MIC 256Mx16, MT41J256M16HA-093G:E QBC PN SAM 256Mx16, K4W4G1646D-BC1A QBC PN

+1.5V_GFX

VMA_WDQS5[19]

VMA_RDQS5[19]

VMA_DM5[19] VMA_DM6[19]

VMA_WDQS6[19]

VMA_RDQS6[19]

C1129 10U/6.3V_6 C1130 10U/6.3V_6 C1131 10U/6.3V_6 C1132 0.1U/16V_4

C1133 0.1U/16V_4 C1136 0.1U/16V_4

C1141 0.1U/16V_4 C1144 0.1U/16V_4 C1145 0.1U/16V_4

R1078 162_4

R1082

1.33K/F_4

R1084

1.33K/F_4

C1128

0.01U/50V_4

󶁪󶁪󶁪󶁪

AKD5PGWTW08---TOP B/S PN : AKD5PGWTW07

󶁪󶁪󶁪󶁪

AKD5PZSTL01---TOP B/S PN : AKD5PZSTL00

󶁪󶁪󶁪󶁪

AKD5PGWT501---TOP B/S PN : AKD5PGWT502

VREFC_VMA3 VREFD_VMA3

FBA_CMD9 FBA_CMD11 FBA_CMD8 FBA_CMD25 FBA_CMD10 FBA_CMD24 FBA_CMD22 FBA_CMD7 FBA_CMD21 FBA_CMD6 FBA_CMD29 FBA_CMD23 FBA_CMD28 FBA_CMD20 FBA_CMD4 FBA_CMD14

FBA_CMD12 FBA_CMD27 FBA_CMD26

VMA_CLK1 VMA_CLK1# FBA_CMD19

FBA_CMD18 FBA_CMD16 FBA_CMD30 FBA_CMD15 FBA_CMD13

FBA_CMD5

GND

stuff R1124 for Hynix 8Gb DDP VRAM

R1080243_4

R1127243_4

FBA_ZQ5

FBA_CMD18 FBA_CMD17 FBA_CMD19 FBA_ZQ7

U1007

M8

VREFCA

H1

VREFDQ

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

A15

M2

BA0 BA1 BA2

CK CK CKE

ODT CS RAS CAS WE

DQSL DQSL

DML DMU

DQSU DQSU

RESET ZQ

NC#J1 NC#L1 NC#J9 NC#L9

96-BALL SDRAM DDR3

VDD#B2

VDD#D9

VDD#G7

VDD#K2 VDD#K8 VDD#N1 VDD#N9 VDD#R1 VDD#R9

VDDQ#A1

VDDQ#A8 VDDQ#C1 VDDQ#C9 VDDQ#D2

VDDQ#E9

VDDQ#F1 VDDQ#H2 VDDQ#H9

VSS#A9 VSS#B3 VSS#E1

VSS#G8

VSS#J2

VSS#J8 VSS#M1 VSS#M9

VSS#P1

VSS#P9

VSS#T1

VSS#T9

VSSQ#B1 VSSQ#B9 VSSQ#D1 VSSQ#D8 VSSQ#E2 VSSQ#E8 VSSQ#F9 VSSQ#G1 VSSQ#G9

N8 M3

J7 K7 K9

K1 L2 J3 K3 L3

F3

G3

E7

D3

C7

B7

T2 L8

J1 L1 J9 L9

VRAM _DDR3_HYNIX_256MX16

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

20

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

+1.5V_GFX

GND

VMA_DQ41 [19] VMA_DQ47 [19] VMA_DQ42 [19] VMA_DQ45 [19] VMA_DQ40 [19] VMA_DQ46 [19] VMA_DQ43 [19] VMA_DQ44 [19]

VMA_DQ51 [19] VMA_DQ52 [19] VMA_DQ48 [19] VMA_DQ55 [19] VMA_DQ49 [19] VMA_DQ54 [19] VMA_DQ50 [19] VMA_DQ53 [19]

C11184.7U/6.3V_6

C11190.1U/16V_4 C11200.1U/16V_4

C11244.7U/6.3V_6

C11250.1U/16V_4 C11260.1U/16V_4

GND

A A

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

DDR3 - RANK0

NB5

5

4

3

2

NB5

DDR3 - RANK0

Date: Sheet of

1

1A

23 65Thursday, May 12, 2016

5

4

3

2

1

+3V

24

Fingerprint Conn

D D

USBP8-[7] USBP8+[7]

C C

USBP8USBP8+ USBP8+_C

USBP8USBP8+

L1008 *MCM2012B900GBE

2

R225 0_4

R224 0_4

FPR_LOCK#[4] FPR_OFF[4]

43

USBP8-_C

1

FPR_LOCK# FPR_OFF

R235

10K_4

USBP8-_C

USBP8+_C

2

3

C667

0.1U/16V_4

1

C9182

PESD5V0X2UM

C666

4.7U/6.3V_6

2

3

1

C9183

PESD5V0X2UM

CN10

8 1 2 3 4 5 6 7

POWER BTN CONN

DFFC06FR192

50503-0060n-001-6p-l

B B

A A

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

NB5

5

4

3

2

Custom Date: Sheet of

Date: Sheet of

24 -- FPR

24 65Thursday, May 12, 2016

1

1A

5

4

3

2

1

Hole

H1

*h-tc315ic138bc315d118p2

D D

ESD_GNDESD_GND

D14

C C

12

Clamp-Diode

D15

12

Clamp-Diode

H21

*spad-re315x394np

1

ESD_GND ESD_GNDESD_GND

H23

*SHORT-ESD31_5X32

1

2

H22

*SHORT-ESD31_5X32

1

2

1

H7

*h-c315d213x220p2

1

H11

*H-TC216IC140BC140D140PT

1

H15

*H-TC217IC140BC140D140PT

1

H3

*H-C236O106X91P2

1

H28

*spad-413kb-a1

H2

*h-tc315ic138bc315d118p2

1

H8

*h-c315d213x220p2

1

H12

*H-TC217IC140BC140D140PT

1

H16

*H-TC217IC140BC140D140PT

1

H20

*h-c315d248p2

1

H29

*SPAD-X81-1-NP

*o-413kb-a2

*SPAD-X81-2-NP

H5

*h-tc315ic138bc315d118p2

1

H9

*h-c315d213x220p2

1

H13

*H-TC217IC124BC124D124PT

1

H25

1

H30

H6

*h-tc315ic138bc315d118p2

1

H10

*h-c315d213x220p2

1

H14

*H-TC216IC140BC140D140PT

1

H24

*h-tc91ic91bc157d91pb

1

H26

*o-413kb-a3

1

*O-X81-1

H4

1

25

1

B B

1

WLAN nut SSD nut WWAN nut

H18

h-tc197ic102bc102d102pt

1

A A

5

4

3

H17

h-tc197ic102bc102d102pt

1

2

H19

*h-tc197ic102bc102d102pt

1

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

25 -- LVDS converter RTD2136

NB5

25 -- LVDS converter RTD2136

Date: Sheet of

1

1A

25 65Thursday, May 12, 2016

1

LID Switch

EMU_LID

R7752 1K/F_4

R93 0_4

LID_SW#_3

A A

EMU_LID[45]

PCH_LVDS_BLON

R403 10K_4

2

3

4

5

6

+VCC_TS+3V

7

8

LVDS Conn.

BLON_CON

2

1

D16 BAT54AW

3

C542 22P/50V_4

R424 100K/F_4

R427 *0_6/S

+VCC_TS

C44 *22U/6.3V_6

26

PCH_LVDS_BLON

OUT_DPST_PWM

B B

C C

D D

R404 100K/F_4

R420

C541 33P/50V_4

For eDP

Close to LVDS connector

INT_eDP_TXP1[5]

INT_eDP_TXN1[5] INT_eDP_TXP0[5]

INT_eDP_TXN0[5]

INT_eDP_AUXN[5]

INT_eDP_AUXP[5]

1

1K/F_4

VADJ1

PCH_DISP_ON[5]

R31 close to U2 for eDP,stuff

C24 0.1U/16V_4

C22 0.1U/16V_4 C29 0.1U/16V_4

C27 0.1U/16V_4 C19 0.1U/16V_4

C20 0.1U/16V_4

+VIN_BLIGHT

C532

L18

1 2

R8 *100K_4 R6 *100K_4

R410 *1K_4 R405 *1K_4

+VIN_BLIGHT

C533 *4.7U/6.3V_6

HCB1608KF-181T15_S0_6

C33

0.01U/50V_4

2 1

EDIDDATA_R EDIDCLK_R

OUT_DPST_PWM PCH_LVDS_BLON

R411 10_4

C32 *1U/6.3V_4

C35

0.1U/16V_4

2 1

PCH_LVDS_BLON OUT_DPST_PWM

+3V

ALF@20151019:

1. Designed Reserve 4Pins for IR CCD Pin 26 to Pin29

2.Combined the +3V & +3V_CAM & +3V_IR at Pin26~25

+3VLCD_CON

C547 10U/6.3V_6

4

+3V

C544

1000P/50V_4

5

+3VLCD_CON

CAMERA_ON[4]

DIGITAL_CLK[30]

DIGITAL_D1[30]

ADP_DET[46,51]

C34

82P/50V_4

USBP3-_TS USBP3+_TS

USBP6USBP6+

USBP-_IRCAMERA USBP+_IRCAMERA

LID_SW#_3

USBP3-_TS[7]

USBP3+_TS[7]

USBP6-[7]

USBP6+[7]

USBP-_IRCAMERA[7]

USBP+_IRCAMERA[7]

IR_Enable[4]

+3V

1 2

C37 0.047U/25V_4

CABLE_SIZE_DET[5]

ULT_EDP_HPD[5]

L5 120/300MA_S0_4 L6 120/300MA_S0_4

6

R1143 0_4 R1142 0_4

R21 0_4 R22 0_4

R1145 0_4 R1144 0_4

EC37 *100P/50V_4

ADP_DET

2

L7

USBP6USBP6+

F1 FUSE1A6V_POLY

C36 0.047U/25V_4

C39

10P/50V_4

12

CABLE_SIZE_DET

+VIN_BLIGHT

C38

10P/50V_4

USBP3-_TS_C USBP3+_TS_C

USBP6-_C USBP6+_C

USBP-_IRCAMERA_C USBP+_IRCAMERA_C

C548 0.1U/16V_4

+VCC_TS

R408 1K/F_4

43 1

*MCM2012B900GBE

L1007 *MCM2012B900GBE

L1006 *MCM2012B900GBE

CX08T601000 CX601T10000

2

+3V_CAM

R7725 0_6

43

USBP6-_C

1

USBP6+_C

43

USBP-_IRCAMERA_C

1

USBP+_IRCAMERA_C

+VIN_BLIGHT_L

For WWAN

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

26 -- LCD CONN/LID/CAM/D-MIC

NB5

7

26 -- LCD CONN/LID/CAM/D-MIC

Date: Sheet of

GS12401-1011-9H

lvds-50671-04041-001-40p-l

DFFC40FR081

USBP3-_TS_C USBP3+_TS_C

EDIDCLK_R EDIDDATA_R

TXLOUT1TXLOUT1+

TXLOUT0TXLOUT0+

DIGITAL_CLK_L DIGITAL_D1_L

VADJ1 BLON_CON

C145

1000P/50V_4

+3V[2,3,4,5,7,8,9,10,16,17,18,19,20,24,27,28,29,30,31,32,33,34,36,38,42,44,45,47,51,56,58,59,63] +5V[8,27,29,30,40,42,43,54,58,63]

+VIN[28,44,51,52,53,54,55,56,57,58,59,61,66]

CN2

40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

41 42

1A

26 65Thursday, May 12, 2016

8

1A

+VIN

100mA

C540 0.1U/25V_4 C546 0.01U/50V_4

+VIN +3V

C543 *4.7U/25V_8

*0.01U/50V_4

For WWAN

+3V

U17

5

IN

4

IN

3

ON/OFF

R426 100K/F_4

TXLOUT1+ TXLOUT1-

TXLOUT0+ TXLOUT0-

EDIDDATA_R

EDIDCLK_R

2

G5245AT11U

2nd AL007553000

OUT GND

+3V

PCH_LVDS_BLON[5] PCH_DPST_PWM[5]

3

5

D D

L23 EMI FILTER BLM18PG600SN1D(60,500MA)

+3V

INT_DDI2_AUXP[5]

INT_DDI2_AUXN[5]

C C

DDI2_TX0_P[5] DDI2_TX0_N[5] DDI2_TX1_P[5] DDI2_TX1_N[5]

DDI_HPD_CON[5]

R7718 *100K/F_4

33

U26

EPAD

1

AVCC33

C595 0.1U/16V_4 C588 0.1U/16V_4 C597 0.1U/16V_4 R449 75/F_4 C577 0.1U/16V_4 C575 0.1U/16V_4 C567 0.1U/16V_4 C563 0.1U/16V_4

RXAUXP

RXAUXN

VCCK_V12

RRX0P

RRX0N

RRX1P

RRX1N

R887 4.7K_4

+3V

R888 4.7K_4

+3V

AVCC_33

2

AUX_P

3

AUX_N

4

AVCC_12

5

LANE0_P

6

LANE0_N

7

LANE1_P

8

LANE1_N

RTD2166-CG

R7753 *4.7K_4

4

PCH_SMBCLK

PCH_SMBDATA

32

31

30

29XI28

27

HPD

SMB_SCL

SMB_SDA

EXT1.2V_CTRL

LDO_RSTB

RTD2166

POL29POL1/SPI_CEB10SPI_CLK11SPI_SI12SPI_SO13VCC_3314VGA_SCL15VGA_SDA

TP95

TP93

VCCK_V12

25

PVCC_3326VCCK_12

GREEN_P

VDD_DAC_33

HVSYNC_PWR

16

C600

0.1U/16V_4

GND

RED_P

BLUE_P

HSYNC VSYNC

VGADDCSDA VGADDCCLK

+3V

C602

0.1U/16V_4

C607

2.2U/6.3V_4

24 23

CRT_R

22

CRT_G

21

CRT_B

20

VDD_DAC_33

19

HSYNC CRTHSYNC

18

VSYNC

17

+3V

R479 75/F_4 R459 75/F_4

L10 EMI FILTER HCB1608KF-600T30(60,3A)

R33 47/F_4 R31 47/F_4

C80

0.1U/16V_4

C9178

0.1U/16V/X7R_4

3

CRTVSYNC

C9179

4.7U/6.3V_4

+3V

+5V

CRT_R CRT_G CRT_B

C592

5.6P/50V_4

2

+3V +5V_HDMIC

D22 BAV99W

1

2

D21 BAV99W

1

2

D18 BAV99W

1

2

CRT_R1

3

CRT_G1

3

CRT_B1

3

R41 2.2K/J_4

VGADDCSDA

R50 2.2K/J_4

VGADDCCLK

D5 *BAV99W

1

3

2

D1 *BAV99W

1

3

2

D2 *BAV99W

1

3

2

D3 *BAV99W

1

3

2

VGADDCCLK

CRTVSYNC

CRTHSYNC

VGADDCSDA

+5VCRT2

1

D4 RB500V-40

40 MIL

C75 0.1U/16V_4

SSM14 spec is 40V 1A

L22 BLM15BB750SN1D(75,300MA) L21 BLM15BB750SN1D(75,300MA) L19 BLM15BB750SN1D(75,300MA)

C571

C581

C570

5.6P/50V_4

5.6P/50V_4 C100 *470P/50V_4

5.6P/50V_4

C582

5.6P/50V_4

+5V_HDMIC

CRT_R1 CRT_G1 CRT_B1

+5V_HDMIC

C593

5.6P/50V_4

1617

6

111

7

12

2 8 3 9 4

10

5

13 14 15

VGADDCSDA CRTHSYNC CRTVSYNC VGADDCCLK

21

27

+5V_HDMIC

C82 *470P/50V_4 C81 *33P/50V_4 C74 *33P/50V_4

B B

EMI

CRT CONN CN15

DFDS15FR458

dsub-10560-15001-15p

CIIC_SCL, CIIC_SDA Connection

EP mode: Pin2, Pin3 connect to EC SMBUS ROM or EEPROM mode: connect to PCH SMBUS IIC Protocol is used

RTD2168 Slave Address: 0x64/0x65 and 0x68/0x69

From PCH

PCH_SMBDATA[3,16,17,47]

PCH_SMBCLK[3,16,17,47]

A A

5

4

3

PCH_SMBDATA

PCH_SMBCLK

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

DP to VGA

NB5

2

NB5

DP to VGA

Date: Sheet of

1

1A

27 65Thursday, May 12, 2016

5

4

3

2

1

28

EMI CAP

D D

RF Cap

+VIN

EC48

0.1U/25V_4

+1.2VSUS

EC53

C C

B B

0.1U/16V_4

+1.05V_GFX

EC57 *0.1U/16V_4

+3V

EC60 *0.1U/16V_4

+3V_DEEP_SUS

EC49

0.1U/25V_4

EC54

0.1U/16V_4

EC58

0.1U/16V_4

EC61

0.1U/16V_4

EC50 *0.1U/25V_4

EC55

0.1U/16V_4

EC59 *0.1U/16V_4

EC62 *0.1U/16V_4

EC51

0.1U/25V_4

EC56

0.1U/16V_4

EC52

0.1U/25V_4

+5V_USBP0

+VIN

EC104 *68P/50V_4

EC105 *2200P/50V_4

EC108 *2200P/50V_4

EC113 *10P/50V_4

EC117 *2200P/50V_4

+VIN

EC106 *0.1U/25V_4

EC109 *0.1U/25V_4

EC114 *2200P/50V_4

EC118 *0.1U/25V_4

EC111 *2200P/50V_4

EC107 *10P/50V_4

EC110 *10P/50V_4

EC115 *0.1U/25V_4

EC112 *0.1U/25V_4

EC116 *10P/50V_4

+VIN

EC119 *10P/50V_4

EC120 *2200P/50V_4

EC123 *2200P/50V_4

For WWAN

EC121 *0.1U/25V_4

EC124 *68P/50V_4

EC122 *68P/50V_4

EC125 *2200P/50V_4

EC126 *68P/50V_4

EC63

0.1U/16V_4

+5VPCU

A A

5

EC66

0.1U/16V_4

EC65 *0.1U/16V_4

EC67

0.1U/16V_4

EC64

0.1U/16V_4

EC68

0.1U/16V_4

EC69 *0.1U/16V_4

4

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

NB5

Date: Sheet of

3

2

Date: Sheet of

28 -- REPEATER PS8407A

1

28 65Thursday, May 12, 2016

1A

5

4

3

2

1

C_TX2_HDMI+ C_TX1_HDMI+ C_TX0_HDMI+ C_TXC_HDMI+

D D

C C

R208 120/F_4 R194 120/F_4 R178 120/F_4 R221 120/F_4

C_TX2_HDMIC_TX1_HDMIC_TX0_HDMIC_TXC_HDMI-

HDMI_HPD_CON[5]

IN_D2[5] IN_D2#[5]

IN_D1[5] IN_D1#[5]

IN_D0[5] IN_D0#[5]

IN_CLK[5] IN_CLK#[5]

+5V_HDMIC

C654

*0.01U/50V_4

for EMI request

+5V_HDMIC

+3V

R7701 1M_4

2

1

Q7701 2N7002K

C1195 0.1U/16V_4

C1193 0.1U/16V_4

C1190 0.1U/16V_4

C1196 0.1U/16V_4

3

HDMI_HPD

C1194 0.1U/16V_4

C1192 0.1U/16V_4

C1191 0.1U/16V_4

C1197 0.1U/16V_4

R616 2.2K_4 R615 2.2K_4

C331 *10P/50V_4 C342 *10P/50V_4

HDMI_HPD

R7702 20K/F_4

HDMI_UP_CLK HDMI_UP_DATA

VC1 *TVM0G5R5M220R

C_TX2_HDMI+ C_TX2_HDMI-

C_TX1_HDMI+ C_TX1_HDMI-

C_TX0_HDMI+ C_TX0_HDMI-

C_TXC_HDMI+ C_TXC_HDMI-

+5V_HDMIC

C279

*220P/50V_4

CN18

X_DP(PWR)

1

D2+

2

GND

3

D2-

4

D1+

5

GND

6

D1-

7

D0+

SHELL2

8

GND

9

D0-

10

CK+

11

GND

12

CK-

SHELL2

13

CE Remote

14

NC

15

DDC CLK

16

DDC DATA

17

GND_DPAUX

18

+5V

19

HP DET

HD_DP_Option

DP/HDMI CONN

hdmi-59065-0190d-v02-19p

20

23

22

21

EMI Solution

+5V

2 1

C638

0.1U/16V_4

U22

3

IN

G5250Q1T73U

1

GND

2

OUT

C_TX2_HDMI+ C_TX2_HDMI-

C_TX1_HDMI+ C_TX1_HDMI-

C_TX0_HDMI+ C_TX0_HDMI-

C_TXC_HDMI+ C_TXC_HDMI-

U1011

1

IN1

2

IN2

3

GND

4

IN3

5

IN4

*PUSB3FR4

U1012

1

IN1

2

IN2

3

GND

4

IN3

5

IN4

*PUSB3FR4

C83 *0.01U/50V_4

2 1

NC NC

GND

NC NC

GND

NC NC

10 9 8 7 6

C103

0.1U/16V_4

2 1

C_TX2_HDMI+

C_TX2_HDMI-

C_TX1_HDMI+

C_TX1_HDMI-

C_TX0_HDMI+ C_TX0_HDMI-

C_TXC_HDMI+ C_TXC_HDMI-

+5V_HDMIC

29

C617 *10U/6.3V_6

HDMI SMBus Isolation

Q7702

R7707

+3V

B B

DPB_DDCCLK[5]

DPB_DDCDATA[5]

A A

5

2.2K_4

DPB_DDCCLK

DPB_DDCDATA

R7715

+3V

2.2K_4

4 3

1

2N7002DW

+3V

5

HDMI_UP_CLK

2 6

HDMI_UP_DATA

4

Close to HDMI connector

+3V

1 2

R7713 100K/F_4

C7713 0.1U/10V_4

Q7703 2N7002K

2

DGPU_CL_HDMIP

3

1

Close to Q7033

R7705 470/F_4 R7706 470/F_4

R7708 470/F_4 R7709 470/F_4

R7710 470/F_4 R7711 470/F_4

R7712 470/F_4 R7714 470/F_4

3

C_TX2_HDMI+ C_TX2_HDMI-

C_TX1_HDMI+ C_TX1_HDMI-

C_TX0_HDMI+ C_TX0_HDMI-

C_TXC_HDMI+ C_TXC_HDMI-

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

NB5

Date: Sheet of

2

Date: Sheet of

29 -- HDMI CONNECTOR

1

29 65Thursday, May 12, 2016

1A

Audio Codec

A

B

+1.8V

C513

C514

0.1U/16V_4

C501

0.1U/16V_4

2.2U/6.3V_4

C502

2.2U/6.3V_4

+3V

C

D

E

30

C707

2.2U/6.3V_4

C510

C505 *1000P/50V_4

EC29 *33P/50V_4

ACZ_RST#_AUDIO[8]

BIT_CLK_AUDIO[8]

ACZ_SYNC_AUDIO[8]

ACZ_SDIN0[8]

ACZ_SDOUT_AUDIO[8]

RECORD_MUTE_LED_CNTRL[40]

C500 *10P/50V_4

TO Digital MIC

1 1

DIGITAL_CLK[26] DIGITAL_D1[26]

R386 33_4

C503 *10P/50V_4

A_SD#[45]

DMIC_CLK_R

R385

100K/F_4

R384 0_4

MUTE_LED_CNTL[33]

+3V

R7724 0_4

RECORD_MUTE_LED_CNTRL

+3V

0.47u/6.3V_4

BIT_CLK_AUDIO_L

R390 33_4

ACZ_SDOUT_AUDIO

AMP_BEEP

R388 47K/F_4

SPKR_EN_AB

HD_SDIN0

Close to PIN34

+5V

C530 1uF/6.3V_4

+5V

C506 10U/6.3VS_6

C508

4.7U/6.3V_4

C511

4.7U/6.3V_4

C504 1uF/6.3V_4

LDO_1V2

U16

2

RESET#

48

HDA_BCLK

49

HDA_SYNC

50

HDA_SDI

1

HDA_SDO

7

SPKR MUTE/GPIO1

44

PC_BEEP

6

MUSIC REQ/SPDIF/GPIO0

10

DMIC_CLK1/GPIO2

8

DMIC_DAT1/GPIO3

12

DMIC_CLK2/GPIO4

13

DMIC_DAT2/GPIO5

4

TEST1

5

TEST2

11

EAPD

C507

0.1U/16V_4

C517 1uF/6.3V_4 C527 1uF/6.3V_4

SENSE_A_1

MIC_R1 MIC_L1

HPOUT_R_R HPOUT_L_L

CAP-

CAP+

AGND

R396 5.11K/F_4

C529 2.2uF/10V_4

C528 2.2uF/10V_4

R400 5.1_4 R399 5.1_4

2.2U/6.3V_4 C523

R401 100/F_4

HPOUT_R HPOUT_L

C525

2.2U/6.3V_4

HPOUT_R HPOUT_L

+1.8V

R395 39.2K/F_4

AGND

C524

2.2U/6.3V_4

Close to codec

EXT_MIC_L

C526 *1000P/50V_4

AGND

C516

2.2U/6.3V_4

SENSE_A [31]

EXT_MIC_L [31]

Close to PIN20

+1.8V

C519

0.1U/16V_4

HPOUT_R [31] HPOUT_L [31]

TO Audio Jack MIC

AGND SHIELD AGND SHIELD AGND SHIELD

TO Headphone jack

32

33

45

46

9

3

47

37

LDO_AVDD

EP

51

MICBIASE

VREFP

MICBIASB

VREF_DAC

JSENSE

PORTM_MONO

PORTF_R PORTF_L

PORTE_R PORTE_L

PORTB_R PORTB_L

PORTD_B_MIC PORTD_A_MIC

HGNDB HGNDA

PORTA_R PORTA_L

CP_VDD18

CP_VNEG CP_VPOS

CP_FLYN CP_FLYP

R_SPK+ R_SPK-

L_SPK-

L_SPK+

38 43 27 42

41 29

28 40

39 36

35 31 30 26

25 20 23

24 22

21

VDD18

LDO_12

DVDD_IO

HDA_VDDIO

CX7700

CX20724-11Z

SPK_LEFT+14SPK_LEFT-16SPK_RIGHT-17SPK_RIGHT+

AVDD5

PVDD5_L15PVDD5_R

18

C515

0.1U/16V_4

19

34

C520

AMP_BEEP AMP_BEEP_L

Check layout mount location

0.1U/16V_4

A

C521

*0.01U/50V_4

check value

R393 10K/F_4

R394 10K/F_4

A_3S_ICHSPKR [8]

+1.8V[4,5,8,54,63] +3V[2,3,4,5,7,8,9,10,16,17,18,19,20,24,26,27,28,29,31,32,33,34,36,38,42,44,45,47,51,56,58,59,63] +5V[8,27,29,40,42,43,54,58,63]

B

ACZ_SDIN0

ACZ_SDOUT_AUDIO

ACZ_SYNC_AUDIO

EC28 *33P/50V_4

EC27 *10P/50V_4

EC30 *10P/50V_4

EC32 0.1U/16V_4

EC33 0.1U/16V_4 EC25 0.1U/16V_4 EC31 0.1U/16V_4 EC4 0.1U/16V_4

AGND

Close to CODEC

place near U13

R677 *0_8/S

AGND

C

L_SPK+ L_SPKR_SPKR_SPK+

Close to Speaker

L2 0 / 10W_0603 L1 0 / 10W_0603 L4 0 / 10W_0603 L3 0 / 10W_0603

C10 1000P/50V_4

Size Document Number Rev

Size Document Number Rev Custom

Custom

NB5

Date: Sheet of

D

Date: Sheet of

L_SPK+_R L_SPK-_R R_SPK-_R R_SPK+_R

C17

C13

C5

1000P/50V_4

PROJECT:400 Series

Quanta Computer Inc.

30 -- Audio Codec CX7501

E

CN3

5

6 4 3 2 1

INT SPEAKER CONN

30 65Thursday, May 19, 2016

1A

A

B

C

USB/Card Reader/Headphone_Mic Combo Jack Daugther Board Connector

D

E

31

AGND

AGND AGND

USBP4-_C USBP4+_C

C715

0.1U/16V_4

C714

0.1U/16V_4

C717

HPOUT_L HPOUT_R

EXT_MIC_L SENSE_A

LED_3S_SATA# USBP4-

USBP4+

PCIE_TXN2_CARD PCIE_TXP2_CARD

CLK_PCIE_CRP CLK_PCIE_CRN

PCI_PLTRST# CR_RST#

C716

*10P/50V_4

L17 CMF21T-900M-N2

4 3 1

2

+3V

+5VPCU

HPOUT_L[30] HPOUT_R[30]

EXT_MIC_L[30]

SENSE_A[30]

SLP_S4#_3R[3,35,44,46,48,53,58] HDD_HALTLED[4] LED_3S_SATA#[7,38]

USBP4-[7]

USBP4+[7]

PCIE_RXP2_CARD[7] PCIE_RXN2_CARD[7]

PCIE_TXN2_CARD[7] PCIE_TXP2_CARD[7]

CLK_PCIE_CRP[9] CLK_PCIE_CRN[9]

1 1

CR_PWREN#[4]

PCIE_CLKREQ_CR#[9]

PCI_PLTRST#[3,32,34,37,38,46]

CR_RST#[4]

CR_WAKE#[5]

*10P/50V_4

4142 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

CN12

DFFC40FR083

lvds-50671-04041-001-40p-l

GS12401-1011-9H

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

31 -- DAUGTHER BOARD CONN.

NB5

A

B

C

D

NB5

31 -- DAUGTHER BOARD CONN.

Date: Sheet of

E

31 65Thursday, May 12, 2016

1A

5

400 series 0930 whole page

400 series 0930 whole page400 series 0930 whole page

LAN & RJ45

C46 10P/50V_4

GND

D D

+1.05V_LAN_REGOUT

Trace<30 mil Width > 60 mil

C C

>60mil

GND

C47 10P/50V_4

XTAL1

1

2

25MHZ +-10PPM

4

3

Y1

XTAL2

R681 1M_4

Power trace Layout 󱬵󱬵󱬵󱬵󱷯󱷯󱷯󱷯> 60mil

L9 4.7UH,+-20%,650MA_1210

>60mil

La

C49 *0.1U/16V_4

For SWR mode

Ca Cb

C61

0.1U/16V_4

Stuff La, Ca ,Cb NA : Ra, Ci

C9

4.7U/6.3VS_4

* Place Cc,Cd,Ce,Cf close to each VDD10 pin-- 3, 22, 8 , 30

* Place Cg,Ch close to each VDD10 pin-- 22(reserved)

Cc Cd Ce Cf Cg

C21

C8

0.1U/16V_4

C48

0.1U/16V_4

4

C51

0.1U/16V_4

+1.05V_LAN

PIN22PIN22PIN30PIN8PIN3

C52 *1U/6.3V_4

PIN22

Ch

C55

*0.1U/16V_4

LAN_AMBLED# LAN_LED1 LED2

PCIE_CLKREQ_LAN#[9]

TP1 TP3 TP2

Please add 9 GND VIAs connection with thermal PAD

+1.05V_LAN

3

+1.05V_LAN

R4 2.49K/F_4

MDI0+ MDI0VDD10 VDD10 MDI1+ MDI1MDI2+ MDI2VDD10

+3V_LAN

PCIE_CLKREQ_LAN#

LANRSET LAN_AMBLED#

+3V_LAN

XTAL2

VDD10

RSET

U2

32

31

30

RSET

AVDD33

AVDD10

RTL8111HSH-CG

MDIP3(NC)9MDIN3(NC)

AVDD33(NC)

12

10

11

MDI3+ MDI3-

33

1 2 3 4 5 6 7 8

GND

MDIP0 MDIN0 AVDD10(NC) MDIP1 MDIN1 MDIP2(NC) MDIN2(NC) AVDD10

XTAL1

28

CKXTAL229CKXTAL1

CLKREQB

LAN_LED1

27

26

LED0

HSIP13HSIN14REFCLK_P15REFCLK_N

R20 *0_4/S R23 *0_4

LED2

25

LED1/GPO

LED2(LED1) REGOUT(NC)

VDDREG(VDD33)

DVDD10(NC)

LANWAKEB

ISOLATEB

PERSTB

HSON

HSOP

16

RTL8111HSH-CG

PCIE_TXN5_LAN PCIE_TXP5_LAN

24 23 22 21 20 19 18 17

_

2

LAN_WLED# LAN_WLED#

+1.05V_LAN_REGOUT DVDDL

PCIE_WAKE#_R ISOLATEB

P C

PCIE_RXN5_LAN_L

I

P

PCIE_RXP5_LAN_L

L T R S T #

CLK_PCIE_LANN CLK_PCIE_LANP

if ISOLATEB pin pull-low,the LAN chip will not drive it's PCI-E outputs ( excluding PCIE_WAKE# pin )

+3V

R16 1K_4

ISOLATEB

R17

15K/F_4

1 2

PCIE_WAKE#_R

C31 0.1U/16V_4 C28 0.1U/16V_4

CLK_PCIE_LANN [9]

CLK_PCIE_LANP [9]

PCIE_TXN5_LAN [7] PCIE_TXP5_LAN [7]

+3VLANVCC

+1.05V_LAN_REGOUT +3V_LAN +1.05V_LAN

R29

4.3K/F_4

1 2

R18 2K/F_4

PCIE_RXN5_LAN [7] PCIE_RXP5_LAN [7]

METR3904-G

2

Q5

1 3

PCI_PLTRST# [3,31,34,37,38,46]

1

PCH_WAKE#

R19 *0_4

32

PCH_WAKE# [3,37,38,45]

+3VLANVCC

Q4

* Place Cj and Ck, close to each VDD33 pin-- 11, 32 * For surge improvement, place Cm and Cn, close to each VDD33 pin-- 11, 32(optional)

+3V_LAN

+3VLANVCC

B B

PIN11 PIN11 PIN32PIN32

C67

0.1U/16V_4

Cj Cm

C43

PIN23

4.7U/6.3VS_4

C68

0.1U/16V_4

Ck

C18

0.1U/16V_4

PIN23

C64 *4.7U/6.3VS_4

For SWR mode

Stuff Co, Cp

C11 *4.7U/6.3VS_4

Cn

C550 0.01U/50V_4

TRA_V_DAC TRA_V_DAC TRA_V_DAC

MDI0+ MDI0MDI1+

MDI1-

MDI2+

MDI2-

MDI3+

MDI3-

LANLINK_STATUS[3]

U19

2

TD1+

3

TD1-

5

TD2+

6

TD2-

8

TD3+

9

TD3-

11

TD4+ TD4-12MX4-

1

TCT1

4

TCT2

7

TCT3

10

TCT4

NS892407

23

MDI0+_1

MX1+

22

MDI0-_1

MX1-

20

MDI1+_1

MX2+

19

MDI1-_1

MX2-

17

MDI2+_1

MX3+

16

MDI2-_1

MX3-

14

MDI3+_1

MX4+

13

MDI3-_1

24

LAN_MCTG3

MCT1

21

LAN_MCTG2

MCT2

18

LAN_MCTG1

MCT3

15

LAN_MCTG0

MCT4

24

MCT1

GND

25

2N7002K

3

2

+3VLANVCC

R15 75/F_4 R11 75/F_4 R7 75/F_4 R5 75/F_4

1

LAN_WLED#LANLINK_STATUS

LAN_MCTGTRA_V_DAC

C551

10P/3KV_1808

+3VLANVCC

CpCo

Remove For Not Using SWR mode

BOT:GST5009B LF,DB0Z06LAN00For GiGA

R3 330/F_4

R28 330/F_4

(Green)

LAN_WLED LAN_WLED#

MDI3-_1 MDI3+_1 MDI1-_1 MDI2-_1 MDI2+_1 MDI1+_1 MDI0-_1 MDI0+_1

LAN_AMBLED LAN_AMBLED#

(Amber)

RJ45

CN13

9

LED_White_N

10

LED_White_P

8

RX1-

7

RX1+

6

RX0-

5

TX1-

4

TX1+

3

RX0+

2

TX0-

1

TX0+

11

LED_AMB_N

12

LED_AMB_P

RJ45_CONN

DFTJ12FR379

LAN_WLED

C7 1000P/50V_4 C56 1000P/50V_4

LAN_AMBLED

A1 A2

R12

*0_6/S

14

GND1

13

GND

R1

B1 B2

*0_6/S

FCE :NS892407 ,DB0LL1LAN00

+3V[2,3,4,5,7,8,9,10,16,17,18,19,20,24,26,27,28,29,30,31,33,34,36,38,42,44,45,47,51,56,58,59,63] +3VLANVCC[58]

A A

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev C

C

32 -- LAN RTL8111HSH-CG/RJ45

NB5

5

4

3

2

NB5

32 -- LAN RTL8111HSH-CG/RJ45

Date: Sheet of

1

1A

32 65Thursday, May 12, 2016

5

4

3

2

1

33

Function CONN

CN7

R42 470/F_4 R46 470/F_4

R7610K/F_4

+3V

1

2

3

4

5

6

7

8

9

10

11

12

13

14

MUTE_ON

MUTE_OFF

13

14

C125

1000P/50V_4

MUTE_LED_CNTL[30]

KSO17 KSI_D_0 KSI_D_1

R73 100/F_4

C106

1000P/50V_4

C94

1000P/50V_4

R98 20K/F_4

LID_SW#_R

+3V

+3VPCU

C85220P/50V_4

C129 1000P/50V_4

MUTE_ON_R MUTE_OFF_R

6 1 34

C84220P/50V_4

Q13B 2N7002KDW

2N7002KDW Q13A

C87220P/50V_4

2

5

KSO17[46]

D D

C C

KSI_D_0[40] KSI_D_1[40]

LID_SW#_3[26,41,46,47]

WIRELESS_ON_C WIRELESS_OFF

C90

1000P/50V_4

MUTE_ON MUTE_OFF

+3V

B B

R99

R81

47K/F_4

34

2N7002KDW

WWAN_TRANSMIT_OFF#[4,38]

A A

5

Q14A

WLAN_LED_EN[5]

WIRELESS_ON[37]

WW_LED#

WLAN_LED_EN

4

WIRELESS_ON WIRELESS_ON_C

2

WW_LED# [38]

3

2

PJE138K R773 100K/F_4

Q43

1

R53 470/F_4

R64 470/F_4

61

2N7002KDW Q14B

WIRELESS_OFF

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

33 -- Function Conn.

NB5

3

2

NB5

33 -- Function Conn.

Date: Sheet of

1

33 65Thursday, May 12, 2016

1A

5

4

3

2

1

TPM (1.2 or 2.0)

34

D D

+SPI_VCC

R226

C337 *10P/50V_4

C C

B B

PCH_SPI1_CLK[3,45,47] SPI_TPM_CS#[3]

PCH_SPI1_SO[3,45,47] PCH_SPI1_SI[3,45,47]

PLTRST#[3,8,18]

R256 *0_4

TPM_PIRQ#[3]

PCI_PLTRST#[3,31,32,37,38,46]

+3V

R841 *51K_4

R838 *10K/F_4

34

5

*2N7002KDW Q64A

R474 33_4 R465 33_4

R466 33_4

+SPI_VCC

*0.1U/16V_4

150K/F_4

PCH_SPI1_CLK_TPM

PCH_SPI1_SO_TPM PCH_SPI1_SI_TPM

R222 0_4

R281 4.7K/F_4

+SPI_VCC

2

C1027

61

R264 10K/F_4

TPM_PLTRST#

R843 *10K/F_4

TPM_PLTRST#

*2N7002KDW Q64B

U12

19

SCLK

20

CS#

24

MISO

21

MOSI

18

PIRQ

17

RST#

6

GPIO

SLB 9670VQ2.0 FW7.40

VDD VDD VDD

GND GND GND GND

Thermal pad

PP

Need apply PN

NC

NC4NC

NC5NC

NC

NC12NC

3

10

11

13

14

NC

NC15NC

16

25

26

NC

NC30NC

27

29

28

31

1 8 22

2 9 23 32 33

7

+SPI_VCC

C373 0.1U/16V_4

C367

0.1U/16V_4

TPM_PP

C338

0.1U/16V_4

+SPI_VCC

R263 *0_4

R257

4.7K/F_4

A A

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

NB5

5

4

3

2

Custom Date: Sheet of

Date: Sheet of

34 -- TPM SLB9670_QFN

1

34 65Thursday, May 12, 2016

1A

5

4

3

2

1

USB 2.0/3.0 Combo

C705 0.1U/16V_4 C696 470P/50V_4

VC4 *AVLC5S_4

2

USB30_RX1USB30_RX1+

C694 0.1U/16V_4 C695 0.1U/16V_4

NC NC

GND

NC NC

C698 1000P/50V_4

+5V_USBP1

USBP1-_C USBP1+_C

USB30_TX1-_C USB30_TX1+_C

2

3

10

USB30_RX1-

9

USB30_RX1+

8 7

USB30_TX1-_C

6

USB30_TX1+_C

D D

L16 *DLP11SN900HL2L

4 3

USBP1-[7]

USBP1+[7]

USBP1USBP1+ USBP1+_C

C C

USBP1USBP1+

USB30_RX1-[7] USB30_RX1+[7]

USB30_TX1-[7] USB30_TX1+[7]

R7720 0_4 R7719 0_4

USB30_RX1USB30_RX1+

USB30_TX1-_C

USB30_TX1+_C

1

USBP1-_C

U29

1

IN1

2

IN2

3

GND

4

IN3

5

IN4

PUSB3FR4

2.5A

1

C421 PESD5V0X2UM

USB 3.0

CN22 USB3.0 CONN

1

VBUS

1

2

D-

2

3

D+

3

4

GND

5

SSRX-

5

6

SSRX+

7

GND

8

SSTX-

9

SSTX+

11111010131312

12

DFHS09FR713

ub3-c190p4-10909-l-9p

150 mils (Iout=3.7A)

U30

2

VIN1

3

VIN2

SLP_S4#_3R[3,31,44,46,48,53,58]

SLP_S4#_3R

*AVLC5S_4

VC3

C701 1U/6.3V_4

4

EN

1

GND

BD82046FVJ-GE2

OUT3 OUT2 OUT1

8 7 6 5

OC

+5V_USBP1

+5V_USBP1+5VPCU

C699 220U/6.3V_6X4.5

1 2

+

35

B B

A A

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

NB5

Date: Sheet of

5

4

3

2

Date: Sheet of

35 -- USB3.0 x2

+5VPCU[28,31,44,49,50,51,52,53,54,56,57,58,59,60,61,63] +3VPCU[3,10,33,37,38,40,41,42,44,45,46,48,49,51,52,53,55,58,60,62,63]

1A

35 65Tuesday, May 17, 2016

1

35 65Tuesday, May 17, 2016

1A

5

4

3

2

1

36

Accelerometer Sensor

D D

R360 *0_4/S

+G_SEN_PW

C427

0.1U/16V_4

C C

B B

ACCEL_INT[4]

+G_SEN_PW

ACCEL_INT

C424 *22P/50V_4

ACCEL_INT

R357 *0_4

R356 0_4

+G_SEN_PW

THERM_SDA THERM_SCL

C428

0.1U/16V_4

THERM_SDA[42]

THERM_SCL[42]

C432 *33P/50V_4 C431 *33P/50V_4

+3V

TP29

U14 HP2DCTR

10

Vdd_IO

9

VDD

12

INT1

11

INT2

3

SDO/SA0

4

SDA/SDI/SDO SCL/SPC1GND

2

CS

AL0002DCA00

RESERVED

GND GND

5

6 7 8

A A

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

36 -- TS and Accelerometer

NB5

5

4

3

2

NB5

36 -- TS and Accelerometer

Date: Sheet of

+3V[2,3,4,5,7,8,9,10,16,17,18,19,20,24,26,27,28,29,30,31,32,33,34,38,42,44,45,47,51,56,58,59,63] +3VPCU[3,10,33,37,38,40,41,42,44,45,46,48,49,51,52,53,55,58,60,62,63]

1A

36 65Thursday, May 12, 2016

1

36 65Thursday, May 12, 2016

A

B

C

D

E

NGFF WLAN/BT

EC-B-03

4 4

3 3

PCIE_TXP6_WLAN[7] PCIE_TXN6_WLAN[7]

PCIE_RXP6_WLAN[7] PCIE_RXN6_WLAN[7]

CLK_PCIE_WLANP[9] CLK_PCIE_WLANN[9]

PCH_WAKE#[3,32,38,45]

2 2

C360 *10P/50V_4

R248 *0_4

LPC_ESPI_CLK[3,44,45]

LFRAME#[3,44,45]

Mini Card WLAN/BT(Option)

1.5A for WLAN

WLAN_DISABLE[46]

USBP7+[7] USBP7-[7]

R150 *0_4

LPC_ESPI_CLK LFRAME#

C199 1uF/6.3V_4

+3V_WLAN_P

2 4 6 8 10 12 14 16 18 20 22

32 34 36 38 40 42 44 46 48 50 52 54 56 58 60 62 64 66 68 70 72 74

Q17 PJA3415

1

2

C160 10U/6.3VS_6 C161 0.1U/16V_4

PCI_PLTRST# INT_BT_OFF#REQ_WLAN# INT_RF_OFF#PCH_WAKE# WLAN_WAKE#

+3V_WLAN_P

60mil

3

+3V_WLAN_P

WIRELESS_ON

+3VPCU +3V_WLAN_P

R126 10K_4

R132 200K_4

NGFF Wifi/BT connector

CN17

NGFF

1 3 5 7

9 11 13 15 17 19 21 23

33 35 37 39 41 43 45 47 49 51 53 55 57 59 61 63 65 67 69 71 73 75

GND USB_D+ USB_DGND SDIO CLK(O) SDIO CMDIO) SDIO DAT0(IO) SDIO DAT1(IO) SDIO DAT2(IO) SDIO DAT3(IO) SDIO Wake(I) SDIO Reset

GND PETp0 PETn0 GND PERp0 PERn0 GND REFCLKP0 REFCLKN0 GND CLKREQ0# PEWake0# GND PETp1 PETn1 GND PERp1 PERn1 GND Reserved1 Reserved2 GND

PCM_CLK

PCM_SYNC

PCM_OUT

UART Wake

UART Rx

Module Key

UART Tx UART CTS UART RTS

Clink RESET

CLink DATA

CLink CLK

SUSCLK(32KHz)

PERST0# W_DISABLE2# W_DISABLE1#

NFC I2C SM DATA

NFC I2C SM CLK

RESERVED

UIM_SWP/PERST1#

UIM_POWER_SNK UIM_POWER_SRC

GND76GND

LOTES_APCI0019-P00*A

77

3.3Vaux

3.3Vaux LED#1

PCM_IN

LED#2

GND

COEX3 COEX2 COEX1

ALERT#

3.3Vaux

C152

0.1U/16V_4

WIRELESS_ON [33]

PCI_PLTRST# [3,31,32,34,38,46]

R84 34K/F_4

C151

0.1U/16V_4

C153

4.7U/6.3V_4

+3V_WLAN_P

Q18

METR3904-G

2

PCIE_CLKREQ_WLAN#[9]

+3V_WLAN_P

10K_4

13

R85

2N7002KDW

Q15A

2N7002KDW

Q15B

R139 4.7K/F_4

3

R128 *0_4

3 4 61

10K_4 R106

2

5

2

SLP_S3_5R

+3V_WLAN_P

Q19 2N7002E

1

+3V_DEEP_SUS

37

R127 100K/F_4

REQ_WLAN#

BT_OFF [4]

SLP_S3_5R [58]

WLAN_TRANSMIT_OFF# [8]

1 1

PROJECT:400 Series

+3V[2,3,4,5,7,8,9,10,16,17,18,19,20,24,26,27,28,29,30,31,32,33,34,36,38,42,44,45,47,51,56,58,59,63] +5V[8,27,29,30,40,42,43,54,58,63]

NB5

A

B

C

D

NB5

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

37 -- NGFF WLAN/BT

Date: Sheet of

E

37 65Thursday, May 12, 2016

1A

SM_INTRUDER#[3]

WWAN_DET#[45]

Q30

*2N7002K

3

2

USBP3+_WWAN[7]

1

USBP3-_WWAN[7]

For WWAN

WWANSSD_M2[4]

+3V_WWAN_P

For Pentium , Celeron SATA SSD

PCIE_RXP8_SSD[7] PCIE_RXN8_SSD[7]

PCIE_TXN8_SSD[7] PCIE_TXP8_SSD[7]

PCI_PLTRST#[3,31,32,34,37,46] WWAN_CONFIG_1[3] WWAN_CONFIG_2[3]

For SSD (Default stuff)

For Ix series CPU PCIE SSD

PCIE_RXN11_SSD[7] PCIE_RXP11_SSD[7]

PCIE_TXN11_SSD[7] PCIE_TXP11_SSD[7]

PCIE_RXP12_SSD[7] PCIE_RXN12_SSD[7]

PCIE_TXN12_SSD[7] PCIE_TXP12_SSD[7]

CLK_PCIE_SSDN[9] CLK_PCIE_SSDP[9]

mSATA_DET#[7]

R308 *0_4

2

3

PJE138K

Q28

R321 0_4 R333 0_4 R337 0_4

1

WWAN_DET#

USBP3+_WWAN

C415 *0.01U/50V_4 C416 *0.01U/50V_4

C417 *0.01U/50V_4 C418 *0.01U/50V_4

R327 *0_4 R309 *0_4 R330 *0_4

For WWAN

C1178 0.22U/10V_4 C1177 0.22U/10V_4

R1140 0_4 R1141 0_4

C1182 0.22U/10V_4 C1181 0.22U/10V_4

CLK_PCIE_SSDN CLK_PCIE_SSDP

+3V

WWAN_DET#_C CONFIG0 WWAN_CONFIG_2_C

R158 1M/F_4

R339 *0_4

R1139 *0_4 R666 *0_4 R667 *0_4

R332 *0_4

R336 *10K_4

PCIE_RXN11_SSD PCIE_RXP11_SSD

PCIE_TXN11_SSD_C PCIE_TXP11_SSD_C

PCIE_RXP_SSD_C PCIE_RXN_SSD_C

PCIE_TXN_SSD_C PCIE_TXP_SSD_C

mSATA_DET#_R

NGFF_RESET#_R

WWAN_CONFIG_1_C WWAN_CONFIG_2_C

PCIE_TXN11_SSD_C PCIE_TXP11_SSD_C

PCIE_RXP_SSD_C PCIE_RXN_SSD_C

PCIE_TXN_SSD_C PCIE_TXP_SSD_C

R329 10K_4

NGFF_RESET#_R mSATA_DET#_R

WWAN_CONFIG_2_C

+3V_WWAN_P +3VPCU+3VPCU

For WWAN

For SSD/WWAN (Default stuff)

CN21

NGFF

WWAN_DET#_C

WWAN_GND USBP3+_WWAN_C USBP3-_WWAN_C WW_LED#WW_LED#_CUSBP3-_WWAN

WWAN_GND

CONFIG0

PCH_WAKE#_C

SAR_DPR

CLK_PCIE_SSDN CLK_PCIE_SSDP PCH_WAKE#_C

WWAN_DET#_C

WWAN_GND USBP3+_WWAN_C USBP3-_WWAN_C

WWAN_GND

CONFIG0

PCH_WAKE#_C

SAR_DPR

GND

1

CONFIG3

3

GND

5

GND

7

USB_DP

9

USB_DN

11

GND

CS PS

21

CONFIG0

23

WAKE_OUT_WW AN

25

BODYSAR_DET

27

GND

29

NC

31

NC

33

GND

35

NC

37

NC

39

GND

41

NC

43

NC

45

GND

47

NC

49

NC

51

GND

53

NC

55

NC

57

GND

59

ANT_TUNE0

61

ANT_TUNE1

63

ANT_TUNE2

65

ANT_TUNE3

67

Reset#

69

CONFIG_1

71

GND

73

GND

75

CONFIG_2

ngff-nfsb0-s6710-tph4-kb-smt DFHS75FR160

GND

CN27

1

GND_1

3

GND_3

5

PERn3

7

PERp3

9

GND_9

11

PETp3

13

PETn3

15

GND_15

17

PERn2

19

PERp2

21

GND_21

23

PETp2

25

PETn2

27

GND_27

29

PERn1

31

PERp1

33

GND_33

35

PETn1

37

PETp1

39

GND_39

41

PERn0/SATA-B+

43

PERp0/SATA-B-

45

GND_45

47

PETn0/SATA-A-

49

PETp0/SATA-A+

51

GND_51

53

REFCLKN

55

REFCLKP

57

GND_57

KEY KEY KEY KEY

67

NC_67

69

PEDET

71

GND_71

73

GND_73

75

GND_75

WWAN_NGFF CONN

NGFF

GND_7676GND_77

Width >= 40mil

3V3 3V3

PWR_ON/OFF

W_DISABLE

LED

KEY B

GPIO_5 GPIO_6 GPIO_7

GPIO_10

GPIO_8

SIM_RST

SIM_CLK

SIM_IO

SIM_PWR

NC GPIO_0 GPIO_1 GPIO_2 GPIO_3 GPIO_4

NC

COEX3 COEX2 COEX1

SIM_DET

SSCLK

3V3 3V3 3V3

3.3VAUX_2

3.3VAUX_4 NC_6 NC_8

DAS/DSS#

3.3VAUX_12

3.3VAUX_14

3.3VAUX_16

3.3VAUX_18 NC_20 NC_22 NC_24 NC_26 NC_28 NC_30 NC_32 NC_34 NC_36

DEVSLP

NC_40 NC_42 NC_44 NC_46 NC_48

PERST#/NC_50

CLKREQ#/NC_52

PEWake#/NC_54

NC_56 NC_58

KEY KEY KEY KEY

SUSCLK

3.3VAUX_70

3.3VAUX_72

3.3VAUX_74

*SSD_NGFF_CONN_75P

77

mipci-apci0020-p003h-75p-km-smt

2 4 6 8 10

20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60 62 64 66 68 70 72 74

+3V_WWAN_P

2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58

68 70 72 74

Width >= 60mil

WWAN_POWER_OFF# WWAN_TRANSMIT_OFF#_R

R326 *0_4

GPS_XMIT_OFF#

UIM_RESET UIM_CLK UIM_DATA

DEVSLP_NGFF

PCI_PLTRST# PCIE_CLKREQ_SSD# PEWAKE

USIM_DETECT SUSCLK

R648 0_8

WWAN_POWER_OFF# WWAN_TRANSMIT_OFF#_R WW_LED#_C

GPS_XMIT_OFF# UIM_RESET

UIM_CLK UIM_DATA

DEVSLP_NGFF

PCI_PLTRST# PEWAKE

SUSCLK

TP1012

D1007 *1SS355

TP50

R647*0_8

R245 *10K_4

R318 *0_4

WW_LED# [33]

UIM_RESET [39] UIM_CLK [39] UIM_DATA [39]

+UIM_PWR

R7731 *0_4 R7732 0_4

For SSD (Default stuff) WWAN unstuff

USIM_DETECT [39]

+3V

21

LED_3S_SATA# [7,31]

+UIM_PWR

PCIE_CLKREQ_SSD# [9]

DEVSLP1 [7] DEVSLP2 [7]

+3V_WWAN_P

C398 *56P/50V_4

WWAN_OFF# [46]

GPS_XMIT_OFF# [2]

For WWAN

C390 *56P/50V_4

C391 *56P/50V_4

PCH_WAKE#[3,32,37,45]

C389 *0.1U/16V_4

+3V_WWAN_P

WWAN_TRANSMIT_OFF#_R

R335 unstuff

R335 *0_4

C395

C676

*0.01U/50V_4

*4.7U/6.3V_6

NB5

R310 *10K_4

R836 *0_4

For WWAN

12

+

C680

*220u_6.3V_3528

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

Custom Date: Sheet of

Date: Sheet of

38 -- WWAN NGFF/ SSD

38

WWAN_TRANSMIT_OFF# [4,33]

C569

C392

10U/6.3V_4

*10U/6.3V_4

38 65Thursday, May 12, 2016

1A

USIM_DETECT

UIM_CLK[38]

+UIM_PWR

UIM_DATA[38]

+UIM_PWR

UIM_CLK

R429 *47K/F_4

UIM_DATA

USIM_DETECT

R30 *100K_4

SIM Card CONN NEW

20mil

UIM_PWR UIM_RESET

R767 *0_4

Layout Note:

1. UIM_RESET,UIM_CLK,UIM_DATA routting as short as possible Roue into ESD then go out

2. Avoid routing the SIM_CLK and SIM_DATA lines in parallel over distances >= 2 cm

3. Position the SIM connector from the WWAN module <= 100mm if possible, NOT exceed length is 150mm.

CN14

1

VCC

3

CLK

5

GND

7

I_O CD9SHIELD

*SIM_CONN

RST

VPP

SHIELD

2 4

NA

6 8

NA

10 11

UIM_VPP

39

UIM_RESET [38]

TP31

C557 *18P/50V_4

1 2

C552

*18P/50V_4

1 2

ESD2

1

2

2 334

*IP4220CZ6_NC

6

5

4

For WWAN

UIM_RESETUIM_DATA UIM_VPPUIM_CLK

C566 *18P/50V_4

1 2

UIM_PWR

C70 *0.1U/16V_4

+3V_WWAN_P

Close CN5

C73 *4.7U/6.3V_6

C66 *18P/50V_4

1 2

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

NB5

Date: Sheet of

39 -- SIM CARD/ RF cap

1A

39 65Thursday, May 12, 2016

1A

A

KEYBOARD Con.

4 4

3 3

RECORD_MUTE_LED_CNTRL[30]

CAPS_LED#[45]

NUM_LOCK_LED#[44,46]

+VSPI

3

2

Q22

R163 20K/F_4

2N7002K

1

R152 36/F_4 R156 36/F_4

R114 10K/F_4

PVT_SCN_LED#[45]

R143 36_4

PVT_SCN_LED#

PLAY_MUTE_LED_RPLAY_MUTE_LED_R1

B

PLAY_MUTE_LED_R CAPS_LED#_R

CAPSLED#_R

11/17 Del R164,R179

KSI_D_1[33]

KSI_D_0[33]

+3VPCU

12

C104

0.1U/16V_4

R187 *0_4

KSO9 KSI_D_9 KSI_D_11 KSI_D_13 KSI7 KSI_D_6 KSI_D_5 KSO1 KSO10 KSO6 KSO7 KSO4 KSO8 KSO3 KSI_D_3 KSI_D_1 KSI_D_2 KSI_D_4 KSI_D_0 KSI_D_10 KSI_D_12 KSI_D_8 KSI_D_14 KSO5 KSO2 KSO0 KSO11

12

C643

0.1U/16V_4

DFFC36FR009

51551-03601-001-36p-l

CN9

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

KB CONN

37

C

KSO[0..13][44,46]

KSI[0..7][46]

KSO[0..13] KSI[0..7]

KEYBOARD PULL-UP

RP2

10

1

10K_10P8R_6

KSI0

2

KSI1

3

KSI2

56

+3VPCU

G238G1

9

KSI7

8

KSI6

7 4

KSI5 KSI3 KSI4

D

D9

1

KSI_D_13

2

KSI_D_5

KSI1

KSI_D_10

KSI3

KSI_D_12

KSI_D_14

3 4

1

KSI_D_2 KSI2

2 3 4

1 2

KSI_D_4

3 4

KSI0 KSI_D_0

1 2

KSI_D_6

3 4

BAW56DW D11

BAW56DW D12

BAW56DW D10

BAW56DW

6

KSI5

5

KSI_D_9 KSI_D_1

6 5

KSI_D_3 KSI_D_11

6

KSI4

5

KSI_D_8

6

KSI6

5

E

40

+5V

2 2

PWM_LED#[46]

Q3 2N7002K

1 1

A

R26 100K/F_4

3

2

1

Q2 ME2303T1

2

3

B

+5V_LED_KBLIGHT

C30 *1uF/6.3V_4

DFFC08FR031

CN4

9 8 7 6 5

KBL_DET#[2]

4 3 2 1 10

Leap Motion

C

KSO9 KSI_D_9

C305*100pF_2

KSI_D_11

C308*100pF_2

KSI_D_13

C309*100pF_2

KSI7

C311*100pF_2

KSI_D_6

C312*100pF_2

KSI_D_5

C315*100pF_2

KSO1

C317*100pF_2

KSO2

C400*100pF_2

KSO0

C405*100pF_2

KSO11

C408*100pF_2

+3V[2,3,4,5,7,8,9,10,16,17,18,19,20,24,26,27,28,29,30,31,32,33,34,36,38,42,44,45,47,51,56,58,59,63] +5V[8,27,29,30,42,43,54,58,63]

D

NB5

KSO10

C321*100pF_2

KSO6

C326*100pF_2

KSO7

C336*100pF_2

KSO4

C341*100pF_2

KSO8

C352*100pF_2

KSO3

C355*100pF_2

KSI_D_3

C364*100pF_2

KSI_D_1

C370*100pF_2

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

40 -- KB/ KB light CONN

Date: Sheet of

E

KSI_D_2

C374*100pF_2C303*100pF_2

KSI_D_4

C376*100pF_2

KSI_D_0

C381*100pF_2

KSI_D_10

C383*100pF_2

KSI_D_12

C385*100pF_2

KSI_D_8

C388*100pF_2

KSI_D_14

C393*100pF_2

KSO5

C397*100pF_2

40 65Thursday, May 12, 2016

1A

A

Power Botton Connector

B

C

D

E

41

4 4

+3V_ALW

LED_PWRSTBY#[45]

ON_OFF#

C275 0.1U/16V_4

C302220P/50V_4

C293220P/50V_4

CN8

1 2 3

6

4 5

Volume board conn

DFFC04FR109

50505-00441-001-4p-l

LED

R417 *0_4

R419 2.2K_4

2N7002K Q37

+3VPCU

2

6 1

Q36B 2N7002KDW

C535

*0.1U/10V_4

ON_OFF#1_Q [44,46]

+3V_ALW

9

7

SR0#

3

SR1#

5

8

TML

DSR

VCC

GND

TRIG

FT8010MPX_MLP_8P

2

6

U18

RST2

RST1#

1 4

R421 2.2K_4

EN_5V_3V [21,42,48]

3 3

+3V_ALW

ON_OFF#1

2 2

R416470K_4 R418470K_4

+3VPCU

LID_SW#_3[26,33,46,47]

EN_5V_3V

R7734 *0_4 R7733 0_4

5

R415 *0_4

ON_OFF#1LID_SW#_3_Q

34

Q36A 2N7002KDW

LID_SW#_3_Q

3

2

1

12S RESET MODE INSTAL FOR DB0

INSTAL

UNINSTAL R10754 R10755

R10702 R10703 R10704 R581 R10701 R595 U9068

Q7080 Q7081

ON_OFF#

1 1

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

41 -- Power Button/ HW Reset

NB5

A

B

C

D

NB5

41 -- Power Button/ HW Reset

Date: Sheet of

E

+3V[2,3,4,5,7,8,9,10,16,17,18,19,20,24,26,27,28,29,30,31,32,33,34,36,38,42,44,45,47,51,56,58,59,63] +5V[8,27,29,30,40,42,43,54,58,63]

+3V_ALW[9,48,51,52,58,62,63]

1A

41 65Thursday, May 12, 2016

1A

A

B

C

D

E

FAN

+5V

R138

4 4

FAN1_PWM[46]

FAN1_PWM

CPU_THERM#

2N7002KDW

2

Q20B

6 1 34

2N7002KDW

5

Q20A

10K/F_4

R131 22/F_4

TACH_FAN_IN[45]

FAN1_PWM_Y

+5V

C149 10U/6.3VS_6 C156 0.1U/16V_4

FAN1

1

5 2 3 46

FAN Connect

5

6

FAN1_PWM_Y TACH_FAN_IN

TACH_FAN_IN

C196 *220P/50V_4 C182 *220P/50V_4

+3V

R10410K/F_4

42

Thermal sensor

+3VPCU

3 3

THERM_SCI#[2]

CPU_THERM#

R145 10K/F_4

+3V

2 2

CPU Thermal Sensor

U24

THERM_SCL THERM_SDA THERM_SCI#

8

SCLK

7

SDA

6

ALERT#

4

OVERT#

EMC1412-1-ACZL-TR

Under Heat Pipe

2nd:AL000431014 TMP431ADGKR

VCC DXP DXN

GND

HW protect

1 2 3 5

C425 2200P/50V_4

+3V

THERMDA_1

METR3904-G

THERMDC_1

2

Q32

1 3

G781P8(98h)Main: AL000781012

C264

0.1U/16V/X7R_4

R146

33.2K/F_4

+3V_THR

1

SET

GND

2

R166 150/F_4C644 0.01U/50V_4

5

3

VCC

OT

U5

HYST

G708T1U

4

Under CPU

R125 *470K/J_4

EN_5V_3V [21,41,48]

Over Temperature Protecton

DEGREE

70 36.5K

75 33.2K

R476

CS33322FB13

RSET (K OHM) = 0.0012T^2 - 0.9308T + 96.147

+3V

PCH_KBC_DATA[21,45,49]

PCH_KBC_CLK[21,45,49]

1 1

PCH_KBC_DATA

A

5

2

6

2N7002DW

Q42

43

1

R6412.2K_4

THERM_SDA

R6422.2K_4

THERM_SCLPCH_KBC_CLK

B

+3V

THERM_SDA [36]

THERM_SCL [36]

+3V[2,3,4,5,7,8,9,10,16,17,18,19,20,24,26,27,28,29,30,31,32,33,34,36,38,44,45,47,51,56,58,59,63]

+3V_ALW[9,41,48,51,52,58,62,63]

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

42-- FAN and Thermal IC

NB5

C

D

NB5

42-- FAN and Thermal IC

Date: Sheet of

E

42 65Thursday, May 19, 2016

1A

A

B

C

D

E

SATA-HDD

43

4 4

3 3

HDD CONN

CN24

1

13

14

1

13

14

2

3

4

5

6

SATA_RXP7_C

6

7

SATA_RXN7_C

7

8

9

SATA_TXN7_C

9

10

SATA_TXP7_C

10

11

12

C509 0.01U/50V_4 C512 0.01U/50V_4

C518 0.01U/50V_4 C522 0.01U/50V_4

MSATA_DET 1=SSD; 0=HDD

DEVSLP0 [7] SATA_RXP7 [7]

SATA_RXN7 [7] SATA_TXN7 [7]

SATA_TXP7 [7] MSATA_DET [4]

For WWAN

C486 *22P/50V_4

C483 *15P/50V_4

+5V_HDD

+5V_HDD +5V

120 mils

C481

0.1U/16V_4

C471 10U/6.3V_6

Place caps close to connector.

R369 *Short_8@NC

2 2

1 1

PROJECT:400 Series

Quanta Computer Inc.

+3V[2,3,4,5,7,8,9,10,16,17,18,19,20,24,26,27,28,29,30,31,32,33,34,36,38,42,44,45,47,51,56,58,59,63] +5V[8,27,29,30,40,42,54,58,63]

NB5

A

B

C

D

NB5

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev C

C

43 -- HDD/ EMI cap

Date: Sheet of

E

43 65Thursday, May 12, 2016

1A

5

4

3

2

1

44

ESPI+EC+APS debug conn on MB

debug_CONN_30P CN6

LAD2[3,45] LAD0[3,45]

D D

ESPI EC

SLP_S5#_3R[3]

APS

CCG4

C C

SLP_S4#_3R[3,31,35,46,48,53,58]

PM_SLP_A#[3,45,63] RTC_RST#[9]

CCG4_XRES[49] CCG4_SWD_CLK[49] CCG4_SWD_IO[49]

SLP_S4#_3R PM_SLP_A# RTC_RST#

VCC1_RST#[46] ESPI_ALERT#[45] LFRAME#[3,37,45] LAD3[3,45] LAD1[3,45]

LPC_ESPI_CLK[3,37,45] LPC_ESPI_RESET#[3,45] NMI_SMI_DBG#[4,46]

SLP_S3#_3R[3,46,58,63]

R7741 *0_4

R7745 *0_4 R7744 *0_4

R7742 0_4 R7743 0_4 R803 0_4 R7740 0_4

LAD2 LAD0

VCC1_RST#

ESPI_ALERT#

LFRAME# LAD3 LAD1

LPC_ESPI_CLK

LPC_ESPI_RESET#

NMI_SMI_DBG#

SLP_S3#_3R

CCG4_SWD_IO_R CCG4_SWD_CLK_R

CCG4_XRES_R

1 2 3 4 5 6 7 8

9 10 11 12 13 14

1 2 3 4 5 6 7 8 9 10 11 12 13 14 151516

313132

32

30

29

NUM_LOCK_LED#

29

28

27

26

25

24

23

22

8051_TX_LED_PWRSTBY#

22

21

8051_RX_CAPS_LED#

21

20

19

VDDD_SUPPLY_RSLP_S5#_3R

19

18

XDP_DBRESET#

18

17

UART0_RXD_R

17

16

UART0_TXD_R

KSO0 KSO1 KSO3 KSO2 KSO7

+VIN

NUM_LOCK_LED# [40,46]

KSO0 [40,46] KSO1 [40,46] KSO3 [40,46] KSO2 [40,46] KSO7 [40,46] 8051_TX_LED_PWRSTBY# [45,46] 8051_RX_CAPS_LED# [45,46]

R7739 *0_4

R801 *0_4 R802 *0_4

R804 0_4

R7738 0_4

+3VPCU

VRPPM_SLP_S0_N ON_OFF#1_Q

UART0_TXD UART0_RXD

+3V_DEEP_SUS

XDP_DBRESET# [3] VRPPM_SLP_S0_N [3,58] ON_OFF#1_Q [41,46]

UART0_TXD [4] UART0_RXD [4]

+5VPCU

APS

UART

CCG4

LPC_ESPI_CLK

UART0_RXD UART0_TXD

R39 49.9K/F_4 R43 49.9K/F_4

R154*0_4

+3V

C240*10P/50V_4

+3V

R538 10K_4

XDP_DBRESET#

LPC & ESPI TABLE

B B

R771 UNINSTALINSTAL R769

LPC MODE ESPI MODE

INSTALUNINSTAL

R770 INSTAL UNINSTAL

LPC & ESPI TABLE

LPC MODE ESPI MODE

R658

Ra

R646

Rb

R659

Rc

R656

Rd

R649

Re

R657

Rf

R249

Rg

R147

A A

R120 R276 R678

5

Rh Ri Rj Rk

INSTAL INSTAL INSTAL INSTAL INSTAL

INSTAL UNINSTAL INSTAL UNINSTAL INSTAL UNINSTAL UNINSTAL INSTAL

UNINSTALINSTAL UNINSTAL UNINSTAL UNINSTAL UNINSTAL UNINSTAL UNINSTALINSTAL

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Custom

44 -- EC & eSPI/UART debug conn

NB5

4

3

2

NB5

44 -- EC & eSPI/UART debug conn

Date: Sheet of

1

44 65Thursday, May 12, 2016

1A

5

C350 10U/6.3V_4 C339 0.1U/16V_4

C144 *10U/6.3V_4 C154 0.1U/16V_4

D D

for Battery charge/charge

for Thermal IC/ G-Sensor/GPU

DGPU_PROCHOT_EC#[21,59]

OCP_A_IN[62] CURRENT_ADC[51] ADP_A_ID[62]

C C

B B

VOLTAGE_ADC[62]

OCP_IN_ADC_R

CURRENT_ADC_R

ADP_ID_ADC_R

VOLTAGE_ADC_R

R279 *0_4/S

R78 *0_4/S

EC_PECI[2]

+VCCSFR

+VSPI

PCH_SLP_S0IX#[4]

EXT_SMI#[5]

IM_5S_CLK[47] IM_5S_DAT[47]

PWRBTN#[46]

PM_SLP_A#[3,44,63]

SCL_BAT_CHG[51,62]

SDA_BAT_CHG[51,62]

EMU_LID[26] LAN_PWR_ON[58]

PCH_KBC_CLK[21,42,49]

PCH_KBC_DATA[21,42,49]

A_SD#[30]

PROCHOT_KBC[2]

R928 *4.7K_4

+3V

DGPU_PROCHOT#[59]

R275 300_4 R274 300_4 R273 300_4

R247 300_4

C3482200P/50V_4 C3472200P/50V_4 C3462200P/50V_4 C3442200P/50V_4

+VHIF+1.8V_DEEP_SUS

+VSPI+3VPCU

TP1010

R18643_4

NPCE576H_AGND

EXT_SMI# SP_CLK SP_DATA IM_5S_CLK IM_5S_DAT PWRBTN#

SCL_BAT_CHG SDA_BAT_CHG

EMU_LID LAN_PWR_ON PCH_KBC_CLK PCH_KBC_DATA A_SD# PROCHOT_KBC KBC_ECPH_CLK KBC_ECPH_DATA

DGPU_PROCHOT_EC#

DGPU_PROCHOT#

OCP_IN_ADC_R CURRENT_ADC_R ADP_ID_ADC_R

VOLTAGE_ADC_R

EC_PECI_R

CPU I/O Rail Power Supply

66 67 61 62 35 32 73 71

112 111 110 109

89 88 91

90 126 125

87

86

44

43

42

41

39

80

79

4

+3V_VCC

+VSPI

+VHIF

106

58

U6A

VSPI

VHIF

GPIO67/PS2_CLK0 GPIO70/PS2_DAT0 GPIO62/PS2_CLK1 GPIO63/PS2_DAT1 GPIO37/PS2_CLK2 GPIO34/PS2_DAT2 GPIO73/PS2_CLK3/TA2 GPIO71/PS2_DAT3/TB2

GPIOB5/I2C0_SCL0 GPIOB4/I2C0_SDA0 GPIOB3/I2C0_SCL1 GPIOB2/I2C0_SDA1 GPIO90/I2C1_SCL0 GPIO87/I2C1_SDA0 GPIO92/I2C2_SCL0 GPIO91/I2C2_SDA0 GPIOD1/I2C3_SCL0 GPIOD0/I2C3_SDA0

GPIO86/TXD/SHD_CS1# GPIO85/RXD

GPIO45/ADC0 GPIO44/ADC1 GPIO43/ADC2 GPIO42/ADC3 GPIO41/ADC4

GPIO81/PECI_DATA VREF_PECI

VSS_111VSS_236VSS_347VSS_456VSS_570VSS_6

NOTE: Connect GND and AGND planes via an 0R resistor or a one-point layout connection.

VCC1_114VCC1_237VCC1_384VCC1_4

PVT_MOSI_DIO0/SPIP_MOSI/GPIOA3 PVT_MOSI_DIO0/SPIP_MOSI/GPIOD2 PVT_MISO_DIO1/SPIP_MISO/GPIO95

SHD_MOSI_DIO0/GPIOA4/TB1_TACH2PWM_IN SHD_MOSI_DIO0/GPIOD3/TB1_TACH2PWM_IN

GPIOA7/PS2_DAT3/TB2/SHD_DIO3 GPIOA6/PS2_CLK3/TA2/SHD_CS1#

VSS_7

VSS_8

82

104

117

R255 *0_6/S

+3V_RTC

+3V_ECACC

119

LRESET#/eSPI_RST#/GPIO54

SER_IRQ/eSPI_ALERT#/GPIO57

PVT_SCLK/SPIP_SCLK/GPIOA1 PVT_SCLK/SPIP_SCLK/GPIO01

GPIO93/TA1_TACH1/SHD_DIO2

68

40

VBAT

AVCC

PCI_CLK/eSPI_CLK/GPIO55

LFRAME#/eSPI_CS#/GPIO53

LAD3/eSPI_IO3/GPIO52 LAD2/eSPI_IO2/GPIO51 LAD1/eSPI_IO1/GPIO47 LAD0/eSPI_IO0/GPIO46

GPIO56/CLKRUN#

GPIOC6/SMI#

GPIO76/EC_SCI#

GPIOA5/A20M/PVT_CS1#

GPIOC5/KBRST#

PVT_CS0#/GPIO97

GPIO94/PVT_DIO2

GPIOB0/PVT_DIO3

SHD_CS0#/GPIOA0

SHD_SCLK/GPIOA2

SHD_SCLK/GPIO02

SHD_MISO_DIO1/GPIO96

AVSS

NPCE586H_TQFP

45

NPCE576H_AGND

C327 1U/6.3V_4

53

LPC_ESPI_RESET#

54

LPC_ESPI_CLK

52

LFRAME#

51

LAD3

50

LAD2

48

LAD1

46

LAD0

57

ESPI_ALERT#

55

CLKRUN#_L

123

SLP_LAN#

76

RUNSCI_EC#_R

102

PLT_DET

122

SX_EXIT_HOLDOFF#

96

PVT_CS#

98

PVT_SCLK_L

2 100

PVT_MOSI_L

127

KBC_PWR_ON

94

PVT_SPI_MISO

93

PCH_WAKE#

107

CPPWR_EN

97

PCH_SPI_CS0#

99

PCH_SPI1_CLK_R

3

ADP_PRES_OUT

101

PCH_SPI1_SI_R

128 95

PCH_SPI1_SO_R

92

BATLOW#

105

USB_C_INT#

103

PVT_SCN_LED#

15

CAP

NOTE: Place a 1 uF capacitor as close to the CAP pin as possible.

C319

0.1U/16V_4

C300 1uF/6.3V_4

3

R250 *33_4

R116 33_4 R115 33_4 R471 33_4

R7716 0_4

LPC_ESPI_RESET# [3,44] LPC_ESPI_CLK [3,37,44] LFRAME# [3,37,44]

LAD3 [3,44] LAD2 [3,44] LAD1 [3,44] LAD0 [3,44]

PCI_3S_SERIRQ [3]

TP1037

SLP_LAN# [3]

TP1038

SX_EXIT_HOLDOFF# [4]

TP1013 TP1014

WWAN_DET# [38]

TP1016

KBC_PWR_ON [48,54,58]

TP1015

PCH_WAKE# [3,32,37,38]

TP9

PCH_SPI_CS0# [3,47] PCH_SPI1_CLK [3,34,47] ADP_PRES_OUT [3] PCH_SPI1_SI [3,34,47]

TACH_FAN_IN [42]

PCH_SPI1_SO [3,34,47]

BATLOW# [3,46] CYPRE_INT [49] PVT_SCN_LED# [40]

+3VPCU

+3V

LPC_ESPI_CLK

EC

R220 10K/F_4 R232 10K/F_4

R280 10K/F_4 R252 10K/F_4

R112 2.2K_4 R92 2.2K_4

R149 2.2K_4 R148 2.2K_4 R121 100K_4 R113 *100K_4

2

LPC_ESPI_RESET#

R83 2.2K_4

+3VPCU

KBC_ECPH_DATA

R107 2.2K_4

+3VPCU

KBC_ECPH_CLK

IM_5S_DAT IM_5S_CLK

SP_CLK SP_DATA

SCL_BAT_CHG

SDA_BAT_CHG

PCH_KBC_DATA

PCH_KBC_CLK

KBC_PWR_ON EMU_LID

R678 *100K_4

R59*0_4

+1.8V_DEEP_SUS

C105*10P/50V_4

+3V_DEEP_SUS

5

2 6

2N7002DW

1

45

Q16

43

SMB_PCH_DAT

1

SMB_PCH_CLK

R27710K_4

ESPI_ALERT#

SMB_PCH_DAT [3]

SMB_PCH_CLK [3]

ESPI_ALERT# [44]

PLT_DET PLT_DET

PD 100K PU 10K UMA DIS

+3VPCU

C148

+3VPCU

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

45 -- EC Nuvoton NPCE586H_1

Date: Sheet of

+3VPCU+3VPCU

R89 10K_4

LED_PWRSTBY# [41]

1

R79 10K_4

CAPS_LED# [40]

45 65Thursday, May 12, 2016

1A

R91 10K_4

CAPS_LED#

+3V[2,3,4,5,7,8,9,10,16,17,18,19,20,24,26,27,28,29,30,31,32,33,34,36,38,42,44,47,51,56,58,59,63]

+3V_ALW[9,41,48,51,52,58,62,63]

R94 *100K_4

U4

1

1A

2

GND

3

VCC

2A

SN74LVC2G07DCKR

0.1U/16V_4

6

LED_PWRSTBY#8051_TX_LED_PWRSTBY#

1Y

5 4

CAPS_LED#

2Y

NB5

+SPI_VCC

+3V_VCC

C278

4.7U/6.3V_4

+3V_ECACC

C345

10U/6.3V_4

A A

NPCE576H_AGND

R295 2.2/F_6

C359

0.1U/16V_4

5

C178

0.1U/16V_4

L15 HCB1608KF-181T15

C343

0.1U/16V_4

C289

0.1U/16V_4

R258 2.2/F_6

C179

0.1U/16V_4

+3VPCU

8051_TX_LED_PWRSTBY#[44,46]

8051_RX_CAPS_LED#[44,46]

4

3

R95 10K/F_4 R170 *100K_4

8051_RX_CAPS_LED#

8051_TX_LED_PWRSTBY# LED_PWRSTBY#

PLT_DET PVT_SCN_LED#

R110 10K_4

8051_RX_CAPS_LED#

R75 *0_4 R102 *0_4

2

5

4

3

2

1

R219 100K/F_4

46

+3VPCU

U6B

72 77

60

38

120 118 121

78 113 114 115

59

1 30 31 33 34 49 63 64 65 74 85

116 124

RSMRST_PGRSMRST#

D23*RB500V-40

CPU Throttling

PWRGD/GPIO72 VCC1_RST#/GPO77

GPIO61/RESET_OUT#

GPIO40/TA1_TACH1 GPIOC3/PWM0

GPIOC2/PWM1 GPIOC4/PWM2_TACH2PW M_OUT GPIO80/PWM3_LED3 GP(I)OB6/PW M4_LED0/SPI_COMP# GPIOB7/PWM5_LED1 GPIOC0/PWM6_LED2 GPIO60/PWM7

GPIO00 GPO32/TRIS# GPIO33 GPO35/TEST# GPIO36 GPIO50 GPIO64 GPIO65 GPIO66 GPIO74 GPIO84 GPIOC1 GPIOC7

NPCE586H_TQFP

KSO00/GPO21/JTAG_TCK0_SWCLK0

KSO01/GPO20/JTAG_TMS0_SWIO0

KSO03/GPO16/JTAG_TDO0_SWO0

KSO02/GPO17/JTAG_TDI0

KSO04/GPO15/XNOR

KSO05/GPO14 KSO06/GPO13

KSO07/GPO12/JEN0#

KSO08/GPO11/CR_SOUT

KSO09/GPO10/CR_SIN KSO10&P80_CLK/GPIO07 KSO11&P80_DAT/GPIO06

KSO12/GPO05 KSO13/GPO04 KSO14/GPO82 KSO15/GPO83 KSO16/GPO03 KSO17/GPOB1

KSI0/GPIO31/TRACEDATA3 KSI1/GPIO30/TRACEDATA2 KSI2/GPIO27/TRACEDATA1 KSI3/GPIO26/TRACEDATA0

KSI4/GPIO25/TRACECLK

KSI5/GPIO24 KSI6/GPIO23 KSI7/GPIO22

GPIO75/32KHZ_OUT

GPIOE7/32KCLIN

Q21A 2N7002KDW

RSMRST_PG

TP10

PWR_GOOD_3 VCC1_RST#

PM_PWROK

R246 1K/F_4

BAT_GRNLED# PWM_LED# FAN1_PWM ADP_ID_CHK

AMBER_BATLED# 8051_RX_CAPS_LED# 8051_TX_LED_PWRSTBY# OCP_PWM_OUT

DPWROK WLAN_DISABLE TP_SCAN_DISABLE# WWAN_OFF#

DPHDMI_PD

ME_UNLOCK# LID_SW#_3 MAIN_BAT_DET# ADP_DET RSMRST#

R109 0_4

DTR#_BOUT

R161 1K/F_4 R768 10K_4

2 1

SLP_S4#_KBC_R

PWR_GOOD_3[3,48,63]

VCC1_RST#[44]

PM_PWROK[3]

D D

All the PWM outputs can directly drive the cathode of a LED connected to 3.3V power

LANPWR ENABLE

ADP_DET[26,51]

ADP_PRES[51]

C C

R797 *0_4

C9184 *0.1U/16V_4

SLP_S4#_3R[3,31,35,44,48,53,58]

BAT_GRNLED#[51] PWM_LED#[40]

FAN1_PWM[42]

ADP_ID_CHK[62]

AMBER_BATLED#[51]

8051_RX_CAPS_LED#[44,45]

8051_TX_LED_PWRSTBY#[44,45]

OCP_PWM_OUT[62]

DPWROK[3,63]

WLAN_DISABLE[37]

TP25

WWAN_OFF#[38]

TP1036

TP1011

ME_UNLOCK#[8]

LID_SW#_3[26,33,41,47]

MAIN_BAT_DET#[51,62]

RSMRST#[3]

RSMRST_PG[63]

Dual

PCI_PLTRST#[3,31,32,34,37,38]

NMI_SMI_DBG#[4,44]

B B

PCI_PLTRST#

NMI_SMI_DBG# BATLOW#

Q21B 2N7002KDW

21 20 19 18 17 16 13 12 10 9 8 7 6 5 81 83 4 108

29 28 27 26 25 24 23 22

75 69

34

5 2

61

SLP_S3#_3R_KBC

PCH_SLP_SUS# SUSCLK32_KBC

OCP_PWM_OUT

KSO0 KSO1 KSO2 KSO3 KSO4 KSO5 KSO6 KSO7 KSO8

KSO9 KSO10 KSO11

KSO17

KSI0 KSI1 KSI2 KSI3 KSI4 KSI5 KSI6 KSI7

KSO0 [40,44] KSO1 [40,44] KSO2 [40,44] KSO3 [40,44] KSO4 [40] KSO5 [40] KSO6 [40] KSO7 [40,44] KSO8 [40]

KSO9 [40] KSO10 [40] KSO11 [40]

R1771K/F_4

NUM_LOCK_LED# [40,44]

PWR_BTN_OUT# [3]

KSO17 [33]

KSI0 [40] KSI1 [40] KSI2 [40] KSI3 [40] KSI4 [40] KSI5 [40] KSI6 [40] KSI7 [40]

PCH_SLP_SUS# [3] SUSCLK32_KBC [9]

OCP_OC# [2]

BATLOW# [3,45]

SLP_S3#_3R [3,44,58,63]

R210 100K/F_4

ME_UNLOCK# LID_SW#_3

VCC1_RST# AMBER_BATLED# NUM_LOCK_LED#

WWAN_OFF#

PM_PWROK VCC1_RST# WLAN_DISABLE

ADP_ID_CHK

ESD SOLUTION

KSO7

MAIN_BAT_DET#

R165 *1K/F_4

C9185 0.1U/16V_4

R253100K/F_4 R254470K_4

R198100K/F_4 R111*10K/F_4 R168100K/F_4

R244*1K/F_4

R25120K/F_4

R197*10K/F_4

R133*1K/F_4

R193*100K/F_4

+3VPCU+3VPCU

ON_OFF#1_Q[41,44]

A A

5

4

3

R205 47_4

2

C313 1U/6.3V_4

R209 *0_4

NOTE : IF INSTALL R10603, PLEASE UNINSTALL R224

NB5

PWR_BTN_OUT#PWRBTN#ON_OFF#1_Q

PWRBTN# [45]

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

46 -- EC Nuvoton NPCE586H_2

Date: Sheet of

1

46 65Thursday, May 12, 2016

1A

5

4

3

2

1

SPI ROM

Vender

D D

GD 128MB AKE2DF0KQ00

Socket

C C

PCH_SPI1_SO[3,34,45]

PCH_SPI_CS0#[3,45] PCH_SPI1_CLK[3,34,45] PCH_SPI1_SI[3,34,45]

TP1047 TP1048 TP1049 TP1050

PCH_SPI_IO2[3]

Size

P/N

AKE3DZNKN00Winbond

128MB

DFHS08FS046

PCH SPI ROM(CLG)

PCH_SPI_CS0# PCH_SPI1_CLK PCH_SPI1_SI PCH_SPI1_SO

R467 33_4 R468 33_4 R670 33_4

R469 33_4

C691 82P/50V_4

+SPI_VCC

PCH_SPI_CS0# PCH_SPI1_CLK_ROM PCH_SPI1_SI_ROM PCH_SPI1_SO_ROM

PCH_SPI_IO2_ROM

+SPI_VCC

R669 *3.3K/F_4

R674

4.7K_4

PCH 6*5mm WSON 16M SPI ROM Socket

R665 *0_4

+3V_DEEP_SUS

U28

1

CE#

6

SCK

5

SI

2

SO

3

WP#

BIOS Socket

DFHS08FS046

VDD

HOLD#

VSS

R683 *2.55K/F_4

R227 *0_4/S

8

+SPI_VCC

R664 *3.3K/F_4

7 4

0.1U/16V_4

PCH_SPI_IO3_ROM

C692

+SPI_VCC

R470 33_4

PCH_SPI_IO3 [3]

47

B B

C423 10P/50V_4

IM_5S_CLK[45]

IM_5S_DAT[45]

PCH_SMBCLK[3,16,17,27]

A A

5

PCH_SMBDATA[3,16,17,27]

R358 330T30_4

R352 330T30_4

C422 10P/50V_4

C9180 12P/50V_4 R7723 0_4 R368 0_4 C9181 12P/50V_4

CLICK PAD Address: 0x20(7 bit)

4

TPCLK-1

TPDATA-1

PCH_SMBCLK_TP PCH_SMBDATA_TP

25 mils

LID_SW#_3[26,33,41,46]

3

LID_SW#_3 TP_DISABLE#

Touch Pad

+3V

21

D7706RB500V-40

PCH_SMBDATA_TP PCH_SMBCLK_TP

TPDATA-1 TPCLK-1

C1183

0.1U/16V_4

2

Leap Motion

10 1 2 3 4 5 6 7 8 9

CN26

DFFC08FR118

TP_DISABLE#

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

47 -- Flash(KBC+PCH)

NB5

47 -- Flash(KBC+PCH)

Date: Sheet of

+3V

R773710K/F_4

1A

47 65Thursday, May 12, 2016

1

47 65Thursday, May 12, 2016

5

400 series 1001

400 series 1001400 series 1001

POWER TO EE NET NAME CONNECTION

D D

4

3

2

1

48

EXT_PWR_GATE#[3]

C93

0.1U/16V_4

R54 10K_4

KBC_PWR_ON

EN_5V_3V [21,41,42]

EN_5V_3V

R425 10K_4

R428 *0_4

0.022U/25V_4

R57 *0_4/S

R105 *0_4/S

R671 *0_4/S

C545

2 1

EN_5V [52]

EN_3V [52]

EN_1V8 [54]

EN_1V0A [54]

+3V_ALW

C C

R879 *10K/F_4

For DDR4

R878 0_4

D24

*RB500V-40

R353 *0_4/S

R25 *0_4/S

R24 *0_4/S

EN_VRPVDDQ [53]

For DDR4

21

EN_VRPVTT [53]DDR_VTT_PG_CTRL[6,53]

EN_PVCCIO [55]PWR_GOOD_3[3,46,63]

VRAVR_ON [56]

KBC_PWR_ON[45,54,58]

+3VPCU

SLP_S4#_3R[3,31,35,44,46,48,53,58]

R1101 10K/F_4

2V5_PG[53]

SLP_S4#_3R[3,31,35,44,46,48,53,58]

B B

A A

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

48 -- POWER ENABLE

NB5

5

4

3

2

NB5

48 -- POWER ENABLE

Date: Sheet of

1

1A

48 65Thursday, May 12, 2016

5

4

3

2

1

1K

5.9K

Pull down

41

49 65Friday, May 20, 20 16

1A

SI, 2/22, Change 5V

R1153 0_8

U1013

3

IN

*G5250Q1T73U

R837 0.3_6

C697 1uF/6.3V_4

R1146

10K/F_4

SWD_XRES_PCH[4]

VDDD_SUPP LY

C1186

0.1U/16V_4

GND

OUT

1

2

R57

R58

4

R807

*10K/F_4

R1154 *2M/F_4

C1185

0.1U/16V_4

R839 0_4

VCONN_VMO N_P1

SWD_IO_PCH[4] SWD_CLK_PCH[4]

VDDD_SUPP LY

CCG4_XRES[44]

C700 1uF/6.3V_4

VCONN_5V_P1 trace width must be 25mil above.

+5V_USBP0

CCG4_SW D_IO[44] CCG4_SW D_CLK[44]

R1148 *0_4 R805 *0 _4

PCH_KBC_DATA[21,42,45]

PCH_KBC_CLK[2 1,42,45 ]

CCG4_OVP[5 0]

3

2

*PJE138K Q1010

1

VDDD_SUPP LY

C1189 1uF/6.3V _4

VCONN_5V_P1

C704 0 .1U/16V_ 4 R1147 100K/F_4 R1150 10K/F_4

CCG4_SW D_IO CCG4_SW D_CLK

USB_C_INT# PCH_KBC_DATA PCH_KBC_CLK

VCONN_VMO N_P1

MOD_ID1

R806

4.7K_4

CCG4_XRES

C1188

0.1U/16V_4

U1008

31 32

33

8

23

3 4 5 6

13

37

1 2

15 16 17

19 14

25 27

21

10

CCG4 40-QFN

VDDD VDDIO

VCCD

VCONN_V5V_P1 VCONN_V5V_P2

I2C_SDA_SCB2_AR/GPIO I2C_SCL_SCB2_AR/GPIO I2C_INT_AR_P1/GPIO I2C_INT_AR_P2

VBUS_MON_P1

VBUS_MON_P2

SWD_IO/AR_RST#/GPIO SWD_CLK/I2C_INT_AR_P2/GPIO

I2C_INT_EC I2C_SDA_SCB1_EC I2C_SCL_SCB1_EC

VSEL1_P1/VCONN_VMON_P1 VSEL2_P1/OVP_TRIP_P1

VSEL1_P2/SCL_3/VCONN_VMON_P2 VSEL2_P2/GPIO

OVP_TRIP_P2

XRES

CYPD4125-4 0LQXIT

PART_NUMBER = CYPD4225 -40LQXIT Manufacturer = Cypress

VBUS_DISCHARGE_P1/GPIO

MUX_CTRL3_P1/SDA_3/GPIO

VBUS_DISCHARGE_P2/GPIO

3

VBUS_P_CTRL_P1 VBUS_C_CTRL_P1

HPD_P1

CC2_P1

CC1_P1

MUX_CTRL2_P1/SDA_4 MUX_CTRL1_P1/SCL_4

HPD_P2

CC1_P2

CC2_P2

MUX_CTRL3_P2/GPIO MUX_CTRL2_P2/GPIO MUX_CTRL1_P2/GPIO

VBUS_C_CTRL_P2 VBUS_P_CTRL_P2

EPAD

11 12 20

CCG1_VBUS_DISCHARG E

18

CCG4_HOTPLUG_DET_P1

7

9

26 28

CCG4_I2C_ SDA_MUX

29

CCG4_I2C_ SCL_MUX

30

22

24

34 35 36

38 39 40

41

MOD_ID2

TYPEC_EN [ 50]

R7726 100K_4

R798 *1 0K/F_4

C702 390P/50V_4

C703 390P/50V_4

R1152 *10K/F_4 R1151 *10K/F_4

2

+3VPCU

TYPEC_CC2 [50]

TYPEC_CC1 [50]

+5V_USBP0

2

MOD_ID1 MOD_ID2

R1149 100/F_4

3

PJE138K Q63

1

MOD_ID

L0 L1 L5 L6

VDDD_SUPP LY

NB5

Pull high

None 1K

7.1K

3.09K 5.1K

2.2K

R7729

2.2K_4

R7728

5.9K/F_4

R7727 *7.15K/F_ 4

R7730 1K/F_4

PROJECT:400 Series

Quanta Computer Inc.

Size Docum ent Number Rev

49 -- Cypress CCG1

Date: Sheet of

1

+5VPCU

D D

+5VPCU

C1184

C C

Note: The above resistor divider network is needed only when VDDD_SUPPLY is 3.3V. Don't place R58 and R60 resistors when VDDD_SUPPLY is 5V. Use 0ohm resistors for R57 and R59 when VDDD_SUPPLY is 5V.

0.1U/16V_4

+3VPCU

T/I connect To EC 105 Pin, netname CYPRE_INT

VDDD_SUPP LY

5

R7754 *4.7K_4

CCG4_SW D_CLK

R7755 *4.7K_4

CCG4_XRES CCG4_SW D_CLK CCG4_SW D_IO

B B

test points sequence and pitch. (2.54mm with PHY 1.02)

A A

TP1041 TP1042 TP1043 TP1044 TP1045

CYPRE_INT[45]

5

4

3

2

1

+5V_USBP0 +5V_USBP0

CN25

A4

VBUS

A9

VBUS

USB30_TX2+_R USB30_TX2-_R

USBP2+_C USBP2-_C USBP2+_C

1

D20

*PESD5V0X2UM

TYPEC_CC2 TYPEC_CC1

C1154 0.1U/16V_4 C1155 0.1U/16V_4

TYPEC_CC1 TYPEC_CC2

2

3

USB30_TX2+[7]

D D

USBP2-

2

R660 0_4 R659 0_4

USBP2-_C USBP2+_CUSBP2+

USBP2-[7]

USBP2+[7]

L1009 *DLP11SN900HL2L

4 3

USBP2-

1

C C

USBP2-_C USBP2+_CUSBP2+

USB30_TX2-[7]

USB30_RX3-[7] USB30_RX3+[7]

TYPEC_CC1[49] TYPEC_CC2 [49]

3

1

D1008

PESD5V0X2UM

2

A2 A3

A6 A7

A10 A11

A8 A5

A1

A12

B1

B12

TYPE-C

TX1P TX1N

DP1 DN1

RX2N RX2P

RFU1 CC1

GND GND GND GND

+5V_USBP0

VBUS VBUS

RX1P

RX1N

DN2

TX2N TX2P

RFU2

CC2

GND GND GND GND GND GND GND GND

DP2

B4 B9

B11 B10

B7 B6

B3 B2

B8 B5 1

2 3 4 5 6 7 8

USB30_TX3-_R USB30_TX3+_R

Close CN25

+5VPCU +5VPCU

C1160

1U/6.3V_4

+5VPCU

C1159

0.1U/16V_4

R823

*10K/F_4

TYPEC_EN[49]

R824

B B

CCG4_OVP[49]

A A

*10K/F_4

R7735

*10K/F_4

R825 *0_4

D1005 RB500V-40

D7704 *RB500V-40

21

R827 1M/F_4

R826 470K_4

C1161

*10U/6.3V_4

C1163

1000P/50V_4

C1158

0.022U/25V_4

2 1

1 2 3 4 5

U42

TPS2592BADRCR

dV/dT EN/UVLO VIN VIN VIN

GND12GND13GND14GND15GND

C1162

0.1U/25V_4

OUT OUT OUT

BFET

GND

16

ILIM

6 7 8 9 10 11

D7701 P4SMAJ20A

USBP2-_C

+5V_USBP0_L

TI_BFET#

R828 100K/F_4

21

C1156 0.1U/16V_4 C1157 0.1U/16V_4

C1166

C1167

22U/25V_8

160 mils

20K/F_4

R819

3

1

Q61 AON7400AL

1 2 3

2

Q7704 BSS84-7-F

USB30_RX2+ [7] USB30_RX2- [7]

USB30_TX3- [7]

USB30_TX3+ [7]

160 mils

5 6 7 8

4

R813 1M/F_4

C7714

0.01U/50V_4

Q67 PMBT3906YS

Q1

6 5 3

Q2

+5V_USBP0

21

R820 200K/F_4

4

+5V_USBP0

R821 4.99K_4

C720

470P/50V_4

R822

1K/F_4

USB30_TX2+_R

USB30_TX2-_R

USB30_RX2+

USB30_RX2-

USB30_TX3-_R

USB30_TX3+_R USB30_RX3-

USB30_RX3+

R7736 1K/F_4

UDZ15B-7-F

2 1

D7705

1 2 3 4 5

PUSB3FR4

1 2 3 4 5

PUSB3FR4

U1009

IN1 IN2 GND IN3 IN4

U1010

IN1 IN2 GND IN3 IN4

R7717

15K/F_4

10

USB30_TX2+_R

NC

9

USB30_TX2-_R

NC

8

GND

7

USB30_RX2+

NC

6

USB30_RX2-

NC

10

USB30_TX3-_R

NC

9

USB30_TX3+_R

NC

8

GND

7

USB30_RX3-

NC

6

USB30_RX3+

NC

+5V_USBP0

R817 200K/F_4

R818 47K/F_4

3

2

Q69 2N7002K

1

2 1

D31

PDZ5.1B

42

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

50 -- TYPE-C

NB5

5

4

3

2

NB5

50 -- TYPE-C

Date: Sheet of

1

50 65Tuesday, May 17, 2016

1A

5

4

3

2

1

PC114

0.1U/25V_4

+BATCHG

35

PD15 SX34F

51 65Thursday, May 12, 2016

1A

90W DC_JACK

LIMIT_SIGNAL [62]

PC131

PR171 *0_2/S

PC40

1U/25V_6

100/F_4

CMSRC

ACDRV

VCC

ACDET

SDA SCL PROCHOT BATPRES

TB_STAT

ACOK

IADP

IDCHG

RC1206-R010

0.1U/25V_4

BQACP

2

ACP

BQ24780SRUYR

ILIM

CMPIN

21

13

BQILIM

*1U/25V_6

PR172

PC39

PU1

CMPOUT

14

PR23 1M/F_4

PR24 21K/F_4

3

BQACN

1

PMON

9

21

PR173 *0_2/S

PC38

0.1U/25V_4

PR65 100/F_4

PR64 *0_4/S

REGN6V

ACN

24

REGN

26

HIDRV

25

BTST

27

PHASE

23

LODRV

22

GND

29

PAD

17

BATSRC

20

SRP

19

SRN

18

BATDRV

30

GND

31

GND

32

GND

33

GND

34

GND

GND35GND36GND37GND

38

SI1, 02/17/16

PR42 *0_4/S

+3VPCU

PR366 *0_4/P

PR12 47K/F_4

I_SET [62]

PD2

*PDZ8.2B

21

PC15

2.2U/10V_6

BQHIDRV

PR39

BQB_2 BQB_1

0_6

BQPHASE

BQLODRV

PR18

BQBATSRC

BQSRP

BQSRN

BQBATDRV

10/F_6

PR15 0_6

PR16 0_6

PC19 100P/50V_4

ADP_PRES [46]

BQBATDRV

PC111

2200P/50V_4

PC25

0.047U/25V_4

PQ31

EMB20N03V

PC8

0.1U/25V_4

PC10

0.1U/25V_4

IMVP_PSYS [56]

PR17 *0_4/S

+VIN

678

35241

678

35241

PC9

0.1U/25V_4

2

PQ23 AON6414AL

D

5

PC121

4.7U/25V_8

PQ30 EMB20N03V

PR213

2.2_6

PC163 2200P/50V_4

G

4

3

S

2 1

PL11

3.3uH/6A

+BAT_DIS

PC127

0.1U/25V_4

CSOP CSON

PC155 *0.01U/50V_4

PR176

RC1206-R020

PR179

*0_2/S

NB5

21

PC117

PR175 *0_2/S

Size Document Number Rev

Size Document Number Rev Custom

Custom

Custom Date: Sheet of

Date: Sheet of

PC122

10U/25V_8

PROJECT:400 Series

Quanta Computer Inc.

49 -- Charger (BQ24780)

1

6

+VA_AC

CN5

1

VDD

2

D D

+5VPCU

PR174 1K/F_6

SI1, 02/23/16

C C

PR168 *0_4/S

PR190

1K/F_6

SI1, 02/23/16

B B

PR187 *0_4/S

A A

VDD

AD_ID

5

LED+

3

GND

7 8

DC-IN CONN

4

GND

ALED

9

GND

10

WLED

GND

+3V_ALW [9,41,48,52,58,62,63]

5

PC72

0.1U/25V_4

BAT_GRNLED# [46]

AMBER_BATLED# [46]

PL3 *0_8/S

PL4 *0_8/S

+VA

PC166

0.1U/25V_4

Place this ZVS close to Diode away +VIN

+3V

PR74

27K/F_4

PR75

47K/F_4

MAIN_BAT_DET#[46,62]

PD12

P4SMAJ20A

2 1

+VA

+BATCHG

PD8

1N4448WS-7-F

2 1

BQACDET

SDA_BAT_CHG[45,62] SCL_BAT_CHG[45,62]

PQ24 AP0203GMT-HF

D

5

PC123 1000P/50V_4

PD9

1N4448WS-7-F

2 1

PD7

1N4448WS-7-F

OCP_CHG#[2,56,62]

PR368 *0_4/P PR22 *0_4/S

CURRENT_ADC[45]

+VAD

3

S

2 1

G

4

Do Not add test pad on BATDIS_G signal

PR63 10_8

PC29

1U/25V_6

PR72

+VA

249K/F_4

PR34 *0_4/S PR31 *0_4/S

PR21 *100K/F_4

+3V_ALW

ADP_DET[26,46]

PR49 *0_4/S

4

1 2 3

PC124

0.047U/25V_4

PR68

4.02K/F_4

PR37 *0_4/S

+3VPCU

BQACDET

PC30

100P/50V_4

PQ19 AON7506

4

PR71

40.2K/F_4

+PRWSRC +VIN

5 6 7 8

SI1, 02/17/16

+VAD

PR66

PR67

4.02K/F_4

BQCMSRC

3

BQVCC

BQACDET

PC34 *1000P/50V_4

BQDATA BQCLK

BQIADP

BQIBAT

PC27 100P/50V_4

+VAD

28

11 12 10 15

16

PR14 47K/F_4

4

6

5

7

8

PR13

249K/F_4

PR69 22K/F_4

PR70

2M/F_4

+3VPCU

BQACDRV

BQPROCHOT BQBATPRES

BQTB_STAT

5

4

3

2

1

DC/DC +3VS5/+5VS5

50

+3VPCU [3,10,33,37,38,40,41,42,44,45,46,48,49,51,53,55,58,60,62,63] +5VPCU [28,31,35,44,49,50,51,53,54,56,57,58,59,60,61,63]

D D

+5VPCU +/- 5% Countinue current:9A Peak current:11A

3V_5V_PG[63]

OCP minimum:13A

EN_5V[48]

+VIN

PL36 *0_8/S

C C

+5VPCU

+

B B

12

PJP8

*POWER_JP/S

12

PC362

150U/6.3V_5X3.8 ESR20

PC360

0.1U/25V_4

+5V_SRC

PC356

0.1U/16V_4

+5VPCU_VIN

PC352

4.7U/25V_8

PC355

4.7U/25V_8

Size: 10x10x4mm

DCR= 7m ohm (max)

PL34

2.2uH/12A(PCMB104T-2R2MN)

PR398 *0_2/S

EMB20N03V

PR403

*2.2_6

PC359

*2200P/50V_4

PC346 2200P/50V_4

PQ45

51285_FB1P

678

35241

678

35241

PQ53

MDV1595SURH

PR396 15K/F_4

PC350

0.1U/25V_4

PR397 *0_4/S

PR393 *0_4/S

PR402

2.2_6

51285_PG 51285_EN1 51285_DH1 51285_VBST1 51285_SW1 51285_DL1

51285_FB1

PR400 10K/F_4

100mA 100mA

+5V_ALW

PC349

1U/6.3V_4

PU25

7

PGOOD

20

EN1

16

DRVH1

17

VBST1

18

SW1

15

DRVL1

2

VFB1

14

VO1

VCLK

19

PR391

107K/F_4

51285_VIN

12

13

VIN

VREG5

RT6575AGQW

CS11CS2

5

26

51285_CS1

51285_CS2

PR392 105K/F_4

PC347

0.1U/25V_4

+3V_ALW

3

VREG3

PR394 *0_6/S

PC353

1U/6.3V_4

EN2

DRVH2

VBST2

SW2

DRVL2

VFB2

GND GND

GND23GND24GND25GND

6 10 9 8 11 4 21 22

+3VPCU_VIN

51285_EN2 51285_DH2 51285_VBST2 51285_SW2 51285_DL2 51285_FB2

PR404 *0_4/S

PR399

2.2_6

Vfb=2V

PR395 10K/F_4

EN_3V [48]

PC354

PQ46

35241

0.1U/25V_4

MDV1595SURH

Rds(on) <13m ohm@4.5V

PR406

6.81K/F_4

678

51285_FB2P

+3VPCU_VIN

PC345 2200P/50V_4

PQ44 EMB20N03V

Size: 7x7x3mm

DCR= 30m ohm (max)

PL37

3.3uH/6A(PCMC063T-3R3MN)

PR401 *2.2_6

PC357 *2200P/50V_4

PC361

4.7U/25V_8

Countinue current:6A Peak current:8A OCP minimum:10A

+VIN

PL35 *0_8/S

PC348

0.1U/16V_4

PC351

0.1U/25V_4

+3VPCU

12

+

PJP6 *POWER_JP/S

PC344

150U/6.3V_5X3.8 ESR20

PC358

4.7U/25V_8

+3V_SRC

PR405 *0_2/S

+3VPCU +/- 5%

A A

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

50 -- 3/5VS5 (SY8208B/SY8208C)

NB5

5

4

3

2

NB5

50 -- 3/5VS5 (SY8208B/SY8208C)

Date: Sheet of

Thursday, May 12, 2016

Date: Sheet of

Thursday, May 12, 2016

Date: Sheet of

Thursday, May 12, 2016

1

52 65

1A

1

2

3

4

5

51

PR158

100/F_4

3

1

+1.2VSUS

PR165 *0_4/P

*2N7002K

PR161 *0_4/S

PR166 *0_4/S

PR164 *0_4/S

DDR_VTT

PC101 10U/6.3V_6

PC105

0.033U/10V_4 PR152

*0_6/S

PQ16

PC109 *0.1U/16V_4

PC108 *0.1U/16V_4

PC102

*10U/6.3V_6

+5VPCU

PR157 243K/F_4

17

18

16 15 12

PR163

499K/F_4

1P35V_UGATE

1P35V_BOOT

1P35V_PHASE 1P35V_LGATE

PC106 1U/6.3V_4

PR153

2.2_6

+5VPCU

PC103

0.1U/25V_4

PQ39

EMB20N03V

PQ38

MDV1595SURH

Rds(on) 14m ohm

35241

PC334

4.7U/25V_8

PC329

2200P/50V_4

PC333

PC330

678

4.7U/25V_8

0.1U/25V_4

PL30

1uH/11A(PCMC063T-1R0MN)

678

PR155

2.2_6

PC104 2200P/50V_4

1P35V_TON

1P35V_S5

1P35V_CS

1P35V_S3

1P35V_PGOOD

7

20

VTT

2

VTTSNS

1

VTTGND

PR156 *0_2/S PR159 *0_2/S

RT8231BGQW

LPMB

3

4

VTTREF

19

VLDOIN

9

13

10

S58S3

CS

TON

PGOOD

PU8

PGND

VID

14

11

1P35V_VID

6

FB

VRAVDDQ_FB

PR162 10K/F_4

UGATE

BOOT1

PHASE

PAD

VDDQ

5

21

1P35V_VDDQ

PR160

7.87K/F_4

LGATE

VDD

PL31 *0_8/S

+VIN+VIN_DDR

PC331

+1.2VSUS +/- 5% Countinue current:6A Peak current:10A OCP minimum:12A

0.1U/25V_4

PR354 *0_2/S

+1.2VSUS_S

PC319

+1.2VSUS

PJP7 *POWER_JP/S

1 2

PC320

22U/6.3V_8

PC315

*22U/6.3V_8

PC316

*22U/6.3V_8

PC324

22U/6.3V_8

0.1U/16V_4

+2.5VSUS +/- 5%

VRPVDDQ_PG[63]

A A

B B

C C

TP128

VRAVDDQ_FB

DDR_VTT_PG_CTRL[6,48]

( 3mA )

DDR_VTTREF

EN_VRPVDDQ[48]

EN_VRPVTT[48]

PC107

0.1U/16V_4

2

Countinue current:1A

+3VPCU

PR384 *0_6/S

PC343

Peak current:2A

+2.5VSUS

3

2

5719LX2.5VS5

R1

PR388

32.4K/F_4

4.7U/6.3V_6

4

PU24

EN_2V5

PC342

0.22U/10V_4

5

PG

1

EN

G5719BTB1U

R2

VIN

LX

GND

FB

6

5719VFB2.5VS5

PR385 10K/F_4

2V5_PG[48]

2 1

PD16 RB500V-40

SLP_S4#_3R[3,31,35,44,46,48,58]

D D

PR387 *0_4/S PR390 100/F_4 PR386 100K/F_4

PL33

1uH/2.6A_2520

PR383 *0_2/S

+2.5VSUS_SRC

SI1, 03/08/16

VO=(0.6(R1+R2)/R2)

1

2

3

PC340

22U/6.3V_6

PR389 *POWER_JP/S

1 2

PC339

0.1U/16V_4

+1.2VSUS [6,13,16,17,28,58,60] +2.5VSUS [16,17]

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

51 -- DDR4 (RT8231B)

NB5

4

NB5

51 -- DDR4 (RT8231B)

Date: Sheet of

Thursday, May 12, 2016

Date: Sheet of

Thursday, May 12, 2016

Date: Sheet of

Thursday, May 12, 2016

5

53 65

1A

5

4

3

2

1

52

PR185

PR186

7

D D

1V0A_PG[63]

EN_1V0A[48]

VCC_PRIM_PG[63]

+5VPCU

PV, 04/28/16

PR181 *0_4/S

PR191 *0_2/S

PR182 *0_4/S

PR369 *0_4/P

PR450

10_4

+1.0VS5_VCC

PC156 1U/6.3V_4

1237PGPCH

1237PFMPCH

1237ENPCH

PC135 *0.1U/16V_4

*0_4

NC

21

VCC

1

PGOOD

3

PFM

2

EN

8

IN

9

TON

IN

22

BST

PGND PGND PGND PGND PGND AGND

LX LX LX LX LX

IN

20

1237BSTPCH

10

1237LX

11 16 17 18

12 13 14 15 19 4

PR202

0_6

PC138

0.1U/25V_4

PC158

1237BSTPCH_S

100K/F_4

6

PU11

4.7U/25V_8

PC159

4.7U/25V_8

PC162

0.1U/25V_4

+VIN_0.95V +VIN

PL10 *0_8/S

PC147

2200P/50V_4

PL15

1uH/11A (PCMC063T-1R0MN)

PR223 *2.2_6

PC169 *2200P/50V_4

PC259

0.1U/25V_4

+1.0VS5_S2

PR243 *0_2/S

PC207

0.1U/16V_4

+1.0V_DEEP_SUS +/- 5% Countinue current:6A Peak current:7A

+1.0V_DEEP_SUS

PJP2 *POWER_JP/S

1 2

PC200

22U/6.3V_8

PC198

22U/6.3V_8

PC201

22U/6.3V_8

PC199

*22U/6.3V_8

C C

1237SSPCH

PC150

2200P/50V_4

23

APW8715QBI

SS

FB

5

1237FBPCH

PR183

2.49K/F_4

PR184 10K/F_4

1237FBPCH_S

+1.8VPCU +/- 5% Countinue current:2A Peak current:4A

PC326

0.1U/16V_4PC322

+1.8VPCU

1 2

SI1, 02/17/16

PC327 22U/6.3V_6

PR351 *POWER_JP/S

KBC_PWR_ON[45,48,58]

+1.8V_DEEP_SUS

*10U/6.3V_6

PR143 *0_6/S

PC93

+5VPCU

PC99

0.1U/16V_4

PC317

NC

FB

EN

PR352 *2.2_6

LX LX

1 2 3 7 6 5

554FB_1.8V554SVIN_1.8V 554EN_1.8V

PC325

*0.1U/16V_4

PL28

1uH/11A (PCMC063T-1R0MN)

PC328

*22P/50V_4

PR359

R2 R1

20K/F_4 PR355 10K/F_4

V0=0.6*(R1+R2)/R2

PR358 *0_4/S

PR356 *0_2/S

554FB_1.8V_S

EN_1V8 [48]

+1.8VPCU_L

*2200P/50V_4

PU22

4

PG

RT8068A

9

PVIN

10

PVIN

8

SVIN

11

GND

1V8A_PG[63]

PC321 10U/6.3V_6

TP69

10_6

554PG_1.8V 554LX_1.8V

PR357 *0_4/S

554PVIN_1.8V

PC323

1U/6.3V_4

B B

+5VPCU

A A

PL29

*0_8/S PC91

0.01U/50V_4 PR353

+1.8VPCU +1.8VPCU

PC314

0.1U/16V_4

1

13

VOUT1

14

VOUT1

0.1U/16V_4

PR149

*0_4/S

PC98

*0.1U/16V_4

4

VBIAS

3

ON1

PC89

1000P/50V_4

AOZ1331DI

PC96

OUT2 OUT2

GND GND

ON2

0.1U/16V_4

8 9

11 15

5

PR150 *0_4/S

PC100 *0.1U/16V_4

PC92

0.1U/16V_4

PC94 *10U/6.3V_6

+5V

7

VIN12VIN1

VIN26VIN2

PU7

CT1

CT2

12

10

PC90

1000P/50V_4

PR144 *0_6/S

0.5A

+1.8V

PROJECT:400 Series

+VIN [26,28,44,51,52,53,55,56,57,58,59,61,66] +3VPCU [3,10,33,37,38,40,41,42,44,45,46,48,49,51,52,53,55,58,60,62,63] +5VPCU [28,31,35,44,49,50,51,52,53,56,57,58,59,60,61,63]

NB5

5

4

3

2

NB5

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

52 -- +1.0VS5/1.8VS5

Date: Sheet of

Thursday, May 12, 2016

Date: Sheet of

Thursday, May 12, 2016

Date: Sheet of

Thursday, May 12, 2016

1

54 65

1A

5

53

D D

+VIN[26,28,44,51,52,53,54,56,57,58,59,61,66] +3V_ALW[9,41,48,51,52,58,62,63] +VCC_IO[5,13]

4

+3V_DEEP_SUS

PR2 100K/F_4

PR5 *100K/F_4

3

VID1_VCCIO [55]

PR4 *100K/F_4

PR200 100K/F_4

VID0_VCCIO [55]

2

1

+3VPCU

PR9

*0_4/S

PR8 *0_4/S

PR1 *1M/F_4

C C

EN_PVCCIO[48]

+3V_DEEP_SUS

LP#[58] VID1_VCCIO[55] VID0_VCCIO[55]

VCCIO_PG[3,63]

PC5 *0.1U/16V_4

PR204 *0_4/S PR209 100K/F_4

PR198 *0_4/S

OPC_3V3

PC7 1U/6.3V_4

OPC_AGND

OPC_EN

OPC_PG OPC_VOUT

VCCIO

B B

LP# C1 C0 Vout

0

1

X

0

1

X

0

1

0

1

0

0.85

0.875

0.95

0.975

PU12

10

11

5

6 3 4

13

NB681AGD-Z

MODE

3V3

AGND

EN

LP# C1 C0

PG

M1

M2

M3

M4

1

VIN

PGND

BST

SW

MODE

VOUT

OPC_VIN

PC142

4.7U/25V_8

0.22U/25V_6

PC165

100/F_4

PR206

PC149 *4.7U/25V_8

PC154 2200P/50V_4

PL14

1UH/11A(PCMC063T-1R0MN)

PR228 *2.2_6

PC176 *2200P/50V_4

PC153

0.1U/25V_4

2

9

8

7

12

PR214

OPC_BST

OPC_SW +VCC_IO_S

PR212 *0_4/S

0_6

VR rail Resistor

VCCIO

0

PRIMCORE Float

EDRAM/EOPIO

other

100K

150K

PL9 *0_8/S

PR238 *0_2/S

+VIN

OPC_VOUT

OPC_AGND

PC1

0.1U/25V_4

PC184

0.1U/16V_4

PR6 *0_4/S

PR10 *0_4/S

PR7 100/F_4

PC197

22U/6.3V_8

+VCC_IO +/- 5% Countinue current:2A Peak current:3A

+VCC_IO

PJP3 *POWER_JP/S

1 2

PR280 *RC0603-R010

PC208

PC190

*22U/6.3V_8

VCCIO_VCCSENSE [13]

VCCIO_VSSSENSE [13]

+1.0V_DEEP_SUS

A A

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

53 -- +VCC_IO (NB681)

NB5

5

4

3

2

NB5

53 -- +VCC_IO (NB681)

Date: Sheet of

Thursday, May 12, 2016

Date: Sheet of

Thursday, May 12, 2016

Date: Sheet of

Thursday, May 12, 2016

1

55 65

1A

1

+VCC_CORE

VCCSENSE[11] VSSSENSE[11]

+VCCST

A A

PR94 100/F_4

CSN_SA[57]

PWM_SA[57]

DRON[57]

VR_SVID_CLK[11]

R(PMON)

16.5K

12.4K

VGT_VCCSENSE[12] VGT_VSSSENSE[12]

PR122

100/F_4

PR121

100/F_4

PR245

14K/F_4

PR251

7.5K/F_4

PR271

1K/F_4

PVCORE_PG[3]

VRAVR_ON[48] IMVP_PSYS[51]

+VCCSA

VCCSA_VCCSENSE[13] VCCSA_VSSSENSE[13]

B B

C C

Place close to VCCSA Inductor

SWN_SA[57]

CPU_PROCHOT#[2,51,62]

VR_SVID_DATA[11]

VR_SVID_ALERT#[11]

VR_EN

PC36 *0.1U/16V_4

Ra UMA DIS

D D

PR83

PR89

45.3/F_4

*75/F_4

PR236

0_4

PC28

1000P/50V_4

PR237

0_4

PR227

1 2

100K/F_4 NTC

PC35

0.022U/25V_4

PC214 180P/50V_4 PC205

0.01U/50V_4 PC204 470P/50V_4

PR273 100K/F_4 PR261 *0_4/S PR260 51.1K/F_4 PR76 *0_4/S

PR99 75/F_4 PR93 10/F_4 PR88 *0_4/S PR82 49.9/F_4 PR298 1K/F_4

+VIN

PR50 10K/F_4

+3V

PR248 *0_4/S

+5VPCU

Ra

+VCCGT

1

PR336

100/F_4

PR338

100/F_4

TSENSE_GT TSENSE_CORE

PR289 *0_4/S

PR282

PR294

15K/F_4

1 2

100K/F_4 NTC

place close to GT MOSFET

PR323

*100/F_4

PR322

*100/F_4

PC202

PR100

0.1U/16V_4

*75/F_4

VR_SVID_DATA VR_SVID_ALERT# VR_SVID_CLK CPU_PROCHOT#

PC186

1000P/50V_4

PR59

2.1K/F_4

SI1, 02/24/16

PR60 1K/F_4

PC187

1000P/50V_4

PC31

*390P/50V_4

PR272 34K/F_4

PC215 1000P/50V_4

SI1, 02/24/16

PR58 *10K/F_4 PR269 12.4K/F_4

PR247 0_4

PR246 0_4

PR61 *0_4/S PR62 *0_4/S

PR284 *0_4/S

PR274

1000P/50V_4

PR297

0_4

PC238

1000P/50V_4

PR303

0_4

PC217

470P/50V_4

49

VSP_SA

48

VSN_SA

45

CSN_SA

44

CSP_SA

46

ILIM_SA

47

COMP_SA

43

IOUT_SA

40 39 35

VR_HOT#

36

SDIO

37

ALERT#

38

SCLK

12

VRMP

PC226

0.01U/50V_4

PC5384 *100P/50V_4

SI1, 02/17/16

PC33

1000P/50V_4

PR257

15K/F_4

1 2

100K/F_4 NTC

place close to VCORE MOSFET

PR291

IOUT_CORE

PC222 0.1U/16V_4

2

PC69

PR119

5.23K/F_4

SI1, 02/24/16

PR117

1K/F_4

PC63

1000P/50V_4

PC224

1K/F_4

0.01U/50V_4

PC223 15P/50V_4

SI1, 03/08/16

PC221 1000P/50V_4

PR270 127K/F_4

ILIM_CORE

34

31

ILIM_1a

IOUT_1a

VSP_1b VSN_1b CSN_1b CSP_1b ILIM_1b COMP_1b IOUT_1b

PWM/ADDR_VBOOT DRON VR_HOT#

SDIO ALERT# SCLK VRMP

VR_RDY42EN

41

VR_EN

VR_RDY

PR57 1K/F_4

PC32

2200P/50V_4

2

PR120 2K/F_4

PC232 0.1U/16V_4

PR281 63.4K/F_4

TSENSE_CORE

27

TSENSE_1ph

PSYS

50

11

PSYS

PR263 28K/F_4

49.9/F_4

PR277 1K/F_4 PR279 100K/F_4

COMP_CORE

30

TSENSE_2ph

TSENSE_GT

PR278

COMP_1a

51

VSN_CORE

29

VSN_1a

VSP_2ph

VSP_GT

VSP_CORE

28

VSP_1a

PU2

NCP81206

VSN_2ph

IOUT_2ph

1

52

IOUT_GT

VSN_GT

PC216

330P/50V_4

CSN_CORE

32

CSN_1a

DIFFOUT_2ph/IccMax_2ph2FB_2ph3ILIM_2ph5CSCOMP_2ph

DIFFOUT_GT

PC203 470P/50V_4

program IccMax_2ph

PC61

0.022U/25V_4

BST_CORE

HG_CORE

CSP_CORE

33

25

26

HG3

CSP_1a

COMP_2ph

4

COMP_GT

FB_GT

PC42 15P/50V_4 PR81

3K/F_4

SI1, 02/24/16

PR232

100K/F_4 NTC PC62

0.033U/10V_4

LG_CORE

SW_CORE

24

23

SW3

BST3

LG2/ICCMAX_1a

6

ILIM_GT

CSCOMP_GT

PR92

14.3K/F_4

12

PR308 11K/F_4

HG_GT1

15

HG1

BST1

SW1

LG3/ICCMAX_1b

LG1/ROSC

BST2

SW2

CSP1_2ph

CSREF_2ph

CSP2_2ph

CSSUM_2ph

PVCC

EPAD

VCC

53

13

PC64 1U/6.3V_4

PC44

3300P/50V_4

Place close to VCORE Inductor

PR104 14K/F_4

PR105

7.5K/F_4 PC71

0.22U/25V_6

14

BST_GT1

16

SW_GT1

17

LG_GT1

21

HG2

22 20 19

LG_GT2

10

CSP_GT1

8

CSREF_GT

9

CSP_GT2

7

CSSUM_GT

18

PR118

2.2_6

SWN_CORE

+5VPCU

PC73

2.2U/10V_6

3

PR309

1_6

PR307

1_6

PC70

0.22U/25V_6 PR306

14K/F_4

SI1, 03/08/16

PR304

29.4K/F_4

+5VPCU

3

PR112 *0_4/S

PQ27

FDPC5030SG

PC60

0.01U/50V_4

HG_GT1_L

D1

G1

1

S1

2

G2

8

S2

PR283

7.15K/F_4

PC220

0.047U/25V_4

4

SW

5 6 7

10

PQ33

AON6414AL

SI1, 02/17/16

SWN_GT1

PR288 10/F_4

SW_CORE

4

PQ34

AON6760

CSN_GT1

HG_CORE_LHG_CORE_L

PQ54

*FDPC5030SG

5

D

G

S

213

5

D

G

S

213

PR111 34K/F_4

SI1, 02/24/16

PC54 1800P/50V_4

1

2

8

PC5383

22U/6.3V_8

4

PV, 04/20/16

5

+VIN

55

PC144

PC143

4

D1

SW

10

PC180

4.7U/25V_8

PR91 *2.2_6

PC49 *2200P/50V_4

PC5381

165K/F_4

PC53 *390P/50V_4

5 6 7

SW_CORE

22U/6.3V_8

VRAVR_ON

PR106

4.7U/25V_8

H=0.85mm

PR293

2.2_6

PC231 2200P/50V_4

PC173

4.7U/25V_8

PC5382

4

G1

S1

G2

S2

PC145

4.7U/25V_8

0.15uH/40A(PCMB104T-R15MS0R457)

22U/6.3V_8

PR96 75K/F_4

PL18

DCR=0.48m ohm

PR249 *0_2/S

PC170

PC177

4.7U/25V_8

*4.7U/25V_8

PL19

DCR=0.48m ohm

PR276 *0_2/S

PC5378

22U/6.3V_8

PR55 *0_4/S

PR54 *100K/F_4

Place close to GT1 Inductor

PR235

1 2

100K/F_4 NTC

PC146

*4.7U/25V_8

CSN_CORE SWN_CORE

PC178

PC5377

*22U/6.3V_8

EN_PVCORE

TP4

H=0.85mm

PR250 *0_2/S

0.1U/25V_4

PR275 *0_2/S

CSN_GT1 SWN_GT1

PC136

PC137

PC126

U-line 22(15W) +VCC_CORE

+VIN

+

0.1U/25V_4

PC5374

*22U/6.3V_8

12

PC172

*15U/25V_7343

TDC:21A Icc max:28A

+VCC_CORE

PC236

*22U/6.3V_8

12

+

PC249

15U/25V

12

DB1, 12/23

+

PC243

0.1U/25V_4

PC179

2200P/50V_4

PC5375

22U/6.3V_8

+VCCGT

2200P/50V_4

PC5373

22U/6.3V_8

PC167

0.1U/25V_4

U-line 22(15W)

PC5379

PC242

+VCC_GT TDC:18A Icc max:31A

*22U/6.3V_8

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

55 -- CPU VR IC (NCP81206)

NB5

55 -- CPU VR IC (NCP81206)

Date: Sheet of

5

12

+

PC237

*220U/2.5V_5X3.8 ESR12

+VCCGT

12

+

PC262

220U/2.5V_5X3.8 ESR12

*220U/2.5V_5X3.8 ESR12

1A

56 65Thursday, May 12, 2016

1A

1

2

3

4

5

56

A A

+VIN

PC152

4.7U/25V_8

PQ28

PR220 *2.2_6

PC161 *2200P/50V_4

PC151

4.7U/25V_8

0.47uH/17.5A(PCMC063T-R47MN)

DCR=4.2m ohm

PQ29

35241

678

EMB20N03V

678

VCCSA

8

DRVH

PU9

NCP81253

GND6PAD

9

BST

SW

DRVL

PWM_SA[56]

B B

DRON[56]

PR180 *0_4/S

+5VPCU

C C

2 3

4

PC132

2.2U/10V_6

PWM EN

VCC

1

VGTA_BST1

7

SW_SA

5

LG_SA

PR219

1_6

PC6

0.22U/25V_6

HG_SA_LHG_SA

MDV1595SURH

PR231 *0_2/S

PC2

0.1U/25V_4

PC4

2200P/50V_4

PL17

PR242 *0_2/S

PC141

0.1U/25V_4

PC218

22U/6.3V_8

CSN_SA [56] SWN_SA [56]

PC48

U-line 22(15W) +VCCSA TDC:4A Icc max:5A

+VCCSA

PC213

*22U/6.3V_8

PC219

*22U/6.3V_8

PC41

*22U/6.3V_8

PC212

22U/6.3V_8

*22U/6.3V_8

D D

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

56 -- +VCCSA (NCP81253)

NB5

1

2

3

4

NB5

56 -- +VCCSA (NCP81253)

Date: Sheet of

5

1A

57 65Thursday, May 12, 2016

5

+5VPCU

+3V_ALW

3

1

PC310

0.1U/16V_4

13

VOUT1

14

VOUT1

4

VBIAS

3

ON1

PC300

1000P/50V_4

PR147 200K/F_4

PQ14 2N7002K

PC87 *0.1U/16V_4

PC86 *0.1U/16V_4

PC58 *0.1U/16V_4

1

AOZ1331DI

DDR_VTT

2

KBC_PWR_ON_3

5A 5A

+5V

PR347 *0_6/S

D D

C C

B B

SLP_S3#_3R[3,44,46,58,63]

A A

KBC_PWR_ON[45,48,54,58]

5

SLP_S3#_3R_5

SLP_S3_5R[37]

PC307

*10U/6.3V_6

PC305

0.1U/16V_4

+5V_ALW

PC318

0.1U/16V_4

PR350 *0_4/S

PC313

*0.1U/16V_4

2

PQ15 2N7002K

PR142 *0_4/S

PR141 *0_4/S

PR115 *0_4/S

VIN12VIN1

PU21

CT1

12

PR154 22_8

3

1

SLP_S3#_3R_3

SLP_S3#_3R_5

4

7

VIN26VIN2

OUT2 OUT2

CT2

10

PC304

1000P/50V_4

4

GND GND

ON2

+3VPCU

8 9

11 15

5

PC309

0.1U/16V_4

PR349 *0_4/S

PC312 *0.1U/16V_4

PC303

0.1U/16V_4

VRPPM_SLP_S0_N[3,44,58]

KBC_PWR_ON[45,48,54,58]

PR346 *0_6/S

PC308 *10U/6.3V_6

SLP_S3#_3R_3

LP#[55]

SLP_S3#_3R[3,44,46,58,63]

SLP_S4#_3R[3,31,35,44,46,48,53,58]

SLP_S3#_3R[3,44,46,58,63]

2015/05/07 add PU23 for EE layout request

+3V

SLP_S4#_3R[3,31,35,44,46,48,53,58]

PR132 *0_4/S

PR379 *0_4/P

PR381 0_4/P

PR382 0_4/P

PR380 *0_4/P

1 2

3

+3VPCU

3 5

+3VPCU

3 5

3

0.5A

+3VLANVCC

LAN_PWR_ON[45]

+3VPCU

1 2

3 5

4

+VCCSTG_ON

PU5 MC74VHC1G08DFT2G

4

PU23 MC74VHC1G08DFT2G

PR90 *0_6/S

PC52

*10U/6.3V_6

4

+VCCST_ON

PU4 MC74VHC1G08DFT2G

PR128

47K/F_4

PR372 *0_4/P

+1.35V_VCCPLL_OC_ON

PC50

0.1U/16V_4

+5V_ALW

PC67

0.1U/16V_4

PR113 *0_4/S

*0.1U/16V_4

PQ9

DMG3414U-7

PR123

47K/F_4

PR373 47K/F_4

+3VPCU

PC66

+1.0V_DEEP_SUS

3

2

1

+1.0V_DEEP_SUS

3

2

DMG3414U-7

1

+1.2VSUS

3

2

1

PC56

0.1U/16V_4

13 14

4

3

1000P/50V_4

PC77

0.1U/16V_4

PQ8

PC76

0.1U/16V_4

PQ41

DMG3414U-7

PC338

0.1U/16V_4

2

1

VIN12VIN1 VOUT1 VOUT1

PU3

AOZ1331DI

VBIAS

ON1

CT1

12

PC45

PC75

0.1U/16V_4

+VCCST

0.2A

PC79

*10U/6.3V_6

PC74

0.1U/16V_4

0.04A

+VCCSTG

PR449 *0_4/P

SI1, 02/22/16

PC78 *10U/6.3V_6

PR448 *RC0603-R010

SI1, 02/22/16

PC337

0.1U/16V_4

+1.2V_VCCPLL_OC

PC336 *10U/6.3V_6

+3V[2,3,4,5,7,8,9,10,16,17,18,19,20,24,26,27,28,29,30,31,32,33,34,36,38,42,44,45,47,51,56,59,63] +5V[8,27,29,30,40,42,43,54,63]

+VIN[26,28,44,51,52,53,54,55,56,57,59,61,66] +3VPCU[3,10,33,37,38,40,41,42,44,45,46,48,49,51,52,53,55,60,62,63] +5VPCU[28,31,35,44,49,50,51,52,53,54,56,57,59,60,61,63]

+3VLANVCC[32]

2

VIN26VIN2

CT2

10

1000P/50V_4

PR377 *0_6

PR378 *0_6

+1.2V_VCCPLL_OC

0.35A

+3VPCU

PC57

7

PC46

+VCCST

+VCCSTG

+1.2V_VCCPLL_OC

0.1U/16V_4

8

OUT2

9

OUT2

11

GND

15

GND

5

ON2

+1.35V_VCCPLL_OC_ON

PC51

0.1U/16V_4

PR114 *0_4/S

PC68 *0.1U/16V_4

+VCCST_ON

+VCCSTG_ON

2015/05/06 add power rail +1.35V_VCCPLL_OC

NB5

1

0.8A

+3V_DEEP_SUS

PR86 *0_6/S

PC47 *10U/6.3V_6

KBC_PWR_ON_3

+VIN

PR126 *1M_4

3

2

*2N7002K

1

3

2

*2N7002K

1

3

2

PQ43

*2N7002K

1

Size Document Number Rev

Size Document Number Rev Custom

Custom

Custom Date: Sheet of

Date: Sheet of

PR127 *1M_4

PQ10

+VIN

PR124

*1M_4

PR125 *1M_4

PQ7

+VIN

PR374

*1M_4

PR376 *1M_4

PROJECT:400 Series

Quanta Computer Inc.

57 -- Load switch IC (APL3523A)

1

57

+VCCST

PR130 *22_8

3

2

PQ11

*2N7002K

1

+VCCSTG

PR129 *22_8

3

2

PQ12

*2N7002K

1

+1.2V_VCCPLL_OC

PR375 *22_8

3

2

PQ42

*2N7002K

1

58 65Thursday, May 12, 2016

1A

5

4

3

2

1

+VIN

58

12

PC374

220U/2.5V_5X3.8 ESR12

+VGACORE

12

+

PC373

+

PC379 15U/25V

220U/2.5V_5X3.8 ESR12

PC363

4.7U/25V_8

DCR=1.2mohm

PC366

4.7U/25V_8

PL39

0.36uH

PC388

D D

PR427 *0_6/S

PR253 0_4/P

PR420

5.9K/F_4

PR415 *0_4/S

PR416

40.2K/F_4

PR421 *10K/F_4

21

R1

PR426

20K/F_4

R3

81172PVCC

81172REFADJ

2700P/50V_4

81172TSNS

+5VPCU

10K/F_4

+3V

DB1, 12/18

81172VREF

R2

PC378

81172VREF

PR418

100K/F_4 NTC

PR410

PD19 *RB500V-40

PR424 *0_4/S

PR256 *0_4/S

PR409 20K/F_4

PR408 2K/F_4

R4

PR411 18K/F_4

R5

PR268 0_4

12

DGPU_VC_EN[19,60]

+3V_GFX

+3V_MAIN_EN[21,60]

PR446

*0_4/S

+3V

PR422

for VGA sequence

*10K/F_4

GPU_VID[21]

C C

PSI[21]

for one phase only

B B

A A

*2700P/50V_4

PC383

4.7U/6.3V_4

81172EN

PC392 *2200P/50V_4

81172PSI

81172VID

81172VREF

PC384

0.01U/25V_4

81172REFIN

C

PC369

PC390 *100P/50V_4

PU26 NCP81172

21

PVCC

9

FS

16

PGOOD

3

EN

4

PSI

5

VID

8

VREF

6

VIDBUF

7

REFIN

13

TSNS

UGATE1

BOOT1

PHASE1

LGATE1

VCC

UGATE2

BOOT2

PHASE2

LGATE2

TALERT

FBRTN

COMP

PGND

GND

FB

2

1

81172BOOT1

24

81172PHASE1

23

81172LGAT1

15

81172VCC

17

18

19

20

PR259 0_4

14

81172TALERT

PR425 *0_4/P

10

11

12

PR423 82K/F_4

22

25

PR407 1_6

PC381

0.22U/25V_6

PC380

1U/6.3V_4

PR262 10K/F_4

PR413 49.9/F_4

PC364 68P/50V_4

PC371

100P/50V_4

4.7U/25V_8

81172UGATE1_181172UGATE1

PR417

35.7K/F_4

Ra 10x10x4mm

PR252

2.2_6

+5VPCU

DGPU_PROCHOT_EC# [21,45]

+3V

DGPU_PROCHOT# [45]

1000P/50V_4 PC407

PC375 47P/50V_4

PR414

10K/F_4

4

PQ57

AON6760

G

5

D

S

213

AON6414AL

SI1, 02/17/16

5

D

S

213

PQ49

PR520_4

PR530_4

4

PQ58

AON6760

5

D

G

S

213

100/F_4

PR285

100/F_4 PR286

PR419 *2.2_6

PC385 *2200P/50V_4

GPU_VSS_SENSE [18] GPU_VCC_SENSE [18]

+VGACORE

PC206

*4.7U/25V_8

PC372

0.1U/25V_4

PC367

2200P/50V_4

PC382

0.1U/25V_4

12

+

12

+

PC391 *15U/25V

N16S-GMR

EDP: 21A

EDP peak: 39.5A

OCP minimum 65A

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

58 -- VGA Core1 (ISL62771)

NB5

5

4

3

2

NB5

58 -- VGA Core1 (ISL62771)

Date: Sheet of

1

1A

59 65Thursday, May 12, 2016

1

2

3

4

5

6

7

8

2.1A

+1.05V_GFX

+1.2VSUS +1.05V_VGA_S

A A

PC395

0.1U/16V_4

PR432

PR438 10K/F_4

PC396

0.1U/16V_4

+3VPCU

10K/F_4

3

4

1

G9336

PU27

PGD

EN

VCC

2

+3VPCU

TP35

+3V_MAIN_EN[21,59,60]

DGPU_VC_EN[19,59]

B B

PR447 *0_4/P

PR430 0_4/P

PV, 04/18/16

PC398 *0.1U/16V_4

PR434 *0_4/S

+5VPCU

PVPCIE_PG[19]

PQ50 EMB20N03V

5 6 7 8

PC248 10U/6.3V_6 PC394

2 1

PD18

1SS355

6

DRV

5

ADJ

GND

R2 Vout1=(1+R1/R2)*0.5

9336ADJ

4

9336DRV

PR431 100/F_4

+3VPCU

PR433 47/F_4

PR428 110/F_4

1 2 3

R1

10U/6.3V_6

PC397

0.01U/50V_4

PC250

10U/6.3V_6

PC400

0.1U/16V_4

PR435 *POWER_JP/S

1 2

PQ52 2N7002K

+5VPCU

PR429 22_8

3

1

PR437 100K/F_4

2

PR436 1M_4

3

PQ51

2N7002K

2

1

60

OUT2 OUT2

GND GND

ON2

PC404

0.1U/16V_4

8 9

11 15

PD20 *RB500V-40

2 1

5

PR439 *0_4/S

PC244

0.47U/6.3V_4

DB1, 12/18

PC240

0.1U/16V_4

PR440 *0_6/S

PC241 *10U/6.3V_6

DGPU_PWR_EN [7,19]

5

0.5A

+3V_AON+3V_AON_S2

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

60 -- +1.0V_VGA/1.8V_VGA/3V_VGA

NB5

6

NB5

7

60 -- +1.0V_VGA/1.8V_VGA/3V_VGA

Date: Sheet of

8

1A

60 65Thursday, May 12, 2016

PC239

0.1U/16V_4

PC405

0.1U/16V_4

PC401 *0.1U/16V_4

PC403

0.1U/16V_4

13 14

4

3

*1000P/50V_4

VOUT1 VOUT1

VBIAS

ON1

PC402

1

7

VIN12VIN1

VIN26VIN2

PU28

AOZ1331DI

DB1, 12/18 DB1, 12/18

CT1

CT2

12

10

PC246 *1000P/50V_4

4

0.3A

+3V_GFX_S2+3V_GFX

PR441

C C

D D

1

2

*0_6/S

PC406 *10U/6.3V_6

+5V_ALW

+3V_MAIN_EN[21,59,60]

PR442 *0_4/S

3

5

4

3

2

1

PR344

100K/F_4

6

PU20

PR345

7

+5VPCU

D D

DGPU_PWROK[7,20]

DGPU_FB_EN[19,61]

C C

B B

PV, 04/28/16

TP62

DGPU_FB_EN[19,61]

PR451

10_4

PR340 *0_4/S

PR343 *0_2/S

PR360 *0_4/S

+1.5VGFX_VCC

PC287 1U/6.3V_4

1237PG1.5V

1237PFM1.5V

1237EN1.5V

PC295 *0.47U/6.3V_4

PR362

*1K/F_4

*0_4

1237SS1.5V

PC294

2200P/50V_4

21

1

3

2

23

APW8715QBI

NC

VCC

PGOOD

PFM

EN

SS

PC332

8

IN

9

TON

IN

22

IN

20

1237BST1.5V

BST

10

1237LX1.5V

LX

11

LX

16

LX

17

LX

18

LX

12

PGND

13

PGND

14

PGND

15

PGND

19

PGND

4

AGND

5

1237FB1.5V

FB

+5VPCU

3

2

PQ37

1

*2N7002K

8.66K/F_4 PR302

9.76K/F_4

PR363 *100K/F_4

PR361 *1M_4

PR339

0_6

PR443

PC298

0.1U/25V_4

1237BST1.5V_S

+1.5V_GFX

3

2

1

+VIN_1.5V_GFX +VIN

PC301

PC306

4.7U/25V_8

4.7U/25V_8 PC284

0.1U/25V_4

1237FB1.5V_S

PR151 *22_8

PQ13 *2N7002K

PL27 *0_8/S

PC299

2200P/50V_4

PL26

1uH/11A (PCMC063T-1R0MN)

PR335 *2.2_6

PC281 *2200P/50V_4

DB1, 12/23

PC120

0.1U/25V_4

PR348 *0_2/S

PC297

0.1U/16V_4

PC289

22U/6.3V_8

PC288

+1.5V_GFX Volt +/- 5% Countinue current:2.4A Peak current:4.1A OCP minimum:8A

+1.5V_GFX

PC84

22U/6.3V_8

*22U/6.3V_8

61

*0.47U/6.3V_4

A A

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

61 -- +1.35V_GFX (AOZ1267)

NB5

5

4

3

2

NB5

61 -- +1.35V_GFX (AOZ1267)

Date: Sheet of

1

1A

61 65Thursday, May 12, 2016

A

B

C

D

E

Adapter OCP

I_SET [51]

2

PQ2 PMST3904

4 4

PR79

LIMIT_SIGNAL[51]

PR80 13K/F_4

ADP_ID_CHK[46]

PR110

100K/F_4

2.1K/F_4

3

2

PQ6

2N7002K

1

PR107

3.4K/F_4

1

2

PQ4 AO3409

PR78

220K/F_4

PR77 130K/F_4

3

PC55 3900P/50V_4

+VA

13

PR85

787/F_4

2

+3VPCU

PQ3

METR3906-G

PR101 100K/F_4

PR95

3.09K/F_4

1 3

PR84 *0_4/S

PC43 *0.1U/16V_4

OCP_A_IN [45]

CPU_PROCHOT#[2,51,56]

OCP_CHG#[2,51,56]

PR27 *0_4/P

3

OCP_PWM_OUT[46]

2

PQ1

*2N7002K

1

3 3

+3VPCU

PQ5

METR3906-G

2 2

PR367

MAIN_BAT_DET#[46,51]

1 1

*0_4/S

13

2

+3VPCU

PR108

11.3K/F_4

PR109

45.3K/F_4

PR11 100K/F_4

BAT_DET#

ADP_A_ID [45]

CN1

7

BATT+

8

GND1BATT+ GND GND GND

B/I

SMD SMC

6 5

4

NC

2 9

10

3

CONN DIP BATTERY 8P 1R MR

PL1

MBAT+ BATT_DATA

BATT_CLK

PC24

3

PR45 100/F_4

100P/50V_4

SDA_BAT_CHG [45,51]

PC23

100P/50V_4

PR44 100/F_4

SCL_BAT_CHG[45,51]

3

*0_8/S

PL2

PC11

*0_8/S

0.1U/25V_4 EC47

PC116

0.1U/25V_4

+BATCHG

PC115

0.1U/25V_4

PR148

49.9K/F_4

+VA

PC97

100P/50V_4

PR145 576K/F_4

PR146

49.9K/F_4

EMI

MBAT+ MBAT+

EC46 2200P/50V_4

PC95

0.22U/25V_4

1000P/50V_4

VOLTAGE_ADC [45]

PD4 BAV99

1

2

+3V_ALW

A

B

PD5 BAV99

1

2

+3V_ALW

C

NB5

D

NB5

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

62 -- CHARGER II

Date: Sheet of

Thursday, May 12, 2016

Date: Sheet of

Thursday, May 12, 2016

Date: Sheet of

Thursday, May 12, 2016

E

62 65

1A

A

POK CKT

B

C

D

E

63

4 4

3 3

2 2

PM_SLP_S4# = SUSON

PM_SLP_S3# = MAINON

+V5S = +5V

+V3S = +3V

+V0.75S =+0.75V_DDR_VTT

+3V_ALW

PR33

57.6K/F_4

3

8 4

+

1

PR194

10K/F_4

PR32

31.6K/F_4

PC17

1 2

1000P/50V_4

2

-

PU14A AS393MTR-G1

PC88 *0.01U/50V_4

+3V

PR311

51.1K/F_4

PR318

6

-

5

+

7

PU14B AS393MTR-G1

PR290 1M/F_4

PR295 20K/F_4

PR296 10K/F_4

PR313

22.6K/F_4

RSMRST_PG [46]

28K/F_4

PR314

3.3K/F_4

PR305

3.3K/F_4

PR301

*3.3K/F_4

PC245 3300P/50V_4

+1.8V_DEEP_SUS

SI1, 02/17/16

1V8A_PG [54]

1V0A_PG [54]

VCC_PRIM_PG [54]

VCCIO_PG[3,55]

PR97

PR103

3.3K/F_4

PR102

3.3K/F_4

115K/F_4

PR46

76.8K/F_4

PR87

41.2K/F_4

PR98

3.3K/F_4

1

2

BAT54AW-L

PD10

PWR_GOOD_3[3,46,48]

PR36

3

PR48

18.7K/F_4

10K/F_4

PC18

0.22U/25V_4

PR47 20K/F_4

+3V +3V_DEEP_SUS

PR41 1M/F_4

+5VPCU

PC225

0.1U/16V_4

+5V

+3V +3V_DEEP_SUS

+1.8V

VRPVDDQ_PG[53]

SLP_S3#_3R[3,44,46,58]

PM_SLP_A#[3,44,45]

+3VPCU

PR140

100K/F_4

3V_5V_PG[52]

1 1

A

B

PR139 100/F_4

PC85

1U/6.3V_4

PU6

1

2

3

TC7SZ07FU

C

+3V_ALW

5

4

PR138 10K/F_4

4

+3VPCU

DPWROK [3,46]

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

+3V[2,3,4,5,7,8,9,10,16,17,18,19,20,24,26,27,28,29,30,31,32,33,34,36,38,42,44,45,47,51,56,58,59] +5V[8,27,29,30,40,42,43,54,58]

+3V_ALW[9,41,48,51,52,58,62]

D

Size Document Number Rev Custom

Custom

63 -- PWROK

NB5

63 -- PWROK

Date: Sheet of

E

1A

63 65Thursday, May 12, 2016

1A

5

4

3

2

1

64

+VCCGT

+VCC_CORE

+VGA_CORE

D D

+2.5VSUS

Adapter

Charger PU14 BQ24780RUYR

Battery

+VIN

EN_3V EN_5V

EN_VRPVDDQ

G5719

SLP_S4#_3R

+3VPCU

RT6575A

+5VPCU

+1.2VSUS

NCP81206

VRAVR_ON

RT8231BGQW

+0.6V_DDR_VTT

EN_VRPVTT

NCP81253

+VCCSA

DRON

EN_DGPU

NCP81172

APW8715

EN_1V0A

NB681GD-Z

+VCC_IO

EN_PVCCIO

APW8715

+1.5V_GFX

EN_1V5S_DGPU

+1.8V

+1.0V_DEEP_SUS

SLP_S3#_3R

EMB32N03K

+VCCSTG

VRPPM_SLP_S0_N

Load Switch AOZ1331DI

SLP_S3#_3R_5

+5V

EN_1V8

RT8068A

+3VS5

KBC_PWR_ON_3

+3V_DEEP_SUS

SLP_S4#_3R

Load Switch AOZ1331DI

+VCCST

SLP_LAN#

DGPU_PWR_ENEN_1V8S

Load Switch

+1.8V_VGA

APL3523A

+3V_VGA

C C

EN_PVPCIE

G9336

+1.05V_GFX

EMB32N03K

+3VLANVCC

SLP_S3#_3R_3

+3V

+1.8VPCU

Load Switch AOZ1331DI

KBC_PWR_ON +5V

+1.8V_DEEP_SUS +1.8V

B B

POWER ENABLE PIN

SLP_S3#_3R

EN_5V

VRP3V3A_LDO EN_5V_3V

From Power +3VS5 LDO

EXT_PWR_GATE#

A A

PCH AM10 EXT_PWR_GATE#

KBC_PWR_ON

KBC_PWR_ON(EC) pin127

5

EN_1V0A

KBC_PWR_ON_3

EN_PVCC_PRIM

EN_3V

EN_1V8

4

PCH pin AP15 SLP_S3#_3R

PWR_GOOD_3

PWROK circuit

DDR_VTT_PG_CTRL EN_VRPVTT

PCH pin AW67 DDR_PG_CNTL

SLP_S3#_3R_3

SLP_S3#_3R_5

EN_PVCCIO

VRAVR_ON

3

DGPU_PWR_EN EN_5V_3V

PCH pin D9 DGPU_PWR_EN EN_DGPU

SLP_LAN#

PCH pin AW15 SLP_LAN#

VRPPM_SLP_S0_N

PCH AT11 VRPPM_SLP_S0_N

DRON

CPU core VR Pin39

2

EN_P1V5S

EN_PVPCIE

EN_1V8S

EN_1V5S_DGPU

PROJECT:400 Series

Quanta Computer Inc.

Size Document Numb er Rev

Size Document Numb er Rev Custom

Custom

64 -- Power Block Diagram

NB5

Date: Sheet of

1

1A

64 65T hursday, May 12, 201 6

1

2

3

4

5

6

7

8

+3V_DEEP_SUS

+3V

XDP

A A

R7

PCH_SMB_CLK

R8

PCH_SMB_DATA

2.2K2.2K

+3V

2N7002DW

PCH_SMBCLK PCH_SMBDATA

2.2K2.2K 0

SCL1_2136

(DEFAULT)

SDA1_2136

0

(DEFAULT)

LVDS Converter

Example: *499/F_4 and *0_6/S

* means none-installed 499 means value

F means 1%

_4 means 0402 size

/S means short pad

+3V_DEEP_SUS

SKYLAKE U

R9

SMB_ME0_CLK

W2

SMB_ME0_DAT

499499

0

PCH_SMBDATA_TP

PCH_SMBCLK_TP

DDR

Touch Pad

Multiplexed HSIO Lane

USB3 #1

USB3 #2 / SSIC #1

USB3 #3 / SSIC #2

Port Assignment

USB2.0/USB3.0 Combo Jack(Left side down)

USB2.0/USB3.0 Combo Jack(Left side up)

NC

USB3 #4 NC

+3V_DEEP_SUS

B B

2.2K2.2K

W3

SMB_PCH_CLK

V3

SMB_PCH_DAT

+3VS5

C C

KBC_ECPH_DATA

125

KBC_ECPH_CLK

126

2N7002DW

2.2K2.2K

+3VS5

EC

NPCE586H

112

SCL_BAT_CHG

111 SDA_BAT_CHG

2.2K2.2K

+3V_DEEP_SUS

100

0

+3V

THERM_SCL

2N7002DW

THERM_SCL

Battery

12

11

Charger

+3VS5

D D

1

8988PCH_KBC_CLK

PCH_KBC_DATA

2.2K2.2K

2

3

+3V_VGA

2N7002DW

4

DGPUT_CLK

DGPUT_DATA

+3V

+3V_VGA

2.2K2.2K

DGPU

5

Accelerometer

Thermal Sensor

6

PCIE1 / USB3 #5

PCIE2 / USB3 #6

PCIE3

PCIE4

PCIE5

PCIE6

PCIE7 / SATA #0

PCIE8 / SATA #1

PCIE9

PCIE10

PCIE11 / SATA #1*

PCIE12 / SATA #2

dGPU

LAN

WLAN

HDD (SATA)

ODD (SATA)

Cardreader (PCIE)

NC

SSD (SATA)

Port AssignmentUSB2.0

USB2 #1 USB2.0/USB3.0 Combo Jack(Left side down)

USB2 #2

USB2 #3

USB2 #4

USB2 #5

USB2 #6

USB2 #7

USB2 #8

USB2 #9

USB2 #10

USB2.0/USB3.0 Combo Jack(Left side up)

WWAN

USB2.0(Right side on USB Board)

Touch Screen

Bluetooth

Finger Print

Camera

NC

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

65 -- SMBus/Port Assignment

NB5

7

NB5

65 -- SMBus/Port Assignment

Date: Sheet of

1A

65 65Thursday, May 12, 2016

8

5

D D

EC100

+VIN

4

EC102

EC103

EC101

3

2

1

*10U/25V_8

C C

B B

*10U/25V_8

A A

PROJECT:400 Series

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev Custom

Custom

66 -- EMI and ISN

NB5

5

4

3

2

NB5

66 -- EMI and ISN

Date: Sheet of

1

66 66Thursday, May 12, 2016

1A

Quanta 400 Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
