Quanmax QutePC-5000 Series User Manual

Download
QutePC-5000 Series
0.6-Liter Box PC with Intel® Haswell / Broadwell ULT Processors
User’s Guide
Content
Q
Content
Content.......................................................................................................................2
Figures & Tables.........................................................................................................3
Safety Instructions......................................................................................................4
Before You Begin..................................................................................4
When Working Inside a Computer........................................................ 5
Preventing Electrostatic Discharge....................................................... 5
Instructions for Lithium Batter y.............................................................6
Voltage Ratings.....................................................................................6
Preface....................................................................................................................... 7
How to Use This Guide.........................................................................7
Unpacking.............................................................................................7
Regulatory Compliance Statements......................................................7
Maintaining Your Computer...................................................................8
Chapter 1 Introduction........................................................................................... 11
Overview............................................................................................. 11
Product Specifications ........................................................................ 12
System tour.........................................................................................13
Mechanical Dimensions......................................................................16
Chapter 2 Getting Started......................................................................................17
Setting up your PC..............................................................................17
Mounting your PC to a monitor...........................................................21
Anti-theft protection with a Kensington Lock.......................................22
Chapter 3 AMI BIOS Setup.................................................................................... 23
Overview............................................................................................. 23
Main Menu..........................................................................................24
Advanced Menu.................................................................................. 26
Boot Menu .......................................................................................... 34
Security Menu.....................................................................................35
Save & Exit Menu...............................................................................36
Chapter 4 Driver Installation ..................................................................................38
Figures & Tables
Q
Figures & Tables
Figure 1 Front Panel..................................................................................13
Figure 2 Rear Panel................................................................................... 14
Figure 3 Mechanical Dimensions...............................................................16
Figure 4 DVI-D / HDMI...............................................................................17
Figure 5 Connecting USB mouse & keyboard............................................18
Figure 6 RJ45 connector............................................................................19
Figure 7 Turning on the system ................................................................. 20
Figure 8 VESA mounting............................................................................21
Figure 9 Use a Kensington lock.................................................................22
Table 1 QutePC-5000 series product specification .................................... 12
Table 2 BIOS Main Menu........................................................................... 24
Table 3 BIOS Main Menu........................................................................... 25
Table 4 Advanced Menu.............................................................................26
Table 5 Advanced Menu – Display Configuration.......................................27
Table 6 Advanced Menu –CPU Chipset Configuration...............................28
Table 7 Advanced Menu –SATA Configuration...........................................29
Table 8 Advanced Menu –USB Configuration............................................30
Table 9 Advanced Menu –Intel (R) Rapid Start Technology.......................31
Table 10 Advanced Menu –TPM Configuration.......................................... 31
Table 11 Advanced Menu –H/W Monitor....................................................32
Table 12 Power Management Configuration..............................................33
Table 13 Boot Menu...................................................................................34
Table 14 Security Menu .............................................................................35
Table 15 Save & Exit Menu........................................................................36
Safety Instructions
Q
Safety Instructions
Before You Begin
Before handling the product, read the instructions and safety guidelines on the following pages to prevent damage to the product and to ensure your own personal safety . Refer to the “Adv isories” section in the Pre face for advi sory conventions us ed in this user’s guide, including the distinction between Warnings, Cautions, Important Notes, and Notes.
Always use caution when handling/operating a computer. Only qualified,
experienced, authorized electronics service personnel should access the interior of a computer. The power supplies produce high voltages and energy hazards, which can cause bodily harm.
Use extreme caution when installing or remo ving components. Refer to the
installation instructions in this user’s guide for precautions and procedures. If you have any questions, please contact our Post-Sales Technical Support.
Access can only be gained by service persons or by users who have
been instructed about the reasons for the restrictions applied to the location and about any precautions that shall be taken; and access is through the use of a tool or lock and key, or other means of security, and is controlled by authority responsible for the location.
WARNING
High voltages are present inside the chassis when the unit’s power cord is plugged into an electrical outlet. Turn off system power, turn off the power supply, and then disconnect the power cord from its source before removing the chassis cover. T urning off the system power switch does not remove power to components.
Safety Instructions
Q
When Working Inside a Computer
Before taking covers off a computer, perform the following steps:
1. Turn off the computer and any periph er als .
2. Disconnect the computer and peripherals from their power sources or subsystems to prevent electric shock or system board damage. This does not apply when hot swapping parts.
3. Follow the guidelines provided in “Preventing Electrostatic Discharge” on the following page.
4. Disconnect any telephone or telecomm unications lines from the computer.
In addition, take note of these safety guidelines when appropriate:
To help avoid possible damage to system boards, wait five seconds after
turning off the computer before removing a component, removing a system board, or disconnecting a peripheral device from the computer.
When you disconnect a cable, pull on its connector or on its strain-relief loop,
not on the cable itself. Some cables have a connector with locking tabs. If you are disconnecting this type of cable, press in on the locking tabs before disconnecting the cable. As you pull connectors apart, keep them evenly aligned to avoid bending any connector pins. Also, before connecting a cable, make sure both connectors are correctly oriented and aligned.
CAUTION
Do not attempt to service the system yourself except as explained in this user’s guide. Follow installation and troubleshooting instructions closely.
Preventing Electrostatic Discharge
Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD procedure to reduce the risk of damage to components. We strongly encourage you to follow proper ESD procedure, which can include wrist straps and smocks, when servicing equipment. You can also take the following steps to prevent damage from electrostatic discharge (ESD):
When unpacking a static-sensitive component from its shippin g carton, do not
Safety Instructions
Q
remove the component’s antistatic packing material until you are ready to install the component in a computer. Just before unwrapping the antistatic packaging, be sure you are at an ESD workstation or grounded. This will discharge any static electricity that may have built up in your body.
When transporting a sensitive component, first place it in an anti static container
or packaging.
Handle all sensitive components at an ESD workstation. If possible, use
antistatic floor pads and w orkbench pads.
Handle components and boards with care. Don’t touch the components or
contacts on a boar d. H old a b oard by i ts e dge s or by it s met al mou nti ng bracket .
Do not handle or store sy stem bo ards near str ong electros t atic, el ectr omagn etic,
magnetic, or radioactive fields.
Instructions for Lithium Battery
WARNING
Danger of explosion when battery is replaced with incorrect type. Only replace with the same or equivalent type recommended by the manufacturer.
Do not dispose of lithium batteries in domestic waste. Dispose of the battery according to the local regulations dealing with the disposal of these special materials (e.g. to the collecting points for disposal of batteries)
Voltage Ratings
The external power adaptor of the QutePC-5000 series has the following voltage ratings:
Input: 100-240 VAC, 50-60 Hz Output: 65W, +19VDC/3.42A output
Preface
Q
Preface
How to Use This Guide
This guide is designed to be used as st ep-by- step instructi ons for inst allatio n, and as a reference for operation, troubleshooting, and upgrades.
Unpacking
When unpacking, follow these steps:
1. After opening the box, save it and the packing material for possible future
shipment.
2. Remove all items from the box. If any items listed on the purchase order
are missing, notify our customer service immediately.
3. Inspect the product for damage. If there is damage, notify our customer
service immediately. Refer to “Warranty Policy” for the return pro c edure.
Regulatory Compliance Statements
This section provides the FCC compliance statement for Class B devices.
FCC Compliance Statement:
This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason able protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radiofrequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television equipment reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver. Connect the equipment to an outlet on a circuit different from that to which the
Preface
Q
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by us could void the user's authority to operate the equipment.
NOTE
The assembler of a personal computer system may be required to test the system and/or make necessary modifications if a system is found to cause harmful interference or to be noncompliant with the appropriate standards for its intended use.
Maintainin g Your Computer
Environmental Factors
Temperature
The ambient temperature within an enclosure may be greater than room ambient temperature. Installation in an enclosure should be such that the amount of air flow required for safe operation is not compromised. Consideration should be given to the maximum rated ambient temperature. Overheating can cause a variety of problems, including premature aging and failure of chips or mechanical failure of devices. If the system has been exposed to abnormally cold temperatures, allow a two-hour warm-up period to bring it up to normal operating temperature before turning it on. Failure to do so may cause damage to internal components, particularly the hard di sk drive.
Humidity
High-humidity can cause moisture to enter and accumulate in the system. This moisture can cause corrosion of internal components and degrade such properties as electrical resistance and thermal conductivity. Extreme moisture buildup inside the system can result in electrical shorts, which can cause serious damage to the system. Buildings in which climate is controlled usually maintain an acceptable level of humidity for system equipment. However, if a system is located in an unusually humid location, a dehumidifier can be used to maintain the humidity within an acceptable range. Refer to the “Specifications” section of this user’s guide for
Preface
Q
the operating and storage humidity specifications.
Altitude
Operating a system at a high altitude (low pressure) reduces the efficiency of the cooling fans to cool the system. This can cause electrical problems related to arcing and corona effects. This condition can also cause sealed components with internal pressure, such as electrolytic capacitors, to fail or perform at reduced efficiency.
Power Protection
The greatest threats to a system’s supply of power are power loss, power spikes, and power surges caused by electrical storms, wh ich interrupt system operation and/or damage system components. To protect your system, always properly ground power cables and one of the following devices.
Surge Protector
Surge protectors are available in a variety of types and usually provide a level of protection proportional with the cost of the device. Surge protectors prevent voltage spikes from entering a system through the AC power cord. Surge protectors, however, do not offer protection against brownouts, which occur when the voltage drops more than 20 percent below the normal AC line voltage level.
Line Conditioner
Line conditioners go beyond the overvoltage protection of surge protectors. Line conditioners keep a system’s AC power source voltage at a fairly constant level and, therefore, can handle brownouts. Because of this added protection, line conditioners cost more than surge protectors. However, line conditioners cannot protect against a complete loss of power.
Uninterruptible Power Supply
Uninterruptible power supply (UPS) systems offer the most complete protection against variations on power because they use battery power to keep the server running when AC power is lost. The battery is charged by the AC power while it is available, so when AC power is lost, the battery can provide power to the system for a limited amount of time, depending on the UPS system. UPS systems range in price from a few hundred dollars to several thousand dollars, with the more expensive unit s allowing you to run larger systems for a
Preface
Q
longer period of time when AC power is lost. UPS systems that provide only 5 minutes of battery power let you conduct an orderly shutdown of the system, but are not intended to prov ide contin ued o per ation. Surge pr otect ors should b e used with all UPS systems, and the UPS system should be Underwriters Laboratories (UL) safety approved.
Chapter 1
Q
Chapter 1
Introduction
Overview
The QutePC-5000 series is a Box PC with a volume of just 0.6-liter that is ideal for space critical applications. This embedded hardware platform is designed with Intel® Haswell / Broadwell ULT processor which provides with excellent performance. System is supported with DDR3L SO-DIMM up to 8GB. Featured are GbE, USB3.0, USB2.0, HDMI and DVI-D.
Checklist
QutePC-5000 series Power Adapter Power Cord Driver CD Quick installation Guide VESA Mounting Kit (optional) Wireless LAN, 3G (optional)
Features
Intel® Haswell / Broadwell ULT Processors Support DDR3L SO-DIMM up to 8 GB Support 1x DVI-D,1x HDMI Support 1x GbE,1x RS-232, 4x USB3.0, 2x USB 2.0 and Audio Support 1x HDD / SSD / mSATA
Chapter 1
Q
Product Specifications
Construction Plastic Casing
System Board
QutePC-5000: Intel
®
Core™ i3-4010U Processor (3M Cache, 1.70 GHz)
QutePC-5004: Intel®Core™ i5-5200U Processor (3M Cache, up to 2.70 GHz)
Memory DDR3L 1333/ 1600 SO-DI MM up to 8GB
I/O Panel
ˍġ Front I/O panel
1x Phone Jack for Line-Out & MIC-In 1x Push button (w/LED) for power on/off 1x WiFi LED 1x S/PDIF 1x HDD LED 2x USB2.0 4x USB3.0
ˍġ Rear I/O panel
1x DC JACK 1x RJ-45, GbE port 1x RJ-45, RS-232 1x DVI-D 1x HDMI 1x Reset Button 1x External Power Button Support
Storage
1x mSATA socket mixed with mPCIe 1x 2.5” SATA HDD / SSD
Wifi 802.11b/g/n Power Supply
Input: 100-240 VAC, 50-60 Hz Output: 65W, +19VDC/ 3.42A output
Cooling CPU System Fan Temperature /
Humidity
Operating: 0°C to 50°C, 0%-90%, non-condensing Storage: -20°C to 80°C, 0%-90%, non-condensing
Dimensions 130 x 39 x 115 mm (WxHxD) Weight 550 g
Others Kensington Lock Support Mounting VESA mount, Desktop stand Certifications CE, FCC Class A
Table 1 QutePC-5000 series product specification
Chapter 1
Q
System tour
Refer to the diagrams below to identify the components of the system.
Front Panel
Figure 1 Front Panel
USB
The USB (Universal Seria l Bus) port is compatible with USB devices such as keyboards, mouse devices, cameras, and hard disk drives. USB allows many devices to run simultaneously on a single computer, with some peripheral acting as additional plug-in sites or hubs.
WiFi LED
The WiFi L ED will light when the WiFi is on.
HDD LED
The hard disk LED blinks when data is being written in to or read from the HDD.
Power Switch
The power switch allows powering ON and OFF the system.
Chapter 1
Q

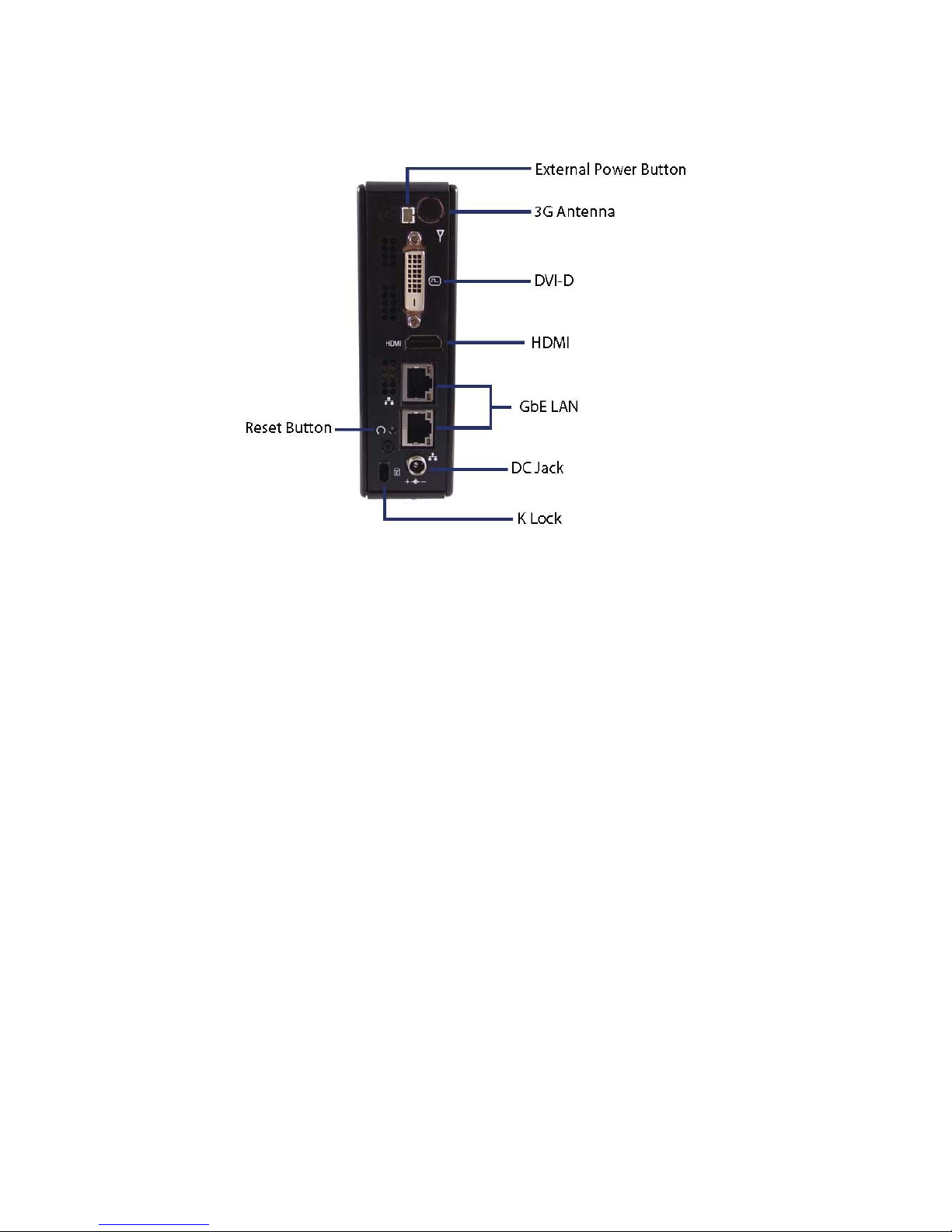

Rear Panel
Figure 2 Rear Panel
Ethernet
The eight-pin RJ-45 LAN port supports a standard Ethernet cable for connection to a local network.
DC Jack
The supplied power adapter converts AC power to DC for use with this jack. Power supplied through this jack supplies power to the PC. To prevent damage to the PC, always use the supplied power adapter.
Kensington Lock Slot
The slot is used for attaching a lock-and-cable apparatus. Locks are generally secured in place with a key or combination lock attached to a rubberized metal cable.
DVI-D
DVI-D is an acronym which means Digital Video Interfa ce Digital. E ssen tially it is a cable that connects two devices producing an output image on a screen.
Chapter 1
Q
HDMI
HDMI connector for display output
External power switch
The external power switch allows powering ON and OFF the system.
Wireless
1x reserved holes for wireless antenna connections.
Clear CMOS
1x reset button for clear CMOS.
Chapter 1
Q
Mechanical Dimensions
130 x 39 x 116 mm (WxHxD)
Figure 3 Mechanical Dimens ions
Chapter 2
Q
DVI-D
HDMI
Chapter 2
Getting Started
Setting up your PC
Connecting the monitor
Connect the DVI-D/ HDMI cable from your display to the DVI-D/ HDMI
port.
Figure 4 DVI-D / HDMI
Chapter 2
Q
Connecting USB mouse & keyboard
Your QutePC-5000 series does not come with a keyboard and mouse, but you can use any USB keyboard or mouse with your computer.
Figure 5 Connecting USB mouse & keyboard
NOTE
Using a third-party USB mouse or keyboard may require software drivers. Check the manufacturer’s website for the latest software drivers.
USB 3.0
USB 2.0
Chapter 2
Q
RJ45
Connecting to a network device
Connect one end of a network cable to the LAN port on the system rear panel and the other end to a hub or switch.
Figure 6 RJ45 connector
Chapter 2
Q
DC Jack
Turning on the system
1. Connect the power adapter cable to the DC jack (DC IN) of the QutePC-5000 series
2. Connect the power cable to the power adapter
3. Connect the power cable to a power outlet
4. Press the power switch on the front panel to turn on the system
Figure 7 Turning on the system
On/Off
External Power Switch
Chapter 2
Q
Mounting your PC to a monitor
1. Secure the VESA mounting kit to your monitor with four screws.
NOTE
To fasten the metal shelf, your monitor must comply with VESA75 or VESA100 standard.The VESA mounting kit is optional.
2. Place the QutePC-5000 series on the VESA mounting bracket and make
sure the bracket is hooked with the fins of the system housing.
3. Secure the screw with the VESA mounting bracket and make sure the
QutePC-5000 series is solidly secured to the display.
Figure 8 VESA mounting
NOTE
When mounting the unit on the wall with a display. The total weight of the unit and display won’t exceed 7 Kg.
Chapter 2
Q
Anti-theft protection with a Kensington Lock
The QutePC-5000 series has a Kensington lock slot for the Kensington MicroSaver. With the Kensington MicroSaver, a sturdy steel cable, you can attach your QutePC-5000 series to a stationary object and protect your PC from theft.
Figure 9 Use a Kensington lock
K Lock
Chapter 3
Q
Chapter 3
AMI BIOS Setup
Overview
This chapter provides a description of the AMI BIOS. The BIOS setup menus and available selections m ay vary from those o f your prod uct. F or speci fic i nformati on o n the BIOS for your product, please contact us.
NOTE: The BIOS menus and selections for your product may vary from those in this chapter. For the BIOS manual specific to your product, please contact us.
AMI's ROM BIOS provides a built-in Setup program, which allows the user to modify the basic system configuration and hardware parameters. The modified data will be stored in a battery-backed CMOS, so that data will be retained even when the power is turned off. In general, the information saved in the CMOS RAM will not need to be changed unless there is a configuration change in the system, such as a hard drive replacement or when a device is added. It is possible for the CMOS battery to fail, which will cause data loss in the CMOS only. If this happens you will need to reconfigure your BIOS settings.
Chapter 3
Q
Main Menu
The BIOS Setup is accessed by pressing the DEL key after the Power-On Self-Test (POST) memory test b egi ns and befor e the operating syste m boo t b egi ns. Once y ou enter the BIOS Setup Utility, the Main Menu will appear on the screen. The Main Menu provides System Ov erv iew informa tion and al low s y ou to set the Sy stem Time and Date. Use the “<” and “>” cursor keys to navigate between menu screens.
Table 2 BIOS Main Menu
BIOS SETUP UTILITY
Main Advanced Boot Security Save & Exit
Product Information
ÆÅSelect Screen
ĹĻ6HOHFW,WHP
Enter: Select +- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit
Product Name QutePC-5000
BIOS Version R1.00 (x64)
BIOS Build Date 03/04/2014
ME FW Version 9.5.20.1742
CPU Information Intel® Core® i3-4010U CPU @1.70GHz
Microcode Revision 17 Processor Cores 2 Memory Information
Total Size 4096 MB (DDR3) Frequency 1600 MHz System date [Tue 03/11/2014] System time [14:05:23] Access Level Administrator
Version 2.15.1236. Copyright (C) 2012American Megatrends, Inc.
Chapter 3
Q
Table 3 BIOS Main Menu
BIOS SETUP UTILITY
Main Advanced Boot Security Save & Exit
Product Information
ÆÅSelect Screen
ĹĻ6HOHFW,WHP
Enter: Select +- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit
Product Name QutePC-5004
BIOS Version R1.00 (x64)
BIOS Build Date 10/21/2015
ME FW Version 10.0.45.1024
CPU Information Intel® Core® i5-5200U CPU @2.20GHz
Microcode Revision 1f Processor Cores 2 Memory Information
Total Size 4096 MB (DDR3) Frequency 1600 MHz System date [Tue 11/06/2015] System time [14:05:23] Access Level Administrator
Version 2.15.1236. Copyright (C) 2012American Megatrends, Inc.
Chapter 3
Q
Advanced Menu
Table 4 Advanced Menu
BIOS SETUP UTILITY
Main Advanced Boot Security Server Mgmt Save & Exit
Onboard LAN 1 Controller [Enabled] ÆÅSelect Screen
ĹĻ6HOHFW,WHP
Enter: Select +- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit
Onboard LAN 1 Boot [Disabled] Onboard LAN 2 Controller [Enabled] Onboard LAN 2 Boot [Disabled] Audio Controller [Enabled] > Display Configuration
> CPU Chipset Configuration > SATA Configuration
> USB Configuration > Intel(R) Rapid Start Technology >TPM Configuration
> H/W Monitor
Version 2.15.1236. Copyright (C) 2012American Megatrends, Inc.
Onboard LAN 1 Controller
Options: Disabled, Enabled
Onboard LAN 1 Boot
Options: Disabled, Enabled
Onboard LAN 2 Controller
Options: Disabled, Enabled
Onboard LAN 2 Boot
Options: Disabled, Enabled
Audio Controller
Options: Disabled, Enabled
Chapter 3
Q
Table 5 Advanced Menu – Displ a y Config urati on
BIOS SETUP UTILITY
Main Advanced Boot Security Server Mgmt Save & Exit
Display Configuration ÆÅSelect Screen
ĹĻ6HOHFW,WHP
Enter: Select +- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit
UMA Frame Buffer Size [256 MB] DVMT Pre-Allocated [64 MB]
DVMT Total Gfx Mem [256 MB] Primary IGFX Boot Display [ VBIOS Default]
Version 2.15.1236. Copyright (C) 2012, American Megatrends, Inc.
Aperture Size
Options: 128MB, 256MB, 512MB
DVMT Pre-Allocated
Options: 32 M, 64 M, 96 M, 128MB, 160 M, 192 M, 224 M, 256MB, 288 M,
320 M , 352 M , 384 M , 416 M , 448 M , 480 M , 512M , 1024M
DVMT Total Gfx Mem
Options: 128MB, 256MB, MAX
IGFX-Boot Type
Options: VBIOS Default, DVI, HDMI
Chapter 3
Q
Table 6 Advanced Menu –CPU Chipset Configuration
BIOS SETUP UTILITY
Main Advanced Boot Security Save & Exit
CPU Advanced Configuration ÆÅSelect Screen
ĹĻ6HOHFW,WHP
Enter: Select +- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit
EIST
[Enabled]
Hyper-Threading
[Enabled]
VT-d
[Enabled]
Active Processor Cores
[ALL]
Limit CPUID Maximum [Disabled] Execute Disable Bit [Enabled] Intel Virtualization Technology [Disabled]
Version 2.15.1236. Copyright (C) 2012American Megatrends, Inc.
EIST
Options: Disabled, Enabled
Hyper-Threading
Options: Disabled, Enabled
VT-d
Options: Disabled, Enabled
Active Processor Cores
Options: All, 1
Limit CPUID Maximum
Options: Disabled, Enabled
Execute Disable Bit
Options: Disabled, Enabled
Intel Virtualization Technology
Options: Disabled, Enabled
Chapter 3
Q
Table 7 Advanced Menu –SATA Configuration
BIOS SETUP UTILITY
Main Advanced Boot Security Save & Exit
SATA Controller(s)
[Enabled]
ÆÅSelect Screen
ĹĻ6HOHFW,WHP
Enter: Select +- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit
SATA Mode Selection [ A HCI] SATA Controller Speed [ Gen 2]
Serial ATA Port 1 Empty
Port 1 [ Enabled ]
mATA Port 1
Port 1
Empty
[ Enabled ]
Version 2.15.1236. Copyright (C) 2012, American Megatrends, Inc.
SATA Controller(s)
Options: Disabled, Enabled
SATA Mode Selection
Options: AHCI
SATA Controller Speed
Options: Default, Gen 1, Gen 2 , Gen 3
Port 1 (For SATA Port / mSATA Port)
Options: Disabled, Enabled
Chapter 3
Q
Table 8 Advanced Menu –USB Config ur ation
BIOS SETUP UTILITY
Main Advanced Boot Security Save & Exit
USB Configuration ÆÅSelect Screen
ĹĻ6HOHFW,WHP
Enter: Select +- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit
USB Devices:
1 Keyboard, 1 Mouse, 1 Hubs
Legacy USB Support [Enabled] USB3.0 Support [Enabled] xHCI Hand-off [Enabled]
EHCI Hand-off [Disabled] USB Mass Storage Driver Support [Enabled]
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Legacy USB Support
Options: Disabled, Enabled, Auto
USB3.0 Support
Options: Disabled, Enabled
xHCI Hand-off
Options: Disabled, Enabled
EHCI Hand-off
Options: Disabled, Enabled
USB Mass Storage Driver Support
Options: Disabled, Enabled
Chapter 3
Q
Table 9 Advanced Menu –Intel (R) Rapid Start Technology
BIOS SETUP UTILITY
Main Advanced Boot Security Save & Exit
Intel (R) Rapid Start Technology [Disabled]
Version 2.15.1236. Copyright (C) 2012, American Megatrends, Inc.
Intel (R) Rapid Start Technology
Options: Disabled, Enabled
Table 10 Advanced Menu –TPM Configuration
BIOS SETUP UTILITY
Main Advanced Boot Security Save & Exit
TPM Configuration ÆÅSelect Screen
ĹĻ6HOHFW,WHP
Enter: Select +- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit
Security Device Support [Disabled]
Current Status Information
Version 2.15.1236. Copyright (C) 2012American Megatrends, Inc.
Security Device Support
Options: Disabled, Enabled
Chapter 3
Q
Table 11 Advanced Menu –H/W Monitor
BIOS SETUP UTILITY
Main Advanced Boot Security Save & Exit
PC Health Status
Smart FAN Configuration
ÆÅSelect Screen
ĹĻ6HOHFW,WHP
Enter: Select +- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit
CPU Temperature : +49 C Memory Temperature : +27 C
System Temperature : +26 C CPU FAN Speed N/A
+VCORE : +1.712V
+VIN : +12.000V
5V : +5.089V
+3.3V : +3.356V
Version 2.15.1236. Copyright (C) 2012American Megatrends, Inc.
CPU FAN Configuration
FAN Setting ˰Manual Mode˱(Options: Smart , Manual ) Manual Duty 255
Chapter 3
Q
Table 12 Power Management Configuration
BIOS SETUP UTILITY
Main Advanced Boot Security Server Mgmt Save & Exit
Power Management Configuration ÆÅSelect Screen
ĹĻ6HOHFW,WHP
Enter: Select +- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit
ACPI Sleep State [S3 only (Suspend to RAM)]
Restore AC Power Loss
Power Saving Mode
[Power Off]
[DeepSx Enabled]
Resume Event control
Resume By PCIE Device [Disabled]
Resume By RTC Alarm [Disabled] >Watchdog Timer Configuration
Version 2.15.1236. Copyright (C) 2012American Megatrends, Inc.
ACPI Sleep State
Options: Suspend Disabled, S1 only (CPU Stop Clock), S3 only (Suspend to RAM)
Restore AC Power Loss
Options: Power Off, Power On, Last State
Power Saving Mode
Options: Disabled, EUP Enabled, DeepS X Enabled
Resume By PCIE Device
Options: Disabled, Enabled
Resume By RTC Alarm
Options: Disabled, Enabled
Watchdog Timer Configuration
ˍ
ˍ
WDT Function ˰Disabled
˱
Options: Disabled, Enabled
Chapter 3
Q
Boot Menu
Table 13 Boot Menu
BIOS SETUP UTILITY
Main Advanced Boot Security Save & Exit
Boot Configuration ÆÅSelect Screen
ĹĻ6HOHFW,WHP
Enter: Select +- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit
Full Screen LOGO Display [Disabled]
Setup Prompt Timeout 1
Bootup NumLock State [On]
CSM Support
Boot Option Filter
[Enabled] [Legacy Only]
Boot Option Priorities Boot Option # 1 [IBA GE Slot 00C8 v1410] Network Device BBS Priorities
Version 2.15.1236. Copyright (C) 2012American Megatrends, Inc.
Full Screen LOGO Display
Options: Disabled, Enabled
Bootup Numlock State
Options: On, Off
CSM Support
Options: Disabled, Enabled
Boot Option Filter
Options: UEFI and Legacy, Legacy only, UEFI only
Boot Option # 1
Options: Disabled, IBA GE Slot 00C8 v1410
Network Device BBS Priorities
Options: Disabled, IBA GE Slot 00C8 v1410
Chapter 3
Q
Security Menu
Table 14 Security Menu
BIOS SETUP UTILITY
Main Advanced Boot Security Save & Exit
Password Description
If ONLY the Administ rator’s password is set, then this only limits access to Setup and is only asked for when entering Setup
If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have
Administrator rights The password length must be in the following range: Minimum Length 3 Maximum length 20
Administrator Password User Password
ÆÅSelect Screen
ĹĻ6HOHFW,WHP
Enter: Select +- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit
Version 2.15.1236. Copyright (C) 2012, American Megatrends, Inc.
Chapter 3
Q
Save & Exit Menu
Table 15 Sa ve & Ex it Men u
BIOS SETUP UTILITY
Main Advanced Boot Security Save & Exit
Save Changes and Reset Discard Changes and Reset
Save Options
Save Changes Discard Changes Restore Defaults
ÆÅSelect Screen ĹĻ6HOect Item Enter: Select +- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit
Version 2.15.1236. Copyright (C) 2012, American Megatrends, Inc.
Chapter 3
Q
Save Changes and Exit
Exit system setup after saving the changes. Once you are finished making your selections, choose this option from the Exit menu to ensure the values you selected are saved to the CMOS RAM. The CMOS RAM is sustained by an onboard backup battery and stays on even when the PC is turned off. When you select this option, a confirmation window appears. Select [Yes] to save changes and exit.
Discard Changes and Exit
Exit system setup without saving any changes. Select this option only if you do not want to save the changes that you made to the Setup program. If you made changes to fields other than system date, system time, and password, the BIOS asks for a confirmation before exiting.
Discard Changes
Discards changes done so far to any of the setup values. This option allows you to discard the selections you made and restore the previously saved values. After selecting this option, a confirmation appears. Select [Yes] to discard any changes and load the previously saved values.
Load Optimal Defaults
Load Optimal Default values for all the setup values. This option allows you to load optimal default values for each of the parameters on the Setup menus, which will provide the best performance settings for your system. The F9 key can be used for this operation.
Load Failsafe Defaults
Load Optimal Default values for all the setup values. This option allows you to load failsafe default values for each of the parameters on the Setup menus, which will provide the most stable performance settings. The F8 key can be used for this operation.
Chapter 4
Q
Chapter 4
Driver Installation
If your QutePC-5000 series does not come with an operating system pre-installed, you will need to install an operating system and the necessary drivers to operate it. After you have finished assembling your system and connected the appropriate power source, power it up using the power supply and install the desired operating system. You can download the drivers for the QutePC-5000 series from our website a nd install as instructed there. For other operating systems, please contact us.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
