1850/2150 Series User’s Manual
PPC-185 0/2150 Series
18.5" / 21.5" Widescreen Multi-touch Flat Panel PC
with Intel® Skylake / Kaby Lake U-Series Processors
User’s Guide
Page 2
Content
2 PP
C
-
1850/2150 Series User’s Manual
Content
Content......................................................................................................................................2
Figures & Tables ......................................................................................................................3
Safety Ins tructions...................................................................................................................5
Before You Begin.............................................................................................5
When Working Inside a Computer................................................................6
Preventing Electrostatic Discharge...............................................................7
Ins tructions for Lithium Battery......................................................................7
Pre fa ce ......................................................................................................................................8
How to Us e This Guide...................................................................................8
Unpacking.........................................................................................................8
Regulatory Compliance Statements .............................................................8
Maintaining Your Computer ...........................................................................9
Chapter 1 Introduction ..........................................................................................................12
Overview .........................................................................................................12
Product Specifications ..................................................................................13
System tour ....................................................................................................15
Mechanical Dimensions ...............................................................................................17
Chapter 2 Getting Started ....................................................................................................18
Setting up your PC ........................................................................................18
VESA Mounting..............................................................................................22
Panel Mounting ..............................................................................................23
Chapter 3 AMI BIOS Setup ..................................................................................................25
Overview .........................................................................................................25
Main Menu ......................................................................................................26
Advanced Menu.............................................................................................27
Power Menu ...................................................................................................40
Boot Menu ......................................................................................................41
Security Menu ................................................................................................42
Save & Exit Menu ..........................................................................................43
Chapter 4 Driver Installation ................................................................................................45
Page 3
Figures & Tables
3 PP
C
-
1850/2150 Series User’s Manual
Figures & T ables

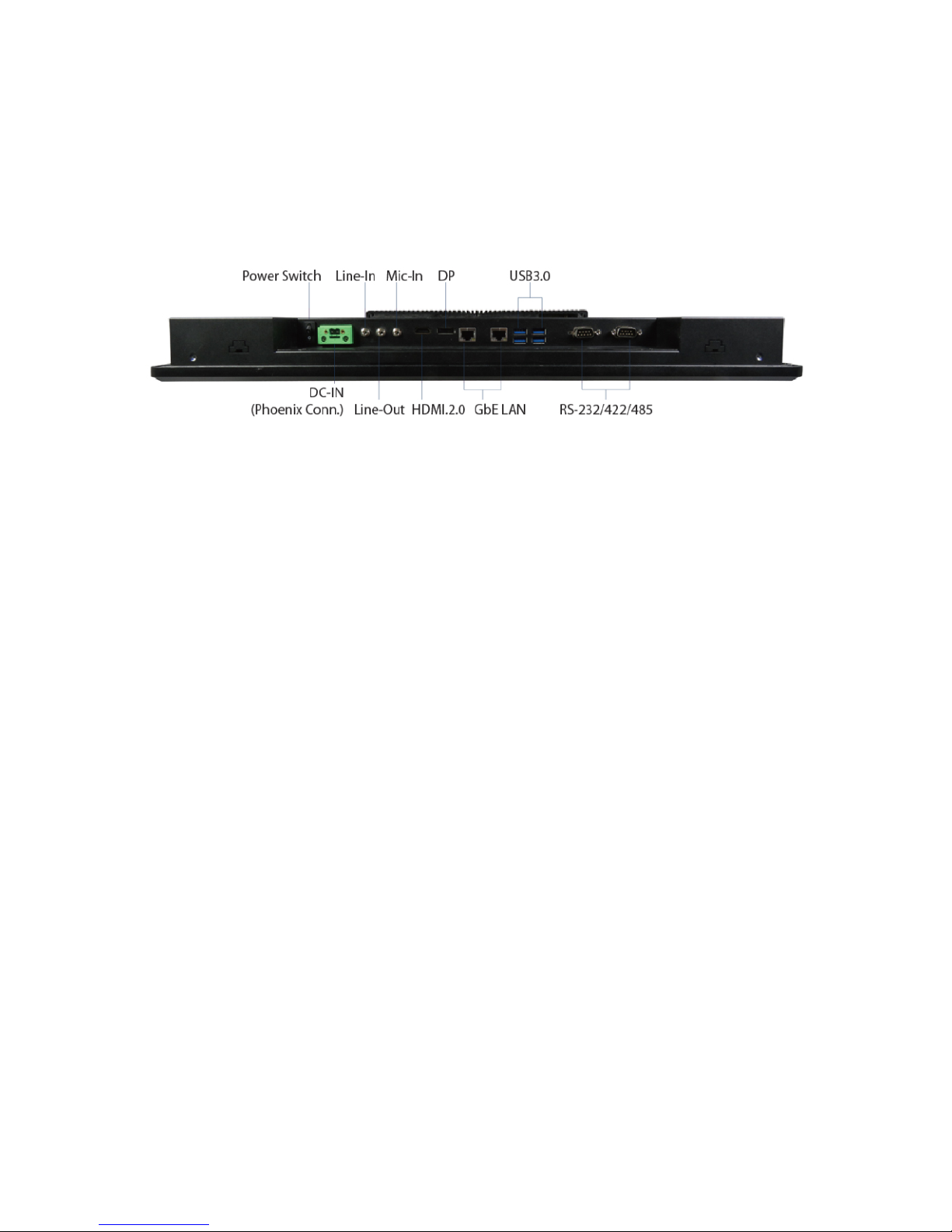

Figure 1 I/Os...........................................................................................................15
Figure 2 PPC-1850 Series Mechanical Dimensions........................................17
Figure 3 PPC-2150 Series Mechanical Dimensions........................................17
Figure 4 HDMI / DP...............................................................................................18
Figure 5 Connect USB mouse & keyboard .......................................................19
Figure 6 RJ45 connector ......................................................................................19
Figure 7 COM ports...............................................................................................20
Figure 8 Turning on the sys tem ..........................................................................21
Figure 9 VESA Mounting Hole Locations ..........................................................22
Figure 10 PPC-1850 Series Panel Mount Cut-out hole and maximum panel
thi ck ness .........................................................................................................23
Figure 11 PPC-2150 Series Panel Mount Cut-out hole and maximum panel
thi ck ness .........................................................................................................23
Figure 12 PPC-1850 Series Panel Mounting ....................................................24
Figure 13 PPC-2150 Series Panel Mounting ....................................................24
Table 1 PPC-1850/2150 Series product specification .....................................14
Table 2 PPC-2150 Series BIOS Main Menu .....................................................26
Table 3 Advanced Menu .......................................................................................27
Table 4 Advanced Menu – Display Configuration.............................................28
Table 5 Advanced Menu – Super IO Configuration..........................................29
Table 6 Advanced Menu – Super IO Configuration – Serial Port 1
Co n figu ra tion ..................................................................................................29
Table 7 Advanced Menu – Super IO Configuration – Serial Port 2
Co n figu ra tion ..................................................................................................30
Table 8 Advanced Menu – CPU Chipset Configuration...................................31
Table 9 Advanced Menu – SATA Configuration ................................................32
Table 10 Ad vanced Menu – USB Configuration ...............................................33
Table 11 Advanced Menu – AMT Configuration................................................34
Table 12 Ad vanced Menu – Trusted Computing...............................................34
Table 13 Ad vanced Menu – Network Stack.......................................................35
Table 14 Ad vanced Menu – DIO Configuration ................................................36
Table 15 Ad vanced Menu – H/W Monitor ..........................................................37
Page 4
Figures & Tables
4 PP
C
-
1850/2150 Series User’s Manual
Table 16 Ad vanced Menu – Intel I210 Gigabit Network Connection .............38
Table 17 Ad vanced Menu – Intel Ethernet Connection I219-LM ...................39
Table 18 Power Configuration .............................................................................40
Table 19 Boot Menu ..............................................................................................41
Table 20 Security Menu ........................................................................................42
Table 21 Save & Exit Menu..................................................................................43
Page 5
Safety Instructions
5 PP
C
-
1850/2150 Series User’s Manual
Safety Instructions
Before You Begin
Before handling the product, read the instructions and safety guidelines on the
following pages to prevent damage to the product and to ensure your own personal
safety. Refer to the “Advisories” section in the Preface for advisory conventions used
in this user’s guide, including the distinction between Warnings, Cautions, Important
Notes, and Notes.
Always use caution when handling/operating a computer. Only qualified,
experienced, authorized electronics service personnel should access the
interior of a computer. The power supplies produce high voltages and
energy hazards, which can cause bodily harm.
Use extreme caution when installing or removing components. Refer to the
installation instructions in this user’s guide for precautions and procedures.
If you have any questions, please contact our Post-Sales Technical
Support.
Access can only be gained by service persons or by users who have
been instructed about the reasons for the restrictions applied to the
location and about any precautions that shall be taken; and access is
through the use of a tool or lock and key, or other means of security,
and is controlled by authority responsible for the location.
WARNING
High voltages are present inside the chassi s when the unit’s power cord is plugged into
an electrical outlet. Turn off system power, turn off the power supply, and then
disconnect the power cord from its source before removing the chassis cover. Turning off
the system power switch does not remove power to components.
Page 6
Safety Instructions
6 PP
C
-
1850/2150 Series User’s Manual
When Working Inside a Computer
Before taking covers off a computer, perform the following steps:
1. Turn off the computer and any peripherals.
2. Disconnect the computer and peripherals from their power sources or
subsystems to prevent electric shock or system board damage. This does not
apply when hot swapping parts.
3. Follow the guidelines provided in “Preventing Electrostatic Discharge” on the
following page.
4. Disconnect any telephone or telecommunications lines from the computer.
In addition, take note of these safety guidelines when appropriate:
To help avoid possible damage to system boards, wait five seconds after
turning off the computer before removing a component, removing a system
board, or disconnecting a peripheral device from the computer.
When you disconnect a cable, pull on its connector or on its strain-relief loop,
not on the cable itself. Some cables have a connector with locking tabs. If you
are disconnecting this type of cable, press in on the locking tabs before
disconnecting the cable. As you pull connectors apart, keep them evenly
aligned to avoid bending any connector pins. Also, before connecting a cable,
make sure both connectors are correctly oriented and aligned.
CAUTION
Do not attempt to service the system yourself except as explained in this user’s guide.
Follow installation and troubleshooting instructions closely.
Page 7
Safety Instructions
7 PP
C
-
1850/2150 Series User’s Manual
Preventing Electrostatic Discharge
Static electricity can harm system boards. Perform service at an ESD workstation
and follow proper ESD procedure to reduce the risk of damage to components. We
strongly encourages you to follow proper ESD procedure, which can include wrist
straps and smocks, when servicing equipment.
You can also take the following steps to prevent damage from electrostatic
discharge (ESD):
When unpacking a static-sensitive component from its shipping carton, do not
remove the component’s antistatic packing material until you are ready to install
the component in a computer. Just before unwrapping the antistatic packaging,
be sure you are at an ESD workstation or grounded. This will discharge any
static electricity that may have built up in your body.
When transporting a sensitive component, first place it in an antistatic container
or packaging.
Handle all sensitive components at an ESD workstation. If possible, use
antistatic floor pads and workbench pads.
Handle components and boards with care. Don’t touch the components or
contacts on a board. Hold a board by its edges or by its metal mounting bracket.
Do not handle or store sys tem boards near strong electrostatic, electromagnetic,
magnetic, or radioactive fields.
Instructions for Lithium Battery
WARNING
Danger of explosion w hen battery is replaced w ith incorrect type. Only replace
with the same or equivalent type recommended by the manufacturer.
Do not dispose of lithium batteries in domestic waste. Dispose of the battery
according to the local regulations dealing with the disposal of these special
materials (e.g. to the collecting points for disposal of batteries)
Page 8
Preface
8 PP
C
-
1850/2150 Series User’s Manual
Preface
How to Use This Guide
This guide is designed to be used as step-by-step instructions for installation, and as
a reference for operation, troubleshooting, and upgrades.
Unpacking
When unpacking, follow these steps:
1. After opening the box, save it and the packing material for possible future
shipm ent.
2. Remove all items from the box. If any items listed on the purchase order
are missing, notify our customer service immediately.
3. Inspect the product for damage. If there is damage, notify our customer
service immediately. Refer to “Warranty Policy” for the return procedure.
Regulatory Compliance Statements
This section provides the FCC compliance statement for Class A devices.
FCC Compli ance Stateme nt:
This equipment has been tested and found to comply with limits for a Class A digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reason able protection against harmful interference in residential installations. This
equipment generates, uses, and can radiate radiofrequency energy, and if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
interference to radio or television equipment reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Page 9
Preface
9 PP
C
-
1850/2150 Series User’s Manual
Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by us could void the user's
authority to operate the equipment.
NOTE
The assembler of a personal computer system may be required to test the system
and/or make necessary modifications if a system is found to cause harmful
interference or to be noncompliant with the appropriate standards for its intended use.
Maintaining Your Computer
E nvi ro nmen ta l Factor s
Temperature
The ambient temperature within an enclosure may be greater than room
ambient temperature. Installation in an enclosure should be such that the
amount of air flow required for safe operation is not compromised.
Consideration should be given to the maximum rated ambient temperature.
Overheating can cause a variety of problems, including premature aging and
failure of chips or mechanical failure of devices.
If the system has been exposed to abnormally cold temperatures, allow a
two-hour warm-up period to bring it up to normal operating temperature before
turning it on. Failure to do so may cause damage to internal components,
particularly the hard disk drive.
Humidity
High-humidity can cause moisture to enter and accumulate in the system. This
moisture can cause corrosion of internal components and degrade such
properties as electrical resistance and thermal conductivity. Extreme moisture
buildup inside the system can result in electrical shorts, which can cause
serious damage to the system.
Buildings in which climate is controlled usually maintain an acceptable level of
humidity for system equipment. However, if a system is located in an unusually
humid location, a dehumidifier can be used to maintain the humidity within an
Page 10
Preface
10 PP
C
-
1850/2150 Series User’s Manual
acceptable range. Refer to the “Specifications” section of this user’s guide for
the operating and storage humidity specifications.
Altitude
Operating a system at a high altitude (low pressure) reduces the efficiency of
the cooling fans to cool the system. This can cause electrical problems related
to arcing and corona effects. This condition can also cause sealed components
with internal pressure, such as electrolytic capacitors, to fail or perform at
reduced efficiency.
Page 11
Preface
11 PP
C
-
1850/2150 Series User’s Manual
Po wer Protection
The greatest threats to a system’s supply of power are power loss, power spikes,
and power surges caused by electrical storms, which interrupt system operation
and/or damage system components. To protect your system, always properly
ground power cables and one of the following devices.
Surge Protecto r
Surge protectors are available in a variety of types and usually provide a level
of protection proportional with the cost of the device. Surge protectors prevent
voltage spikes from entering a system through the AC power cord. Surge
protectors, however, do not offer protection against brownouts, which occur
when the voltage drops more than 20 percent below the normal AC line voltage
level.
Line Con ditione r
Line conditioners go beyond the overvoltage protection of surge protectors.
Line conditioners keep a system’s AC power source voltage at a fairly constant
level and, therefore, can handle brownouts. Because of this added protection,
line conditioners cost more than surge protectors. However, line conditioners
cannot protect against a complete loss of power.
Uninterruptible Power Supply
Uninterruptible power supply (UPS) systems offer the most complete protection
against variations on power because they use battery power to keep the server
running when AC power is lost. The battery is charged by the AC power while it
is available, so when AC power is lost, the battery can provide power to the
system for a limited amount of time, depending on the UPS system.
UPS systems range in price from a few hundred dollars to several thousand
dollars, with the more expensive unit s allowing you to run larger systems for a
longer period of time when AC power is lost. UPS systems that provide only 5
minutes of battery power let you conduct an orderly shutdown of the system,
but are not intended to provide continued operation. Surge protectors should be
used with all UPS systems, and the UPS system should be Underwriters
Laboratories (UL) safety approved.
Page 12
Chapter 1
12 PP
C
-
1850/2150 Series User’s Manual
Chapter 1
Introduction
Overview
Powered by Intel® Skylake / Kaby Lake U-Series Processors, PPC-1850/2150 Series
Flat Panel PC has greatly improved graphics performance, power efficiency and
wireless connectivity. In addition, it reserves 1x mPCIe and 1x M.2 Key B for wireless,
storage or other possible functional expansion.
The 18.5" / 21.5" widescreen and 10-point PCT multi-touch function can provide
comfortable viewing experience and allow multi-window display without toggling.
Checklist
PPC-1850/2150 Series
Power Adapter
Power Cord
Driver CD
Quick ins tallation Guide
Optional VESA Mounting Kit
Optional wireless LAN
1x Panel Mounting Kit (with screw bag)
Features
18.5" / 21.5" widescreen 10-point PCT multi-touch LCD display
Intel® Skylake / Kaby Lake U-Series Processors
2x DDR4 SO-DIMM memory socket
1x HDMI2.0, 1x DP for video output
4x USB3.0, 2x RS-232/422/485 for peripheral connection
1x 2.5" SATA3.0 HDD / SSD for Storage
1x mPCIe, 1x M.2 Key B for expansion
Passive cooling design
IP65-rated front design
Glass hardness of 6H
Page 13
Chapter 1
13 PP
C
-
1850/2150 Series User’s Manual
Product Specifications
CPU Support Intel® Skylake / Kaby Lake U-Series Processor (FCBGA1356 Socket, 15W TDP)
Memory 2x DDR4 SO-DIMM
LCD Panel Size 18.5" 21.5"
Aspect Ratio 16:9 16:9
Backlight LED LED
Resolution 1366 x 768 WXGA 1920 x 1080 Full HD
B ri gh t ne ss (cd/m², ty pical) 300 250
Contrast Ratio (t y p ic a l) 1000:1 5000:1
Color 16.7M 16.7M
Viewing Angle ( L, R, H, L) 85°, 85°, 80°, 80° 89°, 89°, 89°, 89°
Touch Sensor 10-point PCT 10-point PCT
External Display 1x HDMI2.0 (on rear, 3840 x 2160 @ 60Hz)
1x DP (on rear, 4096 x 2304 @ 60Hz)
Multiple Display Triple
Audio Chi p se t Realtek ALC662
Audio Inte rfa ces 2x Speaker-out (3W)
1x Line-in (on rear)
1x Li ne-out (on re a r)
1x Mic-in (on rear)
Ethernet 2x GbE LAN (RJ-45 on rear, 1x Intel® I219-LM, 1x Intel® I210-AT)
USB 4x USB3.0 (Type A on rear)
Serial Ports 2x RS-232/422/485 (DB9 on rear, w/ auto flow control for RS-485)
Storage & E xpansion 1x 2.5" SATA3.0 HDD / SSD
1x mPCIe (full size)
1x M.2 Key B Socket (mixed w/ USB2.0 or SATA)
1x SIM Card Cage (optional, switchable for mPCIe or M.2)
Power Supply Connector: Phoenix Connector (on rear)
Input Voltage: DC 12V
Power Adapter: AC to DC, 100V ~ 240V
Fi rm ware BIOS: AMI uEFI BIOS w/ 128Mb SPI Flash
Watchdog: Programmable WDT to generate system reset event
H/W Monitor: Voltages, Temperatures
Real Time Clock: Processor integrated RTC
TPM: Supported by default for model w/ Core™ i7 / i5 CPU, optional for others
In fi ne o n S LB 9660 T PM 1 .2 fo r mo de l w/ S ky l a ke CP U
Page 14
Chapter 1
14 PP
C
-
1850/2150 Series User’s Manual
Infineon SLB 9665 TPM2.0 for model w/ Kaby Lake CPU
iAMT: Supported for model w/ Core™ i7 / i5 CPU
System Control &
Monitoring
1x Po wer Switch (on rear)
Coo ling P assi ve
OS Support Windows 7, Windows 8, Windows 10, Linux
Construction Glass Surface + Ultra-narrow Aluminum Front Bezel + Metal Chassi s + Aluminum
Heat Sink
Dimensions (W x H x D) 483 x 304 x 57 mm /
19.02" x 11.97" x 2.24"
542.6 x 339.2 x 59.8 mm /
21.36" x 13.35" x 2.35"
Weight 5800 g / 12.79 lb 7000 g / 15.43 lb
Mounting VESA Mount, Panel Mount
Environment Operation Temperature: 0°C ~ 50°C / 32°F ~ 122°F
Storage Temperature: -20°C ~ 70°C / -4°F ~ 158°F
Hu mi di ty: 0 % ~ 95%
Certification CE, FCC Class A, IP65 (front)
Table 1 PPC-1850/2150 Series product specification
Page 15
Chapter 1
15 PP
C
-
1850/2150 Series User’s Manual
System tour
Refer to the diagrams below to identify the components of the system.
I/Os
Figure 1 I/Os
Power Input
The supplied power adapter converts AC power to DC for use with this
connector. Power supplied through this connector supplies power to the PC. To
prevent damage to the PC, always use the supplied power adapter.
Power Switch
The power switch allows powering ON and OFF the system.
Ethernet
The eight-pin RJ-45 LAN port supports a standard Ethernet cable for
connection to a local network.
USB
The USB (Universal Serial Bus) port is compatible with USB devices such as
keyboards, mouse devices, cameras, and hard disk drives. USB allows many
devices to run simultaneously on a single computer, with some peripheral
acting as additional plug-in sites or hubs.
HDMI
HDMI connector for display output
DP
DP is a display interface used to connect a video source to a display device
such as a computer monitor or a television set.
Page 16
Chapter 1
16 PP
C
-
1850/2150 Series User’s Manual
Line-IN (Blue)
The Line-in jack is designed to take input from a higher-powered sound source.
Line-Out (Green)
The stereo headphone jack is used to connect the system’s audio out signal to
amplified speakers or headphones.
MIC -IN (Pink)
The microphone jack is designed to connect the microphone used for video
conferencing, voice narrations, or simple audio recordings.
COM
D-Sub 9 pin connector for RS-232/422/485 connection
Page 17
Chapter 1
17 PP
C
-
1850/2150 Series User’s Manual

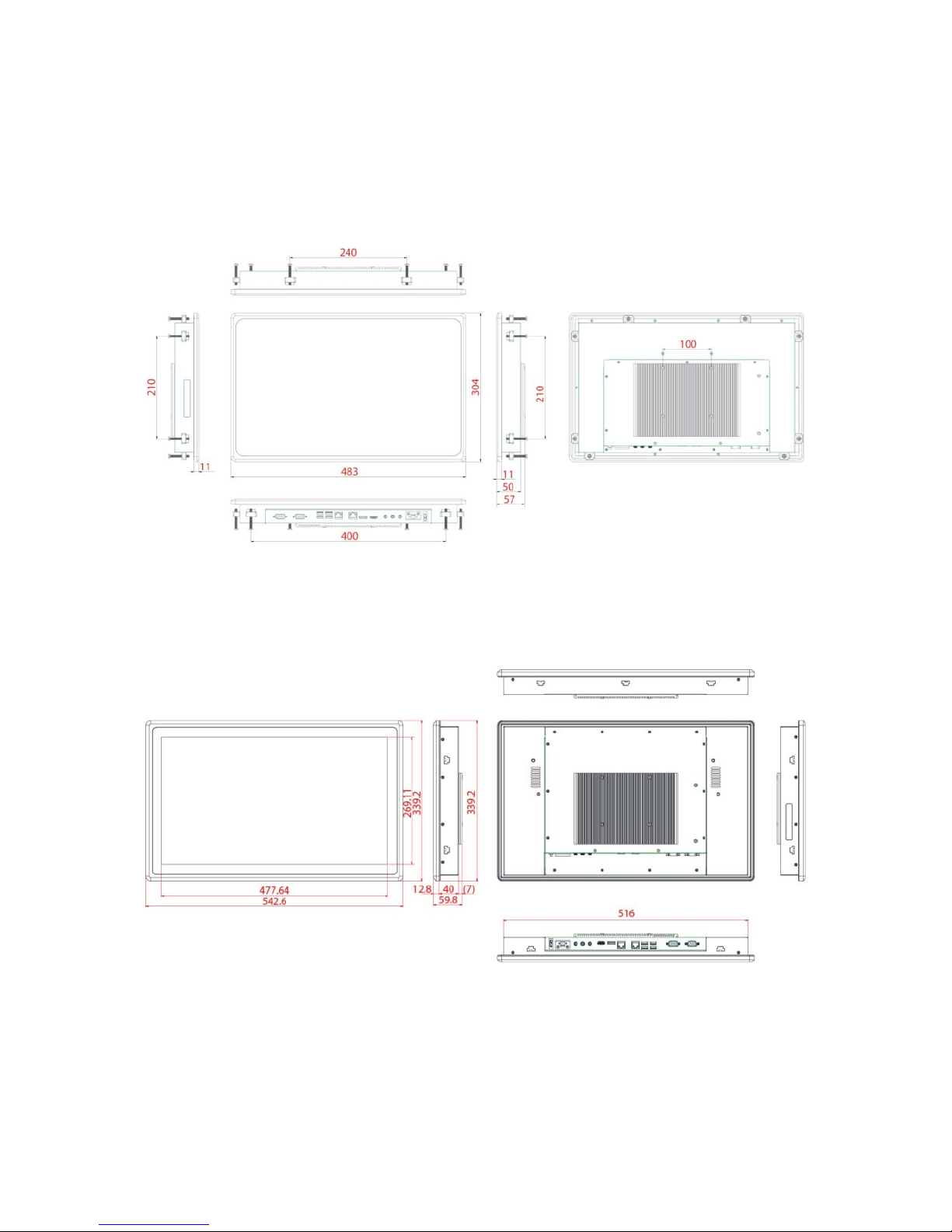

Mechanical Dimensions
483 x 304 x 57 mm (W x H x D)
Figure 2 PPC-1850 Series Mechanical Dimensions
542.6 x 339.2 x 59.8 mm (W x H x D)
Figure 3 PPC-2150 Series Mechanical Dimensions
Page 18
Chapter 2
18 PP
C
-
1850/2150 Series User’s Manual
Chapter 2
Getti n g Sta rte d
Setting up your PC

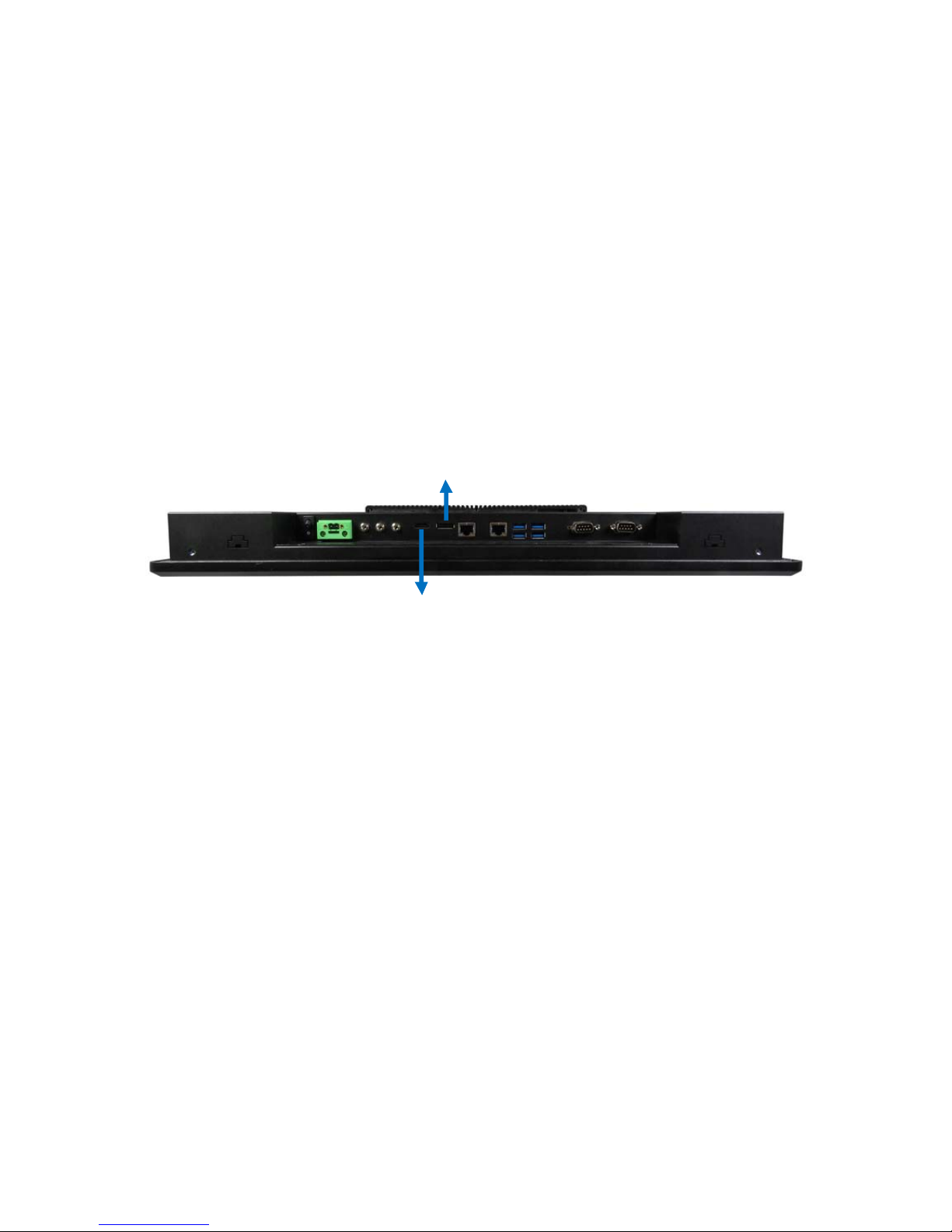

Connecting the monitor
Connect the HDMI / DP cable from your display to the HDMI / DP port.
Figure 4 HDMI / DP
DP
HDMI2.0
Page 19
Chapter 2
19 PP
C
-
1850/2150 Series User’s Manual

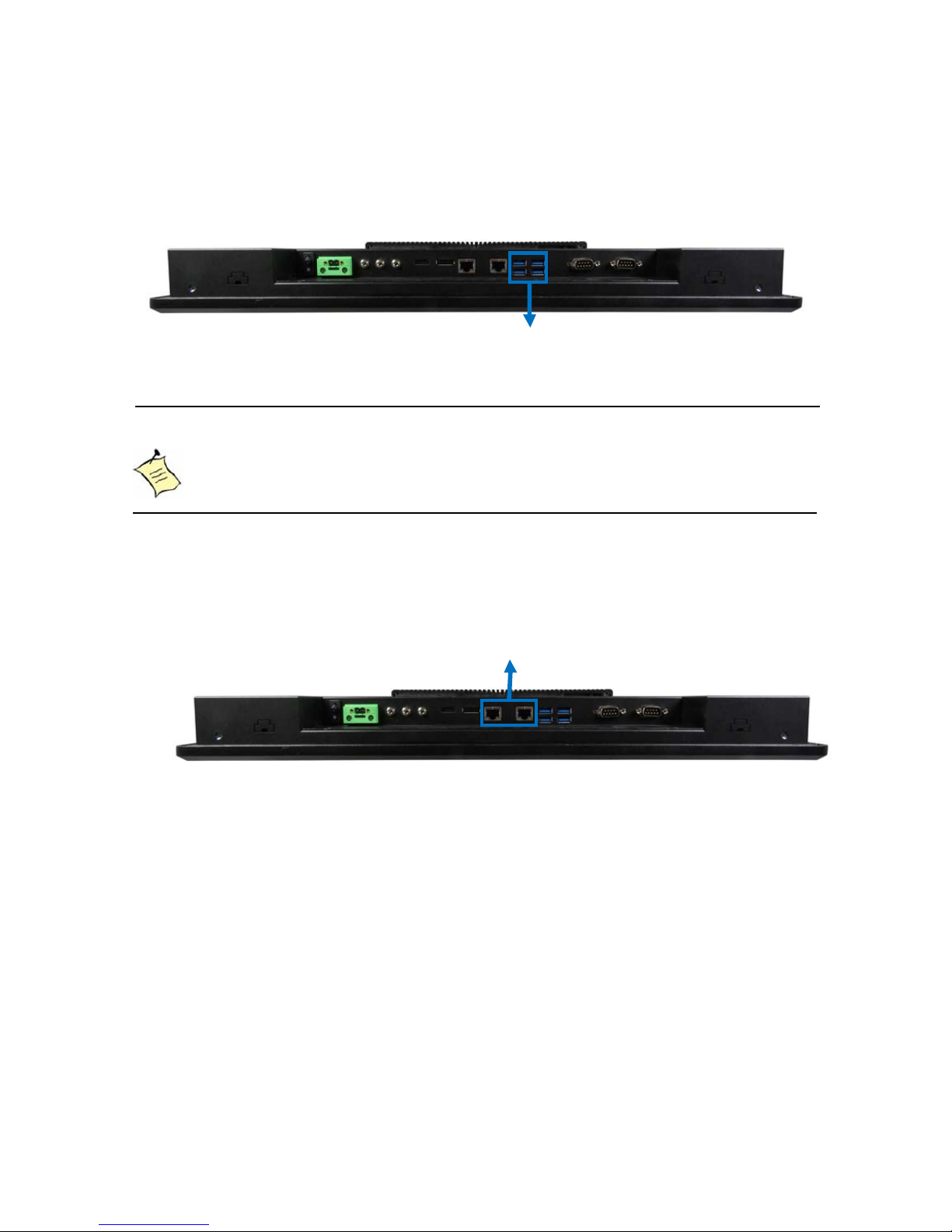

Connecting USB mouse & keyboar d
Your PPC-1850/2150 Series does not come with a keyboard and mouse, but you
can use any USB keyboard or mouse with your computer.
Figure 5 Connect USB mouse & keyboard
NOTE
Using a third-party USB mouse or keyboard may require software drivers.
Check the manufacturer’s website for the latest software drivers.
Connecting to a netwo rk device
Connect one end of a network cable to the LAN port on the system rear panel
and the other end to a hub or switch.
Figure 6 RJ45 connector
RJ45
USB3.0
Page 20
Chapter 2
20 PP
C
-
1850/2150 Series User’s Manual

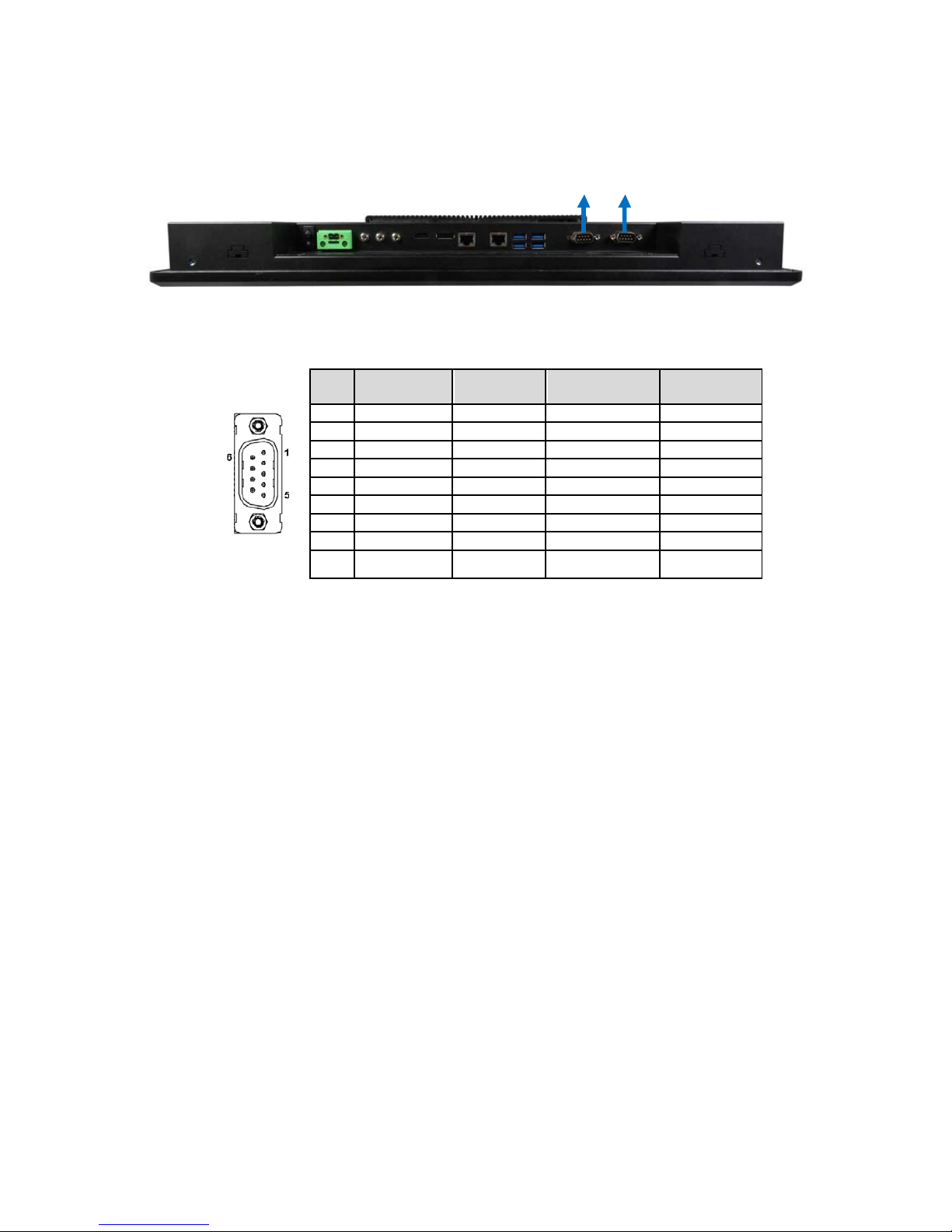

COM ports
COM ports with the pin definitions.
COM1~COM2 RS-232 / 422 / 485 Port DB-9
Pin RS-232 RS-422
Half Duplex
RS-485
Full Dupl ex
RS-485
1 DCD T X- DATA- TX2 RX D RX+ N/A RX+
3 TXD TX+ DATA+ TX+
4 DTR RX- N/A RX5 GND GND GND GND
6 DSR N/A N/A N/A
7 RTS N/A N/A N/A
8 CTS N/A N/A N/A
9 +5V
+5V +5V +5V
Fi gure 7 CO M po rt s
COM1
COM2
Page 21
Chapter 2
21 PP
C
-
1850/2150 Series User’s Manual

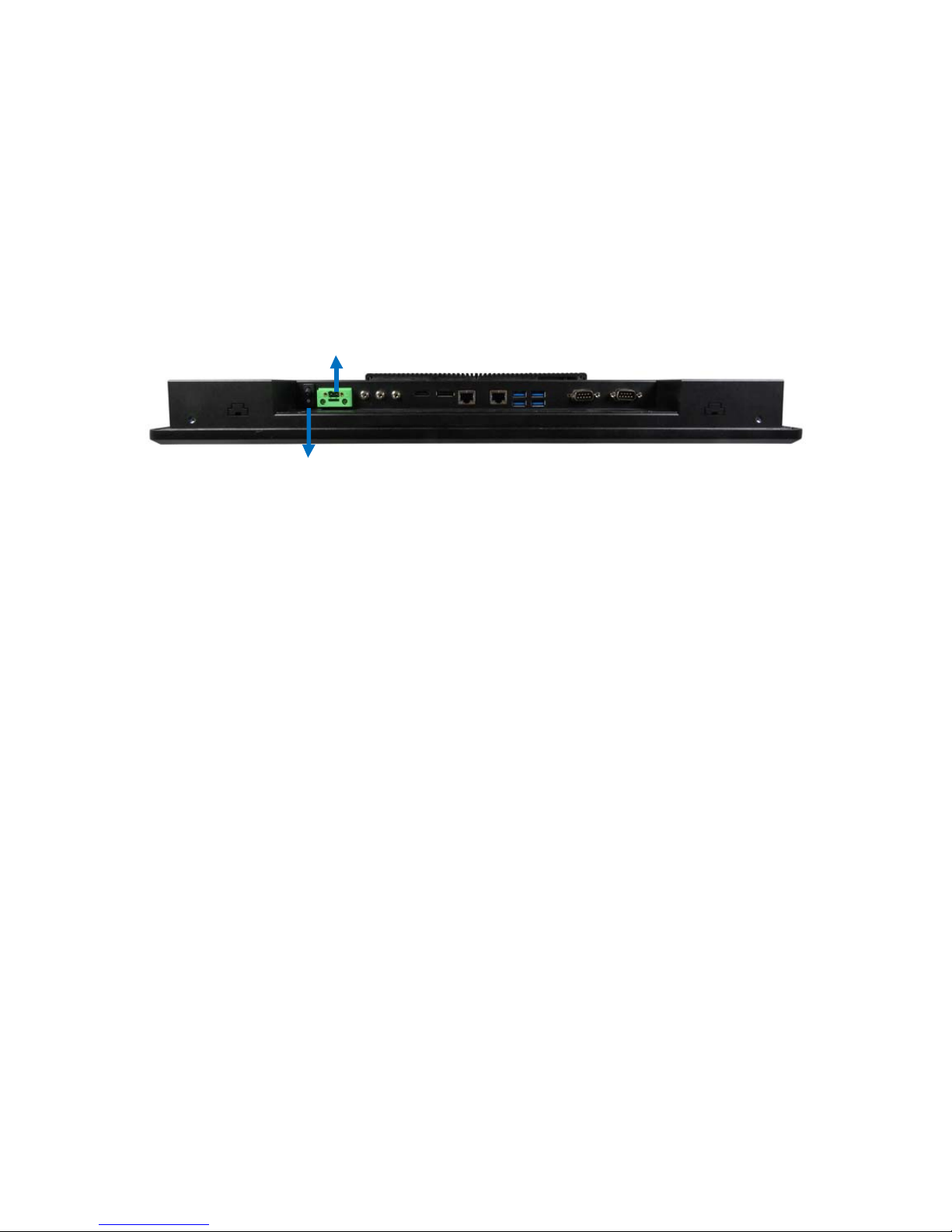

DC In
Turning on the system
1. Connect the power adapter cable to the Phoenix connector (DC IN) of the
PPC-1850/2150 Series
2. Connect the power cable to the power adapter
3. Connect the power cable to a power outlet
4. Press the power switch to turn on the system
Figure 8 Turning on the system
On / Off
Page 22
Chapter 2
22 PP
C
-
1850/2150 Series User’s Manual

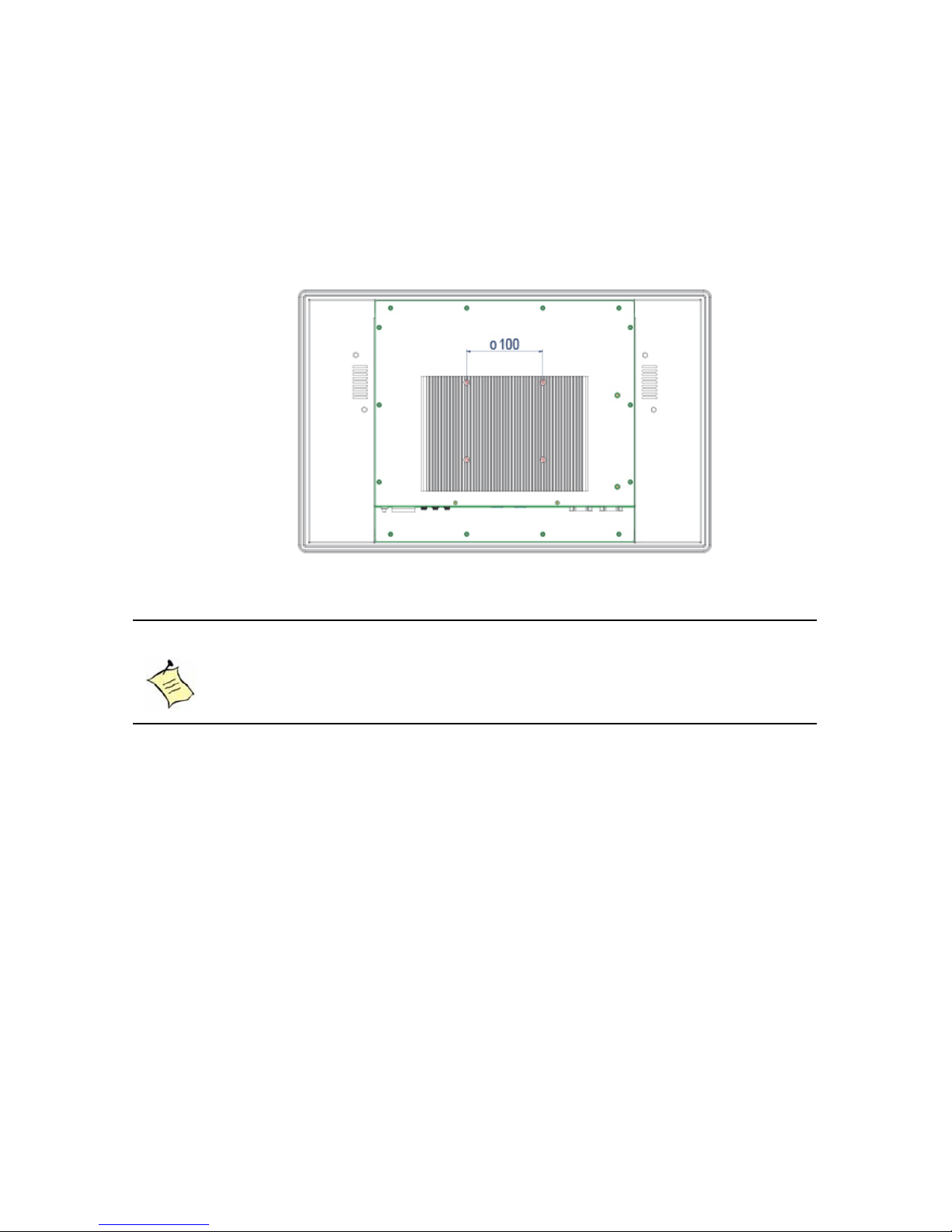

VESA Mounting
The product comes with VESA FDMI 100 standard mounting holes as shown below.
Use 4 screws with the appropriate length for your mounting bracket.
Figure 9 VESA Mounting Hole Locations
NOTE
To fasten the metal shelf, your monitor must comply with VESA100
standard. The VESA mounting kit is optional.
Page 23
Chapter 2
23 PP
C
-
1850/2150 Series User’s Manual
Panel Mounting
The Panel PC can be panel mounted and comes with brackets and screws for this
purpose. The required cutout for panel mounting and maximum panel thickness is
shown below.

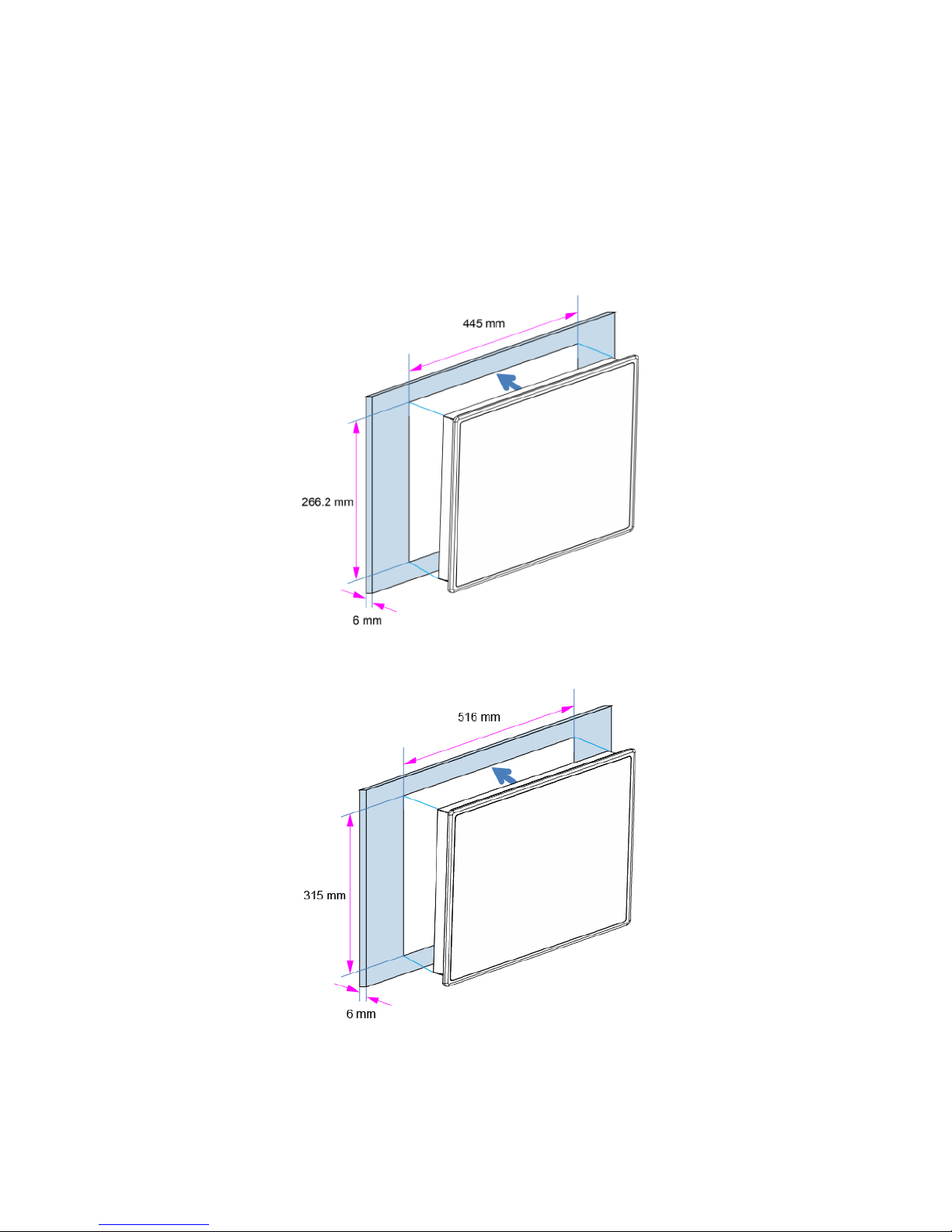

Figure 10 PPC-1850 Series Panel Mount Cut-out hole and maximum panel thickness
Figure 11 PPC-2150 Series Panel Mount Cut-out hole and maximum panel thickness
Page 24
Chapter 2
24 PP
C
-
1850/2150 Series User’s Manual

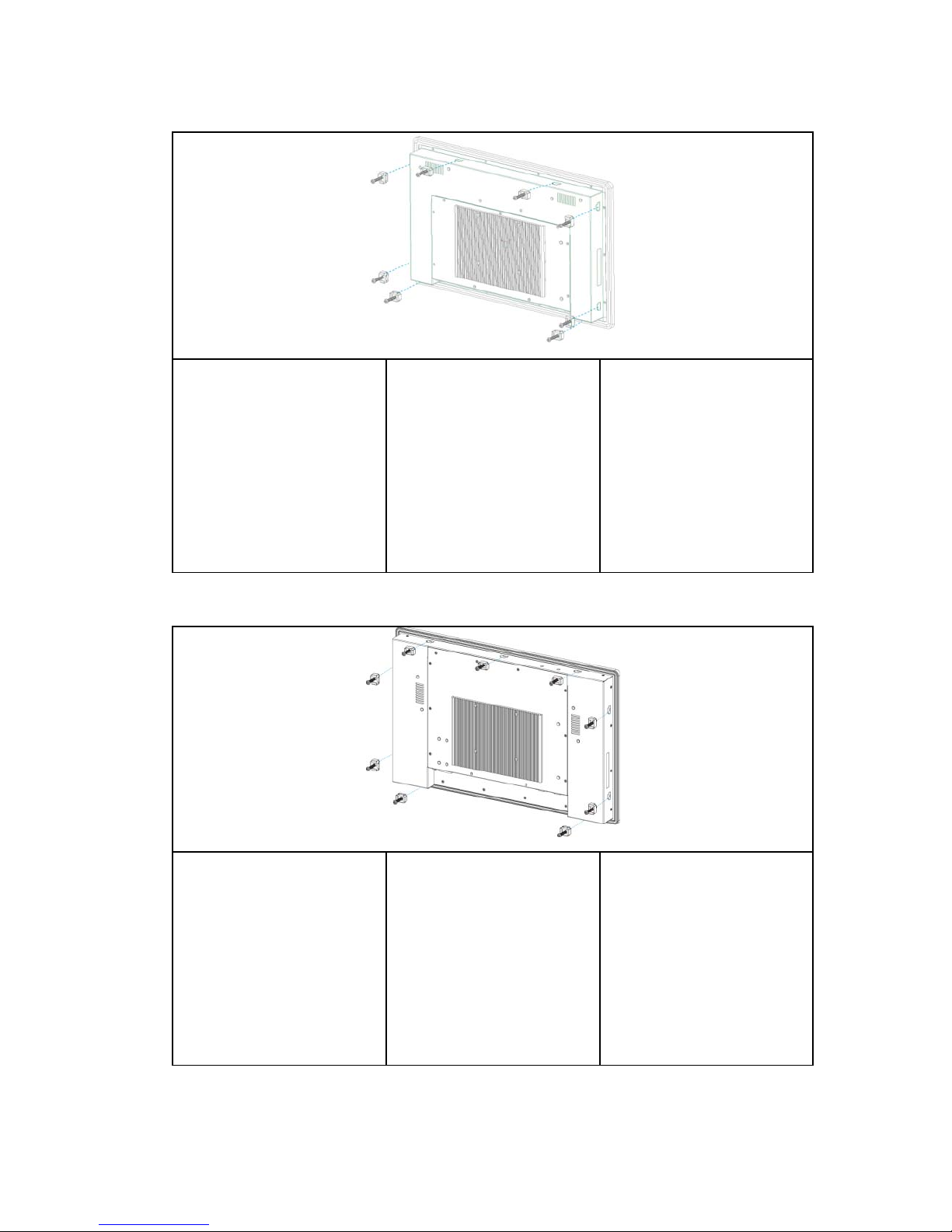

Below are the demonstrations of how to do panel mounting.
Step 1
Remove 8 Bracket
Opening Covers from
Bracket Openings with
Phillips Screwdriver (2 on
top, edge and two sides
respectively)
Step 2
Insert a Panel Mount
Bracket into each
Bracket Opening
Step 3
Secure Chassis to Panel
by tightening the screws
Figure 12 PPC-1850 Series Panel Mounting
Step 1
Remove 9 Bracket
Opening Covers from
Bracket Openings with
Phillips Screwdriver (3 on
top edge, 2 on bottom
edge, 2 on each side)
Step 2
Insert a Panel Mount
Bracket into each
Bracket Opening
Step 3
Secure Chassis to Panel
by tightening the screws
Figure 13 PPC-2150 Series Panel Mounting
Page 25
Chapter 3
25 PP
C
-
1850/2150 Series User’s Manual
Chapter 3
AMI BIOS Setup
Overview
This chapter provides a description of the AMI BIOS. The BIOS setup menus and
available selections may vary from those of your product. For specific information on
the BIOS for your product, please contact us.
NOTE: The BIOS menus and selections for your product may vary from
those in this chapter. For the BIOS manual specific to your product, please
contact us
AMI's ROM BIOS provides a built-in Setup program, which allows the user to modify
the basic system configuration and hardware parameters. The modified data will be
stored in a battery-backed CMOS, so that data will be retained even when the power
is turned off. In general, the information saved in the CMOS RAM will not need to be
changed unless there is a configuration change in the system, such as a hard drive
replacement or when a device is added.
It is possible for the CMOS battery to fail, which will cause data loss in the CMOS
only. If this happens you will need to reconfigure your BIOS settings.
Page 26
Chapter 3
26 PP
C
-
1850/2150 Series User’s Manual
Main Menu
The BIOS Setup is accessed by pressing the DEL key after the Power-On Self-Test
(POST) memory test begins and before the operating system boot begins. Once you
enter the BIOS Setup Utility, the Main Menu will appear on the screen. The Main
Menu provides System Overview information and allows you to set the System Time
and Date. Use the “<” and “>” cursor keys to navigate between menu screens.
Table 2 PPC-2150 Series BIOS Main Menu
BIOS SETUP UTILITY
Main Advanced Power Boot Security Save & Exit
Produc t In for m ati on
: Select Screen
↑↓: Selec t It em
Enter: Sel ect
+/-: Chang e Opt.
F1: Ge neral H elp
F2: Pre vious Val ues
F3: Optimize d Def aults
F4: Save & Exit
ESC: E xit
Produc t Name PPC-215 1
BIOS Version R0.0C ( x64)
BIOS Buil d D ate 06/ 26/ 20 17
ME Fi rmwar e SKU Cor porat e SKU
ME Fi rmwar e V ersion 11 .6. 29.32 87
CPU Infor mati on
Intel ® C or e™ i 5-6300U C PU @ 2 .4 0GHz
Microc ode Re vision BA
Processor Cor es 2Cor e(s) / 4T hr ea d(s )
Memory Information
Total Size 4096 MB (DDR4)
Fr eq uenc y 213 3 MHz
System Date [Wed 08/09/2017]
Sys te m Ti me [11:2 0:4 0]
Access Level Administrator
Versi on 2.18 .1 263 . C o p yright (C ) 201 7, A mer ic an Megatren ds, I nc.
Page 27
Chapter 3
27 PP
C
-
1850/2150 Series User’s Manual
Advanced Menu
Table 3 Advanced Menu
BIOS SETUP UTILITY
Main Adv anced Power Boot Security Save & Exit
Onb oar d LAN1 Contr ol ler [Ena bl ed]
: Select Screen
↑↓: Selec t It em
Enter: Sel ect
+/-: Chang e Opt.
F1: Ge neral H elp
F2: Pre vious Val ues
F3: Optimize d Def aults
F4: Save & Exit
ESC: E xit
Onb oar d LAN1 Boot [Dis abled ]
Onb oar d LAN2 Contr oller [Ena bl ed]
Onb oar d LAN2 Boot [Dis abled ]
Audio Con trol ler [Ena ble d]
> Di spl ay C onfi g uratio n
> Super IO Co nfig urati o n
> CPU Chipset Configuration
> SATA C onfi g uration
> USB C onfig urati on
> AMT Config urati on
> Tr usted C om puti ng
> N etwork Stac k
> DIO Confi gur ati o n
> H/W M onit or
> Intel® I210 Gig abit N etwor k Conn ectio n - 0 0:5 0:08:0 9:E1: 95
> Intel® E ther net C onnecti on I219-LM - 0 0:5 0:08: 09: E1: 94
Versi on 2.18 .1 263 . C o p yright (C ) 201 7, A mer ic an Megatren ds, I nc.
Onboar d LA N 1 Cont r olle r
Opti o ns : D is abled, Enabled
Onboar d LA N 1 Boot
Opti o ns : D is abled, Enabled
Onboar d LA N 2 Cont r olle r
Opti o ns : D is abled, Enabled
Onboar d LA N 2 Boot
Opti o ns : D is abled, Enabled
Audi o Cont ro ll e r
Options: Dis abled, Enabled
Page 28
Chapter 3
28 PP
C
-
1850/2150 Series User’s Manual
Table 4 Advanced Menu – Display Configuration
BIOS SETUP UTILITY
Main Adv anced Power Boot Security Save & Exit
Di splay C onfi g urati on : Select Scree n
↑↓: Selec t It em
Enter: Sel ect
+/-: Chang e Opt.
F1: Ge neral H elp
F2: Pre vious Val ues
F3: Optimize d Def aults
F4: Save & Exit
ESC: E xit
Primary Display
Aperture Size
[Aut o]
[256MB]
DVMT Pre-Allocated [64M]
DVMT Total Gfx Mem [256MB]
Primar y IGFX Boot Di spl ay [VBIO S Def ault]
Active LVDS [Enable d]
LVDS Panel T ype [1920x1080 2CH]
LVDS Panel Color Depth [24Bit]
PWM Bac kli ght Control [B y Ext er nal]
LVDS Backlight Control - P WM 190
Versi on 2.18 .1 263 . C o p yright (C ) 201 7, A mer ic an Megatren ds, I nc.
Pri mary D ispl ay
Options: Auto, IGFX, PCIE
Ap erture Size
Options: 128MB, 256MB, 512MB, 1024MB, 2048MB
D V M T Pre-Al located
Options: 32M, 64M, 4M, 8M, 12M, 16M, 20M, 24M, 28M, 32M/F7, 36M, 40M, 44M,
48M, 52M, 56M, 60M
DVMT Total Gfx Mem
Options: 128M, 256M, MAX
Primary IGFX Boot Display
Options: VBI OS Default, DP, HDMI, LVDS
L VDS Panel Type
Options: 800x600 1CH,
1024x768 1CH,
1280x1024 2CH,
1366x768 1CH,
1366x768 2CH,
1600x1200 2CH,
1920x1080 2CH
LVDS Panel Color Depth
Options: 18Bit, 24Bit
PWM Backlight Control
Options: By External, By Internal
Page 29
Chapter 3
29 PP
C
-
1850/2150 Series User’s Manual
Table 5 Advanced Menu – Super IO Configuration
BIOS SETUP UTILITY
Main Adv anced Power Boot Security Save & Exit
Sup er IO Configur atio n
>Seri al Port 1 Co nfig urati o n
>Seri al Port 2 Co nfig urati o n
: Select Screen
↑↓: Selec t It em
Enter: Sel ect
+/-: Chang e Opt.
F1: Ge neral H elp
F2: Pre vious Val ues
F3: Optimize d Def aults
F4: Save & Exit
ESC: E xit
Versi on 2.18 .1 263 . C o p yright (C ) 201 7, A mer ic an Megatren ds, I nc.
Table 6 Advanced Menu – Super IO Configuration – Serial Port 1 Configuration
BIOS SETUP UTILITY
Main Adv anced Power Boot Security Save & Exit
Serial Por t 1 Config urati on : Select Screen
↑↓: Selec t It em
Enter: Sel ect
+/-: Chang e Opt.
F1: Ge neral H elp
F2: Pre vious Val ues
F3: Optimize d Def aults
F4: Save & Exit
ESC: E xit
Serial Port [Ena bl ed]
Device Settings IO=3F8h ; IRQ= 4;
Chang e Setti ng s [Aut o]
Serial Por t 1 T ype [RS23 2]
Versi on 2.18 .1 263 . C o p yright (C ) 201 7, A mer ic an Megatren ds, I nc.
Serial Port
Opti o ns : D is abled, Enabled
Change Settings
Options: Auto,
IO=3F8h; IRQ=4;
IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
Serial Port 1 Type
Options: RS232, RS422, RS485
R S 485 Dupl ex M ode
Options: Half Duplex, Full Duplex
R S 485 Aut o Flo w Con trol
Opti o ns : D is abled, Enabled
Page 30
Chapter 3
30 PP
C
-
1850/2150 Series User’s Manual
Table 7 Advanced Menu – Super IO Configuration – Serial Port 2 Configuration
BIOS SETUP UTILITY
Main Adv anced Power Boot Security Save & Exit
Serial Por t 2 Config urati on : Select Screen
↑↓: Selec t It em
Enter: Sel ect
+/-: Chang e Opt.
F1: Ge neral H elp
F2: Pre vious Val ues
F3: Optimize d Def aults
F4: Save & Exit
ESC: E xit
Serial Port [Ena bl ed]
Device Settings IO=2F8h ; IRQ= 3;
Chang e Setti ng s [Aut o]
Serial Por t 2 T ype [RS23 2]
Versi on 2.18 .1 263 . C o p yright (C ) 201 7, A mer ic an Megatren ds, I nc.
Serial Port
Opti o ns : D is abled, Enabled
Change Settings
Options: Auto,
IO=2F8h; IRQ=3;
IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12
Serial Port 2 Type
Options: RS232, RS422, RS485
R S 485 Dupl ex M ode
Options: Half Duplex, Full Duplex
R S 485 Aut o Flo w Con trol
Opti o ns : D is abled, Enabled
Page 31
Chapter 3
31 PP
C
-
1850/2150 Series User’s Manual
Table 8 Advanced Menu – CPU Chipset Configuration
BIOS SETUP UTILITY
Main Adv anced Power Boot Security Save & Exit
CPU Chipset C onfiguration : Select Screen
↑↓: Selec t It em
Enter: Sel ect
+/-: Chang e Opt.
F1: Ge neral H elp
F2: Pre vious Val ues
F3: Optimize d Def aults
F4: Save & Exit
ESC: E xit
EIST [Ena bled]
Tur bo Mo de [Ena ble d]
Hyp er-threa di ng [Ena bl e d]
VT- d [Enabl e d]
Active Processor Cor es [All]
Intel (VMX) Vir tual iz ati on T echnolog y [Ena ble d]
Intel Tr usted E xec ution Tec hnol ogy [Dis abled ]
Versi on 2.18 .1 263 . C o p yright (C ) 201 7, A mer ic an Megatren ds, I nc.
EIS T
Opti o ns : D is abled, Enabled
Turbo Mode
Opti o ns : D is abled, Enabled
Hyper-threading
Opti o ns : D is abled, Enabled
VT-d
Opti o ns : D is abled, Enabled
A ct ive P rocessor Cores
Options: All, 1
Intel® (VMX) Virtualization Technology
Opti o ns : D is abled, Enabled
Page 32
Chapter 3
32 PP
C
-
1850/2150 Series User’s Manual
Table 9 Advanced Menu – SATA Configuration
BIOS SETUP UTILITY
Main Adv anced Power Boot Security Save & Exit
SATA Co nfig urati o n
: Select Screen
↑↓: Selec t It em
Enter: Sel ect
+/-: Chang e Opt.
F1: Ge neral H elp
F2: Pre vious Val ues
F3: Optimize d Def aults
F4: Save & Exit
ESC: E xit
SATA Controller(s) [Enabled]
SATA M o de Sel ec tion [AHC I]
Seri al ATA Port 1 Emp t y
Port 1 [Ena bl e d]
Seri al ATA Port 2 Emp t y
Port 2 [Enabl e d]
M.2 SATA Port 1 M.2 SATA M3B ( 3 2. 0GB)
Port 1 [Enabl e d]
Versi on 2.18 .1 263 . C o p yright (C ) 201 7, A mer ic an Megatren ds, I nc.
SAT A Controller(s)
Options: Enabled, Disabled
SATA Mode Selection
Options: AHCI, Intel RST Prem ium
Serial ATA Port 1
Opti o ns : D is abled, Enabled
Serial ATA Port 2
Opti o ns : D is abled, Enabled
M. 2 S ATA Port 1
Opti o ns : D is abled, Enabled
Page 33
Chapter 3
33 PP
C
-
1850/2150 Series User’s Manual
Table 10 Advanced Menu – USB Configuration
BIOS SETUP UTILITY
Main Adv anced Power Boot Security Save & Exit
USB Configuration : Sel ect Scree n
↑↓: Selec t It em
Enter: Sel ect
+/-: Chang e Opt.
F1: Ge neral H elp
F2: Pre vious Val ues
F3: Optimize d Def aults
F4: Save & Exit
ESC: E xit
USB Devices:
1 Ke y bo ard, 1 M o use, 1 Point
Leg ac y U SB Supp ort [Ena ble d]
XHCI H and- off [Enable d]
USB Mas s S torag e Dr iv er Support [Ena ble d]
Versi on 2.18 .1 263 . C o p yright (C ) 201 7, A mer ic an Megatren ds, I nc.
Legacy U SB Support
Options: Enabled, Disabled, Auto
XHCI Ha nd-of f
Options: Enabled, Disabled
U S B M ass S t orage Driver Support
Opti o ns : D is abled, Enabled
Page 34
Chapter 3
34 PP
C
-
1850/2150 Series User’s Manual
Table 11 Advanced Menu – AMT Configuration
BIOS SETUP UTILITY
Main Adv anced Power Boot Security Save & Exit
AMT C onfiguratio n : Select Screen
↑↓: Selec t It em
Enter: Sel ect
+/-: Chang e Opt.
F1: Ge neral H elp
F2: Pre vious Val ues
F3: Optimize d Def aults
F4: Save & Exit
ESC: E xit
AMT BIOS F eatures [Ena ble d]
Unc onfi gure M E [Dis abled ]
Versi on 2.18 .1 263 . C o p yright (C ) 201 7, A mer ic an Megatren ds, I nc.
AMT BIOS Features
Opti o ns : D is abled, Enabled
Unconfigure ME
Opti o ns : D is abled, Enabled
Table 12 Advanced Menu – Trusted Computing
BIOS SETUP UTILITY
Main Adv anced Power Boot Security Save & Exit
Config ur ati o n : Select Screen
↑↓: Selec t It em
Enter: Sel ect
+/-: Chang e Opt.
F1: Ge neral H elp
F2: Pre vious Val ues
F3: Optimize d Def aults
F4: Save & Exit
ESC: E xit
Secur it y De vi c e Supp ort [Dis abled ]
NO Securit y D evice Found
Versi on 2.18 .1 263 . C o p yright (C ) 201 7, A mer ic an Megatren ds, I nc.
Secu rity Dev ice Supp ort
Opti o ns : D is abled, Enabled
Page 35
Chapter 3
35 PP
C
-
1850/2150 Series User’s Manual
Table 13 Advanced Menu – Network Stack
BIOS SETUP UTILITY
Main Adv anced Power Boot Security Save & Exit
Networ k Stac k [Dis abled ] : Select Screen
↑↓: Selec t It em
Enter: Sel ect
+/-: Chang e Opt.
F1: Ge neral H elp
F2: Pre vious Val ues
F3: Optimize d Def aults
F4: Save & Exit
ESC: E xit
Versi on 2.18 .1 263 . C o p yright (C ) 201 7, A mer ic an Megatren ds, I nc.
N et wo rk S t ack
Opti o ns : D is abled, Enabled
Page 36
Chapter 3
36 PP
C
-
1850/2150 Series User’s Manual
Table 14 Advanced Menu – DIO Configuration
BIOS SETUP UTILITY
Main Adv anced Power Boot Security Save & Exit
DIO Config urati on
: Select Screen
↑↓: Selec t It em
Enter: Sel ect
+/-: Chang e Opt.
F1: Ge neral H elp
F2: Pre vious Val ues
F3: Optimize d Def aults
F4: Save & Exit
ESC: E xit
Us er Confi gur ati o n [Dis abled ]
DI_1 1
DI_2 1
DI_3 1
DI_4 1
DO_1 0
DO_2 0
DO_3 0
DO_4 0
Versi on 2.18 .1 263 . C o p yright (C ) 201 7, A mer ic an Megatren ds, I nc.
User Configuration
Options: Enabled, Disabled
DO_1
Options: Output Low, Output High
DO_2
Options: Output Low, Output High
DO_3
Options: Output Low, Output High
DO_4
Options: Output Low, Output High
Page 37
Chapter 3
37 PP
C
-
1850/2150 Series User’s Manual
Tabl e 1 5 Advance d Me nu – H/W M oni tor
BIOS SETUP UTILITY
Main Adv anced Power Boot Security Save & Exit
PC Heal th Stat us
: Select Screen
↑↓: Selec t It em
Enter: Sel ect
+/-: Chang e Opt.
F1: Ge neral H elp
F2: Pre vious Val ues
F3: Optimize d Def aults
F4: Save & Exit
ESC: E xit
CPU T emper ature : +46 C
Memor y T e mperat ure : +46 C
Sys te m Te mp er at ure : + 45 C
+VCORE : +0.920 V
+VIN : +12.000 V
+3VCC : +3.360 V
+3VSB : +3.360 V
+VBAT : +3.1 20 V
+5VA : +5.160 V
+3VA : +3.296 V
Versi on 2.18 .1 263 . C o p yright (C ) 201 7, A mer ic an Megatren ds, I nc.
Page 38
Chapter 3
38 PP
C
-
1850/2150 Series User’s Manual
Table 16 Advanced Menu – Intel I210 Gigabit Network Connection
BIOS SETUP UTILITY
Main Adv anced Power Boot Security Save & Exit
> NIC Configuration
: Select Screen
↑↓: Selec t It em
Enter: Sel ect
+/-: Chang e Opt.
F1: Ge neral H elp
F2: Pre vious Val ues
F3: Optimize d Def aults
F4: Save & Exit
ESC: E xit
Blink LED 0
UEFI D river Intel® PRO/1 000 7. 4. 25 PCI-E
Ada pter PBA 200 50 0- 00 0
Device Na me Intel® I210 Gig abit Net wor k Co nnectio n
Chip T ype Intel i210
PCI Device ID 1533
PCI Ad dr ess 02: 00: 00
Lin k Stat us [D isconn ec te d]
MAC Addr ess 00: 50: 08: 09: E1: 95
Virtual M AC Addres s 00: 00: 00:00: 00:0 0
Versi on 2.18 .1 263 . C o p yright (C ) 201 7, A mer ic an Megatren ds, I nc.
NIC Conf igur a t io n
Link Speed [Auto Negotiated]
Options: Auto Negotiated, 10 Mbps Half, 10 Mbps Full, 100 Mbps Half, 100
Mbps Full
Wake On LAN [Enabled]
Opti o ns : D is abled, Enabled
Page 39
Chapter 3
39 PP
C
-
1850/2150 Series User’s Manual
Table 17 Advanced Menu – Intel Ethernet Connection I219-LM
BIOS SETUP UTILITY
Main Adv anced Power Boot Security Save & Exit
PORT CONFIGURATION MENU
: Select Screen
↑↓: Selec t It em
Enter: Sel ect
+/-: Chang e Opt.
F1: Ge neral H elp
F2: Pre vious Val ues
F3: Optimize d Def aults
F4: Save & Exit
ESC: E xit
> NIC Configuration
Blink LEDs 0
PORT C ONFIGURATION INFORM ATION
UEFI Driver: Intel® Gigabit 0.0.16
Adapter PBA: FFFFFF-OFF
Chip T ype Intel PCH SPT
PCI De vice ID 156F
PCI Ad dr ess 00: 1F:0 6
Lin k Stat us [D isconnec te d]
MAC Addr ess 00: 50: 08: 09: E1:94
Versi on 2.18 .1 263 . C o p yright (C ) 201 7, A mer ic an Megatren ds, I nc.
NIC Conf igur a t io n
Link Speed [Auto Negotiated]
Options: Auto Negotiated, 10 Mbps Half, 10 Mbps Full, 100 Mbps Half, 100
Mbps Full
Wake On LAN [Enabled]
Opti o ns : D is abled, Enabled
Page 40
Chapter 3
40 PP
C
-
1850/2150 Series User’s Manual
Power Menu
Table 18 Power Configuration
BIOS SETUP UTILITY
Main Advanced Po wer Boot Security Save & Exit
Po wer Config ur ati on
: Select Screen
↑↓: Selec t It em
Enter: Sel ect
+/-: Chang e Opt.
F1: Ge neral H elp
F2: Pre vious Val ues
F3: Optimize d Def aults
F4: Save & Exit
ESC: E xit
ACPI Sleep St ate [S3 ( Sus p end to RAM) ]
Res tor e AC Power Loss [Po wer O ff]
Po wer S aving M ode [D isabl ed]
Resume E vent Control
Resume B y LAN Device [Disabled]
Resume B y PCI-E Device [Disabled]
Resume B y Ring Devic e [Disabled]
Resume B y RTC Alarm [Disabled]
>WatchD og Ti mer C onfi g uration
Versi on 2.18 .1 263 . C o p yright (C ) 201 7, A mer ic an Megatren ds, I nc.
R est ore AC P ower L oss
Options: Power Off, Power On, Last State
Power Saving Mode
Options: Disabled, EUP Enabled, DeepSx Enabled
R esume By LAN Device
Opti o ns : D is abled, Enabled
Resume By PCI-E Device
Opti o ns : D is abled, Enabled
R esume By Ring D evice
Opti o ns : D is abled, Enabled
R esume By RTC Alarm
Opti o ns : D is abled, Enabled
Watchdog Timer Configuration
■ WDT Fu nction [Disabled]
Opti o ns : D is abled, Enabled
Page 41
Chapter 3
41 PP
C
-
1850/2150 Series User’s Manual
Boot Menu
Table 19 Boot Menu
BIOS SETUP UTILITY
Main Advanced Power Boot Security Save & Exit
Boot Con fig ur ati on : Sel ect Scree n
↑↓: Selec t It em
Enter: Sel ect
+/-: Chang e Opt.
F1: Ge neral H elp
F2: Pre vious Val ues
F3: Optimize d Def aults
F4: Save & Exit
ESC: E xit
Ful l Scr een LO GO D ispl a y [Dis abled ]
Setu p Pr om pt Ti meo ut 1
Boot up N umLoc k St ate [On]
CSM Sup por t [Enabl e d]
Boot Option F il t er [U EFI a nd Leg ac y]
Boot Op ti on Prior i ties
Versi on 2.18 .1 263 . C o p yright (C ) 201 7, A mer ic an Megatren ds, I nc.
Full Screen LOGO Display
Opti o ns : D is abled, Enabled
Boot up Numloc k Sta te
Options: On, Of f
CSM Support
Options: Enabled, Disabled
Boot Option F ilter
Options: UEFI and Legacy, Legacy only, UEFI only
Page 42
Chapter 3
42 PP
C
-
1850/2150 Series User’s Manual
Security Menu
Table 20 Security Menu
BIOS SETUP UTILITY
Main Advanced Power Boot Secu rity Save & Exit
Pass wor d Description
If ON LY the Admi nistrator’s p ass word is s et, then this o nl y limits access to
Setu p and is o nly as ked f or whe n ent er ing Set up
If ON LY the U ser’ s pas s word is set , th en this is a p o wer o n pas s word and
must be entered to boot or ent er Se tup. In Setup the User will have
Admi nistrator rights
The p ass word l ength mus t b e in the f oll owi ng rang e:
Mini mum L ength 3
M axi mu m l e ng th 2 0
Admi nistrator Password
User Password
: Select Screen
↑↓: Selec t It em
Enter: Sel ect
+/-: Chang e Opt.
F1: Ge neral H elp
F2: Pre vious Val ues
F3: Optimize d Def aults
F4: Save & Exit
ESC: E xit
Versi on 2.18 .1 263 . C o p yright (C ) 201 7, A mer ic an Megatren ds, I nc.
Page 43
Chapter 3
43 PP
C
-
1850/2150 Series User’s Manual
Save & Exit Menu
Table 21 Save & Exit Menu
BIOS SETUP UTILITY
Main Advanced Power Boot Security Save & Exit
Save C hanges and Reset
Di scar d Chang es an d Res et
Save Options
Save C hanges
Di scar d Chang es
Res tor e De faults
: Select Screen
↑↓: Selec t It em
Enter: Sel ect
+/-: Chang e Opt.
F1: Ge neral H elp
F2: Pre vious Val ues
F3: Optimize d Def aults
F4: Save & Exit
ESC: E xit
Versi on 2.18 .1 263 . C o p yright (C ) 201 7, A mer ic an Megatren ds, I nc.
Page 44
Chapter 3
44 PP
C
-
1850/2150 Series User’s Manual
Save Chang es and Exit
Exit system setup after saving the changes. Once you are finished making your
selections, choose this option from the Exit menu to ensure the values you selected
are saved to the CMOS RAM. The C MOS RAM is sustained by an onboard backup
battery and stays on even when the PC is turned off. When you select this option, a
confirmation window appears. Select [Yes] to save changes and exit.
D iscard Changes and Exit
Exit system setup without saving any changes. Select this option only if you do not
want to save the changes that you made to the Setup program. If you made changes
to fields other than system date, system time, and password, the BIOS asks for a
confirmation before exiting.
D iscard Changes
Discards changes done so far to any of the setup values. This option allows you to
discard the selections you made and restore the previously saved values. After
selecting this option, a confirmation appears. Select [Yes] to discard any changes and
load the previously saved values.
Load Optimal Defaults
Load Optimal Default values for all the setup values. This option allows you to load
optimal default values for each of the parameters on the Setup menus, which will
provide the best performance settings for your system. The F9 key can be used for
this operation.
Load Fai ls a f e Def a ults
Load Optimal Default values for all the setup values. This option allows you to load
failsafe default values for each of the parameters on the Setup menus, which will
provide the most stable performance settings. The F8 key can be used for this
operation.
Page 45
Chapter 4
45 PP
C
-
1850/2150 Series User’s Manual
Chapter 4
Driver Installa tion
If your PPC-1850/2150 Series does not come with an operating system pre-installed,
you will need to install an operating system and the necessary drivers to operate it.
After you have finished assembling your system and connected the appropriate
power source, power it up using the power supply and install the desired operating
system.
You can download the drivers for the PPC-1850/2150 Series from our website and
install as instructed there. For other operating systems, please contact us.
Loading...
