KPC-2150 Series User’s Manual

KPC-2150 Series

21.5” Fanless Panel PC with Intel®Celeron®J1900 Processors

User’s Guide

Page 2

KPC-2150 Series User’s Manual

Contact Info: Quanmax Inc.

4F, No. 415, Ti-Ding Blvd. Sec. 2NeiHu District, Taipei 114Taiwan Tel: +886-2-2799-2789 Fax: +886-2-2799-7399

Visit our site at: www.quanmax.com

The information in this user’s guide is provided for reference only. Quanmax does not assume any liability arising out of the application or use of the information or products described herein. This user’s guide may contain or reference information and products protected by copyrights or patents and does not convey any license under the patent rights of Quanmax, nor the rights of others. Quanmax is a registered trademark of Quanmax. All trademarks, registered trademarks, and trade names used in this user’s guide are the property of their respective owners. All rights reserved. This user’s guide contains information proprietary to Quanmax. Customers may reprint and use this user’s guide in other publications. Customers may alter this user’s guide and publish it only after they remove the Quanmax name, cover, and logo. Quanmax reserves the right to make changes without notice in product or component design as warranted by evolution in user needs or progress in engineering or manufacturing technology. Changes which affect the operation of the unit will be documented in the next revision of this user’s guide.

Page 3

Content

KPC-2150 Series User’s Manual

Content

Content.......................................................................................................................3

Figures.......................................................................................................................4

Tables.........................................................................................................................5

Safety Instructions......................................................................................................6

 Before You Begin.........................................................................................6

 When Working Inside a Computer...............................................................6

 Preventing Electrostatic Discharge..............................................................7

Preface....................................................................................................................... 9

 How to Use This Guide................................................................................9

 Unpacking ...................................................................................................9

 Regulatory Compliance Statements............................................................ 9

 Warranty Policy.........................................................................................10

 Maintaining Your Computer....................................................................... 11

Chapter 1 Introduction...........................................................................................14

 Overview ...................................................................................................14

 Product Specifications...............................................................................15

 System tour...............................................................................................16

Mechanical Dimensions....................................................................................18

Chapter 2 Getting Started...................................................................................... 19

 Setting up your PC....................................................................................19

 VESA Mounting.........................................................................................23

 Panel Mounting..........................................................................................24

Chapter 3 AMI BIOS Setup......................................................................................26

 Overview ...................................................................................................26

 Main Menu.................................................................................................27

 Advanced Menu.........................................................................................28

 Security Menu............................................................................................37

 Boot Menu.................................................................................................38

 Save & Exit Menu......................................................................................39

Chapter 4 Driver Installation ..................................................................................40

Page 4

Figures

KPC-2150 Series User’s Manual

Figures

Figure 1 I/Os..............................................................................................16

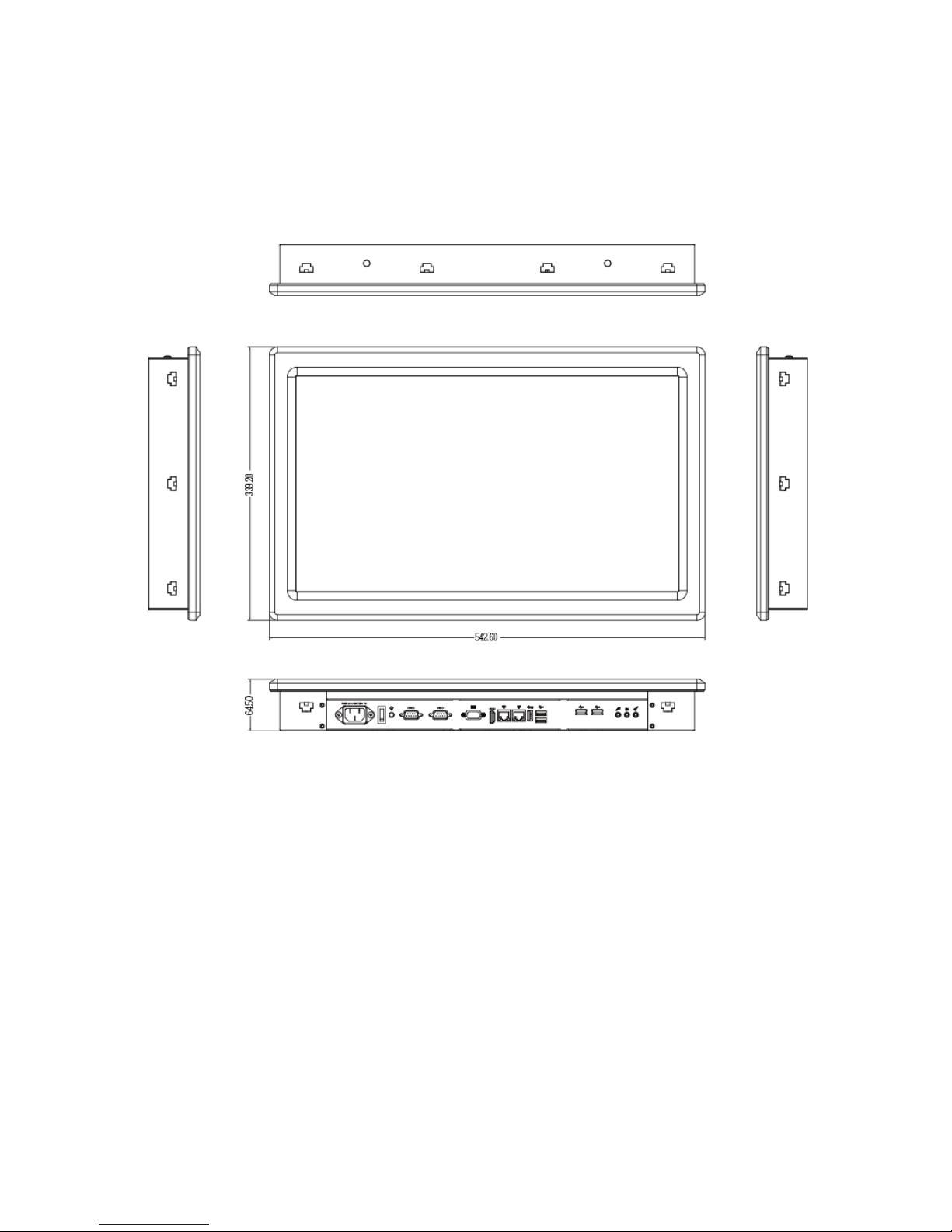

Figure 2 Mechanical Dimensions...............................................................18

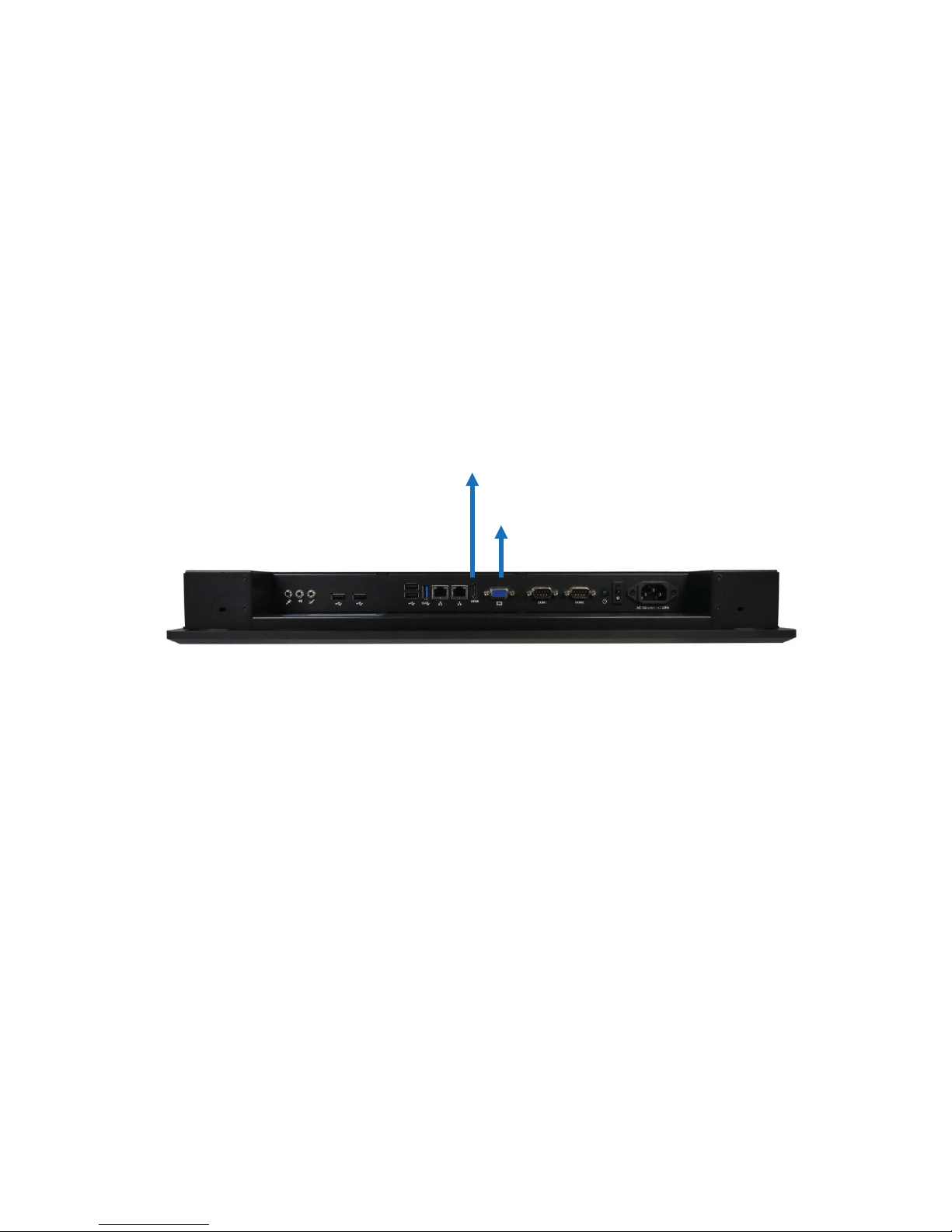

Figure 3 VGA / HDMI................................................................................. 19

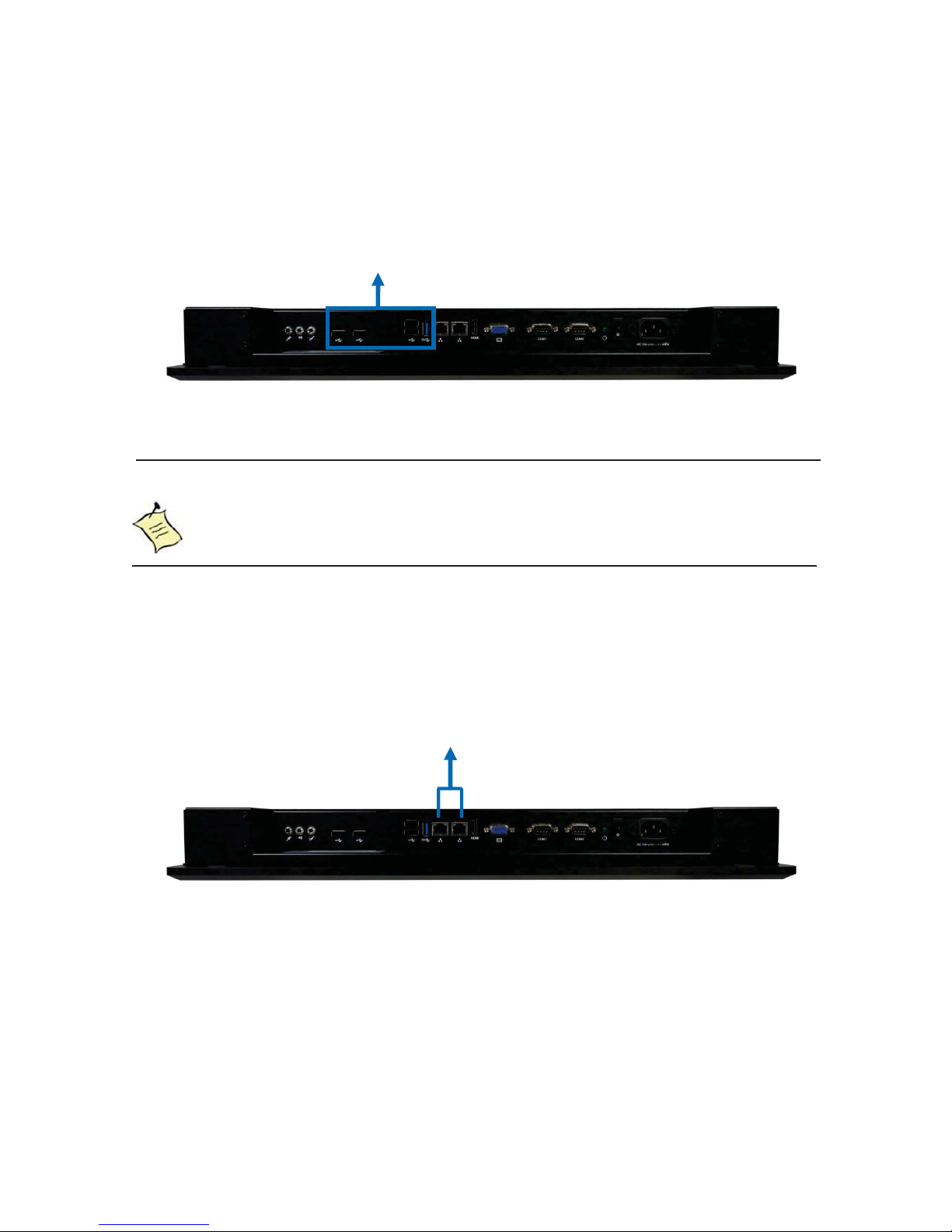

Figure 4 Connect USB mouse & keyboard................................................20

Figure 5 RJ45 connector............................................................................20

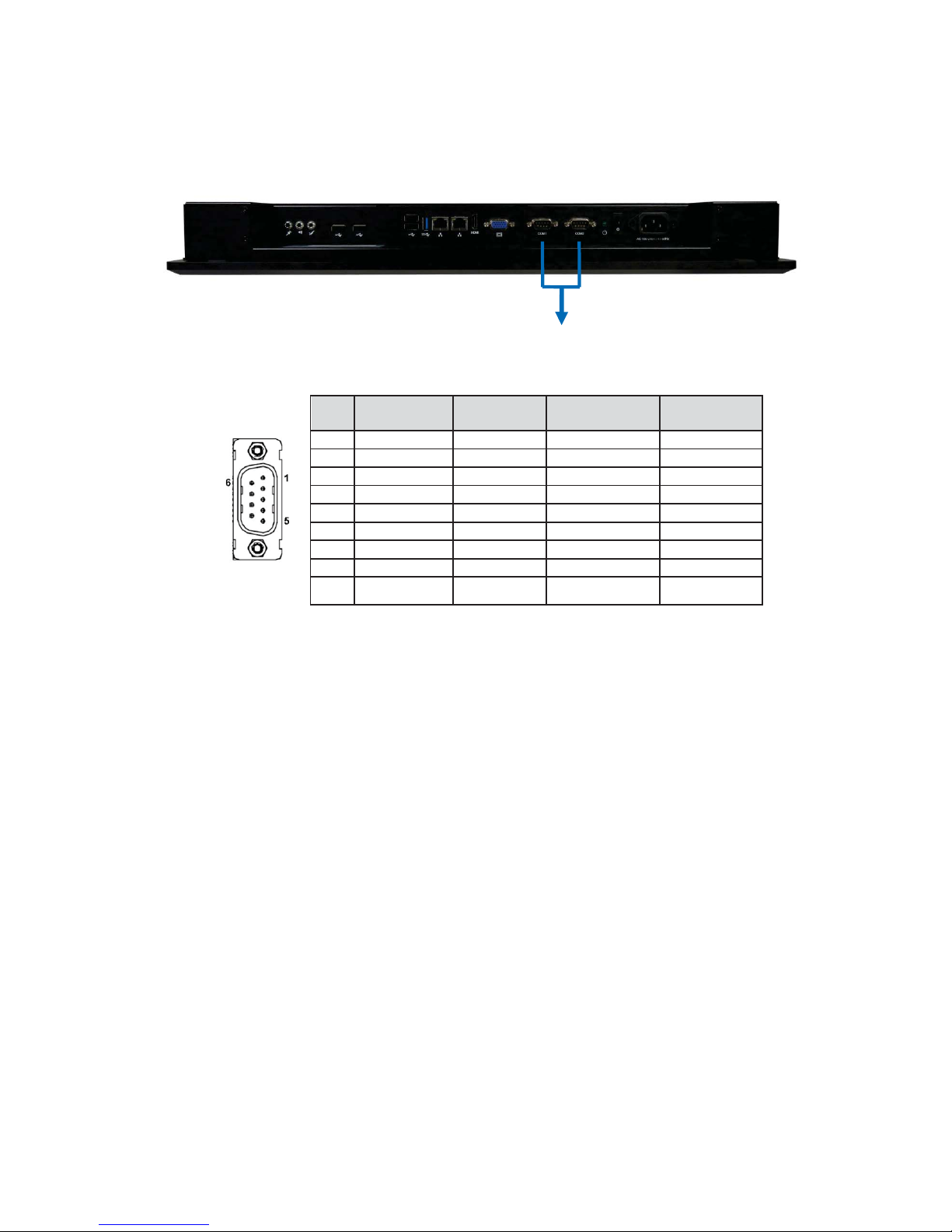

Figure 6 COM port.....................................................................................21

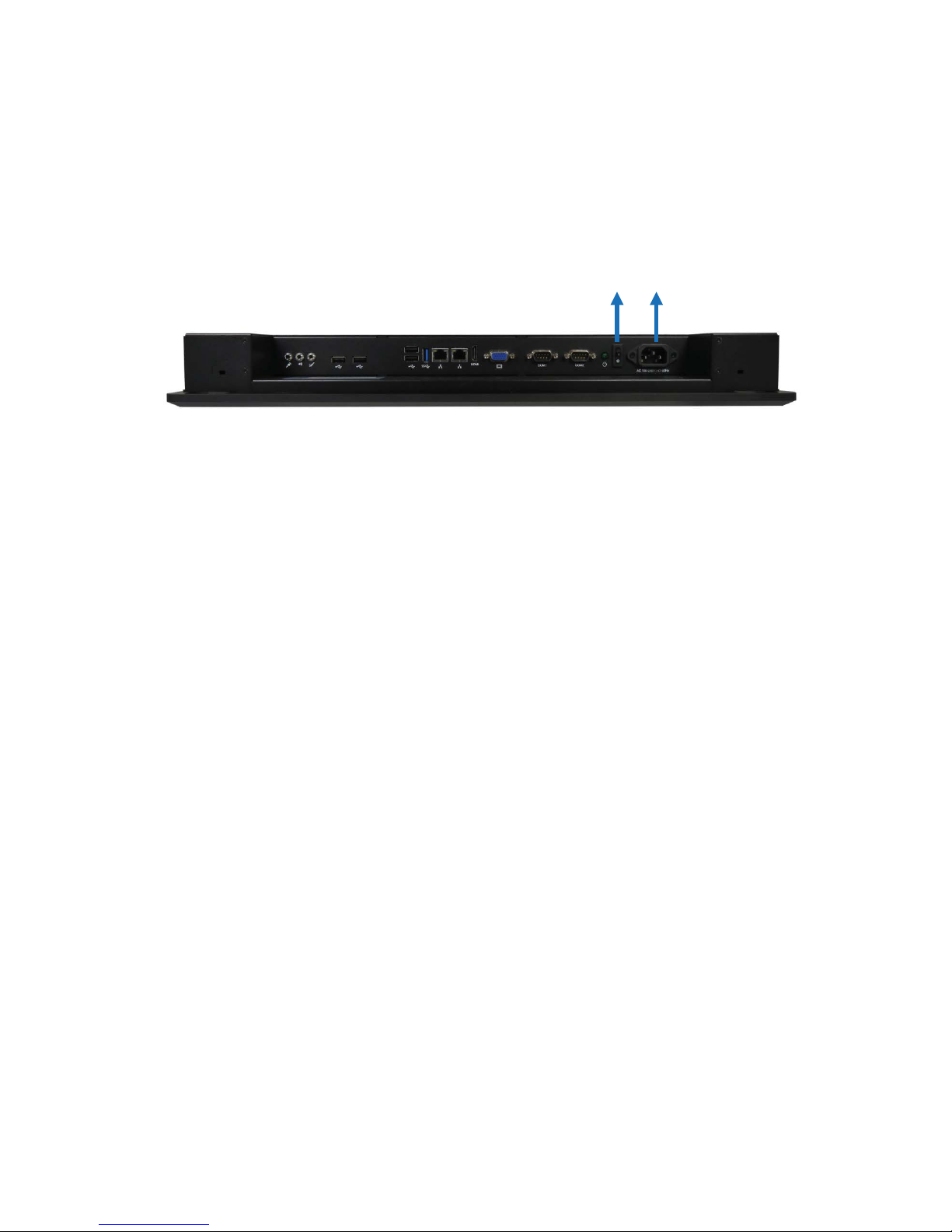

Figure 7 Turning on the system................................................................. 22

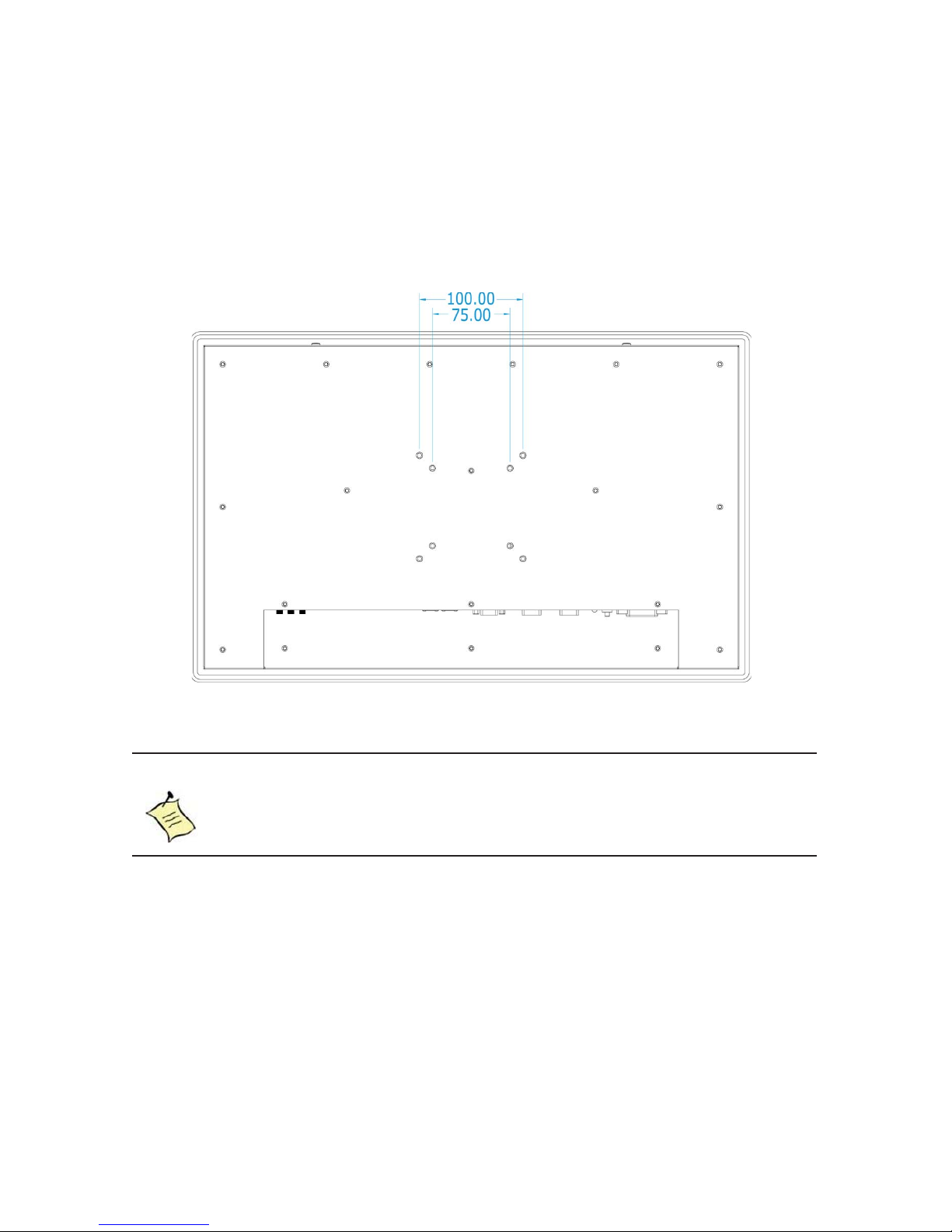

Figure 8 VESA Mounting Hole Locations................................................... 23

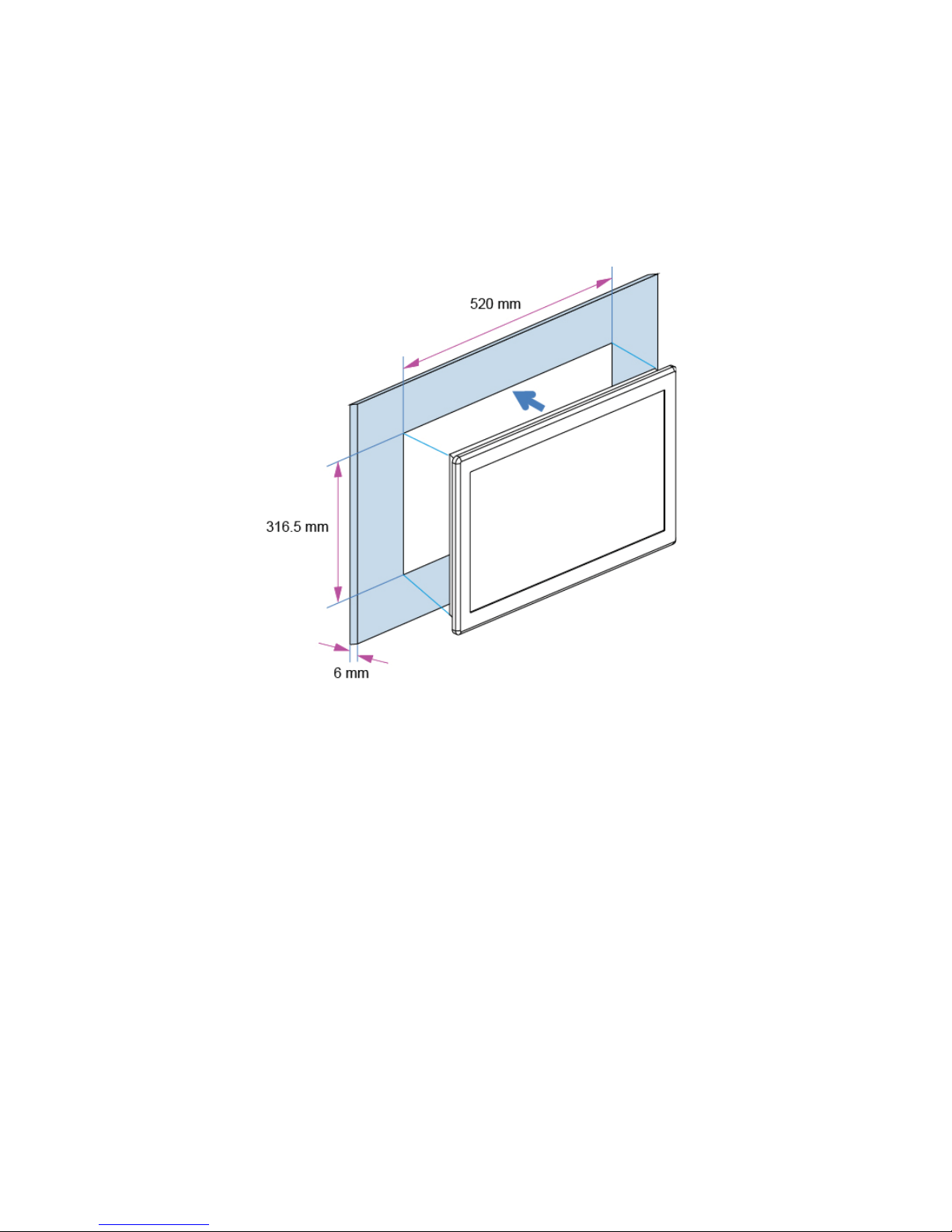

Figure 9 Panel Mount Cut-out hole and maximum panel thickness...........24

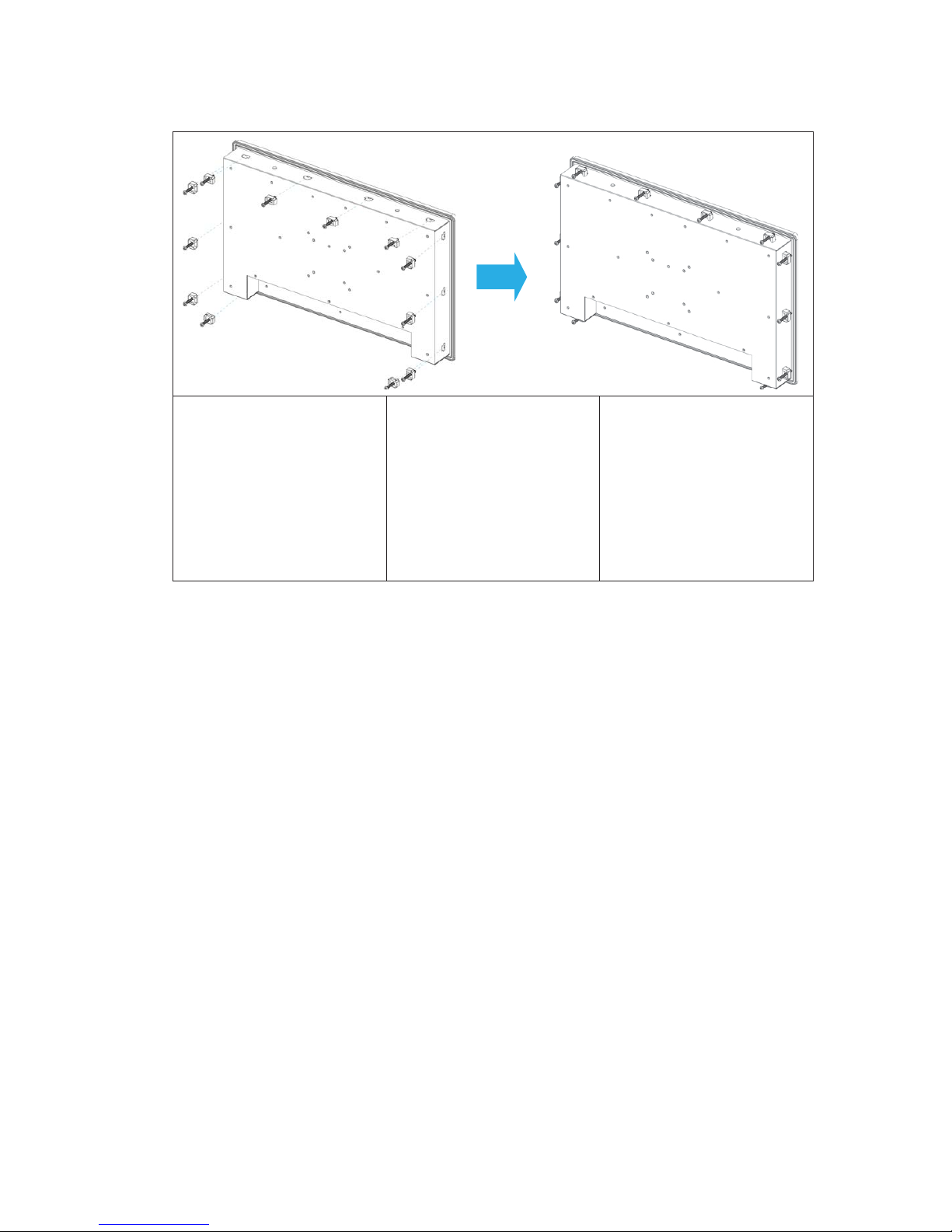

Figure 10 Panel Mounting..........................................................................25

Page 5

Tables

KPC-2150 Series User’s Manual

Tables

Table 1 KPC-2150 product specifications ..................................................15

Table 2 KPC-2150 BIOS Main Menu..........................................................27

Table 3 Advanced Men u.............................................................................28

Table 4 Advanced Menu – Display Configuration.......................................29

Table 5 Advanced Menu – Super IO Configuration....................................30

Table 6 Advanced Menu – Super IO Configuration – Serial Port 1

Configuration ...................................................................................... 30

Table 7 Advanced Menu – Super IO Configuration – Serial Port 2

Configuration ...................................................................................... 31

Table 8 Advanced Menu –CPU Chipset Configuration...............................32

Table 9 Advanced Menu –SATA Configuration...........................................33

Table 10 Advanced Menu –USB Configuration.......................................... 34

Table 11 Advanced Menu – H/W Monitor...................................................35

Table 12 Power Menu................................................................................36

Table 13 SecurityMenu ............................................................................. 37

Table 14 Boot Menu................................................................................... 38

Table 15 Save & Exit Menu........................................................................39

Page 6

Safety Instructions

KPC-2150 Series User’s Manual

Safety Instructions

 Before You Begin

Before handling the product, read the instructions and safety guidelines on the following pages to prevent damage to the product and to ensure your own personal safety . Re fer to the “ Advis ories” section in the Preface for advisory conventions us ed in this user’s guide, including the distinction between Warnings, Cautions, Important Notes, and Notes.

 Always use caution when handling/operating a computer. Only qualified,

experienced, authorized electronics service personnel should access the interior of a computer. The power supplies produce high voltages and energy hazards, which can cause bodily harm.

 Use extreme caution when installing or removing componen ts. Re fer to th e

installation instructions in this user’s guide for precautions and procedures. If you have any questions, please contact Quanmax Post-Sales Technical Support.

WARNING

High voltages are present insid e the chassis when the unit’ s pow er cord is plugged into an electrical outlet. Turn off system power, turn off the power supply, and then disconnect the power cord from its source before removing the chassis c over. Turning off the system pow er sw itch doe s not remove power to componen ts.

 When Working Inside a Computer

Before taking covers off a computer, perform the following steps:

1. Turn off the computer and any peripherals.

2. Disconnect the computer and peripherals from their power sources or subsystems to prevent electric shock or system board damage. This does not apply when hot swapping parts.

Page 7

Safety Instructions

KPC-2150 Series User’s Manual

3. Follow the guidelines provided in “Preventing Electrostatic Discharge” on the following page.

4. Disconnect any telephone or telecommunicati ons lines fr om the compu ter.

In addition, take note of these safety guidelines when appropriate:

 To help avoid possible damage to system boards, wait five seconds after

turning off the computer before removing a component, removing a system board, or disconnecting a peripheral device from the computer.

 When you dis connect a cable, pull on its connector or on its strain-relief loop,

not on the cable itself. Some cables have a connector with locking tabs. If you are disconnecting this type of cable, press in on the locking tabs before disconnecting the cable. As you pull connectors apart, keep them evenly aligned to avoid bending any connector pins. Also, before connecting a cable, make sure both connectors are correctly oriented and aligned.

CAUTION

Do not attempt to service the system yourself except as explained in this user’s guide. Follow installation and troubleshooting instructions closely.

 Preventing Electrostatic Discharge

Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD procedure to reduce the risk of damage to components. Quanmax strongly encourages you to follow proper ESD procedure, which can include wrist straps and smocks, when servicing equipment. You can also take the following steps to prevent damage from electrostatic discharge (ESD):

 When unpacking a static-sensitive component from its shipping carton, do not

remove the compone nt’s antistatic packing material unti l you are ready to install the component in a computer. Just before unwrapping the antistatic packaging, be sure you are at an ESD workstation or grounded. This will discharge any static electricity that may have built up in your body.

Page 8

Safety Instructions

KPC-2150 Series User’s Manual

 When transporting a sensitive component, first place it in an antistatic container

or packaging.

 Handle all sensitive components at an ESD workstation. If possible, use

antistatic floor pads and workbench pads .

 Handle components and boards with care. Don’t touch the components or

contacts on a board. Hold a b oard by i ts edges or by its metal mounting bracket.

 Do not handle or st ore system b oards near str ong electr ostati c, elec t romag netic,

magnetic, or radioactive fields.

Page 9

Preface

KPC-2150 Series User’s Manual

Preface

 How to Use This Guide

This guide is designed to be used as step- by-step instruc tions for i nstallation, an d as a reference for operation, troubleshooting, and upgrades.

NOTE

Driver downloads and additional information are available under Downloads on our web site: www.quanmax.com.

 Unpacking

When unpacking, follow these steps:

1. After opening the box, save it and the packing material for possible future

shipment.

2. Remove all items from the box. If any items listed on the purchase order

are missing, notify Quanmax customer service immediately.

3. Inspect the product for damage. If there is damage, notify Quanmax

customer service immediately. Refer to “Warranty Policy” for the return procedure.

 Regulatory Compliance Statements

This section provides the FCC compliance statement for Class A devices.

FCC Compliance Statement for Class A Devices

The product(s) described in this user’s guide has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the user’s guide, may cause harmful interference to radio communications. Operation of this equipment in a residential

Page 10

Preface

KPC-2150 Series User’s Manual

area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense. Changes or modificati ons not expr essly approv ed by Quanmax could v oid the us er's authority to operate the equipment.

NOTE

The assembler of a personal computer system may be required to test

the system and/or make necess ary modific ations i f a system i s found to cause harmful interference or to be noncompliant with the appropriate

standards for its intended use.

 Warranty Policy

Limited Warranty

Quanmax Inc.’s detailed Limited Warranty policy can be found under Support at www.quanmax.com. Please consult your distributor for warranty verification. The limited warranty is void if the product has been subjected to alteration, neglect, misuse, or abuse; if any repairs have been attempted by anyone other than Quanmax or its auth or i z ed ag ent; or if the failur e is ca use d by accident, acts of Go d , or other causes beyond the control of Quanmax or the manufacturer. Neglect, misuse, and abuse shall include any installation, operation, or maintenance of the product other than in accordance with the user’s guide. No agent, dealer, distri butor, servi ce company, or other party is authorized to ch ange, modify, or extend the terms of this Limited Warranty in any manner whatsoever. Quanmax reserves the right to make changes or improvements in any product without incurring any obligation to similarly alter products previously purchased.

Return Procedure

For any Limited Warranty return, please contact Support at www.quanmax.com and login to obtain a Return M ater i al Authorization (RMA) Number. If you do not have a n account, send an email to [email protected] to apply for one. All product(s) returned to Quanmax for service or credit must be accompanied by a Return Material Authorization (RMA) Number. Freight on all returned items must be prepaid by the customer who is responsible for any loss or damage caused by common carrier in transit. Returns for Warranty must include a Failure Report for each unit, by serial number(s), as well as a copy of the original invoice showing the

Page 11

Preface

KPC-2150 Series User’s Manual

date of purchase. To reduce risk of damage, returns of product must be in a Quanmax shipping container. If the original container has been lost or damaged, new shipping containers may be obtained from Quanmax Customer Service at a nominal cost. Quanmax owns all parts removed from repaired products. Quanmax uses new and reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Quanmax repairs or replaces a product, its warranty term is not extended. Shipments not in compliance with this Limited Warranty Return Policy will not be accepted by Quanmax.

Limitation of Liability

In no event shall Quanmax be liable for any defect in hardware, software, loss, or inadequacy of data of any kind, or for any direct, indirect, incidental, or consequential damages in connection with or arising out of the performance or use of any product furnished hereunder. Quanmax’s liability shall in no event exceed the purchase price of the product purchas ed her e und er. The foregoing limitation of liability shall be equally applicable to any service provided by Quanmax or its authorized agent.

 Maintaining Your Computer

Environmental Factors

 Temperature

The ambient temperature within an enclosure may be greater than room ambient temperature. Installation in an enclosure should be such that the amount of air flow required for safe operation is not compromised. Consideration should be given to the maximum rated ambient temperature. Overheating can cause a variety of problems, including premature aging and failure of chips or mechanical failure of devices. If the system has been exposed to abnormally cold temperatures, allow a two-hour warm-up period to bring it up to normal operating temperature before turning it on. Failure to do so may cause damage to internal components, particularly the hard disk drive.

 Humidity

High-humidity can cause moisture to enter and accumulate in the system. This moisture can cause corrosion of internal components and degrade such

Page 12

Preface

KPC-2150 Series User’s Manual

properties as electrical resistance and thermal conductivity. Extreme moisture buildup inside the system can result in electrical shorts, which can cause serious damage to the system. Buildings in which climate is controlled usually maintain an acceptable level of humidity for system equipment. However, if a system is located in an unusually humid location, a dehumidifier can be used to maintain the humidity within an acceptable range. Refer to the “Specifications” section of this user’s guide for the operating and storage humidity specifications.

 Altitude

Operating a system at a high altitude (low pressure) reduces the efficiency of the cooling fans to cool the system. This can cause electrical problems related to arcing and corona effects. This condition can also cause sealed components with internal pressure, such as electrolytic capacitors, to fail or perform at reduced efficiency.

Power Protection

The greatest threats to a system’s supply of power are power loss, power spikes, and power surges caused by electrical storms, which interrupt system operation and/or damage system components. To protect your system, always properly ground power cables and one of the following devices.

 Surge Protector

Surge protectors are available in a variety of types and usually provide a level of protection proportional with the cost of the device. Surge protectors prevent voltage spikes from entering a system through the AC power cord. Surge protectors, however, do not offer protection against brownouts, which occur when the voltage drops more than 20 percent below the normal AC line voltage level.

 Line Conditioner

Line conditioners go beyond the over voltage protection of surge protectors. Line conditioners keep a system’s AC power source voltage at a fairly constant level and, therefore, can handle brownouts. Because of this added protection, line conditioners cost more than surge protectors. However, line conditioners cannot protect against a complete loss of power.

Page 13

Preface

KPC-2150 Series User’s Manual

 Uninterruptible Power Supply

Uninterruptible power supply (UPS) systems offer the most complete protection against variations on power because they use battery power to keep the server running when AC power is lost. The battery is charged by the AC power while it is available, so when AC power is lost, the battery can provide power to the system for a limited amount of time, depending on the UPS system. UPS systems range in price from a few hundred dollars to several thousand dollars, with the more expensive unit s allowing you to run larger systems for a longer period of time when AC power is lost. UPS systems that provide only 5 minutes of battery power let you conduct an orderly shutdown of the system, but are not intended to prov ide contin ued o per ation. Surg e pr otectors shoul d be used with all UPS systems, and the UPS system should be Underwriters Laboratories (UL) safety approved.

Page 14

Chapter 1

KPC-2150 Series User’s Manual

Chapter 1

Introduction

 Overview

The KPC-2150 is a 21.5" Panel PC combining the Intel ® C elero n® J190 0 Process or for a wide range of industrial applications. Storage includes a mSATAsolid-state drive (SSD). Supported interfaces include 2x GbE LAN, 2x COM port, 1x USB .3.0, 4x USB 2.0 ports, 1x HDMI, 1x VGA thus easily meeting a broad range of customer requirements. The KPC-2150 provides a compact, high-performance human-machine interface for automation demands.

Checklist

 KPC-2150  Power Adapter  Power Cord  Driver CD  Quick installation Guide  Optional VESA Mounting Kit  Optional wireless LAN

Features

 21.1” LCD Display with 1920 x 1080 resolution  Intel® Celeron® J1900 Processor  Intel® HD Graphics  IP65 approved front bez el  2x GbE, 2x COMs, 4x USB 2.0, 1x USB 3.0, 1x Mini-PCIe slot  HDMI, VGA, HD Audio  Optional Wireless LAN  Fanless design

Page 15

Chapter 1

KPC-2150 Series User’s Manual

 Product Specifications

CPU Support Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)

Memory 1x DDR3L SO-DIMM 4GB

BIOS AMI Plug & Play SPI BIOS

Graphic Intel® HD Graphics

Touch Sensor 5-wire resistive touch sensor

LCD Display

Size: 21.5 inch, 16:9 Resolution: 1ĺĳı x ĲıĹı

Backlight: LED Contrast Ratio: 5000:1 (typical) Brightness: 250cd/m2 (typical)

External Display 1x HDMI

1x VGA

LAN

2 x Gigabit Ethernet port

PXE/WOL supported

Audio 3x Audio Jack for Line-In, Line-Out and Mic-In

Storage 64GB MLC S SD (m SATA)

USB 4x USB 2.0 , 1x USB 3.0

COM 2x COM port with RS-232/422/485 selection supported

Expansion slot 1x Mini-PCIe slot

Hardware Monitor Operating voltage, CPU temperature

Watchdog Timer 1-255 step, can be set with software on Super I/O

Power AC 100~240V, 12V/5A, 60W OS Support Windows 7, Windows 8, Linux Dimensions 542.6 x 339.2 x 64.5 mm (WxDxH)

Environment Operating Temperature: 0°C~ 50°C

Storage Te mperature: -20°C ~ 60°C Humidity: 10% ~ 80%, non-condensing

Certification CE, FCC Class A

Table 1 KPC-2150 product specifications

Page 16

Chapter 1

KPC-2150 Series User’s Manual

 System tour

Refer to the diagrams below to identify the components of the system.

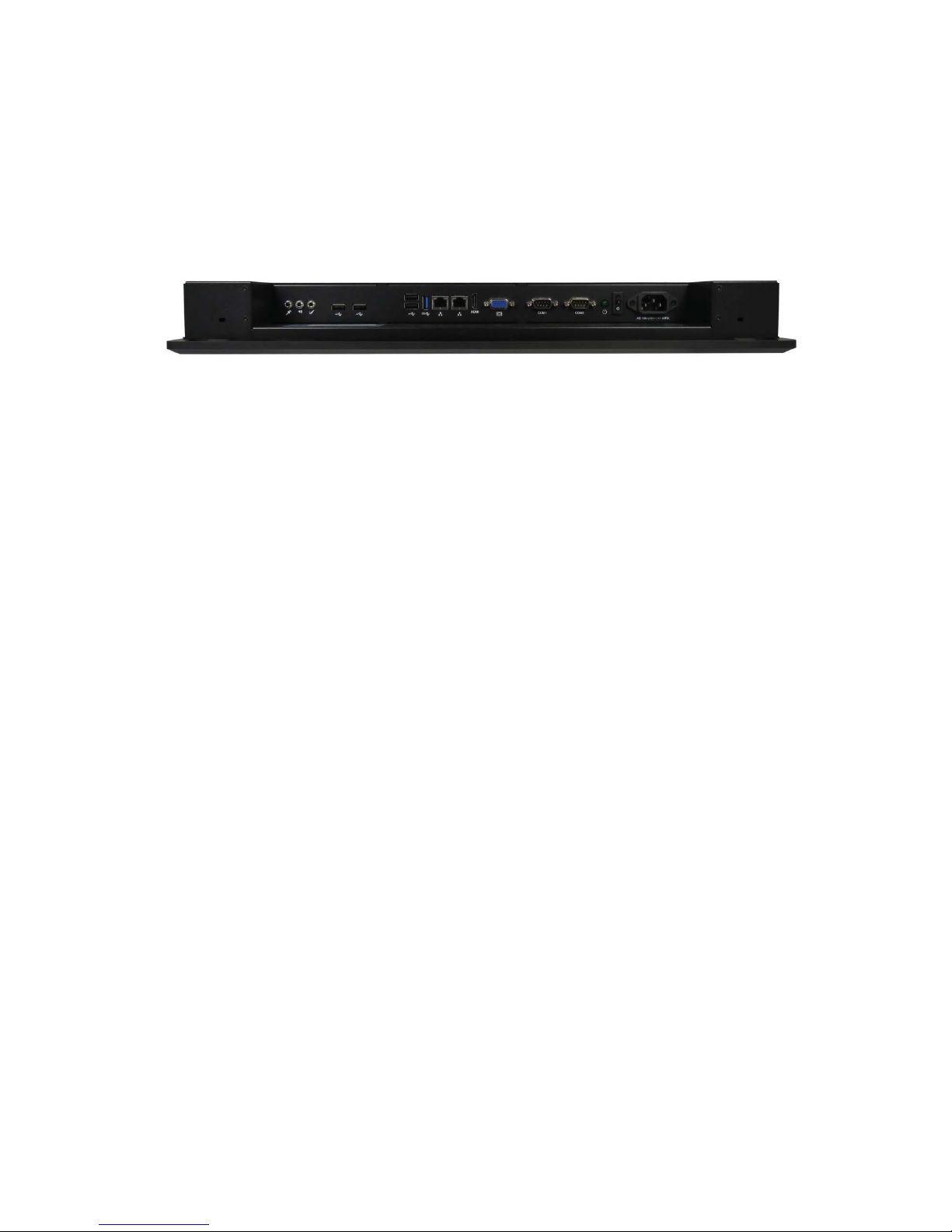

 I/Os

Figure 1 I/Os

USB

The USB (Universal Serial Bus) port is compatible with USB devices such as keyboards, mouse devices, cameras, and hard disk drives. USB allows many devices to run simultaneously on a single computer, with some peripheral acting as additional plug-in sites or hubs.

Power Switch

The power switch allows powering ON and OFF the system.

Ethernet

The eight-pin RJ-45 LAN port supports a standard Ethernet cable for connection to a local network.

Power Input

1. Connect the supplied AC power cord to the system AC power inlet on the I/O panel of the system.

2. Connect the other end of the AC power cord to a corresponding outlet.

HDMI

HDMI connector for display output

COM

D-Sub 9 pin connector for RS-232/422/485 connection

VGA

D-Sub 15 pin VGA connector for display output

Page 17

Chapter 1

KPC-2150 Series User’s Manual

Line-Out (Green)

The stereo headphone jack is used to connect the system’s audio out signal to amplified speakers or headphones.

MIC-IN (Pink)

The microphone jack is designed to connect the microphone used for video conferencing, voice narrations, or simple audio recordings.

Line-IN (Blue)

The Line-in jack is designed to take input from a higher-powered sound source.

Page 18

Chapter 1

KPC-2150 Series User’s Manual

Mechanical Dimensions

542.6 x 339.2 x 64.5 mm ( W x D x H )

Figure 2 Mechanical Dimensions

Page 19

Chapter 2

KPC-2150 Series User’s Manual

Chapter 2

Getting Started

 Setting up your PC

 Connecting the monitor

Connect the HDMI / VGA cable from your display to the HDMI / VGA port.

Figure 3 VGA / HDMI

VGA

HDMI

Page 20

Chapter 2

KPC-2150 Series User’s Manual

 Connecting USB mouse & keyboard

Your KPC-2150 does not come with a keyboard and mouse, but y ou can use any USB keyboard or mouse with your computer.

Figure 4 Connect USB mouse & keyboard

NOTE

Using a third-party USB mouse or keyboard may require software drivers. Check the manufacturer’s website for the latest software drivers.

 Connecting to a network device

Connect one end of a network cable to the LAN port on the system rear panel and the other end to a hub or switch.

Figure 5 RJ45 connector

USB

LAN

Page 21

Chapter 2

KPC-2150 Series User’s Manual

 COM ports

COM ports with the pin definitions.

COM1~COM2 RS-232 / 422 / 485 Port DB-9

Pin RS-232 RS-422

Half Duplex

RS-485

Full Duplex

RS-485

1 DCD TX- DATA- TX2 RXD RX+ N/A RX+ 3 TXD TX+ DATA+ TX+ 4 DTR RX- N/A RX5 GND GND GND GND 6 DSR N/A N/A N/A 7 RTS N/A N/A N/A 8 CTS N/A N/A N/A

9RI

RI RI RI

Figure 6 COM port

COM

Page 22

Chapter 2

KPC-2150 Series User’s Manual

 Turning on the system

1. Connect the supplied AC power cord to the system AC power inlet on the I/O panel of the system.

2. Connect the other end of the AC power cord to a corresponding outlet.

3. Press the power switch on the front panel to turn on the system.

Figure 7 Turning on the system

Power Switch AC Power Inlet

Page 23

Chapter 2

KPC-2150 Series User’s Manual

 VESA Mounting

The product comes with VESA FDMI 75/100 standard mounting holes as shown below. Use 4 screws with the appropriate length for your mounting bracket.

Figure 8 VESA Mounting Hole Locat ions

NOTE

To fasten the metal shelf, your monitor must comply with VESA75 or VESA100 standard. The VESA mounting kit is optional.

Page 24

Chapter 2

KPC-2150 Series User’s Manual

 Panel Mounting

The Panel PC can be panel mounted and comes with brackets and screws for this purpose. The required cutout for panel mounting and maximum panel thickness is shown below.

Figure 9 Panel Mount Cut-out hole and maximum panel thickness

Page 25

Chapter 2

KPC-2150 Series User’s Manual

Below are the demonstrations of how to do panel mounting.

Step 1

Remove 12 Bracket Opening Covers from with Phillips Screwdriver (4 on top edge, 2 on bottom edge, 3 on each side)

Step 2

Insert a Panel Mount Bracket into each Bracket Opening

Step 3

Secure Chassis to Panel by tightening the screws

Figure 10 Panel Mounting

Page 26

Chapter 3

KPC-2150 Series User’s Manual

Chapter 3

AMI BIOS Setup

 Overview

This chapter provides a description of the AMI BIOS. The BIOS setup menus and available selections may vary from those of your product. For specific information on the BIOS for your product, please contact Quanmax.

NOTE: The BIOS menus and selections for your product may vary from those in this chapter. For the BIOS manual specific to your product, please contact Quanmax

AMI's ROM BIOS provides a built-in Setup program, which allows the user to modify the basic sy stem configuration and hardware param eter s.The modified data will be stored in a battery-backed CMOS, so that data will be re tained even when the power is turned off. In general, the information saved in the CMOS RAM will not need to be changed unless there is a configuration change in the system, such as a hard drive replacement or when a device is added.

It is possible for the CMOS battery to fail, which will cause data loss in the CMOS only. If this happens you will need to reconfigure your BIOS settings.

Page 27

Chapter 3

KPC-2150 Series User’s Manual

 Main Menu

The BIOS Setup is accessed by pressing the DEL key after the Power-On Self-Test (POST) memory test begins and before the operating system boot begins. Once you enter the BIOS Setup Utility, the Main Menu will appear on the screen. The Main Menu provides System Overview information and allows you to set the System Time and Date. Use the “<” and “>” cursor keys to navigate between menu screens.

Table 2 KPC-2150 BIOS Main Menu

BIOS SETUP UTILITY

Main Advanced Power Security Boot Save & Exit

Product Information

ÆÅSelect Screen

ĹĻ6HOHFW,WHP

Enter: Select +- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit

Product Name KPC-2150

BIOS Version Z0.03 (x64)

BIOS Build Date 04/09/2015

ME FW Version 01.01.00.1089

CPU Information

Intel® Celeron® CPU [email protected]

Microcode Revision 811

Processor Cores 4

Memory Information

Total Size 4096 MB (DDR3L)

Frequency 1333 MHz

System date [ Mon 05/26/2014]

System time

Access Level

[13:23:12]

Administrator

Page 28

Chapter 3

KPC-2150 Series User’s Manual

 Advanced Menu

Table 3 Advanced Menu

BIOS SETUP UTILITY

Main Advanced Power Security Boot Save & Exit

Onboard LAN1 Controller [Enabled]

ÆÅSelect Screen

ĹĻ6HOHFW,WHP

Enter: Select +- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit

Onboard LAN1 Boot [Disabled]

Onboard LAN2 Controller [Enabled]

Onboard LAN2 Boot [Disabled]

Audio Controller [Enabled]

> Display Configuration

> Super IO Configuration

> CPU Chipset Configuration

> SATA Configuration

> USB Configuration

> DIO Configuration

> H/W Monitor

Onboard LAN 1 Controller

Options: Disabled, Enabled

Onboard LAN 1 Boot

Options: Disabled, Enabled

Onboard LAN 2 Controller

Options: Disabled, Enabled

Onboard LAN 2 Boot

Options: Disabled, Enabled

Audio Controller

Options: Disabled, Enabled

Page 29

Chapter 3

KPC-2150 Series User’s Manual

Table 4Advanced Menu – Display Configuration

BIOS SETUP UTILITY

Main Advanced Power Security Boot Save & Exit

Display Configuration

ÆÅSelect Screen

ĹĻ6HOHFW,WHP

Enter: Select +- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit

Primary Display

UMA Frame Buffer Size

[ Auto ]

[256 MB] DVMT Pre-Allocated [64M] DVMT Total Gfx Mem [256 M]

Primary IGFX Boot Display Active LVDS

[VBIOS Default]

[Enabled] LVDS Panel Type [1920x1080 24Bit 2CH] LVDS Backlight Control Mode [Valtage] LVDS Backlight Control - Voltage [2.5 V]

Primary Display

Options:Auto, IGD

UMA Frame Buffer Size

Options: 128MB, 256MB, 512MB

DVMT Pre-Allocated

Options: 64M, 96M, 128M, 160M, 192M, 224M, 256M, 288M, 320M, 352M, 384M, 416M, 448M, 480M, 512M

DVMT Total Gfx Mem

Options: 128M, 256M, Max

Primary IGFX Boot Display

Options: VBIOS Default, CRT, HDMI, LVDS

Active LVDS

Options: Enabled

LVDS Panel Type

Options: 1920x1080 24Bit 2CH

LVDS Backlight Control Mode

Options: Valtage

LVDS Backlight Control -Voltage

Options: 0.0V, 0.5V, 1.0V, 1.5V, 2.0V, 2.5V, 3.0V, 3.5V, 4.0V, 4.5V, 5.0V

Page 30

Chapter 3

KPC-2150 Series User’s Manual

Table 5 Advanced Menu – Super IO Configuration

BIOS SETUP UTILITY

Main Advanced Power Security Boot Save & Exit

Super IO Chip Parameters.

>Serial Port 1 Configuration >Serial Port 2 Configuration

ÆÅSelect Screen

ĹĻ6HOHFW,WHP

Enter: Select +- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit

Table 6 Advanced Menu – Super IO Configuration – Serial Port 1 Configuration

BIOS SETUP UTILITY

Main Advanced Power Security Boot Save & Exit

Serial Port 1 Configuration

Serial Port [Enabled] Device Settings IO=3F8h; IRQ=4;

Change Settings [Auto] Serial Port 1 Type [RS485] RS485 Duplux Mode [Half Duplex]

ÆÅ: Select Screen ĹĻ: Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save and Exit ESC: Exit

Serial Port

Options: Disabled, Enabled

Change Settings

Options: Auto, IO=3F8h; IRQ=4; IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;

Serial Port 1 Type

Options: RS232, RS422, RS485

RS485 Duplux Mode

Options: Half Duplex, Full Duplex

Page 31

Chapter 3

KPC-2150 Series User’s Manual

Table 7 Advanced Menu – Super IO Configuration – Serial Port 2 Configuration

BIOS SETUP UTILIT Y

Main Advanced Power Security Boot Save & Exit

Serial Port 2 Configuration

Serial Port [Enabled] Device Settings IO=2F8h; IRQ=3;

Change Settings [Auto] Serial Port 2Type [RS232] RS485 Duplux Mode [Half Duplex]

ÆÅSelect Screen

ĹĻ6HOHFW,WHP

Enter: Select +- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit

Serial Port

Options: Disabled, Enabled

Change Settings

Options: Auto, IO=2F8h; IRQ=3; IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12

Serial Port 2 Type

Options: RS232, RS422, RS485

RS485 Duplex Mode

Options: Full Duplex, Half Duplex

Page 32

Chapter 3

KPC-2150 Series User’s Manual

Table 8 Advanced Menu –CPU Chipset Configuration

BIOS SETUP UTILITY

Main Advanced Power Security Boot Save & Exit

CPU Chipset Configuration

ÆÅSelect Screen

ĹĻ6HOHFW,WHP

Enter: Select +- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit

EIST [Enabled] Turbo Mode [Enabled]

Limit CPUID Maximum [Disabled] Execute Disable Bit

Intel Virtualization Technology

[Enabled]

[Disabled]

EIST

Options: Disabled, Enabled

Turbo Mode

Options: Disabled, Enabled

Limit CPUID Maximum

Options: Disabled, Enabled

Execute Disable Bit

Options: Disabled, Enabled

Intel Virtualization Technology

Options: Disabled, Enabled

Page 33

Chapter 3

KPC-2150 Series User’s Manual

Table 9 Advanced Menu –SATA Configuration

BIOS SETUP UTILITY

Main Advanced Power Security Boot Save & Exit

SATA Configuration ÆÅSelect Screen

ĹĻ6HOHFW,WHP

Enter: Select +- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit

Serial-ATA (SATA) [Enabled] SATA Mode [ AHCI Mode]

Serial ATA Port 1 Empty

Port 1 [ Enabled ]

mSATA Port 1 Port 1

Empty

[ Enabled ]

SATA

Options: Enabled, Disabled

SATA Mode

Options: IDE Mode, AHCI Mode

Serial STS Port 1

Port 1

Options: Enabled, Disabled

mSATA Port 1

Port 1

Options: Enabled, Disabled

Page 34

Chapter 3

KPC-2150 Series User’s Manual

Table 10 Advanced Menu –USB Configuration

BIOS SETUP UTILITY

Main Advanced Power Security Boot Save & Exit

USB Configuration

USB Devices:

1 Keyboard, 1 Mouse, 2 Hubs

Legacy USB Support [Enabled] xHCI Legacy Support [Enabled] xHCI hand-off [Enabled] EHCI Hand-off [Disabled] USB Mass Storage Driver Support [Enabled]

ÆÅSelect Screen

ĹĻ6HOHFW,WHP

Enter: Select +- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit

XHCI Mode [Smart Auto]

Legacy USB Support

Options: Enabled, Disabled, Auto

XHCI Legacy Support

Options: Enabled, Disabled

XHCI hand-off

Options: Enabled, Disabled

EHCI hand-off

Options: Disabled, Enabled

USB Mass Storage Driver Support

Options: Disabled, Enabled

XHCI Mode

Options: Enabled, Smart Auto

Page 35

Chapter 3

KPC-2150 Series User’s Manual

Table 11 Advanced Menu – H/W Monitor

BIOS SETUP UTILITY

Main Advanced Power Security Boot Save & Exit

PC Health Status

CPU Warning Temperature [ Disabled ]

CPU Temperature : +40C System Temperature : +37C

+VCORE : +0.869 V +VIN : +12.164V +5V : +5.066 V +VMEN : +1.349V

ÆÅSelect Screen

ĹĻ6HOHFW,WHP

Enter: Select +- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit

CPU Warning Temperature

Options: Disabled, 80 C, 85 C, 90 C, 95 C

Page 36

Chapter 3

KPC-2150 Series User’s Manual

Table 12 Power Menu

BIOS SETUP UTILITY

Main Advanced Power Security Boot Save & Exit

Power Configuration

ÆÅSelect Screen

ĹĻ6HOHFW,WHP

Enter: Select +- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit

ACPI Sleep State [S3 (Suspend to RAM)] Restore AC Power Loss [Power On] Power Saving Mode [Disabled]

Resume Event Control Resume By PCIE Device [Disabled] Resume By Ring Device [Disabled] Resume By RTC Alarm [Disabled]

>Watchdog Timer Configuration

ACPI Sleep State

Options: Suspend Disabled, S3 (Suspend to RAM)

Restore AC Power Loss

Options: Power Off, Power On, Last State

Power Saving Mode

Options: Disabled, EUP Enabled

Resume By PCIE Device

Options: Disabled, Enabled

Resume By Ring Device

Options: Disabled, Enabled

Resume By RTC Alarm

Options: Disabled, Enabled

Watchdog Timer Configuration

WDT Function [Disabled]

Options: Disabled, Enabled

Page 37

Chapter 3

KPC-2150 Series User’s Manual

 Security Menu

Table 13 Security Menu

BIOS SETUP UTILITY

Main Advanced Power Security Boot Save & Exit

Password Description

If ONLY the Administrator’s password is set, then this only limits acces s to Setup and is only asked for when entering Setup If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have

Administrator rights The password length must be in the following range: Minimum Length 3 Maximum length 20

Administrator Password User Password

ÆÅSelect Screen

ĹĻ6HOHFW,WHP

Enter: Select +- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit

Page 38

Chapter 3

KPC-2150 Series User’s Manual

 Boot Menu

Table 14 Boot Menu

BIOS SETUP UTILITY

Main Advanced Power Security Boot Save & Exit

Boot Configuration ÆÅSelect Screen

ĹĻ6HOHFW,WHP

Enter: Select +- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit

Full Screen LOGO Display [Disabled] Setup Prompt Timeout 1

Bootup NumLock State Keyboard Detect Warning

[On]

[Enabled] CSM Support Boot Option Filter

[Enabled]

[Legacy Only]

Boot Option Priorities

Full Screen LOGO Display

Options: Disabled, Enabled

Bootup NumLock State

Options: On, Off

Keyboard Detect Warning

Options: Enabled, Disabled

CSM Support

Options: Enabled, Disabled

Boot Option Filter

Options: UEFI and Legacy, Legacy only, UEFI only

Page 39

Chapter 3

KPC-2150 Series User’s Manual

 Save & Exit Menu

Table 15 Save & Ex it Men u

BIOS SETUP UTILITY

Main Advanced Power Security Boot Save & Exit

Save Changes and Reset Discard Changes and Reset

Save Options Save Changes Discard Changes

Restore Defaults

ÆÅSelect Screen

ĹĻ6HOHFW,WHP

Enter: Select +- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4 Save & Exit ESC Exit

Save Changes and Exit

Exit system setup after saving the changes. Once you are finished making your selections, choose this option from the Exit menu to ensure the values you selected are saved to the CMOS RAM. The CMOS RAM is sustained by an onboard backup battery and stays on ev en when the PC is turned off. When you select this option, a confirmation window appears. Select [Yes] to save changes and exit.

Discard Changes and Exit

Exit system setup wi thout saving any changes. Select this option onl y i f y ou do not want to save the changes that you made to the Setup program. If you made changes to fields other than system date, system time, and password, the BIOS asks for a confirmation before exiting.

Discard Changes

Discards changes done so far to any of the setup values. This option allows you to discard the selections you made and restore the previously saved values. After selecting this option, a confirmation appears. Select [Yes] to discard any changes and load the previously saved values.

Load Optimal Defaults

Load Optimal Default values for all the setup values. This option allows you to load optimal default values for each of the parameters on the Setup menus, which will provide the best performance settings for your system. The F9 key can be used for this operation.

Load Failsafe Defaults

Load Optimal Default values for all the setup values. This option allows you to load failsafe default values for each of the parameters on the Setup menus, which will provide the most stable performance settings. The F8 key can be used for this operation.

Page 40

Chapter 3

KPC-2150 Series User’s Manual

Chapter 4

Driver Installation

If your KPC-2150 does not come with an operating system pre-installed, you will need to install an oper ati ng sy stem and the necessary drivers to operate it. After you have finished assembling your system and connected the appropriate power source, power it up using the power supply and install the desired operating system. You can dow nload the driv ers for th e KPC- 21 50from our website and install as instructed there. For other operating systems, please contact us.
