Page 1
I
KPC-1530/ 1730 User’s Manua
l
KPC-1530/1730
Fanless Industrial Panel PC with
Intel® Atom N270 + Intel® 945GSE/ ICH7-M
User’s Guide
Page 2
II
KPC-1530/ 1730 User’s Manua
l
Contact Info:
Quanmax Inc.
5F, No. 415, Ti-Ding Blvd. Sec. 2, NeiHu District,
Taipei, Taiwan 114
Tel: +886-2-2799-2789
Fax: +886-2-2799-7399
Visit our site at: www.quanmax.com
© 2009 Quanmax Inc. All rights reserved.
The information in this user’s guide is provided for reference only. Quanmax does not assume any
liability arising out of the application or use of the information or products described herein. This user’s
guide may contain or reference information and products protected by copyrights or patents and does
not convey any license under the patent rights of Quanmax, nor the rights of others.
Quanmax is a registered trademark of Quanmax. All trademarks, registered trademarks, and trade
names used in this user’s guide are the property of their respective owners. All rights reserved. This
user’s guide contains information proprietary to Quanmax. Customers may reprint and use this user’s
guide in other publications. Customers may alter this user’s guide and publish it only after they remove
the Quanmax name, cover, and logo.
Quanmax reserves the right to make changes without notice in product or comp onent design as
warranted by evolution in user needs or progress in engineering or manufacturing technology.
Changes which affect the operation of the unit will be documented in the next revision of this user’s
guide.
Revision Date Edited by Changes
1.0 07/22/2009 SLee Initial Release
1.01 08/24/2009 SLee Packing List Updated
1.02 09/15/2009 SLee HDD & ODD Installation Update
1.03 12/16/2009 SLee Correct RS232/422/485 pin assignment
Page 3
Content
3
KPC-1530/ 1730 User’s Manua
l
Content
Content ....................................................................................................................... 3
Figures ....................................................................................................................... 4
Tables ......................................................................................................................... 5
Safety Instructions ...................................................................................................... 6
Before You Begin .................................................................................. 6
When Working Inside a Computer ........................................................ 6
Preventing Electrostatic Discharge ....................................................... 7
Preface ....................................................................................................................... 8
How to Use This Guide ......................................................................... 8
Unpacking ............................................................................................. 8
Regulatory
Compliance Statements ...................................................... 8
Warranty Policy ..................................................................................... 9
Maintaining Your Computer ................................................................. 10
Chapter 1 Introduction ........................................................................................... 13
Overview ............................................................................................. 13
Product Specifications ........................................................................ 14
Mechanical Layout .............................................................................. 15
Chapter 2 Assembly/Disassembly ......................................................................... 18
Accessing Internal Components ......................................................... 18
Memory
Module Installation ................................................................ 19
Installation PCI Card ........................................................................... 20
HDD & ODD Installation ...................................................................... 22
VESA Mounting ................................................................................... 23
Wall Mounting ..................................................................................... 24
Panel
Mounting ................................................................................... 25
Chapter 3 Getting Started ...................................................................................... 27

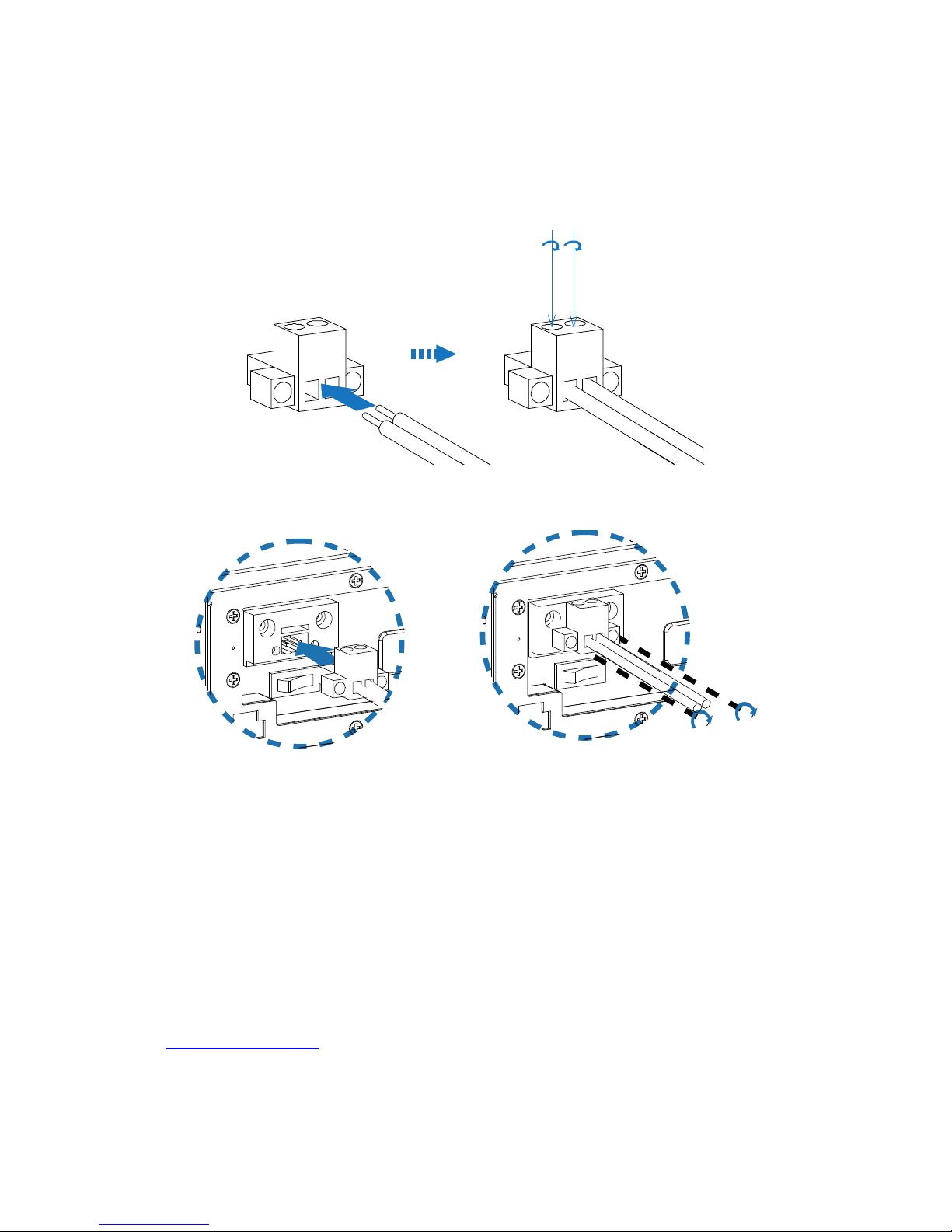

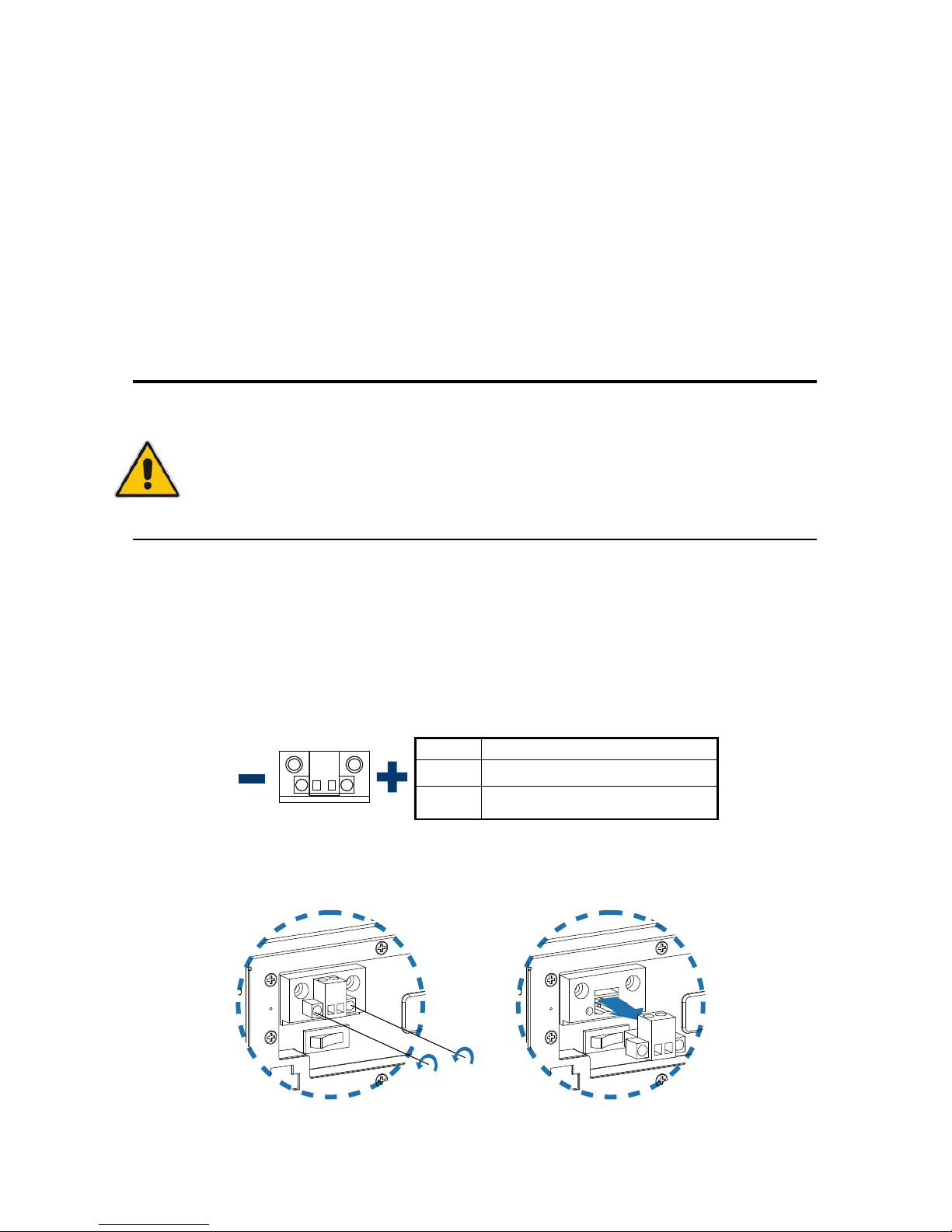

Power Connection .............................................................................. 27
Operating System and Drivers ............................................................ 28
Chapter 4 Maintenance and Prevention ................................................................ 29
Chapter 5 Interface & Jumper Setting .................................................................... 30
External Connectors ........................................................................... 30
Jumper Setting .................................................................................... 32
Page 4
Figures
4
KPC-1530/ 1730 User’s Manua
l
Figures

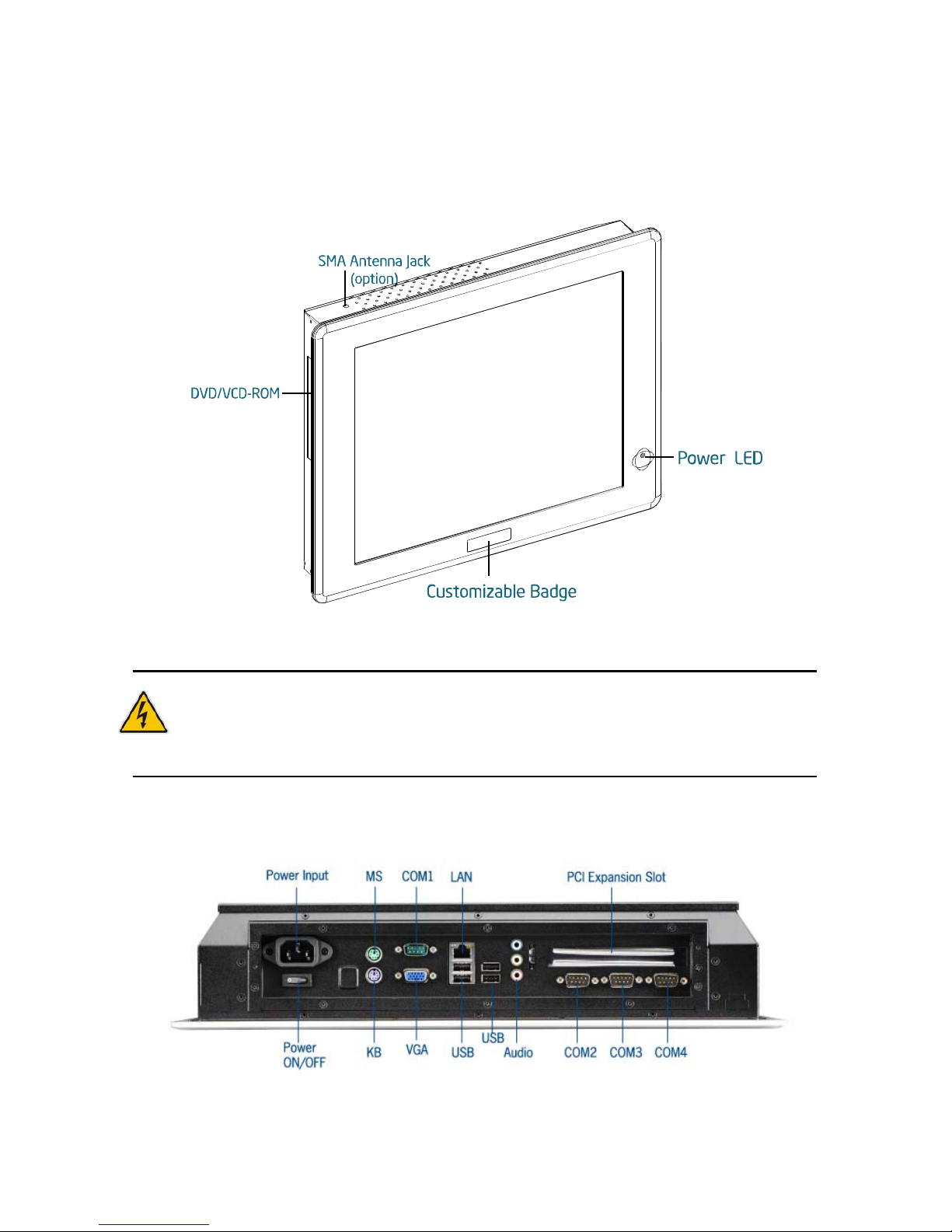

Figure 1 Mechanical Layout - Front and Side ............................................ 15
Figure 2 Mechanical Layout - I/O Panel ..................................................... 15

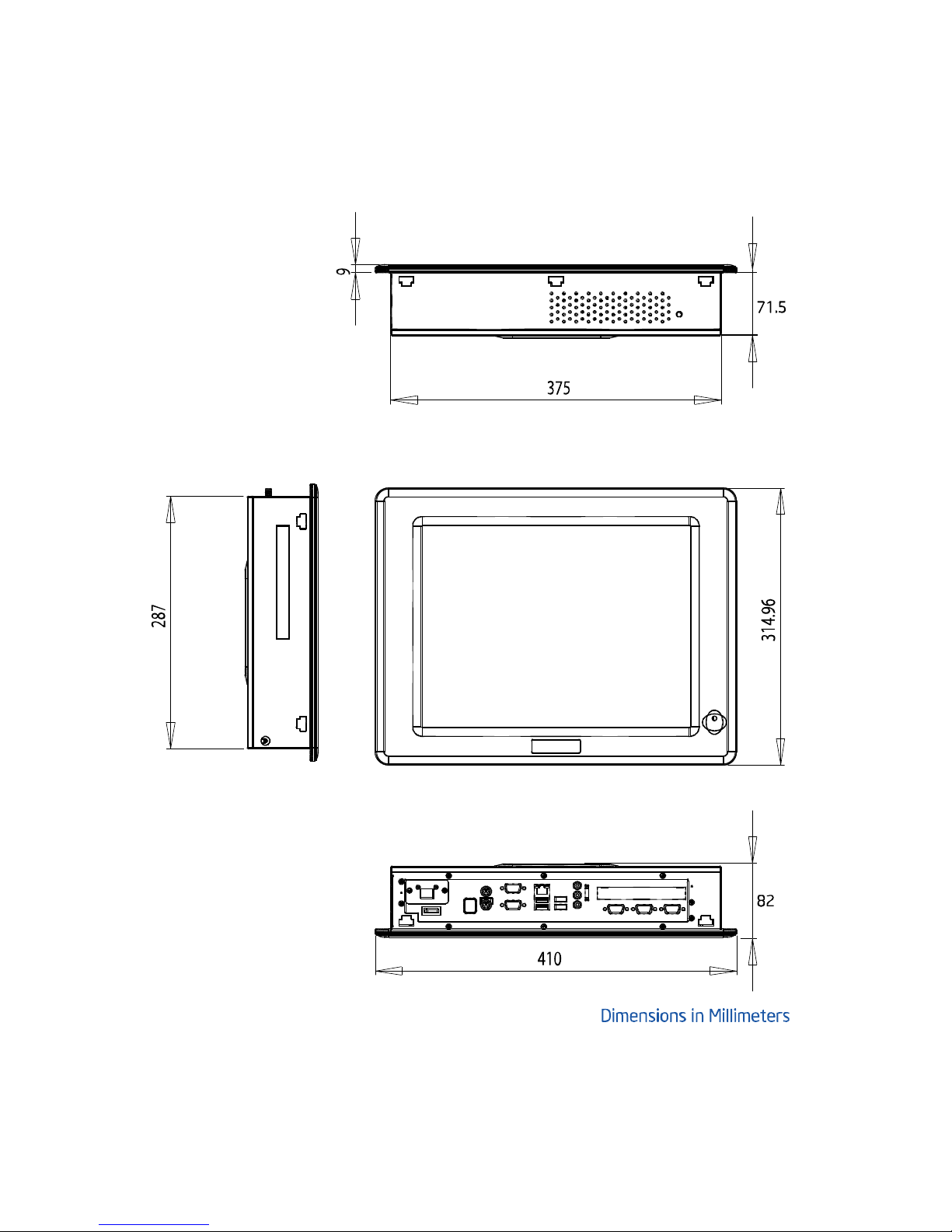

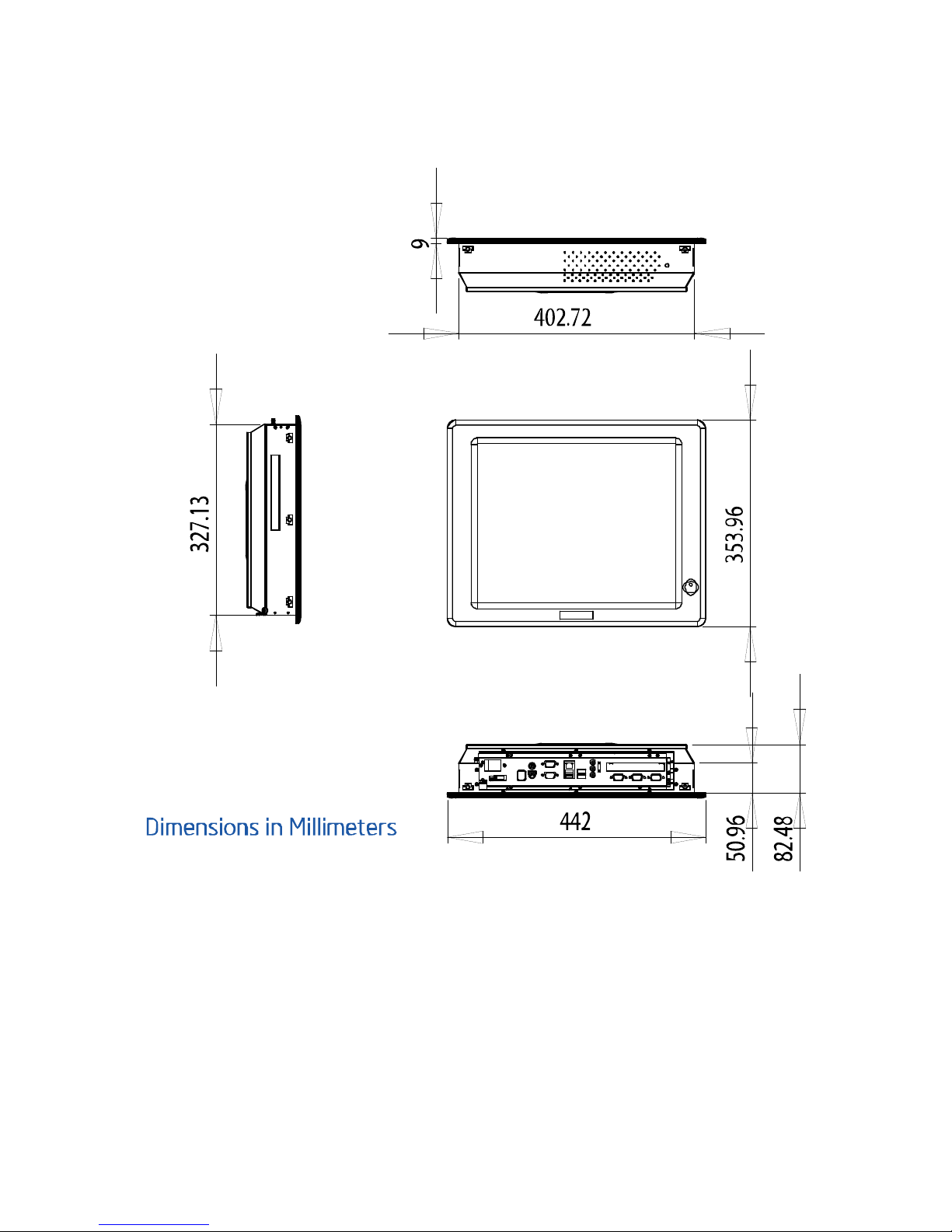

Figure 3 Mechanical Dimensions (KPC-1530) ........................................... 16
Figure 4 Mechanical Dimensions (KPC-1730) ........................................... 17

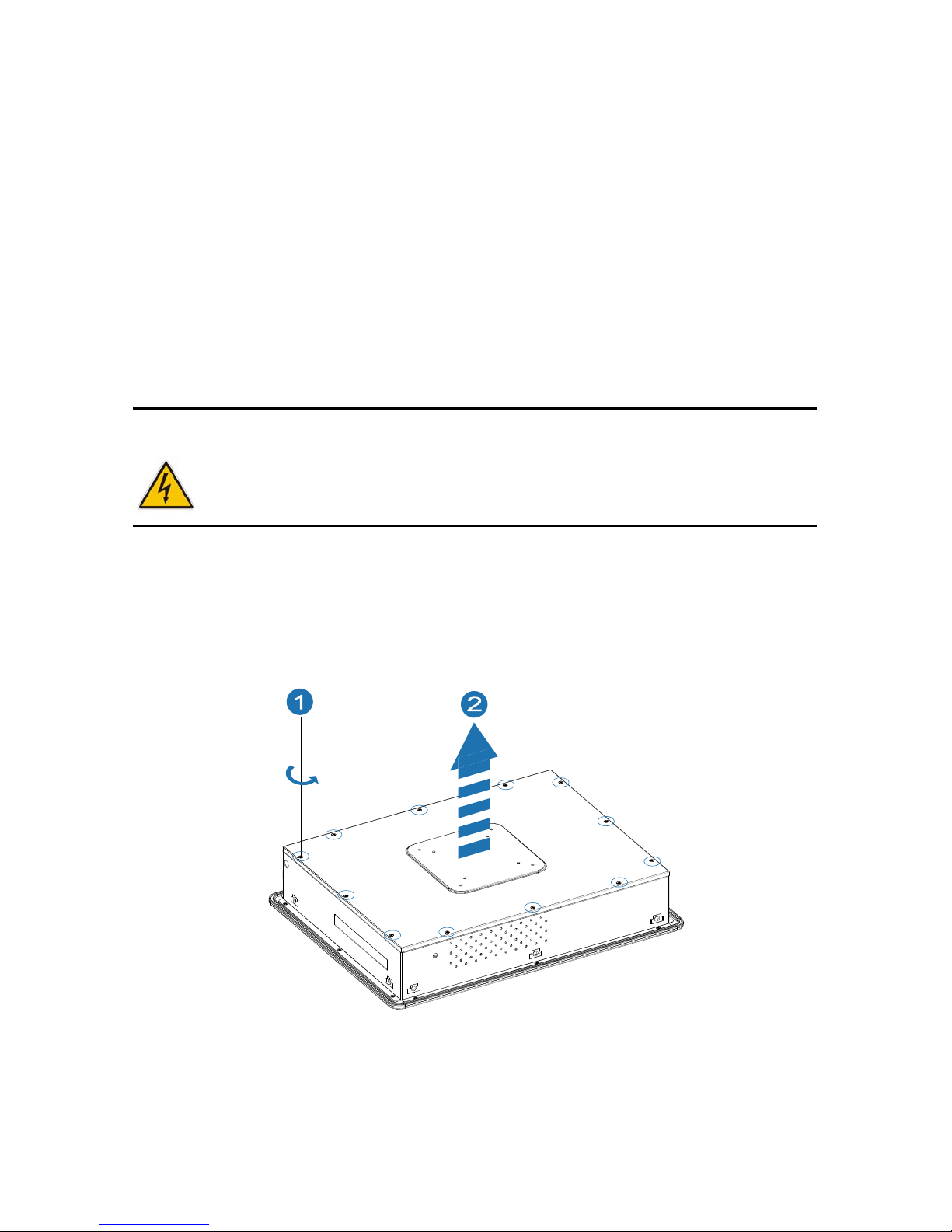

Figure 5 Removing the rear cover .............................................................. 18

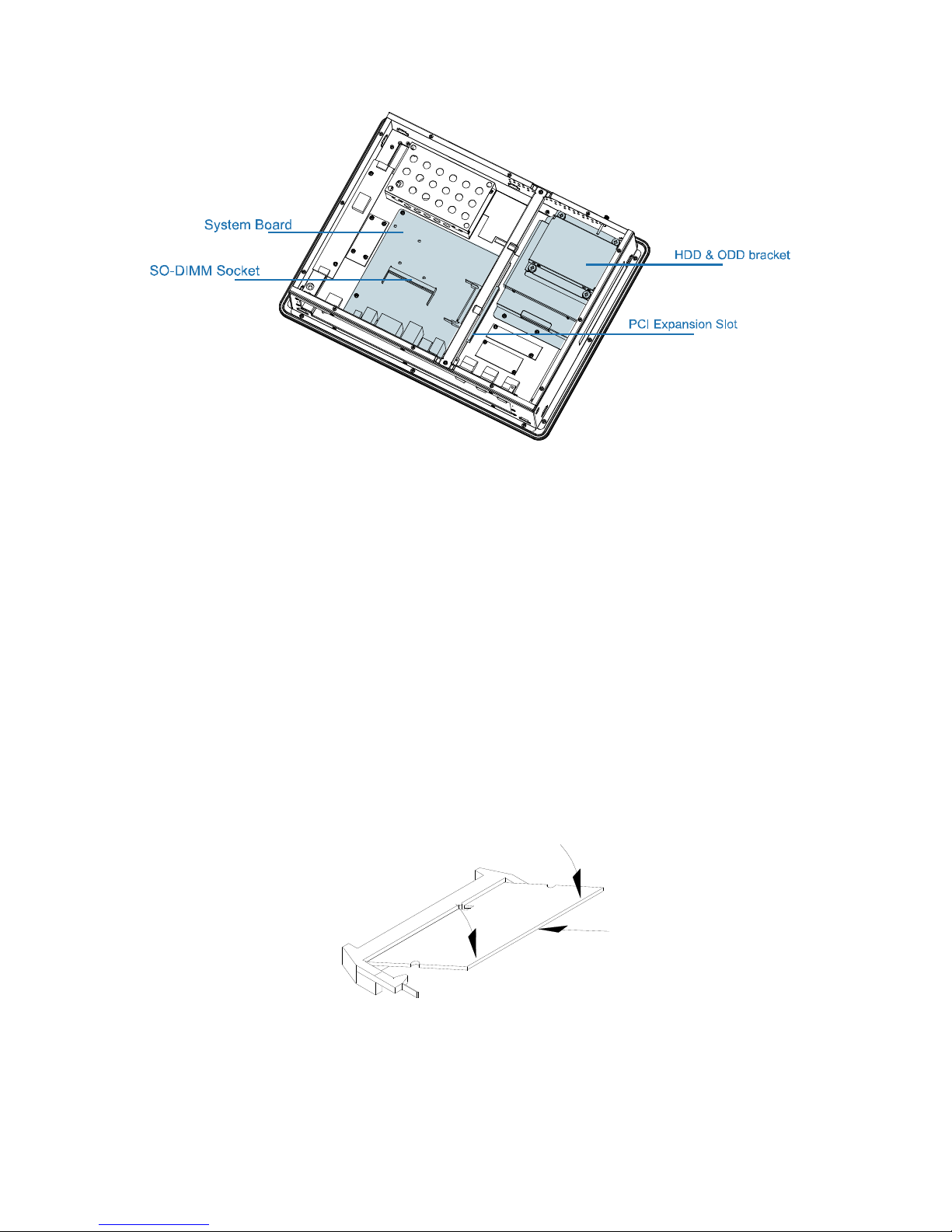

Figure 6 Mechanical Internal Layout .......................................................... 19
Figure 7 Align the SO-DIMM Memory Modu
le with the onboard socket ..... 19
Figure 8 Press down on the SO-DIMM Memory Module to lock it in place 20

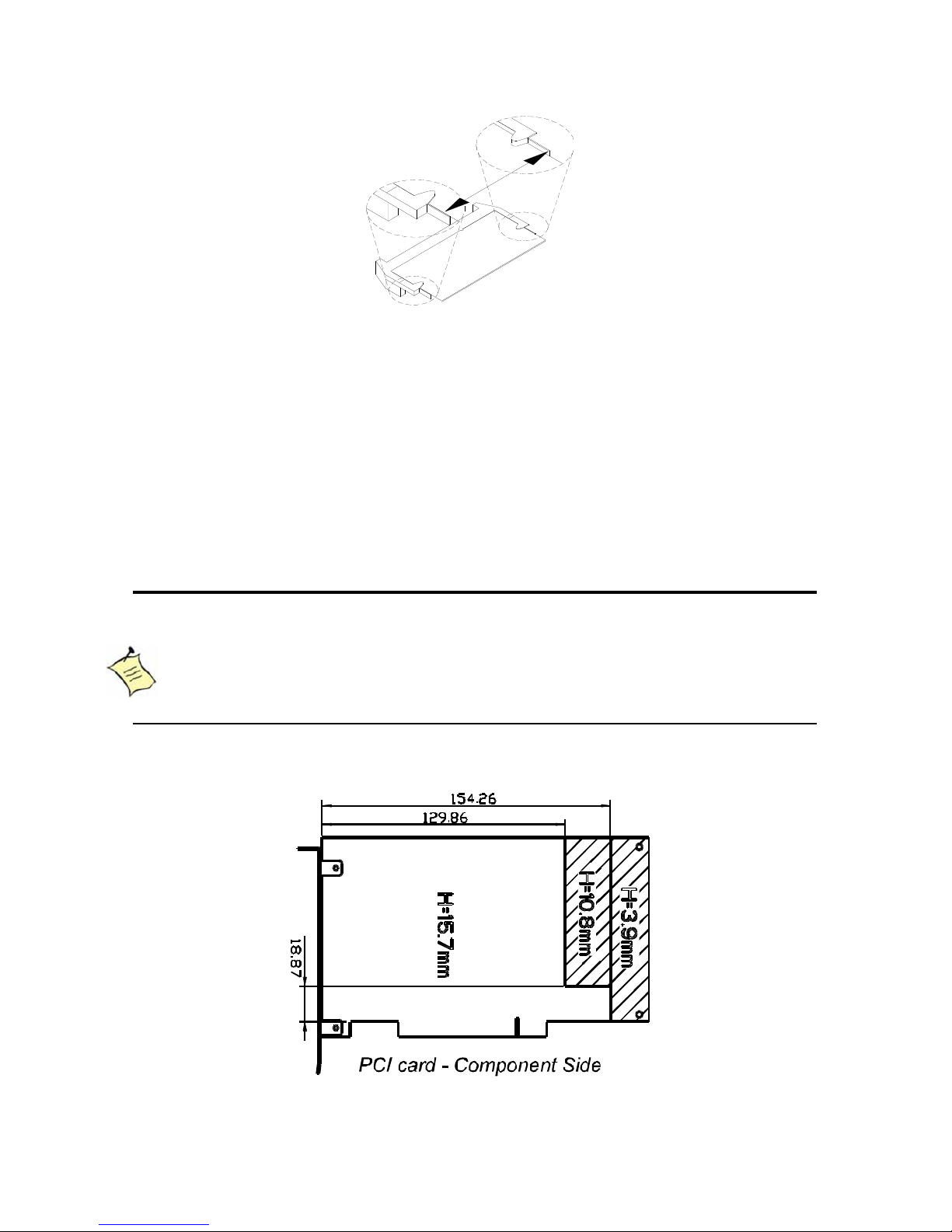

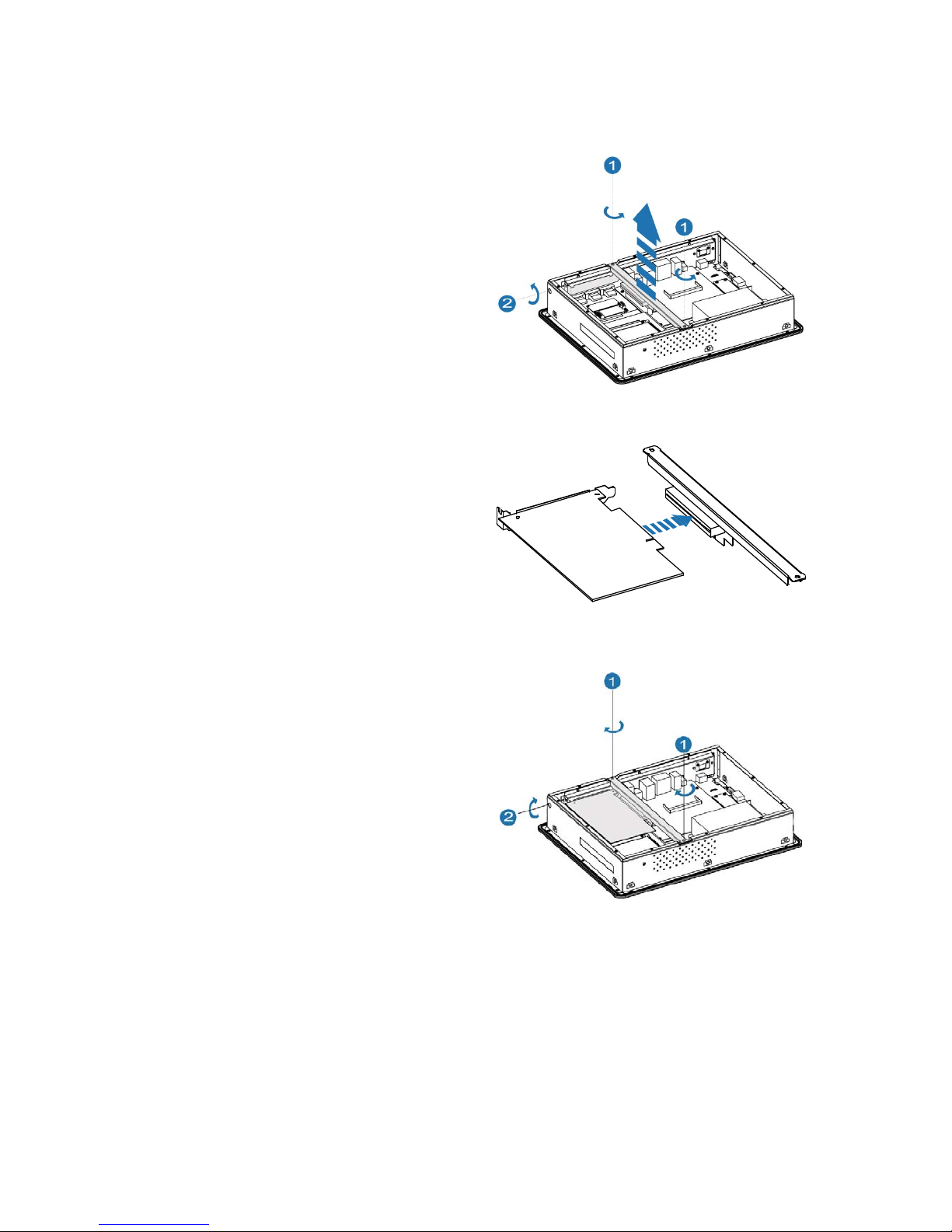

Figure 9 PCI card height restrictions .......................................................... 20

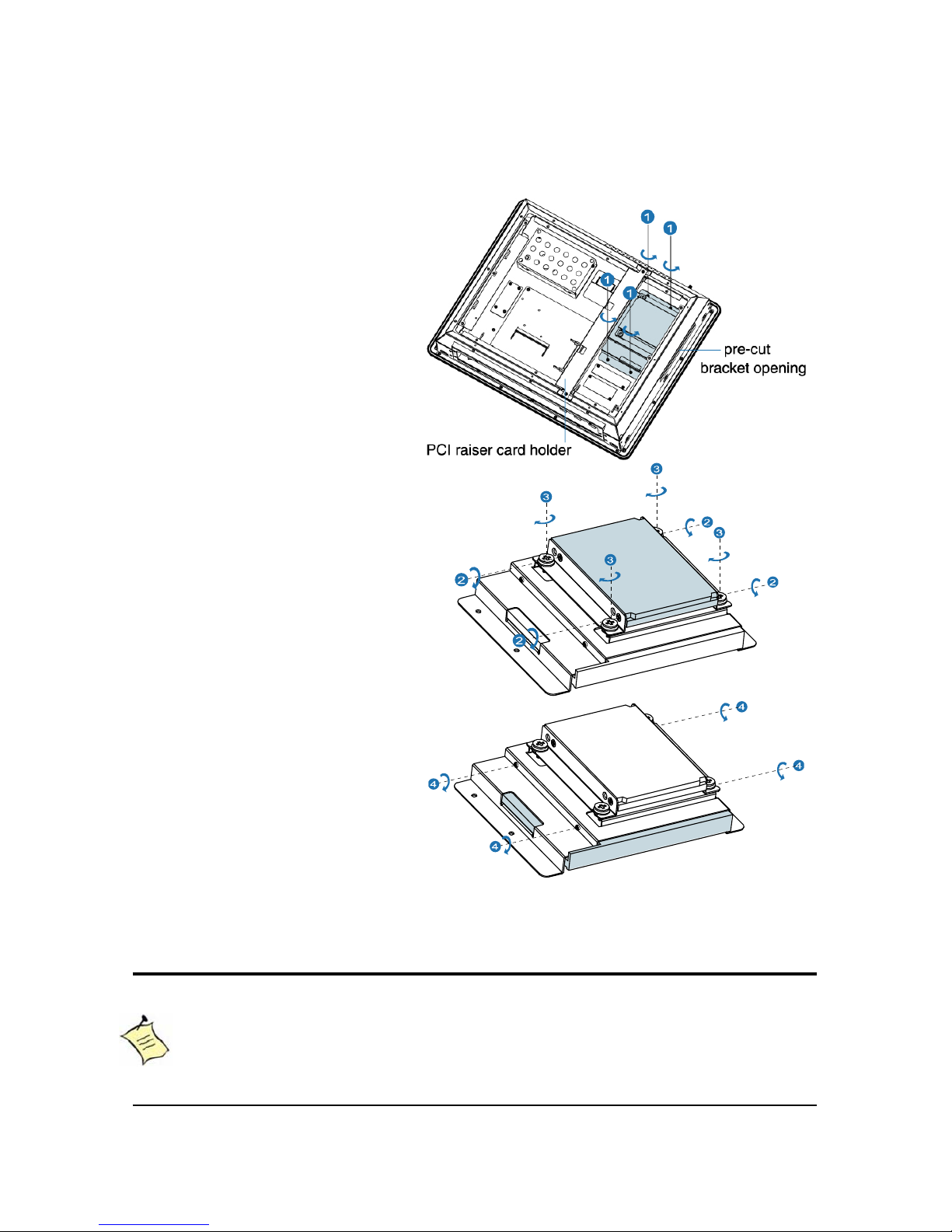

Figure 10 HDD & ODD Installation ............................................................. 22

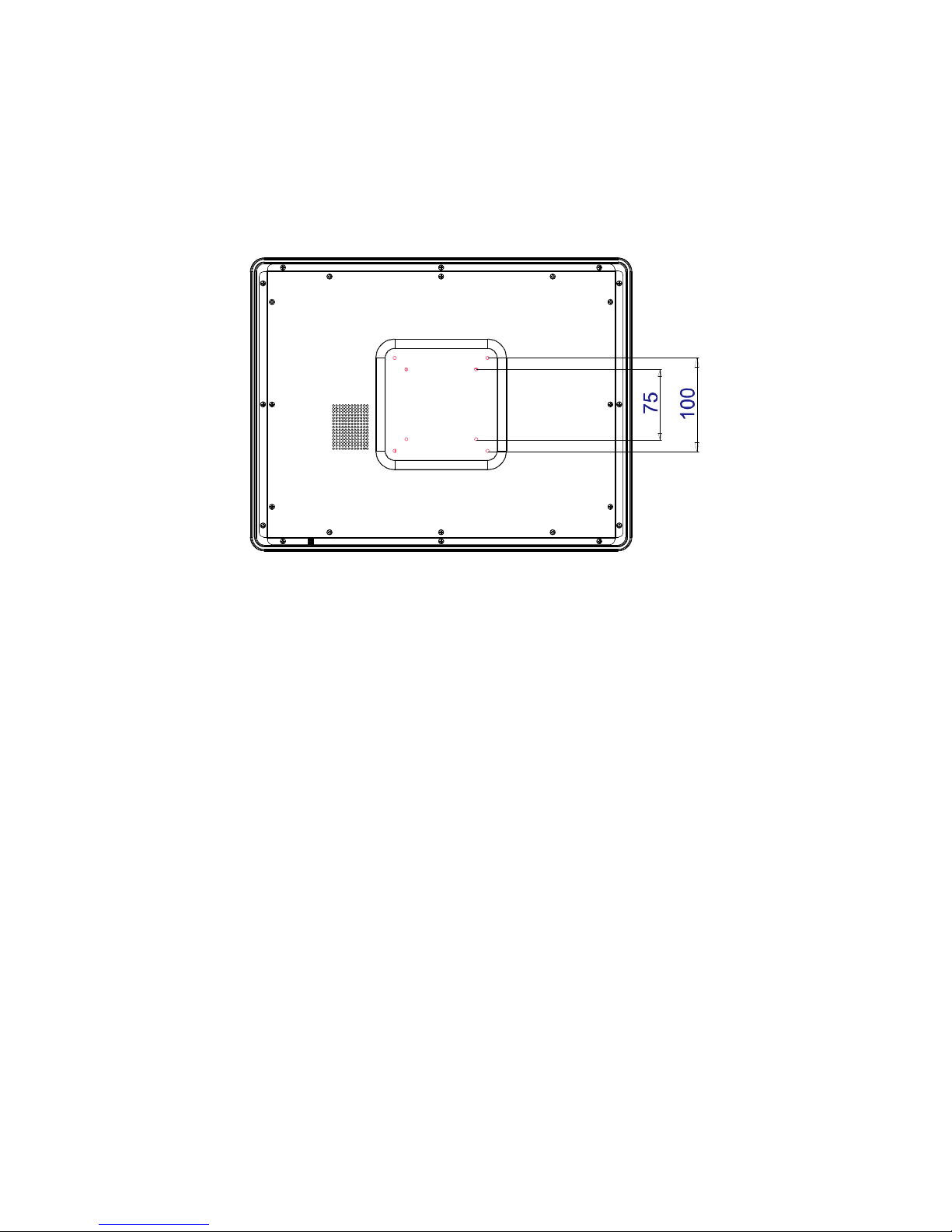

Figure 11 Mounting hole locations ............................................................. 23

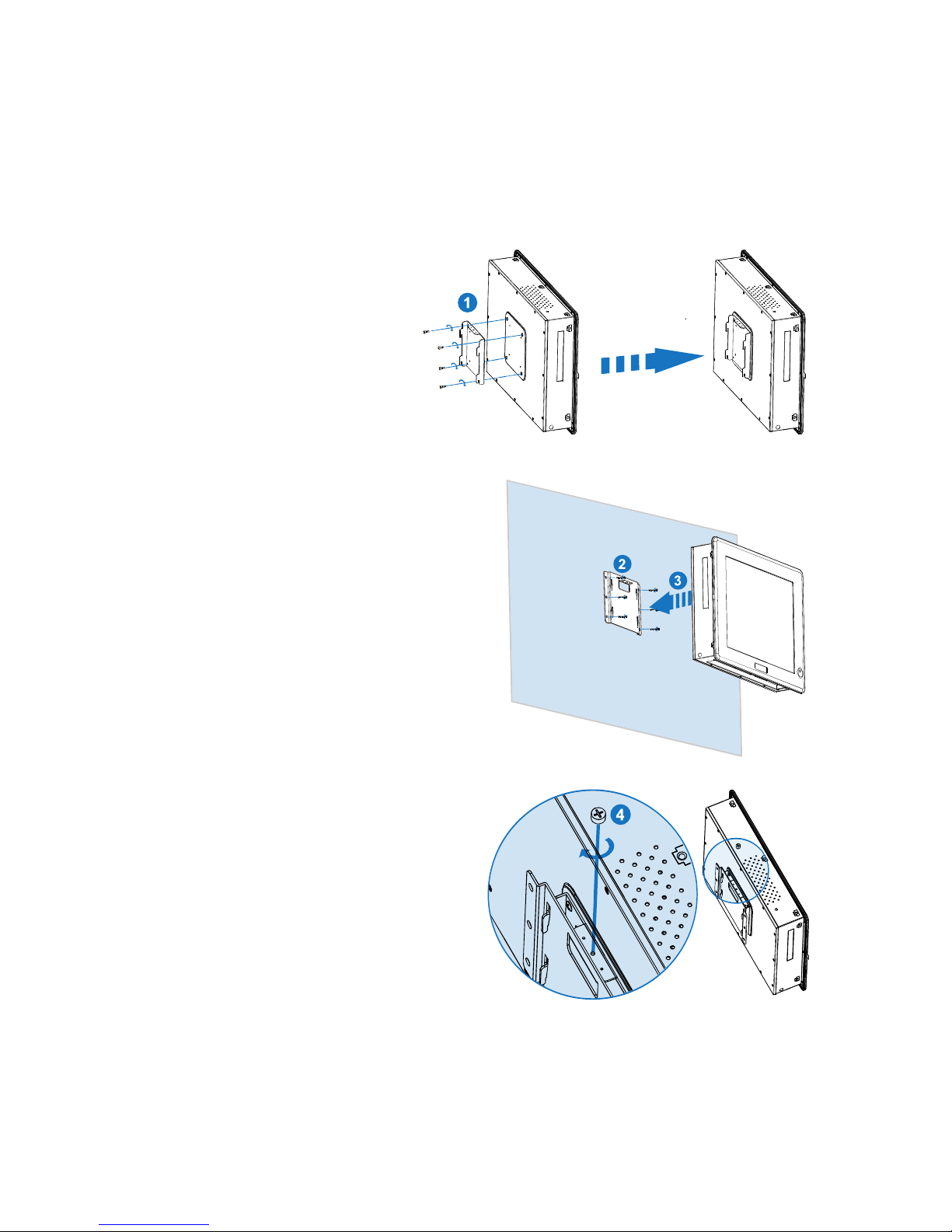

Figure 12 Wall Mounting Demonstrations .................................................. 24

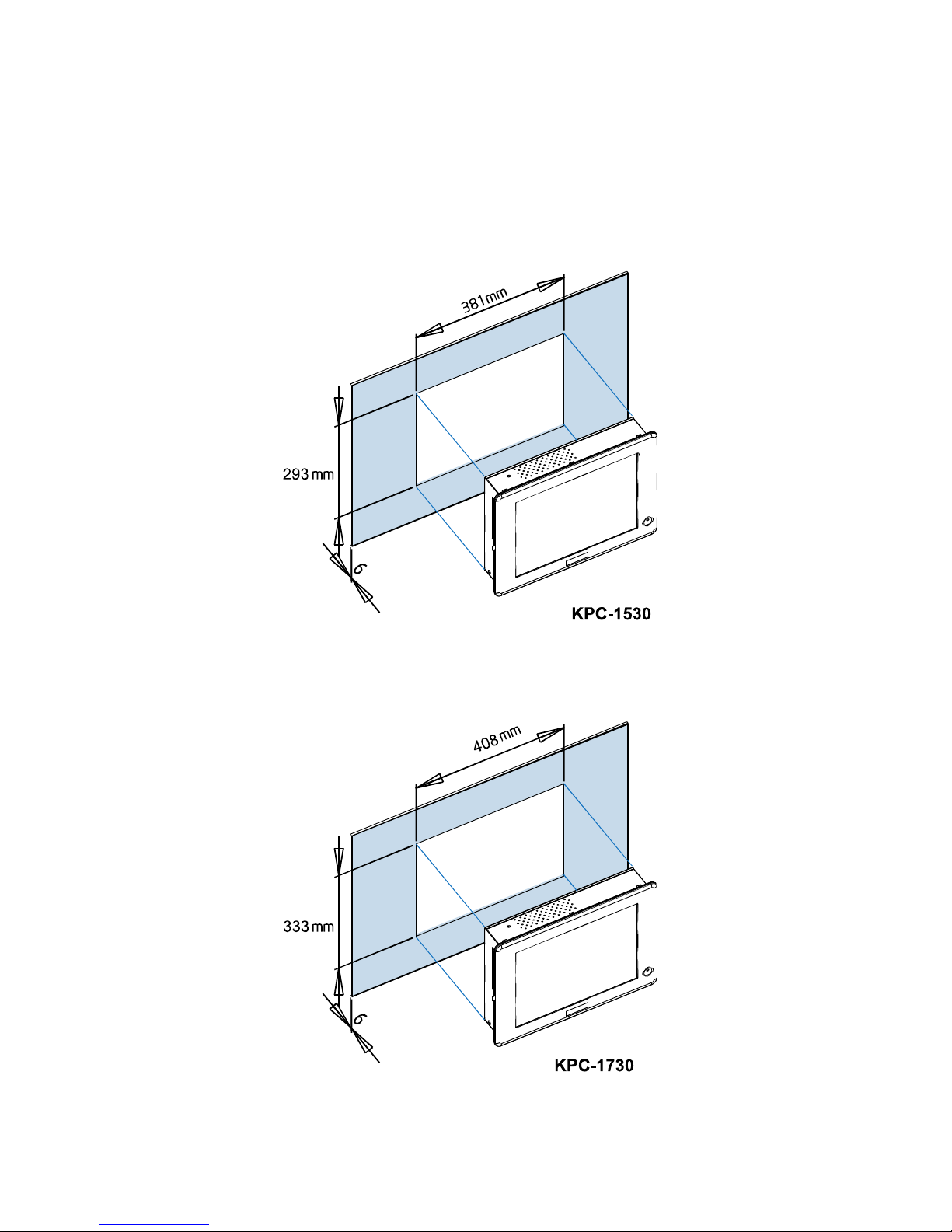

Figure 13 Panel Mount Cut-out hole and m
aximum panel thickness ......... 25

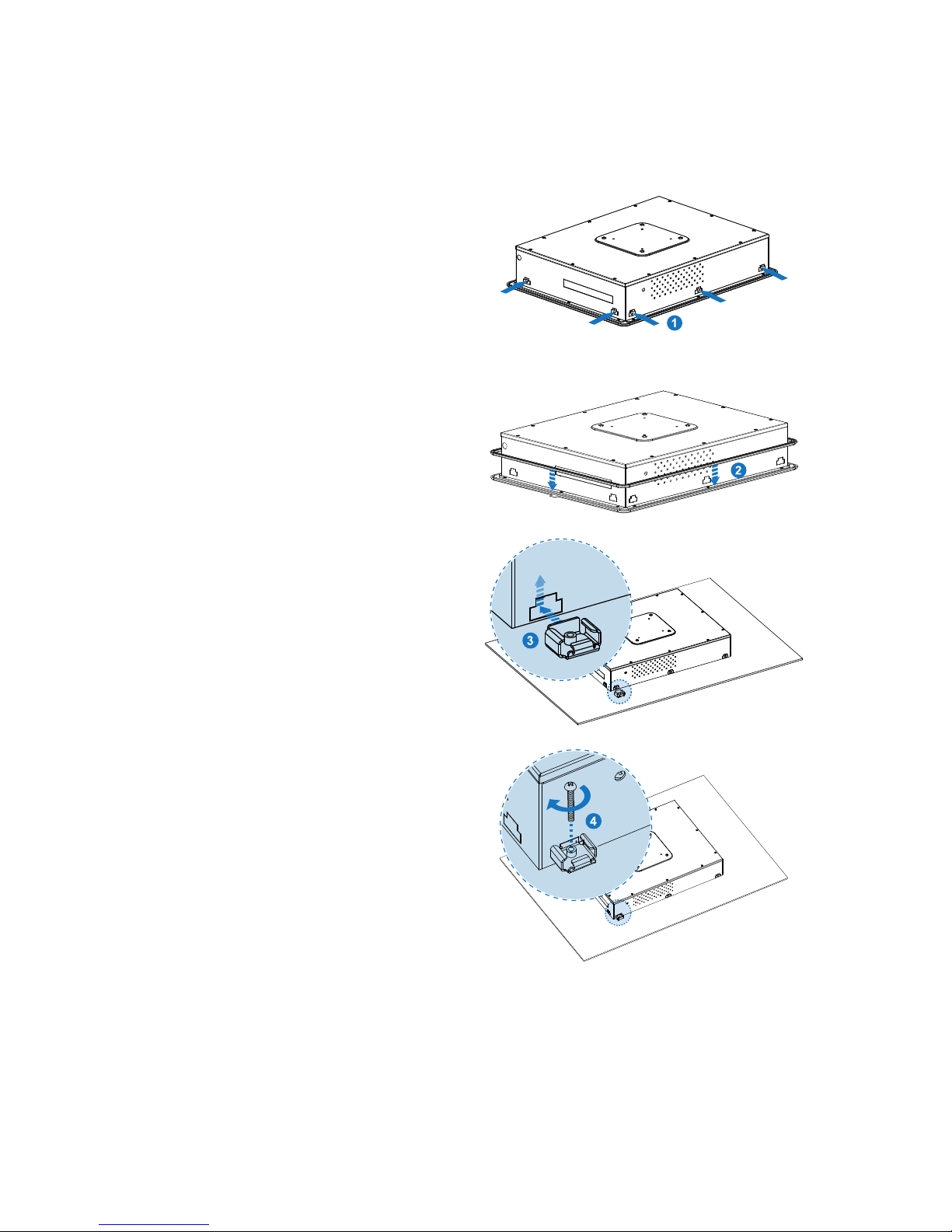

Figure 14 Panel Mounting .......................................................................... 26

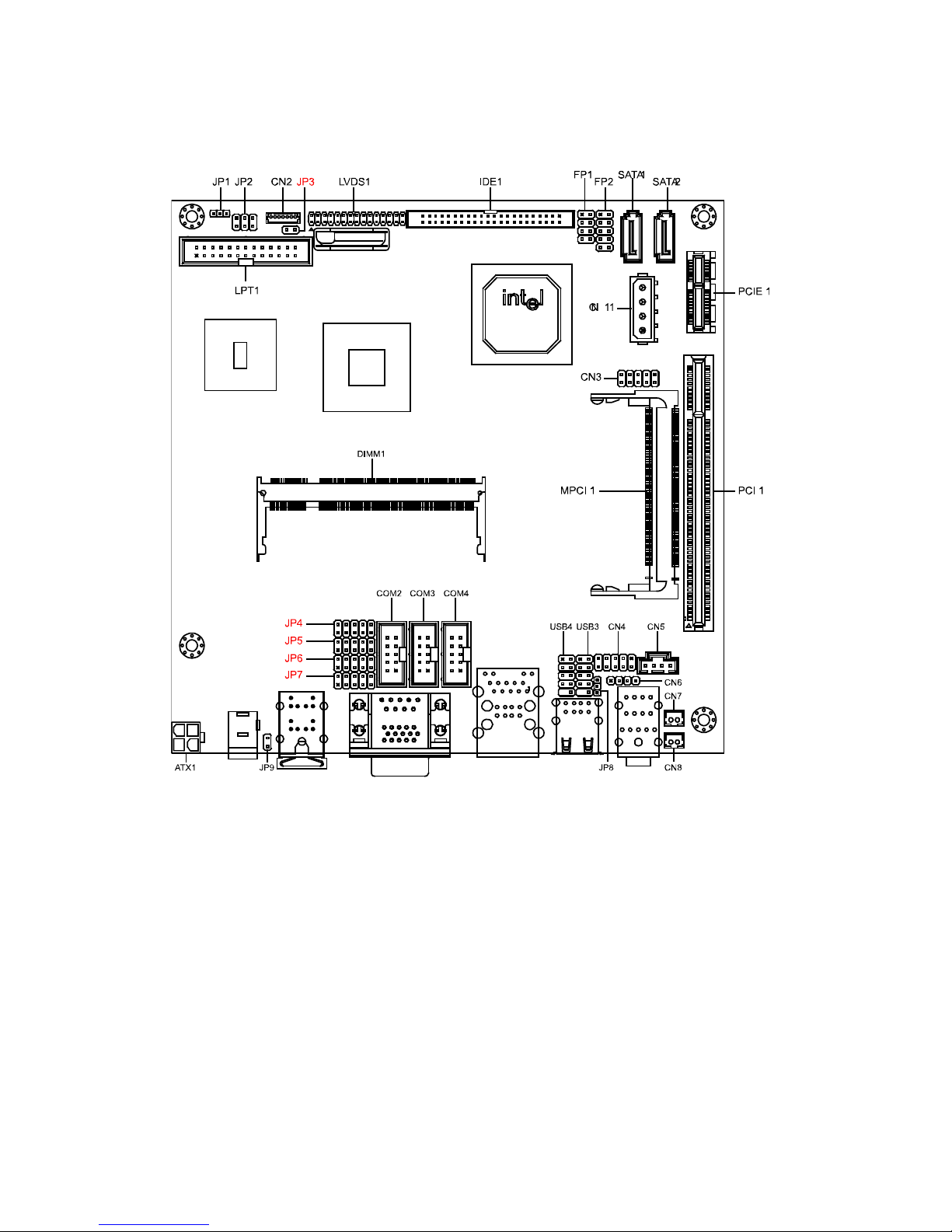

Figure 15 Jumper and Connector Locations .............................................. 33
Page 5
Tables
5
KPC-1530/ 1730 User’s Manua
l
Tables
Table 1 Specifications ................................................................................ 14

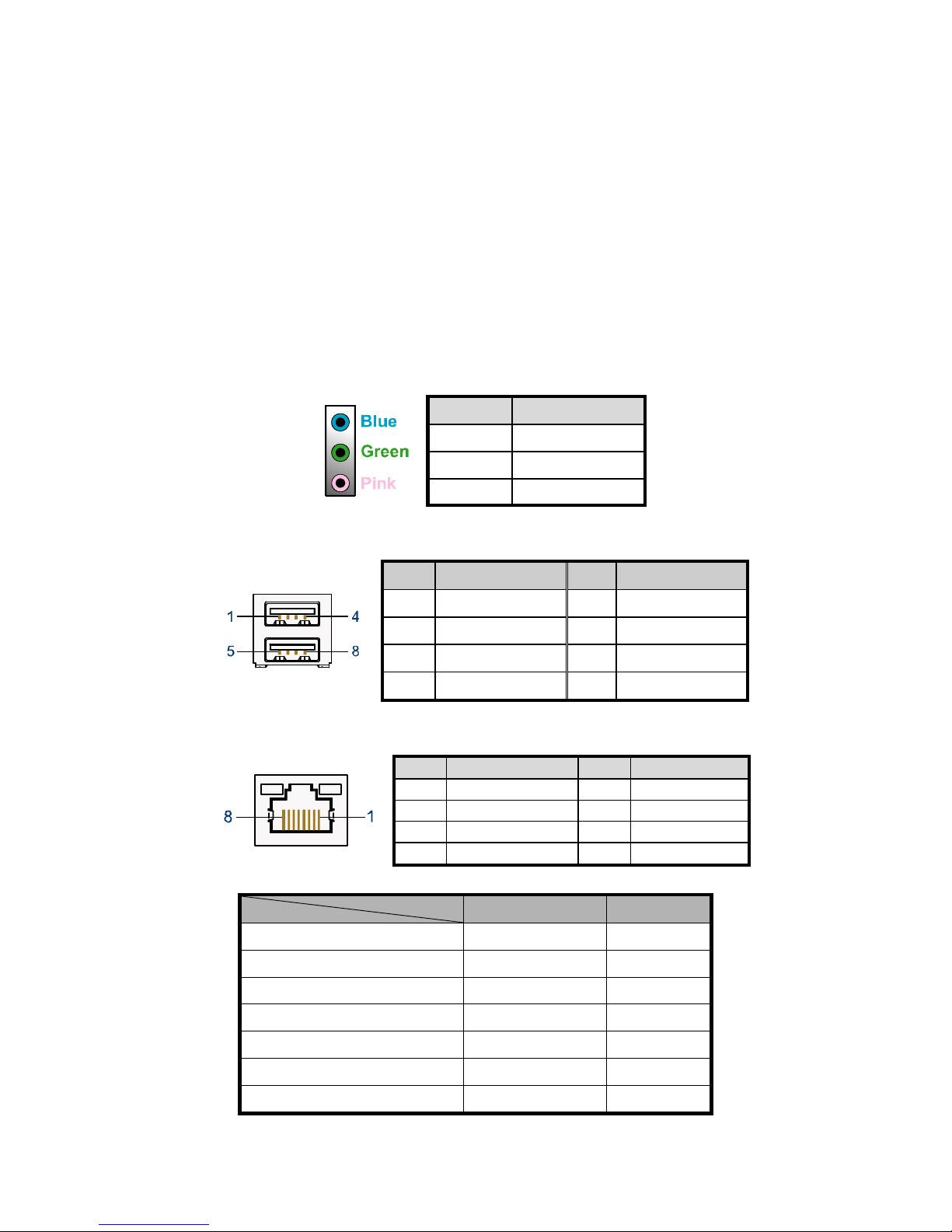

Table 2 AUDIO, 3-Port Audio phone jack ................................................... 30
Table 3 USB, USB2.0 Type A Connector .................................................... 30
Table 4 LAN, Ethernet RJ-45 Connector .................................................... 30

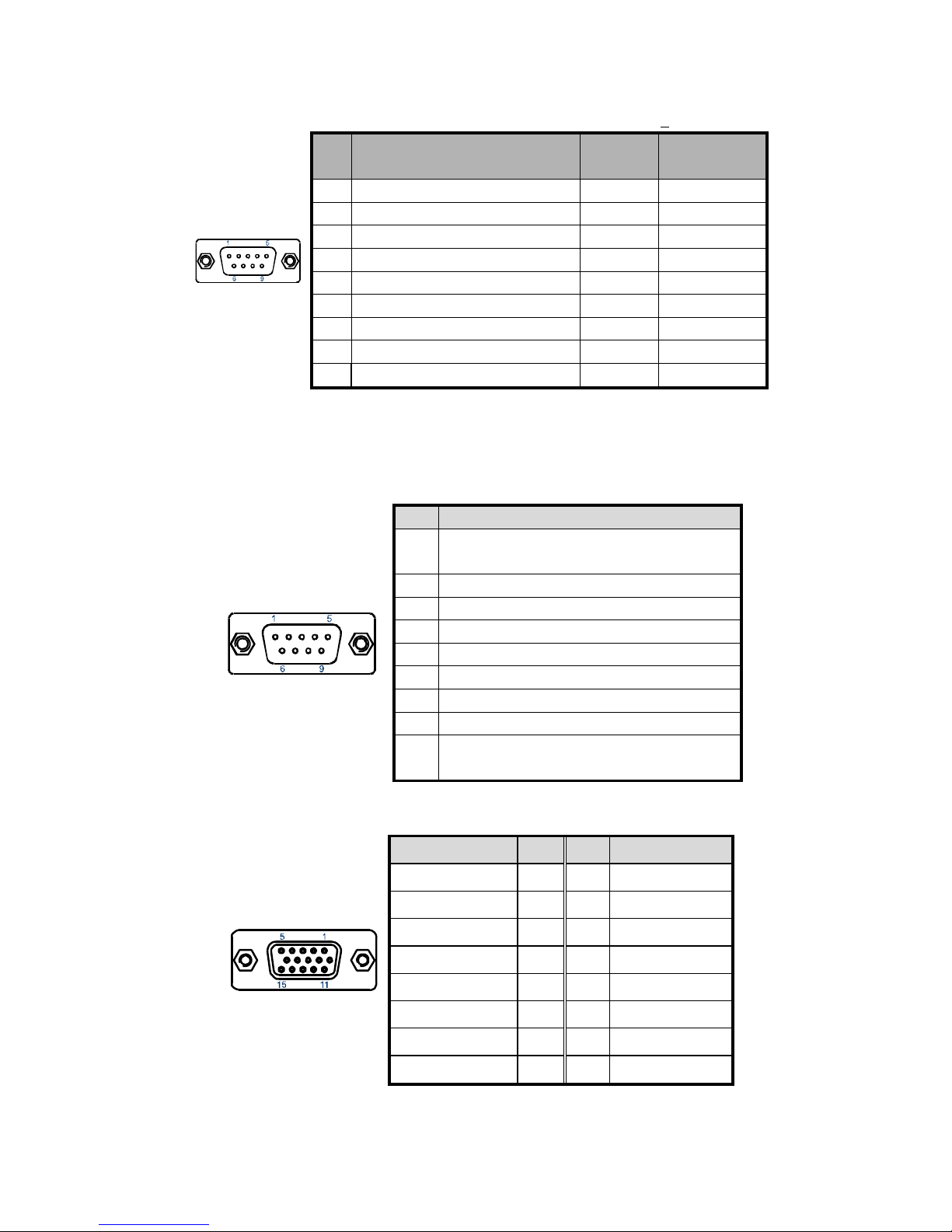

Table 5 COM1 RS-232/422/485 Connector (DB9) ..................................... 31
Table 6 COM2-4 RS-232 Connect
or (DB9) ................................................ 31
Table 7 VGA Connector (DB15) ................................................................. 31

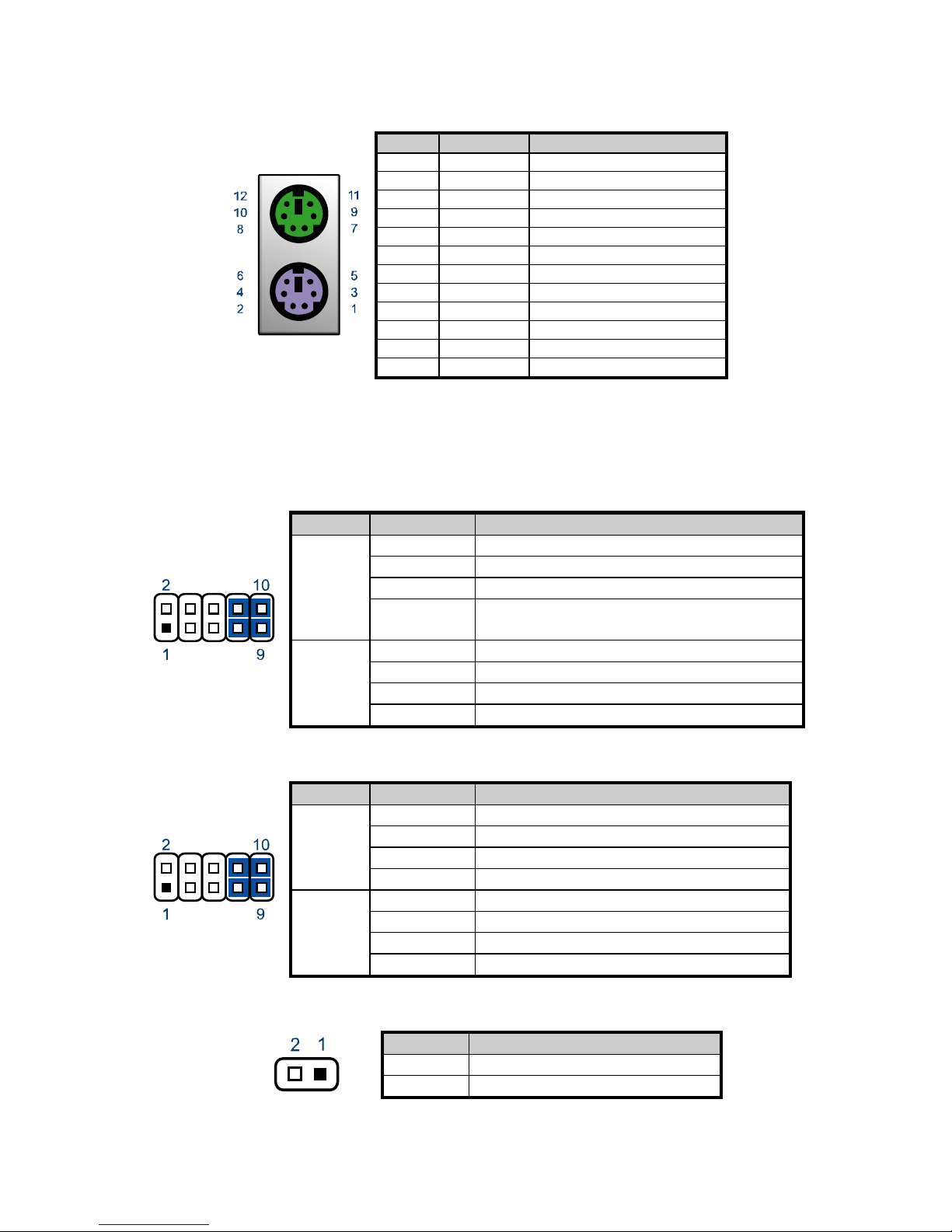

Table 8 CN 10, PS/2 KB/MS Connector ..................................................... 32
Table 9 JP4, COM1 Signal / Power Selection ............................................ 32
Table 10 JP5/ 6/ 7, COM2/ 3/ 4 Signal / Power Selection .......................... 32
Table 11 JP3, Clear CMOS Selection ........................................................ 32
Page 6
Safety Instructions
6
KPC-1530/ 1730 User’s Manua
l
Safety Instructions
Before You Begin
Before handling the product, read the instructions and safety guidelines on the
following pages to prevent damage to the product and to ensure your own personal
safety . Refer to the “Advisories” section in the Preface for advisory conventions used
in this user’s guide, including the distinction between Warnings, Cautions, Important
Notes, and Notes.
Always use caution when handling/operating a computer. Only qualified,
experienced, authorized electronics service personnel should access the
interior of a computer. The power supplies produce high voltages and
energy hazards, which can cause bodily harm.
Use extreme caution when installing or removing components. Refer to the
installation instructions in this user’s guide for precautions and procedures.
If you have any questions, please contact Quanmax Post-Sales Technical
Support.
WARNING
High voltages are present inside the chassis when the unit’ s power cord is plugged into
an electrical outlet. Turn off system power, turn off the power supply, and then
disconnect the power cord from its source before removing the chassis cove r. Turning off
the system power switch does not remove power to components.
When Working Inside a Computer
Before taking covers off a computer, perform the following steps:
1. Turn off the computer and any peripherals.
2. Disconnect the computer and peripherals from their power sources or
subsystems to prevent electric shock or system board damage. This does not
apply when hot swapping parts.
3. Follow the guidelines provided in “Preventing Electrostatic Discharge” on the
following page.
4. Disconnect any telephone or telecommunications lines from the computer.
In addition, take note of these safety guidelines when appropriate:
Page 7
Safety Instructions
7
KPC-1530/ 1730 User’s Manua
l
To help avoid possible damage to system boards, wait five seconds after
turning off the computer before removing a component, removing a system
board, or disconnecting a peripheral device from the computer.
When you disconnect a cable, pull on its connector or on its strain-relief loop,
not on the cable itself. Some cables have a connector with locking tabs. If you
are disconnecting this type of cable, press in on the locking tabs before
disconnecting the cable. As you pull connectors apart, keep them evenly
aligned to avoid bending any connector pins. Also, before connecting a cable,
make sure both connectors are correctly oriented and aligned.
CAUTION
Do not attempt to service the system yourself except as explained in this user’s guide.
Follow installation and troubleshooting instructions closely.
Preventing Electrostatic Discharge
Static electricity can harm system boards. Perform service at an ESD workstation
and follow proper ESD procedure to reduce the risk of damage to components.
Quanmax strongly encourages you to follow proper ESD procedure, which can
include wrist straps and smocks, when servicing equipment.
You can also take the following steps to prevent damage from electrostatic
discharge (ESD):
When unpacking a static-sensitive component from its shipping carton, do not
remove the component’s antistatic packing material until you are ready to inst all
the component in a computer. Just before unwrapping the antistatic packaging,
be sure you are at an ESD workstation or grounded. This will discharge any
static electricity that may have built up in your body.
When transporting a sensitive component, first place it in an antistatic container
or packaging.
Handle all sensitive components at an ESD workstation. If possible, use
antistatic floor pads and workbench pads.
Handle components and boards with care. Don’t touch the components or
contacts on a board. Hold a board by its edges or by its metal mounting bracket.
Do not handle or store system boards near strong electrostatic, electromagnetic,
magnetic, or radioactive fields.
Page 8
Preface
8
KPC-1530/ 1730 User’s Manua
l
Preface
How to Use This Guide
This guide is designed to be used as step-by-step instructions for installation, and as
a reference for operation, troubleshooting, and upgrades.
NOTE
Driver downloads and additional information are available under Downloads on our web
site: www.quanmax.com.
Unpacking
When unpacking, follow these steps:
1. After opening the box, save it and the packing material for possible future
shipment.
2. Remove all items from the box. If any items listed on the purchase order
are missing, notify Quanmax customer service immediately.
3. Inspect the product for damage. If there is damage, notify Quanmax
customer service immediately. Refer to “Warranty Policy” for the return
procedure.
Regulatory Compliance Statements
This section provides the FCC compliance statement for Class A devices.
FCC Compliance Statement for Class A Devices
The product(s) described in this user’s guide has been tested and found to comply
with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the user’s guide, may cause harmful
Page 9
Preface
9
KPC-1530/ 1730 User’s Manua
l
interference to radio communications. Operation of this equipment in a residential
area (domestic environment) is likely to cause harmful interference, in which case
the user will be required to correct the interference (take adequate measures) at
their own expense.
Changes or modifications not expressly approved by Quanmax could void the user's
authority to operate the equipment.
NOTE
The assembler of a personal computer system may be required to test the system
and/or make necessary modifications if a system is found to cause harmful
interference or to be noncompliant with the appropriate standards for its intend ed use.
Warranty Policy
Limited Warranty
Quanmax Inc.’s detailed Limited Warranty policy can be found under Support at
www.quanmax.com. Please consult your distributor for warranty verification.
The limited warranty is void if the product has been subjected to alteration, neglect,
misuse, or abuse; if any repairs have been attempted by anyone other than
Quanmax or its authorized agent; or if the failure is caused by accident, acts of God,
or other causes beyond the control of Quanmax or the manufacturer. Neglect,
misuse, and abuse shall include any installation, operation, or maintenance of the
product other than in accordance with the user’s guide.
No agent, dealer, distributor, service company, or other party is authorized to change,
modify, or extend the terms of this Limited Warranty in any manner whatsoever.
Quanmax reserves the right to make changes or improvements in any product
without incurring any obligation to similarly alter products previously purchased.
Return Procedure
For any Limited Warranty return, please contact Support at www.quanmax.com and
login to obtain a Return Material Authorization (RMA) Number. If you do not have an
account, send an email to [email protected] to apply for one.
All product(s) returned to Quanmax for service or credit must be accompanied by a
Return Material Authorization (RMA) Number. Freight on all returned items must be
prepaid by the customer who is responsible for any loss or damage caused by
Page 10
Preface
10
KPC-1530/ 1730 User’s Manua
l
common carrier in transit. Returns for Warranty must include a Failure Report for
each unit, by serial number(s), as well as a copy of the original invoice showing the
date of purchase.
To reduce risk of damage, returns of product must be in a Quanmax shipping
container. If the original container has been lost or damaged, new shipping
containers may be obtained from Quanmax Customer Service at a nominal cost.
Quanmax owns all parts removed from repaired products. Quanmax uses new and
reconditioned parts made by various manufacturers in performing warranty repairs
and building replacement products. If Quanmax repairs or replaces a product, its
warranty term is not extended.
Shipments not in compliance with this Limited Warranty Return Policy will not be
accepted by Quanmax.
Limitation of Liability
In no event shall Quanmax be liable for any defect in hardware, software, loss, or
inadequacy of data of any kind, or for any direct, indirect, incidental, or
consequential damages in connection with or arising out of the performance or use
of any product furnished hereunder. Quanmax’s liability shall in no event exceed the
purchase price of the product purchased hereunder. The foregoing limitation of
liability shall be equally applicable to any service provided by Quanmax or its
authorized agent.
Maintaining Your Computer
Environmental Factors
Temperature
The ambient temperature within an enclosure may be greater than room
ambient temperature. Installation in an enclosure should be such that the
amount of air flow required for safe operation is not compromised.
Consideration should be given to the maximum rated ambient temperature.
Overheating can cause a variety of problems, including premature aging and
failure of chips or mechanical failure of devices.
If the system has been exposed to abnormally cold temperatures, allow a
two-hour warm-up period to bring it up to normal operating temperature before
turning it on. Failure to do so may cause damage to internal components,
particularly the hard disk drive.
Humidity
Page 11
Preface
11
KPC-1530/ 1730 User’s Manua
l
High-humidity can cause moisture to enter and accumulate in the system. This
moisture can cause corrosion of internal components and degrade such
properties as electrical resistance and thermal conductivity. Extreme moisture
buildup inside the system can result in electrical shorts, which can cause
serious damage to the system.
Buildings in which climate is controlled usually maintain an acceptable level of
humidity for system equipment. However, if a system is located in an unusually
humid location, a dehumidifier can be used to maintain the humidity within an
acceptable range. Refer to the “Specifications” section of this user’s guide for
the operating and storage humidity specifications.
Altitude
Operating a system at a high altitude (low pressure) reduces the efficiency of
the cooling fans to cool the system. This can cause electrical problems related
to arcing and corona effects. This condition can also cause sealed components
with internal pressure, such as electrolytic capacitors, to fail or perform at
reduced efficiency.
Power Protection
The greatest threats to a system’s supply of power are power loss, power spikes,
and power surges caused by electrical storms, which interrupt system operation
and/or damage system components. To protect your system, always properly
ground power cables and one of the following devices.
Surge Protector
Surge protectors are available in a variety of types and usually provide a level
of protection proportional with the cost of the device. Surge protectors prevent
voltage spikes from entering a system through the AC power cord. Surge
protectors, however, do not offer protection against brownouts, which occur
when the voltage drops more than 20 percent below the normal AC line voltage
level.
Line Conditioner
Line conditioners go beyond the over voltage protection of surge protectors.
Line conditioners keep a system’s AC power source voltage at a fairly constant
level and, therefore, can handle brownouts. Because of this added protection,
line conditioners cost more than surge protectors. However, line conditioners
cannot protect against a complete loss of power.
Page 12
Preface
12
KPC-1530/ 1730 User’s Manua
l
Uninterruptible Power Supply
Uninterruptible power supply (UPS) systems offer the most complete protection
against variations on power because they use battery power to keep the server
running when AC power is lost. The battery is charged by the AC power while it
is available, so when AC power is lost, the battery can provide power to the
system for a limited amount of time, depending on the UPS system.
UPS systems range in price from a few hundred dollars to several thousand
dollars, with the more expensive unit s allowing you to run larger systems for a
longer period of time when AC power is lost. UPS systems that provide only 5
minutes of battery power let you conduct an orderly shutdown of the system,
but are not intended to provide continued operation. Surge protectors should be
used with all UPS systems, and the UPS system should be Underwriters
Laboratories (UL) safety approved.
CAUTION
RISK OF EXPLOSION IF BA TTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BA TTERIES ACCORDING TO THE INSTRUCTIONS
Page 13
Chapter 1
13
KPC-1530/ 1730 User’s Manua
l
Chapter 1
Introduction
Overview
The KPC-1530/1730 Panel PCs is combining the latest Intel 45nm Intel® Atom™
processor with the high integration of the Intel® 945GSE/ ICH7-M chipset for a wide
range of industrial applications. Storage includes a 2.5" SATA hard drive or a
solid-state drive (SSD), and slim optical drive. Supported interfaces include a GbE
LAN, HD audio, 4x serial ports, USB 2.0 ports, PCI slot, and Mini PCI slot, thus
easily meeting a broad range of customer requirements. The KPC series provide a
compact, high performance human-machine interface, with optimal shock, vibration
and temperature resistance for tough industrial demands.
Check list
1. Take out the KPC-1530/1730 from the carton box, check if the unit is
properly secure in the plastic bag.
2. Check the contents of the carton box:
1x Panel PC
1x Panel Mounting Kits (with screw bag)
1x Drivers/ Manual CD
1x Quick Installation Guide
1x Power Cord (optional)
1x Wall Mounting Kits (optional)
1x DC Power Adapter (optional)
1x Wi-Fi antenna (optional)
Features
15"/17” TFT LCD Display with Resistive 5-wire TouchScreen
Intel® Atom™ Processor N270
Intel® 945GSE / ICH7-M
IP65 approved front bezel
1x PCI Slot and 1x Mini PCI Slot Expansion
1x GbE, 4x COMs, 4x USB ports, VGA, HD Audio
Page 14
Chapter 1
14
KPC-1530/ 1730 User’s Manua
l
Product Specifications
KPC-1530 KPC-1730
System
CPU Intel® Atom™ N270 Intel® Atom™ N270
Chipset Intel® 945GSE + ICH7-M Intel® 945GSE + ICH7-M
Memory 1x DDR2 400/533 SO-DIMM Socket, up to 2G1x DDR2 400/533 SO-DIMM Socket, up to 2
G
Internal Storage 1x 2.5” SATA HDD or 1x SSD
1x Slim DVD-ROM
1x 2.5” SATA HDD or 1x SSD
1x Slim DVD-ROM
Expansion slots 1x PCI slot, 1x Mini PCI slot 1x PCI slot, 1x Mini PCI slot
Cooling Fanless Fanless
Material Aluminum front bezel & SECC chassis Alumin um front bezel & SECC chassis
I/Os 1x GbE, RJ-45
4x USB 2.0
1x VGA (DB-15)
4x COMs with 5V/12V Power Selection
(COM1 RS-232/422/485, COM2/3/4 RS-232)
1x PS/2 Keyboard Connector
1x PS/2 Mouse Connector
1x Power On/Off Switch
1x Power Connector
Mic-in, Line-in, Line-out
1x GbE, RJ-45
4x USB 2.0
1x VGA
4x COMs with 5V/12V Power Selection
(COM1 RS-232/422/485, COM2/3/4 RS-232)
1x PS/2 Keyboard Connector
1x PS/2 Mouse Connector
1x Power On/Off Switch
1x Power Connector
Mic-in, Line-in, Line-out
LCD Display
Display type & size 15” TFT LCD 17” TFT LCD
Brightness 250 cd/m² 350 cd/m²
Resolution XGA (1024 x 768) SXGA (1280 x 1024)
Touch Screen 5-wire Resistive Type 5-wire Resistive Type
Wireless LAN Wireless LAN 802.11b/g (optional)
Environmental
Specification
Temperature
Operating: 0˚C to 45˚C (CF, SSD), 0˚C to 40˚C (2.5” HDD)
Storage: 0˚C to 70˚C, 10%-85% rel. hum., non-condensing
Size and weight
Dimensions 410 x 315 x 82 mm (W x H x D)
442 x 354 x 91 mm (W x H x D)
Weight 6.4 kg
8.5 kg
Power Input AC 100-240V(Optional DC-12V or DC-24V)
Mounting Type VESA, Panel Mount
Compliant CE, FCC Class A, IP65 front bezel
Table 1 Specifications
Page 15
Chapter 1
15
KPC-1530/ 1730 User’s Manua
l
Mechanical Layout
Front and Side Panel
Figure 1 Mechanical Layout - Front and Side
WARNING
Be sure not to block any air vents on the computer. Blocked air vents can cause thermal
problems.
I/O Panel
Figure 2 Mechanical Layout - I/O Panel
Page 16
Chapter 1
16
KPC-1530/ 1730 User’s Manua
l
Mechanical Dimensions
Figure 3 Mechanical Dimensions (KPC-1530)
Page 17
Chapter 1
17
KPC-1530/ 1730 User’s Manua
l
Figure 4 Mechanical Dimensions (KPC-1730)
Page 18
Chapter 2
18
KPC-1530/ 1730 User’s Manua
l
Chapter 2
Assembly/Disassembly
Accessing Internal Components
WARNING
Before opening your system, make sure to turn it off and disconnect the power sources to
prevent electric shock or system damage. And wait 3 to 5 minutes to let the computer cool
before removing the computer cover.
Follow the procedure described below to access the system's internal components.
1) Place the system front-side-down on a soft material to prevent marking or
scratching of the front panel. Remove the screws securing the rear panel of the
chassis as shown.
Figure 5 Removing the rear cover
2) Remove the rear cover. Note the locations of the internal components of the
system.
Page 19
Chapter 2
19
KPC-1530/ 1730 User’s Manua
l
Figure 6 Mechanical Internal Layout
Memory Module Installation
Carefully follow the steps below in order to install the DIMMs:
1. To avoid generating static electricity and damaging the SO-DIMM, ground
yourself by touching a grounded metal surface or use a ground strap before you
touch the SO-DIMM.
2. Do not touch the connectors of the SO-DIMM. Dirt or other residue may cause a
malfunction.
3. To make sure the correct DDR2 SO-DIMM notches should match with the
DDR2 SO-DIMM.
4. Hold the SO-DIMM with its notch aligned with the memory socket of the board
and insert it at a 30-degree angle into the socket.
Figure 7 Align the SO-DIMM Memory Module with the onboard socket
5. Fully insert the module into the socket until a “click” is heard.
6. Press down on the SO-DIMM so that the tabs of the socket lock on both sides
of the module
Page 20
Chapter 2
20
KPC-1530/ 1730 User’s Manua
l
Figure 8 Press down on the SO-DIMM Memory Module to lock it in place
Removing a DIMM:
To remove the SO-DIMM, use your fingers or a small screwdriver to carefully push
away the tabs that secure either side of the SO-DIMM. Lift it out of the socket.
Make sure you store the SO-DIMM in an anti-static bag. The socket must be
populated with memory modules of the same size and manufacturer.
Installation PCI Card
NOTE
When adding or removing expansion cards, make sure that you unplug the power supply first.
Meanwhile, read the documentation for the expansion card to configure any necessary hardware
or software settings for the expansion card, such as jumpers, switches or BIOS configuration.
The product provides space for a half-length PCI expansion card. Before installing
your card, make sure it meets the following height restrictions.
Figure 9 PCI card height restrictions
Page 21
Chapter 2
21
KPC-1530/ 1730 User’s Manua
l
Follow the procedure described below to install a PCI card.
1. Remove the PCI raiser card holder (1)
and PCI slot cover (2) by loosening the
retaining screw as shown.
2. Fully insert the PCI card into the PCI
raiser card
3. Replace PCI raiser card holder and
secure with the retaining screw.
Page 22
Chapter 2
22
KPC-1530/ 1730 User’s Manua
l
HDD & ODD Installation
Figure 10 HDD & ODD Installation
NOTE
Above procedure is for KPC-1730 only. If you want to install HDD & ODD in KPC-1530, you
have to secure ODD to the ODD bracket and secure the ODD bracket to the chassis first.
Then secure HDD to the HDD bracket and secure the HDD bracket to the ODD bracket.
Step 1
Remove the pre-cut bracket
opening of ODD and the PCI
raiser card holder.
Loosen the 4 screws and take off
the ODD bracket form the system.
Step 2 & 3
Secure the hard drive to the HDD
bracket using the short screws
then secure HDD bracket to the
ODD bracket using the
anti-vibration screws.
Step 4
Secure the ODD to the ODD
bracket using the 4 short screws
provided.
Step 5
Secure the whole bracket to the chassis and connecting the data & power cables.
Page 23
Chapter 2
23
KPC-1530/ 1730 User’s Manua
l
VESA Mounting
The product comes with VESA FDMI 75/100 standard mounting holes as shown
below. Use 4 screws with the appropriate length for your mounting bracket.
Figure 1 1 Mo unting hole locations
Page 24
Chapter 2
24
KPC-1530/ 1730 User’s Manua
l
Wall Mounting
Below are the demonstrations of how to use Quanmax wall-mount kits
.
Step1
Secure the VESA kit to the panel
PC using the 4 screws.
Step2
Install the wall-mount kit to the proper place
of the wall by using the 6 screws.
Step3
Attach the panel PC to the wall-mount kit
which has been well fixed on the wall.
Step4
Secure the wall-mount kit and panel PC
with screw by using Phillips Screwdriver
Figure 12 Wall Mounting Demonstrations
Page 25
Chapter 2
25
KPC-1530/ 1730 User’s Manua
l
Panel Mounting
The Panel PC can be panel mounted and comes with brackets and screws for this
purpose. The required cutout for panel mounting and maximum panel thickness is
shown below.
Figure 13 Panel Mount Cut-out hole and maximum panel thickness
Page 26
Chapter 2
26
KPC-1530/ 1730 User’s Manua
l
Below are the demonstrations of how to do panel mounting.
Step1
Remove the pre-cut Bracket Opening
Covers by firmly inserting a flathead
screwdriver and bending them back and
forth until they break free from the
chassis.
“KPC-1530: 9 Bracket Opening Covers”
“KPC-1730: 10 Bracket Opening Covers”
Step2
Install the Panel Mount Seal on the inside
edge of the Panel PC
Step3
Insert a Panel Mount Bracket into a
bracket opening as shown.
Step4
Secure the chassis to the panel by
tightening the screw provided against the
panel. Repeat for the remaining brackets.
Figure 14 Panel Mounting
Page 27
Chapter 3
27
KPC-1530/ 1730 User’s Manua
l
Chapter 3
Getting Started
Power Connection
CAUTION
Use the power cord suitable for the power supply in your country. Do not
remove or alter the grounding prong on the power cord. In situations where
a two-slot receptacle is present, have it replaced with a properly grounded
three-prong grounding type receptacle.
AC Power
1. Connect the supplied AC power cord to the system AC power inlet on the I/O
panel of the system.
2. Connect the other end of the AC power cord to a corresponding outlet.
DC Power
The product comes with a two pin header that carries 12VDC external power input.
`
Label Function
+
DC 12V (Optional DC 24V)
-
GND
1. Make sure the power distribution to the DC power feed wires is disconnected.
2. Loosen the screws securing the terminal block to the DC inlet as shown and
remove it from the chassis.
Page 28
Chapter 3
28
KPC-1530/ 1730 User’s Manua
l
3. Remove just enough insulator material from the ends of the wires to allow a
proper electrical connection to the terminal block.
4. Insert the power feed wires into the terminal block and tighten the compression
clamps as shown.
5. Insert the terminal block into the DC inlet in the chassis and secure by tightening
the screws loosened in Step 2.
6. Connect the power distribution to the DC power feed wires.
7. Press the power button to turn it on.
Operating System and Drivers
If your product does not come with an operating system pre-installed, you will need
to install an operating system and the necessary drivers to operate it. After you have
finished assembling your system and connected the appropriate power source,
power it up using the power supply and install the desired operating system.
You can download the drivers for the product from the Quanmax website
at www.quanmax.com and install as instructed there. For other operating systems,
please contact Quanmax.
Page 29
Chapter 4
29
KPC-1530/ 1730 User’s Manua
l
Chapter 4
Maintenance and Prevention
Your KPC-1530/1730 system requires minimal maintenance and care to keep it
operating correctly.
Occasionally wipe the system with a soft dry cloth.
You should only remove persistent dirt by use of a soft, slightly damp cloth (use
only a mild detergent).
Make sure the ventilation holes are clear of debris.
CAUTION
Do NOT do any of the following:
Allow water to enter the computer
Use a heavily dampened cloth
Spray water directly inside of computer
Page 30
Chapter 5
30
KPC-1530/ 1730 User’s Manua
l
Chapter 5
Interface & Jumper Setting
External Connectors
Table 2 AUDIO, 3-Port Audio phone jack
Signal Name
BLUE LINE IN
GREEN LINE OUT
PINK MIC IN
Table 3 USB, USB2.0 Type A Connector
Pin Signal Name Pin Signal Name
1 +5V 5 +5V
2 USBx- 6 USBx3 USBx+ 7 USBx+
4 GND 8 GND
Table 4 LAN, Ethernet RJ-45 Connector
Pin Signal Pin Signal
1 Tx+ 5 NC
2 Tx- 6 Rx3 Rx+ 7 NC
4 NC 8 NC
LAN LED Status
Status Led Orange / Green Yellow
No link Off Off
10M link Off Off
10M active Off Blink
100M link Green on Off
100M active Green on Blink
1000M link Orange on Off
1000M active Orange on Blink
Page 31
Chapter 5
31
KPC-1530/ 1730 User’s Manua
l
Table 5 COM1 RS-232/422/485 Connector (DB9)
Pin RS232 RS422
RS485
Half Duplex
1 DCD, Data carrier detect TX- DATA2 RXD, Receive data RX+ N/A
3 TXD, Transmit data TX+ DATA+
4 DTR, Data terminal ready RX- N/A
5 GND, ground GND GND
6 DSR, Data set ready N/A N/A
7 RTS, Request to send N/A N/A
8 CTS, Clear to send N/A N/A
9 RI, Ring indicator (+5V / +12V *) N/A N/A
* Volt age can be selected JP4.
COM1 Function Type RS232/422/485 can be selected from BIOS setting.
Table 6 COM2-4 RS-232 Connector (DB9)
Pin Signal
1 +5V / +12V / DCD, Data carrier detect
Note：Selected by JP5-7
2 RXD, Receive data
3 DTR, Data terminal ready
4 GND, ground
5 TXD, Transmit data
6 DSR, Data set ready
7 RTS, Request to send
8 CTS, Clear to send
9 +5V / +12V / RI, Ring indicator
Note：Selected by JP5-7
Table 7 VGA Connector (DB15)
Signal Name Pin Pin Signal Name
Red 1 2 Green
Blue 3 4 NC
GND 5 6 GND
GND 7 8 GND
VCC 9 10 GND
NC 11 12 DDC2B data
HSYNC 13 14 VSYNC
DDC2B clock 15
Page 32
Chapter 5
32
KPC-1530/ 1730 User’s Manua
l
Table 8 CN 10, PS/2 KB/MS Connector
Pin Signal Function
1 KBDAT Keyboard Data
2 NC No Connect
3 GND Ground
4 KB5V +5VSB Power Source
5 KBCLK Keyboard Clock
6 NC No Connect
7 MSDAT Mouse Data
8 NC No Connect
9 GND Ground
10 KB5V +5VSB Power Source
11 MSCLK Mouse Clock
12 NC No Connect
Jumper Setting
Table 9 JP4, COM1 Signal / Power Selection
Jumper Setting Function
1
1-3 Short Pin 1 of COM1 = +12V
3-5 Short Pin 1 of COM1 = +5V
5-7 Short Pin 1 of COM1 = +5V
7-9 Short
Pin 1 of COM1 = DCD@RS232,
TX-@RS422, DATA-@RS485 (Default)
2
2-4 Short Pin 9 of COM1 = +12V
4-6 Short Pin 9 of COM1 = +5V
6-8 Short Pin 9 of COM1 = +5V
8-10 Short Pin 9 of COM1 = RI (Default)
Table 10 JP5/ 6/ 7, COM2/ 3/ 4 Signal / Power Selection
Jumper Setting Function
1
1-3 Short Pin 1 of COM2/ 3/ 4 = +12V
3-5 Short Pin 1 of COM2/ 3/ 4 = +5V
5-7 Short Pin 1 of COM2/ 3/ 4 = +5V
7-9 Short Pin 1 of COM2/ 3/ 4 = DCD (Default)
2
2-4 Short Pin 9 of COM2/ 3/ 4 = +12V
4-6 Short Pin 9 of COM2/ 3/ 4 = +5V
6-8 Short Pin 9 of COM2/ 3/ 4 = +5V
8-10 Short Pin 9 of COM2/ 3/ 4 = RI (Default)
Table 11 JP3, Clear CMOS Selection
Jumper Status
Open Normal Operation (Default)
Short Clear CMOS
Page 33
Chapter 5
33
KPC-1530/ 1730 User’s Manua
l
Figure 15 Jumper and Connector Locations
