Quanmax KPC-1561 User Manual

I

KPC-1561 User’s Manual

KPC-1561

15” Fanless Industrial Panel PC with Dual Core Intel

®

Atom™ Processor D2550 + Intel®NM10 Express Chipset

User’s Guide

Content

2

KPC-1561 User’s Manual

Content

Content.......................................................................................................................2

Figures & Tables.........................................................................................................3

Safety Instructions......................................................................................................5

 Before You Begin..................................................................................5

 When Working Inside a Computer........................................................ 5

 Preventing Electrostatic Discharge....................................................... 6

 Instructions for Lithium Battery ............................................................. 7

Preface....................................................................................................................... 8

 How to Use This Guide.........................................................................8

 Unpacking.............................................................................................8

 Regulatory Compliance Statements...................................................... 8

 Maintaining Your Computer...................................................................9

Chapter 1 Introduction........................................................................................... 11

 Overview............................................................................................. 11

 Product Specifications ........................................................................ 12

 System tour.........................................................................................13

Mechanical Dimensions......................................................................15

Chapter 2 Getting Started......................................................................................16

 Setting up your PC..............................................................................16

 VESA Mounting...................................................................................21

 Panel Mounting................................................................................... 22

Chapter 3 AMI BIOS Setup.................................................................................... 24

 Overview............................................................................................. 24

 Main Menu..........................................................................................25

 Advanced Menu.................................................................................. 26

 Boot Menu .......................................................................................... 39

 Security Menu.....................................................................................40

 Save & Exit Menu...............................................................................40

Chapter 4 Driver Installation ..................................................................................42

Figures & Tables

3

KPC-1561 User’s Manual

Figures & Tables

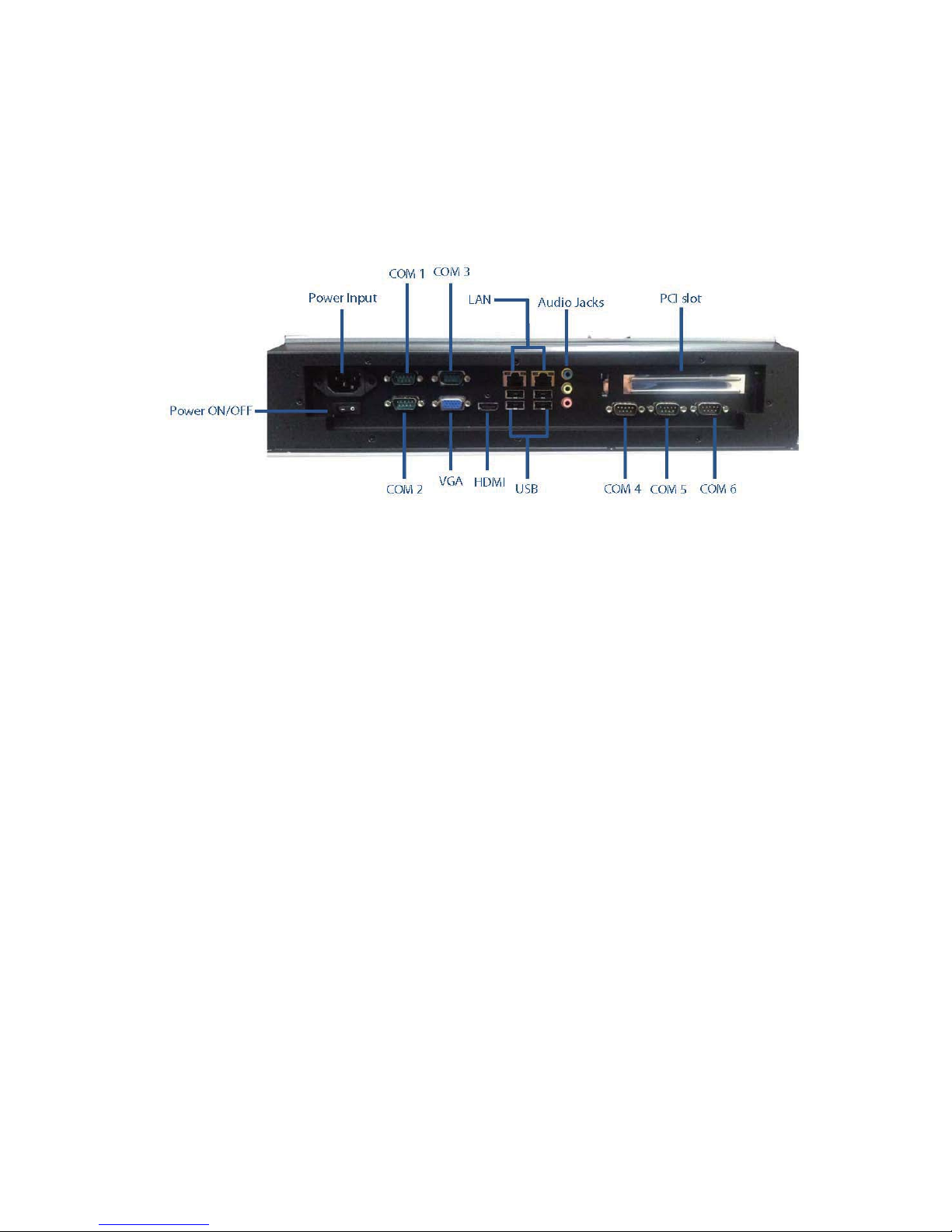

Figure 1 I/Os.............................................................................................. 13

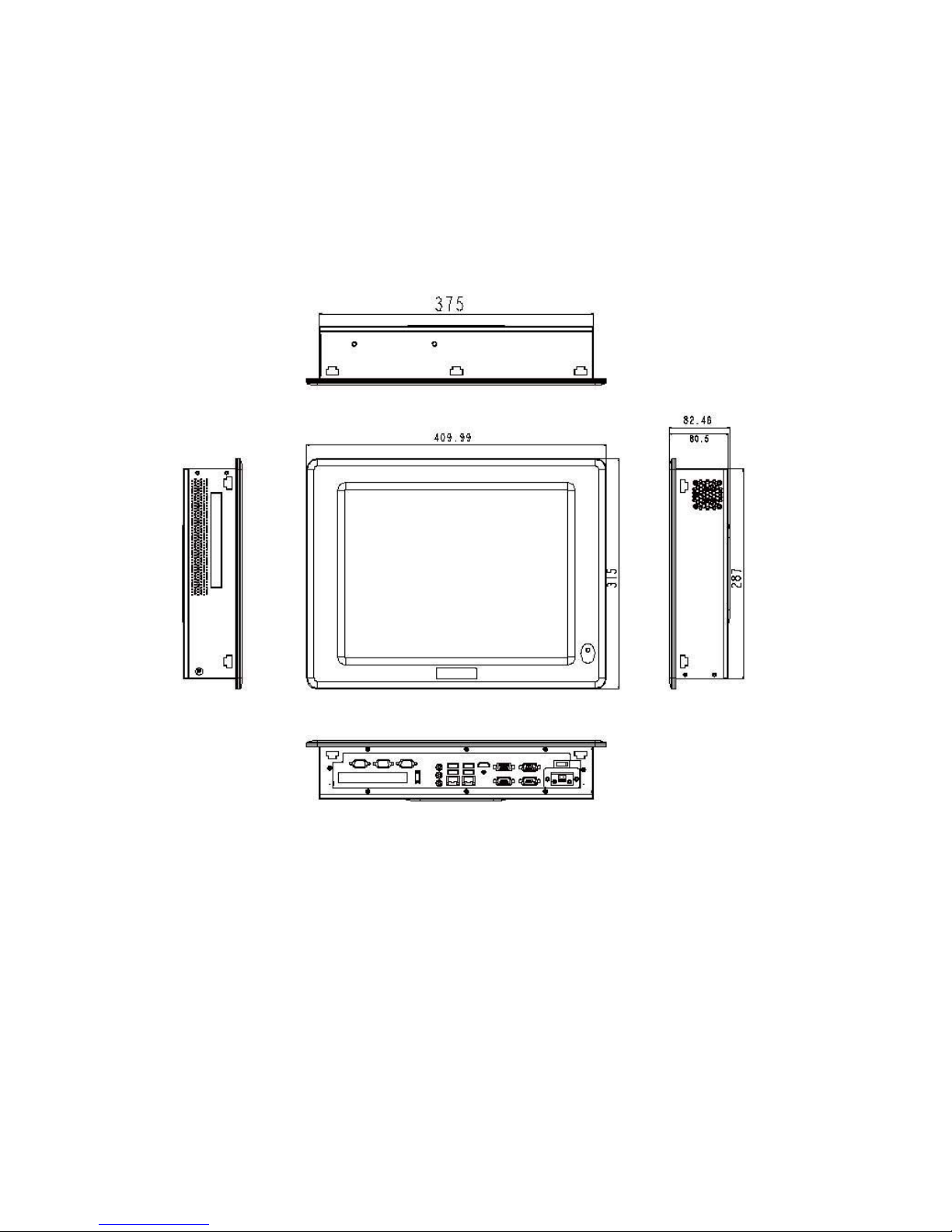

Figure 2 Mechanical Dimensions...............................................................15

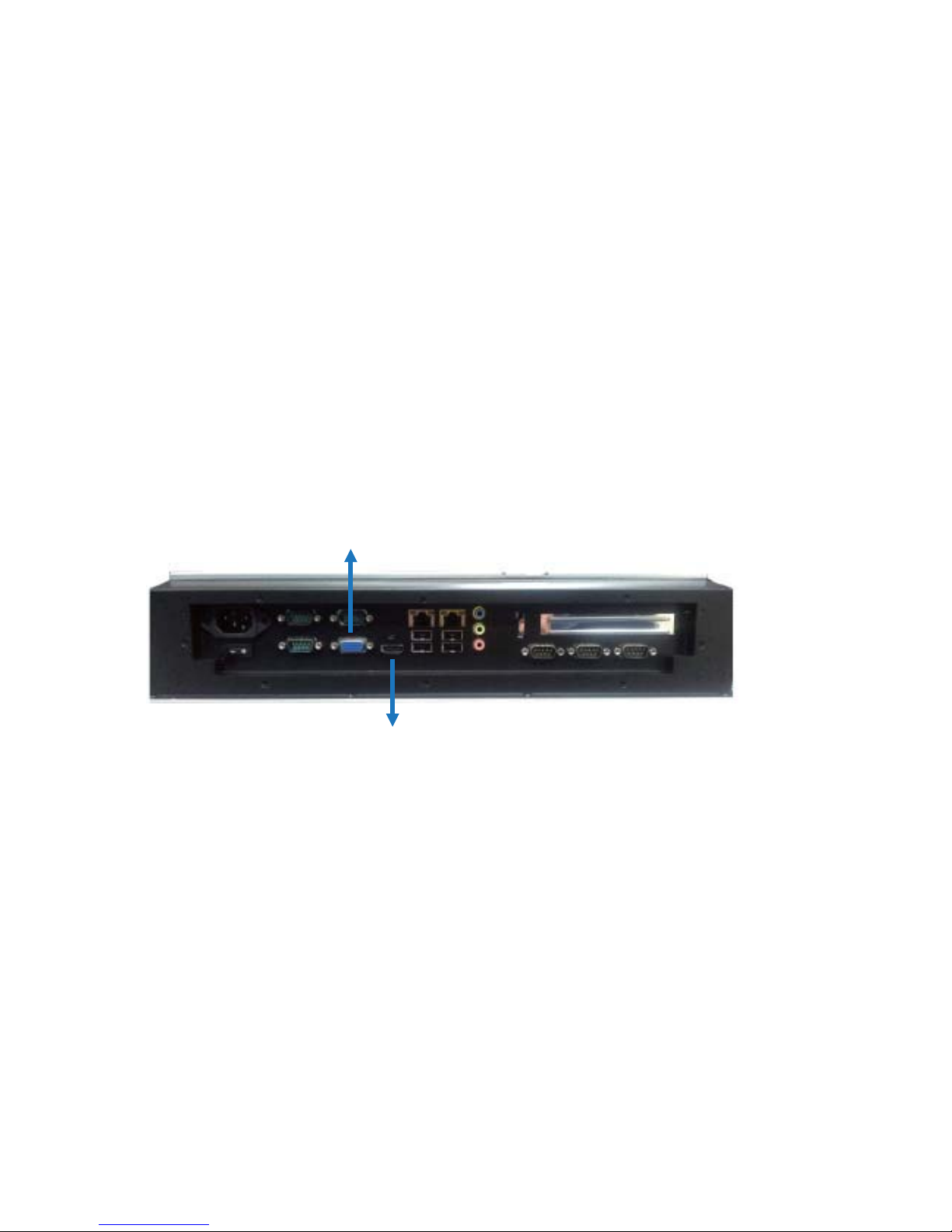

Figure 3 VGA/ HDMI..................................................................................16

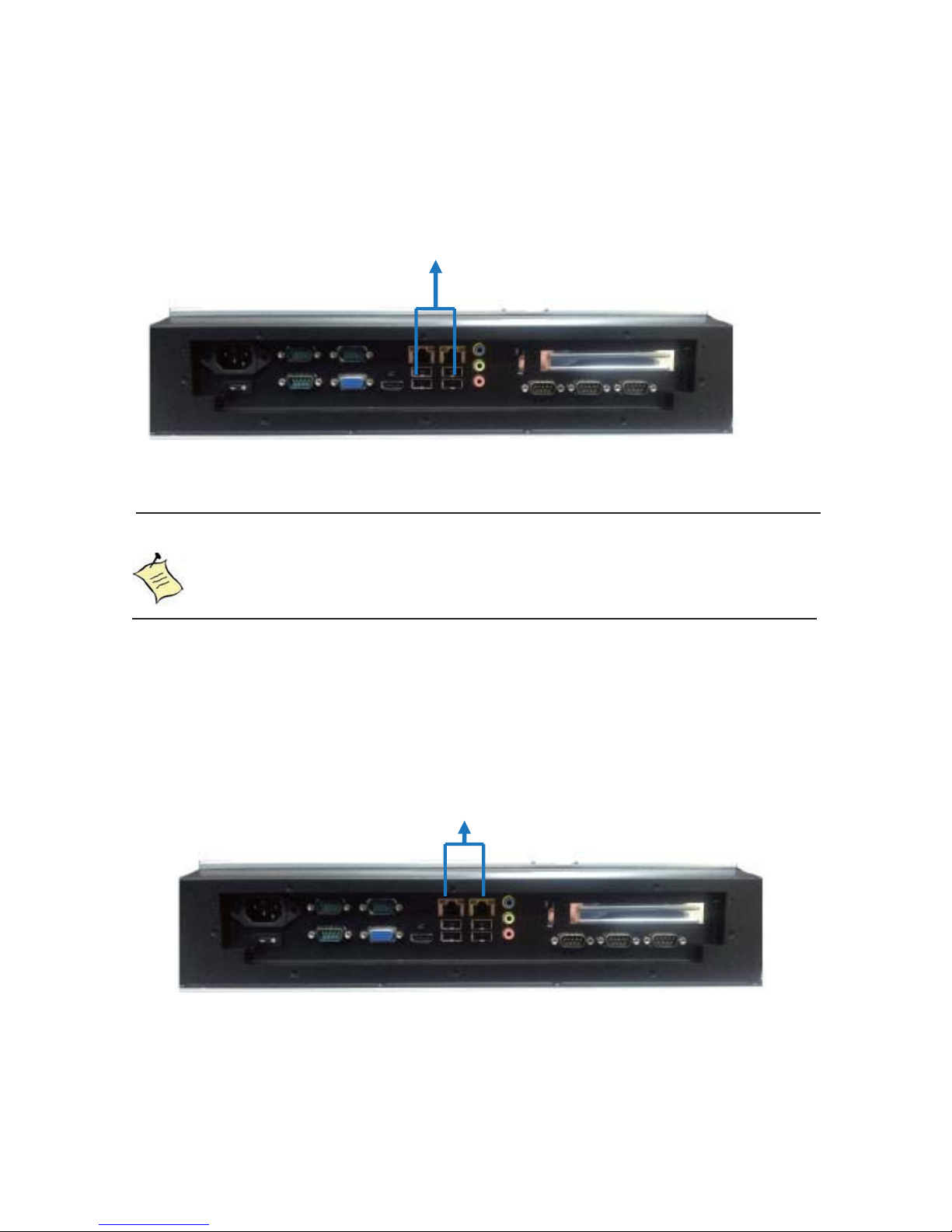

Figure 4 Connect USB mouse & keyboard................................................17

Figure 5 RJ45 connector............................................................................17

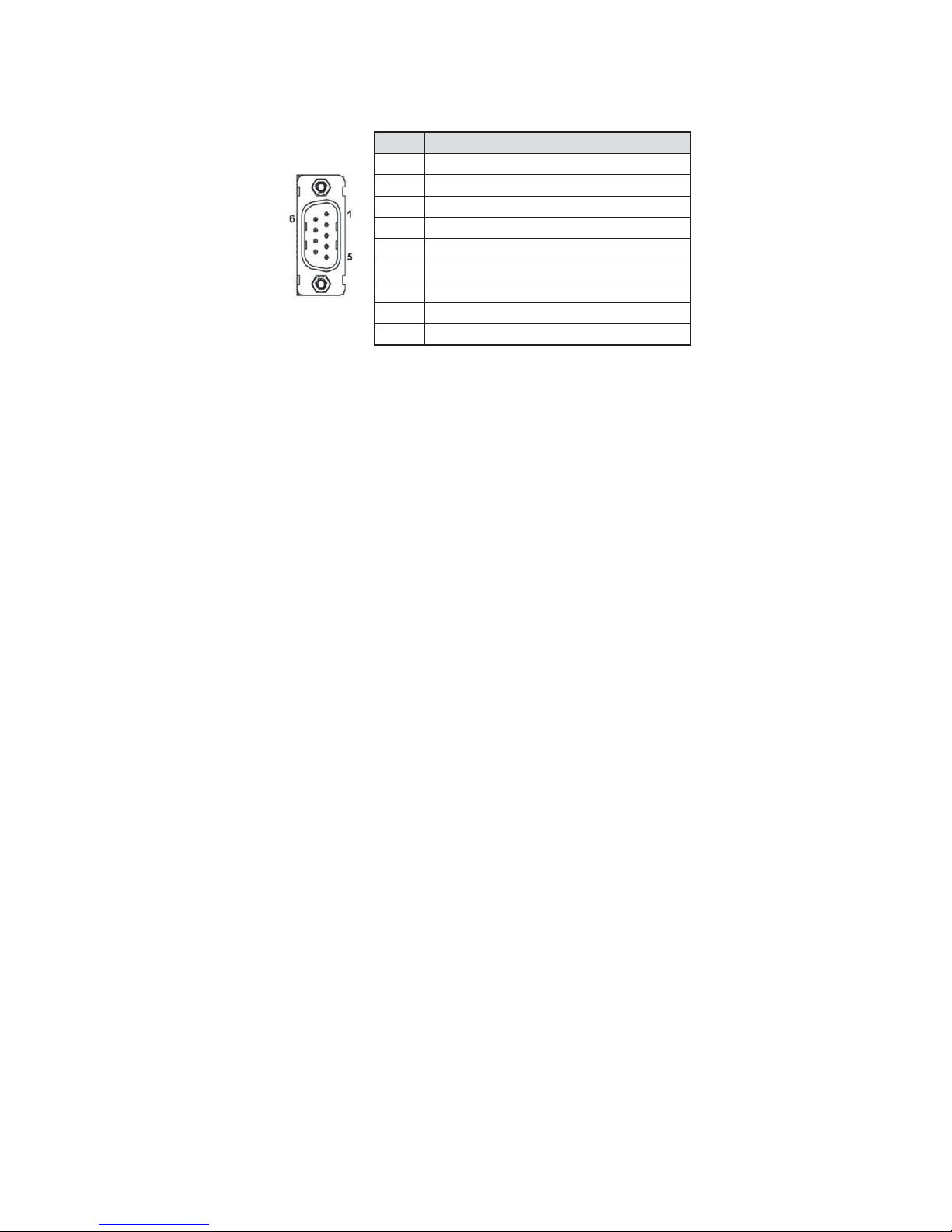

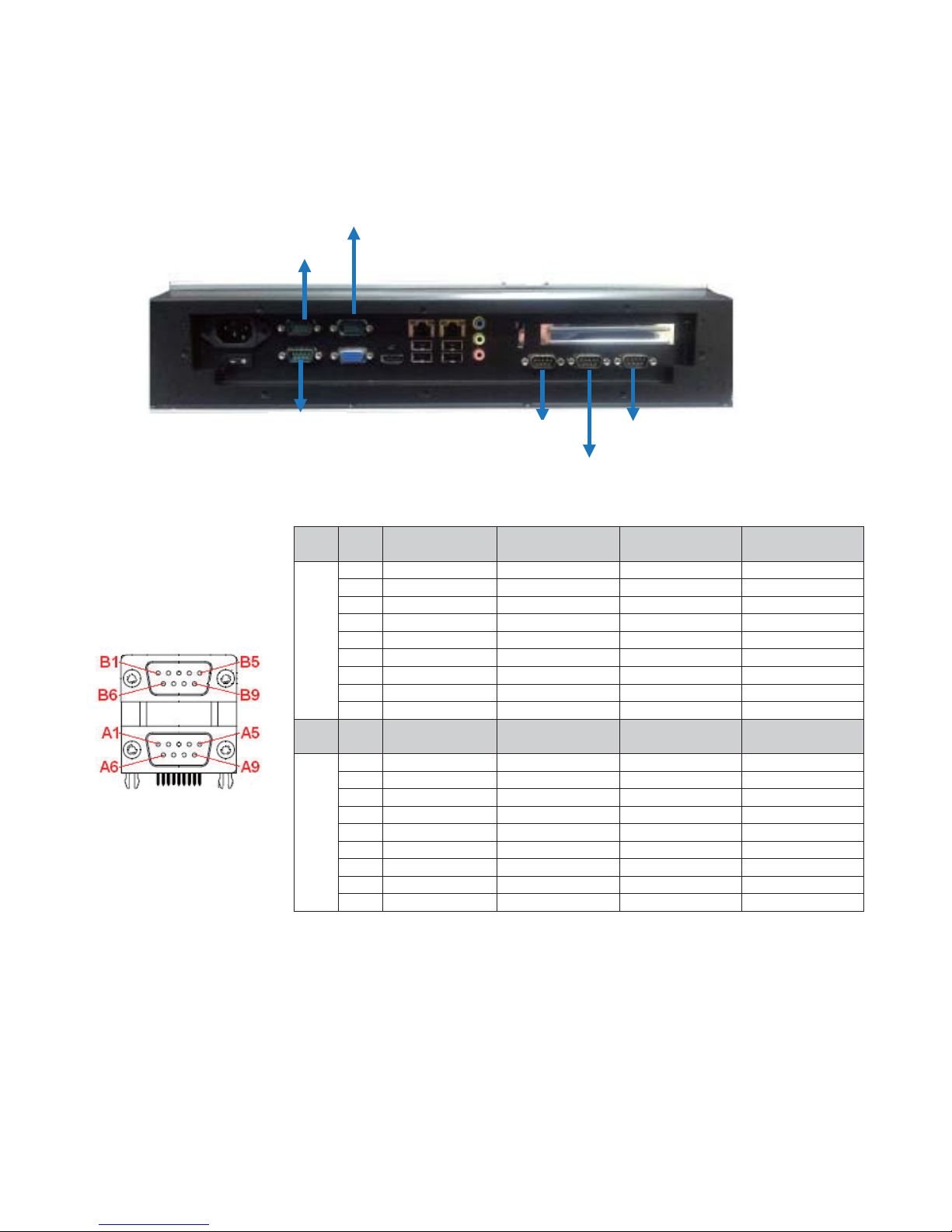

Figure 6 COM ports ...................................................................................19

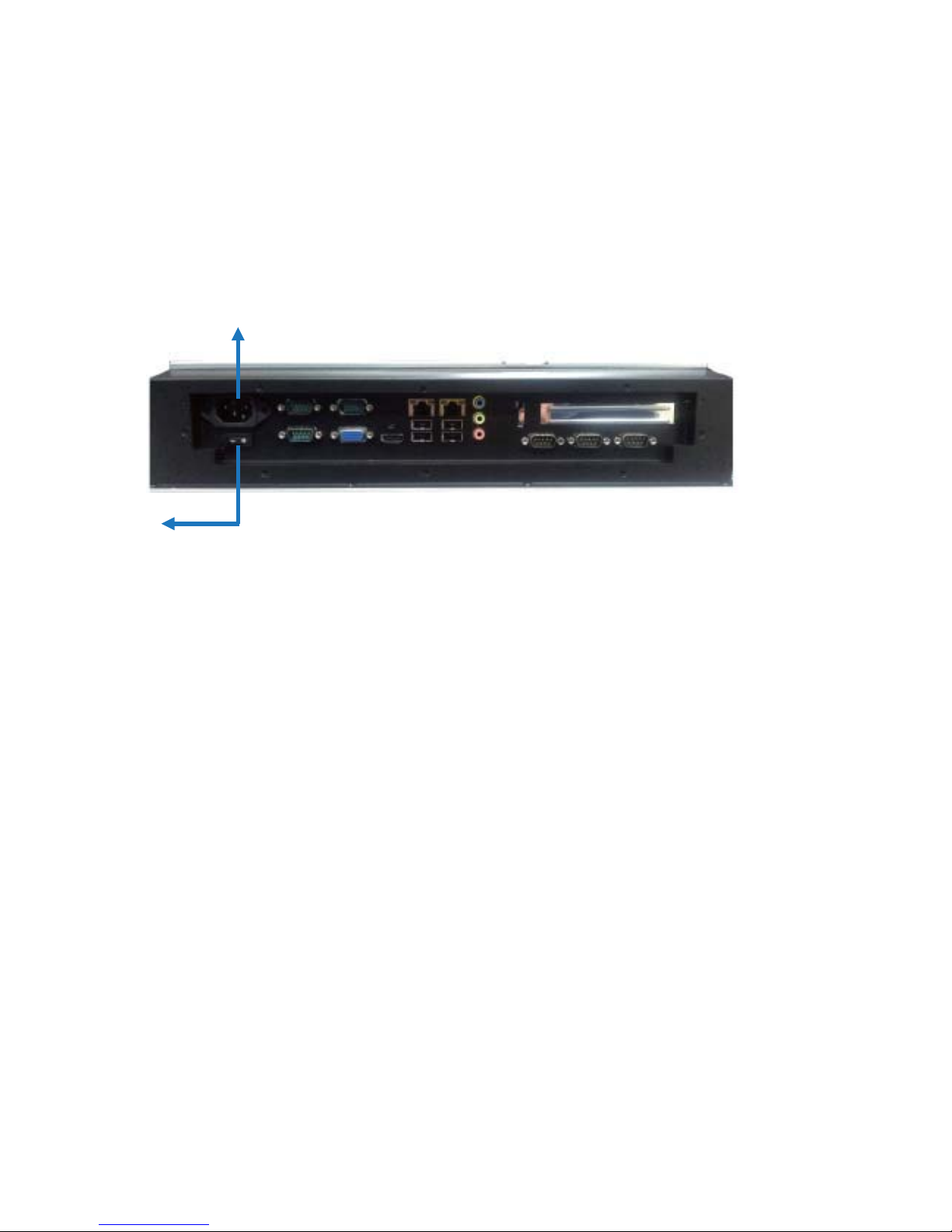

Figure 7 Turning on the system.................................................................20

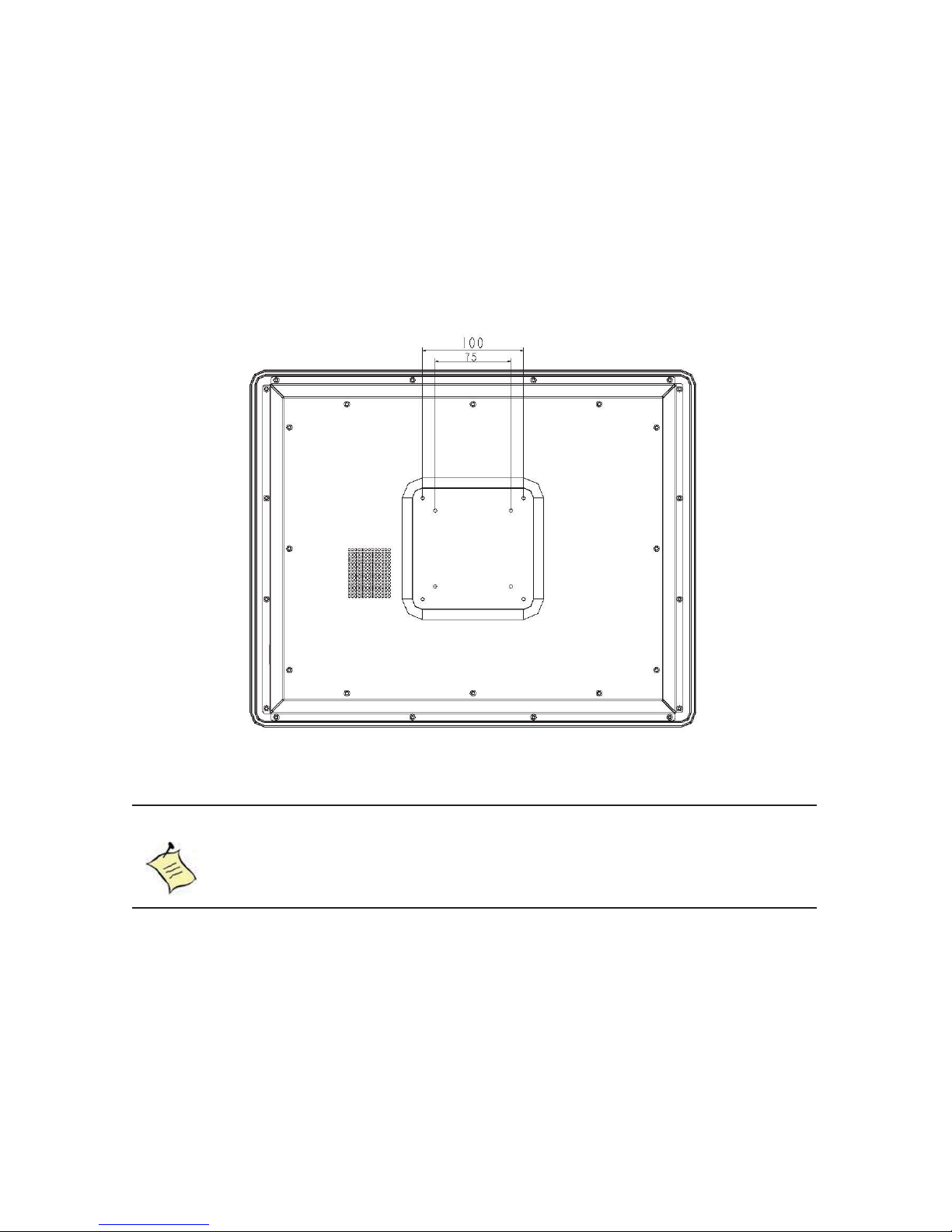

Figure 8 VESA Mounting Hole Locations...................................................21

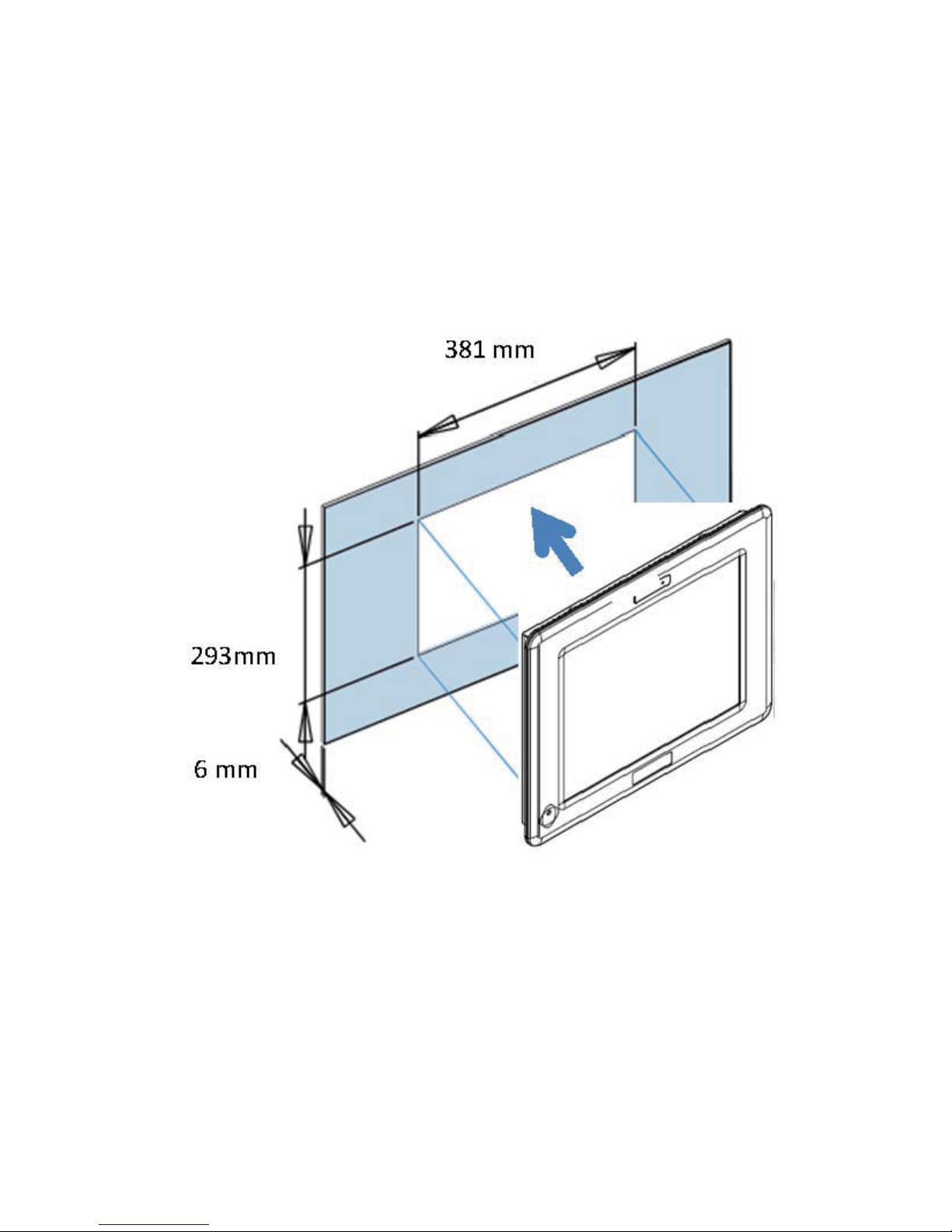

Figure 9 Panel Mount Cut-out hole and maximum panel thickness...........22

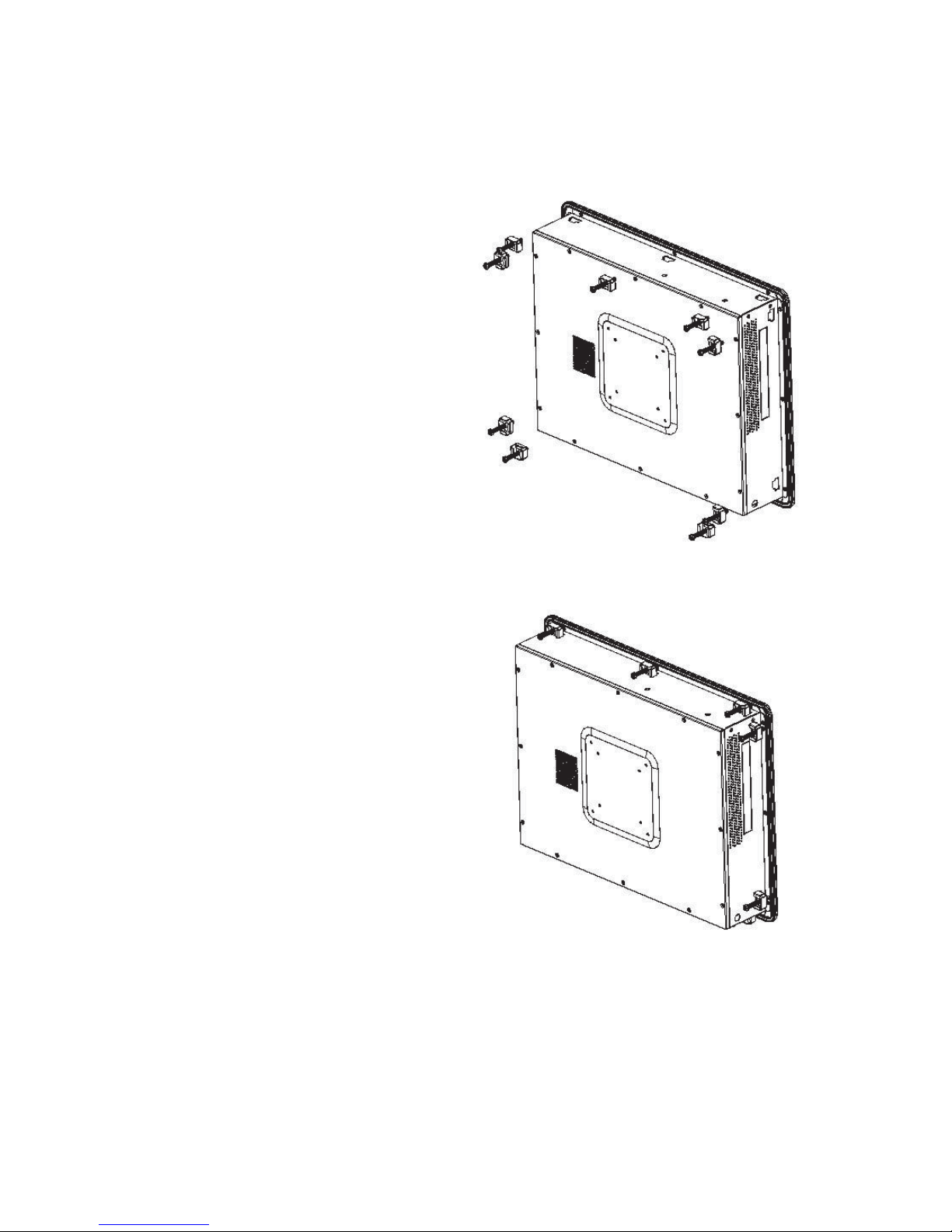

Figure 10 Panel Mounting..........................................................................23

Table 1 KPC-1561 product specifications.................................................. 12

Table 2 BIOS Main Menu........................................................................... 25

Table 3 Advanced Menu.............................................................................26

Table 4 Advanced Menu – Display Configuration.......................................27

Table 5 Advanced Menu –Power Management Configuration....................28

Table 6 Advanced Menu –CPU Advanced Configuration........................... 29

Table 7 Advanced Menu –SATA Configuration...........................................29

Table 8 Advanced Menu –PCI BUS Driver Version V 2.05.02.................... 30

Table 9 Advanced Menu –USB Configuration............................................31

Table 10 Advanced Menu – Super IO Configuration..................................32

Table 11 Advanced Menu – Super IO Configuration – Serial Port 1

Configuration .............................................................................32

Table 12 Advanced Menu – Super IO Configuration – Serial Port 2

Configuration .............................................................................33

Table 13 Advanced Menu – Super IO Configuration – Serial Port 3

Configuration .............................................................................34

Table 14 Advanced Menu – Super IO Configuration – Serial Port 4

Configuration .............................................................................35

Table 15 Advanced Menu – Super IO Configuration – Serial Port 5

Configuration .............................................................................36

Table 16 Advanced Menu – Super IO Configuration – Serial Port 6

Configuration .............................................................................37

Figures & Tables

4

KPC-1561 User’s Manual

Table 17 Advanced Menu –H/W Monitor.................................................... 38

Table 18 Boot Menu...................................................................................39

Table 19 Security Menu .............................................................................40

Table 20 Save & Exit Menu........................................................................40

Safety Instructions

5

KPC-1561 User’s Manual

Safety Instructions

 Before You Begin

Before handling the product, read the instructions and safety guidelines on the
following pages to prevent damage to the product and to ensure your own personal
safety . Re fer to the “ Advis ories” section in the Preface for advisory conventions us ed
in this user’s guide, including the distinction between Warnings, Cautions, Important
Notes, and Notes.

 Always use caution when handling/operating a computer. Only qualified,

experienced, authorized electronics service personnel should access the
interior of a computer. The power supplies produce high voltages and
energy hazards, which can cause bodily harm.

 Use extreme caution when installing or remo ving co mponents. Refer to the

installation instructions in this user’s guide for precautions and procedures.
If you have any questions, please contact our Post-Sales Technical
Support.

 Access can only be gained by service persons or by users who have

been instructed about the reasons for the restrictions applied to the
location and about any precautions that shall be taken; and access is
through the use of a tool or lock and key, or other means of security,
and is controlled by authority responsible for the location.

WARNING

High voltages are present inside the chassis when the unit’s power cord is plugged into
an electrical outlet. Turn off system power, turn off the power supply, and then
disconnect the power cord from its source before removing the chassis cover. T urning off
the system power switch does not remove power to components.

 When Working Inside a Computer

Before taking covers off a computer, perform the following steps:

1. Turn off the computer and any peripher als.

Safety Instructions

6

KPC-1561 User’s Manual

2. Disconnect the computer and peripherals from their power sources or
subsystems to prevent electric shock or system board damage. This does not
apply when hot swapping parts.

3. Follow the guidelines provided in “Preventing Electrostatic Discharge” on the
following page.

4. Disconnect any telephone or telecommunications lines from the computer.

In addition, take note of these safety guidelines when appropriate:
 To help avoid possible damage to system boards, wait five seconds after

turning off the computer before removing a component, removing a system
board, or disconnecting a peripheral device from the computer.

 When you disconnect a cable, pull on its connec tor or on its strain-relief loop,

not on the cable itself. Some cables have a connector with locking tabs. If you
are disconnecting this type of cable, press in on the locking tabs before
disconnecting the cable. As you pull connectors apart, keep them evenly
aligned to avoid bending any connector pins. Also, before connecting a cable,
make sure both connectors are correctly oriented and aligned.

CAUTION

Do not attempt to service the system yourself except as explained in this user’s guide.
Follow installation and troubleshooting instructions closely.

 Preventing Electrostati c Discharge

Static electricity can harm system boards. Perform service at an ESD workstation
and follow proper ESD procedure to reduce the risk of damage to components. We
strongly encourage you to follow proper ESD procedure, which can include wrist
straps and smocks, when servicing equipment.
You can also take the following steps to prevent damage from electrostatic
discharge (ESD):
 When unpacking a static-sensitive component from its shipping carton, do not

remove the component ’s antistatic packing material until you are ready to install
the component in a computer. Just before unwrapping the antistatic packaging,
be sure you are at an ESD workstation or grounded. This will discharge any
static electricity that may have built up in your body.

 When transporting a sensitive compone nt, first place it in an antistatic container

or packaging.

Safety Instructions

7

KPC-1561 User’s Manual

 Handle all sensitive components at an ESD workstation. If possible, use

antistatic floor pads and w ork bench p a ds.

 Handle components and boards with care. Don’t touch the components or

contacts on a boar d. H old a b oard by i ts e dge s or by i ts met al mou nti ng bracket .

 Do not handle or store sy stem bo ards near str ong electros t atic, el ectr omagn etic,

magnetic, or radioactive fields.

 Instructions for Lithium Battery

WARNING

Danger of explosion when battery is replaced with incorrect type. Only replace
with the same or equivalent type recommended by the manufacturer.

Do not dispose of lithium batteries in domestic waste. Dispose of the battery
according to the local regulations dealing with the disposal of these special
materials (e.g. to the collecting points for disposal of batteries)

Preface

8

KPC-1561 User’s Manual

Preface

 How to Use This Guide

This guide is designed to be us ed as step-by -step instructi ons for ins tallati on, and a s
a reference for operation, troubleshooting, and upgrades.

 Unpacking

When unpacking, follow these steps:

1. After opening the box, save it and the packing material for possible future

shipment.

2. Remove all items from the box. If any items listed on the purchase order

are missing, notify Ourcustomer service immediately.

3. Inspect the product for damage. If there is damage, notify Our customer

service immediately. Refer to “Warranty Policy” for the return procedure.

 Regulatory Compliance Statements

This section provides the FCC compliance statement for Class Adevices.

FCC Compliance Statement:

This equipment has been tested and found to comply with limits for a Class Adigital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reason able protection against harmful interference in residential installations. This
equipment generates, uses, and can radiate radiofrequency energy, and if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
interference to radio or television equipment reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.

Preface

9

KPC-1561 User’s Manual

 Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by us could void the user's
authority to operate the equipment.

NOTE

The assembler of a personal computer system may be required to test the system
and/or make necessary modifications if a system is found to cause harmful
interference or to be noncompliant with the appropriate standards for its intended use.

 Maintaining Your Computer

Environmental Factors

 Temperature

The ambient temperature within an enclosure may be greater than room
ambient temperature. Installation in an enclosure should be such that the
amount of air flow required for safe operation is not compromised.
Consideration should be given to the maximum rated ambient temperature.
Overheating can cause a variety of problems, including premature aging and
failure of chips or mechanical failure of devices.
If the system has been exposed to abnormally cold temperatures, allow a
two-hour warm-up period to bring it up to normal operating temperature before
turning it on. Failure to do so may cause damage to internal components,
particularly the hard di sk dri v e.

 Humidity

High-humidity can cause moisture to enter and accumulate in the system. This
moisture can cause corrosion of internal components and degrade such
properties as electrical resistance and thermal conductivity. Extreme moisture
buildup inside the system can result in electrical shorts, which can cause
serious damage to the system.
Buildings in which climate is controlled usually maintain an acceptable level of
humidity for system equipment. However, if a system is located in an unusually
humid location, a dehumidifier can be used to maintain the humidity within an

Preface

10

KPC-1561 User’s Manual

acceptable range. Refer to the “Specifications” section of this user’s guide for
the operating and storage humidity specifications.

Power Protection

The greatest threats to a system’s supply of power are power loss, power spikes,
and power surges caused by electrical storms, which interrupt system operation
and/or damage system components. To protect your system, always properly
ground power cables and one of the following devices.

 Surge Protector

Surge protectors are available in a variety of types and usually provide a level
of protection proportional with the cost of the device. Surge protectors prevent
voltage spikes from entering a system through the AC power cord. Surge
protectors, however, do not offer protection against brownouts, which occur
when the voltage drops more than 20 percent below the normal AC line voltage
level.

 Line Conditioner

Line conditioners go beyond the overvoltage protection of surge protectors.
Line conditioners keep a system’s AC power source voltage at a fairly constant
level and, therefore, can handle brownouts. Because of this added protection,
line conditioners cost more than surge protectors. However, line conditioners
cannot protect against a complete loss of power.

 Uninterruptible Power Supply

Uninterruptible power supply (UPS) systems offer the most complete protection
against variations on power because they use battery power to keep the server
running when AC power is lost. The battery is charged by the AC power while it
is available, so when AC power is lost, the battery can provide power to the
system for a limited amount of time, depending on the UPS system.
UPS systems range in price from a few hundred dollars to several thousand
dollars, with the more expensive unit s allowing you to run larger systems for a
longer period of time when AC power is lost. UPS systems that provide only 5
minutes of battery power let you conduct an orderly shutdown of the system,
but are not intended to prov ide contin ued o per ation. Surg e pr otectors shoul d be
used with all UPS systems, and the UPS system should be Underwriters
Laboratories (UL) safety approved.

Chapter 1

11

KPC-1561 User’s Manual

Chapter 1

Introduction

 Overview

The KPC-1561 Fanless Panel PC is combining the latest Intel® Atom™ processor
with the high integration of the Intel® NM10 Express chipset. Featured are DDR3
800/1066MHz SODIMM up to 4GB, includes a 2.5" SATA hard drive or a solid-state
drive (SSD). Supported interfaces include a 2x GbE LAN, 4x USB 2.0 ports, 1x
HDMI, 6xCOMs, 1xVGA, 1xPCI slot thus easily meeting a broad range of customer
requirements. The KPC series provide a compact, high performance
human-machine interface, with optimal shock, vibration and temperature resistance
for tough industrial demands.

Checklist

 KPC-1561
 Power Cord
 Driver CD
 Quick installation Guide
 Optional VESA Mounting Kit
 Optional wireless LAN

Features

 15” LCD Display with 1024x768 resolution
 Intel®Atom™ Processor D2550

 Intel®NM10 Express Chipset
 Intel®Graphics Media Accelerator 3650

 DDR3 800/1066MHz memory support up to 4GB
 1x HDMI, 1x VGA
 4x USB2.0, 6x COMs, 2x GbE LAN
 1x PCI slot supported
 Fanless design

Chapter 1

12

KPC-1561 User’s Manual

 Product Specifications

CPU Support

Intel®Atom™ Processor D2550 (1M Cache, 1.86 GHz)

Chipset

Intel®NM10 Express chipset

Memory 1x Single Channel DDR3 800/1066MHz SODIMM support (4GB max)

BIOS AMI Plug & Play SPI BIOS

Graphic

Intel®Graphics Media Accelerator 3650

Display Size 15 inch, 4:3

Resolution 1024 x 768

Backlight LED

Contrast Ratio 600:1 (typical)

Brightness 350cd/m²(typical)

Touch Sensor 5-wire resistive touch sensor

External Display 1x HDMI

1x VGA

LAN 2x Gigabit Ethernet (Realtek RTL8111E)

PXE/WOL supported

Audio Realtek ALC662 HD Codec w/ 2W Audio Amplifier

Mic-In, Line-In, Line-Out Supported

Storage 1x 2.5” SATA HDD or SSD space

USB 4 x USB 2.0

COM 6 x COM ports

COM 1 - RS-232/422/485 selection supported
COM 2~COM 6 - RS-232 selection supported

Expansion slot 1x PCI slot

Hardware Monitor Operating voltage, CPU temperature

Watchdog Timer 1-255 step, can be set with software on Super I/O

Power AC Input
OS Support Windows 7
Dimensions 410 mm x 315 mm x 82.46 mm (WxDxH)

Environment Operation Temp: 0ºC -50ºC

Storage Temp.: -20ºC -60ºC
Humidity: 0% - 95%

Certification CE, FCC Class A

Table 1 KPC-1561 product specifications

Chapter 1

13

KPC-1561 User’s Manual

 System tour

Refer to the diagrams below to identify the components of the system.

 I/Os

Figure 1 I/Os

USB

The USB (Universal Serial Bus) port is compatible with USB devices such as
keyboards, mouse devices, cameras, and hard disk drives. USB allows many
devices to run simultaneously on a single computer, with some peripheral
acting as additional plug-in sites or hubs.

Power Switch

The power switch allows powering ON and OFF the system.

Ethernet

The eight-pin RJ-45 LAN port supports a standard Ethernet cable for
connection to a local network.

Power Input

The supplied power adapter converts AC power to DC for use with this jack.
Power supplied through this jack supplies power to the PC. To prevent damage
to the PC, always use the supplied power adapter.

Chapter 1

14

KPC-1561 User’s Manual

HDMI

HDMI connector for display output

VGA

D-Sub 15 pin VGA connector for display output

COM

D-Sub 9 pin connector for RS-232/422/485 connection

Line Out (Green)

The stereo headphone jack is used to c onnect the system’s audio out signal to
amplified speakers or headphones.

MIC-IN (Pink)

The microphone jack is designed to connect the microphone used for video
conferencing, voice narrations, or simple audio recordings.

Line-IN (Blue)

The Line-in jack is designed to take input from a higher-powered sound source.

PCI Slot

The PCI slot enables user to insert one add-on card for expansion.

Chapter 1

15

KPC-1561 User’s Manual

Mechanical Dimensions

409.99 x 315 x 82.46 mm (W x D x H)

Figure 2 Mechanical Dimensions

Chapter 2

16

KPC-1561 User’s Manual

Chapter 2

Getting Started

 Setting up your PC

 Connecting the monitor

Connect the VGA/ HDMI cable from your display to the VGA/ HDMI port.

Figure 3 VGA/ HDMI

VGA

HDMI

Chapter 2

17

KPC-1561 User’s Manual

 Connecting USB mouse & keyboard

Your KPC-1561 does not come with a keyboard and mouse, but you can use any
USB keyboard or mouse with your computer.

Figure 4 Connect USB mouse & keyboard

NOTE

Using a third-party USB mouse or keyboard may require software drivers.
Check the manufacturer’s website for the latest software drivers.

 Connecting to a network device

Connect one end of a network cable to the LAN port on the system rear panel
and the other end to a hub or switch.

Figure 5 RJ45 connector

RJ45

USB

Chapter 2

18

KPC-1561 User’s Manual

 COM ports

COM ports with the pin definitions.

COM 1 , COM 2

Port Pin RS-232 RS-422

Half Duplex

RS-485

Full Duplex

RS-485

1

B1 DCD TX- DATA- TX­B2 RXD RX+ NA RX+
B3 TXD TX+ DATA+ TX+
B4 DTR RX- NA RX­B5 GND GND GND GND
B6DSRNANANA
B7RTSNANANA
B8CTSNANANA
B9 RI NA NA NA

Port Pin RS-232 RS-422

Half Duplex

RS-485

Full Duplex

RS-485

2

A1 DCD NA NA NA
A2RXDNANANA
A3TXDNANANA
A4DTRNANANA
A5GNDNANANA
A6DSRNANANA
A7RTSNANANA
A8CTSNANANA
A9 RI NA NA NA

COM 2

COM 3

COM 1

COM 4

COM 5

COM 6

Chapter 2

19

KPC-1561 User’s Manual

COM3 ~ COM6

Pin Signal

1 DCD, Data carrier detect
2 RXD, Receive data
3 TXD, Trans mi t data
4 DTR, Data terminal ready
5 GND, ground
6 DSR, Data set ready
7 RTS, Request to send
8 CTS, Clear to send
9 RI, Ring indicator

Figure 6 COM ports

Chapter 2

20

KPC-1561 User’s Manual

DC In

 Turning on the system

1. Connect the power adapter cable to the DC jack (DC IN) of the KPC-1561

2. Connect the power cable to the power adapter

3. Connect the power cable to a power outlet

4. Press the power switch on the front panel to turn on the system

Figure 7 Turning on the system

On/ Off

Chapter 2

21

KPC-1561 User’s Manual

 VESA Mounting

The product comes with VESA FDMI 75/100 standard mounting holes as shown
below. Use 4 screws with the appropriate length for your mounting bracket.

Figure 8 VESA Mounting Hole Locat ions

NOTE

To fasten the metal shelf, your monitor must comply with VESA75 or
VESA100 standard.The VESA mounting kit is optional.

Chapter 2

22

KPC-1561 User’s Manual

 Panel Mounting

The Panel PC can be panel mounted and comes with brackets and screws for this
purpose. The requir ed cutou t for p a nel mo unting and maximum pane l thickness is
shown below.

Figure 9 Panel Mount Cut-out hole and maximum panel thickness

Chapter 2

23

KPC-1561 User’s Manual

Below are the demonstrations of how to do panel mounting.

Step1

Tightening the screws as
shown right.

Step2

Done

Figure 10 Panel Mounting

Chapter 3

24

KPC-1561 User’s Manual

Chapter 3

AMI BIOS Setup

 Overview

This chapter provides a description of the AMI BIOS. The BIOS setup menus and
available selections m ay vary from those o f your prod uct. F or speci fic i nformati on o n
the BIOS for your product, please contact us.

NOTE: The BIOS menus and selections for your product may vary from
those in this chapter. For the BIOS manual specific to your product, please
contact us

AMI's ROM BIOS provides a b ui lt- i n Set up program, which allows the user to modify
the basic system configuration and hardware parameters. The modified data will be
stored in a battery-backed CMOS, so that dat a w ill be ret ained even w hen the pow er
is turned off. In general, the information saved in the CMOS RAM will not need to
be changed unless there is a configuration change in the system, such as a hard
drive replacement or when a device is added.
It is possible for the CMOS battery to fail, which will cause data loss in the CMOS
only. If this happens you will need to reconfigure your BIOS settings.

Chapter 3

25

KPC-1561 User’s Manual

 Main Menu

The BIOS Setup is accessed by pressing the DEL key after the Power-On Self-Test
(POST) memory test b egi ns and befor e the operati ng sy stem boot beg ins. Onc e yo u
enter the BIOS Setup Utility, the Main Menu will appear on the screen. The Main
Menu provides System Ov erv iew informa tion and al low s y ou to set t he System Time
and Date. Use the “<” and “>” cursor keys to navigate between menu screens.

Table 2 BIOS Main Menu

BIOS SETUP UTILITY

Main Advanced Boot Security Save & Exit

Product Information

ÆÅSelect Screen

ĹĻ6HOHFW,WHP

Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4 Save & Exit
ESC Exit

Product Name KPC-1561

BIOS Version 0.06

BIOS Build Date 03/06/2012

CPU Information

Intel® Atom™CPU [email protected]

Microcode Revision 10d

Processor Cores 2

Memory Information

Total Size 2048 MB

Frequency 1067 MHz (DDR3)

System date [Thu 03/08/2012]

System time [15:58:19]

Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.

Chapter 3

26

KPC-1561 User’s Manual

 Advanced Menu

Table 3 Advanced Menu

BIOS SETUP UTILITY

Main Advanced Boot Security Server Mgmt Save & Exit

Onboard LAN1 Controller [Enabled]

ÆÅSelect Screen

ĹĻ6HOHFW,WHP

Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4 Save & Exit
ESC Exit

Onboard LAN1 Boot [Disabled]

Onboard LAN2 Controller [Enabled]

Onboard LAN2 Boot [Disabled]

Audio Controller [Enabled]

> Display Configuration

> Power Management Configuration

> CPU Advanced Configuration

> SATA Configuration

> PCI Subsystem Settings

> USB Configuration

> DIO Configuration

> Super IO Configuration

> H/W Monitor

Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.

Onboard LAN 1 Controller

Options: Disabled, Enabled

Onboard LAN 1 Boot

Options: Disabled, Enabled

Onboard LAN 2 Controller

Options: Disabled, Enabled

Onboard LAN 2 Boot

Options: Disabled, Enabled

Audio Controller

Options: Disabled, Enabled

Chapter 3

27

KPC-1561 User’s Manual

Table 4 Advanced Menu – Displa y Config ur ati on

BIOS SETUP UTILITY

Main Advanced Boot Security Server Mgmt Save & Exit

Display Configuration ÆÅSelect Screen

ĹĻ6HOHFW,WHP

Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4 Save & Exit
ESC Exit

Fixed Graphics Memory Size [128 MB]

IGFX – Boot Type [VBIOS Default]

Active LVDS [No LVDS]

Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.

Fixed Graphics Memory Size

Options: 128MB, 256MB

IGFX – Boot Type

Options: VBIOS Default,HDMI

Active LVDS
Active LVDS ˰˰LVDS 1

˱

ˍ

LVDS Panel Color

Options: 24Bit

ˍ

LVDS Panel Type

Options: 1024X768 24Bit 1CH

LVDS 1 Backlight Control – Voltage ˰2.5V

˱

Chapter 3

28

KPC-1561 User’s Manual

Table 5 Advanced Menu –Power Management Configuration

BIOS SETUP UTILITY

Main Advanced Boot Security Server Mgmt Save & Exit

Power Management Configuration

ÆÅSelect Screen

ĹĻ6HOHFW,WHP

Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4 Save & Exit
ESC Exit

ACPI Sleep State [S3 (Suspend to RAM)]

Restore AC Power Loss [Power Off]

Resume From S3 By PS/2 Keyboard [Disabled]
Resume From S3 By PS/2 Mouse [Disabled]

Resume By PCIE Device [Disabled]

Resume By RTC Alarm [Disabled]

EUP Power Saving Mode [Disabled]
>Watchdog Timer Configuration

Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.

ACPI Sleep State

Options: Suspend Disabled, S1 (CPU Stop Clock), S3 (Suspend to RAM)

Restore AC Power Loss

Options: Power Off, Power On, Last State

Resume From S3 By PS/2 Keyboard

Options: Disabled, Enabled

Resume From S3 By PS/2 Mouse

Options: Disabled, Enabled

Resume By PCIE Device

Options: Disabled, Enabled

Resume By RTC Alarm

Options: Disabled, Enabled

EUP Power Saving Mode

Options: Disabled, Enabled

Watchdog Timer Configuration

ˍ

ˍ

WDT Function [Disabled]

Options: Disabled, Enabled

Chapter 3

29

KPC-1561 User’s Manual

Table 6 Advanced Menu –CPU Advanced Configuration

BIOS SETUP UTILITY

Main Advanced Boot Security Save & Exit

CPU Advanced Configuration

ÆÅSelect Screen

ĹĻ6HOHFW,WHP

Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4 Save & Exit
ESC Exit

Hyper-Treading [Enabled]

Execute Disable Bit [Enabled]

Limit CPUID Maximum [Disabled]

EIST

[Enabled]

Version 2.14.1219. Copyright (C) 2011,American Megatrends, Inc.

Hyper-Treading

Options: Disabled, Enabled

Execute Disable Bit

Options: Disabled, Enabled

Limit CPUID Maximum

Options: Disabled, Enabled

EIST

Options: Disabled, Enabled

Table 7 Advanced Menu –SATA Configuration

BIOS SETUP UTILITY

Main Advanced Boot Security Save & Exit

Configure SATA as

[ AHCI ]

SATA Port 1 TOSHIBA MK8046 (80.0G)

SATA Port 2

Not Present

Version 2.14.1219. Copyright (C) 2011,American Megatrends, Inc.

Configure SATA as

Options: IDE, AHCI

Chapter 3

30

KPC-1561 User’s Manual

Table 8 Advanced Menu –PCI BUS Driver Version V 2.05.02

BIOS SETUP UTILITY

Main Advanced Boot Security Save & Exit

PCI Common Settings

ÆÅSelect Screen

ĹĻ6HOHFW,WHP

Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4 Save & Exit
ESC Exit

PCI Latency Timer 32 PCI Bus Clocks
VGA Palette Snoop [Disabled]

PERR# Generation [Disabled]
SERR# Generation [Disabled]

Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.

PCI Latency Timer

Options:

32 PCI Bus Clocks 160 PCI Bus Clocks
64 PCI Bus Clocks 192 PCI Bus Clocks
96 PCI Bus Clocks 224 PCI Bus Clocks
128 PCI Bus Clocks 248 PCI Bus Clocks

VGA Palette Snoop

Options: Disabled, Enabled

PERR# Generation

Options: Disabled, Enabled

SERR# Generation

Options: Disabled, Enabled

Chapter 3

31

KPC-1561 User’s Manual

Table 9 Advanced Menu –USB Configuration

BIOS SETUP UTILITY

Main Advanced Boot Security Save & Exit

USB Configuration

.ÆÅSelect Screen

ĹĻ6HOHFW,WHP

Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4 Save & Exit
ESC Exit

USB Devices:

1 Keyboard, 1 Mouse

Legacy USB Support [Enabled]

EHCI Hand-off [Disabled]

Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.

Legacy USB Support

Options: Disabled, Enabled, Auto

EHCI hand-off

Options: Disabled, Enabled

Mass Storage Device

Options: Auto, Floppy, Forced FDD, Hard Disk, CD-ROM

Chapter 3

32

KPC-1561 User’s Manual

Table 10 Advanced Menu – Super IO Configuration

BIOS SETUP UTILITY

Main Advanced Boot Security Save & Exit

Super IO Configuration

>Serial Port 1 Configuration

>Serial Port 2 Configuration

>Serial Port 3 Configuration

ÆÅSelect Screen

ĹĻ6HOHFW,WHP

Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4 Save & Exit
ESC Exit

>Serial Port 4 Configuration

>Serial Port 5 Configuration

>Serial Port 6 Configuration

Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.

Table 11 Advanced Menu – Super IO Configuration – Serial Port 1 Configuration

BIOS SETUP UTILITY

Main Advanced Boot Chipset Power Security Exit

Serial Port 1 Configuration

Serial Port [Enabled]

Device Settings IO=3F8h; IRQ=4;

Change Settings [Auto]

Serial Port 1 Type [RS232]

ÆÅ: Select Screen

ĹĻ: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save and Exit
ESC: Exit

Version 2.14.1219. Copyright (C) 2011 Am eri can Megatrends, Inc.

Serial Port

Options: Disabled, Enabled

Change Settings

Options: Auto,
IO=3F8h; IRQ=4;
IO=3F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12;
IO=2F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12;
IO=3E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12;
IO=2E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12;

Serial Port Type

Options: RS232, RS422, RS485

Chapter 3

33

KPC-1561 User’s Manual

Table 12 Advanced Menu – Super IO Configuration – Serial Port 2 Configuration

BIOS SETUP UTILITY

Main Advanced Boot Security Save & Exit

Serial Port 2 Configuration

Serial Port [Enabled]

Device Settings IO=2F8h; IRQ=3;

Change Settings [IO=2F8h; IRQ=3]

ÆÅSelect Screen

ĹĻ6HOHFW,WHP

Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4 Save & Exit
ESC Exit

Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.

Serial Port

Options: Disabled, Enabled

Change Settings

Options: Auto,
IO=2F8h; IRQ=3;
IO=3F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12;
IO=2F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12;
IO=3E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12;
IO=2E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12

Serial Port 2 Type

Options: RS232, RS422, RS485

Chapter 3

34

KPC-1561 User’s Manual

Table 13 Advanced Menu – Super IO Configuration – Serial Port 3 C o nf iguration

BIOS SETUP UTILITY

Main Advanced Boot Security Save & Exit

Serial Port 3 Configuration

Serial Port [Enabled]

Device Settings IO=2E8h; IRQ=3;

Change Settings [IO=2F8h; IRQ=3,4,5..]

ÆÅSelect Screen

ĹĻ6HOHFW,WHP

Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4 Save & Exit
ESC Exit

Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.

Serial Port

Options: Disabled, Enabled

Change Settings

Options: Auto,
IO=3E8h; IRQ=7;
IO=3F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12;
IO=2F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12;
IO=3E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12;
IO=2E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12
IO=2F0h; IRQ=3, 4, 5, 6, 7, 10, 11, 12
IO=2E0h; IRQ=3, 4, 5, 6, 7, 10, 11, 12

Chapter 3

35

KPC-1561 User’s Manual

Table 14 Advanced Menu – Super IO Configuration – Serial Port 4 C o nf iguration

BIOS SETUP UTILITY

Main Advanced Boot Security Save & Exit

Serial Port 4 Configuration

Serial Port [Enabled]

Device Settings IO=2F0h; IRQ=3;

Change Settings [IO=2F0h; IRQ=3,4,5..]

ÆÅSelect Screen

ĹĻ6HOHFW,WHP

Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4 Save & Exit
ESC Exit

Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.

Serial Port

Options: Disabled, Enabled

Change Settings

Options: Auto,
IO=2E8h; IRQ=7;
IO=3F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12;
IO=2F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12;
IO=3E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12;
IO=2E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12
IO=2F0h; IRQ=3, 4, 5, 6, 7, 10, 11, 12
IO=2E0h; IRQ=3, 4, 5, 6, 7, 10, 11, 12

Chapter 3

36

KPC-1561 User’s Manual

Table 15 Advanced Menu – Super IO Configuration – Serial Port 5 C o nf iguration

BIOS SETUP UTILITY

Main Advanced Boot Security Save & Exit

Serial Port 5 Configuration

Serial Port [Enabled]

Device Settings IO=2E0h; IRQ=3;

Change Settings [IO=2E0h; IRQ=3,4,5..]

ÆÅSelect Screen

ĹĻ6HOHFW,WHP

Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4 Save & Exit
ESC Exit

Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.

Serial Port

Options: Disabled, Enabled

Change Settings

Options: Auto,
IO=3E0h; IRQ=7;
IO=3F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12;
IO=2F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12;
IO=3E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12;
IO=2E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12
IO=2F0h; IRQ=3, 4, 5, 6, 7, 10, 11, 12
IO=2E0h; IRQ=3, 4, 5, 6, 7, 10, 11, 12

Chapter 3

37

KPC-1561 User’s Manual

Table 16 Advanced Menu – Super IO Configuration – Serial Port 6 C o nf iguration

BIOS SETUP UTILITY

Main Advanced Boot Security Save & Exit

Serial Port 6 Configuration

Serial Port [Enabled]

Device Settings IO=3E8h; IRQ=3;

Change Settings [IO=3E8h; IRQ=3,4,5..]

ÆÅSelect Screen

ĹĻ6HOHFW,WHP

Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4 Save & Exit
ESC Exit

Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.

Serial Port

Options: Disabled, Enabled

Change Settings

Options: Auto,
IO=2F0h; IRQ=7;
IO=3F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12;
IO=2F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12;
IO=3E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12;
IO=2E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12
IO=2F0h; IRQ=3, 4, 5, 6, 7, 10, 11, 12
IO=2E0h; IRQ=3, 4, 5, 6, 7, 10, 11, 12

Chapter 3

38

KPC-1561 User’s Manual

Table 17 Advanced Menu –H/W Monitor

BIOS SETUP UTILITY

Main Advanced Boot Security Save & Exit

PC Health Status

ÆÅSelect Screen

ĹĻ6HOHFW,WHP

Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4 Save & Exit
ESC Exit

CPU Warning Temperature [Disabled]

CPU Temperature +32

SYS Temperature +49

+VIN : +12.366V

+5V : +4.864 V

+VCORE : +1.200 V

+VBAT : +1.648 V

Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.

CPU Warning Temperature

Options: Disabled, 80 ºC , 85 ºC, 90 ºC

Chapter 3

39

KPC-1561 User’s Manual

 Boot Menu

Table 18 Boot Menu

BIOS SETUP UTILITY

Main Advanced Boot Security Save & Exit

Boot Configuration

ÆÅSelect Screen

ĹĻ6HOHFW,WHP

Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4 Save & Exit
ESC Exit

Full Screen LOGO Display [Disabled]

Setup Prompt Timeout 1

Bootup NumLock State [On]

Boot Option Priorities

Boot Option #1 [UEFI: SanDisk ]

Hard Drive BBS Priorities

Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.

Full Screen LOGO Display

Options: Disabled, Enabled

Bootup Numlock State

Options: On, Off

Boot Option #1

Options: UEFI, SATA PM: Disabled

Chapter 3

40

KPC-1561 User’s Manual

 Security Menu

Table 19 Security Menu

BIOS SETUP UTILITY

Main Advanced Boot Security Save & Exit

Password Description

If ONLY the Administ rator’s password is set, then this only limits access to
Setup and is only asked for when entering Setup

If ONLY the User’s password is set, then this is a power on password and
must be entered to boot or enter Setup. In Setup the User will have

Administrator rights
The password length must be in the following range:
Minimum Length 3
Maximum length 20
Administrator Password
User Password
HDD Security Configuration:
HDD 0: FUJITSU MHZS2

ÆÅSelect Screen

ĹĻ6HOHFW,WHP

Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4 Save & Exit
ESC Exit

Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.

 Save & Exit Menu

Table 20 Save & Exit Menu

BIOS SETUP UTILITY

Main Advanced Boot Security Save & Exit

Save Changes and Reset
Discard Changes and Reset

Save Options
Save Changes
Discard Changes

Restore Defaults

ÆÅSelect Screen

ĹĻ6HOHFW,WHP

Enter: Select
+- Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4 Save & Exit
ESC Exit

Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.

Chapter 3

41

KPC-1561 User’s Manual

Save Changes and Exit

Exit system setup after saving the changes. Once you are finished making your
selections, choose this option from the Exit menu to ensure the values you selected
are saved to the CMOS RAM. The CMOS RAM is sustained by an onboard backup
battery and stays on even when the PC is turned off. When you select this option, a
confirmation window appears. Select [Yes] to save changes and exit.

Discard Changes and Exit

Exit system setup without saving any changes. Select this option only if you do not
want to save the changes that you made to the Setup program. If you made changes
to fields other than system date, system time, and password, the BIOS asks for a
confirmation before exiting.

Discard Changes

Discards changes done so far to any of the setup values. This option allows you to
discard the selections you made and restore the previously saved values. After
selecting this option, a confirm ation appear s. Select [Yes] to di scard any changes and
load the previously saved values.

Load Optimal Defaults

Load Optimal Default values for all the setup values. This option allows you to load
optimal default values for each of the parameters on the Setup menus, which will
provide the best performance settings for your system. The F9 key can be used for
this operation.

Load Failsafe Defaults

Load Optimal Default values for all the setup values. This option allows you to load
failsafe default values for each of the parameters on the Setup menus, which will
provide the most stable performance settings. The F8 key can be used for this
operation.

Chapter 4

42

KPC-1561 User’s Manual

Chapter 4

Driver Installation

If your KPC-1561 does not come with an operating system pre-installed, you will
need to install an oper ati ng sy stem and the n ecessary dri ver s to operate it. After you
have finished assembling your system and connected the appropriate power source,
power it up using the power supply and install the desired operating system.
You can download the drivers for the KPC-1561 from our website and install as
instructed there. For other operating systems, please contact us.
