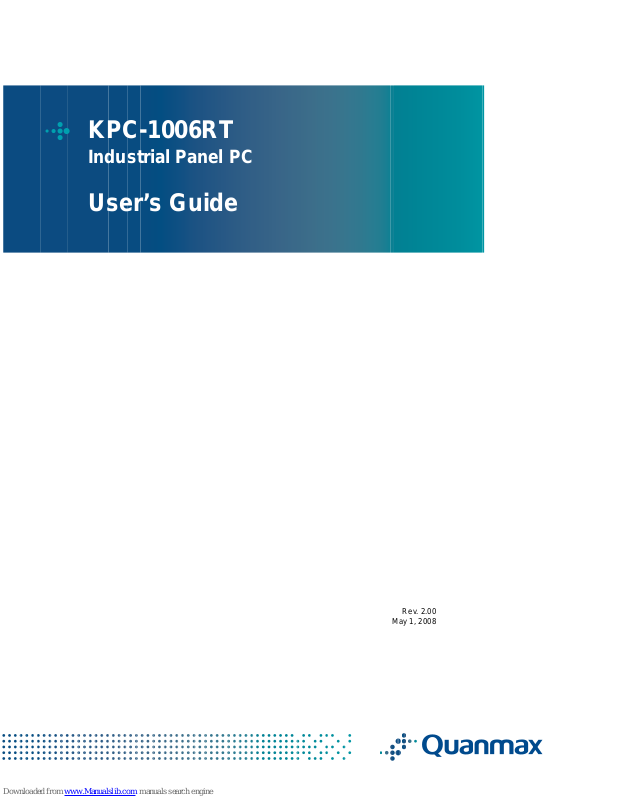

Quanmax KPC-1006RT User Manual

KPC-1006RT

Industrial Panel PC

User’s Guide

Rev. 2.00

May 1, 2008

Customer Service

Contact Info: Quanmax Inc.

4F, No. 415, Ti-Ding Blvd. Sec. 2
NeiHu District, Taipei 114
Taiwan
Tel: [phone]
Fax: [phone]

Visit our site at: www.quanmax.com

The information in this user’s guide is provided for reference only. Quanmax does not assume any
liability arising out of the application or use of the information or products described herein. This user’s
guide may contain or reference information and products protected by copyrights or patents and does
not convey any license under the patent rights of Quanmax, nor the rights of others.

Quanmax is a registered trademark of Quanmax. All trademarks, registered trademarks, and trade
names used in this user’s guide are the property of their respective owners. All rights reserved. This
user’s guide contains information proprietary to Quanmax. Customers may reprint and use this user’s
guide in other publications. Customers may alter this user’s guide and publish it only after they remove
the Quanmax name, cover, and logo.

Quanmax reserves the right to make changes without notice in product or component design as
warranted by evolution in user needs or progress in engineering or manufacturing technology.
Changes which affect the operation of the unit will be documented in the next revision of this user’s
guide.

Revision Date Edited by Changes

1.00 06/07/2007 JC Initial Release

1.10 03/21/20 08 JC Correc t COM2 pin define , add jump er
settings; battery safety, voltage spec.

2.00 05/01/20 08 JC Convert to Quanmax

X Contents

Safety Instructions

Before You Begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix

When Working Inside a Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x

Preventing Electrostatic Discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi

Instructions for Lithium Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii

Voltage Ratings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xii

Preface

How to Use This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv

Advisory Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvi

Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvii

Regulatory Compliance Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xviii

Warranty Policy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix

Return Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix

Limitation of Liability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix

Maintaining Your Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xx

Environmental Factors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xx

Power Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxi

Chapter 1

Product Introduction

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Product Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

Mechanical Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

I/O Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

Mechanical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

Chapter 2

Assembly/Disassembly

Accessing Internal Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Hard Drive Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Panel Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

VESA / Wall Mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

Chapter 3

Getting Started

Power Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

DC Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Operating System and Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Chipset Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Graphics Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Audio Driver Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

LAN Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Touch-Screen Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

iKPC-1006RT User’s Guide

Chapter 4

Maintenance

Maintenance and Prevention . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Chapter 5

Interfaces

External Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

ii KPC-1006RT User’s Guide

X Tables

Table 1-1. KPC-1006RT Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

Table 5-1. COM1 & COM4 RS-232 Serial Port Connector pin definition . . . . . . . . . . . . . . . . 5-3

Table 5-2. COM2 RS232/422/485 Serial Port Connector pin definition . . . . . . . . . . . . . . . . . 5-3

Table 5-3. COM2 RS232/422/485 Mode Select jumper settings. . . . . . . . . . . . . . . . . . . . . . . 5-3

Table 5-4. VGA Display Connector pin definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

Table 5-5. Fast Ethernet Connector pin definition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

iiiKPC-1006RT User’s Guide

iv KPC-1006RT User’s Guide

X Figures

Figure 1-1. KPC-1006RT Mechanical Layout - I/O Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

Figure 1-2. KPC-1006RT Mechanical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

Figure 2-1. KPC-1006RT Rear Heat Sink Panel screw locations . . . . . . . . . . . . . . . . . . . . . . 2-3

Figure 2-2. KPC-1006RT Mechanical Layout - Internal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

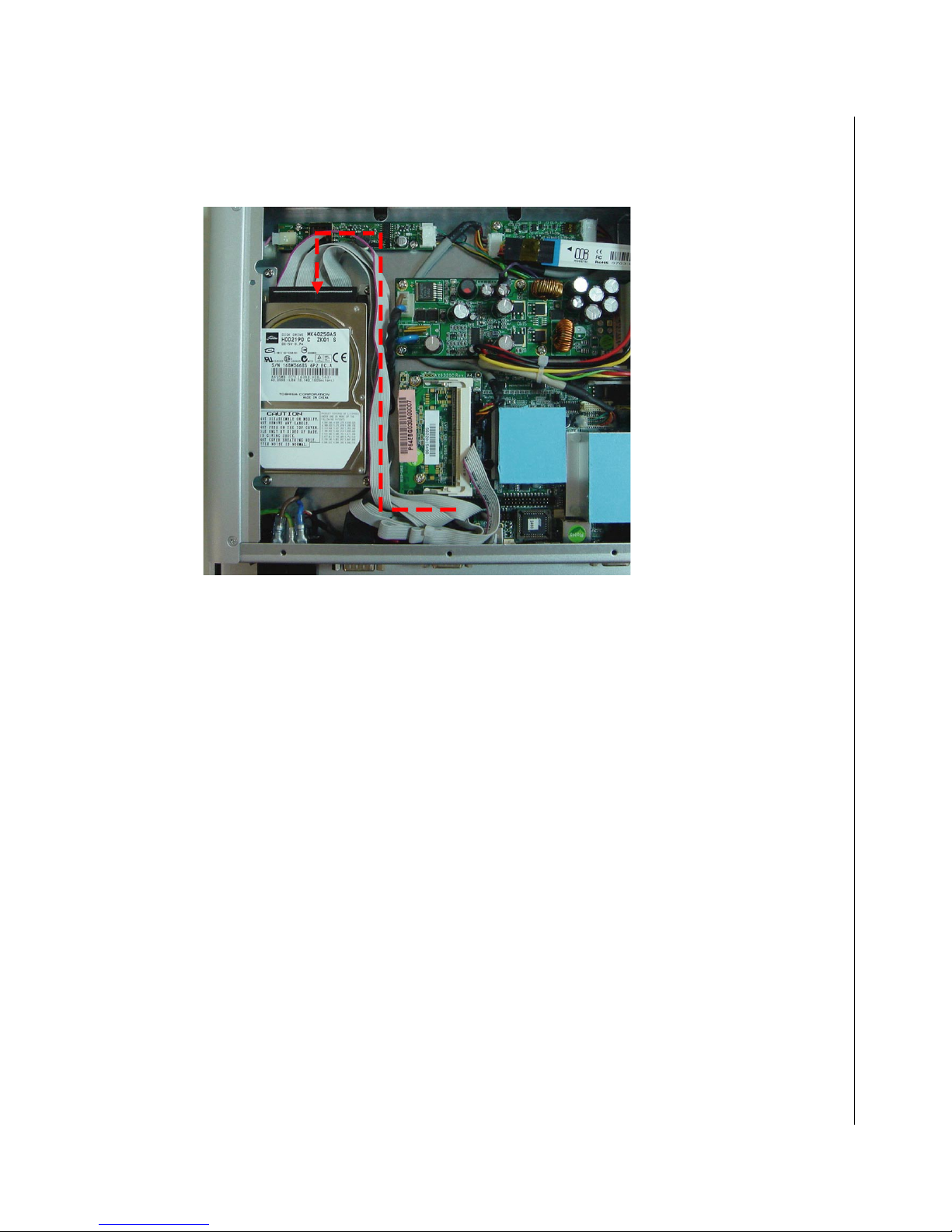

Figure 2-3. Remove the Anti-vibration HDD Bracket from the chassis . . . . . . . . . . . . . . . . . . 2-5

Figure 2-4. Mounting a 2.5” hard drive onto the Anti-Vibration Bracket . . . . . . . . . . . . . . . . . 2-6

Figure 2-5. Replace the Anti-Vibration Bracket with HDD into the chassis and connect the IDE cable 2-7

Figure 2-6. Panel mounting the KPC-1006RT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Figure 2-7. Secure the chassis to the panel using the 5 brackets and screws . . . . . . . . . . . . 2-9

Figure 2-8. Attach the VESA / Wall Mount bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

Figure 2-9. Wall mounting the KPC-1006RT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

Figure 3-1. Tighten the terminal block compression screws on the DC inlet. . . . . . . . . . . . . . 3-3

Figure 3-2. Touch-Screen Driver installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Figure 3-3. Touch-Screen calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Figure 5-1. COM2 RS232/422/485 Mode Select jumper locations . . . . . . . . . . . . . . . . . . . . . 5-4

vKPC-1006RT User’s Guide

vi KPC-1006RT User’s Guide

X Safety Instructions

Contents

Before You Begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix

When Working Inside a Computer. . . . . . . . . . . . . . . . . . . . . . . . . x

Preventing Electrostatic Discharge . . . . . . . . . . . . . . . . . . . . . . . . xi

Instructions for Lithium Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . xii

Voltage Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii

This page intentionally left blank.

viii KPC-1006RT User’s Guide

X Before You Begin

Before handling the KPC-1006RT, read the instructions and safety guidelines on the following pages to
prevent damage to the product and to ensure your own personal safety. Refer to the “Advisories” section in
the Preface for advisory conventions used in this user’s guide, including the distinction between Warnings,
Cautions, Important Notes, and Notes.

 Always use caution when handling/operating a computer. Only qualified, experienced,

authorized electronics service personnel should access the interior of a comp uter. The power
supplies produce high voltages and energy hazards, which can cause bodily harm.

 Use extreme caution when installing or removing components. Refer to the installation

instructions in this user’s guide for precautions and procedures. If you have any questions,
please contact Quanmax Post-Sales Technical Support.

WARNING

High voltages are present inside the chassis when the unit’s
power cord is plugged into an electrical outlet. Turn off
system power, turn of f the power supply, and then disconnect
the power cord from its source before removing the chassis
cover. Turning off the system power switch does not remove
power to components.

Before You Begin -ixKPC-1006RT User’s Guide

X When Working Inside a Computer

Before taking covers off a computer, perform the following steps:

1) Turn off the computer and any peripherals.

2) Disconnect the computer and peripherals from their power sources or subsystems to prevent
electric shock or system board damage. This does not apply when hot swapping parts.

3) Follow the guidelines provided in “Preventing Electrostatic Discharge” on the following page.

4) Disconnect any telephone or telecommunications lines from the computer.

In addition, take note of these safety guidelines when appropriate:

 To help avoid possible damage to system boards, wait five seconds after turning off the

computer before removing a component, removing a system board, or disconnecting a
peripheral device from the computer.

 When you disconnect a cable, pull on its connector or on its strain-relief loop, not on the cable

itself. Some cables have a connector with locking tabs. If you are disconnecting this type of
cable, press in on the locking tabs before disconnecting the cable. As you pull connectors
apart, keep them evenly aligned to avoid bending any connector pins. Also, before connecting
a cable, make sure both connectors are correctly oriented and aligned.

CAUTION

Do not attempt to service the system yourself except as
explained in this user’s guide. Follow installation and
troubleshooting instructions closely.

x KPC-1006RT User’s Guide

X Preventing Electrostatic Discharge

Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD
procedure to reduce the risk of damage to components. Quanmax strongly encourages you to follow proper
ESD procedure, which can include wrist straps and smocks, when servicing equipment.

You can also take the following steps to prevent damage from electrostatic discharge (ESD):

 When unpacking a static-sensitive component from its shipping carton, do not remove the

component’s antistatic packing material until you are ready to install the component in a
computer. Just before unwrapping the antistatic packaging, be sure you are at an ESD
workstation or grounded. This willl discharge any static electricity that may have built up in your
body.

 When transporting a sensitive component, first plac e it in an antistatic container or packaging.

 Handle all sensitive components at an ESD workstation. If possible, use antistatic floor pads and

workbench pads.

 Handle components and boards with care. Don’t touch the components or contacts on a board.

Hold a board by its edges or by its metal mounting bracket.

 Do not handle or store system boards near strong electrostatic, electromagnetic, magnetic, or

radioactive fields.

Preventing Electrostatic Discharge -xiKPC-1006RT User’s Guide

X Instructions for Lithium Battery

The installed SBC (Single Board Computer) of your KPC-1006RT is equipped with a lithium battery.

WARNING

Danger of explosion when battery is replaced with incorrect
type. Only replace with the same or equivalent type
recommended by the manufacturer.

Do not dispose of lithium batteries in domestic waste. Dispose of the battery according to the local
regulations dealing with the disposal of these special materials (e.g. to the collecting points for disposal of
batteries).

X Voltage Ratings

The KPC-1006RT has the following voltage input ratings:

 KPC-1006RT: 24VDC typical (16-28VDC min/max), max. 1.67A @ 24VDC

xii KPC-1006RT User’s Guide

X Preface

Contents

How to Use This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv

Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xvi

Regulatory Compliance Statements. . . . . . . . . . . . . . . . . . . . . . . xvii

Warranty Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xviii

Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xviii

Return Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xviii

Limitation of Liability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xviii

Maintaining Your Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix

Cleaning Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xix

Environmental Factors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xix

Power Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xx

This page intentionally left blank.

xiv KPC-1006RT User’s Guide

X How to Use This Guide

This guide is designed to be used as step-by-step instructions for installation, and as a reference for
operation, troubleshooting, and upgrades.

Note: Driver downloads and additional information are available under
Downloads on our web site: www.quanmax.com.

The following is a summary of the chapter contents:

 Chapter 1, Product Introduction, presents the product specifications and system architecture

for the
KPC-1006RT.

 Chapter 2, Assembly/Disassembly, describes how to access the system’s internal

components and locations of connectors so that you can easily configure your system.

 Chapter 3, Getting Started, describes how to connect power to your system and installation of

the required drivers and operating system.

 Chapter 4, Maintenance and Prevention, describes how to maintain your system and prevent

damage and may include instructions for fan removal, cleaning the air filter and battery
replacement.

 Chapter 5, Interface Definitions, provides information on the external connectors

backplane/motherboard interfaces of the KPC-1006 RT.

How to Use This Guide -xvKPC-1006RT User’s Guide

X Unpacking

When unpacking, follow these steps:

1) After opening the box, save it and the packing material for possible future shipment.

2) Remove all items from the box. If any items listed on the purchase order are missing, notify
Quanmax customer service immediately.

3) Inspect the product for damage. If there is damage, notify Quanmax customer service immediately .
Refer to

“Warranty Policy” for the return procedure.

xvi KPC-1006RT User’s Guide

X Regulatory Compliance Statements

This section provides the FCC compliance statement for Class A devices.

X FCC Compliance Statement for Class A Devices

The product(s) described in this user’s guide has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the user’s guide, may cause harmful interference to radio communications. Operation of this
equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case
the user will be required to correct the interference (take adequate measures) at their own expense.

Changes or modifications not expressly approved by Quanmax could void the user's authority to operate the
equipment.

Note: The assembler of a personal computer system may be required to
test the system and/or make necessary modifications if a system is found
to cause harmful interference or to be noncompliant with the appropriate
standards for its intended use.

Regulatory Compliance Statements -xviiKPC-1006RT User’s Guide

X Warranty Policy

X Limited Warranty

Quanmax Inc.’s detailed Limited Warranty policy can be found under Support at www.quanmax.com.
Please consult your distributor for warranty verification.

The limited warranty is void if the product has been subjected to alteration, neglect, misuse, or abuse; if any
repairs have been attempted by anyone other than Quanmax or its authorized agent; or if the failure is
caused by accident, acts of God, or other causes beyond the control of Quanmax or the manufacture r.
Neglect, misuse, and abuse shall include any installation, operation, or maintenance of the product other
than in accordance with the user’s guide.

No agent, dealer, distributor , service company, or other party is authorized to change, modify, or extend the
terms of this Limited Warranty in any manner whatsoever. Quanmax reserves the right to make changes or
improvements in any product without incurring any obligation to similarly alter products previously
purchased.

X Return Procedure

For any Limited Warranty return, please contact Support at www.quanmax.com and login to obtain a
Return Material Authorization (RMA) Number. If you do not have an account, send an email to
[email protected] to apply for one.

All product(s) returned to Quanmax for service or credit must be accompanied by a Return Material
Authorization (RMA) Number. Freight on all returned items must be prepaid by the customer who is
responsible for any loss or damage caused by common carrier in transit. Returns for Warranty must
include a Failure Report for each unit, by serial number(s), as well as a copy of the original invoice showing
the date of purchase.

To reduce risk of damage, returns of product must be in a Quanmax shipping container. If the original
container has been lost or damaged, new shipping containers may be obtained from Quanmax Customer
Service at a nominal cost.

Quanmax owns all parts removed from repaired products. Quanmax uses new and reconditioned parts
made by various manufacturers in performing warranty repairs and building replacement products. If
Quanmax repairs or replaces a product, its warranty term is not extended.

Shipments not in compliance with this Limited Warranty Return Policy will not be accepted by Quanmax.

X Limitation of Liability

In no event shall Quanmax be liable for any defect in hardware, software, loss, or inadequacy of data of any
kind, or for any direct, indirect, incidental, or consequential damages in connection with or arising out of the
performance or use of any product furnished hereunder. Quanmax’s liability shall in no event exceed the
purchase price of the product purchased hereunder. The foregoing limitation of liability shall be equally
applicable to any service provided by Quanmax or its authorized agent.

xviii KPC-1006RT User’s Guide

X Maintaining Your Computer

X Environmental Factors

X Temperature

The ambient temperature within an enclosure may be greater than room ambient temperature. Installation in
an enclosure should be such that the amount of air flow required for safe operation is not compromised.
Consideration should be given to the maximum rated ambient temperature. Overheating can cause a variety
of problems, including premature aging and failure of chips or mechanical failure of devices.

If the system has been exposed to abnormally cold temperatures, allow a two-hour warm-up period to bring it
up to normal operating temperature before turning it on. Failure to do so may cause damage to internal
components, particularly the hard disk drive.

X Humidity

High-humidity can cause moisture to enter and accumulate in the system. This moisture can cause corrosion
of internal components and degrade such properties as electrical resistance and thermal conductivity .
Extreme moisture buildup inside the system can result in electrical shorts, which can cause serious damage
to the system.

Buildings in which climate is controlled usually maintain an acceptable level of humidity for system
equipment. However, if a system is located in an unusually humid location, a dehumidifier can be used to
maintain the humidity within an acceptable range. Refer to the “Specifications” section of this user’s guide for
the operating and storage humidity specifications.

X Altitude

Operating a system at a high altitude (low pressure) reduces the efficiency of the cooling fans to cool the
system. This can cause electrical problems related to arcing and corona effects. This condition can also
cause sealed components with internal pressure, such as electrolytic capacitors, to fail or perform at reduced
efficiency.

Maintaining Your Computer -xixKPC-1006RT User’s Guide

X Power Protection

The greatest threats to a system’s supply of power are power loss, power spikes, and power surges caused
by electrical storms, which interrupt system operation and/or damage system components. To protect your
system, always properly ground power cables and one of the following devices.

X Surge Protector

Surge protectors are available in a variety of types and usually provide a level of protection proportional
with the cost of the device. Surge protectors prevent voltage spikes from entering a system through the AC
power cord. Surge protectors, however, do not offer protection against brownouts, which occur when the
voltage drops more than 20 percent below the normal AC line voltage level.

X Line Conditioner

Line conditioners go beyond the overvoltage protection of surge protectors. Line conditioners keep a
system’s AC power source voltage at a fairly const ant level and, therefore, can handle brownouts. Because
of this added protection, line conditioners cost more than surge protectors. However, line conditioners
cannot protect against a complete loss of power.

X Uninterruptible Power Supply

Uninterruptible power supply (UPS) systems offer the most complete protection against variations on
power because they use battery power to keep the server running when AC power is lost. The battery is
charged by the AC power while it is available, so when AC power is lost, the battery can provide power to
the system for a limited amount of time, depending on the UPS system.

UPS systems range in price from a few hundred dollars to several thousand dollars, with the more
expensive unit s allowing you to run larger systems for a longer period of time when AC power is lost. UPS
systems that provide only 5 minutes of battery power let you conduct an orderly shutdown of the system,
but are not intended to provide continued operation. Surge protectors should be used with all UPS
systems, and the UPS system should be Underwriters Laboratories (UL) safety approved.

xx KPC-1006RT User’s Guide

Chapter 1

X Product Introduction

Contents

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

Mechanical Layout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

I/O Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

Mechanical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

This page intentionally left blank.

1-2 KPC-1006RT User’s Guide

X Overview

The KPC-1006RT is a fanless industrial Panel PC with a 10.4”TFT LCD touchscreen display and is
specifically designed for low power, cost effective applications. The KPC-1006RT features an ultra-slim
design for limited space environments and is equipped with an Intel® Celeron® M processor at 600MHz with
512 KB L2 cache, 2.5” HDD bay with anti-vibration mount, CompactFlash, LAN, USB 2.0, COM, and VGA
out.

To meet current trends towards wireless communications, the KPC-1006RT is WiFi-ready with Mini PCI slot
and WLAN antenna opening in the chassis. The KPC-1006RT's fanless/low-power design, compact size, and
complete feature set make it ideal for applications in transportation, surveillance, building automation.

Overview 1-3KPC-1006RT User’s Guide

X Checklist

1. Take out the KPC-1006RT series unit from the carton box, check if the unit is properly secure in the
plastic bag.

2. Check the contents of the carton box:

 Panel PC

 Driver CD

 Panel Mount Kit (5 brackets, 5 screws)

If any of these items is damaged or missing, please contact Quanmax. Save all packing materials for future
replacement and maintenance.

1-4 KPC-1006RT User’s Guide

X Features

X Display

The KPC-1006RT has a 10.4" LCD touch screen display with SVGA resolution and 230 cd/m2 brightness and
features a resistive 5-wire touch screen panels.

X Motherboard

The KPC-1006RT features the Intel® Celeron® M 600MHz µFC-BGA (512kB L2 cache), Intel® 852GM
GMCH and Intel® I/O Controller Hub 4 ICH4 chipset, 1x SO-DIMM slot up to 1GB.

X Input/Output

The KPC-1006RT has the following I/O interfaces:

 1x Fast Ethernet
 3x Serial Port (COM2 supports RS-232/422/485)
 2x USB 2.0
 Line-out
 PS/2 Keyboard, Mouse
 VGA out

X Storage

The KPC-1006RT has a 2.5” HardDrive Bay with anti-vibration mount and a CompactFlash T ype II slot.

X Expansion

The KPC-1006RT has a Mini PCI slot and is Wireless LAN ready.

X Power Supply

The KPC-1006RT has a DC 16 - 28V power input w/ fuse protection.

Overview 1-5KPC-1006RT User’s Guide

X Product Specifications

Features KPC-1006RT

Display 10.4"
Resolution SVGA (800 × 600, 4:3 AR)
Brightness 230 cd/m²
Touch Screen Resistive 5-wire
Processor Celeron® M 600MHz uFCBGA, 512kB L2 cache
Chipset Intel® 852GM GMCH, ICH4
Memory Max 1GB DDR SO-DIMM

Internal Storage

I/O

Expansion Mini PCI slot
Power Supply DC 16V-28V
Cooling Fanless

Weight

Dimensions (WxHxD) 290 x 72.9 x 248 mm

Temperature / Humidity

OS Windows 2000, XP
Certifications CE, FCC Class A, IP65 front bezel
RoHS compliant yes

Operating: 0°C to 50°C, 10%-90%, non-condensing

1x 2.5" HDD with antivibration mount

1x CompactFlash Type-II socket

1x Fast Ethernet

COM: 2x RS-232, 1x RS-232/422/485

2x USB 2.0

Line-out

PS/2 Keyboard, Mouse

VGA out

4.1kg

Storage: -20°C to 85°C, 5%-95%, non-condensing

1-6 KPC-1006RT User’s Guide

Table 1-1. KPC-1006RT Specifications

X Mechanical Layout

X I/O Panel

VGA

KB/MS COM2COM1

Line-Out

PWR

KPC-1006RT

LAN

USB

Figure 1-1. KPC-1006RT Mechanical Layout - I/O Panel

COM4

DC in

Mechanical Layout 1-7KPC-1006RT User’s Guide

X Mechanical Dimensions

1-8 KPC-1006RT User’s Guide

Figure 1-2. KPC-1006RT Mechanical Dimensions

Chapter 2

X Assembly/Disassembly

Contents

Accessing Internal Components . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Hard Drive Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Panel Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

VESA / Wall Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

This page intentionally left blank.

2-2 KPC-1006RT User’s Guide

X Accessing Internal Components

WARNING

Before opening your system, make sure to turn it off and
disconnect the power sources to prevent electric shock or
system damage.

Follow the procedure described below to access the system's internal components.

1) Place the system front-side-down on a soft material to prevent marking or scratching of the front
panel. Remove the screws securing the Rear Heat Sink Panel of the chassis as shown.

To p

Figure 2-1. KPC-1006RT Rear Heat Sink Panel screw locations

KPC-1006RT

Accessing Internal Components 2-3KPC-1006RT User’s Guide

2) Remove the Rear Heat Sink Panel . If the panel is difficult to lift, slide it to one side to break the
adhesion of the thermal pads on the CPU and Northbridge head spreaders. Note the locations of
the internal components of the system.

Hard Drive Mount

IDE connector

Figure 2-2. KPC-1006RT Mechanical Layout - Internal

Mini PCI slot

Heat Spreaders

with thermal pads

KPC-1006RT

2-4 KPC-1006RT User’s Guide

X Hard Drive Installation

The KPC-1006RT comes with an Anti-vibration Hard Drive Mount for 2.5” hard drives. The mount is pre­installed in the chassis as shown in Figure 2-2 above. Loosen the four screws with a Phillips screwdriver as
shown below and remove the bracket from the chassis.

KPC-1006RT

Figure 2-3. Remove the Anti-vibration HDD Bracket from the chassis

Hard Drive Installation 2-5KPC-1006RT User’s Guide

X How to install a 2.5” HDD

1) Use the four HDD mounting screws (Flathead-type) included in the screw pack to mount the 2.5”
hard drive onto the blue vibration dampers on the Anti-Vibration Bracket as shown.

Place the 2.5” HDD onto the vibration dampers as shown.

Flip the HDD and bracket over. Secure the HDD using the
4 Flathead screws provided.

Figure 2-4. Mounting a 2.5” hard drive onto the Anti-Vibration Bracket

2-6 KPC-1006RT User’s Guide

2) Replace the Anti-Vibration Bracket with HDD into the chassis and secure the 4 screws previously
removed. Connect the IDE cable to the connector on the motherboard and hard drive, and routing the
cable as shown.

KPC-1006RT

Figure 2-5. Replace the Anti-Vibration Bracket with HDD into the chassis and connect the IDE cable

3) Replace the Rear Heat Sink Panel by securing the screws previously removed in Accessing Internal
Components.

Hard Drive Installation 2-7KPC-1006RT User’s Guide

X Panel Mounting

The KPC-1006RT comes with can be panel mounted and comes with 5 brackets and screws for this
purpose. The required cutout for panel mounting and maximum panel thickness is shown below.

269

KPC-1006RT

Cut-out

Figure 2-6. Panel mounting the KPC-1006RT

Dimensions in millimeters

Note: Maximum panel

thickness is 19.5mm

227

2-8 KPC-1006RT User’s Guide

X How to Panel Mount the KPC-1006RT

4) Insert a Panel Mount Bracket into a bracket opening as shown. Secure the chassis to the panel by
tightening the screw provided against the panel. Repeat for the remaining 4 brackets.

Panel Mount Bracket

Figure 2-7. Secure the chassis to the panel using the 5 brackets and screws

Secure Chassis to Panel

by Tightening Screw

Panel Mounting 2-9KPC-1006RT User’s Guide

X VESA / Wall Mounting

The KPC-1006RT supports an optional VESA/Wall Mount Bracket. Attach the bracket to the KPC-1006RT
chassis using the four screws provided

.

The bracket supports 75x75 mm and 100x100mm VESA mounts, and wall mounting as described below.

2-10 KPC-1006RT User’s Guide

Figure 2-8. Attach the VESA / Wall Mount bracket

To Wall Mount the KPC-1006RT, install mounting screws as outlined in the diagram below.

5.0 mm

9.8 mm

Figure 2-9. Wall mounting the KPC-1006RT

VESA / Wall Mounting 2-11KPC-1006RT User’s Guide

This page intentionally left blank.

2-12 KPC-1006RT User’s Guide

Chapter 3

X Getting Started

Contents

Power Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

DC Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Operating System and Drivers. . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Chipset Driver Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Graphics Driver Installation. . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Audio Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

LAN Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Touch-Screen Driver Installation. . . . . . . . . . . . . . . . . . . . . . 3-5

This page intentionally left blank.

3-2 KPC-1006RT User’s Guide

X Power Connection

X DC Power

1) Make sure the power distribution to the DC power feed wires is disconnected.

2) Attach suitable Y-terminals to your DC power feed wires (inner width: 3.0mm, outer width: 5.0mm).

3) Lift the clear plastic safety cover and loosen the terminal block screws. Insert the Y-terminals into the
terminal block, noting the polarity as marked, and tighten the terminal screws as shown.

tighten compression screws

DC inlet

Figure 3-1. Tighten the terminal block compression screws on the DC inlet

4) Connect the power distribution to the DC power feed wires.

WARNING: Hazardous Voltage!

Before working, ensure that the power is removed from the
power feed wires. When the system is powered on, do NOT
touch the power terminals.

Power Connection 3-3KPC-1006RT User’s Guide

X Operating System and Drivers

The KPC-1006RT series of Panel PC does not come with operating system and drivers pre-installed. After
you have finished assembling your system and connected the appropriate power source, power it up using
the ATX Power Switch and install the required operating system.

The following sections describe driver installation procedures for Windows operating systems. Use the
Driver CD included with your system, or download the drivers for the KPC-1006RT from the Quanmax
website at www.quanmax.com and install them in the order they are listed below. For other operating
systems, please contact Quanmax.

X Chipset Driver Installation

To install the chipset drivers, extract the contents of Chipset_KPC-1006RT.zip and run the file
“infinst_autol.exe” in the Chipset folder. When asked to reboot the system, click “yes”.

X Graphics Driver Installation

After installing the chipset driver, extract the contents of Graphics_KPC-1006RT.zip and install the
graphics driver by running the file “win2k_xp1411.exe” located in the folder Graphics. After installation is
complete, reboot the system.

X Audio Driver Installation

To install the install the audio drive, extract the contents of Audio_KPC-1006RT .zip and run the file
“wdm_a370.exe”. Follow the instructions given.

X LAN Driver Installation

To install the LAN Driver, extract the contents of LAN_KPC-1006RT.zip and run the file “Setup.exe”,
located in the folder LAN. Select “Install Drivers”, and follow the instructions given.

3-4 KPC-1006RT User’s Guide

X T ouch-Screen Driver Installation

To install the Touch-Screen Driver, extract the contents of To uch-Screen_KPC-1006RT.zip and run the file
“setup.exe” in the folder Touch-Screen\Driver\Windows 2000-XP-2003 V5.1-0006. Follow the instructions
given and reboot

Figure 3-2. Touch-Screen Driver installation

Operating System and Drivers 3-5KPC-1006RT User’s Guide

After rebooting, click Start, PenMount DMC9000 Utilities, Control Panel, then click on Standard
Calibration to begin calibrating the touch screen. Follow the instructions given. For each calibration point,

you will need to press down on the touch screen until the instruction “Lift off to proceed” appears. Repeat
until all 5 calibration points have been set. Exit the PenMount Control Panel.

3-6 KPC-1006RT User’s Guide

Figure 3-3. Touch-Screen calibration

Chapter 4

X Maintenance

Contents

Maintenance and Prevention. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

This page intentionally left blank.

4-2 KPC-1006RT User’s Guide

X Maintenance and Prevention

Your KPC-1006RT system requires minimal maintenance and care to keep it operating correctly.

 Occasionally wipe the system with a soft dry cloth.

 You should only remove persistent dirt by use of a soft, slightly damp cloth (use only a mild

detergent).

 Make sure the ventilation holes are clear of debris.

Maintenance and Prevention 4-3KPC-1006RT User’s Guide

This page intentionally left blank.

4-4 KPC-1006RT User’s Guide

Chapter 5

X Interfaces

Contents

External Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

This page intentionally left blank.

5-2 KPC-1006RT User’s Guide

X External Connectors

JP6JP7J

Please refer to Figure 1-1. KPC-1006RT Mechanical Layout - I/O Panel for connector locations.

X RS-232 Serial Port Connector (COM1/COM4: D-Sub 9-pin male):

PIN SIGNAL PIN SIGNAL

1 DCD (Data Carrier Detect) 6 DSR (Data Set Ready)
2 RXD (Receive Data) 7 RTS (Request to Send)
3 TXD (Transmit Data) 8 CTS (Clear to Send)
4 DTR (Data Terminal Ready) 9 RI (Ring Indicator)
5 Ground

Table 5-1. COM1 & COM4 RS-232 Serial Port Connector pin definition

X RS-232/422/485 Serial Port Connector (COM2: D-Sub 9-pin male):

PIN

SIGNAL

RS-232 RS-422 RS-485

1 DCD TX- DATA­2 RXD TX+ DATA+
3 TXD RX+ NA
4 DTR RX- NA
5 GND GND GND
6 DSR NA NA
7 RTS NA NA
8 CTS NA NA
9 RI NA NA

Table 5-2. COM2 RS232/422/485 Serial Port Connector pin definition

X COM2 Mode Select Jumper Settings - RS-232/422/485: JP6/JP7/JP8

COM2

RS-232 (default) 1-2 3-5, 4-6 3-5, 4-6

RS-422 3-4, 7-8 1-3, 2-4 1-3, 2-4
RS-485 5-6, 7-8 1-3, 2-4 1-3, 2-4

P8

Table 5-3. COM2 RS232/422/485 Mode Select jumper settings

External Connectors 5-3KPC-1006RT User’s Guide

Refer to the diagram below for jumper locations:

X VGA Display Connector (D-Sub 15-pin female):

PIN SIGNAL PIN SIGNAL

1 Red 2 Green
3 Blue 4 NC
5 Ground 6 Ground
7 Ground 8 Ground

9 VCC 10 Ground
11 NC 12 DDCData
13 HSync 14 VSync
15 DDCCl k

5-4 KPC-1006RT User’s Guide

Figure 5-1. COM2 RS232/422/485 Mode Select jumper locations

Table 5-4. VGA Display Connector pin definition

X Fast Ethernet Connector (RJ-45)

PIN SIGNAL PIN SIGNAL

1 Transmit output (+) 5 RJ45 termination
2 Transmit output (-) 6 Receive input (-)
3 Receive input (+) 7 RJ45 termination
4 RJ45 termination 8 RJ45 termination

Table 5-5. Fast Ethernet Connector pin definition

5-5 KPC-1006RT User’s Guide
