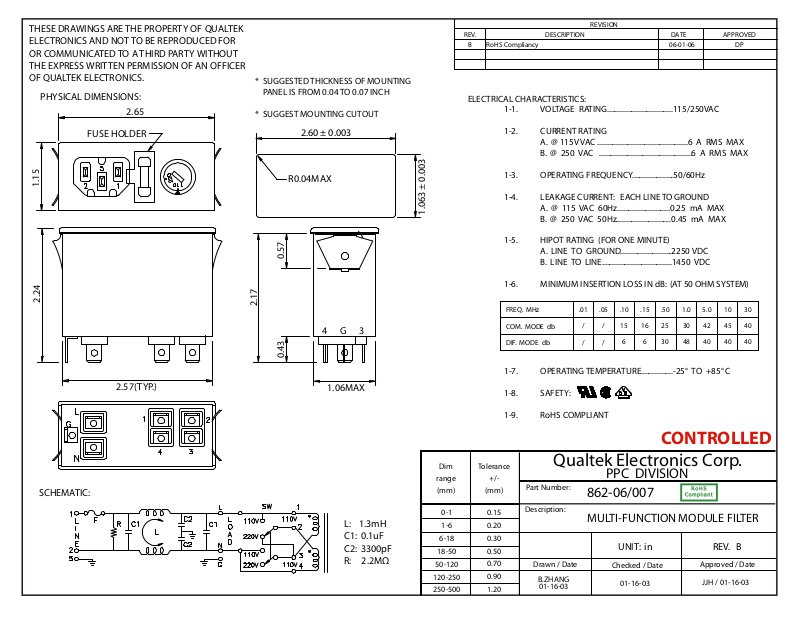

Page 1
THESE DRAWINGS ARE THE PROPERTY OF QUALTEK
ELECTRONICS AND NOT TO BE REPRODUCED FOR
OR COMMUNICATED TO A THIRD PARTY WITHOUT
THE EXPRESS WRITTEN PERMISSION OF AN OFFICER
OF QUALTEK ELECTRONICS.
PHYSICAL DIMENSIONS:
2.65
FUSE HOLDER
* SUGGESTED THICKNESS OF MOUNTING
PANEL IS FROM 0.04 TO 0.07 INCH
* SUGGEST MOUNTING CUTOUT
2.60 ± 0.003
REVISION
REV.
B RoHS Compliancy
06-01-06
APPROVEDDATEDESCRIPTION
ELECTRICAL CHARACTERISTICS:
1-1. VOLTAGE RATING...................................115/250VAC
1-2. CURRENT RATING
A. @ 115V VAC ................................................6 A RMS MAX
B. @ 250 VAC .................................................6 A RMS MAX
DP
1.15
2.24
SCHEMATIC:
2.57(TYP.)
2.17
R0.04MAX
0.57
0.43
4 G 3
1.06MAX
L: 1.3mH
C1: 0.1uF
C2: 3300pF
R: 2.2MΩ
1-3. OPERATING FREQUENCY......................50/60Hz
1-4. LEAKAGE CURRENT: EACH LINE TO GROUND
1.063 ± 0.003
A. @ 115 VAC 60Hz............................0.25 mA MAX
B. @ 250 VAC 50Hz.............................0.45 mA MAX
1-5. HIPOT RATING (FOR ONE MINUTE)
A. LINE TO GROUND...........................2250 VDC
B. LINE TO LINE.....................................1450 VDC
1-6. MINIMUM INSERTION LOSS IN dB: (AT 50 OHM SYSTEM)
1-7. OPERATING TEMPERATURE.................-25° TO +85° C
1-8. SAFETY:
1-9. RoHS COMPLIANT
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
FREQ. MHz
COM. MODE db
DIF. MODE db
Part Number:
Description:
Drawn / Date
B.ZHANG
01-16-03
.15
.50
1.0
5.0
.01
.10
.05
16
25
15
/
/
6
6
/
/
30
30
48
10
42
45
40
40
CONTROLLED
Qualtek Electronics Corp.
PPC DIVISION
862-06/007
MULTI-FUNCTION MODULE FILTER
UNIT: in
Checked / Date
01-16-03
REV. B
Approved / Date
JJH / 01-16-03
30
40
40
