Page 1
THESE DRAWINGS ARE THE PROPERTY OF QUALTEK
ELECTRONICS AND NOT TO BE REPRODUCED FOR
OR COMMUNICATED TO A THIRD PARTY WITHOUT
THE EXPRESS WRITTEN PERMISSION OF AN OFFICER
OF QUALTEK ELECTRONICS.
REV.
BCRoHS Compliancy
Updated Specifications
REVISION
06-01-06
03-19-12
APPROVEDDATEDESCRIPTION
DP
LY

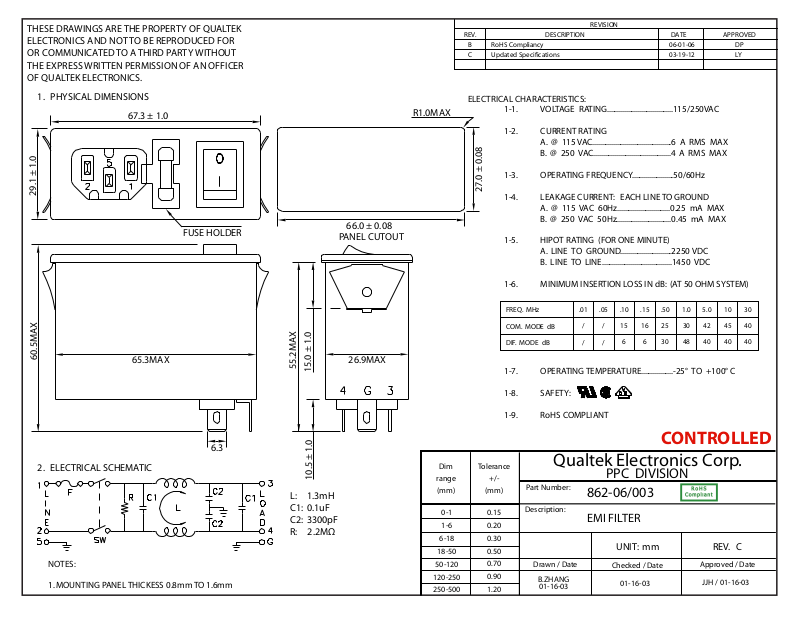

1. PHYSICAL DIMENSIONS
67.3 ± 1.0
29.1 ± 1.0
60.5MAX
65.3MAX
FUSE HOLDER
55.2MAX
15.0 ± 1.0
66.0 ± 0.08
PANEL CUTOUT
26.9MAX
R1.0MAX
ELECTRICAL CHARACTERISTICS:
1-1. VOLTAGE RATING...................................115/250VAC
1-2. CURRENT RATING
A. @ 115 VAC..........................................6 A RMS MAX
B. @ 250 VAC.........................................4 A RMS MAX
1-3. OPERATING FREQUENCY......................50/60Hz
27.0 ± 0.08
1-4. LEAKAGE CURRENT: EACH LINE TO GROUND
A. @ 115 VAC 60Hz............................0.25 mA MAX
B. @ 250 VAC 50Hz.............................0.45 mA MAX
1-5. HIPOT RATING (FOR ONE MINUTE)
A. LINE TO GROUND...........................2250 VDC
B. LINE TO LINE.....................................1450 VDC
1-6. MINIMUM INSERTION LOSS IN dB: (AT 50 OHM SYSTEM)
.15
.50
1.0
5.0
FREQ. MHz
COM. MODE dB
DIF. MODE dB
.01
.10
.05
16
25
15
/
/
6
6
/
/
30
30
48
10
42
45
40
40
1-7. OPERATING TEMPERATURE.................-25° TO +100° C
30
40
40
2. ELECTRICAL SCHEMATIC
NOTES:
1. MOUNTING PANEL THICKESS 0.8mm TO 1.6mm
6.3
10.5 ± 1.0
L: 1.3mH
C1: 0.1uF
C2: 3300pF
R: 2.2MΩ
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
1-8. SAFETY:
1-9. RoHS COMPLIANT
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
Qualtek Electronics Corp.
Part Number:
Description:
Drawn / Date
B.ZHANG
01-16-03
862-06/003
EMI FILTER
CONTROLLED
PPC DIVISION
UNIT: mm
Checked / Date
01-16-03
REV. C
Approved / Date
JJH / 01-16-03
