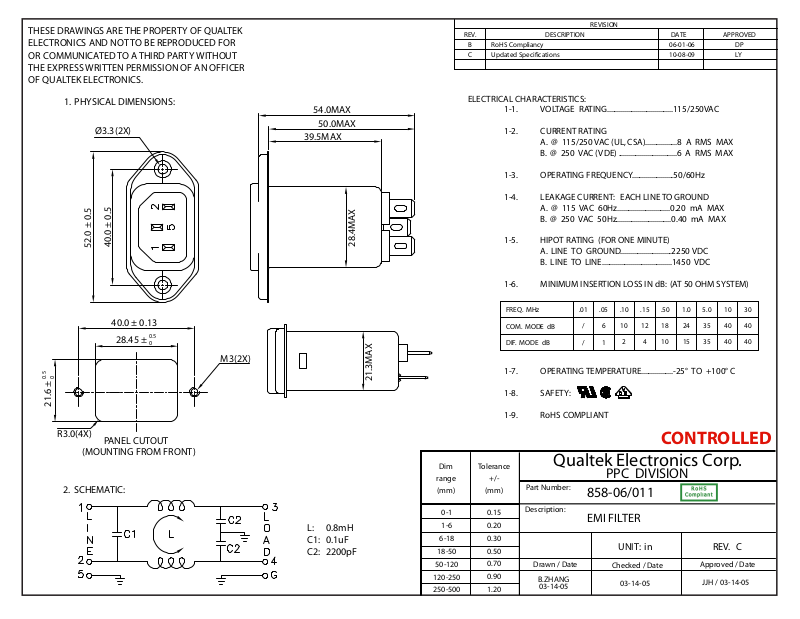

Page 1
THESE DRAWINGS ARE THE PROPERTY OF QUALTEK
ELECTRONICS AND NOT TO BE REPRODUCED FOR
OR COMMUNICATED TO A THIRD PARTY WITHOUT
THE EXPRESS WRITTEN PERMISSION OF AN OFFICER
OF QUALTEK ELECTRONICS.
REV.
BCRoHS Compliancy
Updated Specifications
REVISION
06-01-06
10-08-09
APPROVEDDATEDESCRIPTION
DP
LY
1. PHYSICAL DIMENSIONS:
Ø3.3(2X)
40.0 ± 0.5
52.0 ± 0.5
40.0 ± 0.13
28.45 ±
0.5
0
21.6 ±
ELECTRICAL CHARACTERISTICS:
54.0MAX
50.0MAX
39.5MAX
1-1. VOLTAGE RATING...................................115/250VAC
1-2. CURRENT RATING
A. @ 115/250 VAC (UL, CSA).................8 A RMS MAX
B. @ 250 VAC (VDE) ...............................6 A RMS MAX
1-3. OPERATING FREQUENCY......................50/60Hz
1-4. LEAKAGE CURRENT: EACH LINE TO GROUND
A. @ 115 VAC 60Hz............................0.20 mA MAX
B. @ 250 VAC 50Hz.............................0.40 mA MAX
28.4MAX
1-5. HIPOT RATING (FOR ONE MINUTE)
A. LINE TO GROUND...........................2250 VDC
B. LINE TO LINE.....................................1450 VDC
1-6. MINIMUM INSERTION LOSS IN dB: (AT 50 OHM SYSTEM)
.15
.50
1.0
5.0
FREQ. MHz
0.5
0
COM. MODE dB
DIF. MODE dB
.01
12
18
10
6
/
4
2
1
/
24
10
15
.10
.05
10
30
35
40
40
35
40
40
M3(2X)
21.3MAX
1-7. OPERATING TEMPERATURE.................-25° TO +100° C
1-8. SAFETY:
1-9. RoHS COMPLIANT
R3.0(4X)
PANEL CUTOUT
(MOUNTING FROM FRONT)
2. SCHEMATIC:
L: 0.8mH
C1: 0.1uF
C2: 2200pF
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
CONTROLLED
Qualtek Electronics Corp.
PPC DIVISION
Part Number:
Description:
Drawn / Date
B.ZHANG
03-14-05
858-06/011
EMI FILTER
UNIT: in
Checked / Date
03-14-05
REV. C
Approved / Date
JJH / 03-14-05
