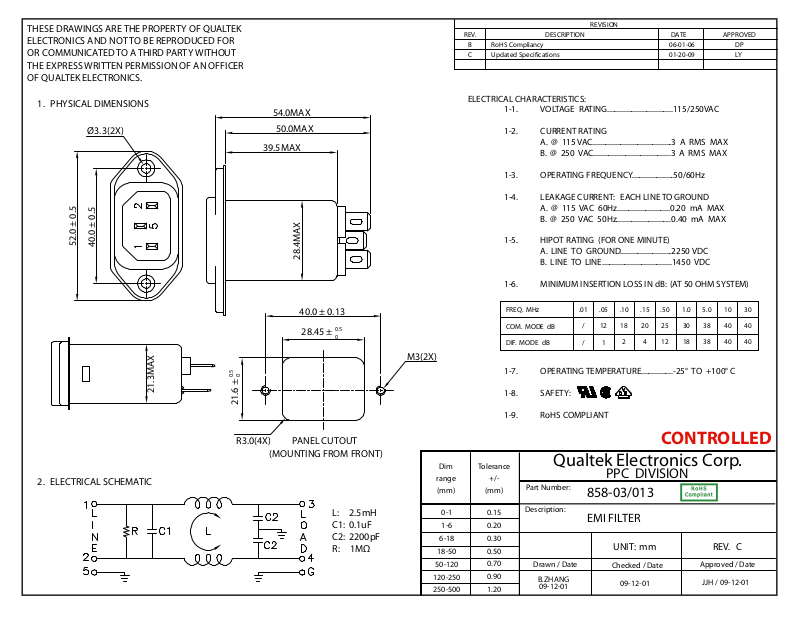

Page 1
THESE DRAWINGS ARE THE PROPERTY OF QUALTEK
ELECTRONICS AND NOT TO BE REPRODUCED FOR
OR COMMUNICATED TO A THIRD PARTY WITHOUT
THE EXPRESS WRITTEN PERMISSION OF AN OFFICER
OF QUALTEK ELECTRONICS.
REV.
BCRoHS Compliancy
Updated Specifications
REVISION
06-01-06
01-20-09
APPROVEDDATEDESCRIPTION
DP
LY
1. PHYSICAL DIMENSIONS
Ø3.3(2X)
52.0 ± 0.5
40.0 ± 0.5
ELECTRICAL CHARACTERISTICS:
54.0MAX
50.0MAX
39.5MAX
1-1. VOLTAGE RATING...................................115/250VAC
1-2. CURRENT RATING
A. @ 115 VAC..........................................3 A RMS MAX
B. @ 250 VAC.........................................3 A RMS MAX
1-3. OPERATING FREQUENCY......................50/60Hz
1-4. LEAKAGE CURRENT: EACH LINE TO GROUND
A. @ 115 VAC 60Hz............................0.20 mA MAX
B. @ 250 VAC 50Hz.............................0.40 mA MAX
1-5. HIPOT RATING (FOR ONE MINUTE)
28.4MAX
A. LINE TO GROUND...........................2250 VDC
B. LINE TO LINE.....................................1450 VDC
1-6. MINIMUM INSERTION LOSS IN dB: (AT 50 OHM SYSTEM)
.15
.50
1.0
5.0
40.0 ± 0.13
28.45 ±
0.5
0
FREQ. MHz
COM. MODE dB
DIF. MODE dB
.01
.10
.05
20
25
18
12
/
4
2
1
/
30
12
18
10
30
38
40
40
38
40
40
M3(2X)
0.5
0
21.3MAX
1-7. OPERATING TEMPERATURE.................-25° TO +100° C
1-8. SAFETY:
21.6 ±
1-9. RoHS COMPLIANT
2. ELECTRICAL SCHEMATIC
R3.0(4X)
PANEL CUTOUT
(MOUNTING FROM FRONT)
L: 2.5mH
C1: 0.1uF
C2: 2200pF
R: 1MΩ
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
CONTROLLED
Qualtek Electronics Corp.
PPC DIVISION
Part Number:
Description:
Drawn / Date
B.ZHANG
09-12-01
858-03/013
EMI FILTER
UNIT: mm
Checked / Date
09-12-01
REV. C
Approved / Date
JJH / 09-12-01
