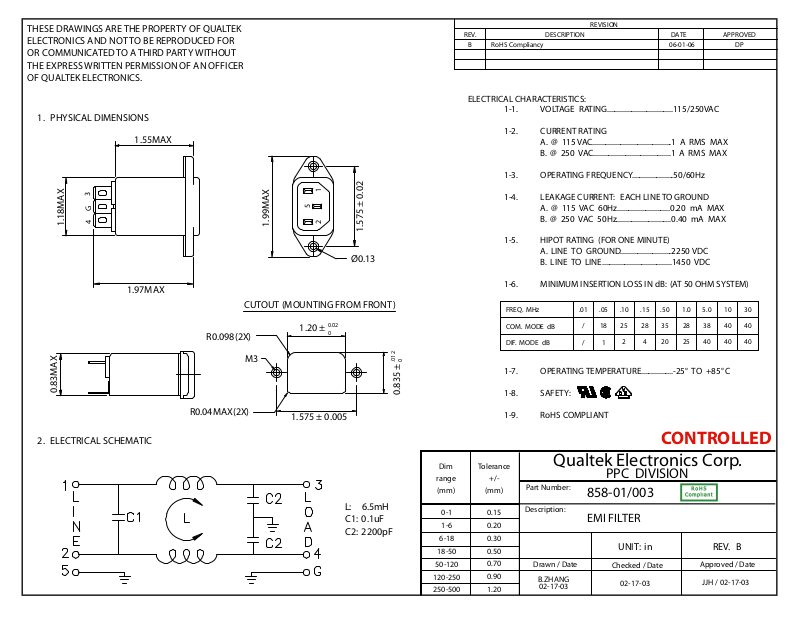

Page 1
THESE DRAWINGS ARE THE PROPERTY OF QUALTEK
ELECTRONICS AND NOT TO BE REPRODUCED FOR
OR COMMUNICATED TO A THIRD PARTY WITHOUT
THE EXPRESS WRITTEN PERMISSION OF AN OFFICER
OF QUALTEK ELECTRONICS.
1. PHYSICAL DIMENSIONS
1.55MAX
3
G
4
1.18MAX
REVISION
REV.
B RoHS Compliancy
06-01-06
APPROVEDDATEDESCRIPTION
DP
ELECTRICAL CHARACTERISTICS:
1-1. VOLTAGE RATING...................................115/250VAC
1-2. CURRENT RATING
A. @ 115 VAC..........................................1 A RMS MAX
B. @ 250 VAC.........................................1 A RMS MAX
1-3. OPERATING FREQUENCY......................50/60Hz
1
5
1.99MAX
2
1.575 ± 0.02
1-4. LEAKAGE CURRENT: EACH LINE TO GROUND
A. @ 115 VAC 60Hz............................0.20 mA MAX
B. @ 250 VAC 50Hz.............................0.40 mA MAX
1-5. HIPOT RATING (FOR ONE MINUTE)
Ø0.13
A. LINE TO GROUND...........................2250 VDC
B. LINE TO LINE.....................................1450 VDC
1.97MAX
0.83MAX
2. ELECTRICAL SCHEMATIC
R0.098(2X)
R0.04MAX(2X)
CUTOUT (MOUNTING FROM FRONT)
0.02
1.20 ±
0
M3
1.575 ± 0.005
L: 6.5mH
C1: 0.1uF
C2: 2200pF
.012
0
0.835 ±
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
1-6. MINIMUM INSERTION LOSS IN dB: (AT 50 OHM SYSTEM)
.15
.50
1.0
5.0
FREQ. MHz
COM. MODE dB
DIF. MODE dB
.01
.10
.05
28
35
25
18
/
4
2
1
/
28
20
25
10
38
40
40
40
1-7. OPERATING TEMPERATURE.................-25° TO +85° C
1-8. SAFETY:
1-9. RoHS COMPLIANT
CONTROLLED
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
Qualtek Electronics Corp.
PPC DIVISION
Part Number:
Description:
Drawn / Date
B.ZHANG
02-17-03
858-01/003
EMI FILTER
UNIT: in
Checked / Date
02-17-03
REV. B
Approved / Date
JJH / 02-17-03
30
40
40
