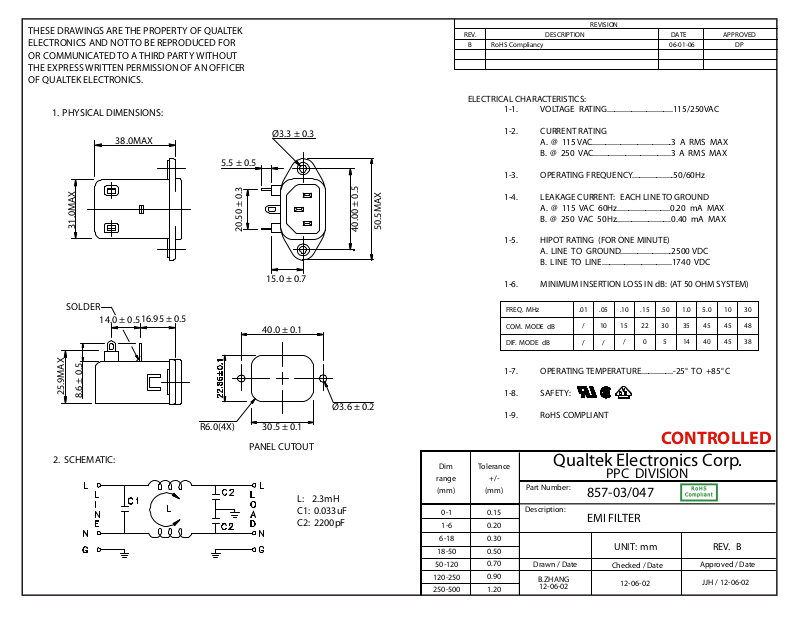

THESE DRAWINGS ARE THE PROPERTY OF QUALTEK
ELECTRONICS AND NOT TO BE REPRODUCED FOR
OR COMMUNICATED TO A THIRD PARTY WITHOUT
THE EXPRESS WRITTEN PERMISSION OF AN OFFICER
OF QUALTEK ELECTRONICS.
1. PHYSICAL DIMENSIONS:
38.0MAX
5.5 ± 0.5
31.0MAX
Ø3.3 ± 0.3
20.50 ± 0.3
15.0 ± 0.7
50.5MAX
40.00 ± 0.5
REVISION
REV.
B RoHS Compliancy
06-01-06
APPROVEDDATEDESCRIPTION
ELECTRICAL CHARACTERISTICS:
1-1. VOLTAGE RATING...................................115/250VAC
1-2. CURRENT RATING
A. @ 115 VAC..........................................3 A RMS MAX
B. @ 250 VAC.........................................3 A RMS MAX
1-3. OPERATING FREQUENCY......................50/60Hz
1-4. LEAKAGE CURRENT: EACH LINE TO GROUND
A. @ 115 VAC 60Hz............................0.20 mA MAX
B. @ 250 VAC 50Hz.............................0.40 mA MAX
1-5. HIPOT RATING (FOR ONE MINUTE)
A. LINE TO GROUND...........................2500 VDC
B. LINE TO LINE.....................................1740 VDC
1-6. MINIMUM INSERTION LOSS IN dB: (AT 50 OHM SYSTEM)
DP
SOLDER
14.0 ± 0.5
25.9MAX
8.6 ± 0.5
2. SCHEMATIC:
16.95 ± 0.5
40.0 ± 0.1
30.5 ± 0.1R6.0(4X)
PANEL CUTOUT
L: 2.3mH
C1: 0.033uF
C2: 2200pF
Ø3.6 ± 0.2
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
.15
.50
1.0
FREQ. MHz
COM. MODE dB
DIF. MODE dB
.01
.10
.05
22
15
10
/
/
/
/
30
0
5
5.0
35
45
14
40
1-7. OPERATING TEMPERATURE.................-25° TO +85° C
1-8. SAFETY:
1-9. RoHS COMPLIANT
CONTROLLED
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
Qualtek Electronics Corp.
PPC DIVISION
Part Number:
Description:
Drawn / Date
B.ZHANG
12-06-02
857-03/047
EMI FILTER
UNIT: mm
Checked / Date
12-06-02
REV. B
Approved / Date
JJH / 12-06-02
10
30
45
48
45
38
