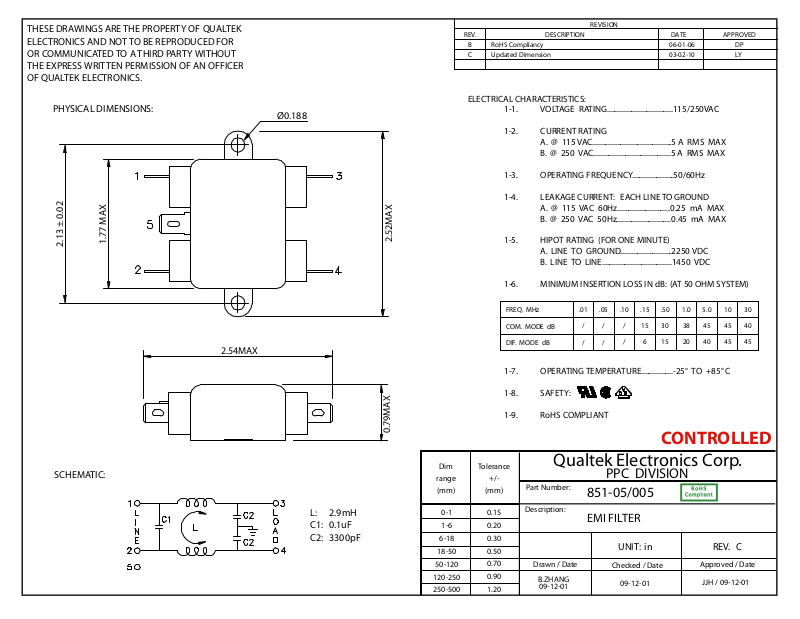

Qualtek Electronics 851-05/005 Data Sheet

THESE DRAWINGS ARE THE PROPERTY OF QUALTEK
ELECTRONICS AND NOT TO BE REPRODUCED FOR
OR COMMUNICATED TO A THIRD PARTY WITHOUT
THE EXPRESS WRITTEN PERMISSION OF AN OFFICER
OF QUALTEK ELECTRONICS.

PHYSICAL DIMENSIONS:

Ø0.188

REVISION

REV.

BCRoHS Compliancy

Updated Dimension

06-01-06

03-02-10

ELECTRICAL CHARACTERISTICS:

1-1. VOLTAGE RATING...................................115/250VAC

1-2. CURRENT RATING

A. @ 115 VAC..........................................5 A RMS MAX

B. @ 250 VAC.........................................5 A RMS MAX

1-3. OPERATING FREQUENCY......................50/60Hz

1-4. LEAKAGE CURRENT: EACH LINE TO GROUND

A. @ 115 VAC 60Hz............................0.25 mA MAX

B. @ 250 VAC 50Hz.............................0.45 mA MAX

APPROVEDDATEDESCRIPTION

DP

LY

2.13 ± 0.02

SCHEMATIC:

1.77 MAX

2.52MAX

1-5. HIPOT RATING (FOR ONE MINUTE)

A. LINE TO GROUND...........................2250 VDC

B. LINE TO LINE.....................................1450 VDC

1-6. MINIMUM INSERTION LOSS IN dB: (AT 50 OHM SYSTEM)

.15

.50

1.0

5.0

FREQ. MHz

COM. MODE dB

DIF. MODE dB

.01

.10

.05

15

30

/

/

/

6

/

/

/

38

15

20

10

30

45

45

40

40

45

45

2.54MAX

1-7. OPERATING TEMPERATURE.................-25° TO +85° C

1-8. SAFETY:

1-9. RoHS COMPLIANT

0.79MAX

CONTROLLED

Qualtek Electronics Corp.

PPC DIVISION

Part Number:

Description:

Drawn / Date

B.ZHANG
09-12-01

851-05/005

EMI FILTER

UNIT: in

Checked / Date

09-12-01

REV. C

Approved / Date

JJH / 09-12-01

L: 2.9mH
C1: 0.1uF
C2: 3300pF

Dim

range

(mm)

0-1

1-6

6-18

18-50

50-120

120-250

250-500

Tolerance

+/-

(mm)

0.15

0.20

0.30

0.50

0.70

0.90

1.20
