THESE DRAWINGS ARE THE PROPERTY OF QUALTEK
ELECTRONICS AND NOT TO BE REPRODUCED FOR
OR COMMUNICATED TO A THIRD PARTY WITHOUT
THE EXPRESS WRITTEN PERMISSION OF AN OFFICER
OF QUALTEK ELECTRONICS.

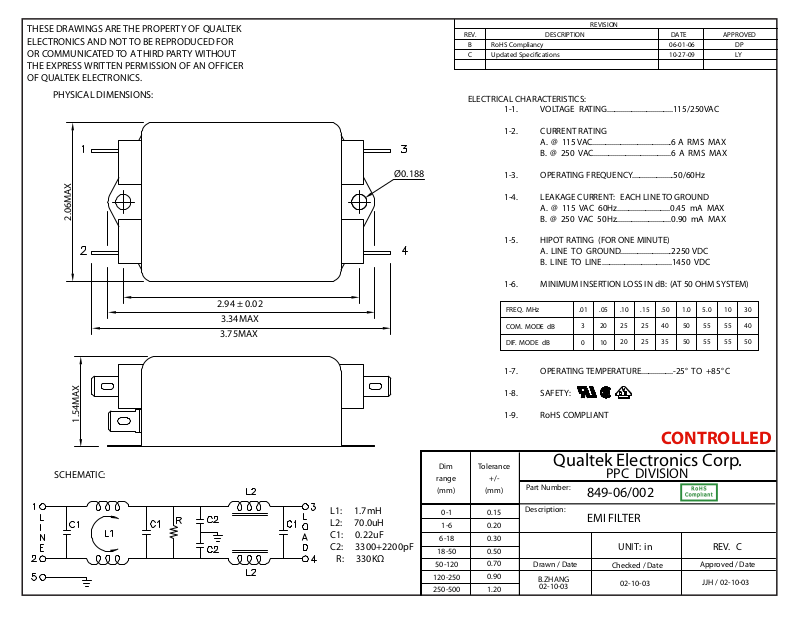

PHYSICAL DIMENSIONS:
REVISION
REV.
BCRoHS Compliancy
Updated Specifications
06-01-06
10-27-09
ELECTRICAL CHARACTERISTICS:
1-1. VOLTAGE RATING...................................115/250VAC
1-2. CURRENT RATING
A. @ 115 VAC..........................................6 A RMS MAX
B. @ 250 VAC.........................................6 A RMS MAX
APPROVEDDATEDESCRIPTION
DP
LY
2.06MAX
1.54MAX
SCHEMATIC:
2.94 ± 0.02
3.34MAX
3.75MAX
Ø0.188
L1: 1.7mH
L2: 70.0uH
C1: 0.22uF
C2: 3300+2200pF
R: 330KΩ
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
1-3. OPERATING FREQUENCY......................50/60Hz
1-4. LEAKAGE CURRENT: EACH LINE TO GROUND
A. @ 115 VAC 60Hz............................0.45 mA MAX
B. @ 250 VAC 50Hz.............................0.90 mA MAX
1-5. HIPOT RATING (FOR ONE MINUTE)
A. LINE TO GROUND...........................2250 VDC
B. LINE TO LINE.....................................1450 VDC
1-6. MINIMUM INSERTION LOSS IN dB: (AT 50 OHM SYSTEM)
.15
.50
1.0
5.0
FREQ. MHz
COM. MODE dB
DIF. MODE dB
.01
.10
.05
25
40
25
20
3
25
20
10
0
50
35
50
10
55
55
55
55
1-7. OPERATING TEMPERATURE.................-25° TO +85° C
1-8. SAFETY:
1-9. RoHS COMPLIANT
CONTROLLED
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
Qualtek Electronics Corp.
PPC DIVISION
Part Number:
Description:
Drawn / Date
B.ZHANG
02-10-03
849-06/002
EMI FILTER
UNIT: in
Checked / Date
02-10-03
REV. C
Approved / Date
JJH / 02-10-03
30
40
50
