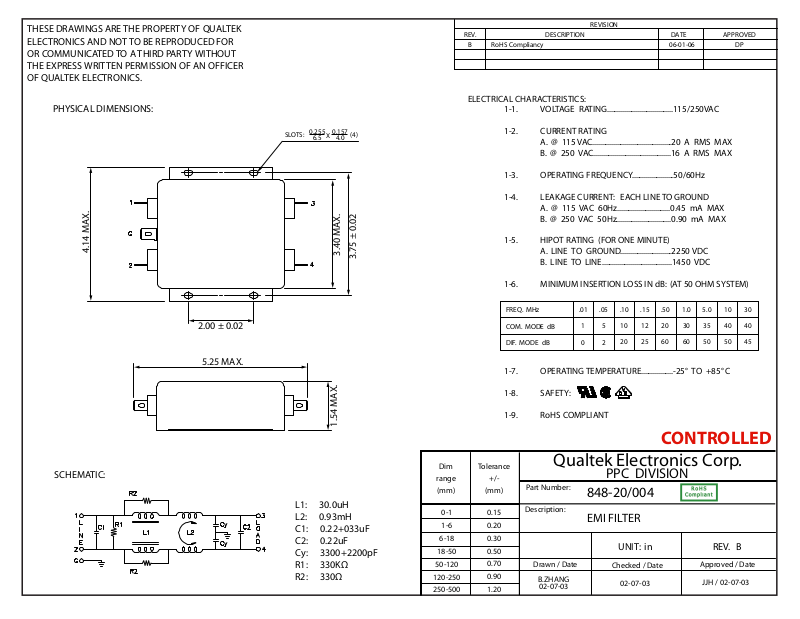

THESE DRAWINGS ARE THE PROPERTY OF QUALTEK
ELECTRONICS AND NOT TO BE REPRODUCED FOR
OR COMMUNICATED TO A THIRD PARTY WITHOUT
THE EXPRESS WRITTEN PERMISSION OF AN OFFICER
OF QUALTEK ELECTRONICS.
PHYSICAL DIMENSIONS:
SLOTS:
0.255
6.5
X
0.157
4.0
REVISION
REV.
B RoHS Compliancy
06-01-06
APPROVEDDATEDESCRIPTION
DP
ELECTRICAL CHARACTERISTICS:
1-1. VOLTAGE RATING...................................115/250VAC
(4)
1-2. CURRENT RATING
A. @ 115 VAC..........................................20 A RMS MAX
B. @ 250 VAC.........................................16 A RMS MAX
1-3. OPERATING FREQUENCY......................50/60Hz
1-4. LEAKAGE CURRENT: EACH LINE TO GROUND
A. @ 115 VAC 60Hz............................0.45 mA MAX
B. @ 250 VAC 50Hz.............................0.90 mA MAX
4.14 MAX.
SCHEMATIC:
2.00 ± 0.02
5.25 MAX.
3.40 MAX.
3.75 ± 0.02
1.54 MAX.
L1: 30.0uH
L2: 0.93mH
C1: 0.22+033uF
C2: 0.22uF
Cy: 3300+2200pF
R1: 330KΩ
R2: 330Ω
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
1-5. HIPOT RATING (FOR ONE MINUTE)
A. LINE TO GROUND...........................2250 VDC
B. LINE TO LINE.....................................1450 VDC
1-6. MINIMUM INSERTION LOSS IN dB: (AT 50 OHM SYSTEM)
.15
.50
1.0
5.0
FREQ. MHz
COM. MODE dB
DIF. MODE dB
.01
.10
.05
12
20
10
5
1
25
20
2
0
30
60
60
10
35
40
50
50
1-7. OPERATING TEMPERATURE.................-25° TO +85° C
1-8. SAFETY:
1-9. RoHS COMPLIANT
CONTROLLED
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
Qualtek Electronics Corp.
PPC DIVISION
Part Number:
Description:
Drawn / Date
B.ZHANG
02-07-03
848-20/004
EMI FILTER
UNIT: in
Checked / Date
02-07-03
REV. B
Approved / Date
JJH / 02-07-03
30
40
45
