R E V.1
MODELS Q6, Q6T, Q8 & Q8T
F O R T H E C L O S E S T A P P R O A C H T O T H E O R I G I N A L S O U N D
TA B L E OF CON T E N TS
Introduction:
Safety Instructions ....................................................................... 02
Introduction ................................................................................ 02
Warnings & Disclaimers .............................................................. 02
Rigging & Suspension ................................................................. 02
Warranty & Service .................................................................... 02
Product Descriptions:
Concourse Q6/6T ...................................................................... 03
Concourse Q8/8T ...................................................................... 03
Product Features:
Back Panel Drawings .................................................................. 03
Accessories ................................................................................ 04
Installation:
Installation Instructions ................................................................. 05
Connections:
Input Connectors ......................................................................... 07
Impedance Charts ...................................................................... 07
CE Compliance:
Statement ................................................................................... 08
Specications ............................................................................. 09
Contact Information:
QUAD Industrial Contact Information ............................BACK COVER
2
PROD U C T DESCRIPT I O N
The Concourse Q6(T) and Q8(T) are two-way high performance
speaker systems designed for distributed music, paging and
speech applications. They combine quality transducers with
sophisticated crossover designs in lightweight and durable ABS
enclosures and come complete with mounting brackets and hardware. Each model is available in a low-impedance 8Ω version
(Q6/Q8) or a 70/100V version (Q6T/Q8T).
Concourse Q6/Q6T
The Concourse Q6 is a two-way speaker system consisting of a
6.5" low frequency driver and a 1" dome tweeter and is supplied
with a wall mounting bracket. There are four versions available:
• Concourse Q6W –
• Concourse Q6B –
• Concourse Q6TW –
White, 8Ω, 50 Watts
Black, 8Ω, 50 Watts
White, 50 Watt 70/100 Volt
transformer included
• Concourse Q6TB –
Black, 50 Watt 70/100 Volt
transformer included
Concourse Q8/Q8T
The Concourse Q8 is a two-way speaker system consisting of an
8" low frequency driver and a 1" dome tweeter and is supplied
with a wall mounting bracket. There are four versions available:
• Concourse Q8W – White, 8Ω, 50 Watts
• Concourse Q8B – Black, 8Ω, 50 Watts
• Concourse Q8TW – White, 50 Watt 70/100 Volt
transformer included
• Concourse Q8TB – Black, 50 Watt 70/100 Volt
transformer included
Seismic Restraint Points
Amplier Inputs
Power Tap
Selector
3
1
2
5
3
4
6
4
INSTA LLAT I ON

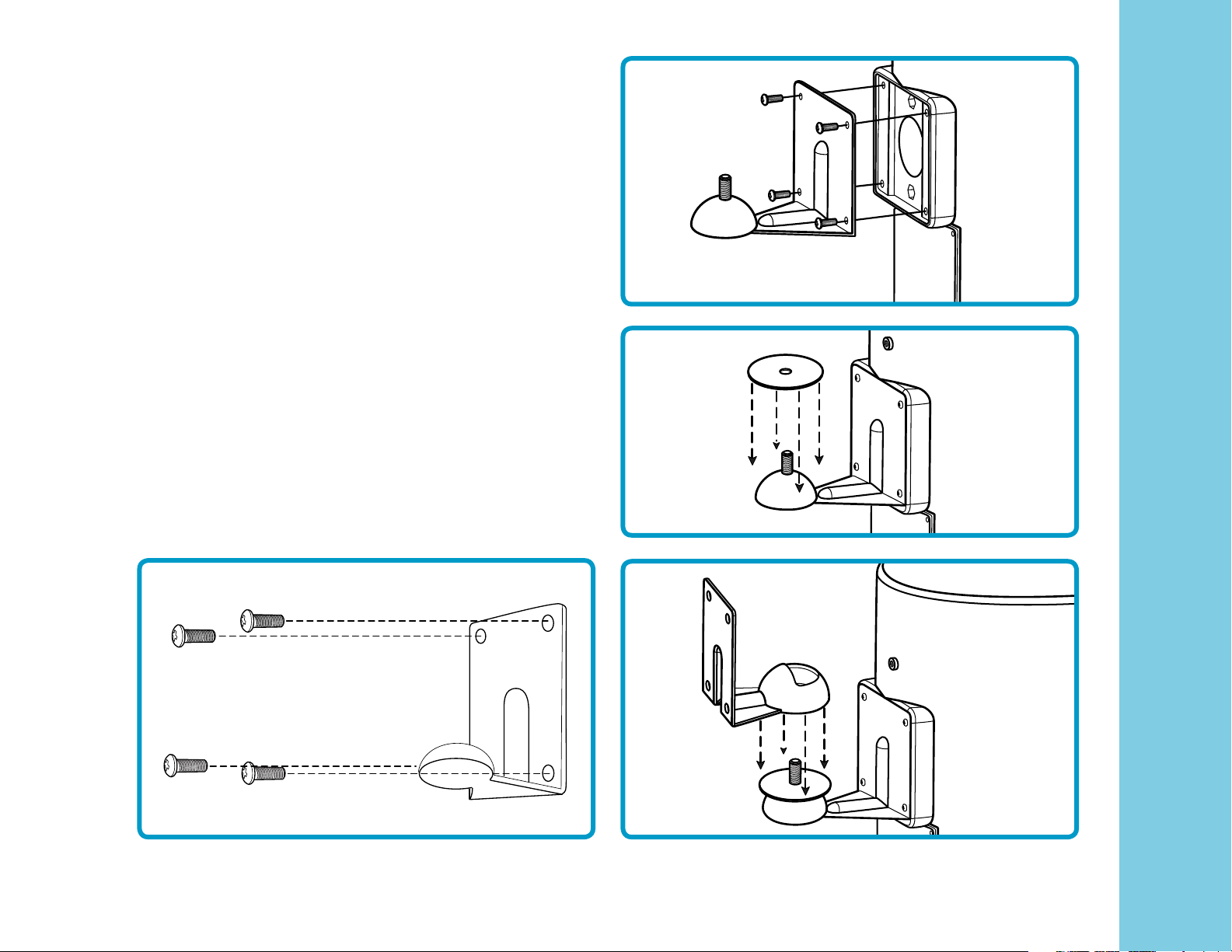

Step 1 – Install bracket to wall using suitable fasteners.
Step 1a – Remove four screws holding cover plate (2) on rear
of speaker.
Step 1b – Mount the bracket with the threaded bolt to the
cabinet using the four screws removed in step 1 (4).
STEP 1b
Step 2 –
Place the rubber friction washer over the bolt.
Step 3 – When the speaker is ready for installation, insert the
bolt in the wall plate bracket from below.

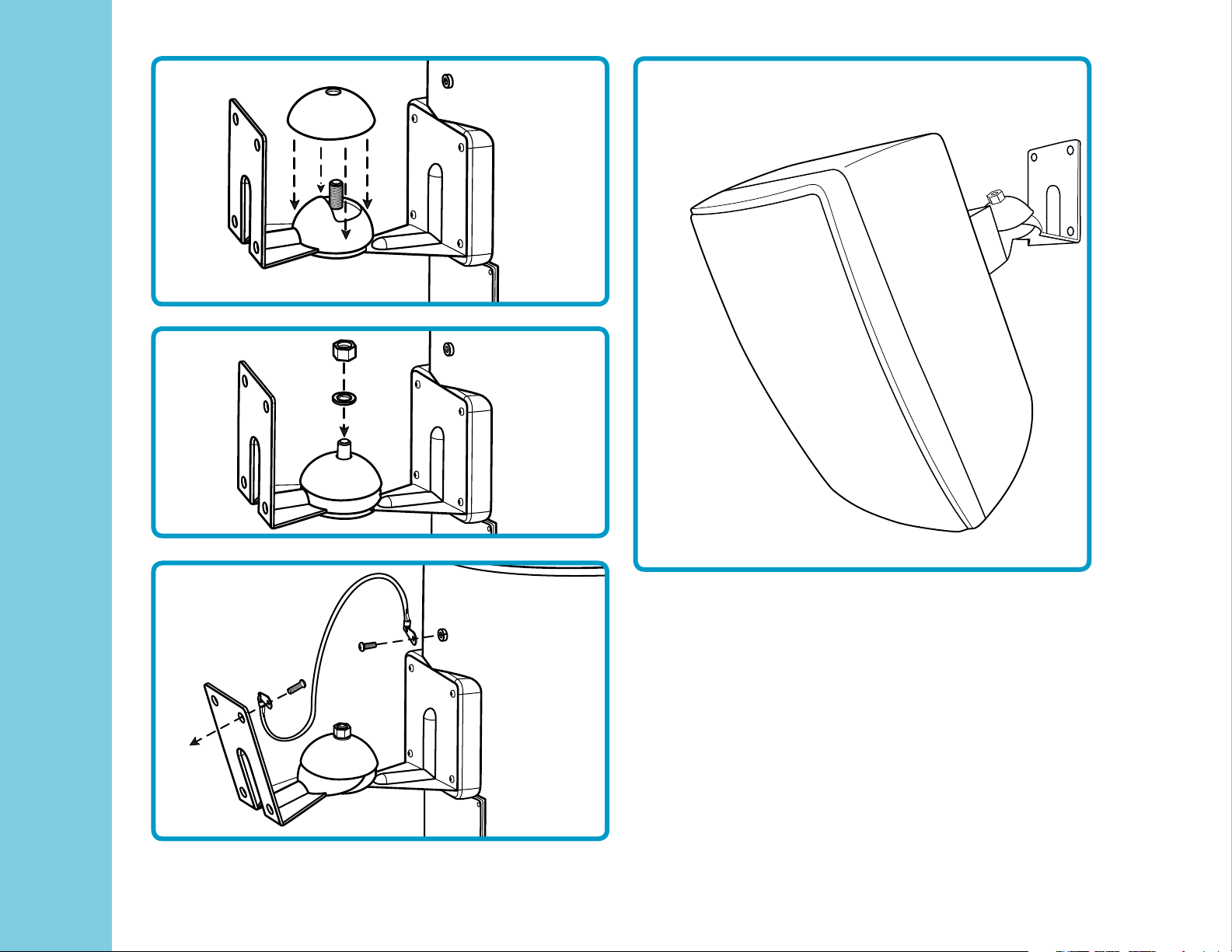

Step 4 – Place the dome cover over the bolt.
Step 5 – Place the lock washer and hex nut on the bolt. Tighten
gently, aim the speaker as needed and tighten rmly.
Step 6 – Ensure that seismic restraint cable is rmly attached
to both the loudspeaker and an anchor point on the mounting
surface.
STEP 1
STEP 2
STEP 3
5
STEP 4
STEP 5
FINISH
STEP 6
6
FRO M
AMP L IFI E R
TO N EXT
SPE A KER
Number of Speakers in Parallel Combined Impedance
1 8Ω
2 4Ω
3 2.6Ω
4 2Ω
7
8
SPEC I F I CAT I O NS
Power Handling: Q6 Q6T Q8 Q8T
Continuous 50W 70V: 12.5W/25W/50W 50W 70V: 12.5W/25W/50W
Program 100W 100V: 25W/50W 100W 100V: 25W/50W
Peak 200W 200W
Frequency Response: 50Hz−20kHz 50Hz−20kHz 50Hz−20kHz 50Hz−20kHz
(-10dB)
Frequency Response: 70Hz−20kHz 70Hz−20kHz 70Hz−20kHz 70Hz−20kHz
(+/-3dB)
Sensitivity (@1w/m): 86dB 85dB 87dB 86dB
Max SPL: 109dB 102dB 110dB 103dB
Coverage (H x V): 150˚ x 170˚ 150˚ x 170˚ 130˚ x 180˚ 130˚ x 180˚
Directivity (DI) (H x V): 6.3 6.3 6.59 6.59
Impedance: 8Ω N/A 8Ω N/A
Regulatory Approvals: CE CE CE CE
(9UL, CE)
Transducers:
LF Driver Size 6.5" Cone 6.5" Cone 8" Cone 8" Cone
HF Driver Size 1" Soft Dome 1" Soft Dome 1" Soft Dome 1" Soft Dome
Crossover Frequency: 2.2kHz 2.2kHz 2.0kHz 2.0kHz
Enclosure Material: Plastic (ABS) Plastic (ABS) Plastic (ABS) Plastic (ABS)
Connector Type: Phoenix Terminal Phoenix Terminal Phoenix Terminal Screw Terminal
Dimensions: 245 x 216 x 370mm 245 x 216 x 370mm 270 x 234 x 405mm 270 x 234 x 405mm
(H x W x D) 9.1" x 6.3" x 5.8" 9.1" x 6.3" x 5.8" 7.3" x 7.3" x 11" 7.3" x 7.3" x 11"
Net Weight: 3.7kg 5kg 4.3kg 5.7kg
8.14lbs. 11lbs. 9.46lbs. 12.54lbs.
* Features, details & specications are subject to change without notice
