BT-Q1000eX eXtreme Recorder™
………………………………………………………………………………………….…………………………………………………………………………….
1. Overview
Thank you for purchasing Qstarz 66-CH series BT-Q1000eX Bluetooth® A-GPS eXtreme Recorder™, built-in second generation
GPS chipset MTK with 66 channels tracking for your navigation,
common travel log, and extreme sports log. Especially for the
extreme sports log part, BT-Q1000eX supports 5Hz log able to
provide very precise log data when you are doing extreme sports
activities, such as racing, aviating, gliding, skiing, etc… since it can log
each point by per 200 millisecond. Besides, the software also
provides an exclusive function of lap timing analysis. Via comparing
the difference by the time of every lap, you are able to figure out the
pros and cons of your performance and exceed your limit.
Register your Qstarz Product:
Register your Qstarz product to get the latest news, software update,
event, and product information.
http://www.qstarz.com/register/Product_reg/page.asp
2. Product Notice
Please take out the battery and store it in dry/cool places
when not use for a long period.
If BT-Q1000eX isn’t used in temperature between -10℃℃℃℃ ~
60℃℃℃℃, its battery charging capability will decrease. Leave
the BT-Q1000eX far from heat or high temperature
environment. And also, do not expose your BT-Q1000eX in
temperature higher than 145℉℉℉℉/60℃℃℃℃ to prevent the
battery inside BT-Q1000eX from overheating, exploding or
burning itself. The Lithium battery inside the BT-Q1000eX
should be recycled.
Do not leave the unit staying below car’s wind shield after
car parked during hot summer season. Some position
below wind shield may generate high temperature over
……….…..……………………………………………………………………………………………………………………......................
1
www.Qstarz.com
Beyond Navigation BT-Q1000eX eXtreme Rec order
..............................................................................................................................................................................
158℉℉℉℉/70℃℃℃℃. Such temperature may melt the unit and
damage the battery.
It is recommended to turn BT-Q1000eX off in the hospital.
Wireless GPS receiver may interfere with the medical
equipments which use radio frequency.
The manufacturer assumes no responsibility for any
damages and loss resulting from the use of this manual, or
from deletion of data as a result of malfunction, dead
battery, or from misuse of the product in any way.
Please clean the unit with a dry and clean soft close. Do not
use harsh cleaning solvents, chemicals, or strong
detergents.
Do not attempt to open BT-Q1000eX by yourself.
Unauthorized hacking may damage the unit, and void your
warranty.
™
3. Features
Adopt MTK II chipset with high sensitivity -165dBm and
66-Channel Performance
Ultra lower power consumption up to 42hrs operation
(under update rate 1Hz)
Support up to 5Hz High Speed logging mode excellent for
extreme sports
Less than 15-Sec. AGPS fix support: download almanac data
to realize faster TTFF and positioning under warm start
Stand-Alone travel recorder to log up to 400,000 records
(the total number of recordable waypoints will reduce once
more log contents being selected)
3-level Switch to easily switch eXtreme Recorder to 5Hz
high speed mode or 1Hz normal mode
Support POI button to memorize your point of interest
immediately
Raise beeper function to notice specific status of device
……….…..……………………………………………………………………………………………………………………......................
www.Qstarz.com 2
BT-Q1000eX eXtreme Recorder™
General
GPS Chip MTK
II
GPS Module
Frequency
L1, 1575.42MHz
C/A Code
1.023MHz chip rate
Channels 66-CH Performance
Antenna (Internal)
Built-in patch antenna with LNA
Sensitivity
Tracking -165dBm
Datum WGS84
Performance Characteristic
Position Without aid: 3.0m 2D
-
RMS
<3m CEP(50%) without SA (horizontal)
Without aid: 0.1m/s, DGPS (WAAS, ENGOS, MSAS):
Time 50 ns RMS
Cold/Warm/Hot Start
35
/33/1 sec, average
Dynamic Condition
Altitude <18,000m
Velocity <515m/sec
Acceleration
<4g
Protocol
NMEA 0183 (V3.01)
-
GGA, GSA, GSV, RMC (Default)
Baud Rate
115,200 bps
………………………………………………………………………………………….…………………………………………………………………………….
Integrate Vibration sensor to smartly save power and
recordable waypoints
G-Mouse + Bluetooth in one: wired and wireless GPS
receiver
Personal/Portable Navigation (PDA, Smartphone, PC, etc.)
QZSS, DGPS(WAAS+EGNOS+MSAS) support
*The waypoints would be decreased when the more options of Log
Format are selected
4. Product Specification
Accuracy
Velocity
GPS Output Data
……….…..……………………………………………………………………………………………………………………......................
3
DGPS (WAAS, ENGOS, MSAS): 2.5m
0.05m/s
VTG, GLL(Optional)
www.Qstarz.com
Beyond Navigation BT-Q1000eX eXtreme Rec order
Power
Built-in rechargeable Li
-
ion battery, Up to
42 hrs after fully charged
Bluetooth
Standard Fully compliant with
Bluetooth
V1.2
Bluetooth
Profile Seri
al Port Profiles (SPP), Up to 1
0 meters
Vibration Sensor
Default On (can turn off from software)
Beeper
Default On (can turn off from software)
Others
72.2 (L) X 46.5 (W) X 20 (H) mm/
64.7g
(battery
Operating
- 20 ℃
to + 60 ℃
0 ℃
to + 45 ℃
..............................................................................................................................................................................
™
Size / Weight
Temperature
Storage Temperature
Charging
included)
- 10 ℃ to + 60 ℃
5. Hardware Introduction
5-1. Appearance
1. Power jack (mini USB type)
2. Mode switch (OFF/1Hz /5Hz)
3. Battery status LED (Red/Green)
4. Bluetoot h status LED (Blue)
5. GPS status LED (Or ange)
Log Status LED (Red)
6. Int ernal antenna
7. POI button
……….…..……………………………………………………………………………………………………………………......................
www.Qstarz.com 4
BT-Q1000eX eXtreme Recorder™
………………………………………………………………………………………….…………………………………………………………………………….
5-2. Hardware Function
Hardware
Function
Mode
Switch
(OFF)
Mode
Switch (1Hz)
Mode
Switch (5Hz)
Power Jack
Description
Power off BT-Q1000eX Off Off
When switch to 1Hz mode,
BT-Q1000eX can be used
to navigate with handheld
devices, and the data log
function is enabled at 1Hz
speed. Other log
conditions setting
(Time/Distance/Speed) can
apply.
When switch to 5Hz mode,
BT-Q1000eX can be used
to navigate with handheld
devices, and the data log
function is enabled at 5Hz
dedicated mode. Other log
conditions setting can not
apply.
Take the power cable and connect it to the power
jack (mini USB type) for charging only
Bluetooth
Status
On On
On On
POI Button Push to log the favorite Point of Interest
Note: 5Hz mode will consume more power than 1Hz mode (42hrs).
The approximate usage time of 5Hz mode is 32 hours.
……….…..……………………………………………………………………………………………………………………......................
5
www.Qstarz.com
Log
status
Beyond Navigation BT-Q1000eX eXtreme Rec order
..............................................................................................................................................................................
™
Mode Switch (OFF) Mode Switch (1Hz) Mode Switch (5Hz)
5-3. Battery installation
1. Press the PUSH button on the bottom side of the unit
2. Pull out the battery cover. Insert battery in the unit
3. Put battery cover on to the cabinet
4. Then push down and force it forward to fit firmly
……….…..……………………………………………………………………………………………………………………......................
www.Qstarz.com 6
BT-Q1000eX eXtreme Recorder™
Detecting
………………………………………………………………………………………….…………………………………………………………………………….
- Charging your battery
For the first time using the
BT-Q1000eX, please charge battery
until it is fully charged. Take the
power cable and connect it to the
power jack (mini USB type) and
recharge through USB cable, travel
charger, or car cigarette adaptor. This will begin to charge the battery.
Charging time is about 3 hours typically.
- When the Power LED flashes, battery power is low status. Please
recharge.
- When the Power LED is Green, the battery is under charging mode.
- When the Power LED is off, the battery is fully charged.
5-4. LED Indicators & Beeper
LED Indicators
LED Status Flash ON OFF
Power
(Red/Green)
Bluetooth
(Blue)
GPS
(Orange)
……….…..……………………………………………………………………………………………………………………......................
7
Low Power (Red)
Flash per 2 sec.:
Bluetooth connected
and transmitting
Mode
Flash per 5 sec.:
Power saving mode
GPS position is fixed,
Navigation
Recharging
(Green)
Not
connected
/ Pairing
(1Hz mode)
Satellite,
GPS
position
not fix
Fully
charged
GPS not
powered /
Log Mode
is on (5Hz
mode)
GPS not
powered
www.Qstarz.com
Beyond Navigation BT-Q1000eX eXtreme Rec order
..............................................................................................................................................................................
Log
(Red)
Flash per 2 sec: Low
memory (20%)
Flash 3 times:
POI(Point of Interest)
is recorded
Memory is
full
Beeper Code
Status Beep code Description
Startup 1 short beep
GPS fix 2 short beeps
POI button 3 short beeps
Memory
exhausted
Sleep mode
*Beeper can be turned off from software -> Config GPS.
5-5. Function of Vibration Sensor
Vibration Sensor: Vibration Sensor is functioned for power saving
and waypoint saving. It will detect the physical movement of the
device. When it detects the device not moving more than 10 minutes,
Q1000eX will enter sleep mode so that the Blue LED will turn to flash
every 5 seconds. Under sleep mode the log will be disabled.
When the device is on sleep mode, SHAKE the device to wake it up
and the blue LED will turn to flash every 2 seconds (at 5Hz mode this
blue LED will not flash) and GPS Orange LED will be also on.
……….…..……………………………………………………………………………………………………………………......................
www.Qstarz.com 8
3 long beeps
1 long and 1
short beeps
One short beep on off->1Hz,
Off->5Hz, 1Hz->5Hz, or 5Hz->1Hz
2 short beeps when GPS fix on 1Hz
or 5Hz mode
3 short beeps when POI button
being pressed
3 long beeps when the device is out
of memory
1 long and then 1 short beep when
the device enters sleep mode
™
Log Mode
is off
BT-Q1000eX eXtreme Recorder™
………………………………………………………………………………………….…………………………………………………………………………….
*Vibration Sensor function is turned on as default and can be
turned off by provided software -> config GPS.
Note: Once the device enter sleep mode and it may auto wake-up
when detecting “significant” movement. We strongly suggest you
to use SHAKE method as first priority to wake-up device in case
some tracks might not be recorded.
6. Setup BT-Q1000eX
6-1. Install the driver and software utility for
BT-Q1000eX
System Requirement (Only compatible with Microsoft Windows XP
/ Vista)
Minimum System Requirement
- Windows XP/Vista/7
- Pentium 3, 500Mhz
- 512M RAM
- 128MB disk space
- Network speed: 128Kbits/sec
- 3D-capable video card with
16Mbytes of VRAM
- 800x600, "16-bit High Color"
screen
1. Please insert the Software CD to your computer. The autorun
window will appear and please select Q1000eX. Please press
“Install PC Suite” to install the main program. If the autorun
windows did not appear, please browse the CD and find the folder
……….…..……………………………………………………………………………………………………………………......................
9
Recommended System
Requirement
- Windows XP
- Pentium 4 2.4GHz+ or AMD
2450xp+
- 2G RAM
- 2 GB of free disk space
- Network speed: 768 Kbits/sec
or better (DSL/Cable)
- 3D-capable video card with 32
MB of VRAM or greater
- 1280x1024, "32-bit True Color"
screen
www.Qstarz.com
Beyond Navigation BT-Q1000eX eXtreme Rec order
..............................................................................................................................................................................
“Utility\PC Suite\”. Double click “Qstarz_PC_Suite_installer_M.exe”
to install the software utility package. This software package
contains USB driver, QTravel™, and QSports™ software inside.
™
2. System would pop up the utility installation dialog. Please click
<Next> for the next step.
……….…..……………………………………………………………………………………………………………………......................
www.Qstarz.com 10
BT-Q1000eX eXtreme Recorder™
………………………………………………………………………………………….…………………………………………………………………………….
3. Please select “QSports™,” “QTravel™,” and “GPS Data Log Device
Driver”, and then click <Next> to the next step. If you already
installed USB driver, please unselect “GPS Data Log Device Driver.”
4. Click <Next> if you want to install the program in default target
folder or you can click <Explore> to change the install folder.
……….…..……………………………………………………………………………………………………………………......................
11
www.Qstarz.com
Beyond Navigation BT-Q1000eX eXtreme Rec order
..............................................................................................................................................................................
5. Give a folder’s name for quick links in start menu and click
<Install> to install the program.
™
6. When the utility installation is completed, please click <Finish> to
reboot. Or you can also reboot later by selecting “No, I want to
reboot later by myself.”
……….…..……………………………………………………………………………………………………………………......................
www.Qstarz.com 12
BT-Q1000eX eXtreme Recorder™
………………………………………………………………………………………….…………………………………………………………………………….
6-2. Install Google Earth
BT-Q1000eX supports showing your travel path directly on Google
Earth. Please go to http://earth.google.com for the free download of
Google Earth, and then install it to your computer. For the operation
procedure of Google Earth, please refer to
http://earth.google.com/support/
7. Start to use
7-1. Fully charge the battery when using at the first
time
A fully charged battery can last up to 42 hours continuously
operation (under 1Hz mode).
7-2. Connect BT-Q1000eX with your PC
1. Power on BT-Q1000eX.
2. Please connect BT-Q1000eX with your PC by mini USB cable.
7-3. Start the software utility
NOTE 1: Before starting the software utility, please make sure that
the USB driver and the software utility has been installed
properly.
NOTE 2: QTravel™ only supports BT-Q1000eX. Any intention to use
QTravel™ connecting GPS units other than BT-Q1000eX
would result in software disconnection automatically.
QSports™ - Your Virtual Sports Coach
QSports™ is software with database structure
QSports™ can record, manage, and analyze all your
daily/weekly/monthly activities with various sports gear such as
Cycling, Running, Jogging, Climbing, Skiing, etc. Train yourself by
means of QSports™ statistics to have good health control. Different
……….…..……………………………………………………………………………………………………………………......................
13
www.Qstarz.com
Beyond Navigation BT-Q1000eX eXtreme Rec order
..............................................................................................................................................................................
sport gear will generate corresponding category for better
management and analysis.
1. Click from <Start> / <All Programs> / <Qstarz PC Suite> / QSports
Users have to input product key at the first time of use. The product
key is located on the envelop of the software CD.
Important Notice: Do not lose your Product Key. Keep the packaging,
2. Add New User
QSports™ supports multiple users. User information includes “User
Name”, Gender, Birth Date, and Weight. In order to get correct
calories calculation, please fill in the correct personal data.
3. <Import Wizard>
Import Wizard can guide you to load the tracks from GPS device
easily.
3.1 Select default “Sport Type”. QSports will create tracks with
3.2 QSports™ will automatically detect the COM port and baud
3.3 Activate the Lap analysis function: once import the data
NOTE: Make sure to Power on GPS unit first before connecting with
computer for downloading tracks.
4. <Export Wizard>
Export Wizard can guide you to proceed export process easily.
……….…..……………………………………………………………………………………………………………………......................
www.Qstarz.com 14
or write the number down and keep it in a safe
place.
the default sport type, and users can change the sport type
after import.
rate and load in the GPS tracks.
from Q1000eX, the lap analysis function will be activated.
The Lap Analysis View button will appear on toolbar.
™
BT-Q1000eX eXtreme Recorder™
………………………………………………………………………………………….…………………………………………………………………………….
4.1 HTML: Pack selected tracks and photos into editable html
files or a single easy sharing mht file.
4.2 Google Earth: KML and KMZ are Google Earth files formats.
KML file contains detail waypoints and tracks info.
KMZ file contains both simple track and photos info.
4.3 Track File: Export tracks and placemarks as GPX, NMEA,
and CSV file formats.
5. <Lap Analysis>
Lap analysis allows you to compare the data of each lap by time, by
distance, or by user defined start/finish point.
5.1 Add Start/Finish point: click the black white flag on the
right side of Google Map, and then put the black white flag
on the start/finish point of the lap/line.
For Circuit: please put one start/finish point or one start
point and one finish point.
For Line: need to put one start point and one finish point.
5.2 Add split points: click the red flag on the right side of
Google Map, and then put the red flag on the place of the
lap/line that you want to know more detail about it.
5.3 <Update Lap Info Now!>
Show the lap analysis info instantly by distance, time, or
user defined start/finish point.
<By Distance>
Data will be split and shown by each distance value. Only
for one way not repeating the circuit or line.
<By Time>
Data will be split and shown by each time value. Only for
one way not repeating the circuit or line
<By user defined start/finish point>
Data will be split and shown by user defined start/finish
and split points. Only for repeating the circuit or line.
5.4 <Comparison>
Select tracks to compare to the current track. The
comparison is meaningful when the paths are similar.
……….…..……………………………………………………………………………………………………………………......................
15
www.Qstarz.com
Beyond Navigation BT-Q1000eX eXtreme Rec order
..............................................................................................................................................................................
NOTE: To easily compare data among many devices, please change
the device unique ID from software -> Config GPS -> User Name.
Then the imported track will be given a specific file name based on
that user name.
For detail QSports functionality, please refer to QSports User’s
Manual attaching with Software.
QTravel™:
QTravel™ is the best Geotagging software to integrating your travel
track and photo together easily. Support track editing, playback, and
import/export Wizard.
1. Click from <Start> / <All Programs> / <Qstarz PC Suite> / QTravel
Users have to input product key at the first time of use. The product
key is located on the envelop of the software CD.
2. <File> \ < Import Wizard >
Import Wizard can guide you to proceed the Geotag process easily.
2.1 The Import Wizard will jump out every time during
program startup. You can also launch it by clicking <File> \
<Import Wizard> or the quick link icon.
2.2 Select the method to import the tracks from device.
<Import tracks and photos into new trip>
Create a new trip to save the tracks
<Select trip to import tracks and photos>
Save the tracks into an existed trip
<Import whole trip from project file (*.itm)>
Import a trip from a project file saved by Travel Recorder
software
2.3 QTravel™ will automatically detect the com port and baud
rate and load in the GPS tracks.
2.4 A track list window will be popped up. Select the tracks to
import.
2.5 Please select the photo folder to import photos for geotag.
……….…..……………………………………………………………………………………………………………………......................
www.Qstarz.com 16
™
BT-Q1000eX eXtreme Recorder™
………………………………………………………………………………………….…………………………………………………………………………….
You can also skip this step by clicking <Finish> directly and
then there will be only tracks shown on Google Map.
NOTE: Make sure to Power on GPS unit first before connecting with
computer for downloading tracks.
3. <File> \ <Export Wizard>
Export Wizard can guide you to proceed export process easily.
3.1 HTML: Pack selected tracks and photos into editable html
files or a single easy sharing mht file.
3.2 Google Earth: KML and KMZ are Google Earth files formats.
KML file contains detail waypoints and tracks info.
KMZ file contains both simple track and photos info.
3.3 Track File: Export tracks and placemarks as GPX, NMEA,
and CSV file formats.
3.4 Project File: Export whole trip as a Travel Recorder
software compatible project file.
4. <File> \ <Download AGPS Data>
Update the AGPS data from internet assistance server to boost warm
start speed to 15sec.
A-GPS is a system where outside sources, such as an assistance
server and reference network, help a GPS receiver boosts
performance beyond that of the same receiver in a stand-alone
mode by downloading the almanac data from an assistance server.
Note1: A-GPS can boost GPS warm start speed to always lower than
15sec fix after the first fix. The A-GPS efficiency will decrease
when time goes by. If it expires, you would have to download
almanac data again because the acceleration efficiency of fix
will become totally ineffective.
Note2: Please don’t update the almanac data via Bluetooth
interface.
For detail QTravel functionality, please refer to QTravel User’s
Manual attaching with Software.
Register your Product Key:
You can register your product key in “software -> about -> Input
……….…..……………………………………………………………………………………………………………………......................
17
www.Qstarz.com
Beyond Navigation BT-Q1000eX eXtreme Rec order
..............................................................................................................................................................................
Product Key” by an email account. This email with a registered
product key will be saved in Qstarz database. You can check your
product key by presenting the corresponding email to Qstarz at any
time.
Update the Software:
Please always go to Qstarz download page to check if there is any
latest software update.
http://www.qstarz.com/download.htm
Please uninstall the old version before installation.
Note: The license of Qstarz PC Suite is different from that of
stand-alone installation package of QTravel™. Thus you are unable
to update QTravel software only. Please make sure to download the
PC Suite installation package for update.
™
7-4. Mount BT-Q1000eX on your eXtreme Sports
Equipment
1. Clean Surface
Use isopropyl rubbing alcohol or white spirits, wipe lightly, let dry. Do
not use household cleaner.
Caution: Do not use with delicate or any rough surface.
……….…..……………………………………………………………………………………………………………………......................
www.Qstarz.com 18
BT-Q1000eX eXtreme Recorder™
………………………………………………………………………………………….…………………………………………………………………………….
2. Remove male Velcro strip and adhesive liner
3. Press Firmly
Position Velcro strip and press entire Velcro strip firmly for 30 sec.
4. Wait 1 hour before use.
……….…..……………………………………………………………………………………………………………………......................
19
www.Qstarz.com
Beyond Navigation BT-Q1000eX eXtreme Rec order
..............................................................................................................................................................................
5. Slide Q1000eX into leather bag
Slide Q1000eX smoothly into leather bag. Attach the leather bag to
male Velcro and press entire leather bag firmly.
Caution: If the device will be exposed to outside
environment, such as attached on motorcycle, any other
safety protection equipment must be applied to prevent the
device from sliding out of the bag.
To get best accuracy, please position the GPS antenna side up to sky.
™
……….…..……………………………………………………………………………………………………………………......................
www.Qstarz.com 20
BT-Q1000eX eXtreme Recorder™
………………………………………………………………………………………….…………………………………………………………………………….
Added safety protection equipment demonstrates:
Limitation of liability
Qstarz will not be liable for any loss or damage arising from this
accessory, whether direct, indirect, special, incidental or
consequential. It’s owner’s liability to protect Q1000eX during doing
any extreme activity.
……….…..……………………………………………………………………………………………………………………......................
21
www.Qstarz.com
Beyond Navigation BT-Q1000eX eXtreme Rec order
..............................................................................................................................................................................
™
8. Useful reference Applications on the internet
8-1. locr GPS Photo
BT-Q1000eX is the member of locr GPS Photo certified product. This
utility can integrate travel log and digital photos by date/time to
show your photos on the map directly. After the integration, the
current GPS coordinates also can be imported to your digital photos
for the further application. Please find the installation file for
Windows XP/Vista or Symbian system in Qstarz GPS CD. Go to
http://www.locr.com for the further information.
Compatibility: Windows XP/Vista, Windows Mobile, Symbian, Mac
……….…..……………………………………………………………………………………………………………………......................
www.Qstarz.com 22
BT-Q1000eX eXtreme Recorder™
………………………………………………………………………………………….…………………………………………………………………………….
8-2. GPSBabel
This utility can transfer your NMEA file to GPX file or other format.
Please go to http://www.gpsbabel.org for free download.
Compatibility: Windows XP/Vista, Mac, Linux.
……….…..……………………………………………………………………………………………………………………......................
23
www.Qstarz.com
Beyond Navigation BT-Q1000eX eXtreme Rec order
..............................................................................................................................................................................
™
8-3. CoachR
This web site can share your travel log with your friends. Before
sharing your trip, please apply a new account first. Please go to
http://www.coachr.com for the further information.
……….…..……………………………………………………………………………………………………………………......................
www.Qstarz.com 24
BT-Q1000eX eXtreme Recorder™
………………………………………………………………………………………….…………………………………………………………………………….
8-4. JetPhoto Studio
This utility can integrate travel log and digital photos by date/time to
show your photos on the map directly. After the integration, the
current GPS coordinates also can be imported to your digital photos
for the further application. Please go to
http://www.jetphotosoft.com for free download.
Compatibility: Windows XP/Vista, Mac
……….…..……………………………………………………………………………………………………………………......................
25
www.Qstarz.com
Beyond Navigation BT-Q1000eX eXtreme Rec order
..............................................................................................................................................................................
™
8-5. VeoGeo
This website allows you to combine travel log and video by date/time
to show your video on the map directly. Please go to
www.veogeo.com for further information and register for a free new
account.
……….…..……………………………………………………………………………………………………………………......................
www.Qstarz.com 26
BT-Q1000eX eXtreme Recorder™
………………………………………………………………………………………….…………………………………………………………………………….
8-6. RaceChrono
RaceChrono is a GPS based lap timing software for Nokia S60 smart
phones. It can be used to measure lap times on almost any vehicle
and track. It can be used to measure laptimes for example for
motorbikes, bicycles, cars, water jets and quadbikes. Most important
of all, it supports 5Hz update rate.
Please find the installation file in Qstarz GPS CD or go to
http://www.racechrono.com for the further information.
Compatibility: Symbian
……….…..……………………………………………………………………………………………………………………......................
27
www.Qstarz.com
Beyond Navigation BT-Q1000eX eXtreme Rec order
Question
Answer
Can BT-Q1000eX
be
My BT-Q1000eX
BT-Q1000eX
can use 42
hours under the optimum
..............................................................................................................................................................................
™
9. Trouble Shooting
used to navigate
when travel log is
on?
I lost my travel
charger and battery.
Where can I find
replacements for
both?
Can the logged data
be downloaded
through Bluetooth?
Why does
BT-Q1000eX only
can log
300,000~320,000
waypoints?
could not use for
42 hours (1Hz
mode)?
……….…..……………………………………………………………………………………………………………………......................
www.Qstarz.com 28
Yes, BT-Q1000eX is able to navigate and log
simultaneously whether on 1Hz mode or on 5Hz
mode.
DC Input range of BT-Q1000eX is 4.5~5.5V. You
can use a travel charger which support DC output
range from 4.5~5.5V. You can also use a common
mini USB cable to charge your unit via the laptop.
Besides, The battery for BT-Q1000eX is
compatible with Nokia phone series. The battery
model is BL-5C.
Yes, Q1000eX is able to transmit log data through
Bluetooth.
We active more options previously to provide
detailed GPS information for user’s reference and
download. So it would use more memory. If you
reduce the options (under Log Format) for your
log, it would save the memory and increase more
waypoints.
environment. GPS would need more power
consumption when keep trying a position fix,
seeking Bluetooth connection, or under an
unstable environment (bad weather, forest,
buildings). Those would take GPS more
calculation and power consumption. So it would
spend more power consumption. After the red
LED light is blanking, it still can be used for your
navigation without any problem.
BT-Q1000eX eXtreme Recorder™
………………………………………………………………………………………….…………………………………………………………………………….
Trouble Shooting of Software:
Error
Message
No Data
in Device.
Failed to
read data
from GPS
module!
……….…..……………………………………………………………………………………………………………………......................
29
Possible
Reason
Log
memory
error
Not log
valid GPS
fix data
Invalid
operation
Com port
detection
error
Solution
Perform a reset in QTravel SW ->
Config GPS.
The program will rule out the GPS not
fix data, so make sure to log valid GPS
data under open sky environment.
1. Unplug and plug in the USB cable.
2. Switch off and on the device
1. Manually select connection com
port at Config GPS and check
connection com port at Windows
Device Manager -> Com&LPT -> GPS
USB…..or CP210X……
2. Change another USB port for
connection
www.Qstarz.com
Beyond Navigation BT-Q1000eX eXtreme Rec order
the device
2. Unplug and plug in the USB cable.
..............................................................................................................................................................................
Switch is
not
turned on
or
incompati
ble GPS
device!
Failed to
connect
GPS
Module!
……….…..……………………………………………………………………………………………………………………......................
www.Qstarz.com 30
Driver not
installed
properly
not turn on
Incompatibl
e GPS
device
GPS not
correctly
connected
Com port
detection
error
Reinstall the driver.
For Q1000P, Q1200, Q1200Ultra,
Q2000: Please remove the USB driver
from Control Panel -> Remove Program
-> Silicon Laboratories CP210x USB to
UART Bridge……. And reinstall the
driver.
For Q1000eX, Q1300, Q1300S:
Please remove the USB driver when
the device is connected to PC and find
“GPS USB Serial Interface Driver” at
Device Manager and right click on it
and press Uninstall. Then the
confirmation dialog will appear and
please select “Also delete device driver
software.” And reinstall the driver.
1. Turn on the device.
Check the compatibility of your Qstarz
GPS module
QTravel is compatible with following
Qstarz GPS:
Q1000P, Q1000eX, Q1200, Q1200Ultra,
Q1300, Q1300S, Q2000
Follow the standard operation
procedure in user’s manual for making
the connection
1. Manually select connection com
port at Config GPS and check
connection com port at Windows
Device Manager -> Com&LPT -> GPS
USB…..or CP210X……
2. Change another USB port for
™
BT-Q1000eX eXtreme Recorder™
………………………………………………………………………………………….…………………………………………………………………………….
Driver not
installed
properly
GPS USB
connection
chip is
faulty
Failed to
write data
into GPS
Module!
……….…..……………………………………………………………………………………………………………………......................
31
Invalid
operation
connection
Reinstall the driver.
For Q1000P, Q1200, Q1200Ultra,
Q2000: Please remove the USB driver
from Control Panel -> Remove Program
-> Silicon Laboratories CP210x USB to
UART Bridge……. And reinstall the
driver.
For Q1000eX, Q1300, Q1300S:
Please remove the USB driver when
the device is connected to PC and find
“GPS USB Serial Interface Driver” at
Device Manager and right click on it
and press Uninstall. Then the
confirmation dialog will appear and
please select “Also delete device driver
software.” And reinstall the driver.
1. “CP210x…” or “GPS USB...” does
not appear at Windows Device
Manager -> Com&LPT when the device
connected with PC.
2. Request a RMA to the store you
bought from.
1. Unplug and plug in the USB cable.
2. Switch off and on the device
3. Try to read log again and don’t
unplug during read log process
www.Qstarz.com
Beyond Navigation BT-Q1000eX eXtreme Rec order
..............................................................................................................................................................................
Invalid
product
key
Product
key lost
*Every time when you feel the device works abnormally, please
perform both hard and soft reset to let device back to normal status.
**If above method can not solve your problem, the device may be
defective. Please request a RMA to the store you bought from.
……….…..……………………………………………………………………………………………………………………......................
www.Qstarz.com 32
Please double check the combination
The software key application is easy.
of the key or execute windows
program “Regedit.exe” and find
“HKEY_CURRENT_USER\Software\Qsta
rz
Applications\TravelRecorder\OptionsS
etting\ RegProdKey_QStarz” or
“HKEY_CURRENT_USER\Software\Qsta
rz
Applications\QSports\OptionsSetting\
RegProdKey_QStarz” and directly paste
your product key. The product key
should be in the format of
XXXX-XXXX-XXXX-XXXX…….
Just email your product serial number
(not FCC ID) to us to get a new key. But
please notice that this key application
is just allowed once. So it’s important
to keep the key in safe.
™
BT-Q1000eX eXtreme Recorder™
………………………………………………………………………………………….…………………………………………………………………………….
10. Appendix
Navigate as a Bluetooth GPS Receiver with Handheld devices
10-1. Activate the Bluetooth function in your
PDA/Smart phone or PC
Before activating the Bluetooth function in your PDA/PC, please
switch BT-Q1000eX to <1HZ> or <5HZ> position for paring and check
if your device is equipped with Bluetooth function. If not, you may
need to acquire an optional CF/SD Bluetooth card or Bluetooth
dongle.
NOTE 1:
BT-Q1000eX would be identified as ”Qstarz 1000EX” under
Bluetooth Manager. In further use, you just need to click it to
connect to this GPS Travel Recorder.
NOTE 2:
The pairing procedure is required to execute in the first time only.
And the pass code is “0000” if required.
NOTE 3:
Select correct com port and baud rate: 115,200 under your
navigation software (Most of navigation software can auto-detect
Bluetooth Com port, so you do not need to setup manually).
……….…..……………………………………………………………………………………………………………………......................
33
www.Qstarz.com
Beyond Navigation BT-Q1000eX eXtreme Rec order
..............................................................................................................................................................................
™
10-2. Create Bluetooth Setting (Windows Mobile 5/6
for Pocket PC)
1. Switch BT-Q1000eX on.
2. From the Start menu, click Settings.
On the Connections tab, click the
Bluetooth icon
3. On the Devices tab, click Add New
Device… The settings application will
search for your device. When it is found,
click Next.
4. Enter the passcode “0000” and click
Next.
……….…..……………………………………………………………………………………………………………………......................
www.Qstarz.com 34
BT-Q1000eX eXtreme Recorder™
………………………………………………………………………………………….…………………………………………………………………………….

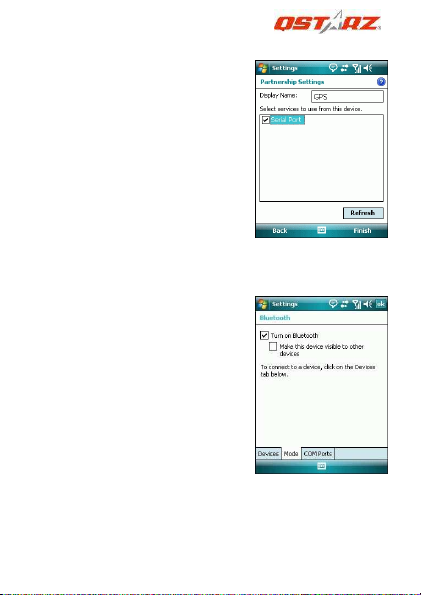

5. On the Partnership Settings screen,
select Serial Port and click Next
6. Select the Mode tab and check the
Turn on Bluetooth checkbox if it is not
already checked.
……….…..……………………………………………………………………………………………………………………......................
35
www.Qstarz.com
Beyond Navigation BT-Q1000eX eXtreme Rec order
..............................................................................................................................................................................
7. Select the COM Ports tab and click
New Outgoing Port
8. Select “Qstarz GPS” from the Add a
Device list and click Next
……….…..……………………………………………………………………………………………………………………......................
www.Qstarz.com 36
™
BT-Q1000eX eXtreme Recorder™
………………………………………………………………………………………….…………………………………………………………………………….
9. Uncheck Secure Connection. From
the Port drop-down list, select a port
number. Remember the port you
choose. You will need it when you
configure the GPS Intermediate Driver.
10. Click Finish and exit the Bluetooth
Control Panel item.
10-3. Configure the GPS Intermediate Driver
The GPS Intermediate Driver is a software layer between a Windows
Mobile application and the GPS hardware drivers. This allows
applications to work with a variety of GPS hardware. The GPS
Intermediate Driver uses the registry to determine what COM port
should be used to communicate with the GPS hardware. The
recommended way to configure the registry to work with your GPS
device is the GPS Settings icon
……….…..……………………………………………………………………………………………………………………......................
37
www.Qstarz.com
Beyond Navigation BT-Q1000eX eXtreme Rec order
..............................................................................................................................................................................
1. From the Start menu, click Settings.
On the System tab, click the External
GPS icon. On some devices, this item
has a different name.
2. On the Programs tab, select any
available COM port from the GPS
Program Port drop-down list. The GPS
data sent through the GPS Intermediate
Driver is streamed to applications
through this port. This should not be
the same port that your GPS receiver is
configured to use. If your application
can’t receive GPS data stream, leave GPS Program Port for empty.
Applications will use GPS Hardware Port as communication port.
3. On the Hardware tab, select the
COM port BT-Q1000eX is configured to
use from the GPS Hardware Port
drop-down list
……….…..……………………………………………………………………………………………………………………......................
www.Qstarz.com 38
™
BT-Q1000eX eXtreme Recorder™
………………………………………………………………………………………….…………………………………………………………………………….
4. On the Access tab, make sure that the
Manage GPS Automatically checkbox is
checked
10-4. Start your navigation software
Activate your navigation software and make sure to select the
correct “COM Port”.
NOTE 1:
In the map software such as TomTom, you might need to change
preference and set “Other Bluetooth GPS Device” according to
PDA/phone model. In some case please consult map software
company to vary the setting if you have issue on positioning.
NOTE 2:
There might be specific setting requirement per navigation software.
Such as Tomtom, please delete other GPS settings under Tomtom
software, and keep one only.
……….…..……………………………………………………………………………………………………………………......................
39
www.Qstarz.com
Beyond Navigation BT-Q1000eX eXtreme Rec order
..............................................................................................................................................................................
™
10-6. Safety Notices
R&TTE / CE Notice
This device is confirmed to comply with the requirements set out in
the Council Directive on the Approximation of the Laws of the
Member States relating to Electromagnetic Compatibility
(89/336/EEC), Low-voltage Directive (73/23/EEC) and the
Amendment Directive(93/68/EEC), the procedures given in European
Council Directive 99/5/EC and 89/336/EEC.
The equipment was passed. The test was performed according to the
following European standards:
EN 300 328-2 V.1.2.1 (2001-08)
EN 301 489-1 V.1.4.1 (2002-04) / EN 301 489-17 V.1.2.1 (2002-04)
EN 50451: 2002
EN 60950: 2000
FCC Notice
This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference
received, including interference that may cause
undesired operation.
Spec. is subject to change without prior notice.
All rights reserved. All registered trademark is
……….…..……………………………………………………………………………………………………………………......................
www.Qstarz.com 40
Loading...
