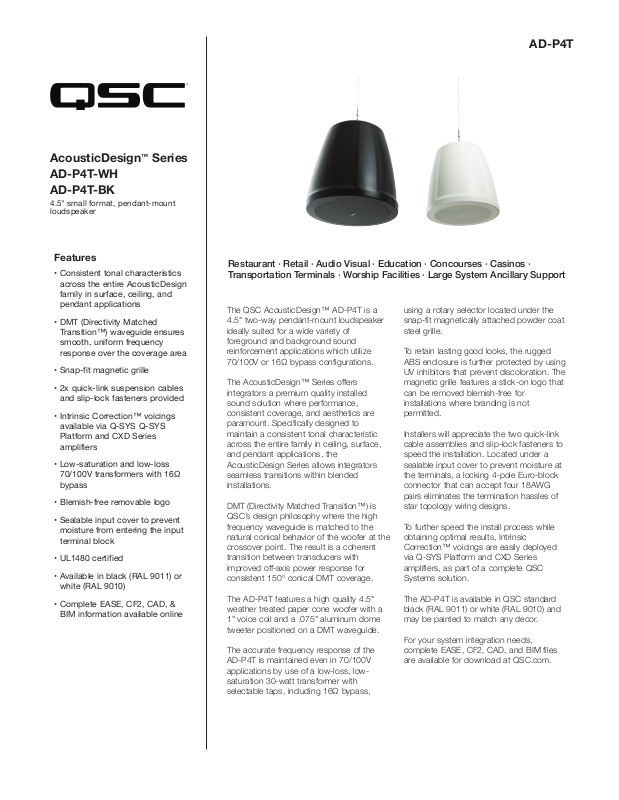

QSC AD-P4T User Manual

AcousticDesign™ Series AD-P4T-WH AD-P4T-BK

4.5" small format, pendant-mount loudspeaker

AD-P4T

Features

• Consistent tonal characteristics across the entire AcousticDesign family in surface, ceiling, and pendant applications

• DMT (Directivity Matched Transition™) waveguide ensures

smooth, uniform frequency

response over the coverage area

• Snap-fit magnetic grille

• 2x quick-link suspension cables and slip-lock fasteners provided

• Intrinsic Correction™ voicings available via Q-SYS Q-SYS Platform and CXD Series

amplifiers

• Low-saturation and low-loss 70/100V transformers with 16Ω bypass

• Blemish-free removable logo

• Sealable input cover to prevent

moisture from entering the input

terminal block

• UL1480 certified

• Available in black (RAL 9011) or white (RAL 9010)

• Complete EASE, CF2, CAD, & BIM information available online

Restaurant ∙ Retail ∙ Audio Visual ∙ Education ∙ Concourses ∙ Casinos ∙ Transportation Terminals ∙ Worship Facilities ∙ Large System Ancillary Support

The QSC AcousticDesign™ AD-P4T is a

4.5" two-way pendant-mount loudspeaker ideally suited for a wide variety of foreground and background sound reinforcement applications which utilize

70/100V or 16Ω bypass configurations.

The AcousticDesign™ Series offers integrators a premium quality installed sound solution where performance, consistent coverage, and aesthetics are paramount. Specifically designed to maintain a consistent tonal characteristic across the entire family in ceiling, surface, and pendant applications, the AcousticDesign Series allows integrators seamless transitions within blended installations.

DMT (Directivity Matched Transition™) is QSC’s design philosophy where the high frequency waveguide is matched to the natural conical behavior of the woofer at the crossover point. The result is a coherent transition between transducers with improved off-axis power response for consistent 150° conical DMT coverage.

The AD-P4T features a high quality 4.5" weather treated paper cone woofer with a 1" voice coil and a .075" aluminum dome tweeter positioned on a DMT waveguide.

The accurate frequency response of the AD-P4T is maintained even in 70/100V applications by use of a low-loss, lowsaturation 30-watt transformer with

selectable taps, including 16Ω bypass,

using a rotary selector located under the snap-fit magnetically attached powder coat steel grille.

To retain lasting good looks, the rugged ABS enclosure is further protected by using UV inhibitors that prevent discoloration. The magnetic grille features a stick-on logo that can be removed blemish-free for installations where branding is not permitted.

Installers will appreciate the two quick-link cable assemblies and slip-lock fasteners to speed the installation. Located under a sealable input cover to prevent moisture at the terminals, a locking 4-pole Euro-block connector that can accept four 18AWG pairs eliminates the termination hassles of star topology wiring designs.

To further speed the install process while obtaining optimal results, Intrinsic Correction™ voicings are easily deployed via Q-SYS Platform and CXD Series amplifiers, as part of a complete QSC Systems solution.

The AD-P4T is available in QSC standard black (RAL 9011) or white (RAL 9010) and may be painted to match any decor.

For your system integration needs, complete EASE, CF2, CAD, and BIM files are available for download at QSC.com.

AD-P4T Details

10 0 1k 10 k

10 0

15 0

12 0

Fr equ enc y (H z)

Sound pressu re, Level (dB)

Resi stan ce, Am pli tud e (oh m)

20 50 20 0 50 0 2k 5 k

20 k

13 5

10 5

Frequency Response (Raw)

Frequency Response (Intrinsic Correction™)

Impedance (16 ohm bypass)

1 k 1 0k

1 00

2 00 5 00 2 k 5 k 2 0k

2 00

7 0

5 0

3 0

2 0

Fre quenc y (Hz )

Beamw id th (-6dB) (deg)

Impedance / Frequency Response:

Beamwidth:

Dimensions:

242 mm

[9.5 in]

272 mm [10.7 in]

Specications

System Details AD-P4T

LF transducer 114 mm [4.5 in] weather treated paper cone woofer

HF transducer 19 mm [0.75" in] aluminum dome tweeter

Effective frequency range

Rated noise power / voltage

Sensitivity [dB]

Rated coverage (‐6 dB)

Directivity factor

Directivity index [dB]

Maximum continuous SPL [dB]

Maximum peak SPL [dB]

Nominal impedance [ohms] 16

Recommended amplier 60 watts

Transformer taps / impedance 16Ω (in bypass setting)

Input connector type Euroblock connector with parallel output

Enclosure material Flame retardant ABS 765A VO bafe and back can

Grille material Powder coated steel

Ingress protection IP-34

Operating environment Designed for indoor use

Operating temperature range -20 to 50° C [-4 to 122° F]

Net weight 2.9 kg [6.5 lb]

Product dimensions (Diameter x Height) Ø 237 x 272 mm [Ø 9.3 x 10.7 in.]

Shipping weight 3.9 kg [8.7 lb]

Shipping dimensions (H x W x D) 298 x 362 x 286 mm [11.75 x 14.25 x 11.25 in]

Included Mounting Hardware Two quick-link cable assemblies (length 3.25m/128in

Safety Agency UL1480, Transformer UL registered per UL1876, ROHS,

65 Hz – 20 kHz

30 watts / 22 volts (rms)

87.9

150° conical DMT

™

4.5

6.5

102

108

3.75W (70V); 7.5W (100V) Tap: 1333Ω

7.5W (70V); 15W (100V) Tap: 667Ω 15W (70V); 30W (100V) Tap: 333Ω 30W (70V); N/A (100V) Tap: 167Ω

2mm thickness), two slip-lock fasteners, locking euro-block connector, sealable input cover and screws, snap-t magnetic grille.

CE compliant. Bafe meets UL94-V0 and UL94-5VB amibility rating; in accordance with IEC60849 / EN60849 systems.

Ø237 mm

[Ø9.3 in]

As part of QSC’s ongoing commitment to product development, specifications are subject to change without notice.

1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174

IES60268-5 50 Hz high passed noise signal

for 2 hr, 16 ohm

-10dB from rated sensitivity

500 Hz–5 kHz average

countries. All other trademarks are the property of their respective owners. Patents may apply or be pending.

AD-P4T Spec Sheet 06/05/2017

-6db from on-axis, 500Hz - 5kHz

Calculated from rated noise voltage and sensitivity
