1
Key to the Symbols
Type(s) Quantron Resonance System containing:
Control unit Coil applicators (Mat Applicator M1 and Pillow Applicator K1)
Description The control unit generates a variable (pulsating) magnetic field
at the applicators (coil mat or pillow).
Tested EC-guidelines for medical products, appendix IV – medical
products 93/42 EC
Symbols Attention: follow the accompanying documents
Correct disposal of appliance to be carried out according to
legal requirements
4 = Protection against penetration from alien elements: >1mm
diameter
0 = Protection against penetration from liquids: not protected
Appliance of safety class II
Application part type BF
Full disconnection from the mains grid is by pulling the plug
2
Certified and Patented Worldwide
Internationally
Patented
German patent
DE4122718
QRS is an officially
Registered medical
product
Won gold at the
World’s largest
Inventor’s trade
fair
Certified Europe-wide
Function and Effects
The Quantronic Resonance System is the result of more than 20 years of fundamental
research by leading international scientists. A dramatic breakthrough has been
achieved with this system in the sphere of magnetic field therapy, placing this therapy
on a sound scientific basis, which will ensure its place in medicine.
The internationally patented Quantronic Resonance System is a physical therapy
system, which reproduces, as closely as possible, the naturally existing electrical and
magnetic field on earth and at the same time almost completely suppresses fields of
civilization (e.g. 50Hz). The system therefore offers an ideal opportunity to do
something for your own health and to support performance ability. The Quantronic
Resonance System (QRS) generates an automatically controlled pulsating magnetic
field, which comprises the necessary (the body’s own) frequencies to activate the
entire metabolism, the immune system, as well as cell regeneration and therefore
producing corresponding reactions in the human body in the form of resonances. The
magnetic field fully penetrates the body and strengthens weakened body functions in a
natural way.
International investigations and user results have not found any detrimental side
effects. In its regulations, the World Health Organisation (WHO) considers a
magnetic field strength of up to 100 micro-Tesla at 50Hz as safe. The Quantronic
Resonance System (QRS) uses field strengths that are far below the WHO limit (on
level 10 with approx. 30 micro-Tesla).
After 8 minutes or after an individually set time (1-30 minutes) the control unit
automatically switches the magnetic field off.
3
Usage: The Quantronic Resonance System (QRS) has almost limitless applications
because it works at the cellular level to “normalize” cellular dysfunction. It “vitalizes”
the cells and, through improved ion transport, supports the metabolism of the cells.
The process is patented worldwide (Patent No. 0594655).
WHO=100 micro-Tesla, magnetic field of the earth=50 micro-Tesla (50ìT)=0.5
Gauss
QRS 101 = 30 micro-Tesla (30ìT)=0.30 Gauss
Function of Equipment

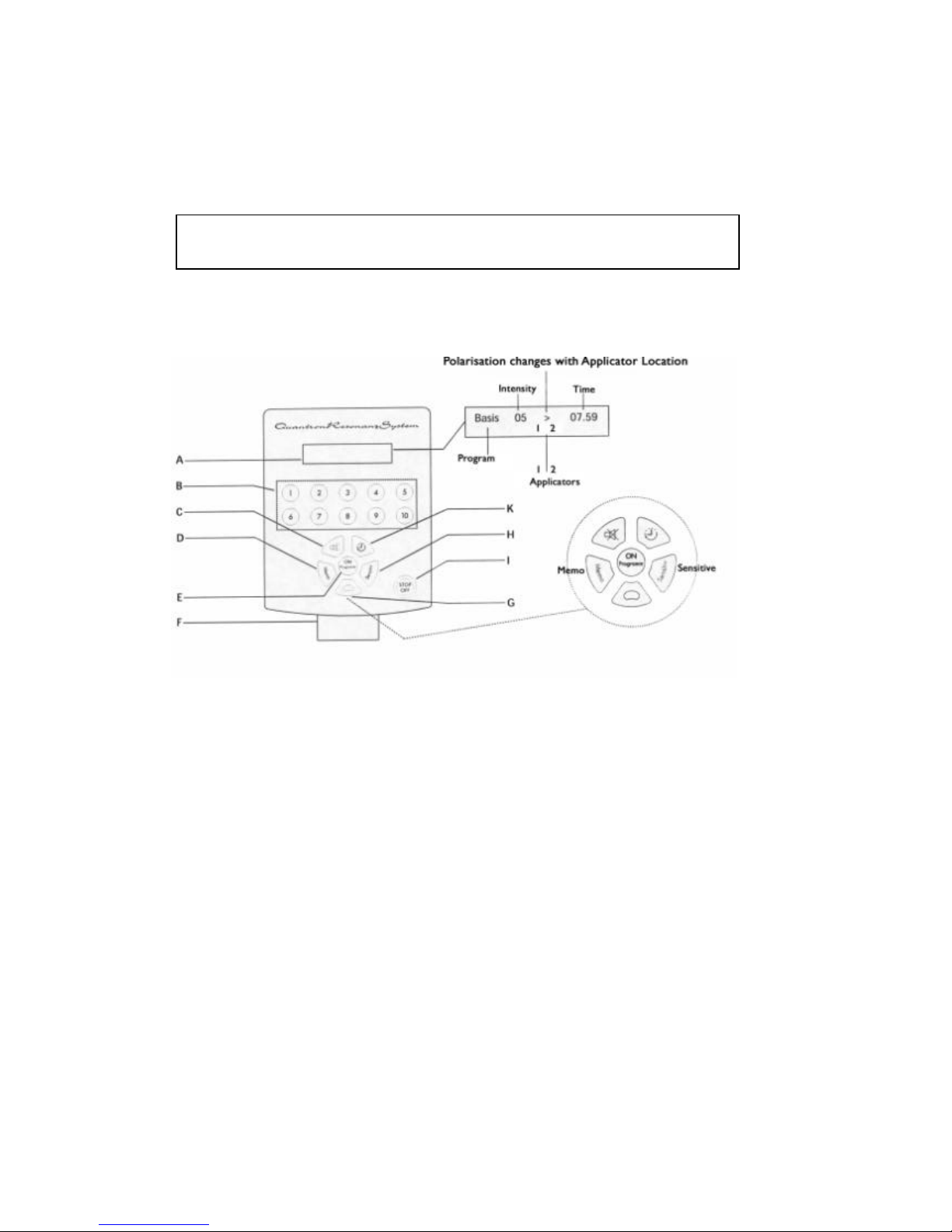

A Multi-function display
B Setting of field strength (start keys)
C Tone ON/OFF key (pre-set)
D Memo - Program setting memory (start key)
E Appliance switch-on / program selection key (start key + program key)
F Home card (programmable)
G Small applicator – pillow key (pre-set)
H Sensitive key (Intensity is 10 times less than setting I) (start key)
I Stop key (stop key/off)
K Therapy duration setting (standard 8 minutes) (pre-set)
4
Appliance Operation
Program selection and program start
[ ] = confirm key
“….” = text on display
Before operating the appliance please ensure that it is supplied with power from the
mains adaptor provided.
1. Put the mains adaptor in a wall socket and the connecting plug into the socket
marked 6V on the back of your QRS appliance.
2. Now connect one or two applicators to the sockets Appl 1 and/or Appl 2. If only
one applicator is to be connected, please use socket Appl 1
(standard socket).
3. Switch the system on by pressing the key [ON/Program].
4. Text appears on the illuminated display “QRSHome 101”
5. This is followed by an automatic appliance test of all system functions.
6. The display shows “SYSTEM CHECK”
7. In case of serious errors the appliance signals an error code and switches itself
off. The appliance also tests the presence of the applicators and shows if one
or both applicators are missing or faulty.
8. Proper function displays “System OK”
9. The following display appears “Please select”
The appliance is operational and is waiting for input.
5
Function of the Keys
ON/Program Switching on the appliance
Selection of therapy program
Basis, vital or relax
Stop Finishing a program
Switching off the appliance
1..10 Setting of signal strength and program start
Setting 1 equals approx. 2.5ìTesla
Setting 10 equals approx. 25ìTesla
Sensitive Setting for sensitive signal strength and program start
Signal strength approx. 250 Nano Tesla (0.25 ìTesla)
Memo Repetition of the last program sequence
Tone On/Off switching of signal tones
Duration Pre-setting of program duration
Display of Program Sequence
Example:
BASIS 08 <07:59
1/2
Basis = Selected therapy program: (Basis)
08 = Selected signal strength: 8
> = Polarity of the magnetic field – reverses every 2 minutes
07:59 = Remaining therapy time: (min:sec)
<1 2 = The arrow changes every second with 1 or 2,
depending on which applicator, mat or pillow is switched on.
Quick Operation Instruction
FUNCTION KEY SEQUENCE
Switch appliance on press [ON/Program]
After switching on
An automat ic system check
takes place, after which
the following display appears Please select
6
Start without using the smart card
Start the standard program: [1..10] for signal strength 1..10 or
It appears on display:
Basis 1..10 < 07:59
1/2
(Quick start) [Sens] press for sensitive setting
To repeat last program press [Memo]
Finish program press [Stop] during program
Switch off appliance display shows “Please select” press[Off]
Pre-settings
Select therapy program press [ON/Program] several times,
until desired program is displayed
Preselect therapy duration hold down time/duration key or press
several times, until the desired duration
is displayed (1..30min) (Standard 8min)
Select applicator press key, the selected applicator is displayed
(valid for one treatment)
Tone on/off press key, the setting goes into memory
The Control Unit
The patented Salut control unit generates, in the Mat applicator or Pillow applicator, a
pulsating magnetic field of the body’s own frequency pattern with an exactly defined
waveform. The field strength corresponds to the biological windows of humans. To
achieve an optimal effect the field strength was designed to be variable, because the
electro sensibility is subject to variations depending on the health of users and the
acidity of the blood. The field strength or intensity of the magnetic field can be chosen
via the settings 1 to 10 or Sensitive.
The control unit automatically switches off after 8 minutes, unless it was individually
programmed from 1 to 30 minutes. Treatment with the QRS magnetic field triggers
positive effects on the human organism, which continue for up to 8 hours.
To vitalise and stabilise good health in healthy people we recommend 2 treatments per
day, about 8 hours apart.
Attention: The magnetic field effectively spreads up to 0.3 metres sideways and up to
1.2 metres up and down, which means that people in the immediate proximity during
treatment will receive a gentle stimulation. People not requiring treatment should
remain outside the above -mentioned range.
7
The STOP key can be used to interrupt the program at any time.
The Home Card
4 Program4 Program
The Home Card provided is a smart card that can be programmed by a QRS
healthcare professional or by the user.
Patient Card by a Healthcare Professional
Programming
In treating sick people, only the card programmed by a healthcare professional is to be
used.
Memo Operation Without the Home Card
If the appliance is operated without the home card, the last program sequences
inclusive of all settings (therapy, duration, field strength, tone, and applicator…) can be
repeated by pressing the Memo key.
The program sequence is memorized automatically.
Operation With the Home Card
With the Home card it is easy to save program settings, which can be
written on the back of the card with a ballpoint or waterproof felt-tip pen

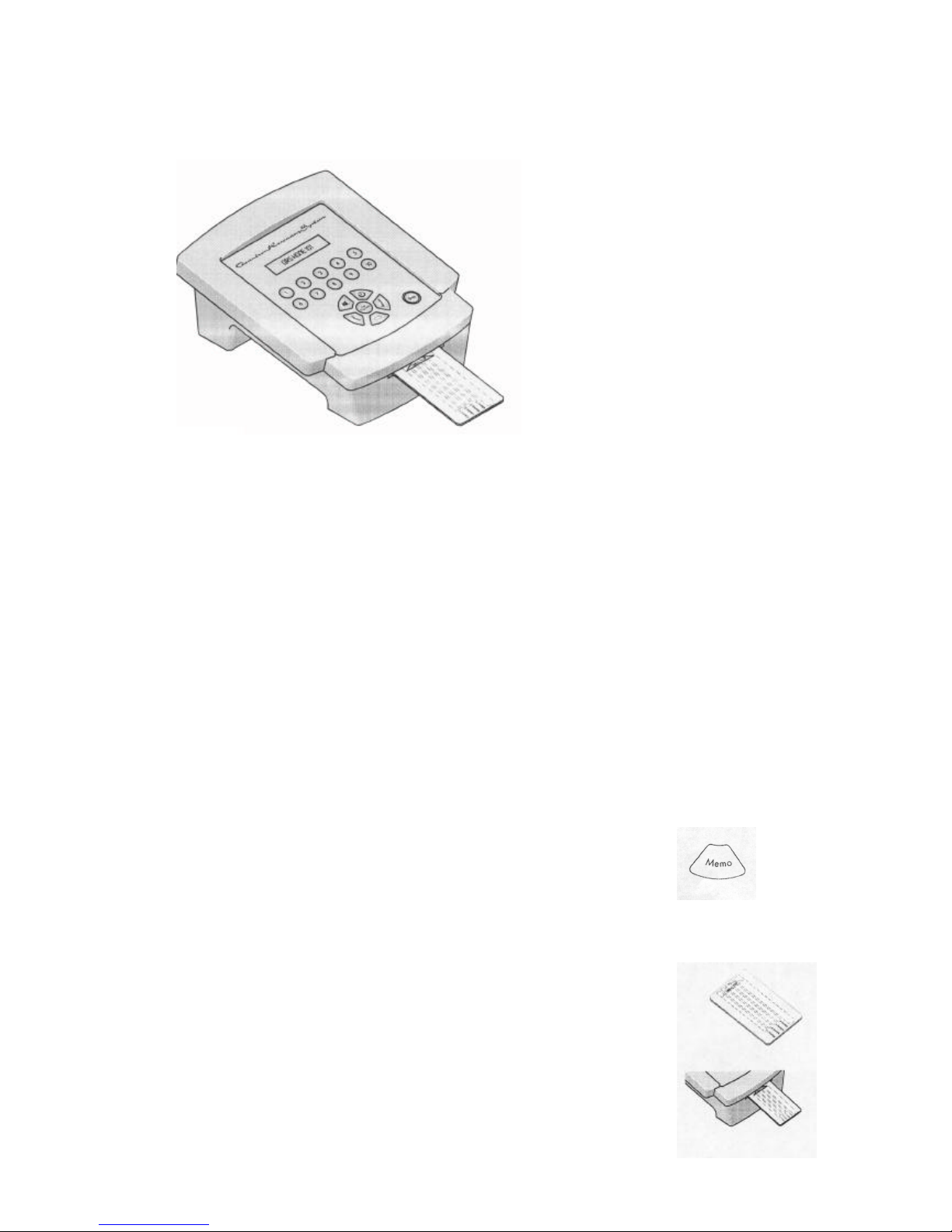

Push the Home card as far as it will go into the card slot at the front of the
appliance. The switched-on appliance automatically recognizes the card.
Foreign smart cards are also recognized, but cannot be programmed.
To memorize a program with all its settings on the Home card press the
[Memo] key for 2 seconds, while the display shows “Please select”. When
the display “memorize [1..4]” appears, select one of the four memory
8
locations with the keys [1]-[4]. Any existing program on this memory location will
be overwritten.
Program the appliance as follows:
1. With the keys [ON/Program] select the desired therapy program: Basic, Vital or
Relax.
2. Select therapy duration with the key [TIME] for 1-30 minutes.
3. Select with the applicator key to choose the desired applicator: mat or pillow.
4. The signal tone can be switched on or off with the key [SOUND]
5. Finish programming with the setting for the field strength with the keys [1] -[10] or
the [SENSITIVE] key.
6. The settings are now memorized and the program will start. With the [STOP] key
the program can be stopped, while the settings remain memorized. To memorize
further programs repeat the above process.
To Call Up a Program from the Home Card
Push the card, into the control unit. A programmable QRS card is automatically
recognized by the switched-on control unit and the card type is displayed.
To call up a previously memorized therapy program press the key [MEMO]. The
display will show “LOAD [1..4]”. To repeat a memorized program press one of the keys
[1]-[4]. The program will now start and can be stopped at any time by pressing the key
[STOP].
The Mat Applicator M1
The Mat applicator generates a magnetic field of variable strength depending on the
settings 1 to 10 or Sensitive. At setting 1 the magnetic field strength is approx. 3 ìT,
climbing linearly. At setting 10 the magnetic field strength is up to 30 ìT. The magnetic
field is evenly distributed over the entire length and width of the mat.
For tall people – above 180cm – the head should be placed beyond the edge of the
mat, as the magnetic field is effective for about 0.30 metres beyond the mat and up to
1.2 metres up and down. The body is nestled into the magnetic field and evenly
stimulated.
9
Intensities in micro Tesla (field strength) measured directly on the applicator
+/- 10% tolerance:
Setting Mat (ìT) Pillow (ìT)
Sensitive 0.3 0.4
1 3 4
2 6 8
3 9 12
4 12 16
5 15 20
6 18 24
7 21 28
8 24 32
9 27 36
10 30 40
Protection from Electro Smog
During therapy the appliance ensures that electro smog cannot pollute the body and
therefore degrade the therapy. Only QRS has this ability as this process is patented
internationally.
10
The Pillow Applicator K1
The Pillow applicator is used specifically for individual parts of the body, without
stimulating the rest of the body.
QRS – Dosage Guidelines Pillow Applicator
QRS Application
Information regarding the magnetic field strength settings is on page 9.
In the initial phase of therapy feel free to vary between levels 1 to 6 to find the most
pleasant and effective setting for you!
Treatment times: Possible treatments per day: 3 times, morning, midday and evening.
After 6 PM the setting should not be higher than level 5 to avoid negative influence on
sleep.
11
Therapy duration per day: Up to 2 hours is safe (according to a study by Prof. Dr. Dr.
A. Varga, Heidelberg).
The Pain Memory
The learnt pain memory works in steps, up and down. After every improvement a slight
pain can start again, until the pain level is brought down to 0%.
Advice for Optimal Effectiveness
1. Drink a glass of water before and after each treatment.
2. Try to relax the body.
3. Support the body with vitamins, minerals and trace elements (especially
magnesium).
4. Take regular, aware and balanced nutrition.
5. Avoid radical diets.
6. Regularly apply QRS therapy.
7. Do not abruptly discontinue medication.
8. Use correct QRS control unit setting.
9. Correctly position the patient during QRS therapy.
10. Correctly position the pillow applicator.
11. Combination therapies with light, heat, therapeutic exercise etc. are recommended.
12. QRS sneaking-in, (that is a slow increase of the field strength dose in the early
stages of treatment) is recommended.
Important Advice in Regard to QRS - 101
Although there is no experience of adverse side effects, as a
precaution, the QRS system should:
• not to be used in the first three months of pregnancy
• only be used under medical supervision in cases of severe fungal and bacterial
invasions, as well as in the case of illnesses where a high fever is present
• only be used under medical supervision if there is a tendency towards epilepsy
• be used on the advice of a QRS competent healthcare professional
• in the case of all other diseases
QRS therapy in cases of metal implants and pacemakers is safe for use.
12
General Advice
• In cases of allergic reactions always cover the applicator with non-allergenic fabric
or paper.
• In the case of an increase in blood pressure, as has occasionally been observed
in the initial stages of QRS treatment, lower the field strength by 1 to 2 levels, until
the body gets used to QRS treatment. Possibly reduce the duration of therapy to 2
minutes and then gradually and slowly increase it again.
• In the case of dizziness, which too can happen initially, lower the field strength by
1 to 2 levels and/or reduce treatment to once a day.
• In the case of chronic diseases an initial worsening can happen analogous to
treatment with homoeopathic medicines. Do not stop the treatment. Biological
initial worsening is a sign for incipient reactions and/or the loosening of blockages
in the body. If in doubt ask a QRS competent doctor, natural therapist or
homoeopath.
• A second worsening can occur again after several weeks of QRS treatment. Both
duration of treatment and field strength should be reduced and then slowly
increased again.
• When taking prescribed medication consult a doctor, because medicines could or
should possibly be reduced over time.
Advice Concerning the Appliance
• Only the supplied mains adaptor is to be used to operate the appliance.
• The appliance must not be operated in extremely humid or hot rooms.
Advice Concerning Treatment of Babies and Children
• The appliance is not to be used without supervision (by an adult) on children
under the age of ten.
• Children tend towards surplus reactions; therefore babies should be treated with
field strengths 1 to 2 only. Children between the ages of two to ten should be
treated with field strengths 1 to 4 only.
• The pillow applicator is recommended for treatment of babies on level 1 to 2.
Another possibility is to use the mat applicator and lie on it together with the baby
or child, on the adult’s chest.
Cleaning and Care
Before cleaning and before opening the appliance disconnect it from the mains (unplug
from power point)!
Control Unit
Do not immerse the control unit in water! Use normal household cleaners for synthetic
materials, eg. Palmolive etc. Only wipe with a damp cloth.
Mat Applicator
Do not immerse the mat in water! Clean with normal, mild household cleaner eg.
Palmolive etc. Only wipe with a damp cloth.
13
Pillow Applicator
Do not immerse the pillow applicator in water! Clean with normal, mild household
cleaner, eg. Palmolive.
Be sure to keep sharp, pointed objects away from mat applicator or pillow applicator.
Do not expose the system to direct sunlight and protect it from frost.
Placing Mat under a Mattress
The mat can be placed under a mattress which is not thicker than 20 cm. In such case
the applicator should be set one level higher, e.g. level 2 instead of 1 etc. In the case of
inner spring mattresses the intensity should be set 2 levels higher. A woollen blanket
should be placed between the mattress and the mat in order to avoid undesirable
bacteria or fungi caused by sweat.
Maintenance
No special maintenance or inspection is necessary. Warranty claims can only be
guaranteed if the repairs are carried out by the manufacturer or authorised
specialist staff. Otherwise this warranty is void. The appliance is only to be used
for its intended purpose and only original spare parts are to be used.
The appliance is to be visually checked for obvious physical damage by the operator
(user) on a regular basis. If there is any type of damage do not use the appliance and
send it to the manufacturer for repairs immediately!
The appliance must not be opened; otherwise this warranty is void.
Fault Finding
If after switching on there are no lights on the display panel: Check the house fuse or
the power point.
If self testing shows a fault. Unplug the power for 30 seconds, then repeat the startup
process.
List of Appliances and Accessories
Description
Control unit Order No. 5004
Mat Applicator M1 Order No. 5005
Pillow Applicator K1 Order No. 5090
Vinyl cover mat Order No. 5020
Vinyl cover pillow Order No. 5022
14
Technical Data
Control Unit
Power supply
110/230V~ only mains adaptor according to
EXPANSION CARD
Frequency 60/50Hz; use “list of authorized accessories”
(or according to instructions on mains
adaptor)
Operation Continuous operation
Operation temperature +100C to +400C
Storage temperature 00C to 700C
Outlet voltage on applicator socket Max. 3V pulsating direct current
Applicator connection Cinch jack
Safety grade II
Safety precaution BF (for electrical shock)
Intensity levels keys 1 to 10 + sensitive
Intensity indicators 1 * 16 dot -matrix LCD
Application duration 8 minutes (automatic switch-off)
1 to 30 minutes adjustable
Application current reverse <> Every 2 minutes
Application end Automatically after 8 minutes or manually
with stop key
Application current Approx. 650mA at level 10 approx. 30ìT
Approx. 300mA at level 1 approx. 3ìT
moving linear
Applicator 1
Loops
Cover
Mat Applicator M1
Enclosed in cotton-cretonne
Vinyl or cotton-cretonne
Applicator 2
Loops
Cover
Pillow Applicator K1
Enclosed in cotton-cretonne
Vinyl
Magnetic field strength
Case
Max. 30 micro-Tesla for the mat, approx. 40
micro-Tesla for pillow
PS-Polystyrol
Manufacturer Magnovit International Produktions- und
Handels AG, Industriestrasse 651, FL-9492
Eschen
Manufacturer’s Liability
The appliances are under warranty, according to current laws, if maintenance, care
and repairs are carried out as described on page 13. Otherwise this warranty is void.
All accessories have to be authorized by the manufacturer, especially the mains
adaptor. Otherwise this warranty is void.
The manufacturer reserves the right to modify the product at any time. Your QRS
consultant will inform you about QRS optionals as well as current prices.
15
Loading...
