CONTENTS
Qrium CD663N USER GUIDE CONTENTS
CD663N
CD663N(øµπÆ) 00.4.17 2:46 PM ∆‰¿Ã¡ˆ2
CONTENTS
Starting 4
How to use this manual / Check Items / System Setting
1. System Configuration 7
Front Configuration / Rear Configuration
2. Installation 8
Plugging Keyboard and Mouse / Plugging the Monitor
Plugging the power cord / Plugging the RJ11 Phone line
3. System Specifications 10
System Configuration Table
System Main Board Layout
4. Troubleshooting 25
CD663N(øµπÆ) 00.4.17 2:46 PM ∆‰¿Ã¡ˆ3
1. How to use this manual
This manual is for anyone who wants to setup and configure the PC.
It will help you to use CD663N computer easily.
Please read this guide carefully before you install the system.
• For your safety, remember to turn off the system and to disconnect all
c o rds and cables before opening the system chassis.
• To avoid electric shock, do not open the power supply.
4 Qrium CD663N
Starting
Starting
CD663N(øµπÆ) 00.4.17 2:46 PM ∆‰¿Ã¡ˆ4
2. Check Items
Your box should include CD663N, Keyboard, Mouse, and Power Cord .
Check all the items in your system box.
5Qrium CD663N
Starting
S y s t e m
K e y b o a r d
M a n u a l
M o u s e
Power Cord
CD-ROM T i t l e
Modem Cable
CD663N(øµπÆ) 00.4.17 2:46 PM ∆‰¿Ã¡ˆ5

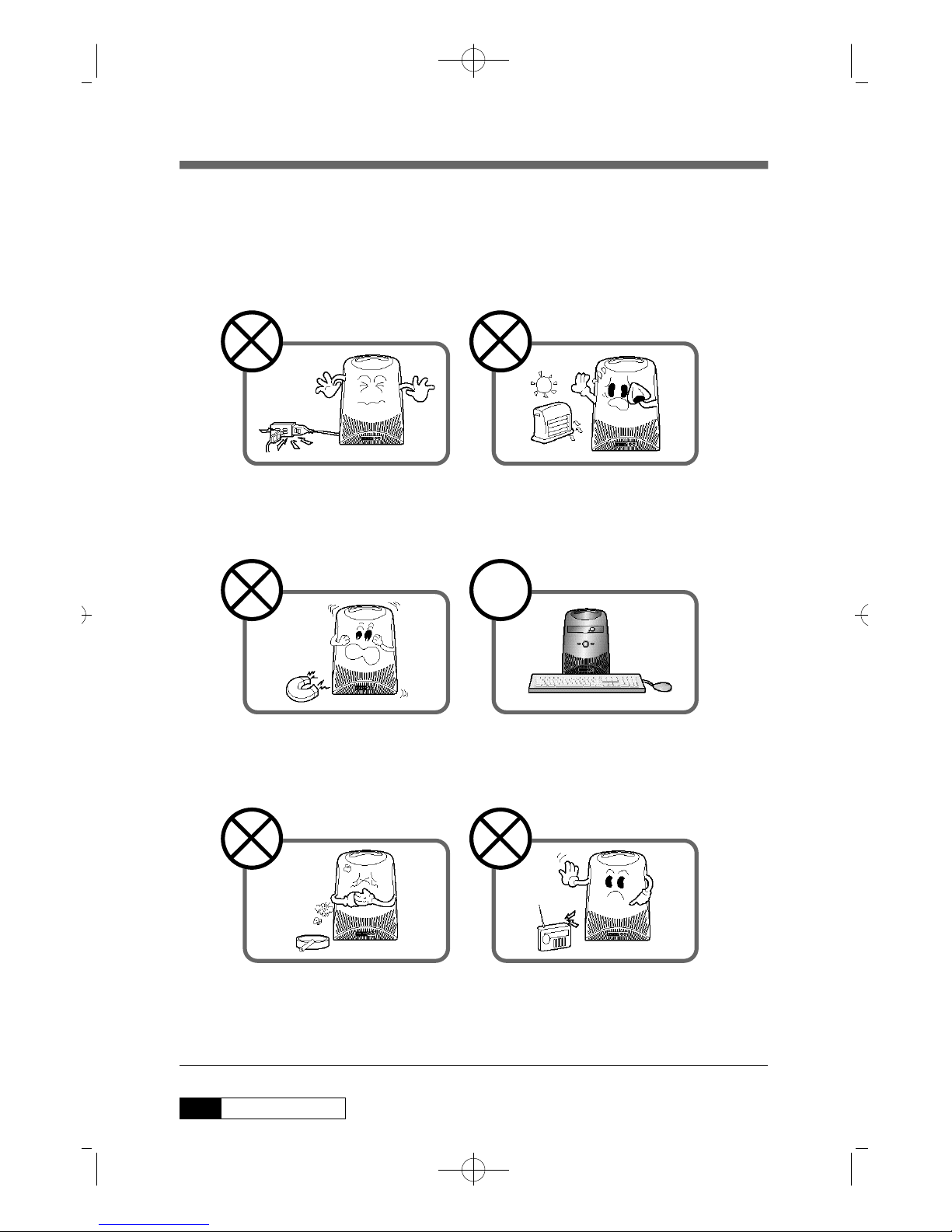

3. System Setting
Operate the PC on a Sturdy level surface such as desk or table.
6 Qrium CD663N
Starting
Please do not overload the
power socket
Keep the computer away
f rom high temperature and
d i rect sunlight
Please do not place magnetic
objects close to the system
Keep distance between the
system and the wall
Keep the computer away
f rom excessive moisture
and dust
Place the system away fro m
radio or any electro n i c
re c e i v e r s
CD663N(øµπÆ) 00.4.17 2:46 PM ∆‰¿Ã¡ˆ6
1. Front Configuration
2. Rear Configuration
7Qrium CD663N
1. System Configuration
1. System Configuration
Power LED
HDD LED
Power Button
CD-Rom DriveLED
CD-Rom Drive Eject Button
USB Port
USB Port
LAN Line
MIC in
Line out
Monitor out
Tel Line(to the wall)
Adapter Jack
CD663N(øµπÆ) 00.4.17 2:46 PM ∆‰¿Ã¡ˆ7
1. Plugging Keyboard and Mouse
USB Keyboard/Mouse connectors are on the rear panel.
Connect the keyboard cable to one of the USB connectors.
Connect the mouse cable to the other USB connector.
2. Plugging the Monitor
Connect the monitor to the MONITOR connector colored royal blue.
8 Qrium CD663N
2. Installtion
2. Installtion
CD663N(øµπÆ) 00.4.17 2:46 PM ∆‰¿Ã¡ˆ8
3. Plugging the Power Cord
CD663N Computer System applies both 110/220 power range with
automatic Voltage Switching
4. Plugging the RJ11 Phone Line(Modem Cable)
Locate telephone wall outlet. If a telephone is connected, you may need a
telephone splitter cable or connector, Which allows you to connect both
modem cable and telephone cable to the outlet. Plug one of the modem
Cable end connector into Tel Line Socket on the rear of the computer.
Plug the other end of the modem cable connector into the telephone wall
o u t l e t .
9Qrium CD663N
2. Installtion
CD663N(øµπÆ) 00.4.17 2:46 PM ∆‰¿Ã¡ˆ9
1. System Configuration Table
10 Qrium CD663N
3. System Specifications
3. System Specifications
Motherboard
Form Factor
Chipset
CPU TYPE
RAM (SDRAM)
HDD
Video Card
CD-ROM
Sound Card
Fax/Modem
Ethernet Card
Speaker
Mouse
KB
USB Ports
SMPS
BIOS
Manageability
Daewoo CB663FB
FlexATX
Intel i810e
FC-PGA Packaging, Celeron / Pentium III
One 144-pin SODIM SOCKET, MAX 512MB
3.5
Ultra DMA 33/66 EIDE DRIVE
Built-in 3D AGP, UMA with Intel D.V.M Technology
24X slim type
Built-in (AC Link 97)
56K MIni-PCI Type III (combined with Ethernet)
10/100Mbps Miin-PCI Type III (with Fax/Modem)
built-in stereo
USB
USB
Four USB Connectors
60watts, AC-DC
Phoenix PnP BIOS
ACPI 1.0, PCI 2.0, PC 99
CD663N(øµπÆ) 00.4.17 2:46 PM ∆‰¿Ã¡ˆ10
2. System Mainboard Layout
11Qrium CD663N
3. System Specifications
CD663N(øµπÆ) 00.4.17 2:46 PM ∆‰¿Ã¡ˆ11
1. Troubleshooting
• Additional troubleshooting information can be found at
www. datuspc.com for US customers.
12 Qrium CD663N
4. Troubleshooting
Problem
Computer won’t turn on
Blank screen
Monitor doses not
function properly when
used with energy saver
features
Sound does not come
out of the speaker or
headphones
System will not boot
from CD-ROM
Cause
Computer is not
connected to an external
power source
Cables to the external
power source are
unplugged
Monitor is not turned on
and the monitor light is
not on
Monitor without energy
saver capabilities is
being used with energy
saver features enabled
Software volume control
is turned down
The CD-ROM boot is not
enabled through the
Computer Setup utility
Non-biitable CD in drive
Solution
Connect to an external power
source
Ensure that cables connecting
the computer to the external
power source are pluggen in
properly and the wall outlet is
active
Turn on the monitor and check
that the monitor light is on
Disable monitor energy saver
feature
Double click on the speaker icon
on the tackbar, then set volume
by adjusting the volume slider
Run the Computer Setup utility
and set the drive priorities
Try a bootable CD in the drive
Solving General Problems
4. Troubleshooting
CD663N(øµπÆ) 00.4.17 2:46 PM ∆‰¿Ã¡ˆ12
YOUR PRODUCT KEY FOR MICROSOFT WINDOWS 98
(CERTIFICATE OF AUTHENTICITY, #####-#####-#####-#####-#####)
