Qpets SP 209 User Manual
1
LAVA Electronics Inc. Tel: 1-909-923-87743, Email: ismartpets@gmail.com www.lavasat.com
LAVA Electronics Inc Copyright 2009

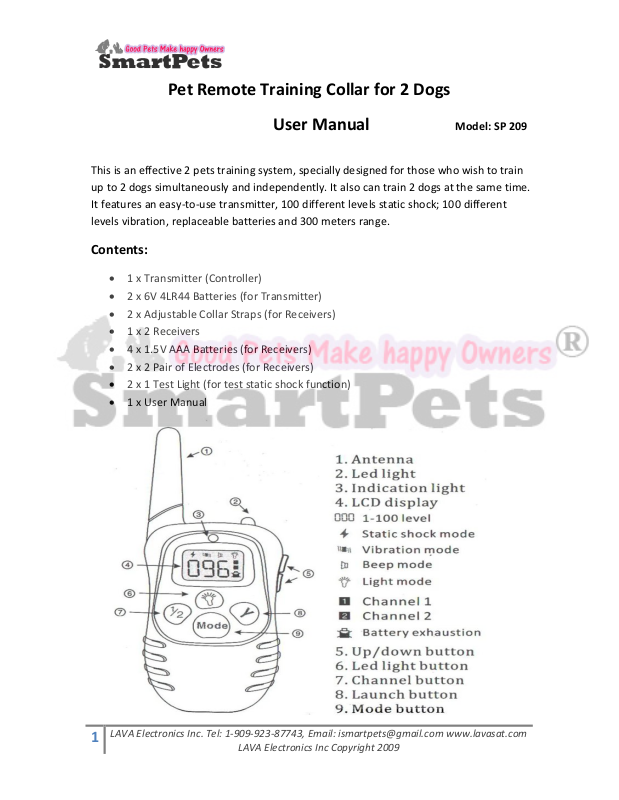

Pet Remote Training Collar for 2 Dogs
User Manual Model: SP 209
This is an effective 2 pets training system, specially designed for those who wish to train
up to 2 dogs simultaneously and independently. It also can train 2 dogs at the same time.
It features an easy-to-use transmitter, 100 different levels static shock; 100 different
levels vibration, replaceable batteries and 300 meters range.
Contents:
1 x Transmitter (Controller)
2 x 6V 4LR44 Batteries (for Transmitter)
2 x Adjustable Collar Straps (for Receivers)
1 x 2 Receivers
4 x 1.5V AAA Batteries (for Receivers)
2 x 2 Pair of Electrodes (for Receivers)
2 x 1 Test Light (for test static shock function)
1 x User Manual
2
LAVA Electronics Inc. Tel: 1-909-923-87743, Email: ismartpets@gmail.com www.lavasat.com
LAVA Electronics Inc Copyright 2009
Quick start Guide
Step 1: Prepare the Remote Transmitter
Follow the positive (+) and Negative (-) signs inside the transmitter. Insert the 2 x 6V
4LR44 Batteries into the transmitter correctly.
Step 2: Match Transmitter with the Collar Receivers
1. Follow the Positive (+) and Negative (-) signs inside the 1
st
Receiver. Insert the 2 x
1.5V AAA batteries into the 1st Receiver. The receiver will beep and the Green
indicated light keeps on.
2. Press Y Button and hold for few second on the transmitter until the receiver
beeps.
3. Press the Mode Button to switch to Vibration Mode. Press Up/Down Button
where on the side of transmitter. Press Y Button, the receiver should be vibrated.
4. Follow the Positive (+) and Negative (-) signs inside the 2
st
Receiver. Insert the 2 x
1.5V AAA batteries into the 2st Receiver. The receiver will beep and the Green
indicated light keeps on.
5. Press the Channel Button (1/2 button) on the transmitter switch to Channel 2.
6. Press Y button and hold for few second on the transmitter until the receiver
beeps.
7. Press the Mode button to switch to Vibration Mode. Press Up/Dow Button
where on the side of transmitter. Press Y button, the receiver should be vibrated.
Notice:
Please always install the Transmitter’s battery BEFORE install the receiver’s batteries
because it is a wireless training system. The Transmitter has to be power on, and then
the receiver is able to receive the code from transmitter. It might not work if install
the batteries incorrectly or did not match the receiver and transmitter correctly.
