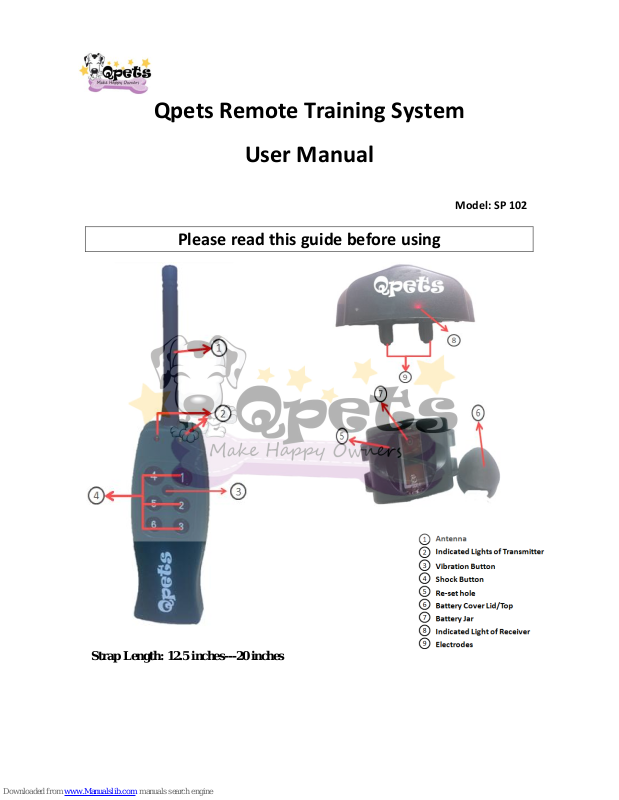

Page 1
Qpets Remote Training System
User Manual
Model: SP 102
Please read this guide before using
Strap Length: 12.5 inches---20 inches
Page 2
Thank you for choosing Qpets. Our mission is to make happy pet owners by providing
quality pet products, the latest tools and techniques to successfully train your pet. If you
have any questions or comments, please contact the our Customer Support Center at 1909-923-8743 or visit our website at www.lavasat.com
Table of Contents
Components……………………………………………………………............2
Quick Start Guide………………..……………………………….……2
Step-1 Prepare the Remote Transmitter……………2
Step-2 Pair transmitter with the collar receiver…3
Step-3 Install the electrodes for the receiver….…3
Step-4 Adjust the collar to fit your pet………………3
How to check the static shock function…………………..…4
How to use the transmitter ………………………………..….…4
How to change the battery………………………………………..4
How to re-set/re-pair receiver with transmitter………4
Important Tips…………………………………………………………..5
Customer Support Center………………………………………….6
1
Page 3
Components:
1 x Transmitter with
Antenna
2 x Receiver
1 x 9V 6F22 Battery
2 x Adjustable
strap
1 x Pair of Rubber
Electrodes and
1 x Metal Electrodes
(for each Receiver)
2 x Test Light (for
testing Shock
Function)
4 x 6V 4LR44 Batteries
(2 for each receiver)
1 x User Manual
Step 1: Prepare the Remote Transmitter
1. Screw the antenna into place before using. Do not operate the remote trainer
without a transmitter antenna.
2. Follow the Positive (+) and Negative (-) signs inside of transmitter. Insert the 9V
6F22 battery into the transmitter correctly.
Quick start Guide
2
Page 4
Step 2: Prepare the Collar Receiver
1. Follow the Positive (+) and Negative (-) signs inside of receiver. Insert the 1 x 6V
4LR44 Battery for each Receiver.
2. The Red Indicated Light will stay on for 2 second and start blinking.
3. Press the Vibration Button (in the middle of the transmitter). The Receiver will
vibrate for both Receivers at the same time.
Note:
Please always install the transmitter’s battery BEFORE install the battery of
receiver. As it is a wireless training system. The transmitter has to be power on
then the receivers are able to receive the code from transmitter.
Step 3: Install the Electrodes for the Receiver.
Randomly pick one pair of electrodes and screw for receiver. (Please pick the same
size electrodes for the receiver.)
Step 4: Adjust the collar to fit your pet.
To ensure a proper fit, please follow the steps below:
1. Put the strap on the receiver.
2. With your pet standing, center of collar receiver where contact points are
underneath your pet’s neck, touching the skin.
3. The collar receiver should fit snugly, yet loose enough to allow one finger to fit
between the strap and your pet’s neck. If the strap is too long for your pet, cut
off the excess length.
4. Allow your pet to wear the collar for several minutes and then re-check the fit.
Check the fit again as your pet becomes more comfortable wearing the collar
receiver.
We recommend you to use the vibration function first before starting the static shock
and always start from the lowest level of static shock.
3
Page 5
How to test the shock function
1. Use the TEST LIGHT attach on the both side of
Electrodes (Metal).
2. Press Shock Button, the TEST LIGHT will blink or
keeps on.
How to use the transmitter
Press Vibration Button on the transmitter (located in the middle of the
transmitter), the Orange and Red LED Indicated Light on the transmitter will stay
on.
Button 1- 3 are Shock Button for the Receiver 1. (Decrease in static shock which
the 1 Button is the strongest static shock). The Orange Indicated Light will on
when you press the Button 1-3.
Button 4- 6 are Shock Button for the Receiver 2. (Decrease in static shock which
the 4 Button is the strongest static shock). The Red Indicated Light will on when
you press the Button 4-6.
The receivers will get into the SAVE MODE if you do not use them for 2 minutes
and there is no LED light on the receiver. Please gently shack it, it will be back to
the STANDBY MODE.
How to change the battery
Please replace the battery when there is no LED Indicated light on the
transmitter when you press any button on the transmitter.
Please replace the battery when there is no LED Indicated light on the Receiver.
How to re-set/re-pair Receiver with Transmitter
The Training System might stop working if the receiver lost the code with Transmitter.
Please re-set/re-pair the receiver with transmitter.
1. Make sure the transmitter is power on
4
Page 6
2. Put the battery into the receivers.
3. Use a paper clip to double click the tiny button which inside of the Receiver 1 or
Receiver 2 (inside of re-set hole), you can see it after you take the battery cover
out from receivers. The LED indicated light which on the Receiver 1 or Receiver 2
will start blinking.
4. Hold the Button 1 if you pair the Receiver 1. The Red LED indicated ligth will stay
on after pair the Receiver successfully with transmitter.
Hold the Button 4 if you pair the Receiver 2. The Red LED indicated ligth will stay
on after pair the Receiver successfully with transmitter.
Important Tips:
(Please Read)
1. The valid distance of remote control means the straight-line distance between
the transmitter and the receiver without obstacles in between. If there are
interference signals or signal screening around, the actual remote control
distance may vary.
2. The lifetime of the batteries vary according as how often you use the product.
Your first battery may not last as long as you expectation.
3. The vibration function is for both receivers at the same time.
4. This product is for pet training. Good effect can only be achieved after a period
of training.
5. This product is a wireless transmitting device; you MUST NOT use the remote
control system in places like petrol stations or hospitals where mobile phones
are prohibited. Patients using heart pacemaker are forbidden to use this
product.
6. The Electrodes have to directly touch pet’s skin as it is very important to
effective training.
7. This product is only for Pet Training, It is not a Regular Pet Collar. Please
remove it from your pet at least 8 hours out of every 24 hours.
8. The Device does not design only for water resistant, not fully waterproof.
9. If you do not use the transmitter please take the battery out from transmitter
for saving battery life.
5
Page 7
Customer Support Center
Tel: 1-909-923-8743
Monday – Friday 8:30AM – 5:00 PM Pacific Time
Email:[email protected]
Add: LAVA Electronics Inc. 2580 E Philadelphia ST #D, Ontario, CA 91761
This product has a limited Manufacturer Warranty. Details of the warranty can be found
on www.lavasat.com or by calling our Customer Support Center.
Made in China
