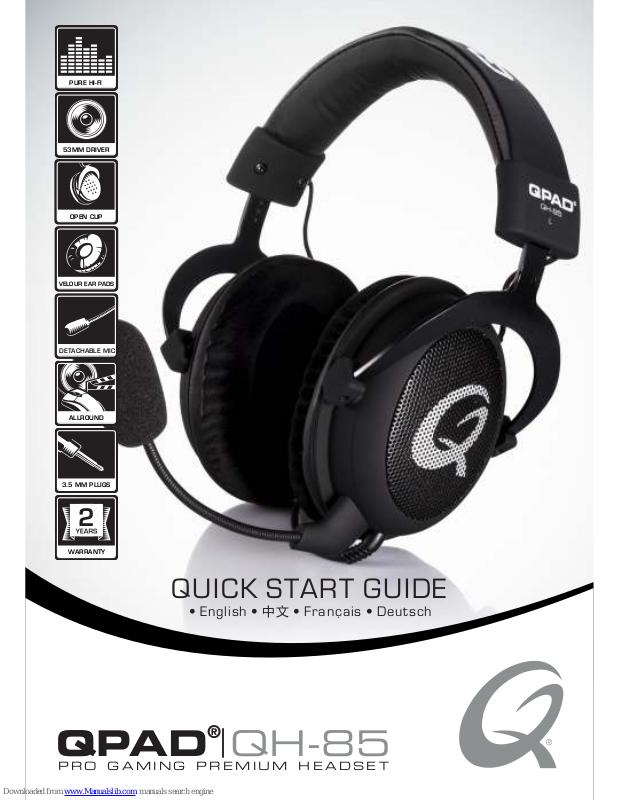

Qpad QH-85, QH-90 Quick Start Manual

QP

®

AD QH-85

P R O G A M I N G P R E M I U M H E A D S E T

3.5 MM PLUGS

53MM DRIVER

VELOUR EAR PADS

ALLROUND

PURE HI-FI

WARRANTY

2

OPEN CUP

DETACHABLE MIC

• English • 中文 • Français • Deutsch

QUICK START GUIDE

QP

®

AD QH-85

P R O G A M I N G P R E M I U M H E A D S E T

You are now the owner of a piece of premium gaming equipment, designed with the
utmost attention to performance. When I first started QPAD back in 1992, it was with
one goal in mind. I wanted to create computer gear especially designed for gaming
purposes.

Being a die-hard gamer and computer enthusiast myself, I know just how much it means
to have gear that can stand the heat of battle. Gaming is all about feel, passion and love
of the game.

Over the years, my view on this has not changed, and I am truly proud to say that all of
the products in the QPAD family carry the same legacy: passion for gaming and a true
commitment to the gaming and eSport community.

Thank you for trusting QPAD - see you on the battlefield!

Sincerely
Christer “MrMouse” Körnbäck
founder of QPAD

CON GRATULATIONS !

2

3

QPAD Q H-8 5

There is nothing quite like the fantastic feeling of immersing yourself deep in to the world
of your favorite game. Gaming is an audio-visual experience, and many gamers will even
argue that sound actually plays a more important role than the graphics, in creating the
magical feeling and ambience of a game. We at QPAD believe this too, and that is why we
created QPAD QH-85 with premium audio performance and excellent ergonomics. The
Hi-Fi capability of the new QPAD QH-85 will not only open a world of magical sounds for
you, it can also give you an advantage in many games. The QH-85 is not just a headset, it’s
a pair of Hi-Fi capable headphones equipped with a premium microphone. The QH-85 is
designed with open cups and will produce a natural sound with clear bass, mids and
highs. The open design allows for some sound leakage from the surrounding
environment.

QH-90 FEATURES

• Hi-Fi capable 53 MM drivers for supreme audio quality.

• 15 - 25.000 Hz frequency response.

• Detachable microphone (quick and easy to plug/unplug for music-only purposes).

• Solid aluminum construction for durability and stability.

• Super-soft padded leather headband and velour padding on cups for maximum comfort.

• Open cup design on QH-85 for natural Hi-Fi audio.

English

Open ear cupsSolid aluminium construction

Super soft leather headband

53 mm Hi-Fi capable drivers

Comfortable velour ear pads

Detachable microphone

QP

®

AD QH-85

P R O G A M I N G P R E M I U M H E A D S E T

PACKAGE CONTENTS

1 x Headset QH-85.
1 x ichrophone.
1 x Control box with 100 cm cable.
1 x 200cm extension cable.
1 x 10cm iPhone cable.
1 x Pouch.
1 x User manual.

HARDWARE REQUIREMENT

Works with any computer, MP3 player,
cell phone, sound device with 3.5mm
mini jacks.(Control box answer button
only operate with iPhone)

Detachable m

OVE RVIEW

4

15

3

2

1

6

7

10

11

13

14

13

12

8

9

5

Control box

Extension cable 2m

Iphone converter cable

Speaker

Speaker

Michrophone

Michrophone

Mobile phone

4

OVE RVIEW

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

Super-soft padded leather headband with embrodery logo.

Adjustable headband.

Solid aluminum construction for durability and stability.

Open cup design on QH-85 for natural Hi-Fi audio and allows for some sound leakage

Hi-Fi capable 53 mm drivers for supreme audio quality.

Condenser (back electret) Cardioid michrophone.

Adjustable boom michrophone.

Detachable microphone (quick and easy to plug/unplug for music-only purposes).

Volume control.

Mobile phone button.

Michrophone mute button.

Michrophone 3.5 mm mini jack.

Speaker 3.5 mm mini jack.

2 m extension cable.

10 cm Mobile phone cable. Only works with iPhone.

1 m standard cable with 3.5mm stereo and mic jacks.

• Press the button one time automatically play music or answer calls.

• When playing music press one time to paus the music.

• Remark: When used on computer the button has no function.

5

English

QP

®

AD QH-85

P R O G A M I N G P R E M I U M H E A D S E T

TEC HNICA L SPECI FI CATION

Earp hone 　

Transducer type..............................

Operating principle..........................

Frequency response.........................

Nominal impedance.........................

Nominal SPL..................................

T.H.D ..........................................

Power handling capacity....................

Sound coupling to the ear...................

Ambient noise attenuation.................

Headband pressure.........................

Earphone (w/cable) Weight................

Cable length and type.......................

Connection ...................................

Micr o phone 　

Transducer type..............................

Operating principle..........................

Polar Pattern.................................

Power supply..................................

Supply voltage.................................

Current consumption........................

Nominal impedance.........................

Open circuit voltage at f = 1 kHz...........

Frequency response.........................

T.H.D ...........................................

Max. SPL.......................................

Microphone output...........................

Length mic boom.............................

Capsule diameter.............................

Connection....................................

Dynamic Ø53mm
Open
15Hz-25KHz
60 Ω per system
92±3dB
< 2%
150mW
Circumaural
approx.10 dBA
5 N
350g
TPE Ø4.0*1M
Mini stereo jack plug(3.5MM)

Condenser(back electret)
Pressure gradient
Cardioid
AB powering
2V
Max 0.5 mA

≤ 2.2 kΩ
20 mV / Pa
100Hz-12kHz
2% at f = 1 kHz
105dB (THD≤1.0% at 1KHz)

-39±3dB
150MM(include gooseneck)
Ø6mm
Mini stereo jack plug (3.5 mm)

6

FREQUENCY RESPONSE

SPEAKERS

MICHROPHONE POLAR PATTERN

MICHROPHONE

7

English

QP

®

AD QH-85

P R O G A M I N G P R E M I U M H E A D S E T

WAR NING

Permanent hearing loss may result from long-term exposure to sound at high volumes.
Use as low a volume as possible.Headsets are capable of delivering sounds at loud
volumes and high pitched tones. Under certain circumstances, exposure to such
sounds can result in permanent hearing loss damage. The volume level may vary based
on conditions such as the amplifier you are using, its reception and volume settings,
and the environment. Avoid prolonged use of the headset at excessive sound pressure
levels. Please read the Safety Guidelines below prior to using this headset.

Reduce the Risk of Hearing Damage by Following These Safety Guidelines

1. Prior to using this product follow these steps

• Before putting on the headset, turn the volume control to its lowest level;

• Put the headset on; and then slowly adjust the volume control to a comfortable level.

2. During the use of this product

• Keep the volume at the lowest level possible and avoid using the headset in noisy
environments where you may be inclined to turn up the volume;

• If increased volume is necessary, adjust the volume control slowly;

• Ringing in the ears may indicate that the sound levels are too high;

• If you experience discomfort or ringing in your ears, immediately discontinue using the
headset and consult a physician; and

• Stop using the headset if it causes great discomfort.

• Use of a headset will impair your ability to hear other sounds. Use caution while using
your headset when you are engaging in any activity that requires your full attention.

• This package contains small parts that may be hazardous to children and should be
kept out of reach from children.

• Avoid exposing your product to rain, moisture or other liquids to protect against
damage to the product.

• Keep all products, cords, and cables away from operating machinery.

• Dispose of the product according to local standards and regulations.

Remember: Always drive safely, avoid distractions and follow local laws!

Using the headset while operating a motor vehicle, motorcycle, watercraft or bicycle
may be dangerous, and is illegal in some jurisdictions, just as use of this headset with
both ears covered while driving is not permitted in certain jurisdictions. Check your local
laws. Use caution while using your headset when you are engaging in any activity that
requires your full attention. While engaging in any such activity, removing the headset
from your ear or turning off your headset will keep you from being distracted, so as to
avoid accident or injury. Do not take notes or read documents while driving.

8

WAR RANTY

• QPAD warrants this product against defects in workmanship and materials for two
(2) years from purchase date under normal consumer use conditions.

• The two year warranty does not cover the free accessories such as cables and or
other free items included in the package.

• If the product fails during normal and proper use within the warranty period, QPAD
will, at its option, repair or replace the product. This QPAD warranty does not include
failiure caused by improper operation, cleaning or maintenance, accident, damage,
missuse, abuse, non- QPAD modifications to the product, normal wear and tear or any
other event, act or omission outside QPAD’s control.

• Parts repaired or replaced by the QPAD service site are covered for three (3)
months or for the remainder of the original warranty period, whichever is longer.

If warranty servicing is required, you may do either of the 2 following things.

• Contact your local QPAD authorized dealer/retailer, from where you bought the
product, for repair or replacement.

• Obtain an RMA (Return Material Authorization) number from QPAD Technical
support’s website www.qpad.com/support/.

Warranty limitations

The warranty only covers failiures or malfunctions occured during the warranty period
and in normal use conditions as well as for material or workmanship defect. The
warranty will not apply if:

1. The products been tampered, repaired, and or modified by non authorized personal.

2. The serial number of the product has been altered, cancelled or removed.

3. There is damaged caused by accident, natural disasterintentional or accidental
misuse, abuse, neglect or improper maintenance, or use under abnormal conditions.

REG ISTER Y OUR PRO DU CT

• Please visit www.QPAD.com/registration/ for online product registration
You get 2 Year’s limited manufacturer’s warranty and VIP offers.

9

English

QP

®

AD QH-85

P R O G A M I N G P R E M I U M H E A D S E T

QPAD S TOR Y

We at QPAD build our success on a grass roots commitment to the gaming community.
We thrive in competition and embrace the free spirit of gaming. We provide the gaming
world with premium high-quality equipment, giving eSporters, enthusiasts and casual
gamers all over the world a winning edge.

In an industry dominated by gigantic multi-national corporations, QPAD is a breath of
fresh air. The story of QPAD started in Stockholm, Sweden, back in 1992 when
computer enthusiast and hardcore gamer Christer Kornback founded the company.
The idea Christer had was to produce high-quality mouse pads suitable for gaming. Back
in those days, gamers had no choice but to use standard office-grade mice and mouse
pads.

In 1997, one of the World’s first eSport events was held in Stockholm; the Swedish
Quake Championships. Christer - being a prominent member of the Swedish online
gaming scene - was asked to produce a custom-sized mouse pad, considerably larger
than the models available at the time. This was the birth of the first piece of premium
eSport equipment designed with only gaming in mind. The mouse pad was the core of
the QPAD product line for years, as the small one-man-business grew in both size and
fame, earning respect amongst eSport athletes, gamers and computer enthusiasts all
over the world.

Now QPAD has widened the product line to also include award-winning gaming-grade
mice, headsets and keyboards. These include the World’s first mechanical gaming
keyboard offering full NKRO through usb only, (QPAD MK-85) and the first laser gaming
mouse actually usable for professional gaming purposes (QPAD 5K). With the launch of
the QPAD Professional Gaming Headset 1339 the company further consolidated its
place as a leading provider of premium gaming gear. The 1339 headset, based on the
industry-leading technology of Beyerdynamics, is by many gamers considered the best
gaming headset on the market today. ”

All of the products in the QPAD family carry the same legacy: passion for gaming and a
true commitment to the gaming and eSport community. This is reflected in our
sponsorship of the QTOUR, eSport athletes, communities, cups, tournaments, teams
and LAN parties all over the world.

10

®

QPAD CT

PROFESSIONAL GAMING MOUSE PAD

®

QPAD CT

PROFESSIONAL GAMING MOUSE PAD

®

QPAD QH-85

®

QPAD QH-85

®

QPAD QH-90

®

QPAD QH-90

®

QPAD QH-1339

PROFESSIONAL GAMING HEADSET

PROFESSIONAL GAMING HEADSET

PROFESSIONAL GAMING HEADSET

PROFESSIONAL GAMING HEADSET PROFESSIONAL GAMING HEADSET

QPAD PRODUCTS

®

QPAD MK-80

®

QPAD MK-50

®

QPAD MK-85

PROFESSIONAL GAMING KEYBOARD

PROFESSIONAL GAMING KEYBOARD

PROFESSIONAL GAMING KEYBOARD

®

QPAD 5K

PROFESSIONAL GAMING MOUSE

®

QPAD 5K

PROFESSIONAL GAMING MOUSE

®

QPAD OM-75

PROFESSIONAL GAMING MOUSE

111

®

QPAD CT

PROFESSIONAL GAMING MOUSE PAD

MADE IN SWEDEN

MADE IN SWEDEN

MOUS E PADS

MICE

KEYB OARDS

HEAD SET’S

Visit www.QPAD.com
for more products.

English

QP

®

AD QH-85

P R O G A M I N G P R E M I U M H E A D S E T

恭喜你拥有了这款顶级的游戏设备，它是一款设计与性能均投入高度重视的产品。早在
1992年我创建QPAD开始，便一心往创建电脑外设的路上走，特别是电竞外设。

身为一个铁杆玩家和电脑爱好者，我知道需要什么样的配备才能进入到这场激烈的战斗中，
那就是：感觉、激情，以及对游戏的热爱。

在过去的几年中，我的看法一直没有改变，我真的很自豪地说，在QPAD家族产品中，全都
有着相同的血脉传统：对游戏的热情以及和电竞族群的真心承诺。

谢谢你对QPAD的信任，我们-相约战场见！

此致
敬礼

QPAD 创始人
Christer Körnbäck （老鼠先生 ）

致谢

12

13

QPAD Q H-8 5

没有什么事比沉浸在你最爱的游戏世界中更快乐了，然而，游戏它是一件视听双重体验与享
受的事，许多玩家甚至认为，声音比图案更重要，它在比赛中创造了神奇的感觉和氛围。我
们QPAD也相信这一点，而这也是我们为什么创造 QPAD QH-85，这个同时拥有超优音质
和超优人体工学的耳机。这支Hi-Fi音质的耳机，它不仅为你打开了声音的神奇世界，也提
供了你许多在游戏中的优势。 QH-85采用开放式设计，在保证声音最小泄露的前提下，仍

能让使用者感受到最自然的高、中、低音，且仍能分辨出来自周围环境的声音。

QH-85 产品特色

• Hi-Fi音质的53毫米驱动单元

• 15 - 25.000 Hz 宽频响应

• 分离式麦克风（可快速插拔，单独使用耳机）

• 耐用稳定的铝合金结构

• 超柔软的皮革头带和丝绒软垫耳罩，提供你至高的舒适感。

• 采用开放式腔体设计，呈现自然 Hi-Fi 音质

开放式腔体

铝合金结构

超软皮革头带

分离式麦克风

53mm HI-Fi音质驱动

丝绒软垫

中文

QP

®

AD QH-85

P R O G A M I N G P R E M I U M H E A D S E T

包装内容

QH-85 耳机 x 1

分离式麦克风 x 1
线控x1 (线长1米）

2米延长线 x 1
10cm iPhone 专用转接线

收藏袋 x 1
使用说明书 x 1

硬件需求
适用于所有配有3.5mm耳机接口的电脑，
MP3播放器，手机等音响设备。(线控盒的通
话键仅适用于iPhone)

产品综述

10

11

13

14

13

12

9

线控盒

2米延长线

10cm iPhone 专用转接线

耳机

耳机

唛克风

唛克风

3.5mm耳机接口

14

4

15

3

2

1

6

7

8

5
