QNO QVF7411 User Manual

Download

English User’s Manual

SSL / IPSec VPN QoS Router

2x100Mbps WAN + 4x100Mbps Switch LAN

(WAN2/DMZ)

Fully Integrated SMB SSL & IPSec VPN Solution

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Product Manual Using Permit Agreement

[Product Manual (hereafter the "Manual") Using Permit Agreement] hereafter the "Agreement" is the using permit of the Manual, and the relevant rights and obligations between the users and Qno Technology Inc (hereafter "Qno"), and is the exclusion to remit or limit the liability of Qno. The users who obtain the file of this manual directly or indirectly, and users who use the relevant services, must obey this Agreement.

Important Notice: Qno would like to remind the users to read the clauses of the "Agreement" before downloading and reading this Manual. Unless you accept the clauses of this "Agreement", please return this Manual and relevant services. The downloading or reading of this Manual is regarded as accepting this "Agreement" and the restriction of clauses in this "Agreement".

【1】 Statement of Intellectual Property

Any text and corresponding combination, diagram, interface design, printing materials or electronic file are protected by copyright of our country, clauses of international copyright and other regulations of intellectual property. When the user copies the "Manual", this statement of intellectual property must also be copied and indicated. Otherwise, Qno regards it as tort and relevant duty will be prosecuted as well.

【2】Scope of Authority of "Manual"

The user may install, use, display and read this "Manual on the complete set of computer.

【3】User Notice If users obey the law and this Agreement, they may use this "Manual" in accordance with "Agreement". The "hardcopy or softcopy" of this Manual is restricted using for information, non-commercial and personal purpose. Besides, it is not allowed to copy or announce on any network computer. Furthermore, it is not allowed to disseminate on any media. It is not allowed to modify any part of the "file". Using for other purposes is prohibited by law and it may cause serious civil and criminal punishment. The transgressor will receive the accusation possibly.

【4】Legal Liability and Exclusion 【4-1】Qno will check the mistake of the texts and diagrams with all strength. However, Qno, distributors, and

resellers do not bear any liability for direct or indirect economic loss, data loss or other corresponding commercial loss to the user or relevant personnel due to the possible omission.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

【4-2】In order to protect the autonomy of the business development and adjustment of Qno, Qno reserves the right to adjust or terminate the software / Manual any time without informing the users. There will be no further notice regarding the product upgrade or change of technical specification. If it is necessary, the change or termination will be announced in the relevant block of the Qno website.

【4-3】All the set parameters are examples and they are for reference only. You may also purpose your opinion or suggestion. We will take it as reference and they may be amended in the next version.

【4-4】This Manual explains the configuration of all functions for the products of the same series. The actual functions of the product may vary with the model. Therefore, some functions may not be found on the product you purchased.

【4-5】Qno reserves the right to change the file content of this Manual and the Manual content may not be updated instantly. To know more about the updated information of the product, please visit Qno official website.

【4-6】Qno (and / or) distributors hereby declares that no liability will be born for any guarantee and condition of the corresponding information. The guarantee and condition include tacit guarantee and condition about marketability, suitability for special purposes, ownership, and non-infringement. The name of the companies and products mentioned may be the trademark of the owners. Qno (and/or) the distributors do not provide the product or software of any third party company. Under any circumstance, Qno and / or distributors bear no liability for special, indirect, derivative loss or any type of loss in the lawsuit caused by usage or information on the file, no matter the lawsuit is related to agreement, omission, or other tort.

【5】Other Clauses 【5-1】The potency of this Agreement is over any other verbal or written record. The invalidation of part or

whole of any clause does not affect the potency of other clauses. 【5-2】The power of interpretation, potency and dispute are applicable for the law of Taiwan. If there is any

dissension or dispute between the users and Qno, it should be attempted to solve by consultation first. If it is not solved by consultation, user agrees that the dissension or dispute is brought to trial in the jurisdiction of the court in the location of Qno. In Mainland China, the "China International Economic and Trade Arbitration Commission" is the arbitration organization.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

III

Content

Introduction ................................................................................................................... 1

II.

Multi- WAN VPN Router Installation ............................................................................. 3

2.1 Systematic Setting Process .............................................................................................................. 3

2.2 Setting Flow Chart ............................................................................................................................ 3

III.

Hardware Installation .................................................................................................... 6

3.1 LED Signal ........................................................................................................................................ 6

3.2 VPN Router Network Connection ..................................................................................................... 9

IV.

Login ............................................................................................................................ 10

V. Device Spec Verification, Status Display and Login Password and Time Setting12

5.1 Home Page ..................................................................................................................................... 12

5.1.1 WAN Status ........................................................................................................................... 12

5.1.2 Physical Port Status .............................................................................................................. 13

5.1.3 System Information ............................................................................................................... 15

5.1.4 Firewall Status ...................................................................................................................... 16

5.1.5 Log Setting Status ................................................................................................................. 16

5.2 Change and Set Login Password and Time ................................................................................... 17

5.2.1 Password Setting .................................................................................................................. 17

5.2.2 Time ...................................................................................................................................... 18

VI.

Network ........................................................................................................................ 20

6.1 Network Connection ....................................................................................................................... 20

6.1.1 Host Name and Domain Name ............................................................................................. 20

6.1.2 LAN Setting ........................................................................................................................... 21

6.1.3 WAN & DMZ Settings ............................................................................................................ 22

6.2 Multi- WAN Setting ......................................................................................................................... 36

6.2.1 Load Balance Mode .............................................................................................................. 37

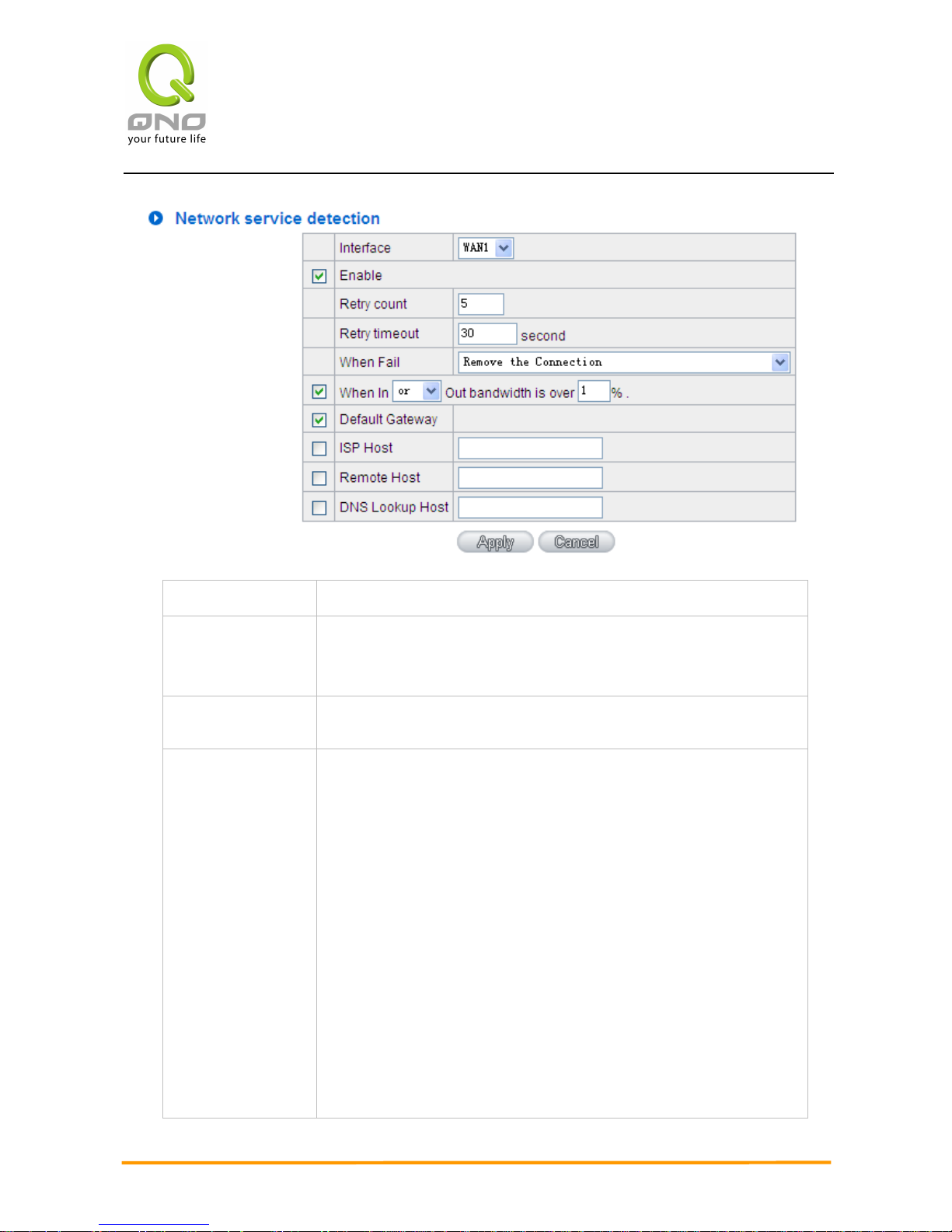

6.2.2 Network Service Detection .................................................................................................... 41

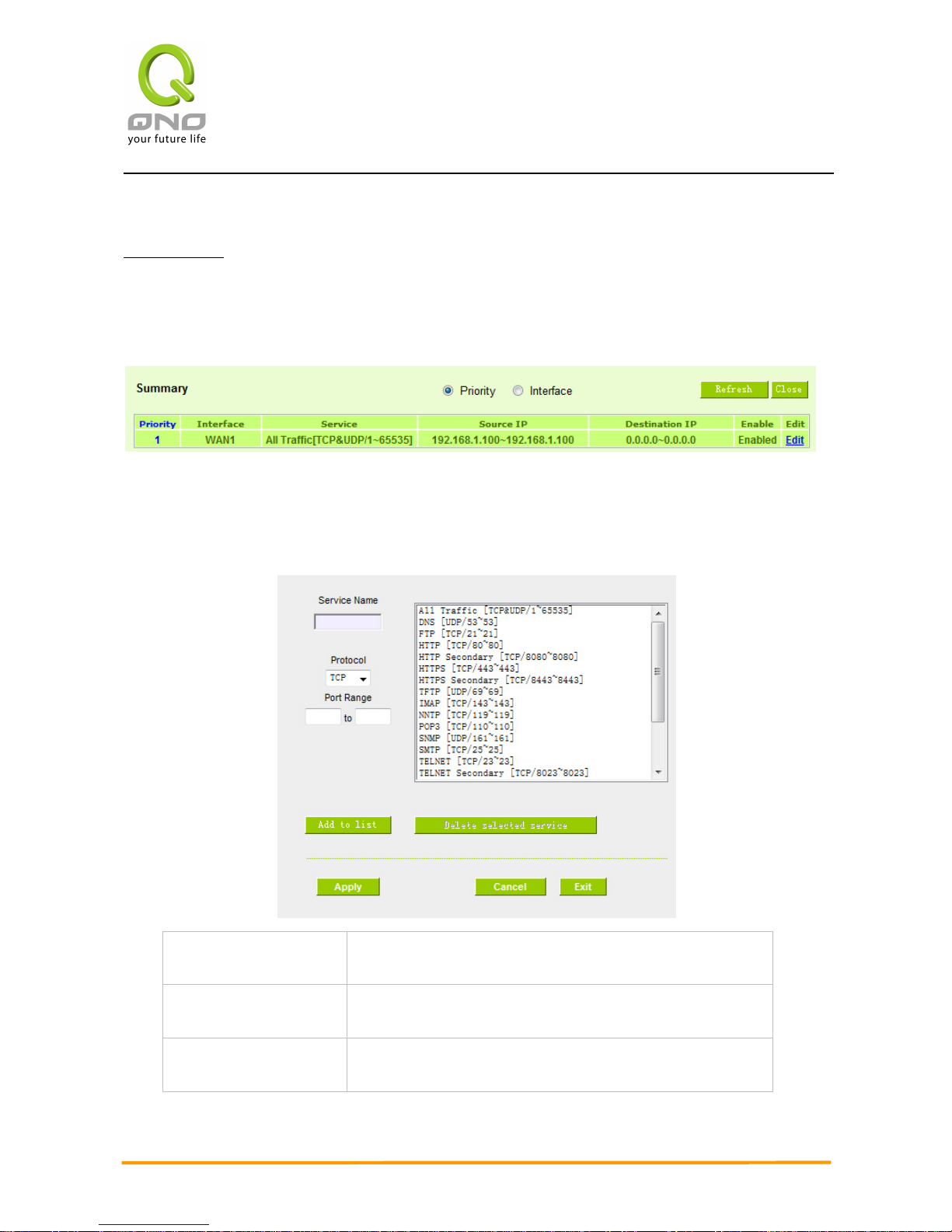

6.2.3 Protocol Binding .................................................................................................................... 44

VII.

Intranet Configuration ................................................................................................. 54

7.1 Port Management ........................................................................................................................... 54

7.2 Port Status ...................................................................................................................................... 57

7.3 IP/ DHCP ........................................................................................................................................ 59

7.4 DHCP Status .................................................................................................................................. 62

7.5 IP & MAC Binding ........................................................................................................................... 66

7.6 IP Group Management ................................................................................................................... 70

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

7.7 Port Group Management ................................................................................................................ 73

VIII.

QoS (Quality of Service) .............................................................................................. 75

8.1 Bandwidth Management ................................................................................................................. 76

8.1.1 The Maximum Bandwidth provided by ISP ........................................................................... 77

8.1.2 QoS ....................................................................................................................................... 78

8.2 Session control ............................................................................................................................... 82

8.3 Hardware Optimization(Future) ...................................................................................................... 85

8.4 Smart QoS ...................................................................................................................................... 87

IX.

Firewall ......................................................................................................................... 89

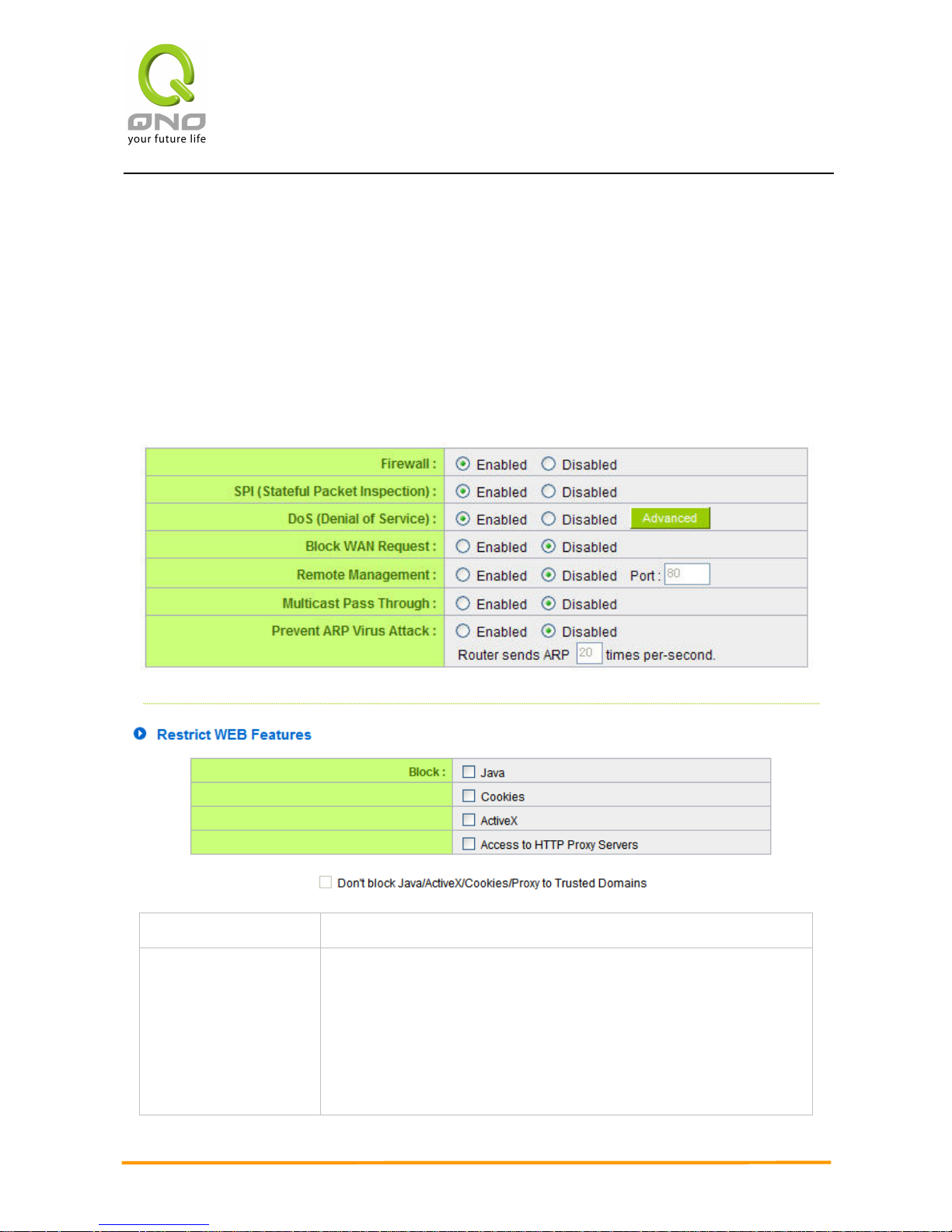

9.1 General Policy ................................................................................................................................ 89

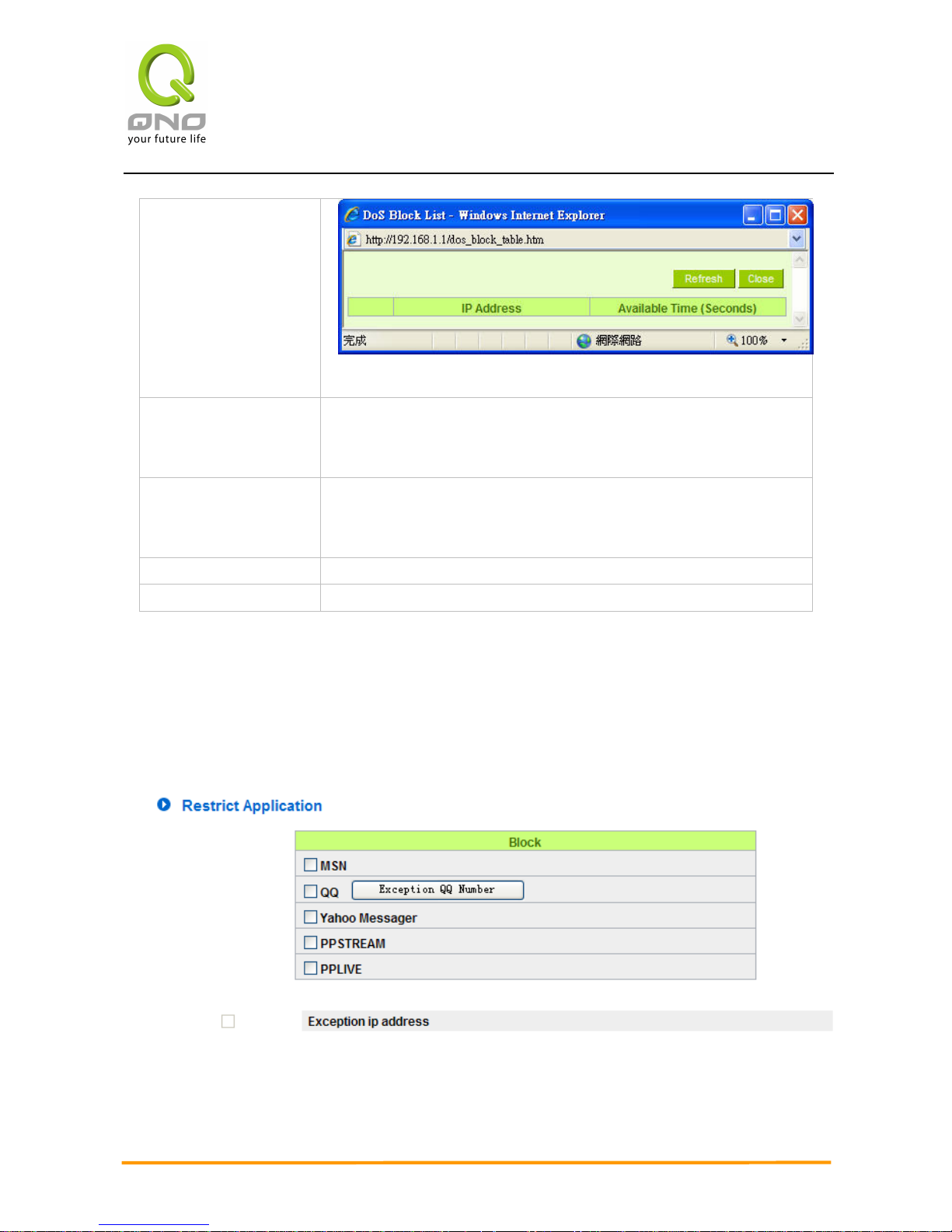

Restrict Application ............................................................................................................................... 92

9.2 Access Rule .................................................................................................................................... 95

9.2.1 Add New Access Rule ........................................................................................................... 97

9.3 Content Filter .................................................................................................................................. 99

VPN (Virtual Private Network) ................................................................................... 104

10.1. VPN .............................................................................................................................................. 104

10.1.1. Display All VPN Summary ................................................................................................... 104

10.1.2. Add a New VPN Tunnel ....................................................................................................... 108

10.1.3. PPTP Server ....................................................................................................................... 134

10.1.4. VPN Pass Through ............................................................................................................. 136

10.2. QnoKey ......................................................................................................................................... 137

10.2.1. QnoKey Summary ............................................................................................................... 137

10.2.2 Qnokey Group Setup ........................................................................................................... 138

10.2.3 Qnokey Account List ............................................................................................................ 141

10.3. QVM VPN Function Setup ............................................................................................................ 143

10.3.1. QVM Server Settings .......................................................................................................... 143

10.3.2. QVM Status ......................................................................................................................... 145

10.3.3. QVM Client Settings(Future Feature) ................................................................................. 146

XI.

Virtue Route ............................................................................................................... 148

11.1 Virtual Route Server (PPTP Server) .............................................................................................. 150

11.2 Virtue Route Client (Future Feature) ............................................................................................. 151

XII.

SSL VPN ..................................................................................................................... 154

12.1 Status ............................................................................................................................................ 155

12.2 Group Summary ............................................................................................................................ 155

12.3 Group Management ...................................................................................................................... 156

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

12.4 Domain Management .................................................................................................................... 172

12.5 User Management ......................................................................................................................... 173

12.6 Service Resource Management .................................................................................................... 175

12.7 Link to Portal.................................................................................................................................. 176

12.8 Advanced Settings ......................................................................................................................... 176

12.8.1 Virtual Passage .................................................................................................................... 177

12.8.2 Advanced Configurations ..................................................................................................... 179

12.8.3 Password Protection ............................................................................................................ 180

12.8.4 SSL Upgrade Serial Number ................................................................................................ 181

XIII.

Advanced Function ................................................................................................... 187

13.1 DMZ Host/ Port Range Forwarding ............................................................................................... 187

13.1.1 DMZ Host ............................................................................................................................. 187

13.1.2 Port Range Forwarding ........................................................................................................ 187

13.2 UPnP ............................................................................................................................................. 191

13.3 Routing .......................................................................................................................................... 192

13.3.1 Dynamic Routing .................................................................................................................. 192

13.3.2 Static Routing ....................................................................................................................... 193

13.4 One to One NAT ............................................................................................................................ 195

13.5 DDNS- Dynamic Domain Name Service ....................................................................................... 197

13.6 MAC Clone .................................................................................................................................... 200

13.7 Inbound Load Balance .................................................................................................................. 201

XIV.

System Tool ............................................................................................................... 209

14.1 Diagnostic ...................................................................................................................................... 209

14.2 Firmware Upgrade ......................................................................................................................... 211

14.3 Configration Backup ...................................................................................................................... 212

14.4 SNMP ............................................................................................................................................ 213

14.5 System Recover ............................................................................................................................ 215

14.6 High Availability ............................................................................................................................. 217

14.7 License Key ................................................................................................................................... 222

XV.

Log ................................................................................................................................. 1

15.1 System Log ........................................................................................................................................ 1

15.2 System Statistic ................................................................................................................................. 7

15.3 Traffic Statistic ................................................................................................................................... 9

15.4 IP/ Port Statistic ............................................................................................................................... 11

15.5 Connection Statistic (Future Feature) ............................................................................................. 13

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

15.6 QRTG (Qno Router Traffic Grapher) ............................................................................................... 15

XVI.

Log out ......................................................................................................................... 20

Appendix I: User Interface and User Manual Chapter Cross Reference ................................ 21

Appendix II：：：：Troubleshooting .................................................................................................. 24

(1) Block BT Download ............................................................................................................................ 24

（2）Shock Wave and Worm Virus Prevention ...................................................................................... 25

（3）Block QQLive Video Broadcast Setting.......................................................................................... 27

（4）ARP Virus Attack Prevention .......................................................................................................... 29

Appendix III：：：：Qno Technical Support Information ................................................................ 38

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

I. Introduction

SSL / IPSec VPN QoS Router (referred as VPN Router hereby) is a business level security router that efficiently integrates new generation multiple WAN-port devices. It meets the needs of medium enterprises, internet cafés, campus, dorm and communities, etc. Apart from its internet connectivity that suits the broadband market, VPN Router has a built-in QoS and VLAN switching board which enables it to fulfill most enterprise and internet cafe firewall needs.

VPN Router has 2 10/100 Base-T/TX Ethernets (RJ45) WAN ports. These WAN ports can support auto load balance mode, exclusive mode (remaining WAN balance), and stategy routing mode for high-efficiency network. They offer super flexibility for network set-up. Moreover, these WAN ports also support DHCP, fixed IP, PPPoE, transparent bridge, VPN connection, port binding, static routing, dynamic routing, NAT, one to one NAT, PAT, MAC Clone, as well as DDNS. As for LAN ports including one DMZ, they support 4 10/100 Base-T/TX Ethernet (RJ45) ports and provide the features of virtual route, Microsoft UPnP, VLAN, Multi Subnet, and transparent bridge mode. Internet IP addresses can also be used in intranet.

To fulfill the requirement for a highly secure and integrated firewall, VPN Router has a

64-bit

hardware acceleration,

high-speed, high-efficiency processor embedded. With high processing speed, plusing high standard SDRAM and Flash, VPN Router brings users super networking efficiency. Its processing speed and capacity are almost equal to those of expensive enterprise-level VPN Routers. This is why the device is so popular with modern enterprises.

In addition to internet connectability, for the broadband market, VPN Router has the function of VPN virtual network connection. It is equipped with a virtual private network hardware acceleration mode which is widely used in modern enterprises, and offers full VPN functionality.

Qno is a supporter of the IPSec and SSL Protocol. IPSec/SSL VPN provides DES, 3DES, AES-128 encryption, MD5, SH1 certification, IKE Pre-Share Key, or manual password interchange. VPN Router also supports aggressive mode. When a connection is lost, VPN Router will automatically re-connect. In addition, the device features NetBIOS transparency, and supports IP grouping for connections between clients and host in the virtual private network.

VPN Router offers the function of a standard PPTP server, which is equipped with connection setting status. Each WAN port can be set up with multiple DDNS at the same time. It is also capable of establishing VPN connections with dynamic IP addresses.

VPN Router also has unique QVM VPN- SmartLink IPSec VPN. Just input VPN server IP, user name, and password, and IPSec VPN will be automatically set up. Through VPN Router exclusive QVM function, users can set up QVM to work as a server, and have it accept other QVM series products from client ports. QVM offers easy VPN allocation for users; users can do it even without a network administrator. VPN Router enables enterprises to benefit from VPN without being troubled with technical and network management problems. The central control function enables the host to log in remote client computers at any time. Security and secrecy are guaranteed to meet the IPSec standard, so as to ensure the continuity of VPN service.

The advanced built-in firewall function enables VPN Router to resist most attacks from the Internet. It utilizes active detection technology SPI (Stateful Packet Inspection). The SPI firewall functions mainly within the network by dynamically inspecting each link. The SPI firewall also has a warning function for

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

the application process; therefore, it can refuse links to non-standard communication protocols. VPN Router supports network address translation (NAT) function and routing modes. It makes the network environment more flexible and easier to manage.

Through web- based UI, VPN Router enables enterprises to have their own network access rules . To control web access, users can build and edit filter lists. It also enables users to ban or monitor websites according to their needs. By the filter setting and complete OS management, school and business internet management will be clearly improved. VPN Router offers various on-line SysLog records. It supports on-line management setup tools; it makes setting up networks easy to understand. It also reinforces the management of network access rules, VPN, and all other network services.

VPN Router fully protects the safety of communication between all offices and branches of an organization. It helps to free enterprises from increasing hacker intrusion. With an exclusive independent operation platform, users are able to set up and use a firewall without professional network knowledge. VPN Router setting up and management can be carried out through web browsers, such as IE, Netscape, etc.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

II. Multi- WAN VPN Router Installation

In this chapter we are going to introduce hardware installation. Through the understanding of multi-WAN setting process, users can easily setup and manage the network,making VPN Router functioning and having best performance.

2.1 Systematic Setting Process

Users can set up and enable the network by utilizing bandwidth efficiently. The network can achieve the ideal efficientness,block attacks, and prevent security risks at the same time. Through the process settings, users can install and operate VPN Router easily. This simplifies the management and maintenance, making the user network settings be done at one time. The main process is as below:

1. Hardware installation

2. Login

3. Verify device specification and set up password and time

4. Set WAN connection

5. Set LAN connection: physical port and IP address settings

6. Set QoS bandwidth management: avoid bandwidth occupation

7. Set Firewall: prevent attack and improper access to network resources

8. Other settings: UPnP, DDNS, MAC Clone

9. Management and maintenance settings: Syslog, SNMP, and configuration backup

10. VPN (Virtual Private Network), QnoKey, QVM VPN function setting

11. Logout

2.2 Setting Flow Chart Below is the description for each setting process, and the crospondent contents and purposes. For detailed functions, please refer to Appendix I: Setting Inferface and Chapter Index.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

# Setting Content Purpose

Hardware installation

Configure the network to meet user’s demand.

Install the device hardware based on user physical requirements.

2 Login Login the device with

Web Browser.

3 Verify device

specification

Verify Firmware version and working status.

Verify the device specification, Firmware version and working status.

Set password and time Set time and re- new

password.

Modify the login password considering safe issue. Synchronize time with WAN.

Set WAN connection

Verify WAN connection setting, bandwidth allocation, and protocol binding.

Connect to WAN. Configure bandwidth to optimize data transmission.

Set LAN connection: physical port and IP address settings

Set mirror port and VLAN. Allocate and manage LAN IP.

Provide mirror port, port management and VLAN setting functions. Support Static/DHCP IP allocation to meet different needs. IP group will simplize the management work.

Set QoS bandwidth management: avoid bandwidth occupation

Restrict bandwidth and session of WAN ports, LAN IP and application.

To assure transmission of important information, manage and allocate the bandwidth further to achieve best efficiency.

Set Firewall: prevent attack and improper access to network resources

Block attack, Set Access rule and restrict Web access.

Administrators can block BT to avoid bandwidth occupation, and enable access rules to restrict employee accessing internet improperly or using MSN, QQ and Skype during working time. They can also protect network from Worm or ARP attacking.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Advanced Settings： DMZ/Forwarding, UPnP, DDNS, MAC Clone

DMZ/Forwarding, UpnP, Routing Mode, multiple WAN IP, DDNS and MAC Clone

DMZ/Forwarding, UPnP, Routing Mode, multiple WAN IP, DDNS and MAC Clone

Management and maintenance settings: Syslog, SNMP, and configuration backup

Monitor VPN Router working status and configuration backup.

Administrators can look up system log and monitor system status and inbound/outbound flow in real time.

VPN Virtual Private Network, QnoKey, QVM VPN function setting

Configure VPN tunnels, e.g. PPTP, QnoKey, and QVM VPN.

Configure different types of VPN to meet different application environment.

11 Logout Close configuration

window.

Logout VPN Router web- based UI.

We will follow the process flow to complete the network setting in the following chapters.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

III. Hardware Installation

In this chapter we are going to introduce hardware interface as well as physical installation.

3.1 LED Signal

LED Signal Description

LED Color Description

Power Green Green LED on: Power ON DIAG Amber Amber LED on: System self-test is running.

Amber LED blinking: System not ready Amber LED off: System self-test is completed successfully.

Link/Act Green Green LED on: Port has been connected & Get IP.

Green LED blinking: Packets are transmitting through Ethernet port.

100M- Speed Amber Amber LED on: Ethernet is running at 100Mbps.

Amber LED off: Ethernet is running at 10Mbps. Connect Green Green LED on: WAN is connected and gets the IP address. WAN1 Green

Green LED on：WAN1 is connected and IP address has been

obtained WAN2 Green

Green LED on：WAN2 is connected and IP address has been

obtained

Reset

Action Description

Press Reset Button For 5 Secs

Warm Start DIAG indicator: Amber LED flashing slowly.

Press Reset Button Over 10 Secs

Factory Default DIAG indicator: Amber LED flashing quickly.

System Built-in Battery

A system timing battery is built into the device. The lifespan of the battery is about 1~2 years. If the battery life is over or it can not be charged, the device will not be able to record time correctly, nor synchronize with internet NTP time server. Please contact your system supplier for information on how to replace the battery.

Attention!

Do not replace the battery yourself; otherwise irreparable damage to the product may be caused.

Installing the device

on a Standard 19” Rack

We suggest to either place

place other heavy objects together with

thus causing damage or danger.

Each device

comes with a set of rack installation accessories, including 2 L

screws. Users can rack-

mount the device onto the chassis. Please r

installation onto a 19” rack:

Attention!

In order for the device to run smoothly, wherever users install it, be sure not to obstruct the vent on

each side of the device. Keep at least 10cm

SSSSLL // I

he device on a des

k or install it in a rack with attached brackets. Do not

the device on a rack. Ov

erloading may cause the rack to fail,

efer to the figure below for the

space in front of both the vents for air convection.

SSeecc VVPPNN QQooSS RRoouutteer

shaped brackets and 8

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Installing Router on a Wall

The Router has two wall-mount slots on its bottom panel. When mounting the device on a wall, please ensure that the heat dissipation holes are facing sideways as shown in the following picture for safety reasons. Qno is not responsible for damages incurred by insecure wall-mounting hardware.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

3.2 VPN Router Network Connection

WAN connection：A WAN port can be connected with xDSL Modem, Fiber Modem, Switching Hub, or through an external router to connect to the Internet.

LAN Connection: The LAN port can be connected to a Switching Hub or directly to a PC. Users can use servers for monitoring or filtering through the port after “Physical Port Mangement” configuration is done.

DMZ : The DMZ port can be connected to servers that have legal IP addresses, such as Web servers, mail servers, etc.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

IV. Login

This chapter is mainly introducing Web- based UI after conneting the device.

First, check up the device’s IP address by connecting to DOS through the LAN PC under the device. Go to Start → Run, enter cmd to commend DOS, and enter ipconfig for getting Default Gateway address, as the graphic below, 192.168.1.1. Make sure Default Gateway is also the default IP address of the router.

Attention!

When not getting IP address and default gateway by using “ipconfig”, or the received IP address is

0.0.0.0 and 169.X.X.X, we recommend that users should check if there is any problem with the circuits or the computer network card is connected nicely.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Then, open webpage browser, IE for example, and key in 192.168.1.1 in the website column. The login window will appear as below:

The device’s default username and password are both “admin”. Users can change the login password in the setting later.

Attention!

For security, we strongly suggest that users must change password after login. Please keep the password safe, or you can not login to the device. Press Reset button for more than 10 sec, all the setting will return to default.

After login, the device’s web- based UI will be shown. Select the language on the upper right corner of the

webpage. The language chosen will be in blue. Please select “English’ as below.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

V. V. Device Spec Verification, Status Display and Login Password and Time Setting

This chapter introduces the device specification and status after login as well as change password and

system time settings for security.

5.1 Home Page

In the Home page, all the device’s parameters and status are listed for users’ reference.

5.1.1 WAN Status

IP Address：

Indicates the current IP configuration for WAN port.

Default Gateway：

Indicates current WAN gateway IP address from ISP.

DNS Server：

Indicates the current DNS IP configuration.

Session：

Indicates the current session number for each WAN in the device.

Downstream Bandwidth Usage(%)：

Indicates the current downstream bandwidth usage(%) for each WAN.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Upstream Bandwidth Usage(%)：

Indicates the current upstream bandwidth usage(%) for each WAN.

DDNS：

Indicates if Dynamic Domain Name is activated. The default configuration is “Off”.

Quality of Service：

Indicates how many QoS rules are set.

Manual Connect：

When “Obtain an IP automatically” is selected, two buttons (Release and Renew) will appear. If a WAN connection, such as PPPoE or PPTP, is selected, “Disconnect” and “Connect” will appear.

DMZ IP Address：

Indicates the current DMZ IP address.

5.1.2 Physical Port Status

The status of all system ports, including each connected and enabled port, will be shown on this Home page (see above table). Click the respective status button and a separate window will appeare to show detailed data (including setting status summary and statisitcs) of the selected port.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

The current port setting status information will be shown in the Port Information Table. Examples: type (10Base-T/100Base-TX), iniferface (WAN/ LAN/ DMZ), link status (Up/ Down), physical port status (Port Enabled/ Port Disabled), priority (high or normal), speed status (10Mbps or 100Mbps), duplex status (Half/ Full), auto negotiation (Enabled or Disabled). The tabble also shows statistics of Receive/ Transmit Packets, Receive/Transmit Packets Byte Count as well as Error Packets Count.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

5.1.3 System Information

LAN IP/Subnet Mask：：：： Identifies the current device IP address. The default is 192.168.1.1.

Working Mode：：：： Indicates the current working mode. Can be NAT Gateway or Router mode. The default

is “NAT Gateway” mode.

System Active Time：：：：Indicates how long the Router has been running.

Serial Number：：：：This number is the Router serial number.

Firmware Version：：：： Information about the Router present software version.

Current Time：：：：Indicates the device present time

. Please note:

To have the correct time, users must

synchronize the device with the remote NTP server first.

CPU Usage：：：：Indicates the current router CPU usage percentage.

Memory Usage：Indicates the current router memory usage percentage.

Total Session：：：：Indicates the current router session connection quantity.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

5.1.4 Firewall Status

SPI (Stateful Packet Inspection)： Indicates whether SPI (Stateful Packet Inspection) is on or off. The

default configuration is “On”.

DoS (Denial of Service)：Indicates if DoS attack prevention is activated. The default configuration is

“On”.

Block WAN Request：Indicates that denying the connection from Internet is activated. The default

configuration is “On”.

Prevent ARP Virus Attack： Indicates that preventing Arp virus attack is acitvated. The default

configuration is “Off”.

Remote Management: Indicates if remote management is activated (on or off). Click the hyperlink to

enter and manage the configuration. The default configuration is “Off”.

Access Rule：Indicates the number of access rule applied in the device.

5.1.5 Log Setting Status

External SyslogServer：：：：

Indicates the sever setting to receive the syslog.

Send Log by E-mail ：：：：

(future feature)

Indicates the E-mail setting. Syslog will be sent to the specific E-mail.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

5.2 Change and Set Login Password and Time

5.2.1 Password Setting When you login the device setting window every time, you must enter the password. The default value for

the device username and password are both “admin”. For security reasons, we strongly recommend that you must change your password after first login. Please keep the password safe, or you might not login to the device. You can press Reset button for more than 10 sec, the device will return back to default.

User Name：

The default is “admin”. Old Password： Input the original password.（The default is “admin”.） New User Name：

Input the new user name. i.e.Qno New Password：

Input the new password.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Confirm New Password：

Input the new password again for verification.

Apply：

Click “Apply” to save the configuration. Cancel：

Click “Cancel" to leave without making any change. This action will be

effective before ”Apply” to save the configuration.

5.2.2 Time The device can adjust time setting. Users can know the exact time of event occurrences that are

recorded in the System Log, and the time of closing or opening access for Internet resources. You can either select the embedded NTP Server synchronization function or set up a time reference.

Synchronize with external NTP server：The device has embedded NTP server, which will update the time

spontaneously.

Time Zone：

Select your location from the pull-down time zone list to show correct local time.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Daylight Saving：

If there is Daylight Saving Time in your area, input the date range. The device will adjust the time for the Daylight Saving period automatically.

NTP Server：

If you have your own preferred time server, input the server IP address.

Apply：

After the changes are completed, click “Apply” to save the configuration.

Cancel：

Click “Cancel" to leave without making any change. This action will be effective before ”Apply” to save the configuration.

Select the Local Time Manually: Input the correct time, date, and year in the boxes.

After the changes are completed, click “Apply” to save the configuration. Click “Cancel" to leave

without making any change. This action will be effective before ”Apply” to save the configuration.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

VI. Network

This Network page contains the basic settings. For most users, completing this general setting is enough

for connecting with the Internet. However, some users need advanced information from their ISP. Please refer to the following descriptions for specific configurations.

6.1 Network Connection

6.1.1 Host Name and Domain Name

Device name and domain name can be input in the two boxes. Though this configuration is not

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

necessary in most environments, some ISPs in some countries may require it.

6.1.2 LAN Setting

This is configuration information for the device current LAN IP address. The default configuration is

192.168.1.1 and the default Subnet Mask is 255.255.255.0. It can be changed according to the actual network structure.

Multiple-Subnet Setting：

Click “Unified IP Management” to enter the configuration page, as shown in the following figure. Input

the respective IP addresses and subnet masks.

This function enables users to input IP segments that differ from the router network segment to the multi-net segment configuration; the Internet will then be directly accessible. In other words, if there are already different IP segment groups in the Intranet, the Internet is still accessible without making any

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

changes to internal PCs. Users can make changes according to their actual network structure.

6.1.3 WAN & DMZ Settings WAN Setting：

Interface: An indication of which port is connected.

Connection Type: Obtain an IP automatically, Static IP connection, PPPoE (Point-to-Point Protocol over Ethernet), PPTP (Point-to-Point Tunneling Protocol) or Transparent Bridge.

Config.: A modification in an advanced configuration: Click Edit to enter the advanced configuration page.

Obtain an Automatic IP automatically:

This mode is often used in the connection mode to obtain an automatic DHCP IP. This is the device

system default connection mode. It is a connection mode in which DHCP clients obtain an IP address automatically. If having a different connection mode, please refer to the following introduction for selection of appropriate configurations. Users can also set up their own DNS IP address. Check the options and input the user-defined DNS IP addresses.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Use the following DNS Server Addresses：：：：

Select a user-defined DNS server IP address.

DNS Server：：：：

Input the DNS IP address set by ISP. At least one IP group should be input. The maximum acceptable groups is two IP groups.

Enable Line-Dropped Scheduling：：：：

0:00 am to 6:00 am. Although there is a standby system in the device, at

the moment of WAN disconnection, all the external connections that go through this WAN will be disconnected too. Only after the disconnected lines are reconnected can they go through the standby system to connect with the Internet. Therefore, to avoid a huge number of disconnection, users can activate this function to arrange new connections to be made through another WAN to the Internet. In this way, the effect of any disconnection can be minimized.

Line-Dropped Period：：：：

Input the time rule for disconnection of this WAN service.

Line-Dropped Scheduling：：：：

Input how long the WAN service may be disconnected before the newly added connections should go through another WAN to connect with the Internet.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Backup Interface：：：：

Select another WAN port as link backup when port binding is configured.

Users should select the port that employs the same ISP.

After the changes are completed, click “Apply” to save the configuration, or click “Cancel" to leave

without making any changes.

Static IP

If an ISP issues a static IP (such as one IP or eight IP addresses, etc.), please select this connection

mode and follow the steps below to input the IP numbers issued by an ISP into the relevant boxes.

WAN IP address

Input the available static IP address issued by ISP.

Subnet Mask

Input the subnet mask of the static IP address issued by ISP, such as:

Issued eight static IP addresses: 255.255.255.248

Issued 16 static IP addresses: 255.255.255.240

Default Gateway

Input the default gateway issued by ISP. For ADSL users, it is usually an ATU-R IP address. As for optical fiber users, please input the optical fiber switching IP.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

DNS Server

Input the DNS IP address issued by ISP. At least one IP group should be input. The maximum acceptable is two IP groups.

Enable Line-Dropped Scheduling

The WAN disconnection schedule will be activated by checking this option. In some areas, there is a time limitation for WAN connection service. For example: the optical fiber service will be disconnected from 0:00 am to 6:00 am. Although there is a standby system in the device, at the moment of WAN disconnection, all the external connections that go through this WAN will be disconnected too. Only after the disconnected lines are reconnected can they go through the standby system to connect with the Internet. Therefore, to avoid a huge number of disconnection, users can activate this function to arrange new connections to be made through another WAN to the Internet. In this way, the effect of any disconnection can be minimized.

Line-Dropped Period

Input the time rule for disconnection of this WAN service.

Line-Dropped Scheduling

Input how long the WAN service may be disconnected before the newly added connections should go through another WAN to connect with the Internet.

Backup Interface

Select another WAN port as link backup when port binding is configured. Users should select the port that employs the same ISP.

After the changes are completed, click “Apply” to save the configuration, or click “Cancel" to leave

without making any changes.

PPPoE

This option is for an ADSL virtual dial-up connection (suitable for ADSL PPPoE). Input the user connection name and password issued by ISP. Then use the PPP Over-Ethernet software built into the device to connect with the Internet. If the PC has been installed with the PPPoE dialing software provided by ISP, remove it. This software will no longer be used for network connection.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

User Name

Input the user name issued by ISP.

Password

Input the password issued by ISP.

Connect on Demand

This function enables the auto-dialing function to be used in a PPPoE dial connection. When the client port attempts to connect with the Internet, the device will automatically make a dial connection. If the line has been idle for a period of time, the system will break the connection automatically. (The default time for automatic break-off resulting from no packet transmissions is five minutes).

Keep Alive

This function enables the PPPoE dial connection to keep connected, and to automatically redial if the line is disconnected. It also enables a user to set up a time for redialing. The default is 30 seconds.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Enable Line-Dropped Scheduling

Line-Dropped Period

Input the time rule for disconnection of this WAN service.

Line-Dropped Scheduling

Input how long the WAN service may be disconnected before the newly added connections should go through another WAN to connect with the Internet.

Backup Interface

Select another WAN port as link backup when port binding is configured. Users should select the port that employs the same ISP.

After the changes are completed, click “Apply” to save the configuration, or click “Cancel" to leave without making any change.

PPTP

This option is for the PPTP time counting system. Input the user’s connection name and password issued by ISP, and use the built-in PPTP software to connect with the Internet.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

WAN IP Address

This option is to configure a static IP address. The IP address to be configured could be one issued by ISP. (The IP address is usually provided by the ISP when the PC is installed. Contact ISP for relevant information).

Subnet Mask

Input the subnet mask of the static IP address issued by ISP, such as:

Issued eight static IP addresses: 255.255.255.248

Issued 16 static IP addresses: 255.255.255.240

Default Gateway Address

Input the default gateway of the static IP address issued by ISP. For ADSL users, it is usually an ATU-R IP address.

User Name

Input the user name issued by ISP.

Password

Input the password issued by ISP.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Connect on Demand

This function enables the auto-dialing function to be used for a PPTP dial connection. When the client port attempts to connect with the Internet, the device will automatically connect with the default ISP auto dial connection; when the network has been idle for a period of time, the system will break the connection automatically. (The default time for automatic break off when no packets have been transmitted is five minutes).

Keep Alive

This function enables the PPTP dial connection to redial automatically when the connection has been disconnected. Users can set up the redialing time. The default is 30 seconds.

Enable Line-Dropped Scheduling

Line-Dropped Period

Input the time rule for disconnection of this WAN service.

Line-Dropped Scheduling

Input how long the WAN service may be disconnected before the newly added connections should go through another WAN to connect with the Internet.

Backup Interface

Select another WAN port as link backup when port binding is configured. Users should select the port that employs the same ISP.

After the changes are completed, click “Apply” to save the configuration, or click “Cancel" to leave without making any changes.

Transparent Bridge

If all Intranet IP addresses are applied as Internet IP addresses, and users don’t want to substitute private network IP addresses for all Intranet IP addresses (ex. 192.168.1.X), this function will enable users to

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

integrate existing networks without changing the original structure. Select the Transparent Bridge mode for the WAN connection mode. In this way, users will be able to connect normally with the Internet while keeping the original Internet IP addresses in Intranet IP configuration.

If there are two WANs configured, users still can select Transparent Bridge mode for WAN connection mode, and load balancing will be achieved as usual.

WAN IP Address

Input one of the static IP addresses issued by ISP.

Subnet Mask

Input the subnet mask of the static IP address issued by ISP, such as: Issued eight static IP addresses: 255.255.255.248 Issued 16 static IP addresses: 255.255.255.240

Default Gateway Address

Input the default gateway of the static IP address issued by ISP. For ADSL users, it is usually an ATU-R IP address.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

DNS Server

Input the DNS IP address set by ISP. At least one IP group should be input. The maximum acceptable is two IP groups.

Internal LAN IP Range

Input the available IP range issued by ISP. If ISP issued two discontinuous IP address ranges, users can input them into Internal

LAN IP Range 1 and Internal LAN IP Range 2 respectively.

Enable Line-Dropped Scheduling

Line-Dropped Period

Input the time rule for disconnection of this WAN service.

Line-Dropped Scheduling

Input how long the WAN service may be disconnected before the newly added connections should go through another WAN to connect with the Internet.

Backup Interface

Select another WAN port as link backup when port binding is configured. Users should select the port that employs the same ISP.

After the changes are completed, click “Apply” to save the configuration, or click “Cancel" to leave without making any changes.

Router Plus NAT Mode：

When you apply a public IP address as your default gateway, you can setup this public IP address into a LAN PC, and this PC can use this public IP address to reach the Internet. Others PCs can use NAT mode to reach the Internet.

If this WAN network is enabled the Router plus NAT mode, you can still use load balancing function in this WAN network.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

WAN IP address

Enter the public IP address.

Subnet mask

Enter the public IP address subnet mask.

WAN Default Gateway

Enter the WAN default gateway, which provided by your ISP.

DNS Servers

Enter the DNS server IP address, you must have to enter a DNS server IP address, maximum two DNS servers IP addresses available..

LAN Default Gateway

Enter one of IP addresses that provide by the ISP as your default gateway.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

LAN IP Addresses Range

Enter your IP addresses range, which IP addresses are provided by ISP. If you have multiple IP ranges, you need setup group1 and group 2.

You can also setup the default gateway and IP range in the group 2.

DMZ Setting

For some network environments, an independent DMZ port may be required to set up externally connected servers such as WEB and Mail servers. Therefore, the device supports a set of independent DMZ ports for users to set up connections for servers with real IP addresses. The DMZ ports act as bridges between the Internet and LANs.

IP address: Indicates the current default static IP address.

Config.: Indicates an advanced configuration modification: Click Edit to enter the advanced configuration

page.

The DMZ configuration can be classified by Subnet and Range:

Subnet：

The DMZ and WAN located in different Subnets

For example: If the ISP issued 16 real IP addresses: 220.243.230.1-16 with Mask 255.255.255.240, users have to separate the 16 IP addresses into two groups: 220.243.230.1-8 with Mask 255.255.255.248, and 220.243.230.9-16 with Mask 255.255.255.248 and then set the device and the gateway in the same group with the other group in the DMZ.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Range：

DMZ and WAN within same Subnet

IP Range: Input the IP range located at the DMZ port.

After the changes are completed, click “Apply” to save the configuration, or click “Cancel" to leave without making any changes.

DMZ IP ranges are the same with WAN IP ranges in Router Plus NAT mode：

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

LAN Default Gateway

Enter the LAN Default Gateway that you configured at Router Plus NAT Mode

LAN IP Range

Enter the usable static IP range that provide by ISP into the DMZ service IP range.

If you have other IP range, you can setup the default gateway and IP range into group 2.

After the changes are completed, click “Apply” to save the configuration, or click “Cancel" to leave without making any changes.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

6.2 Multi- WAN Setting

When you have multiple WAN gateways, you can use Traffic Management and Protocol Binding function to fulfill WAN road balancing, so that we can have highest network bandwidth efficiency.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

6.2.1 Load Balance Mode

Auto Load Balance Mode

When Auto Load Balance mode is selected, the device will use sessions or IP and the WAN bandwidth automatically allocate connections to achieve load balancing for external connections. The network bandwidth is set by what users input for it. For example, if the upload bandwidth of both WANs is 512Kbit/sec, the automatic load ratio will be 1:1; if one of the upload bandwidths is 1024Kbit/sec while the other is 512Kbit/sec, the automatic load ratio will be 2:1. Therefore, to ensure that the device can balance the actual network load, please input real upload and download bandwidths.

 Session Balance: If “By Session” is selected, the WAN bandwidth will automatically

allocate connections based on session number to achieve network load balance.

 IP Session Balance: If “By IP” is selected, the WAN bandwidth will automatically allocate

connections based on IP amount to achieve network load balance.

Note!

For either session balancing or IP connection balancing, collocation with Protocol Binding will provide a more flexible application for bandwidth. Users can assign a specific Intranet IP to go through a specific service provider for connection, or assign an IP for a specific destination to go through the WAN users assign to connect with the Internet.

For example, if users want to assign IP 192.168.1.100 to go through WAN 1 when connecting with the Internet, or assign all Intranet IP to go through WAN 2 when connecting with servers with port 80, or assign all Intranet IP to go through WAN 1 when connecting with IP 211.1.1.1, users can do that by configuring “Protocol Binding”.

Attention! When the Auto Load Balance mode is collocated with Protocol Binding, only IP

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

addresses or servers that are configured in the connection rule will follow the rule for external connections; those which are not configured in the rule will still follow the device Auto Load Balance system.

Please refer to the explanations in 6.2.3 Configuring Protocol Binding for setting up Protocol

Binding and for examples of collocating router modes with Protocol Binding.

Specify WAN Binding Mode

This mode enables users to assign specific intranet IP addresses, destination application service ports or destination IP addresses to go through an assigned WAN for external connection. After being assigned, the specific WAN will only support those assigned Intranet IP addresses, specific destination application service ports, or specific destination IP addresses. Intranet IP, specific destination application service ports and specific destination IP that is not configured under the rules will go through other WANs for external connection. For unassigned WANs, users can select Load Balance mode and select session or IP for load balancing.

●

Session Balance: If “By Session” is selected, the WAN bandwidth will automatically allocate connections based on session number to achieve network load balance.

●

IP Balance: If “By IP” is selected, the WAN bandwidth will automatically allocate connections based on the number of IP addresses to achieve network load balance.

Note!

Only when a device assignment is collocated with Protocol Binding can the balancing function be brought into full play. For example, an assignment requiring all Intranet IP addresses to go through WAN 1 when connecting with service port 80, or go through WAN 1 when connecting with IP 211.1.1.1, must be set up in the Protocol Binding Configuration.

Attention: When assigning mode is selected, as in the above example, the IP(s) or service provider(s) configured in the connection rule will follow the rule for external connections, but those which are not configured in the rule will still follow the device Load Balance system to go through other WAN ports to connect with the Internet.

Please refer to the explanations in 6.2.3 Configuring Protocol Binding for setting up Protocol

Binding and for examples of collocating router mode with Protocol Binding.

Strategy Routing Mode

If strategy Routing is selected, the device will automatically allocate external connections based on

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

routing policy (Division of traffic between Telecom and Netcom is to be used in China) embedded in the device. All you have to do is to select the WAN (or WAN group) which is connected with Netcom; the device will then automatically dispatch the traffic for Netcom through that WAN to connect with the Internet and dispatch traffic for Telecom to go through the WAN connected with Telecom to the Internet accordingly. In this way, the traffic for Netcom and Telecom can be divided.

Set WAN Grouping:

If more than one WAN is connected with Netcom, to apply a similar division of traffic policy to these WANs, a combination for the WANs must be made. Click “Set WAN Grouping”; an interactive window as shown in the figure below will be displayed.

Name: To define a name for the WAN grouping in the box, such as

“Education” etc. The name is for recognizing different WAN groups.

Interface: Check the boxes for the WANs to be added into this combination.

Add To List: To add a WAN group to the grouping list. Delete selected: To remove selected WANs from the WAN grouping. Apply: Click “Apply” to save the modification.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Cancel: Click “Cancel” to cancel the modification. This only works before

“Apply” is clicked.

After the configuration is completed, in the China Netcom Policy window users can select WANs in

combination to connect with Netcom.

Import Strategy:

A division of traffic policy can be defined by users too. In the “Import Strategy” window, select the WAN or WAN group (ex. WAN 1) to be assigned and click the “Import IP Range” button; the dialogue box for document importation will be displayed accordingly. A policy document is an editable text document. It may contain a destination IP users designated. After the path for document importation has been selected, click “Import”, and then at the bottom of the configuration window click “Apply”. The device will then dispatch the traffic to the assigned destination IP through the WAN (ex. WAN 1) or WAN grouping users designated to the Internet.

To build a policy document users can use a text-based editor, such as Notepad, which is included with Windows system. Follow the text format in the figure below to key in the destination IP addresses users want to assign. For example, if the destination IP address range users want to designate is 140.115.1.1 ~

140.115.1.255, key in 140.115.1.1 ~ 140.115.1.255 in Notepad. The next destination IP address range should be keyed in the next line. Attention! Even if only one destination IP address is to be assigned, it should follow the same format. For example, if the destination IP address is 210.66.161.54, it should be keyed in as

210.66.161.54~210.66.161.54. After the document has been saved (the extension file name is .txt), users can import the IP range of self-defined strategy.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Note!

China Netcom strategy and self-defined strategy can coexist. However, if a destination IP is assigned by both China Netcom strategy and self-defined strategy, China Netcom strategy will take priority. In other words, traffic to that destination IP will be transmitted through the WAN (or WAN group) under China Netcom strategy.

6.2.2 Network Service Detection This is a detection system for network external services. If this option is selected, information such “Retry”

or “Retry Timeout” will be displayed. If two WANs are used for external connection, be sure to activate the NSD system, so as to avoid any unwanted break caused by the device misjudgment of the overload traffic for the WAN.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Interface:

Select the WAN Port that enables Network Service Detection.

Retry:

This selects the retry times for network service detection. The default is five times. If there is no feedback from the Internet in the configured “Retry Times", it will be judged as “External Connection Disconnected”.

Retry Timeout:

Delay time for external connection detection latency. The default is 30 seconds. After the retry timeout, external service detection will restart.

When Fail: (1) Generate the Error Condition in the System Log: If an ISP

connection failure is detected, an error message will be recorded in the System Log. This line will not be removed; therefore, the some of

the users on this line will not have normal connections. This option is suitable under the condition that one of the WAN connections has failed; the traffic going through this WAN to the destination IP cannot shift to another WAN to reach the destination. For example, if users want the traffic to 10.0.0.1 ~ 10.254.254.254 to go only through WAN1, while WAN2 is not to support these destinations, users should select this option. When the WAN1 connection is disconnected, packets for 10.0.0.1~10.254.254.254 cannot be transmitted through WAN 2, and there is no need to remove the connection when WAN 1 is disconnected.

(2) Keep System Log and Remove the Connection: If an ISP

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

connection failure is detected, no error message will be recorded in

the System Log. The packet transmitted through this WAN will be

shifted to the other WAN automatically, and be shifted back again

when the connection for the original WAN is repaired and

reconnected. This option is suitable when one of the WAN connections fails and the traffic going through this WAN to the destination IP should go through the other WAN to reach the destination. In this way, when any of the WAN connections is broken, other WANs can serve as a backup; traffic can be shifted to a WAN that is still connected.

Detecting Feedback Servers:

Default Gateway:

The local default communication gateway location, such as the IP address of an ADSL router, will be input automatically by the device. Therefore, users just need to check the option if this function is needed. Attention! Some gateways of an ADSL network will not affect packet detection. If users have an optical fiber box, or the IP issued by ISP is a public IP and the gateway is located at the port of the net café rather than at the IP provider’s port, do not activate this option.

ISP Host:

This is the detected location for the ISP port, such as the DNS IP address of ISP. When configuring an IP address for this function, make sure this IP is capable of receiving feedback stably and speedily. (Please input the DNS IP of the ISP port)

Remote Host:

This is the detected location for the remote Network Segment. This Remote Host IP should better be capable of receiving feedback stably and speedily. (Please input the DNS IP of the ISP port).

DNS Lookup Host:

This is the detect location for DNS. (Only a web address such as

www.hinet.net is acceptable here. Do not input an IP address.) In

addition, do not input the same web address in this box for two different WANs.

Note！

In the load balance mode for Assigned Routing, the first WAN port (WAN1) will be saved for the

traffic of the IP addresses or the application service ports that are not assigned to other WANs (WAN2).

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Therefore, in this mode, we recommend assigning one of the connections to the first WAN. When other WANs (WAN2) are broken and connection error remove (Remove the Connection) has been selected for the connection detection system, traffic will be shifted to the first WAN (WAN1). In addition, if the first WAN (WAN1) is broken, the traffic will be shifted to other WANs in turn. For example, the traffic will be shifted to WAN2.

6.2.3 Protocol Binding

Interface Configuration

Router allows maximum four WAN interface, the bandwidth and real connection of every WAN will impact the load balance mechanism; therefore you need to set the Bandwidth and the Network service detection by each WAN Port correctly.

In “Interface Configuration”, click “Edit” to enter the WAN port configuration.

Bandwidth Configuration

When Auto Load Balance mode is selected, the device will select sessions or IP and the WAN bandwidth will automatically allocate connections to achieve load balancing for external connections. The network bandwidth is set by what users input for it. For example, if the upload bandwidth of both WANs is 512Kbit/sec, the automatic load ratio will be 1:1; if one of the upload bandwidths is 1024Kbit/sec, while the other is 512Kbit/sec, the automatic load ratio will be 2:1. Therefore, to ensure that the device can balance the actual network load, please input real upload and download bandwidths. The section refers to QoS configuration. Therefore, it should be set in QoS page. Please refer to 8.1 QoS bandwidth configuration.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Protocol Binding

Users can define specific IP addresses or specific application service ports to go through a user-assigned WAN for external connections. For any other unassigned IP addresses and services, WAN load balancing will still be carried out.

Note！

In the load balance mode of Assigned Routing, the first WAN (WAN1) cannot be assigned. It is to be saved for the IP addresses and the application Service Ports that are not assigned to other WANs (WAN2) for external connections. In other words, the first WAN (WAN1) cannot be configured with the Protocol Binding rule. This is to avoid a condition where all WANs are assigned to specific Intranet IP or Service Ports and destination IP, no more WAN ports will be available for other IP addresses and Service Ports.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Service:

This is to select the Binding Service Port to be activated. The default (such as ALL-TCP&UDP 0~65535, WWW 80~80, FTP 21 to 21, etc.) can be selected from the pull-down option list. The default Service is All 0~65535. Option List for Service Management: Click the button to enter the Service Port configuration page to add or remove default Service Ports on the option list.

Source IP:

Users can assign packets of specific Intranet virtual IP to go through a specific WAN port for external connection. In the boxes here, input the Intranet virtual IP address range; for example, if 192.168.1.100~150 is input, the binding range will be 100~150. If only specific Service Ports need to be designated, while specific IP designation is not necessary, input “0” in the IP boxes.

Dest. IP:

In the boxes, input an external static IP address. For example, if connections to destination IP address 210.11.1.1 are to be restricted to WAN1, the external static IP address 210.1.1.1 ~ 210.1.1.1 should be input. If a range of destinations is to be assigned, input the range such as

210.11.1.1 ~ 210.11.255.254. This means the Class B Network Segment of

210.11.x.x will be restricted to a specific WAN. If only specific Service Ports need to be designated, while a specific IP destination assignment is not required, input “0” into the IP boxes.

Interface:

Select the WAN for which users want to set up the binding rule.

Enable:

To activate the rule.

Add To List:

To add this rule to the list.

Delete selected item:

To remove the rules selected from the Service List.

Moving Up & Down:

The priority for rule execution depends on the rule order in the list. A rule located at the top will be executed prior to those located below it. Users can arrange the order according to their priorities.

Note！

The rules configured in Protocol Binding will be executed by the device according to their priorities too. The higher up on the list, the higher the priority of execution.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Show Priority：

Click the “Show Table” button. A dialogue box as shown in the following figure will be displayed. Users

can choose to sort the list by priorities or by interface. Click “Refresh” and the page will be refreshed; click “Close” and the dialogue box will be closed.

Add or Remove Service Port

If the Service Port users want to activate is not in the list, users can add or remove service ports

from “Service Management” to arrange the list, as described in the following：

Service Name:

In this box, input the name of the Service Port which users want to activate, such as BT, etc.

Protocol:

This option list is for selecting a packet format, such as TCP or UDP for the Service Ports users want to activate.

Port range:

In the boxes, input the range of Service Ports users want to add.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Add To List:

Click the button to add the configuration into the Services List. Users can add up to 100 services into the list.

Delete selected service:

To remove the selected activated Services.

Apply: Click the “Apply” button to save the modification. Cancel: Click the “Cancel” button to cancel the modification. This only

works before “Apply” is clicked.

Exit:

To quit this configuration window.

Auto Load Balancing mode when enabled：

The collocation of the Auto Load Balance Mode and the Auto Load Mode will enable more flexible use of bandwidth. Users can assign specific Intranet IP addresses to specific destination application service ports or assign specific destination IP addresses to a WAN users choose for external connections.

Example 1：How do I set up Auto Load Balance Mode to assign the Intranet IP 192.168.1.100 to WAN2 for the Internet?

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

As in the figure below, select “All Traffic” from the pull-down option list “Service”, and then in the boxes of “Source IP” input the source IP address “192.168.1.100” to “100”. Retain the original numbers “0.0.0.0” in the boxes of “Destination IP” (which means to include all Internet IP addresses). Select WAN2 from the pull-down option list “Interface”, and then click “Enable”. Finally, click “Add New” and the rule will be added to the mode.

Example 2：How do I set up Auto Load Balance Mode to keep Intranet IP 192.168.1.150 ~ 200 from

going through WAN2 when the destination port is Port 80?

As in the figure below, select “HTTP [TCP/80~80]” from the pull-down option list “Service”, and then in the boxes for “Source IP” input “192.168.1.150” to “200”. Retain the original numbers “0.0.0.0” in the boxes of “Destination IP” (which means to include all Internet IP addresses). Select WAN2 from the pull-down option list “Interface”, and then click “Enable”. Finally, click “Add New” and the rule will be added to the mode.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Example 3：How do I set up Auto Load Balance Mode to keep all Intranet IP addresses from going through WAN2 when the destination port is Port 80 and keep all other services from going through WAN1?

As in the figure below, there are two rules to be configured. The first rule: select “HTTP [TCP/80~80]” from the pull-down option list “Service”, and then in the boxes of Source IP input “192.168.1.0” to “0” (which means to include all Intranet IP addresses). Retain the original numbers “0.0.0.0” in the boxes of “Destination IP” (Which means to include all Internet IP addresses). Select WAN2 from the pull-down option list “Interface”, and then click “Enable”. Finally, click “Add New” and the rule will be added to the mode. The device will transmit packets to Port 80 through WAN2. However, with only the above rule, packets that do not go to Port 80 may be transmitted through WAN2; therefore, a second rule is necessary. The second rule: Select “All Ports [TCP&UDP/1~65535]” from the pull-down option list “Service”, and then input “192.168.1.2 ~ 254” in the boxes of “Source IP”. Retain the original numbers “0.0.0.0” in the boxes of “Destination IP” (which means to include all Internet IP addresses). Select WAN1 from the pull-down option list “Interface”, and then click “Enable”. Finally, click “Add New” and the rule will be added to the mode. The device will transmit packets that are not going to Port 80 to the Internet through WAN1.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Configuring “Assigned Routing Mode” for load Balance：

IP Group: This function allows users to assign packets from specific Intranet IP addresses or to specific destination Service Ports and to specific destination IP addresses through an assigned WAN to the Internet. After being assigned, the specific WAN will only support those assigned Intranet IP addresses, destination Service Ports, or destination IP addresses. Those which are not configured will go through other WANs for external connection. Only when this mode is collocated with “Assigned Routing” can it bring the function into full play.

Example 1：How do I set up the Assigned Routing Mode to keep all Intranet IP addresses from going through WAN2 when the destination is Port 80, and keep all other services from going through WAN1?

As in the figure below, select “HTTP[TCP/80~80]” from the pull-down option list “Service”, and then in the boxes of “Source IP” input “192.168.1.0 ~ 0” (which means to include all Intranet IP addresses). Retain the original numbers “0.0.0.0” in the boxes of “Destination IP” (Which means to include all Internet IP addresses). Select WAN2 from the pull-down option list “Interface”, and then click “Enable”. Finally, click “Add New” and the rule will be added to the mode. After the rule is set up, only packets that go to Port 80 will be transmitted through WAN2, while other traffics will be transmitted through WAN1.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Example 2：How do I configure Protocol Binding to keep traffic from all Intranet IP addresses from going through WAN2 when the destinations are IP 211.1.1.1 ~ 211.254.254.254 as well as the whole Class A group of 60.1.1.1 ~ 60.254.254.254, while traffic to other destinations goes through WAN1?

As in the following figure, there are two rules to be configured. The first rule: Select “All Port [TCP&UDP/1~65535]” from the pull-down option list “Service”, and then in the boxes of “Source IP” input “192.168.1.0 ~ 0” (which means to include all Intranet IP addresses). In the boxes for “Destination IP” input “211.1.1.1 ~ 211.254.254.254”. Select WAN2 from the pull-down option list “Interface”, and then click “Enable”. Finally, click “Add New” and the rule will be added to the mode. The second rule: Select “All Port [TCP&UDP/1~65535]” from the pull-down option list “Service”, and then in the boxes of “Source IP” input “192.168.1.0 ~ 0” (which means to include all Intranet IP addresses). In the boxes of “Destination IP” input “211.1.1.1 ~ 60,254,254,254”. Select WAN2 from the pull-down option list “Interface”, and then click “Enable”. Finally, click “Add New”, and the rule will be added to the mode. After the rule has been set up, all traffic that is not going to the assigned destinations will only be transmitted through WAN1.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

VII. Intranet Configuration

This chapter introduces how to configure ports and understand how to configure intranet IP addresses.

7.1 Port Management

Through the device, users can easily manage the setup for WAN ports, LAN ports and the DMZ port by choosing the number of ports, speed, priority, duplex and enable/disable the auto-negotiation feature for connection setting of each port.

Mirror Port：Users can configure LAN 1 as mirror port by choosing “Enable Port 1 as Mirror Port”. All the traffic from LAN to WAN will be copied to mirror port. Administrator can control or filter the traffic through mirror port. Once this function is enabled, LAN 1 will be shown as Mirror Port in Physical Port Status, Home page.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

DisabledPort：

This feature allows users turn on/off the Ethernet port. If selected, the Ethernet port will be shut down immediately and no connection can be made. The default value is "on".

Priority：

This feature allows users to set the high/low priority of the packet delivery for the Ethernet port. If it is set as High, the port has the first priority to deliver the packet. The default value is “Normal”.

Speed Status：

This feature allows users to select the network hardware connection speed for the Ethernet port. The options are 10Mbps and 100Mbps.

Duplex Status：

This feature allows users to select the network hardware connection speed working mode for the Ethernet. The options are full duplex and half duplex.

Auto Neg.：

The Auto-Negotiation mode can enable each port to automatically adjust and gather the connection speed and duplex mode. Therefore, if Enabled Auto-Neg. selected, the ports setup will be done without any manual setting by administrators.

VLAN：

This feature allows administrators to set the LAN port to be one or more disconnected network sessions. All of them will be able to log on to the Internet through the device.

Members in the same network session (within the same VLAN) can see and communicate with each other. Members in different VLAN will not know the existence of other members.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

VLAN All：

Set VLAN All port to be the public area of VLAN so that it can be connected to other VLAN networks. A server should be constructed for the intranet so that all VLAN group can visit this server. Set one of the network ports as VLAN All. Connect the server to VLAN All so that computers of different VLAN groups can be connected to this server. Moreover, the port where the administrator locates must be set as VLAN All so that it can be connected to the entire network to facilitate network management.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

7.2 Port Status

Summary：

There are Network Connection Type, Interface, Link Status (Up/Down), Port Activity (Port Enabled), Priority Setting (High or Normal), Speed Status (10Mbps or 100Mbps), Duplex Status (half duplex or full duplex), Auto Neg. (Enabled/Disabled), and VLAN.

Statistics：

The packet data of this specific port will be displayed. Data include receive/ transmit packet count,

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

receive/ transmit packet Byte count and error packet count. Users may press the refresh button to update all real-time messages.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

7.3 IP/ DHCP

With an embedded DHCP server, it supports automatic IP assignation for LAN computers. (This function is similar to the DHCP service in NT servers.) It benefits users by freeing them from the inconvenience of recording and configuring IP addresses for each PC respectively. When a computer is turned on, it will acquire an IP address from the device automatically. This function is to make management easier.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Dynamic IP：

Client lease Time：

Check the option to activate the DHCP server automatic IP lease function. If the function is activated, all PCs will be able to acquire IP automatically. Otherwise, users should configure static virtual IP for each PC individually.

Range Start：

This is to set up a lease time for the IP address which is acquired by a PC. The default is 1440 minutes (a day). Users can change it according to their needs. The time unit is minute.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Range End：

This is an initial IP automatically leased by DHCP. It means DHCP will start the lease from this IP. The default initial IP is 192.168.1.100.

DNS (Domain Name Service)：

This is for checking the DNS from which an IP address has been leased to a PC port. Input the IP address of this server directly.

DNS (Required) 1：

Input the IP address of the DNS server.

DNS (Optional) 2：

Input the IP address of the DNS server.

WINS：

If there is a WIN server in the network, users can input the IP address of that server directly.

WINS Server：

Input the IP address of WINS.

Apply：

Click “Apply” to save the network configuration modification.

Cancel：

Click “Cancel" to leave without making any changes.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

7.4 DHCP Status

This is an indication list of the current status and setup record of the DHCP server. The indications are for

the administrator’s reference when a network modification is needed.

DHCP Server：

This is the current DHCP IP.

Dynamic IP Used：

The amount of dynamic IP leased by DHCP.

Static IP Used：

The amount of static IP assigned by DHCP.

DHCP Available：

The amount of IP still available in the DHCP server.

Total：

The total IP which the DHCP server is configured to lease.

Host Name：

The name of the current computer.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

IP Address：

The IP address acquired by the current computer.

MAC Address：

The actual MAC network location of the current computer.

Client Lease Time：

The lease time of the IP released by DHCP.

Delete：

Remove a record of an IP lease.

DNS Local Database

Normally, DNS sever will be directed to ISP DNS server or internal self- defined DNS server.

Qno router also provides “easy” self- defined DNS services, called “DNS Local Database”, which

can map website host domain names and the corresponding IP addresses.

Host Domain Name

Enter the website host domain name. i.e. www.google.com

IP Address

Enter the corresponding IP address of the host domain above.

Add to Llist

Add the items into the list below.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Delete selected item

Delete the items chosen.

※※※※

Note!

(1) Users MUST enable DCHP server service to enable DNS local database. (2) Users must set DHCP server DNS IP address as the router LAN IP. For example, LAN is 10.10.10.1, as shown in the following figure.

Therefore, DCHP DNS IP address must be 10.10.10.1 to make DNS local database in effect.

(3) After enabling DNS local database, if there is no host domain names in the list, the router will still use ISP

DNS server or internal DNS server for lookup.

Test if DNS local database is effective:

Assumed tw.yahoo.com IP address is 10.10.10.199, as the following figure.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

(1) System Tool => Diagnostic => DNS Name Lookup

(2) Enter tw.yahoo.com for lookup.

(3) The IP is 10.10.10.199, confirming the corresponding IP in DNS local database.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

7.5 IP & MAC Binding

Administrators can apply IP & MAC Binding function to make sure that users can not add extra PCs for

Internet access or change private IP addresses.

There are two methods for setting up this function：

Block MAC address not on the list

This method only allows MAC addresses on the list to receive IP addresses from DHCP and have Internet

access. When this method is applied, please fill out Static IP with 0.0.0.0, as the figure below：

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

IP & MAC Binding

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Static IP：

There are two ways to input static IP:

1. If users want to set up a MAC address to acquire IP from DHCP, but the IP need not be a specific assigned IP, input 0.0.0.0 in the boxes. The boxes cannot be left empty.

2. If users want DHCP to assign a static IP for a PC every single time, users should input the IP address users want to assign to this computer in the boxes. The server or PC which is to be bound will then acquire a static virtual IP whenever it restarts.

MAC Address：

Input the static real MAC (the address on the network card) for the server or PC which is to be bound.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Name：

For distinguishing clients, input the name or address of the client that is to be bound. The maximum acceptable characters are 12.

Enabled：

Activate this configuration.

Add to list：

Add the configuration or modification to the list.

Delete selected item：

Remove the selected binding from the list.

Add：

Add new binding.

Block MAC address on the list with wrong IP address： When this option is activated, MAC addresses

which are not included in the list will not be able to connect with the Internet.

Show New IP user：

This function can reduce administrator’s effort on checking MAC addresses one by one for the binding. Furthermore, it is easy to make mistakes to fill out MAC addresses on the list manually. By checking this list, administrator can see all MAC addresses which have traffic and are not bound yet. Also, if administrators find that one specific bound MAC address is shown on the list, it means that the user changes the private IP address.

Name：

Input the name or address of the client that is to be bound. The maximum acceptable characters are 12.

Enabled：

Choose the item to be bound.

Apply：

Activate the configuration.

Select All：

Choose all items on the list for binding.

Refresh：

Refresh the list.

Close：

Close the list.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

7.6 IP Group Management

IP Group function can combine several IP addresses or IP address ranges into several groups. When

you manage user internet access privileges by IP address, you can set up every management functions for users who have same internet access privileges in the same IP group in order to decrease the effort of setting rules for each IP address. For example, you can choose to set up QoS or Access Rule by IP grouping. Thus, you will simplify setting rules.

IP Grouping consists of Local IP Group and Remote IP Group. Local IP Group refers to LAN IP groups,

and remote IP Group refers to WAN IP groups. Local IP Group list will automatically learn IP addresses having packets that pass through firewall. Moreover, if user changes the IP address, the IP in the list will change accordingly well. For IP information which is in group list, it won't update automatically along with IP list of the left side. Administrators need to modify it manually.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Remote IP Group Management:

Basically, Remote IP Group setups are exactly the same as Local IP Group setups. However, remote IP group does not have automatically learning functions. Instead, you need to define addresses, ranges and groups manually. For example, 220.130.188.1 to 200 (range).

User Edit IP

The IP list will show the list which learns the IP addresses automatically on the left under side. You can also modify IP addresses manually.

Name

Input the name of IP address (or range) showed below.

IP Address

Input IP address (or range). For example, 192.168.1.200 ~ 250.

Add to IP List

After setting name and IP address, push this button to add the information into the IP list below. If this IP (or range) is already in the list, you can not add it again.

Local Group Set

You can choose from the IP list on the left side to set up a local IP group.

IP Group

Choose IP Group that you would like to modify. If you would like to add new groups, please push “Add Group” button.

Group Name

When you add new groups, please note if the group name is in the column.

Delete Group

Choose the group that you would like to delete from the pull- down list, and push the “Delete Group” button. System will ask you again if you would like to delete the group. After pushing the confirmation button, the group will be deleted.

button

You can choose several IPs from IP list on the left side, and push this button to have them added into the group the right side.

Delete

Delete self- defined IP or IP range.

Apply Click “Apply” to save the network configuration modification

Cancel Click “Cancel" to leave without making any changes.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

It is the same setting methods. You should set the IP address or the range of remote IP from the left side

first, and choose to add IP address information from the left side into the remote group.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

7.7 Port Group Management

Service ports can be grouping as IP grouping. It is convenient to set QoS, firewall access rules, and other functions.

User edit port

Input the name, protocol, and port range for the specific service port.

Name

Name the Port in order to identify its property. For example, Virus 135.

Protocol

Choose the port protocol form the pull down list like TCP, UDP or TCP and UDP.

Port Range

Input the port range. For example, 135 to 135.

Add to Port List

After setting name, protocol and port range, push this button to add the information into the Port list below. This port can be from some port groups.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Port GroupSet

You can choose from the Port list on the left side to set up a Port group.

Group Name

When you add new groups, please note if the group name is in the column. For example, Virus.

Delete Group

button

You can choose several ports from Port list on the left side, and push this button to have them added into the group the right side.

Delete

Delete self- defined port or port range.

Apply Click “Apply” to save the network configuration modification

Cancel Click “Cancel" to leave without making any changes.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

VIII. QoS (Quality of Service)

QoS is an abbreviation for Quality of Service. The main function is to restrict bandwidth usage for some services and IP addresses to save bandwidth or provide priority to specific applications or services, and also to enable other users to share bandwidth, as well as to ensure stable and reliable network transmission. To maximize the bandwidth efficiency, network administrators should take account of the practical requirements of a company, a community, a building, or a café, etc., and modify bandwidth management according to the network environment, application processes or services.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

8.1 Bandwidth Management

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

8.1.1 The Maximum Bandwidth provided by ISP

In the boxes for WAN1 and WAN2 bandwidth, input the upstream and downstream bandwidth which users applied for from bandwidth supplier. The bandwidth QoS will make calculations according to the data users input. In other words, it will guarantee a minimum rate of upstream and downstream for each IP and Service Port based on the total actual bandwidth of WAN1 and WAN2. For example, if the upstream bandwidths of both WAN1 and WAN2 are 512Kbit/Sec, the total upstream bandwidth will be: WAN1 + WAN2 = 1024Kbit/Sec. Therefore, if there are 50 IP addresses in the Intranet, the

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

minimum guaranteed upstream bandwidth for each IP would be 1024Kbit/50=20Kbit/Sec. Thus, 20Kbit/Sec can be input for “Mini. Rate” Downstream bandwidth can be calculated in the same way.

Attention！

The unit of calculation in this example is Kbit. Some software indicates the downstream/upstream

speed with the unit KB. 1KB = 8Kbit.

8.1.2 QoS To satisfy the bandwidth requirements of certain users, the device enables users to set up QoS: Rate

Control and Priority Control. Users can select only one of the above QoS choices.

Rate Control：

The network administrator can set up bandwidth or usage limitations for each IP or IP range according to the actual bandwidth. The network administrator can also set bandwidth control for certain Service Ports. A guarantee bandwidth control for external connections can also be configured if there is an internal server.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Interface：

Select on which WAN the QoS rule should be executed. It can be a single selection or multiple selections.

Service Port：

Select what bandwidth control is to be configured in the QoS rule. If the bandwidth for all services of each IP is to be controlled, select “All (TCP&UDP) 1~65535”. If only FTP uploads or downloads need to be controlled, select “FTP Port 21~21”. Refer to the Default Service Port Number List.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

IP Address：

This is to select which user is to be controlled. If only a single IP is to be restricted, input this IP address, such as “192.168.1.100 to 100”. The rule will control only the IP 192.168.1.100. If an IP range is to be controlled, input the range, such as “192.168.1.100 ~ 150”. The rule will control IP addresses from

192.168.1.100 to 150. If all Intranet users that connect with the device are to be controlled, input “0” in the boxes of IP address. This means all Intranet IP addresses will be restricted. QoS can also control the range of Class B.

Direction：

Upstream: Means the upload bandwidth for Intranet IP. Downstream: Means the download bandwidth for Intranet IP. Server in LAN, Upstream: If a Server for external connection has been built in

the device, this option is to control the bandwidth for the traffic coming from outside to this Server.

Server in LAN, Downstream: If there are web sites built in the Intranet, this option is to control the upload bandwidth for the connections from outside to this Server. For example, game servers have been built in many Internet cafés. This rule can be used to control the bandwidth for connections from outside to the game server of a café to update data. In this way, game players

inside the café will not be affected. Min. & Max. Rate： (Kbit/Sec)

The minimum bandwidth: The rule is to guarantee minimum available bandwidth.

The maximum bandwidth: This rule is to restrict maximum available bandwidth. The maximum bandwidth will not exceed the limit set up under this rule.

Attention! The unit of calculation used in this rule is Kbit. Some software

indicates download/upload speed by the unit KB. 1KB = 8Kbit.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Bandwidth sharing

：

Sharing total bandwidth with all IP addresses: If this option is selected, all IP

addresses or Service Ports will share the bandwidth range (from minimum to

maximum bandwidth).

Assign bandwidth for each IP address: If this option is selected, every IP or

Service Port in this range can have this bandwidth (minimum to maximum).

For example, If the rule is set for the IP of each PC, the IP of each PC will have

the same bandwidth.

Attention: If “Share-Bandwidth” is selected, be aware of the actual usage

conditions and avoid an improper configuration that might cause a malfunction

of the network when the bandwidth is too small. For example, if users do not

want an FTP to occupy too much bandwidth, users can select the

“Share-Bandwidth Mode”, so that no matter how much users use FTPs to

download information, the total occupied bandwidth is fixed. Enable：

Activate the rule. Add to list：

Add this rule to the list. Move up & Move

down：

QoS rules will be executed from the bottom of the list to the top of the list. In

other words, the lower down the list, the higher the priority of execution. Users

can arrange the sequence according to their priorities. Usually the service

ports which need to be restricted, such as BT, e-mule, etc., will be moved to

the bottom of the list. The rules for certain IP addresses would then be moved

upward. Delete selected

items：

Remove the rules selected from the Service List.

Show Table：

Display all the Rate Control Rules users made for the bandwidth. Click

“Edit” to modify. Apply：

Click “Apply” to save the configuration Cancel：

Click “Cancel" to leave without making any change.

Show Table：

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

8.2 Session control

Session management controls the acceptable maximum simultaneous sessions of Intranet PCs. This function is very useful for managing connection quantity when P2P software such as BT, Thunder, or emule is used in the Intranet causing large numbers of sessions. Setting up proper limitations on sessions can effectively control the sessions created by P2P software. It will also have a limiting effect on bandwidth usage.

In addition, if any Intranet PC is attacked by a virus like Worm.Blaster and sends a huge number of session requests, session control will restrict that as well.

Session Control and Scheduling：

Disabled：

Disable Session Control function.

Single IP cannot exceed __ session：

This option enables the restriction of maximum external sessions to each Intranet PC. When the number of external sessions reaches the limit, to allow new sessions to be built, some of the existing sessions must be closed. For example, when BT or P2P is being used to download information and the sessions exceed the limit, the user will be unable to connect with other services until either BT or P2P is closed.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

When single IP exceed __：

If this function is selected, when the user’s port session reach the limit, this user will not be able to make a new session for five minutes. Even if the previous session has been closed, new sessions cannot be made until the setting time ends.

If this function is selected, when the user’s port connections reach the limit, all the lines that this user is connected with will be removed, and the user will not be able to connect with the Internet for five minutes. New connections cannot be made until the delay time ends.

Scheduling：

If “Always” is selected, the rule will be executed around the clock. If “From…” is selected, the rule will be executed according to the configured time range. For example, if the time control is from Monday to Friday, 8:00am to 6:00pm, users can refer to the following figure to set up the rule.

Apply：

Click “Apply” to save the configuration.

Cancel：

Click “Cancel" to leave without making any change.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Exempted Service Port or IP Address

Service Port：

Choose the service port.

Source IP：

Input the IP address range or IP group.

Enabled：

Activate the rule.

Add to list：

Add this rule to the list.

Delete seleted item：

Remove the rules selected from the Service List.

Apply：

Click “Apply” to save the configuration.

Cancel：

Click “Cancel" to leave without making any change.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

8.3 Hardware Optimization(Future)

This flagship router not only provides high processing performance but also launches “hardware optimization’ function for bandwidth control and traffic prioritization. The main purpose is to process the bandwidth functions through hardware design, which can accerlate and prioritize the traffic distribution and usage without wasting CPU and system resources. Hardware optimization will speed up the router processing, carry huge connection sessions and PCs, and provide stable and excellent network environment.

Service Optimization:

Service ports that online games and video softwares will be the highest priority. Router can process these games or videos traffic in first priority. In this way, users can play games or watch videos fluently without disconnection even when the traffic is full.

MAC address

Pull down menus includes: (1) Source MAC address: Hardware optimization will only be effective to guarantee the traffic in high priorities when the traffic rules match source MAC addresses.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

(2) Destination MAC address: Hardware optimization will only be effective to guarantee the traffic in high priorities when the traffic rules match destination MAC addresses. (3) None: The traffic rules neither match traffic rules nor check MAC addresses.

IP address

Pull down menus includes: (1) Source IP address: Hardware optimization will only be effective to guarantee the traffic in high priorities when the traffic rules match source IP addresses. (2) Destination IP address: Hardware optimization will only be effective to guarantee the traffic in high priorities when the traffic rules match destination IP addresses. (3) None: The traffic rules neither match traffic rules nor check MAC addresses.

IP Protocol

Choose service port protocols for games, videos, or other network applications required to be prioritized. You can choose TCP, UDP, or any other protocols listed.

Action

Input service ports for games, videos, or other network applications required to be prioritized. Range is 1~65535.

Enable

Activate the rule.

Add to list

Add this rule to the list.

Delete selected entry

Remove the rules selected from the Service List.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

8.4 Smart QoS

The smart QoS function enables the administrators to constrain the bandwidth occupied

automatically without any configuring.

Enabled QoS：

Choose to apply QoS function. When the usage of any WAN’s bandwidth is over than___%, Enable Smart QoS

Input the required rate value into the column. The

default is 60%. Each IP’s upstream bandwidth threshold

(for all WAN)：

Input the max. upstream rate for intranet IPs.

Each IP’s downstream bandwidth threshold (for all WAN) ：

Input the max. downstream rate for intranet IPs.

If any IP’s bandwidth is over maximum threshold, its maximum bandwidth will remain：

When any IP uses more bandwidth than the above

upstream or downstream settings, the IP will be

restricted for the following upstream or downstream

bandwidth settings. Enabled Penalty Mechanism：

After choosing “Enabled Penalty Mechanism”, the

device will enable the penalty conditions internally.

When the IP still uses more upstream or downstream

bandwidth than the setting, the device will execute the

penalty conditions automatically.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Show Penalty IP：

The IPs which are under penalty mechanism will be

shown on the list. Scheduling：

If “Always” is selected, the rule will be executed around

the clock.

If “From…” is selected, the rule will be executed

according to the configured time range. For example, if

the time control is from Monday to Friday, 8:00am to

6:00pm, users can refer to the following figure to set up

the rule.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

IX. Firewall

This chapter introduces firewall general policy, access rule, and content filter settings to ensure network

security.

9.1 General Policy

The firewall is enabled by default. If the firewall is set as disabled, features such as SPI, DoS, and outbound packet responses will be turned off automatically. Meanwhile, the remote management feature will be activated. The network access rules and content filter will be turned off.

Firewall：

This feature allows users to turn on/off the firewall.

SPI (Stateful Packet Inspection)：

This enables the packet automatic authentication detection technology. The Firewall operates mainly at the network layer. By executing the dynamic authentication for each connection, it will also perform an alarming function for application procedure. Meanwhile, the packet authentication firewall may decline the connections which use non-standard communication protocol.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

DoS (Denial of Service)：

This averts DoS attacks such as SYN Flooding, Smurf, LAND, Ping of Death, IP Spoofing and so on.

Block WAN request：

If set as Enabled, then it will shut down outbound ICMP and abnormal packet responses in connection. If users try to ping the WAN IP from the external, this will not work because the default value is set as activated in order to decline the outbound responses.

Remote Management：

To enter the device web- based UI by connecting to the remote Internet, this feature must be activated. In the field of remote browser IP, a valid external IP address (WAN IP) for the device should be filled in and the modifiable default control port should be adjusted (the default is set to 80, modifiable).

Multicast Pass Through：

There are many audio and visual streaming media on the network. Broadcasting may allow the client end to receive this type of packet message format. This feature is off by default.

Prevent ARP Virus Attack：

This feature is designed to prevent the intranet from being attacked by ARP spoofing, causing the connection failure of the PC. This ARP virus cheat mostly occurs in Internet cafes. When attacked, all the online computers disconnect immediately or some computers fail to go online. Activating this feature may prevent the attack by this type of virus.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Advanced Setting

Packet Type: This device provides three types of data packet transmission: TCP-SYN-Flood, UDP-Flood and ICMP-Flood.

WAN Threshold: When all packet values from external attack or from single external IP attack reach the maximum amount (the default is 15000 packets/Sec and 2000 packets/Sec respectively), if these conditions above occurs, the IP will be blocked for 5 minutes ( the default is 5 minutes OBJ 176 ). Users can adjust the threshold value and the blocking duration to effectively deal with external attack. The threshold value should be adjusted from high to low.

LAN Threshold: When all packet values from internal attack or from single internal IP attack reach the maximum amount (the default is 15000 packets/Sec and 2000 packets/Sec respectively), if these conditions above occurs, the IP will be blocked for 5 minutes (the default is 5 minutes). Users can adjust the threshold value and the blocking duration to effectively deal with external attack. The threshold value should be adjusted from high to low.

Exempted Source IP：

Input the exempted source IP.

Exempted Dest. IP：

Input the exempted Destination IP addresses.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

Show Blocked IP：

Show the blocked IP list and the remained blocked time.

Restricted WEB Features：

It supports the block that is connected through: Java, Cookies, Active X, and HTTP Proxy access.

Don’t Block Java / ActiveX / Cookies Proxy to Trusted Domain：

If this option is activated, users can add trusted network or IP address into the trust domain, and it will not block items such as Java/ActiveX/Cookies contained in the web pages from the trust domains.

Apply：

Click “Apply” to save the configuration.

Cancel：

Click “Cancel" to leave without making any change.

Restrict Application

Users can check MSN/ QQ/ Yahoo Messager/ PPSTREAM/ PPLIVE and the device will block the service users checked. However, to provide this service for certain IP address in the intranet, users may check the following item and then enter the specific IP address or IP address session to use the services which are checked above.

In addition, if Blocked QQ is activated, users can set the exempted QQ number list. Press “Exempted QQ Number” button, and enter the QQ number into the exempted QQ number list.

SSSSLL // IIPPSSeecc VVPPNN QQooSS RRoouutteer

User Name:

Input the information of the QQ number, etc.

Exempted QQ Number:

Input the number.

Add to list:

Add the number to the list.

Delete selected item:

Delete the selected rule in the list.

Block File Type
