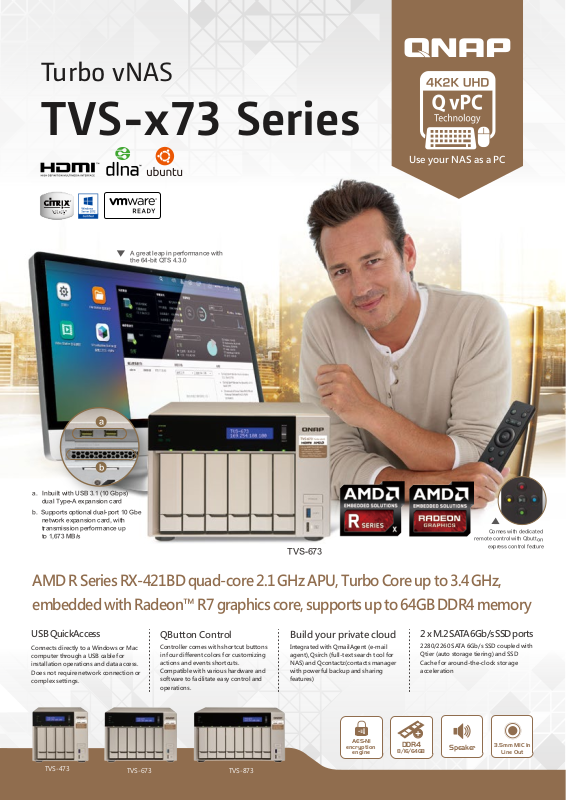

Turbo vNAS
TVS-x73 Series
A great leap in performance with
the 64-bit QTS 4.3.0
Use your NAS as a PC
a
b
a. Inbuilt with USB 3.1 (10 Gbps)
dual Type-A expansion card
b. Supports optional dual-port 10 Gbe
network expansion card, with
transmission performance up
to 1,673 MB/s
TVS-673
Comes with dedicated
remote control with Qbutton
express control feature
AMD R Series RX-421BD quad-core 2.1 GHz APU, Turbo Core up to 3.4 GHz,
embedded with Radeon™ R7 graphics core, supports up to 64GB DDR4 memory
USB QuickAccess
Connects directly to a Windows or Mac
computer through a USB cable for
installation operations and data access.
Does not require network connection or
complex settings.
QButton Control
Controller comes with shortcut buttons
in four different colors for customizing
actions and events shortcuts.
Compatible with various hardware and
software to facilitate easy control and
operations.
Build your private cloud
Integrated with QmailAgent (e-mail
agent), Qsirch (full-text search tool for
NAS) and Qcontactz(contacts manager
with powerful backup and sharing
features)
2 x M.2 SATA 6Gb/s SSD ports
2280/2260 SATA 6Gb/s SSD coupled with
Qtier (auto storage tiering) and SSD
Cache for around-the-clock storage
acceleration
TVS-473
TVS-673 TVS-873
AES-NI
encryption
engine
DDR4
8/16/64GB
Speaker
3.5mm MIC In
Line Out
TVS-x73 Series / Turbo vNAS
Windows File Transfer, Encrypted Volume (1 x 10GbE)
479
343
MB/s
0
125
250
375
500
Windows
Upload
Windows
Download
1673
996
MB/s
0
375
750
1125
1500
Windows File Transfer (2 x 10GbE)
Windows
Upload
Windows
Download
1673
996
MB/s
0
375
750
1125
1500
Windows File Transfer (2 x 10GbE)
Windows
Upload
Windows
Download
AMD R-Series quad-core APU, up to 64GB RAM, and hardware-accelerated
encryption with AES-NI
The TVS-x73 is equipped with a next-gen AMD R-Series RX-421BD quad-core 2.1 GHz APU (burst up to 3.4 GHz), dual channel
8GB/16GB/64GB DDR4 RAM (upgradable to 64GB), and four Gigabit LAN ports for lightning-fast multi-tasking with low power
consumption and is capable of delivering up to 1,055 MB/s throughout with a 10GbE configuration. The TVS-x73's hardwareaccelerated encryption engine with AES-NI provides unmatched encryption performance in its class (up to 479 MB/s with AES 256- bit
full NAS volume encryption) to boost system performance, security, and ensuring the safety of sensitive business data stored in
the NAS.
Windows File Transfer (1 x 10GbE)
1200
900
600
MB/s
300
0
1055
Windows
Download
720
Windows
Upload
Windows File Transfer, Encrypted Volume (1 x 10GbE)
500
375
250
MB/s
125
0
Windows
Download
USB 3.1 (10Gbps) connectivity
USB 3.1 provides faster maximum speeds of 10Gb/s-double
that of USB 3.0 – to greatly boost data transfer performance.
The TVS-x73 comes with a USB 3.1 Type-A dual-port card
for connecting up to two USB devices, allowing compatibility
with newer, faster USB devices for transferring large-sized
media files.
479
343
Windows
Upload
Tested in QNAP Labs. Figures may vary by environment.
Test environment:
NAS:
OS: QTS 4.3
Volume type: RAID 5; 8 x Intel SSD DC S3500 240G
Client PC:
Intel Core i7-4770 CPU @ 3.40 GHz CPU; WD 1TB
WD10EZEX; LAN-10G2T-X550 10GbE NIC; Microsoft
Windows 10 64bit; 10GB file transfer
2 x 10Gb/s
High-speed USB 3.1 Type-A Ports
USB 3.1 performance may vary depending on hardware/software
limitations and usage environment.
M.2 SSD & 2.5" SSD cache with Qtier optimization
The TVS-x73 supports 2.5" SSD for caching to increase IOPS performance, and provides higher transfer speeds and reliability
with additional two M.2 SATA 6Gb/s SSDs. Using an SSD cache boosts overall system performance, and is perfect for improving
the overall workflow of random IOPS demanding applications such as virtualization. The TVS-x73 combines M.2 SSD, SATA SSD
and high-capacity HDD in one box to effectively realize tiered storage for exceptional application performance and lower TCO of
storage at the same time.
M.2
M.2 SSD operations generate high heat output. You are recommended to install heatsink for M.2 SSD module from QNAP or third-party providers.
SSD
SATA Drives
TVS-x73 Series
USB 3.0
Turbo vNAS
Easy installation and direct access to files with USB QuickAccess
With its innovative USB QuickAccess port, the TVS-x73 eliminates the complications of first-time NAS installation and provides
easy direct access to files stored on the TVS-x73- all without needing network connectivity. Simply use a USB 3.0 A – Micro B
cable or a USB 2.0 A – Micro B cable** to connect the TVS-x73 to a PC or Mac device, and use Qfinder Pro* to configure it. It is just
that easy. You can also assign access rights to users for different folders to prevent unauthorized access to important files.
* Qfinder Pro and USB QuickAccess support Windows 8.0 (and newer) and Mac OS X 10.7(and newer). Other versions may require driver installation.
** A USB cable is not included.
Flexible 10GbE network expandability
The TVS-x73 features two PCIe (Gen.3 x 4) slots, one preinstalled
Windows File Transfer (2 x 10GbE)
1500
1673
with a USB 3.1 Type-A dual-port card, and the other allows for
installing an optional dual-port 10GbE (10GBASE-T or SFP+)
network card. This allows for greater flexibility in setting up 10GbE
environments for high-performance virtualization and backup tasks.
1125
MB/s
750
375
996
0
Windows
Download
Windows
Upload
Qcontactz-Easily manage huge amounts of contacts on the NAS
Qcontactz with the high-capacity TVS-x73 helps you centrally store and manage contact information for colleagues, business
partners, families, and friends. Other features include: importing/exporting CSV or vCARD 3.0 files, automatic identification of
frequently-used contacts, encryption for sensitive/confidential contact information, smart search function, and more. Qcontactz
offers snapshot backups that enable you to revert to a previous version of your contacts list according to your needs. A companion
app for Android phones and iPhone is also available for easy access to contacts. Qcontactz can also be used with QmailAgent to
create the perfect email workflow environment.
TVS-x73 Series / Turbo vNAS
4K HDMI output with a free remote control for an excellent audiovisual experience
The TVS-x73 offers dual HDMI outputs that support "duplicated" or "extended" desktop configurations. You can connect the TVS-x73
to a TV or A/V receiver and use the media player in HybridDesk Station (HD Station) with the bundled QNAP remote control to enjoy
rich media content and 4K videos with the best audiovisual experience. With the help of the smart remote control learning function,
you can pair up to three TV or stereo IR remote controls and program your frequently-used buttons and functions. You can also turn
your mobile devices into remote controls by installing the Qremote app.
QButton - Start a smart IoT life with a single click
QButton works with the QNAP NAS remote control (RM-IR004), letting you choose what
each button does. You can select events or conditions in the App Center (including QIoT
applications, Surveillance Station for viewing specific monitored channels, Music Station
for playing favorite music, or powering on/off the NAS itself) then simply press the button
to trigger the action
User-friendly vocal alerts and music playback
The TVS-x73 features a built-in speaker that supports Chinese and English vocal alerts
for important system messages. You can also use Music Station or File Station (coupled
with Qfile and Qmusic mobile apps) to directly play music on the NAS.
NAS as a Wireless AP
WirelessAP Station coupled with a compatible PCI Express
wireless adapter* turns the TVS-x73 into a dedicated
Wireless AP, making it the ideal solution if you have
multiple devices that need internet connectivity but
have no available access points. As those devices directly
communicate with the TVS-x73 through the WirelessAP
Station, it not only allows for the network resources of
the NAS to be shared with greater efficiency, but it also
prevents possible slowdown that may occur when the
broadband router is busy
vNASNAS
For compatible PCI Express wireless adapters, please check the
Compatibility List.
WirelessAP Station
TVS-x73 Series
Turbo vNAS
Disaster recovery solutions bring peace of mind
Hybrid Backup Sync consolidates backup, restoration and synchronization functions (using RTRR, rsync, FTP, CIFS/SMB) into a single
app for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan.
Supported cloud services include Amazon® Glacier, Azure™ Storage, Google Cloud Storage™, Google Drive™, Microsoft® OneDrive®
for Business, Dropbox®, Amazon® Drive, Yandex® Disk, Box®, hubiC® and Amazon® S3/OpenStack Swift/WebDAV compatible services.
Hybrid Backup Sync supports multi-version backup, flexible job scheduling, file compression to save storage space, and more.
Restore files with Volume & LUN Snapshot
QTS Storage Manager adds an easy-to-use web-based snapshot tool for you to easily backup and restore data on the TVS-x73 back
to any point of time in case you lose any important data. You can take snapshots for volumes and LUN (up to 256 snapshots per
volume or LUN and maximum 1,024 snapshots per NAS), efficiently replicate volume/LUN snapshots via Snapshot Replica to remote
servers by copying only the changes made, and quickly clone a volume /LUN snapshot as a local volume without interrupting the
current system operation. You can even set up the system to automatically take a snapshot of the volume before backup via RTRR/
rsync, even if files are open.
TVS-x73 Series / Turbo vNAS
Storage for comprehensive virtualization
applicationst
The TVS-x73 is a comprehensive iSCSI/IP-SAN storage solution,
and supports VMware®, Citrix®, Microsoft® Hyper-V™ and Windows
Server® 2012 R2, benefiting flexible deployment and management in
virtualization environments. The TVS-x73 supports VMware VAAI and
Microsoft ODX to increase performance by offloading server loading
for ESXi server and Hyper-V respectively, and supports QNAP vSphere
Client plug-in and QNAP SMI-S provider with enhanced operational
efficiency and management in virtualization applications.
Storage for hosting virtual machines and containerized applications
Virtualization Station allows you to host virtual machines (VM) on the TVS-x73 and access them via a web browser or VNC.
Virtualization Station supports multiple operating systems, fast VM creation, VM backup & restoration, VM import/export, snapshot,
and Device Management for centrally managing VMs. Virtualization Station allows the TVS-x73, VMs and containers to share the
same LAN port. No longer constrained by physical network performance, high-speed virtual switches greatly increases data transfer
between VMs, containers and NAS through the internal interface. The TVS-x73 also features Container Station, which integrates
LXC and Docker® lightweight virtualization technologies. You can operate multiple isolated Linux® systems on the TVS-x73 as well
as download apps from the built-in Docker Hub Registry®. Containers Station also supports the QIoT Containers platform that helps
quickly structure your IoT environment and deployment on your private IoT cloud.
Comprehensive surveillance solution providing 24/7 security
Surveillance Station is a professional network surveillance Video Management System (VMS) that offers a user-friendly management
interface, over 3,000 compatible IP camera models, and expandable IP camera channel licenses. It supports real-time monitoring,
video & audio recording and playback with a wide range of customizable settings. You can also install the Vmobile app on your iOS®
or Android™ devices to manage the monitored channels anytime and anywhere, or install the Vcam mobile app to turn your device
into a network camera to instantly record to your TVS-x73. The TVS-x73 offers 4 free IP camera channels and you can expand up to
72 channels by purchasing additional licenses.
TVS-x73 Series
Turbo vNAS
Whole new QVR Pro surveillance solution
The TVS-x73 also supports QVR Pro (Beta) that integrates QNAP's professional QVR system into the QTS operating system. You can not
only arrange a dedicated, independent storage space for surveillance data on the NAS, but also leverage the advantages of scalability
and storage manageability from QTS. QVR Pro features a flexible monitoring interface that allows you to adjust the proportion and
monitor view of IP cameras, supports an upgraded timeline feature that provides instant video search and quick view identification
in live monitoring mode, and allows for monitoring views and playing back images without switching between different windows.
Additional functions like batch adding and editing cameras, and searching for cameras across different LANs further save the cost and
time in deploying and maintaining a complete surveillance system.

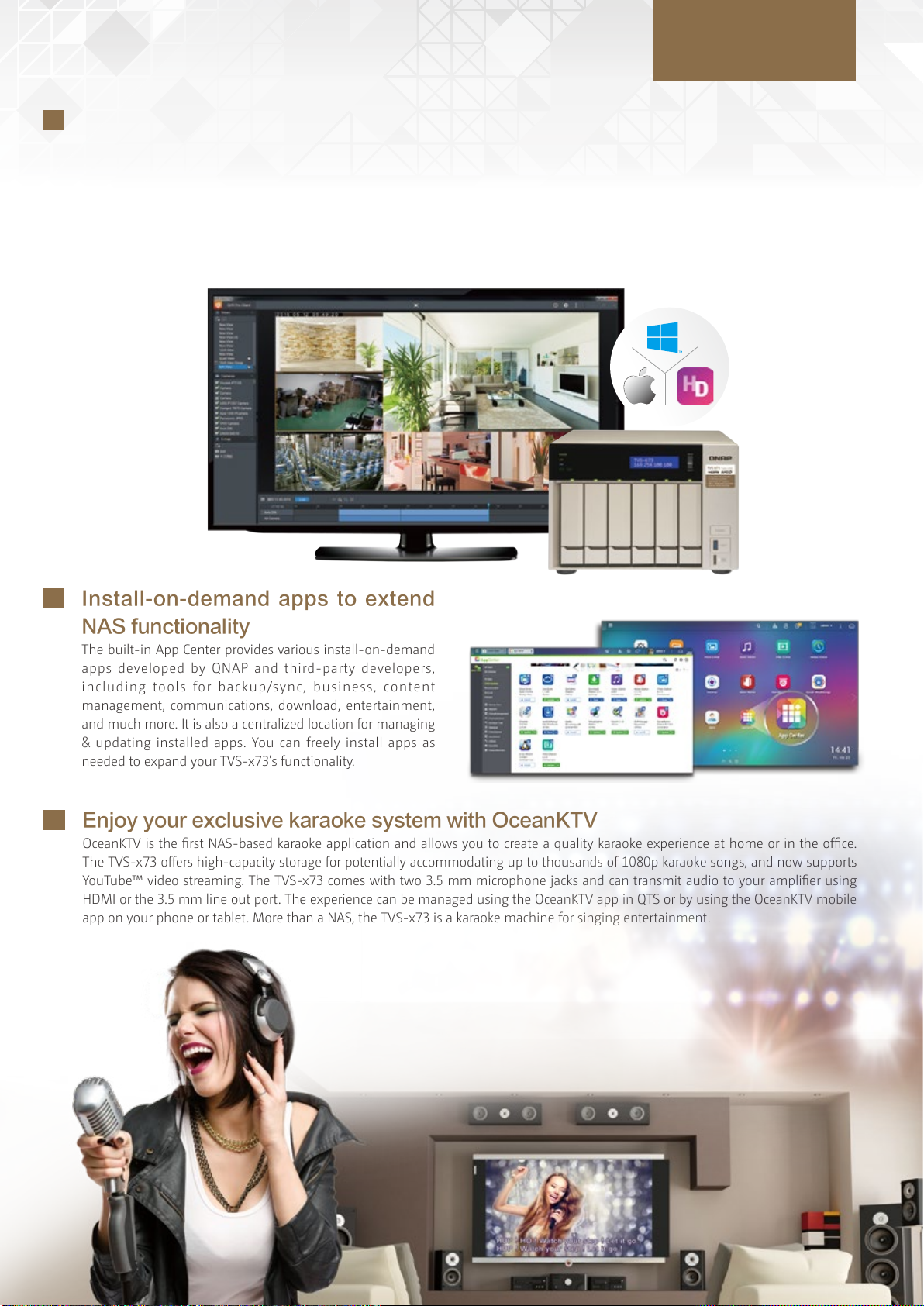

Install-on-demand apps to extend
NAS functionality
The built-in App Center provides various install-on-demand
apps developed by QNAP and third-party developers,
including tools for backup/sync, business, content
management, communications, download, entertainment,
and much more. It is also a centralized location for managing
& updating installed apps. You can freely install apps as
needed to expand your TVS-x73's functionality.
Enjoy your exclusive karaoke system with OceanKTV
OceanKTV is the first NAS-based karaoke application and allows you to create a quality karaoke experience at home or in the office.
The TVS-x73 offers high-capacity storage for potentially accommodating up to thousands of 1080p karaoke songs, and now supports
YouTube™ video streaming. The TVS-x73 comes with two 3.5 mm microphone jacks and can transmit audio to your amplifier using
HDMI or the 3.5 mm line out port. The experience can be managed using the OceanKTV app in QTS or by using the OceanKTV mobile
app on your phone or tablet. More than a NAS, the TVS-x73 is a karaoke machine for singing entertainment.
Hardware Specications
Ordering Information
Processor AMD® R-series RX-421BD quad-core 2.1GHz APU, turbo core up to 3.4GHz
Hardware Encryption
Engine
Graphics Embedded Radeon ™ R7 Graphics Processor
System Memory
Memory Slot 4 x SODIMM DDR4
Flash memory 512MB DOM
Hard DiskDrive 8 x 3.5"/2.5" SATA 6Gb/s HDDs/SSDs 6 x 3.5"/2.5" SATA 6Gb/s HDDs/SSDs 4 x 3.5"/2.5" SATA 6Gb/s HDDs/SSDs
M.2 SSD
LAN Port 4 x Gigabit RJ-45 Ethernet port
PCIe Slot 2 x PCIe Gen 3 (x4), one slot is pre-installed with a dual-port USB 3.1 Type-A card
LED Indicator Mono-LCD display with backlight, Enter and Select buttons for configuration
USB 2 x USB 3.1 port, and 4 x USB 3.0 Type-A port
HDMI 2, up to 3840 x 2160 @ 30Hz resolution
LED Indicators
Button Power/Status, USB One-Touch-Backup, reset
IR Receiver QNAP RM-IR004 and MCE-compatible remotes
Secure Design Kensington security slot for theft prevention
Form Factor Tower
Dimensions
Net Weight 6.52 kg / 14.37 lbs 5.63 kg / 12.41 lbs 4.9 kg / 10.80 lbs
Temperature 0 ~ 40˚C
Humidity 5~95% RH non-condensing, wet bulb: 27˚C
Power Supply ATX 240W, 110-240V AC, 50-60Hz, 3.5A
System Fan 2 x 12cm 2 x 9cm 1 x 12cm
TVS-873-64G/-16G/-8G TVS-673-64G/-16G/-8G TVS-473-64G/-16G/-8G
✔
，AES-NI
64GB DDR4 (4 x 16GB)
16GB DDR4 (2 x 8GB)
8GB DDR4 (2 x 4GB)
2 x 2280/2260 SATA 6Gb/s. Note: M.2 SSD operations generate high heat output.
You are recommended to install heatsink for M.2 SSD module from QNAP or third-party providers.
Status/Power， USB，LAN， Drive 1-8，
M.2 SSD 1-2
188.2 x 329.3 x 279.6 mm
7.41 x 12.96 x 11.01 inch
64GB DDR4 (4 x 16GB)
16GB DDR4 (2 x 8GB)
8GB DDR4 (2 x 4GB)
Status/Power， USB，LAN， Drive 1-6，
M.2 SSD 1-2
188.2 x 264.3 x 279.6 mm
7.41 x 10.4 x 11.01 inch
64GB DDR4 (4 x 16GB)
16GB DDR4 (2 x 8GB)
8GB DDR4 (2 x 4GB)
Status/Power， USB，LAN， Drive 1-4，
M.2 SSD 1-2
188.2 x 199.3 x 279.6 mm
7.41 x 7.85 x 11.01 inch
Model specifications are subject to change without notice. Please refer to www.qnap.com for the latest information.
Systems, Inc.
TEL : +886-2-2641-2000 FAX : +886-2-2641-0555 Email: qnapsales@qnap.com
Address：3F, No.22, Zhongxing Rd., Xizhi Dist., New Taipei City, 221, Taiwan
QNAP may make changes to specification and product descriptions at any time, without notice.
Copyright © 2015 QNAP Systems, Inc. All rights reserved.
QNAP® and other names of QNAP Products are proprietary marks or registered trademarks of QNAP Systems, Inc. Other products
and company names mentioned herein are trademarks of their respective holders.
AMD, the AMD logo, and combinations thereof are trademarks of Advanced Micro Devices, Inc.
Netherlands (Warehouse Services)
Email：nlsales@qnap.com
TEL：+31(0)107600830
India
Email：indiasales@qnap.com
Germany
Email：desales@qnap.com
TEL：+49-89-381562991
US
Email：usasales@qnap.com
China
Email：cnsales@qnap.com.cn
TEL：+86-400-628-0079
Thailand
Email：thsales@qnap.com
51000-024196-RS
201611(EN) A
Loading...
