Turbo vNAS
The Golden Cloud Series
TVS-x63+ Series
Supports high-speed 10GbE network and extensive
features for cost-conscious applications
Hardware-accelerated encryption engine for efficient
cryptographic performance exceeding 600MB/s
Use the vNAS as a PC with exclusive QvPC Technology
Designed for file management, sharing and backup of
business data with LUN backup support
VMware®, Microsoft® Hyper-V, Citrix®, and Microsoft® VDI compatible
Use the NAS as a PC
PCIe
10GbE
1 Ethernet Port
64bit
CPUCPU
Quad Core
2.4 GHz
PCIe
10GbE
Optional
8GB DDR3L
Max 16GB RAM
RAM
4GB DDR3L
Max 16GB
X
2
Dual
GbE Ports
‧ 1 x 10GbE Ethernet Port
‧ 8GB DDR3L-1600 RAM
HDMI
X
2
SATA
6Gb/s
Virtualization
Technology
Encryption
Engine
Transcoding
Engine
Mirrored
Display
Built-in
10GbE card
TVS-863+
TVS-463 TVS-663 TVS-863
Turbo vNAS
The 4th Generation Enhanced
with the QvPC Technology
st Generation NAS
1
Cross-platform network
storage for storing and
sharing data
2002
2002年
File Server
Network storage device
nd Generation NAS
2
NAS 4000
rd Generation NAS
3
Scalable storage system
with storage manager,
myQNAPcloud, Qsync,
HDMI output/ XBMC
playback
TS-469 Pro
As new technologies continue to emerge,
QNAP further expands its product line-up of
next-generation networked storage. From the
first-generation’s central file management
server to the second-generation’s iSCSI SAN
compatible unified storage system to the
third-generation’s Turbo NAS with
customizable apps, QNAP has been the
leading storage solution provider. With the
industry-first QvPC Technology integrated in
the fourth-generation NAS, our Turbo vNAS
series are the world's first NAS that can be
transformed into a cost-effective PC
substitute for business applications. The
TVS-x63+ series is built on AMD quad-core
2.4GHz processor and integrated with QvPC
technology.
2008年
2008
2011
2011年
iSCSI SAN with network
storage and surveillance
system
TS-239 Pro
th Generation NAS
4
QTS 4 integrated with
Virtualization Station and
QNAP QvPC Technology
2014
2014
TVS-863+
The Evolution of NAS
NEW
Table of Contents
GbE-ready Turbo vNAS for SMBs .............................................................................
10
01
Virtualization Station ........................................................................................................
QvPC Technology ...............................................................................................................
Unified Storage Management .......................................................................................
File Storage, Management and Sharing (File Station) ...........................................
Q'center CMS (Central Management System) ..........................................................
QTS 4.1.2 OS .........................................................................................................................
Mobile Apps & Utilities ......................................................................................................
Business Solutions ..............................................................................................................
05
09
15
19
23
25
41
43
App Center & Development Platform ..........................................................................
Hardware Specifications ..................................................................................................
Software Specifications .....................................................................................................
57
61
62
10GbE-ready
Turbo vNAS for SMBs
Affordable, Reliable and Scalable NAS Solution
Adorned with a box in gold color, the sophisticated TVS-x63+ series, featuring the easy-to-use QTS operating
system, is a powerful, reliable, secure and scalable NAS solution designed for mission-critical and intensive business
applications and to meet fast growing data storage needs. The Turbo vNAS supports 10GbE via PCI-E network
expansion and delivers high performance with persistent throughput, providing a comprehensive storage solution for
SMBs to build a reliable private cloud.
〉
GbE-ready, highly-efficient storage solution for HD video editing and sharing
10
〉Enhanced data security with a high-performance hardware-accelerated encryption engine with AES
full NAS volume encryption and anti-virus
〉Use the TVS-
〉Run multiple Windows/Linux/Android-based virtual machines with the Virtualization Station
〉Manage, share, and back up business data with Real-time Remote Replication (RTRR)
〉NAS and iSCSI-SAN unified storage solution for server virtualization
〉Supports VMware®, Citrix®, and Microsoft® Hyper-V and advanced virtualization features
〉Transcode
transcoding engine
〉Expand the total raw storage capacity up to
“NAS is a great application for the AMD G-Series SoC, taking advantage of the strong
compute, low-energy consumption, and integrated GPU for display and acceleration.”, said
Scott Aylor, corporate vice president and general manager, AMD Embedded Solutions.
as a PC with exclusive QvPC Technology and 4K display support
863
p videos on-the-fly or offline with QNAP´s unique transcoding technology and hardware
1080
TB with the economical UX-
192
P expansion enclosures
800
256
-bit
10 GbE
Network
TVS-863+
1
Cost-efficient 10GbE Turbo vNAS
High performance & efficiency
￭
The TVS-x63+ series is equipped with the energy-efcient 64-bit AMD® quad-core 2.4 GHz processor with
16/8/4GB DDR3L-1600 RAM options (upgradable to 16GB), SATA 6Gb/s, and 2 Gigabit LAN ports (expandable
to max. 4 x GbE ports or 2 x GbE + 2 x 10GbE ports) for lightning-fast multi-tasking. The TVS-863+ is a
powerful NAS that delivers up to 448MB/s read & write speeds with 4 x GbE port conguration, and up to
1,432MB/s with 10GbE configuration. The TVS-863+’s hardware-accelerated encryption engine provides
unmatched encryption performance in its class, up to 691MB/s with AES-256 bit full NAS volume encryption,
boosting system performance & security while ensuring the safety of sensitive business data stored in
the TVS-863+. The next-gen AMD Radeon™ HD graphics provides hardware-accelerated transcoding
performance and dual HDMI outputs with brilliant high-denition multimedia content playback. When installed
with the latest Wi-Fi 802.11ac USB network adapter, the TVS-863+ can offer remarkably high speeds for
transferring large amount of les and streaming bandwidth-consuming multimedia.
Quad-core 2.4 GHz
10GbE ready
￭
The TVS-863+ offers 2 inbuilt Gigabit Ethernet ports & 1 pre-installed 10GbE PCI-E NIC (single port),
supporting 10 Gigabit high speed network. The 10GbE-ready TVS-863+ delivers fast data throughput.
Coupled with its large storage capacity potential, the TVS-863+ is perfect for data centers to store big data
and excel in fast data transmission, and for 10GbE home lab environment for technical professionals.
Test Environment
：
NAS
- OS： QTS 4.1.
- Volume type： RAID 5; 4 x Plextor PX-
- Network environment： direct connection between NAS and PC, 1GbE LAN (MTU
Client PCs
- Intel(R) Core(TM) i7Professional 64bit SP
- IOMeter configuration： Transferring 8GB file continuously to/from 4/2 PCs for 3 minutes. Block size： 64KB for SMB2.0 (Throughput)
：
2
：
4770 3.40
1
GHz CPU; DDR3
256M5
Pro SSD
Hz 16GB; WD 1TB WD10EZEX; Intel Gigabit CT (MTU
1600
); 10GbE with QNAP LAN-10G2T-D dual-port PCIe NIC (MTU
1500
)
9000
); 10GbE with QNAP LAN-10G2T-D dual-port PCIe NIC (MTU
1500
); Windows® 7
9000
2
10GbE-ready
Turbo vNAS for SMBs
High-quality construction and
￭
informative LCD display
The TVS-x63+ series is adorned
with a box in gold color, offering
an exceptional choice with
impressive sophistication. Built
with metal frame and parts, the
sleek and sturdy TVS-863+ also
features a newly-crafted heat sink
that can exhaust excessive heat
with its passive cooling. The LCD
display panel on the TVS-x63+
provides quick system information
making system management
even easier.
￭ Eco-friendly design
The TVS-x63+ series provides high performance with minimal power requirements and reduced heat
generation with the low-voltage DDR3L RAM. Other eco-friendly designs include scheduled power on/off,
hard disk standby mode, S3 sleep mode, and Wake on LAN.
Power Consumption
TVS-863+
2.14W
S3 Sleep Mode
34.77W
with HDD standby
50.38W
In operation
In operation
PC Server
200W
3
Cost-efficient 10GbE Turbo vNAS
Seamless capacity expansion
￭
The TVS-x63+ series offers a high performance yet affordable storage solution to fulll the needs of business
in archiving rapidly-growing data & large files. The TVS-x63+ series supports capacity expansion by
connecting multiple QNAP expansion enclosures. With the QNAP scale-up solution, the raw storage capacity
can be expanded on demand, making the TVS-x63+ series an ideal le center for storage-intensive business
applications such as video surveillance, data archiving, TV broadcast storage, and more.
The QTS Storage Manager neatly presents tools and options for managing system storage. You can easily
monitor the health status of expansion units and the disks within them. When multiple expansion enclosures
are connected, the Locate Disk and Locate Enclosure functions assist you in quick maintenance.
The maximum raw storage capacity available by connecting RAID expansion enclosures:
Turbo vNAS Model
TVS-463
TVS-663
RAID Expansion
Enclosure
UX-800P
UX-500P
UX-800P
UX-500P
No. of RAID Expansion
Enclosure
2 20 160
1 12 96
2 14 112
1 9 72
2 22 176
1 14 112
2 16 128
1 11 88
Total HDD No.
(NAS + Enclosure)
Max. Raw Capacity (TB)*
UX-800P
TVS-863+
TVS-863
UX-500P
* The maximum capacity is calculated by using 8TB HDDs.
2 24 192
1 16 128
2 18 144
1 13 104
4
Virtualization Station
Virtualization Station
The TVS-x63+ Series is the world's first business-grade NAS integrated with AMD-V and supports
virtual machine applications. Just download the Virtualization Station App from App Center, and
you can install & operate multiple operating systems with Windows®, Linux, UNIX and Android. The
virtual machines can be used in a variety of different ways to boost the functionality of your Turbo
vNAS, just like having multiple computers with you.
NAS APP
More..
Storage Management
Security Management
Virtualization technology is normally solely used in enterprise IT environments, but with the growing needs of a
digital office, virtualization is slowly becoming part of our everyday applications. For example, in the office when
users want to print out the documents stored on their Turbo vNAS but only have a printer with Windows®-only
drivers, they would need to startup their PC just for this simple task.
Virtualization System
Office
Linux
VM1 VM2
Linux
VM3 VM4
Creating multiple VMs
on TVS-x63+
5
Cost-efficient 10GbE Turbo vNAS
You can resolve the aforementioned scenario using the below steps.
1
Download Virtualization Station from the App Center and create a Windows®-based VM
2
Install the printer drivers in the VM
3
Map the destination folder into the Windows®-based VM, and set the folder as a network drive
4
Access the VM remotely via web browser to select a photo and then print it instantly
The network usage of Virtualization Station is isolated from the Turbo vNAS. One Ethernet cable is reserved for the Turbo
*
vNAS to use, so you will need to connect at least another one for the Virtualization Station to use.
How to map the destination folder into a Windows® VM? Please follow these steps： (Using Windows®
7 as an example)
A
Go to "Computer" and click [Map network drive]
Insert the IP address of your Turbo vNAS and click [Browser]. Select the folder you want to use
B
and click [Finish].
C
This folder you want to use will appear as a network drive on your "Computer"
USB devices supported (USB Passthrough)
￭
QNAP Virtualization Station supports connecting USB devices to virtual machines. Commonly-used USB
devices can be connected to virtual machines, and you can select what device to use with Virtualization
Station.
This can be used together with QVM Desk
just as easily as using a PC. For document
management, you can connect USB card
readers/scanners to NAS via Virtualization
Station, and store scanned data directly to the
NAS without taking up Internet bandwidth.
6
Virtualization Station
QNAP-exclusive virtualization technology
￭
Direct access to files & data via VM
Specific file formats cannot be opened directly
by the Turbo vNAS, but the Virtualization Station
makes it possible. Administrators can install
Windows®, Linux, and UNIX on the Turbo vNAS to
run any supported application or le.
QTS File Station
Save bandwidth & time
SolidWorks on Windows®
Virtual Machine
Enhance security and save bandwidth
When accessing les & data on a virtual machine
they are not transmitted outside of the Turbo
vNAS. This provides a secure environment that
prevents sensitive data from being intercepted and
also saves bandwidth & network resources when
you need to access large les.
Downloading a large amount of data to a local
PC has the potential to take a long time and use
up network bandwidth. When accessing data
on the Turbo vNAS through virtual machines on
the Virtualization Station, you can enjoy secure
data transmission and save bandwidth & time as
the data is not transmitted via physical network
cables.
Dedicated network for VM only
The Virtualization Station provides functions for
network monitoring. You can monitor all NIC
(network interface controller) trafc and assign a
specic NIC exclusively to a single VM.
7
User-based permissions settings
The Virtualization Station administrator can create users
and set proper permissions for VM, helping to efficiently
manage and allocate VM resources for users with
different needs. With these permissions, users can work
independently on their VM without worrying about their
work being interrupted or data being lost because other
users accidentally power off the VM.
User-based permissions include :
Console permissions : Control and View-only
VM controls : Snapshot and Advanced
Cost-efficient 10GbE Turbo vNAS
Operate VMs as Remote Desktops
Enjoy utmost convenience by operating Windows®,
Linux and UNIX-based VMs as remote desktops.
A list of buttons is provided on the left side of each
individual VM display, allowing users to suspend,
shutdown, force shutdown, reset, bring up key
combinations
Ctrl AIt Del
& function keys, and
QNAP QVM Desk
QNAP QVM Desk supports local display for deploying virtual
applications on a big screen when connected to a HDMI
monitor, keyboard, and mouse. Compared to webpage
operations it's smoother, more secure, and easier. Even when
Internet connectivity is limited, you can still access data and
run virtual machines on a NAS.
even take snapshots for the VMs.
Linux Android*
Windows
®
Budget-friendly QNAP Turbo vNAS for cloud computing
To meet the growing demand of cloud computing, solution providers offer a variety of services to their customers. Customers can
leverage computing or application services with cloud computing in lieu of system maintenance and configuration. However, public
cloud services can have shortcomings. Complying with high standards of security and evolving regulations as well as controlling longterm operating costs are among the major concerns of public cloud services. Most cloud computing pricing depends on the amount of
resources consumed such as computing power and a subscription period. The integrated Virtualization Station of QNAP Turbo vNAS can
help your enterprise develop a cost-effective strategy with the aforementioned unified storage to manage and store your data, potentially
maximizing storage capabilities per TB. It is the industry´s best private cloud architecture to counterbalance the disadvantages of public
cloud services.
AWS EC2
vCPU Cores：
Capacity
Available Regions
Operating Systems
2
Price
1.
Cloud CPU capacity measurement varies from vendor to vendor; here we only present it with vCPU core numbers.
2.
The prices shown here are directly replicated from service providers’ websites.
3.
The price does not include OS license fees for Virtualization Station.
Memory： 7.5 GiB
Storage： 32GB SSD
(m3.large)
1
Windows® Server Windows® Server
$0.
2
Global Global Global U.S. Global
/ hr $0.
266
Rackspace
Pulibc Cloud
vCPU Cores：
Memory： 4GB
Storage： 80GB SSD
(General 1-4)
4
/ hr One-time investment
188
QNAP TVS-x63+ Series
Virtualization Station
vCPU Cores： Max.
Memory： Max. 16GB
Storage： expandable, up to
TB SSD
24
Windows®, Linux, Unix and
Android
4
3
VMware vCHS Google IaaS
vCPU Cores：
Memory： 8GB
Storage： 80 GB SSD
Windows® Server Windows® Server
Calculated annually Calculated annually
2
vCPU Cores：
Memory： 7.5GB
Storage：
375
GB SSD
2
8
QvPC Technology
Powered by QNAP's exclusive QvPC Technology
About QvPC Techonology
￭
Based on Software-dened Everything, QvPC Technology is the result of years of R&D effort that QNAP has
put into developing and perfecting its software and hardware expertise. QvPC Technology has consolidated a
number of high-end technologies and latest IT trends including VM integration, multimedia transcoding, HDMI
output, cloud integration, and NAS connection technologies, allowing users to operate Turbo vNAS as a PC
when they plug in a keyboard, mouse and monitor. QvPC Technology can turn a NAS into a low-cost & highperformance 2-in-a box NAS that can function as a NAS and a PC. Whether you are working in a studio or at
a remote site, you are assured to receive the best user experience.
QvPC Technology features HybridDesk Station (HD Station) as the user interface, which consists of QVM
Desk, Defense Desk, and Local Display Desk and provides SMBs various software applications.
Linux
Virtualization
USB Pass-through
USB Connector
Station
QVM Desk
Defense Desk Local Display Desk
HD Station 2.0 (HybridDesk Station 2.0)
NAS Firmware
NAS Hardware Platform
All trademarks in this brochure are the property of their respective owners.
*
Connect a monitor with HDMI,
and you can enjoy a variety of
applications with HD Station 3.0.
You can initiate the service in
QTS system and install different
applications according to your
needs.
QVM Desk
Defense Desk
Local Display Desk
9
Cost-efficient 10GbE Turbo vNAS
The highlights of QNAP's exclusive
QvPC Technology
Intuitive HD Station 3.0 (HybridDesk Station 3.0)
￭
HD Station 3.0 is a monitor-based user interface based
on QNAP's exclusive QvPC Technology. Simply plug in a
keyboard, mouse, and HDMI monitor to the Turbo vNAS,
and you can start the installation process and access
data without connecting to a PC, tablet, or smartphone.
A variety of local display applications are available on
HD Station 3.0 including QTS, Mozilla Firefox, Google
Chrome, QVM, XBMC and Surveillance Station. To
enhance data security, user login controls are integrated
to ensure only authorized users can access data stored
on the Turbo vNAS through a HDMI monitor. HD Station
3.0 supports multitasking, international keyboards and
input method editors and can be used like a PC to open
different applications at the same time. The TVS-x63+
series supports mirrored display on 2 HDMI monitors,
allowing you to watch exactly the same content on two
different monitors.
Note: 4K video playback and transcoding are not supported.
*
Streamlined installation： No complicated procedures
￭
necessary to install your NAS.
After purchasing a NAS, users usually install firmware from an installation disc and search for the NAS on
their network, or log into the NAS manufacturer's website to complete the installation process. For users
without relevant networking knowledge, this installation process may be diffcult. Some users decide to
purchase other external storage devices that can be instantly access (such as USB hard drives). However,
these devices are "islands of information" that can only be accessed by the computer they are connected
to. These storage solutions also have no protection against failure, and can be easily lost.
QNAP Turbo vNAS is an ideal solution for storing data. With QvPC Technology users only need to plug in
a HDMI monitor, keyboard, mouse and follow on-screen instructions to complete their NAS installation.
Even users without any network knowledge can easily set up and install a NAS. All files stored on a NAS
are protected with RAID technology and are accessible via the Internet anytime.
?
Conventional installation： You need an disc or to
login to a website to complete the installation, and
it can be complicated for general users.
NAS
HDMI
NAS
Streamlined installation: Simply plug in a monitor,
keyboard and mouse and you can quickly complete the onscreen instructions to complete the installation.
10
QvPC Technology
QNAP QVM Desk turns a NAS into an office PC
￭
Run Windows®, Linux and Android virtual machines on a HDTV
Leveraging virtualization technology, QNAP QVM Desk supports local display for a virtual interface and
turns the NAS into a PC when connected to a HDMI monitor, keyboard, and mouse. Any les on the
TVS-x63+ can be opened using virtual machines running Windows®, Android, Linux, and Unix through
QVM Desk. You can also instantly switch between different virtual machines to meet your needs, just
like using multiple PCs at the same time. Compared to the operations via a webpage, it's smoother,
more secure, and worry-free to do on a NAS. Even when the Internet connectivity is limited, you can still
access data and run virtual machines on a NAS.
Linux Android
1111
Windows
®
Cost-efficient 10GbE Turbo vNAS
Run Android on a NAS with QvPC
Have you ever feel constrained by the lack of storage space on your tablet or smartphone and have no idea
where to back up your files or what apps to delete for more space? With QvPC Technology, you can run
Android on a virtual machine, and back up apps or les like LINE, WeChat, Gmail, your phonebook, photos,
and chat messages from your Android device to the virtual machine with backup software like App Backup &
Restore and My Backup Pro. This way, the les on the pubic cloud can be stored on your private cloud. You
no longer need to worry about having difculty accessing your data anymore. In addition, your NAS can be
transformed to an Android device and the millions of apps on Google Play can be operated on it as well.
LINE WeChat Gmail Facebook
To learn more about QNAP Virtualization Station,
visit ttp://www.qnap.com/i/station/en/virtualization.
php
12
QvPC Technology
Defense Desk
24/7 safeguards your oce and property
Live-view
QvPC Technology supports local display of live
surveillance feeds on the screen with a QNAP remote
control. You don't need an additional PC for live-view,
nor do you need an Internet connection to check the
stored video recordings. You can monitor up to 16
channels simultaneously, adjust PTZ functions, and
conduct audio surveillance. QvPC also supports instant
notification functions and will show alerts on the
monitored page should any incident happens, helping
you take immediate action and control the work
environment more efficiently.
Playback
You can connect your Turbo vNAS to a monitor to
playback recordings. Just select a timeframe, and you
can search the recordings within this period. It also
supports video fast-forwarding and rewinding (up to
x speed). You can quickly look for detailed images
16
with the zoom function, and listen to audio for key
background sounds during the playback.
To learn more about QNAP Surveillance Station, please turn to Page 51.
Manage Local Display Desk easily
￭
Quickly install QTS and
access files
Just plug in a HDMI monitor/TV,
keyboard and mouse to a TVS-x63+,
and within a few simple steps you will
complete installation and be able to
access les using the QTS operating
system.
13
Surf the web via Chrome/Firefox on TV
QvPC Technology supports HDMI-out and Google Chrome/Firefox, allowing you to
surf the web easily, and is ideal for ofces to build a information search center with
minimal costs.
Build an online music center with Spotify
Cost-efficient 10GbE Turbo vNAS
Over a million songs can be found on Spotify. Create a media center and enjoy your music
collections with your NAS while at work.
Qremote mobile app turns your mobile device into a handy remote
control
iOS and Android users can download the Qremote app to turn their smartphones into a remote
control to conveniently play videos, music, and photos on TV via HD Station 3.0. The Official
XMBC Remote app can also be used.
14
Unied Storage
Management
Unified Storage Management
QNAP Turbo vNAS series is unified storage which can serve as iSCSI SAN storage and NAS. The powerful Storage
Manager assist you to manage iSCSI LUN and volume efficiently.
Intelligent Storage Manager
￭
The QTS 4.1.2 Storage Manager neatly presents tools and options for managing system storage with an
intuitive graphical interface. From reviewing the system storage allocation in the Dashboard, to managing
volumes, Storage Pools, disks and iSCSI storage, the Storage Manager provides a centralized place to ease
the work of storage management.
3
2
1
Shared
folder 1
Volume 1
Storage pool Storage pool
RAID Group 1
LUN 1
(File-Level)
Turbo vNAS
Hot spare
HDDs
Shared
folder 2
Volume 2
RAID Group 2 RAID Group 3
LUN 2
(File-Level)
LUN 3
(Block-Level)
Expansion units
15
Dashboard
￭
The Storage Manager dashboard presents an
overview for IT administrators to check storage
allocation status easily.
In addition to Storage Manager, IT administrators
can also check the storage pool and volume status
on File Station.
Disk information
1
Click to check disk information and disk
health, scan the disk, locate the disk, or
check the disks within the RAID Group.
Storage Pool
2
IT administrators can aggregate multiple
RAID groups as a big storage pool to
flexibly utilize the storage capacity as a
whole, protect them using redundancy
and allowing for better protection against
multiple disk failures for large-capacity
environments. Multiple volumes can now
be created on the Storage Pool to provide
flexible deployment.
Cost-efficient 10GbE Turbo vNAS
Flexible Volume
3
Allocation
QTS 4.1.2 allows creating multiple
volumes on the Storage Pool for
various applications in typical business
environments with different workgroups.
Each data volume and LUN can
be extended up to
interrupting services.
Thin provisioning
Over-allocation allows a server to view more
storage capacity than has been allocated in the
storage pool. Furthermore, physical storage
capacity is used only when files are written by
the application, thereby improving utilization
rates.
TB without
250
Thick provisioning
Physical storage capacity is dedicated upfront when the
storage volume is initially allocated.
Efciently use storage spaces with incremental allocation. Allocate all spaces specied and they cannot be used by
other volumes or LUNs.
16
Unied Storage
Management
iSCSI LUN
￭
QTS 4.1.2 supports two types of LUN for efcient storage utilization: block-level and le-level iSCSI LUN. The
TVS-x63+ series also supports multiple types of congurations for server connections：
- single LUN or multiple LUNs per iSCSI target.
- multiple iSCSI targets for a single LUN, only used for clustered environments
Block-Level iSCSI LUN
Besides storing data, volumes can be utilized as an iSCSI LUN. The block-level iSCSI LUN provides less overhead
which improves the overall read/write performance.
File-Level iSCSI LUN
Users can consider file-level iSCSI LUN if there isn´t enough space for block-level iSCSI LUN. The file-level iSCSI
LUN can be used for creating a disk image for an iSCSI LUN.
Both block-level and file-level iSCSI LUN support thin provisioning, space reclaim, and online capacity
expansion. We recommend using block-level iSCSI LUN unless there is a limitation on space usage.
Virtual Disk Drive -
￭
Virtual Disks provide a more exible way
for IT administrators to expand storage.
By using the built-in iSCSI initiator to
connect an iSCSI target of the TVS-x63+,
you can create a virtual disk on the local
server. The TVS-x63+ can be a stack
master to connect up to 8 virtual disks or
stack targets, aggregating storage space
from multiple NAS systems. Thus, all NAS
users only need to connect to a single
target to access the space from all of the
network storage devices.
Increase flexibility of storage expansion
Set as a Stack Master
Turbo vNAS
LUN A
LUN B
LUN C
Turbo vNAS
iSCSI
17
For every virtual disk on the local
server, it will be seen as a single
drive of disk arrays.
LUN CLUN BLUN A
Set as a Stack Target
Cost-efficient 10GbE Turbo vNAS
QNAP high-performance unified and tiered storage solution
￭
Data used by enterprises continues to grow exponentially and with greater diversity in data types and
importance. It is imperative to offer a secure and efcient storage solution that can process this enormous
amount of data while minimizing the total cost of ownership.
Establishing a tired storage system based on efciency and capacity can aid in improving overall processing
efficiency. Enterprises can classify data accordingly by sharing folders with a file-based storage system
and processing files that require more demanding data throughput with a block-based storage system to
accommodate different usage models.
The TVS-x63+ Series can exibly congure different tiers to hard drives on a single unit according to different
data usage needs, delivering the best unied and tiered storage solution.
Tiered storage for better efficiency
￭
In the cloud era, enterprises need a storage architecture that can provide rapid access to dynamically
scalable and virtualized IT resources. Classifying data into Hot Data (frequently-accessed) and Cold Data
(rarely-accessed) to store them in a tiered storage can help achieve this goal efciently and cost effectively.
Businesses often use SSD to improve the overall workow of random IOPS demanding applications such as
databases and virtualization. Different types of storage media are used for different purposes. Hence, it is
better to utilize different storage media according to the system requirements.
Tier 1 Tier 2
Storage Type
Characteristics
Usage Scenario
Usage Examples
Typical Use
Criteria
SSD SATA HDD
Balance of efficiency, capacity and usability Ubiquitous, convenient, and inexpensive
Online transaction processing (OLTP)
Systems and ERP databases
Data, audio, email, database table, and video creation
and other operations of the workflow in a virtualized
environment
A wide variety of users and environments where
performance is crucial
Weighs more on IOPS, throughput and resiliency Weighs more on data volume and low cost per TB
Archiving, online and offline backup storage, disaster recovery
Low cost and energy saving
Typical for Data at rest
The following is a comprehensive comparison of general tiered storage devices.
Hard Drive
Features
Price $$$$$$ $
Capacity
Performance Very high Moderate-low
Interface SATA (Single Port) 6 Gb/s SATA (Single Port) 6 Gb/
RPM N/A
Solid State Drive (SSD) SATA Hard Drive
Low power consumption, no noise, antivibration, low heat,
fast speed
GB~
GB
100
800
Large capacity, lower reliability and performance
GB~6TB
500
-RPM
7200
秒
External Continuous Transfer Performance
Average Response Time (Milliseconds) N/A R
Input/Output Operations Per Second (IOPS)
Unrecoverable bit read error
Mean Time Between Failures (MTBF, hours) NN/A
800 170
120,000/40,000
LBA per 10E
1
16 1
：
/W
9.5
Less than
LBA per 10E
million
0.8
：
100
8.5
14
18
File Management
File Management (File Station)
File Station
￭
With File Station, you can easily manage, upload, download, share files, and enjoy media
playback anywhere with a web browser. File Station brings conventional file operations
performed on the computer desktop to the web browser.
File upload
Easily upload the files to your Turbo vNAS by draggingand-dropping them into File Station.
Photo slideshow
Right-click on selected photos to play a smooth slideshow.
Mutual file sharing
You can easily share multiple files in a shared folder with
friends via a Share Link. By activating the file upload
function, your friends will be granted the privilege to
upload files to your File Station without requiring a user
account. You can even set an expiration time for shared
files.
Media streaming & playing
File Station supports VLC for multimedia streaming.
Just click on your photos, music and videos to directly
play them. The slideshow display helps gather media
files in an organized manner for you to preview and
play.
19

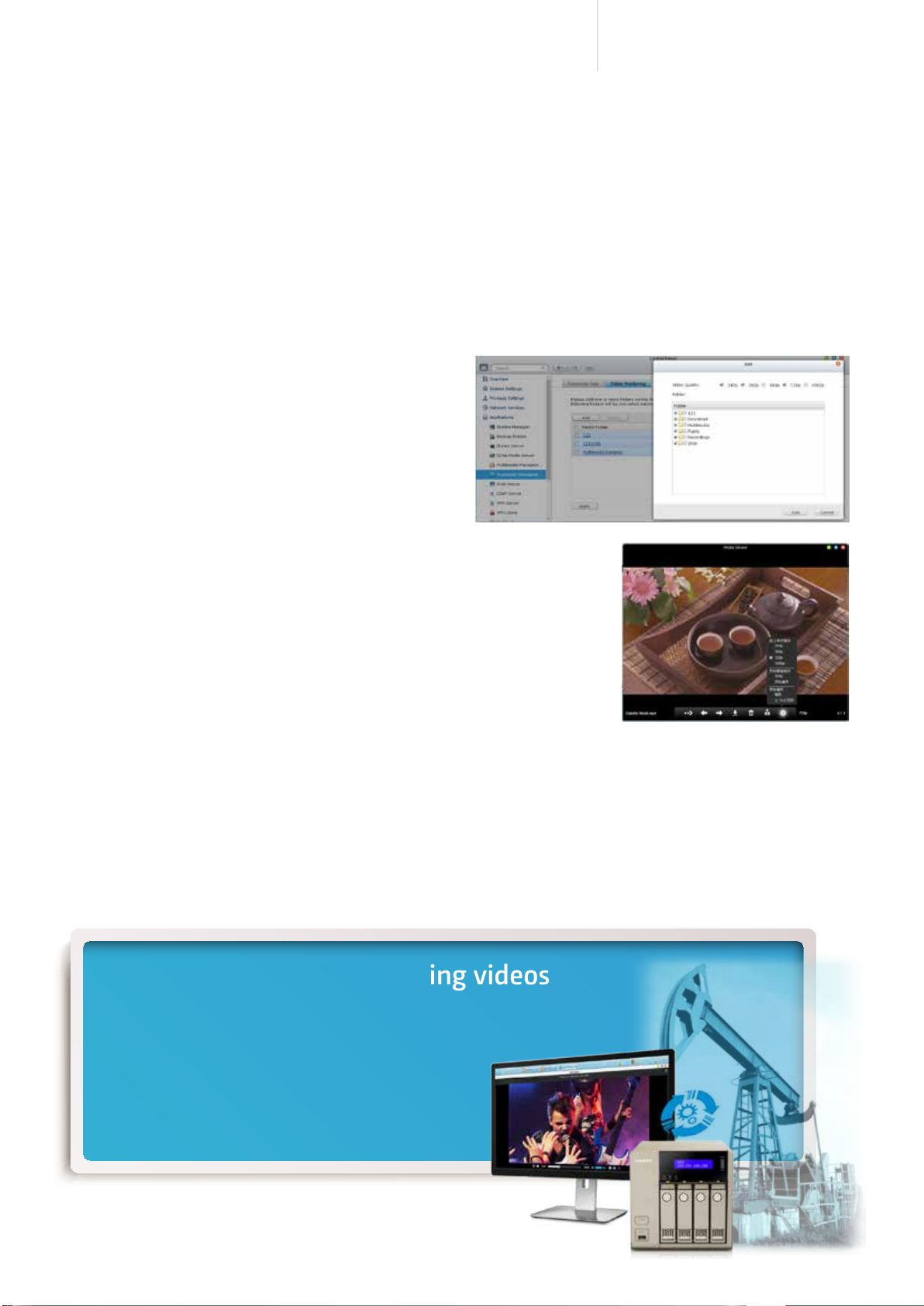

Click and play videos
TVS-x63+ supports realtime transcoding
which allows immediate and smooth video,
music, and photo playback. No need to wait
for the files to be converted in advance.
Real-time transcoding allows maximum 12
users to simultaneously connect and watch
videos. Offline transcoding allows more
users. Check page 43 to learn more about
transcoding feature.
Cost-efficient 10GbE Turbo vNAS
Advanced quick search
File Station provides smart filters for
file searching and browsing by file
size, modied date, le name, and so
on. Pop-up thumbnails enable you
to quickly & clearly preview les. File
browsing is more intuitive with File
Station.
Recycle bin
The recycle bin helps retrieve les accidentally
deleted. It is categorized by shared folders to
increase le retrieval efciency.
Check shared folder usage and space
utilization
The updated user interface of QTS 4.1.2 File Station
provides a detailed view of the designated volume and
space usage of the shared folders to assist you manage
space utilization.
Photo thumbnails preview
File Station makes file
management easier by showing
thumbnails of photos, music and
videos.
Compress/Extract multiple files
If you need extra space you can easily compress files
& folders into a Zip file. You can also easily unzip files
straight to File Station.
20
File Management
Qle: Share les with mobile devices
You can install the Qfile app on your mobile device to browse and manage files stored on your
TVS-x63+ anytime, anywhere.
Access from anywhere
Open Qle on your mobile device to browse les on the TVS-x63+. You can open or share
les, and easily rename, copy, move, download any selected les.
Auto-upload photos
Automatically upload photos to your TVS-x63+ whenever you take new photos. It works as a
real-time backup of your precious photos.
21
Qle will download the le to your handheld device and send it via
your default email function. This le cannot exceed 20MB, so please
ensure there is enough free space on your device to save the le.
Install Qfile on your mobile device to browse and manage files
stored on your Turbo vNAS anytime, anywhere.
Cost-efficient 10GbE Turbo vNAS
Stream multimedia contents
Use Qle to stream multimedia content to AirPlay or
DLNA-compatible devices and play to enjoy.
Share files instantly
Qfile provides various ways for instant file sharing,
including email or SMS. Qle also provides Share Links to
easily share large les. You can paste the Share Link on
instant messenger such as LINE, WhatsApp, WeChat, and
more to share les with others.
Your friends can click on the Share Link to download the les.
22
Q'center CMS
Q'center CMS
Previously, IT administrators need to log in to Turbo NAS units individually to check their status. The
QNAP Q'center CMS (Central Management System) offers a platform to centrally manage multiple
NAS units. You only need to install Q'center on the master NAS and set all other Turbo NAS units as
managed stations. You can also monitor and update firmware for all Turbo NAS units at once with this
centralized management utility.
(Central Management System)
Q'center Network Architecture
In order to use Q'center to monitor multiple Turbo NAS units, you have to set up the master Turbo vNAS and other
managed devices in the same network environment. QTS 4.1.2 provides the VPN server and VPN client function, making
it easy for IT managers to establish the internal network architecture for Q´center deployment. Just set the master
device as a VPN server and other devices the VPN clients, and the internal network environment will be established by
VPN protocol automatically.
Corporate Headquarter
(Q’center Master)
Tokyo Office
Shanghai Office
The Best Utility for IT Administrators
￭ Increase IT management efficiency
. User-friendly management interface
1
Not only can you monitor the system status for all Turbo
NAS units, but you can also view their rmware information
and system logs. You no longer need to log in to NAS units
individually for such information. Besides viewing system
information, IT administrators can update the rmware for
all Turbo NAS units at once with a single click.
Set as a VPN Server
Singapore Office
23
Cost-efficient 10GbE Turbo vNAS
. Simplifying IT Asset Management and System Configurations
2
Q'center presents aggregate reports of all Turbo NAS units based on the characteristics of a NAS system or its
components such as models and disk capacity, helping you keep track of all your storage assets.It also allows
IT administrators to configure the same system settings across multiple NAS units, significantly reducing
configuration time and effort. Available configurations encompass general system settings from network to
domain security and network services.
￭ Enhance system availability
Q'center has an email notification function to notify
administrators of any predened system conditions. You
can set up alert policies based on the criteria such as
CPU usage or volume usage for a group of selected NAS
units, and you will be alerted if any one of the criteria of a
policy is met.
Increase storage utilization rate
￭
IT administrators can monitor capacity usage on every
Turbo NAS to gain information about space utilization.
They can better allocate storage resources based on
the information to maximize the utilization rate on each
Turbo NAS.
Enhance reliability and serviceability
￭
By monitoring CPU, memory usage and other performance indicators on a daily or long-term basis (e.g.
monthly or yearly), you will gain a complete view of how well the system performs. You can also analyze
how certain tasks (such as download, le conversion, or encryption) affect the overall system performance.
Furthermore, IT administrators can check system performance anytime to help them redistribute tasks or
loads among NAS units or upgrade their systems if they nd differences in performance.
The report function can generate a series of charts and graphs that display system information to help IT
administrators proactively plan system upgrades and respond to system failures or degradation, as well as
evaluate how effective the storage is used. Statistics collected can be kept for an entire year for capacity
planning.
24
QTS 4.1.2 OS
Intuitive & Simple QTS 4.1.2 OS
Based on Linux, QTS 4.1.2 is designed to be simple and flexible while centralizing multiple applications efficiently in
the App Center.
Multi-Window：Simultaneous multi-window operation for easy usage.
Multi-Task：Improve work efficiency by performing multiple tasks at the same time.
Multi-Device：Synchronize cross multiple devices anytime, anywhere.
Multi-App：Use a range of easy-to-manage apps and download more as needed.
Multi-Scenario：Customize your own cloud platform with multiple applications.

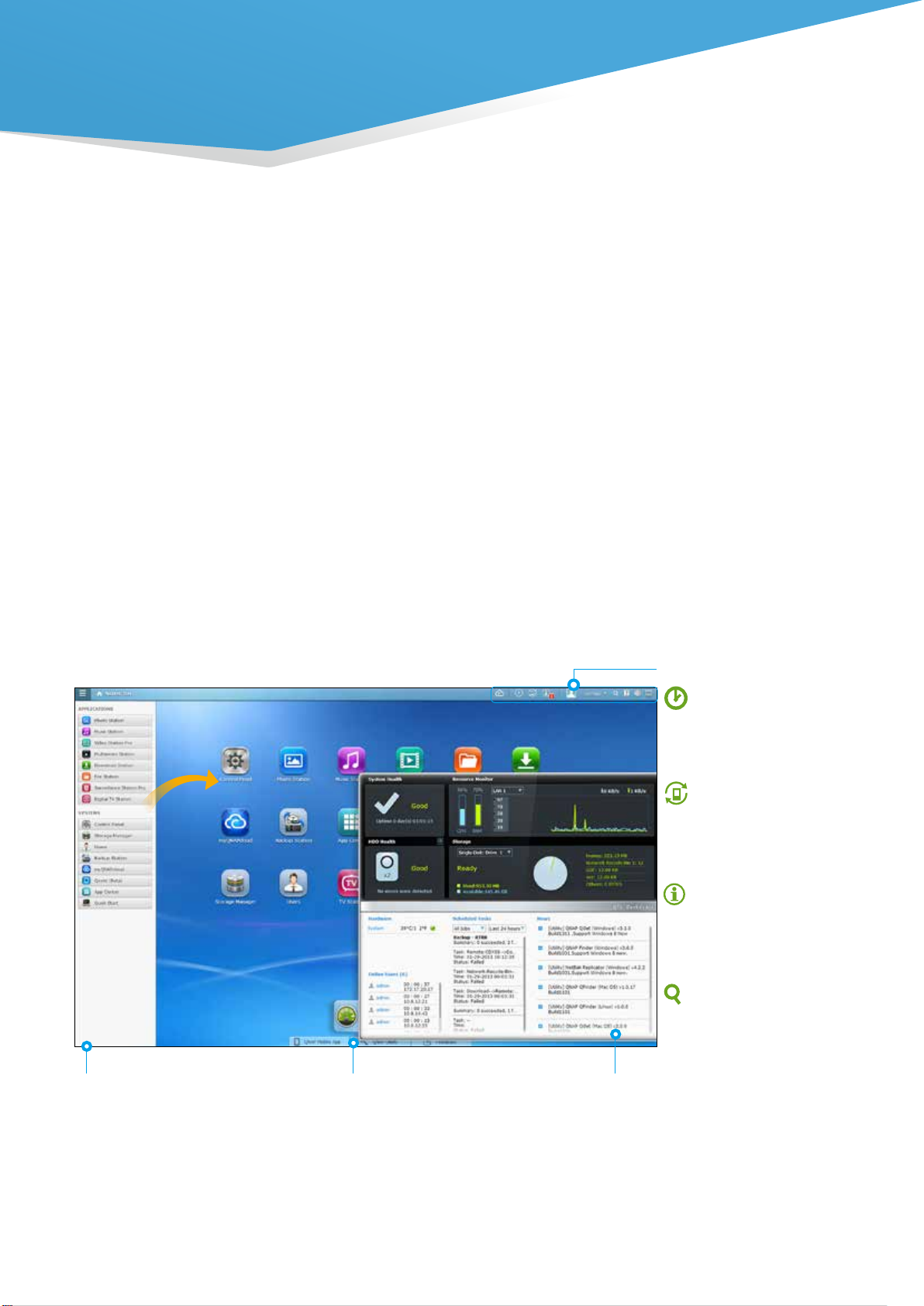

Intelligent Desktop
￭
QTS 4.1.2's intelligent desktop offers an intuitive, sleek, and easy-to-follow graphic user interface
that simplifies your Turbo vNAS experience. It allows you to open multiple application Windows® and
simultaneously run multiple tasks. Application Windows® can be minimized to the toolbar to allow you to see
an overview of the opened applications and switch between running applications.
Smart toolbar
Background tasks
Displays all the active and
scheduled tasks performed in
the background.
External devices
Access connected storage devices
and safely eject them with a
single click.
Event notifications
Updates you with system
information including warnings
and other error messages.
Quick search
Quickly search for system
settings and QTS Help.
Main menu
All of your applications, system
preferences, and additional apps installed
from the App Center are neatly presented
for you to quickly find your desired app.
Drag and drop frequently used icons to
the desktop as shortcuts for easier access.
25
Multiple desktops
The extended desktop workspace is
specifically designed to improve your
productivity. You can move apps to
different desktops according to their
category and freely switch between
them.
Smart dashboard
In just one click the smart dashboard
presents all the important system
information in a single panel. Drag
any status to the desktop for constant
monitoring.
Cost-efficient 10GbE Turbo vNAS
Customized Login Page
Public photo wall and app shortcuts on the login page
￭
Customize the photo wall based on your company image and display it on the login page. Each app has its
own shortcut that you can place on the login page to allow direct access without the need to log into QTS
rst.
Enable this option and ...
Display the app shortcut on the login page.
App
shortcuts
become
available
Customized admin photo
Public photo wall
26
QTS 4.1.2 OS
NAS connection and network settings

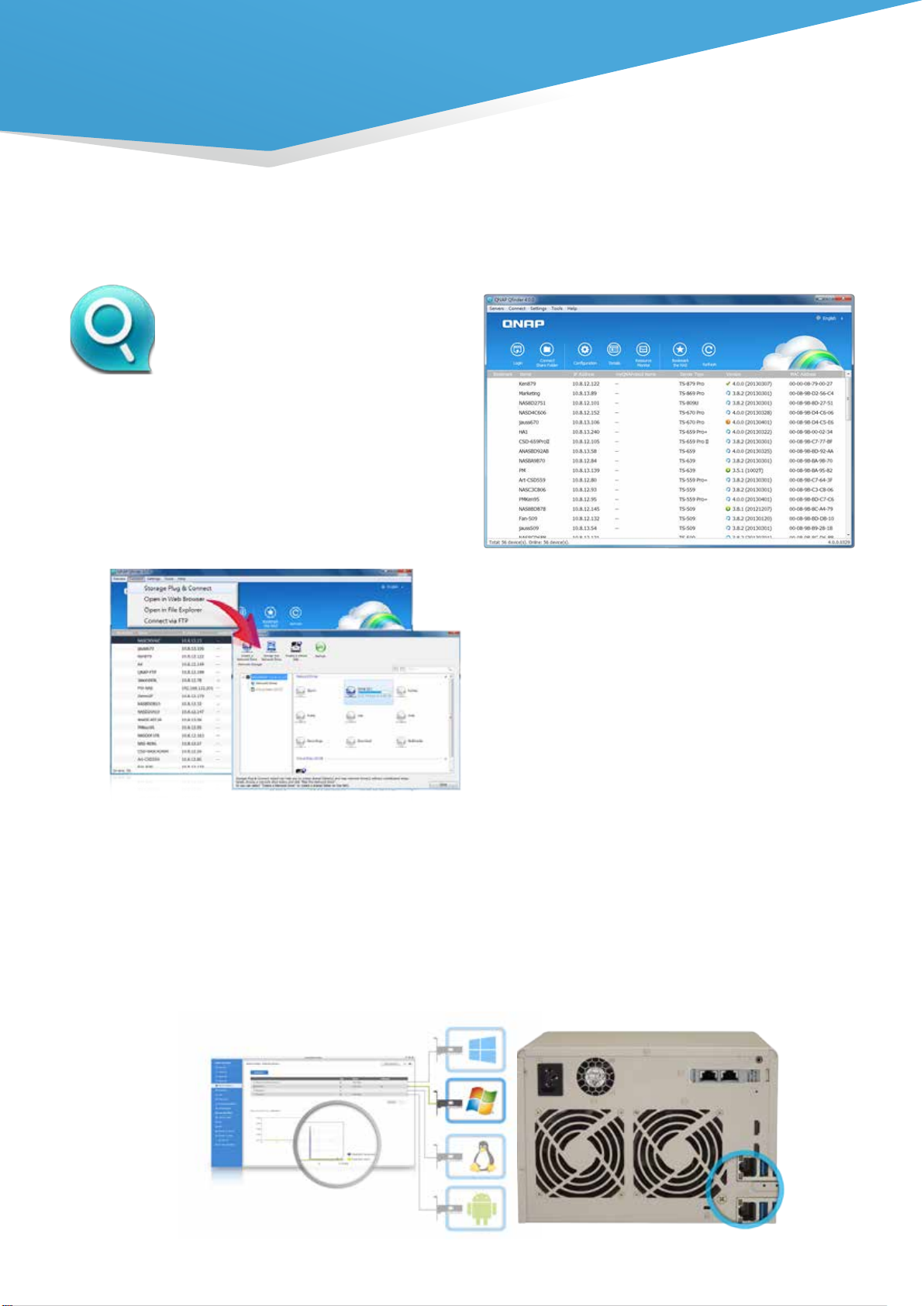

Qfinder for connecting
￭
to a NAS
Instant connection and NAS setup
Qfinder is a utility for Windows®, Mac, and Linux that
lets you quickly nd and access the Turbo vNAS over
LAN. Install Qfinder on your computer, open it, and
double click your Turbo vNAS name and the login page
is ready for you.
Easy access to NAS with
Storage Plug & Connect
The Windows® version of Qfinder provides a
convenient way to connect to the Turbo vNAS and
map a network drive or virtual disk. By creating a
shared folder on the Turbo vNAS and mapping it as a
network drive, you can use it as if it were a local drive
on your computer.
System network setup
￭
TCP / IP and service connection setup
The TVS-x63+ series offers up to 4 LAN ports. You can click on the QTS [Control Panel] > [System Settings]
> [Network] to activate service connection, assigning QTS applications to one or more network interfaces (over
LAN or wireless). The Turbo vNAS will allow application access based on IP sources to optimize the LAN
ports utilization for your network environment.
27
Cost-efficient 10GbE Turbo vNAS
Optimize network resources with high security
You can assign each LAN port for different applications to optimize network resources and increase security (for
example： Public IP, Intranet, Server Backend Network, VM Network, etc). When using Virtualization Station, the
network traffic from the virtual machines (VMs) is isolated from the network used by the Turbo vNAS. The bandwidth
for the Turbo vNAS applications will not be impacted by the VM operations, and the VMs can have dedicated
bandwidth for operating high-traffic applications. Also, you can flexibly install a NIC and arrange other LAN ports for
different VMs to use as a dedicated network resource.
Internet
Internet
Intranet Switch (Intranet)
w
w
w
/
/
:
p
t
t
h
Router
Server Backend Network Switch
AD
Exchange
Server
Server
Transaction
Server
(Public IP) / DMZ
ERP
Server
VM Network Switch
Office Notebook
VDI client
VDI thin Clients using QVM
Port Trunking - Link Aggregation for high-speed and high-security file transmission
Including the practice mentioned above, 2 LAN ports can be used for Port Trunking - Link Aggregation, enabling IT
administrators to set up link aggregation to increase total data transmission capabilities and achieve better efficiency
for IT operations. Failover, load balancing, and multi-IP settings are also supported.
Switch
Aggregated Ethernet
Link Aggregation /
Port Trunking
Turbo vNAS
VM Dedicated Network
Router
Internet
w
w
w
/
/
:
p
t
t
h
Desktop PCs
802.11ac WiFi Router
VDI client
28
QTS 4.1.2 OS

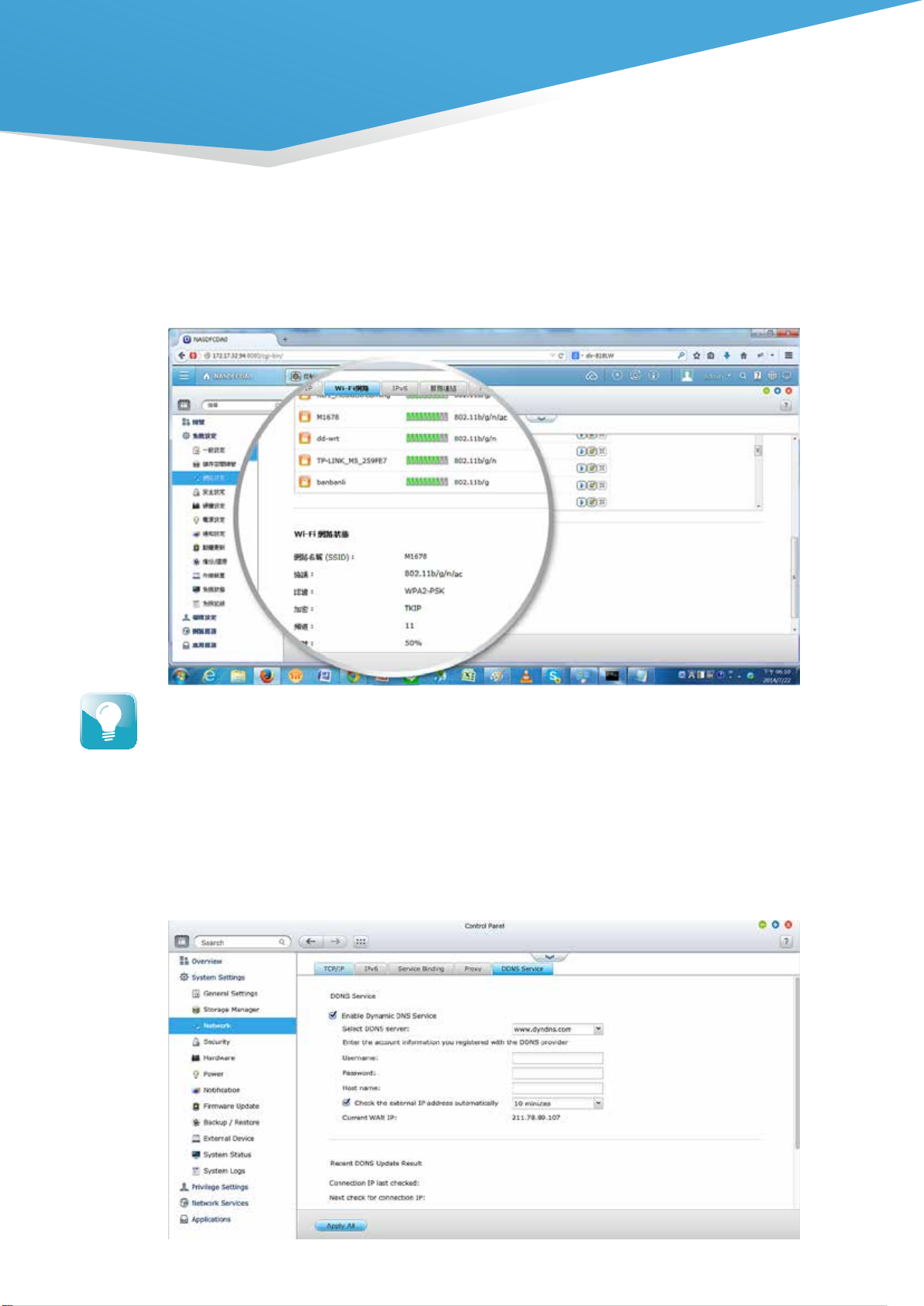

Wi-Fi network settings
The TVS-x63+ supports Wi-Fi networks. Connect a USB Wi-Fi network card to the NAS, click QTS [Control Panel] >
[System Settings] > [Network] > [Wi-Fi], and the available Wi-Fi access points will be listed. The QTS 4.1.2 supports
ac Wi-Fi network protocols. You can connect the TVS-x63+ to a router supporting
802.11
file transfer speeds.
ac protocols for higher
802.11
A Turbo vNAS can support a USB Wi-Fi network card. Visit www.qnap.com for a full Wi-Fi network card compatibility list.
Dynamic DNS (DDNS) service
After connecting to the Internet, click [Control Panel] > [System Settings] > [Network] > [DDNS Service] to get the
Internet IP address. The IP address can be a DHCP or a fixed address according to your Internet Service Provider (ISP).
You can use the IP address and register a DDNS on a DDNS server. By properly setting up DDNS, the Turbo vNAS
ensures that it is always reachable by automatically updating its IP address with the DDNS service provider whenever
the IP address changes.
29
Cost-efficient 10GbE Turbo vNAS
Application Server
QTS 4.1.2 integrates numerous server functions, including web server and printer server.
Web Server
￭
QTS has a built-in Web Server with PHP/MySQL
support and allows hosting multiple websites and
running web applications on the Turbo vNAS such
as Joomla, phpBB, and other online marketing
platforms.
Printer Server
￭
QTS supports printer server, with the support for
IPP (Internet Printing Protocol), Samba, print job
management, and Bonjour printing on Mac OS X. By
connecting a compatible USB printer to the Turbo
vNAS, members can instantly share the printer
resources over the network at the same time (Max. 3
USB printers).
FTP Server
￭
Large file sharing
Use FTP for high-speed data transfer and increase
the efciency of large le sharing.
Flexible settings
Use anonymous login, read/write, read-only control
or bandwidth control to exibly manage the access
right control.
Secure access
Use the safe FTPS (FTP over SSL/TLS) connection
to ensure secure data transmission.
30
QTS 4.1.2 OS

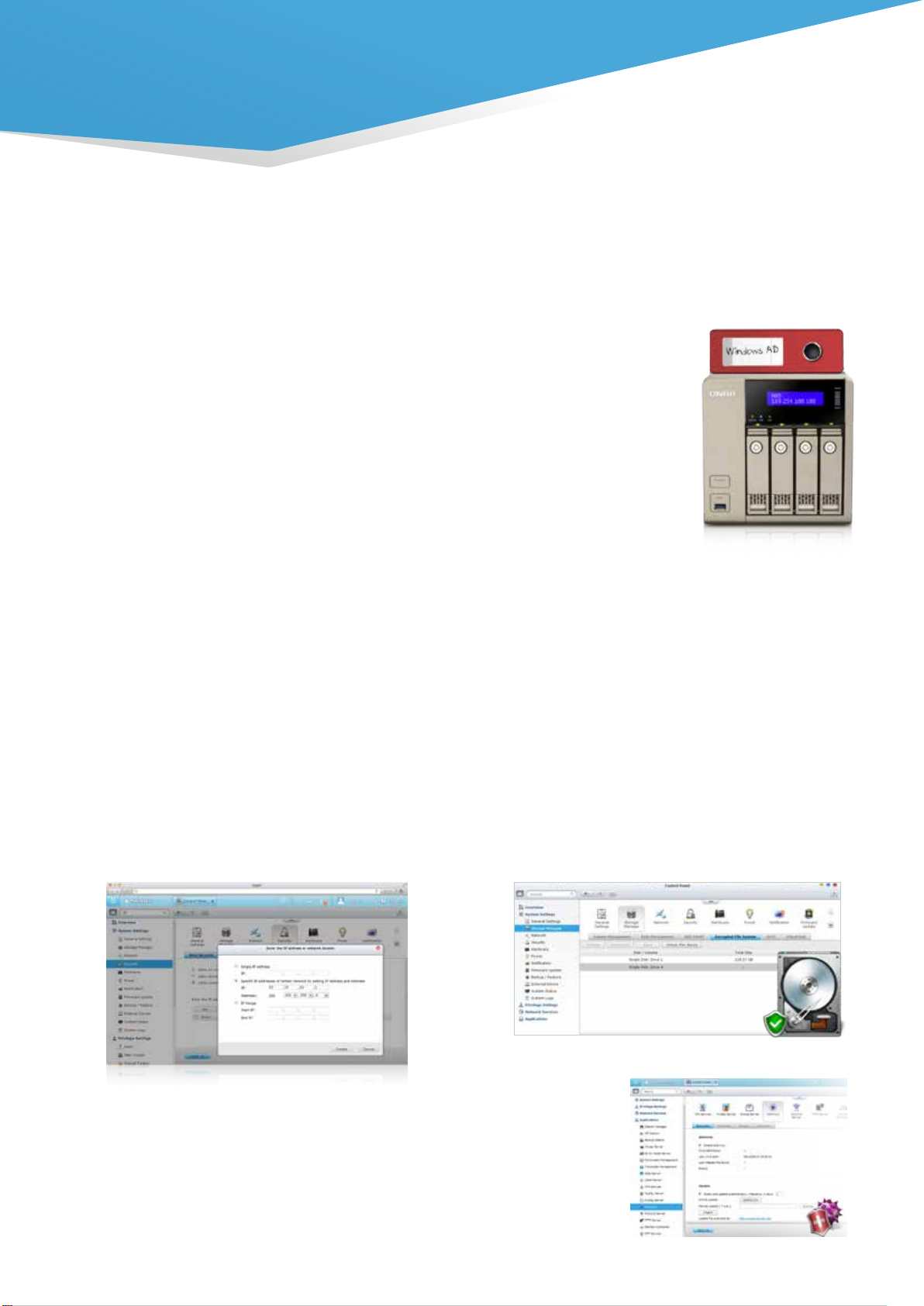

Security Management
QTS 4.1.2 offers various security management options to protect the system from hacking and data from interception,
theft and loss. QTS security management meets the electronic requirements of HIPAA (Health Insurance Portability
and Accountability Act), performing as an ideal storage solution to store medical records.
Privilege settings
Windows® AD/ACL
QTS 4.12. suppor ts Windows® AD/ACL to help IT
administrators manage user account more effectively,
and to simplify the process of privilege settings in
large-scale organizations. QTS 4.1.2 also supports
SAMBA v4 that enables the Turbo vNAS to serve as
a Windows® domain controller to manage privilege
settings.
LDAP Directory Service
QTS 4.1.2 supports the LDAP protocol, integrating the
Turbo vNAS into networks that have deployed an LDAPbased directory service such as OpenLDAP and greatly
simplifying the efforts of managing a large amount of user
accounts. QTS 4.1.2 makes Turbo vNAS a LDAP server too.
Anti-hacking
IP blocking
IT administrators can set up the black and white lists
to grant proper access from different users to the
Turbo vNAS by IP address. It operates as a policy-based
automatic IP blocking by enabling the network access
protection command.
Radius Server
QTS RADIUS Server provides
centralized authentication and
authorization management
for computers to connect and
use a network service. The
QTS RADIUS Server maintains
a list of user accounts that
are authorized for remote
network access through dialup equipment, Wi-Fi access point, or VPN connections.
IT administrators can easily apply access policies to
multiple access points for a fine-grained control of
network access.
Anti-theft
Hard drive encryption
QTS 4.1.2 supports up to AES
internal drives and external USB/eSATA drives, and
adopts a military-level FIPS
which is considered to be the highest security
certification for compliance.
140-2
-bit encryption for
256
validated encryption,
Anti-virus
QTS 4.1.2 integrates the ClamAV antivirus toolkit to defend against the
latest viruses, malware, worms, and Trojan horses with continuous free
virus database updates, ensuring continuous business operation. An email
notification upon task completion or virus detection is provided. QTS 4.1.2 also
supports McAfee virus scanner which is available in the QTS App Center with a
free 30-day trial.
31
Anti-interception
VPN Server
QTS 4.1.2 supports VPN Server, with VPN
connections secured with up to
bit encryption. It is easy to configure and
is seamless integrated with the QNAP
myQNAPcloud service and Auto Router
Configuration. Complicated port forwarding
settings for PPTP and OpenVPN are therefore
simplified.
Encrypted access
QTS 4.1.2 suppor ts SSL, SSH and SFTP for
secure connection and data transfer. IT
administrators can host websites on the
Turbo vNAS and only allow access via HTTPS
(SSL over HTTP) secure channel.
256
-
Cost-efficient 10GbE Turbo vNAS
The best solution for secured
communication
Virtual private network (VPN)
Virtual private network (VPN) offers secure connections to access network resources and services across a public
network. VPN offers a convenient solution for users to build end-to-end encrypted tunnels to your Turbo vNAS. The
built-in VPN function in the Turbo vNAS supports two different configurations： a VPN server, which allows clients
to securely connect back to the Turbo vNAS, and a VPN client, which allows a Turbo vNAS to connect to another
Turbo vNAS across a WAN. When the Turbo vNAS acts as a VPN server, employees or users can access enterprise IT
resources remotely through their mobile devices such as smartphones and tablets. Furthermore, they can also access
websites that may be blocked in their network environment through the VPN service.
Turbo vNAS As a VPN Server
：
VPN + proxy server
32
QTS 4.1.2 OS
When the Turbo vNAS acts as a VPN client, VPN can better protect your data when you use services like BitTorrent
and eMule. By using this type of configuration, you can set up remote site backup with secure data transmission.
Turbo vNAS As a VPN Client for File Download
Turbo vNAS As a VPN Client for Off-site Backup
33
Cost-efficient 10GbE Turbo vNAS
Squid： the popular web proxy server
The web proxy server provides cache and connection control for Internet services like HTTP and FTP. For companies
that need a boost to web response time and security, Squid can be leveraged to make your Turbo vNAS a web proxy
server to protect other devices in your local network from Internet attacks.
Caching：Improves response time and saves bandwidth required for web access by caching visited web content
Access Control：blocks access to certain websites or restricts access for internet connections.
Logging：logs visits to web sites for generating statistics to aid in network management.
Load balancing：distributes the load to several web servers to accelerate service requests.
Turbo vNAS As a Proxy Server for Access Control
and other web resources.
Case study for VPN+proxy services
Company X decided to open an overseas branch to expand its sales. In a fast-paced, competitive business environment, it is more important than
ever to keep your employees connected to the people and resources they work with every day. Hence, the management team of this company
required using networking technology to reach this goal.
The IT personnel of Company X found that a QNAP Turbo vNAS is easy to set up and use. It not only provides everything needed for data storage
and backup, but also offers VPN and web proxy services for network access to employees in the main office, as well as at home and branch offices.
Furthermore, the consumption of bandwidth is minimized and web access experience improved by using the web proxy function offered by Squid
on the Turbo vNAS.
Now, the employees of Company X can enjoy secure, high-speed connectivity to the Internet and their business networks—both inside and
outside the office to efficiently attain product information as soon as it is announced. Also, the IT personnels can set up scheduled backup from
branch offices to the HQ for peace of mind.
34
AC mains
UPS support
Wi-Fi Router
USB signal
detection
UPS AC powerUPS AC power
QTS 4.1.2 OS
Uninterruptible Power Supply (UPS)
Activate the UPS support to ensure the Turbo vNAS is properly shutdown if power fails. In the event of a power
failure the Turbo vNAS will shut down automatically or enter auto-protection mode by probing the power status of
the connected UPS unit. You can set up the function by clicking QTS [Control Panel] > [System Settings] > [External
Device] > [UPS].
Case study for NAS connecting to a USB UPS
￭
You can set the Turbo vNAS to shut down or enter auto-protection mode if the power fails, and determine the
action after few minutes of the power failure. Once the auto-protection mode is activated, the Turbo vNAS
will revert to the state before power failure and continue to operate when the power restores.
UPS support
USB signal
detection
UPS AC powerUPS AC power
Wi-Fi Router
UPS with SNMP management
￭
When the Turbo vNAS and the SNMP-based UPS server connect to the same network, you can select [SNMP
connection] and enter the IP address of SNMP UPS server to set up the power failure notication.
Ethernet
Switch
Switch
UPS supporting
SNMP
AC mains
35
UPS AC power
UPS AC powerUPS AC powerUPS AC power
AC mains
Cost-efficient 10GbE Turbo vNAS
AC mains
AC mains
UPS supporting
SNMP
UPS support
Switch
Wi-Fi Router
USB signal
detection
Ethernet
UPS AC powerUPS AC powerUPS AC power
UPS AC power
UPS AC powerUPS AC power
Switch
Multiple NAS units share an USB UPS
￭
The network UPS "master" is connected to the UPS via USB cable. If the power fails, the UPS sends a
notication to the network UPS "master" via USB and all the UPS "slaves" are informed by the UPS master
via Ethernet. To set your Turbo vNAS as a UPS "slave": connect the UPS and the Turbo vNAS by USB, select
[Network UPS slave], enter the IP address of the master server, and the slave server will get notication hen
the power fails.
Step 2：
Enter the IP address of the master server
Step 1：
Select "Network UPS slave"
Low power shutdown signal
Ethernet
Turbo vNAS (UPS Slave) Turbo vNAS (UPS Slave)
Ethernet
UPS AC power
Turbo vNAS (UPS Master)
Wi-Fi Router
USB signal
detection
UPS AC power
UPS AC power
UPS
UPS
AC mains
36
QTS 4.1.2 OS

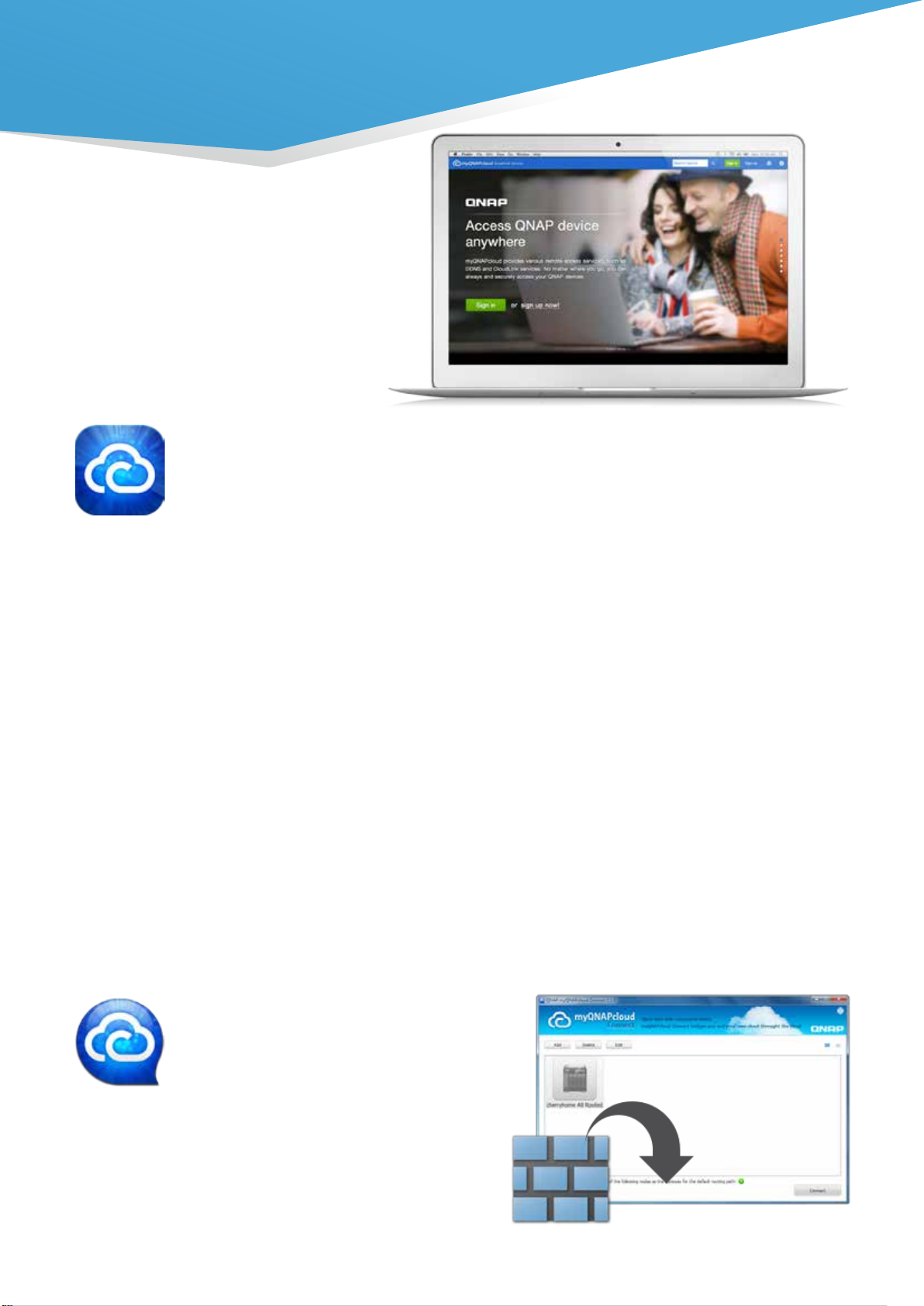

myQNAPcloud
SmartLink
With the myQNAPcloud service it is easy to create a private cloud for enjoying your Turbo
vNAS services safely and conveniently.
myQNAPcloud ID ( QID )
Access your Turbo vNAS by signing into your myQNAPcloud portal (www.myqnapcloud.com) with your "QID"
a unique ID for you to access your Turbo vNAS and securely share your private data and les.
：
Publish and share
myQNAPcloud is an easy-to-setup service that simplies the steps in publishing Turbo vNAS content over the
Internet. On QTS myQNAPcloud, you can select numerous web-based Turbo vNAS services, such as Photo
Station, Music Station, and File Station to be published to the myQNAPcloud.com website. Likewise, you can
easily view friends' public services on the myQNAPcloud.com website too.
Web-based file management
The myQNAPcloud portal enables you to manage multiple Turbo vNAS units in one place. With the easy-touse management interface, you can simply download, move, and copy les on your Turbo vNAS, lessening the
difculty in accessing multiple Turbo vNAS servers. All you need is to sign into myQNAPcloud.
Trustworthy file protection
To ensure the security of remote access service, myQNAPcloud strengthens keys on SSL Certicates to 2048bits. The les on the Turbo vNAS are 100% under the NAS owner's control.
37
myQNAPcloud Connect
myQNAPcloud Connect application is
designed for Windows® PC users. By
installing the myQNAPcloud Connect, users
are able to connect to the Turbo vNAS and
easily manage les by dragging-and-dropping
within Windows® Explorer.
Cost-efficient 10GbE Turbo vNAS
CloudLink for easy remote access
￭
myQNAPcloud features the new CloudLink App (QPKG) for an easier remote access
experience. Without any complex router settings, all you need to do is install the app and
login with your myQNAPcloud ID (QID), then you can access to your Turbo vNAS through
the myQNAPcloud.com website. CloudLink will automatically choose the best way to connect
based on your network environment. CloudLink supports access to the Turbo vNAS via mobile
devices with the Qle/Qmanager apps or via computer with the Qsync utility. Visit the QNAP
App Center to download the CloudLink App (QPKG), and experience the new myQNAPcloud
Smart Link remote access service.
38
QTS 4.1.2 OS

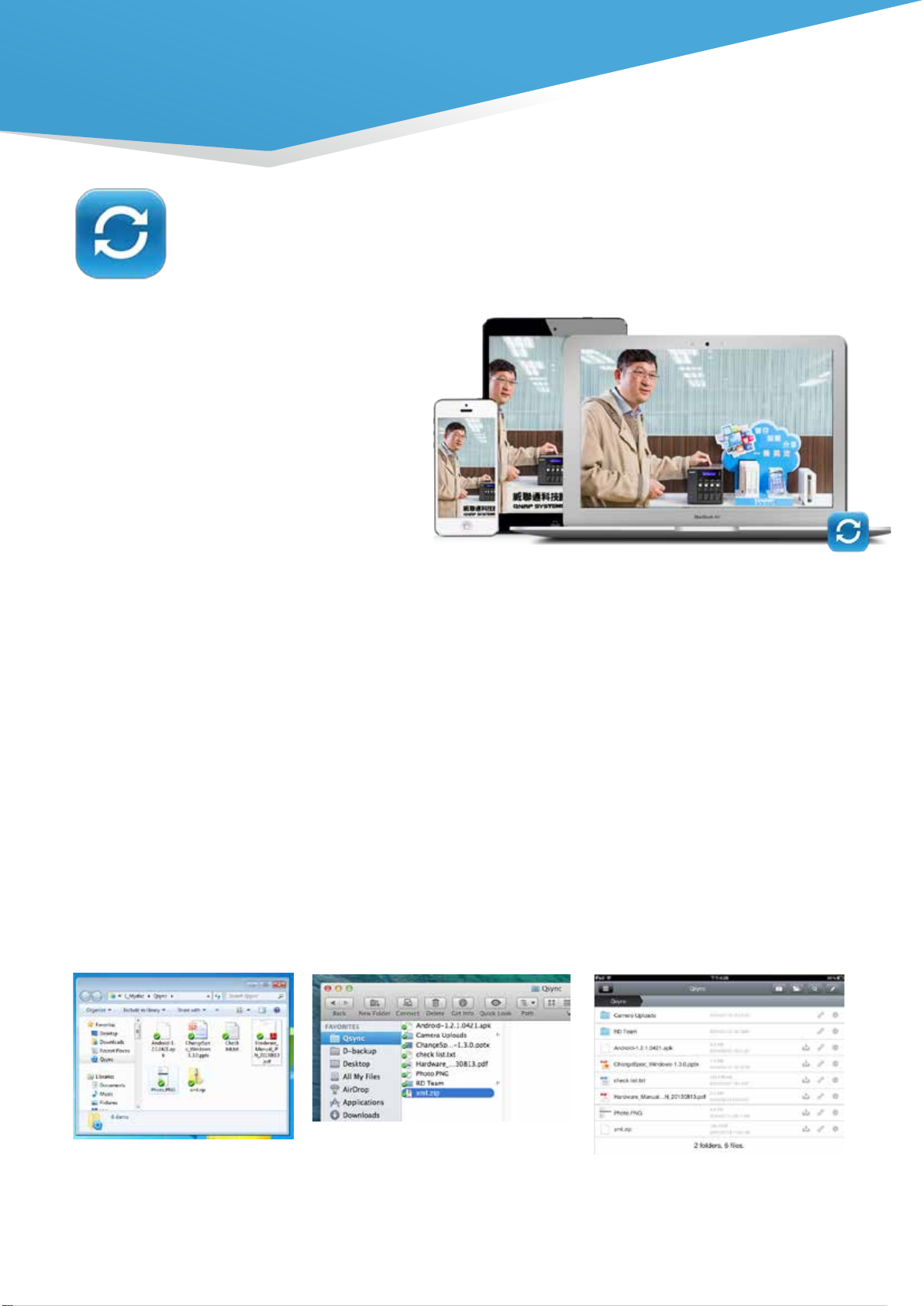

Qsync
：
A Powerful Utility for File Synchronization
Public cloud files synchronization services such as
Dropbox can greatly increase the efficiency and
productivity of offices, but comes with certain
drawbacks
. Security： there is the possibility of data leaks
1
and interception of confidential information.
. Cost： the greater the size of your data storage
2
needs, the greater the cost of the service.
With QNAP's Qsync utility on Turbo vNAS, IT administrators can create a Dropbox-like private cloud with a larger
storage capacity to fulfill business needs. Any files added to the Qsync folder will be automatically accessible across
multiple devices, and synchronized with different work groups flexibly and effortlessly. With no additional costs or
storage limits, Qsync can centralize files from different work groups and assist in teamwork on important projects
anytime, anywhere.
：
7 reasons why you need Qsync
￭
. Cross-device synchronization
1
Qsync turns your Turbo vNAS into a safe data center for les synchronization. Every le uploaded to the
Qsync folder will be made available to multiple devices including computers, laptops and mobile devices.
When you are away on a business trip, Qsync ensures that the most up-to-date les are accessible on all
linked devices and reduces your need to rely on USB storage to carry les and on emails to get the latest
les.
Synchronize with Windows®
Synchronize with Mac
Synchronize with iPhone/Android
smartphones via Qle. Synchronize
with iPad via Qle HD
39
. Intelligent offline editing
2
You can edit your files offline and once your device
is online, Qsync will automatically sync them. This
ofine editing feature ensures your les are protected
without any information loss.
. Flexible synchronization methods
3
Qsync has many sync settings to prevent taking up
signicant storage space on your computer. With both
Full Sync and Smart Sync options, you can choose to
synchronize all the les in the Qsync folder or you can
enable the Smart Sync option to remove local files
without affecting the centralized files stored on your
Turbo vNAS.
Cost-efficient 10GbE Turbo vNAS
. Share files & folders more efficiently
4
. Auto-upload from mobile devices
5
You can enable the auto-upload option on the Qfile
mobile app and automatically sync your files to
multiple devices. Your meeting minutes, notes, and
seminar recaps will be automatically uploaded and
synchronized as well.
. High security
7
You can create sub-folders within the Qsync
folder, share each with different work groups
and everyone with the same sub-folder is
always kept up-to-date with the latest files.
All your files are shared via drag-and-drop.
With Qsync, your Turbo vNAS becomes an
aggregative data center and greatly enhances
teamwork exibility.
.Integrated version controls
6
protecting against accidental deletion
The Turbo vNAS will retain up to 64 versions
of files when they are modified, allowing you
to retrieve a specific previous version at any
time. Even if you have accidentally deleted the
le you can restore previous versions from the
recycle bin. With capacity-efficient restoration,
the reserved version only keeps the changes
made to the file and assists in optimizing your
storage space.
Qsync can create a private cloud within your intranet and benet from your existing secure network environment.
The Turbo vNAS also supports HTTPS connection assisting in creating a safer, more reliable business network
environment.
40
Mobile apps &
utilities
Share Files with Mobile Devices
You can install the Qfile app on your mobile device to browse and manage files stored on your Turbo vNAS anytime,
anywhere.
Qfile
￭
Vmobile
￭
Access from anywhere
Open Qfile on your mobile device to browse files on
the Turbo vNAS. You can open or share files, and easily
rename, copy, move, download any selected files.
Stream multimedia contents
Browse and play the music, photos and videos on the
Turbo vNAS. No more worries about the space limitation
of your mobile device.
Auto-upload photos
Automatically upload photos to your Turbo vNAS
whenever you take new photos. It works as a real-time
backup of your precious photos.
Offline file reading
Download documents, photos or music from the Turbo
vNAS to your mobile devices for offline reading.
Folder & file sharing
Create download links for shared folders or files to
share via email or SMS. You can also share by email as
attachments.
Mobile surveillance with ease
Vmobile is a professional surveillance mobile app for
remotely managing the Surveillance Station of linked
Turbo vNAS or the IP cameras of VioStor NVR.
More advanced functions
Besides real-time monitoring, the VMobile allows you to
remotely control the recording, snapshots, and playback.
Once alarm events occur, an instant notification is also
provided.
Qmanager
￭
Manage multiple NAS units
Add multiple Turbo vNAS units on Qmanager, and conveniently
manage anyone of them anytime and anywhere.
Monitor system status
Monitor your system information, such as CPU usage,
memory usage, system event information online users,
etc. You can also check connection status to prevent
suspicious invasion.
41
Remote management
With one click, you can use Qmanager to turn on/off
or restart the Turbo vNAS, open or close Turbo vNAS
services, and set up Wake on LAN.
Cost-efficient 10GbE Turbo vNAS

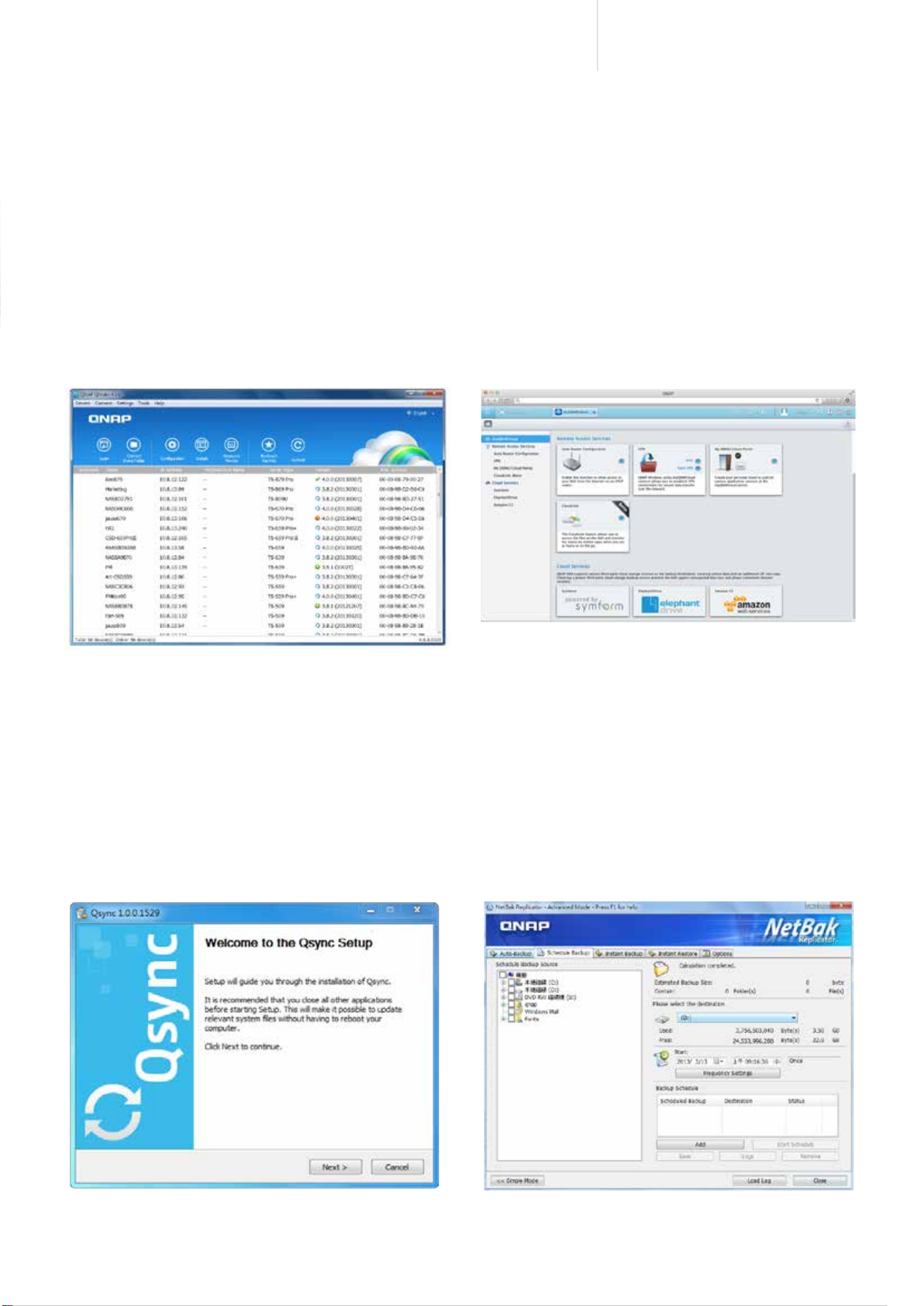

Utilities
Work efficiently and manage the Turbo vNAS smartly with the various easy-to-use and practical utilities.
Qfinder
Qfinder is available for Windows®, Mac, and Linux users
to quickly find and access the Turbo vNAS over the LAN.
You can also update the firmware or set up Wake on LAN
through the Qfinder.
myQNAPcloud Connect
myQNAPcloud Connect is designed for Windows® PC
users to connect to the Turbo vNAS and easily manage
files by drag-anddrop within the Windows® Explorer.
Qsync
Qsync provides cross-platform synchronization. It
creates a specific “Qsync folder＂ in your devices that
you can simply drop files in, and synchronizes the files
to all your devices linked to the Turbo vNAS.
NetBak Replicator
QNAP NetBak Replicator helps you easily back up files
or the entire hard drive data from Windows® PC to the
Turbo vNAS. It also supports backing up to a remote
server via FTP and WebDAV through the Internet.
42
4K2K
Business Solutions
QNAP's Unique Transcoding Technology
Every year many SMBs produce hundreds of promotional videos for marketing purposes. However,
due to the increasing use of HD videos (
size and can use lots of network bandwidth to share or play them over a network.
Powerful transcoding tools
￭
On-the-y transcoding and background transcoding allow you to convert videos to optimized resolutions for
accommodating slower/restricted network environments and device limitations.
720
p,
p), video files are becoming increasingly large in
1080
Smart transcoding adapts to suit different bandwidth
￭
The TVS-x63+ series provides a range of resolutions to play/share videos according to different bandwidth
limits. Higher resolutions need more bandwidth, and you can select the right resolution for your network
environment to get the best viewing experience.
Resolution
Network
Ethernet
Wi-Fi
(108.11 ac)
Wi-Fi
(108.11 a/b/n)
4G (LTE)
240p 360p 480p 720p 1080p
43
3G
Cost-efficient 10GbE Turbo vNAS
Multi-mode transcoding function
￭
Background hardware-accelerated transcoding
The TVS-x63+ series fully supports offline background transcoding for
transcoding list and use the Turbo vNAS to convert the original high-resolution video for use with multiple
resolutions. Then you can select an appropriate resolution when sharing or watching to match your device or network
environment.
p videos. Just add videos to the
1080
Auto transcoding
When you set a folder on the Turbo vNAS to be an autotranscoding folder, videos added to it will be automatically
converted to a resolution you have set. For example, if you
set the folder to
automatically transcoded to
p, videos added to this folder will be
360
p as a background task.
360
On-the-fly transcoding
If you have many high-resolution videos, but did not transcode in advance,
you can use on-the-fly transcoding. This will adapt to meet bandwidth limits,
with the Turbo vNAS transcoding in real time for directly watching the video.
Subtitles
By selecting the Embed Subtitles option in the Transcode Management function, you can embed subtitles to a video
when converting a video to any resolution. The subtitles will then be displayed when a video is played on whatever
device you are using.
Hardware-accelerated transcoding technology
With powerful AMD® RadeonTM Graphics, video creation & conversion is faster, easier and can significantly reduce the
time needed when handling concurrent on-the-fly transcoding tasks.
QNAP Turbo vNAS transcoding videos
day and night
According to surveys, in a typical SOHO environment
the Turbo NAS is idle for more than 60% of the time. To
make the most of this idle time, you can set the Turbo
vNAS to transcode videos after office hours. This way
you can watch videos later or share them immediately
on your computers and mobile devices.
44
Business Solutions
Virtualization Applications
Unified storage and virtualization applications
The Turbo vNAS supports iSCSI & NFS protocols and is virtualization ready with compatibility for VMware®, Citrix®, and
Microsoft® Hyper-V to provide businesses with powerful & flexible storage solutions for virtualization applications.
￭ Virtualization ready
The Turbo vNAS supports VMware® Ready ™ vSphere 5 and VAAI; Citrix® XenServer 6.0, and is compatible
with Microsoft® Hyper-V, supporting ODX and Windows® Server 2012.
￭ VAAI/Hyper-V Plug-in Support
Use the free QNAP vSphere Client plug-in and QNAP SMI-S provider for SCVMM and managing the Turbo
vNAS from the virtualization management client console is easy.
￭ Secure and flexible storage utilization
The Turbo vNAS offers flexible management through creating and allocating iSCSI LUNs (Logical Unit
Numbers), mapping and unmapping LUNs to and from iSCSI targets, and thin provisioning. CHAP
authentication and LUN masking support reinforces secured deployment in virtualization applications.
￭ NAS/IP SAN unified storage
QTS supports NFS and iSCSI/IP-SAN storage solutions that can be utilized as network-shared storage of virtualized
environments, helping to achieve an effcient cost-saving, energy-saving optimized storage capacity.
45
VAAI for iSCSI, VAAI for NAS
Deployment time for a 80 GB Thick Provision
Relative time for cloning a
￭
The QNAP Turbo vNAS, VAAI iSCSI and VAAI
NAS are VMware certied. Businesses can select
either iSCSI or NFS as a centralized storage to
boost performance. VAAI for iSCSI supports Full
Copy (hardware-assisted copy), Block Zeroing
(hardware-assisted zeroing), Hardware-assisted
Locking, and Thin Provisioning with space
reclaim. VAAI for NAS supports Full File Clone,
Extended Statistics, and Reserve Space. The
QNAP Turbo vNAS supports VAAI iSCSI and
VAAI NAS to enhance storage performance in a
virtualized environment.
QNAP Turbo NAS:
Boosted Performance by ODX
With ODX
3
Token
Cost-efficient 10GbE Turbo vNAS
Eager Zeroed virtual disk (lower is better)
900
750
600
450
300
150
Relative time (seconds)
0
VAAI: block zeroing
Performance drop
performance impact!!
VAAI: Hardware-assisted Locking
2,100
1,750
1,400
1,050
Relative time (seconds)
VAAI OFF
VAAI ON
Very small
80 GB VM (lower is better)
700
350
0
VAAI: full copy
1
Offload
Read
Virtual disk 1 Virtual disk 2
Other NAS
Windows Host 1
1
Read
Virtual disk 1
NAS management
￭
via SCVMM
QNAP SMI-S enables management of the QNAP
Turbo vNAS directly through Microsoft System
Center Virtual Machine Manager 2012 (SCVMM)
2
Token
2
Data
4
Offload
Write with
5
Data
TVS-863+
3
Data
Other NAS
Token
Without ODX
Windows Host 2
4
Write
Data
Virtual disk 2
6
Results
5
Results
Storage for Microsoft
￭
Hyper-V
With ODX support, the QNAP Turbo vNAS becomes
a high-performance iSCSI solution under Windows®
Server 2012, including Hyper-V virtualized
environments. QNAP storage enables full copies of
virtual machines within the NAS without requiring the
Windows® hosts to read and write the data to highly
reduce the load on Windows® hosts and improving
the performance of copy & move operations on
Windows® 2012 hosts. When providing QNAP
storage to a Windows® 2012 file server, the end
user using a Windows® 8 client workstation will also
benet from the Ofoaded copy process for large le
transfers.
vSphere plug-in
￭
The vSphere plug-in allows users to manage the
QNAP Turbo vNAS directly on the vSphere client,
making datastore management more effective.
46
Business Solutions
5
1

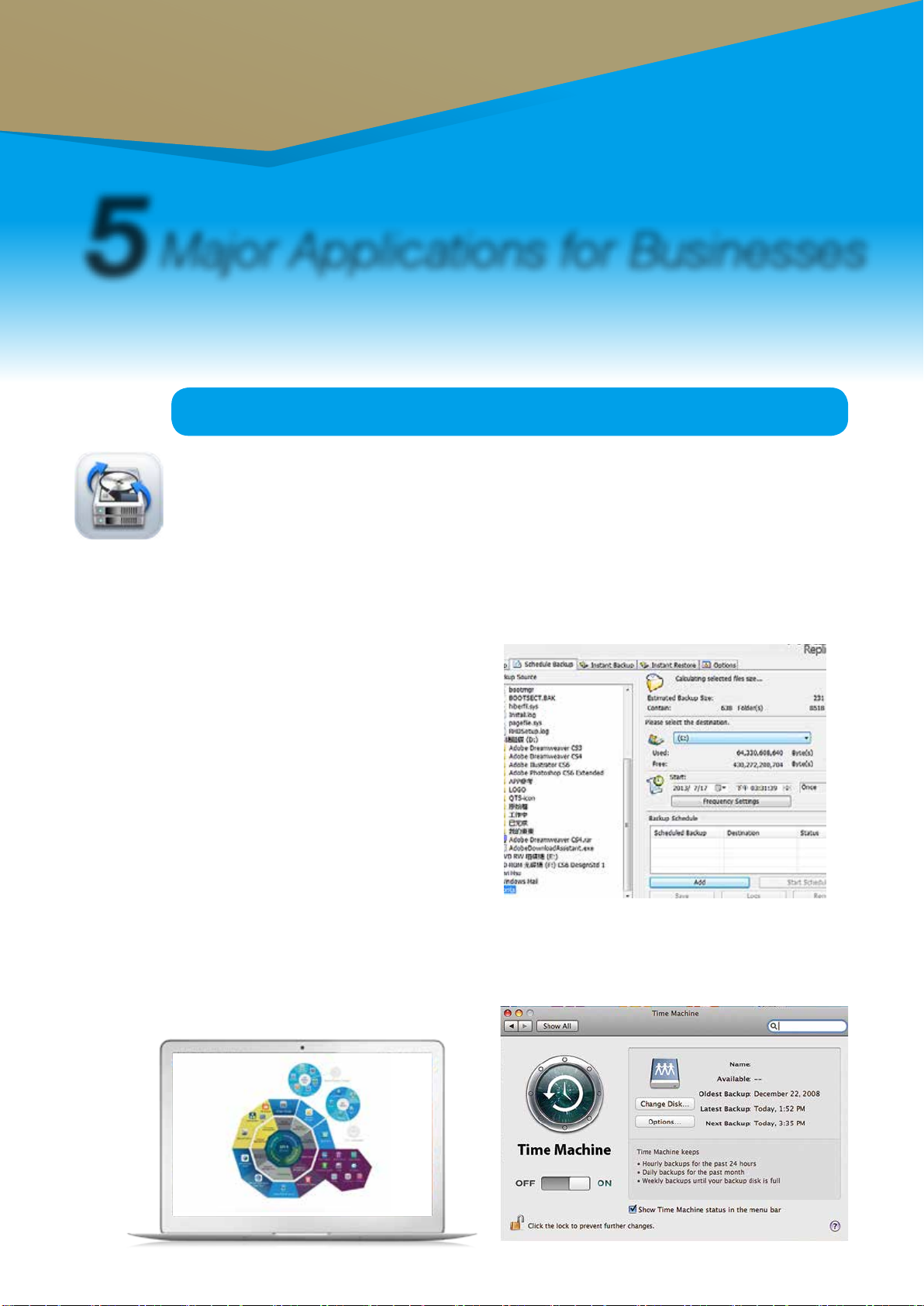

Major Applications for Businesses
Multi-purpose Workstation for Business IT Environment
Backup Station
Protecting against potentially disastrous data loss is of paramount importance for all sizes of
businesses from micro to enterprise. QNAP Turbo vNAS offers an all-inclusive backup and
recovery solution with enormous storage capacity and superior transmission speed. With the
functionalities in the backup station, data backup and recovery is simpler and more powerful
regardless of your business's disaster recovery plan.
￭ All-inclusive data backup and disaster recovery
. PC backup
1
Windows® users can install the free QNAP NetBak
Replicator utility to back up les from Windows® PC -
entire disk drives, documents, pictures, music, videos,
fonts, emails, and more - to one or multiple Turbo
vNAS units. With simple clicks, you can set up real-
time backup, scheduled backup and auto-backup. You
can set power off after the backup is finished to save
energy; le ltering to exclude les not to back up; and
email notication when backup is completed.
47
. Mac backup
2
Mac users can use the Mac Time Machine to back up data to the Turbo vNAS. You only need to set the
Turbo vNAS as the backup destination on the Time
Machine management page, and it's done.
Cost-efficient 10GbE Turbo vNAS
Back up data on the Turbo vNAS for disaster recovery
￭
Data Center
From Turbo vNAS
to external storage
. Local backup to external storage devices
1
Connect an USB device to one of the USB ports. Log into the QTS and go to “ Control
Panel”>”Applications”>”Backup Station” and create a job with the External Backup function.
. Remote backup with RTRR/rsync services
2
- Use rsync protocol to execute scheduled backup to remote rsync server.
- Use RTRR (Real-Time Remote Replication) services for real time data backup to a remote Turbo vNAS
or FTP server.
- Use RTRR to sync shared folders between two Turbo vNAS units.
. Cloud backup to cloud storage
3
Users can back up the data from the Turbo vNAS to online cloud storage services, such as Amazon® S3,
Amazon® Glacier, Microsoft® Azure, Google® Cloud Storage*, IBM® SoftLayer, HP® Cloud, Rackspace®,
ElephantDrive®, hicloud S3, and CCIS. The Turbo vNAS also supports other types of cloud backup using
S3, OpenStack Swift, WebDAV, or FTP service. Furthermore, Turbo vNAS provides advanced functions such
as data encryption, compression, download/upload rate control and scheduled backup to suit your backup
needs.
From Turbo vNAS
to another NAS
From Turbo vNAS
to cloud storage
*Google® Cloud Storage will be available soon in the App Center for download.
Tap on the “Copy” button near the
USB port on the front panel of the
Turbo vNAS to instantly back up data
to the NAS.
48
Business Solutions
2
IT Management Station
Powered by Mandriva® Pulse, IT Management Station is designed to simplify daily tasks and IT
asset management for businesses of all sizes. Your Turbo vNAS becomes an IT system management
server to help you centrally manage multi-OS & multi-site IT resources, applications and security
with greater flexibility.
￭ At the core of Pulse
Comprehensive Inventory
Pulse automatically retrieves hardware &
software information from your IT system
using an inventory agent to provide you with
reliable and timely data. It measures the
potential of your inventory and runs your IT
assets tactfully, thanks to dynamic groups,
which are self populated from queries.
Mastering
Create generic disc images to carry out mass
OS deployments.
Remote control
Help your users in their everyday tasks by
connecting from remote locations without
compromising the security of their IT assets..
49
Cloning
As part of a scheduled or on-demand
restoration, systems and their stored data
can be fully backed up easily.
Deployment
Design, schedule and implement software
installation on your IT assets.
Backup and restore
Save time, optimize s tor age and protect
data from accidental loss using incremental
backups.
New features in Mandriva Pulse 2.0
￭
Cost-efficient 10GbE Turbo vNAS
Reporting
Create and edit reports/graphs for better control
of your IT assets and to anticipate future changes.
Pull mode
Increase the compliance of your roaming
devices for deploying packages needed in any
environment.
Update management
Centralize your software updates for greater control
and security.
Software convergence
Efficiently deploy software using an automated
process.
License management
Optimize your software assets with an overview
of used and available licenses.
Flexible management of your IT assets
￭
Multi-OS
Manage all your IT assets and virtual machines
no matter if it is Windows®, GNU/Linux, Mac or
Unix.
Multi-site
Remotely & securely manage your sites via SSH
tunnel, simultaneously controlling the bandwidth
and conserving the availability of your network.
￭ Intuitive tools
Features a desktop icon for quick self installation
to facilitate access and remote control of new
deployments.
A simple web interface with an intuitive dashboard for
quick information regarding your IT assets.
A unique management interface for software licenses
and automatic package management.
50
Business Solutions
3
Surveillance Station
One of the standard Turbo vNAS applications, the Surveillance Station is professional network
surveillance Video Management System (VMS) that can be activated in the QTS App Center to turn
the Turbo vNAS into a professional Network Video Recorder (NVR) system for real-time monitoring,
recording, playback, alarm notifications, Intelligent Video Analytics (IVA), and management to
safeguard your assets and property when used with supported IP cameras. The TVS-x63+ series
comes with 4 free camera channels, allowing users to easily build a surveillance system.
Professional NVR system
Wide range of supported IP cameras
Surveillance Station is compatible with over 2,700 IP camera models across over 90 brands and ONVIF
specications, including those that support advanced features such as multi-streaming and sheye dewarping.
Expandable license management
TVS-x63+ series offers 4 free IP camera channels and can be expanded to 40 channels to fulfill various
surveillance deployment needs.
Cross-platform support
Surveillance Station works with all major web browsers including Google Chrome, Mozilla Firefox and Internet
Explorer. With the QNAP Surveillance Client for Mac, users can enjoy a similar experience on their Macs.
Advanced storage technology protection
Surveillance Station is installed on the Turbo vNAS platform and is protected against loss, theft, and damage of
recorded videos with the help of advanced security features and RAID technology.
51
Cost-efficient 10GbE Turbo vNAS
Live-view
Various remote monitoring modes
The Surveillance Station supports various monitoring modes to display up to 64 channels on a single screen.
Users can also choose to sequentially display each channel or use dual displays for more information.
PTZ (Pan/Tilt/Zoom) control
On the Surveillance Station web interface,
you can directly adjust the PTZ (Pan/Tilt/
Zoom) functions of supported cameras,
greatly enhancing the convenience in remote
monitoring.
Instant playback
On the Live-view page, whenever you want to
check suspicious events of a camera channel
you just missed, just hit Instant Playback to
bring up the window to review recent events.
Visual aid by E-map
Just upload pictures of monitored locations to the Surveillance Station and drag & drop the IP camera icons to
them on the E-map. Once an alarm event happens, the camera icons will ash to indicate the event type for
you to be immediately alerted to take necessary actions.
Instant notification
When alarm recording is enabled and an event occurs, an alarm icon will be instantly shown on the monitoring
page. The alert details can be viewed by clicking the icon.
Please note: You can also use USB webcams for Surveillance Station to record videos. Just install the QUSBCam App on a
Turbo vNAS from the QTS App Center to assist in building a small surveillance system for your ofce with USB webcams.
52
Business Solutions
Playback
Preview recordings by thumbnails
You can move the mouse cursor over the timeline to preview video thumbnails to quickly identify and search for
events. No need to play the video from the start and wait.
Intelligent Video Analytics (IVA)
IVA is an advanced way to quickly search videos corresponding to particular modes, greatly saving the time &
effort of manually screening out matching videos. IVA includes motion detection, foreign/missing objects, out-of-
focus and camera occlusion.
Real-time watermarking
The support of digital watermarking assists in verifying the authenticity of exported videos and snapshots by showing
the exact recording date & time, camera name, and Turbo vNAS model name, making it essential when videos are
needed as veriable evidence.
Playback and speed control by shuttle bar
With the speed control shuttle bar, you are able to fast forward playback by dragging the button to the right and to
the left to rewind, helping you quickly nd the desired screenshots.
53
Cost-efficient 10GbE Turbo vNAS

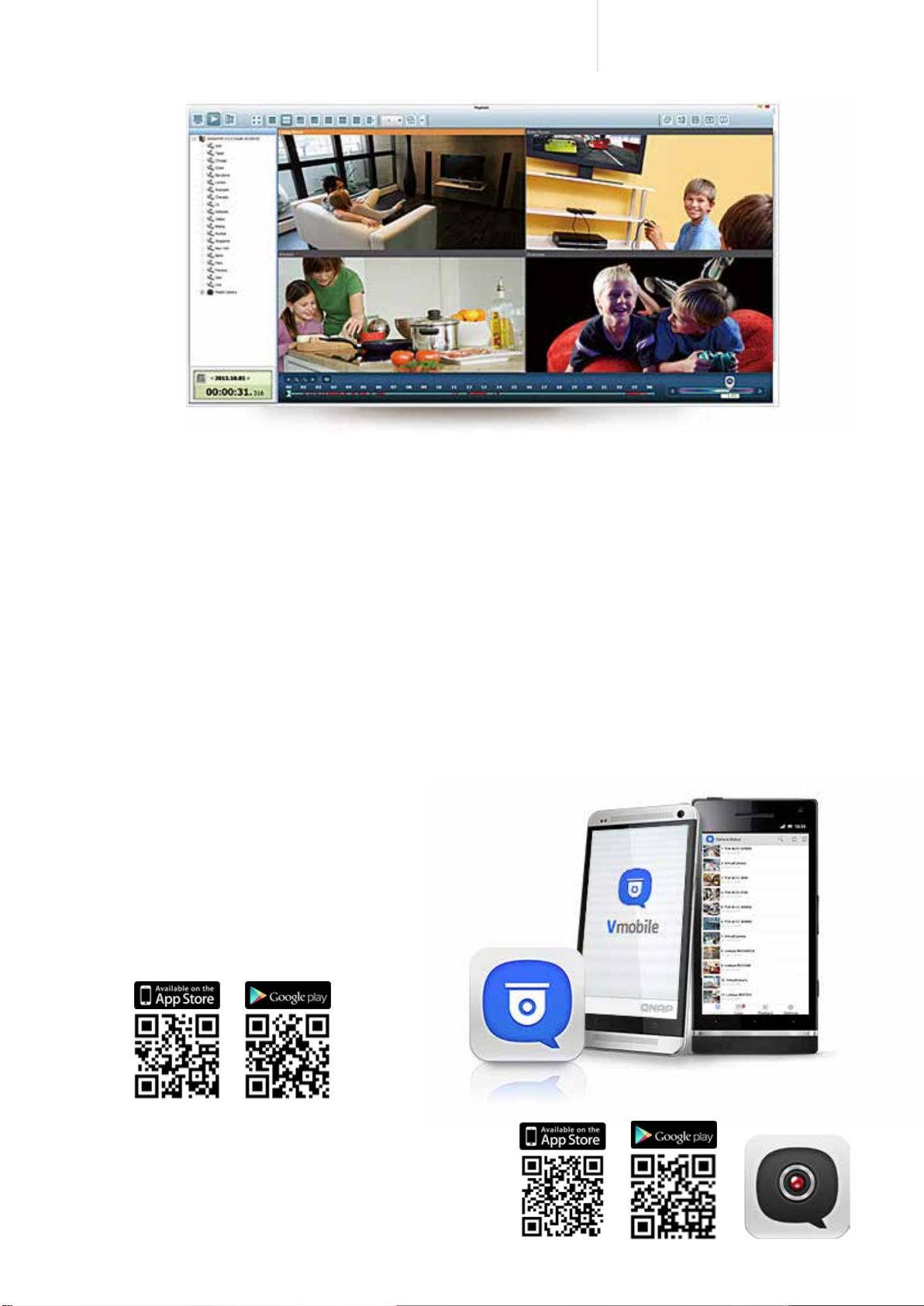

Flexible management
Flexible camera access control
You can create up to 32 user accounts on the Surveillance Station and exibly assign them to different user
groups with different rights for monitoring, playback, PTZ control, and audio monitoring.
Advanced event management
The system starts alarm recording when alarm events occur. Administrators can congure events and assign
7 types of event actions to ensure that they are alerted immediately, including recording, PTZ Control, alarm
output, email notication, SMS notication, buzzer notication, and user-dened actions.
Manage large-scale cameras
By connecting multiple Turbo vNAS units, you can simultaneously manage, monitor and playback up to 128 IP
cameras with one Turbo vNAS.
Mobile apps
VMobile – Surveillance at anytime, anywhere
VMobile allows you to monitor the Surveillance
Station anytime, anywhere using iOS and Android
devices. It provides camera live-view, PTZ control,
instant event notifications, video snapshot, video
playback, and searching videos by date and time.
Vcam – Turn your mobile device into a camera
Vcam turns your mobile device into a network camera.
With the Vcam mobile app, you can record any moment
around you to your Turbo vNAS, saving the need in buying
expensive IP cameras.
54
Business Solutions
4
Signage Station
The Signage Station is a free Turbo vNAS app that allows businesses to create attractive menu boards,
advertising posters, and business profiles and easily publish them to monitors and tablet devices to
attract more customers.
Drive business growth and increase revenue
Your content can be presented on a web browser and when on the go, and you can even show your profile, business
card and product catalogs on mobile devices and share on Facebook. The Turbo vNAS with the Signage Station is an
ideal tool to present creativity and drive business growth.
Absolutely easy-to-use
iArtist Lite provides a drag-and-drop interface that allows you to flexibly embed videos, marquees, pictures, and
PowerPoint slides on the canvas panel. With the layered playlist and timeline features, you can freely arrange the
order of media objects. iArtist Lite also offers numerous templates for various scenarios, saving you lots of time &
effort. Useful widgets such as audio, clock, RSS are also available to add to the designed content.
Instantly publish and conveniently revise
With iArtist Lite you can save your designs as different projects and upload them to multiple Turbo vNAS with Signage
Station installed. Whenever you want to revise the content, just open iArtist Lite to update and publish instantly. You
can fully control all your content in a timely way.
Collaboration increasing efficiency
The original content can be saved on a local computer or the Turbo vNAS with the help of the connection wizard.
Content saved on the Turbo vNAS is accessible for every authorized user to increase the work efficiency in projects
involving multiple members.
55
iArtist Lite
Create You Advertising Content Easily
How to make advertising content on iArtist Lite?
The concept of dynamic multimedia content is quite simple: just
drag & drop media files to the iArtist Lite canvas and arrange it
as required. Choose the device that you want to display, such as
tablet, HDTV or smartphone. After selecting the device resolution
you can select whether to present it in portrait or landscape.
A B C D E F
Cost-efficient 10GbE Turbo vNAS
iArtist Lite functions：
Add new content
A
Open previous content
B
Save content
C
Upload to Turbo vNAS
D
Preview design
E
Online template support
F
Introduction of iArtist Lite tools：
• Video, photo, and music： Add the file to the canvas from Windows®.
• Digital & analog clock： Supports multiple types of clocks and formats, just drag & drop to canvas.
• Background image： Choose a background color or choose a background image.
• Mask： Add an image mask to the content.
• Text & banner： Edit the text on the banner you'd like to promote.
• RSS： Share an RSS link from a website to share messages.
• Digital menu board： Design a neat menu board, and edit the price and picture anytime, anywhere.
• Combo menu board： Select the template and add the price and picture.
• HTML： Drop a website on the canvas for the most direct promotion.
• PPT and PDF： Easily add documents to the canvas including slideshows, retaining the animations from the PPT.
Intuitive user interface with timeline view
After dragging & dropping from the left panel to the
canvas, each media file will have a corresponding
timeline at the bottom of the canvas to allow users to
easily manage their timing and placement.
56
Business Solutions
mp4

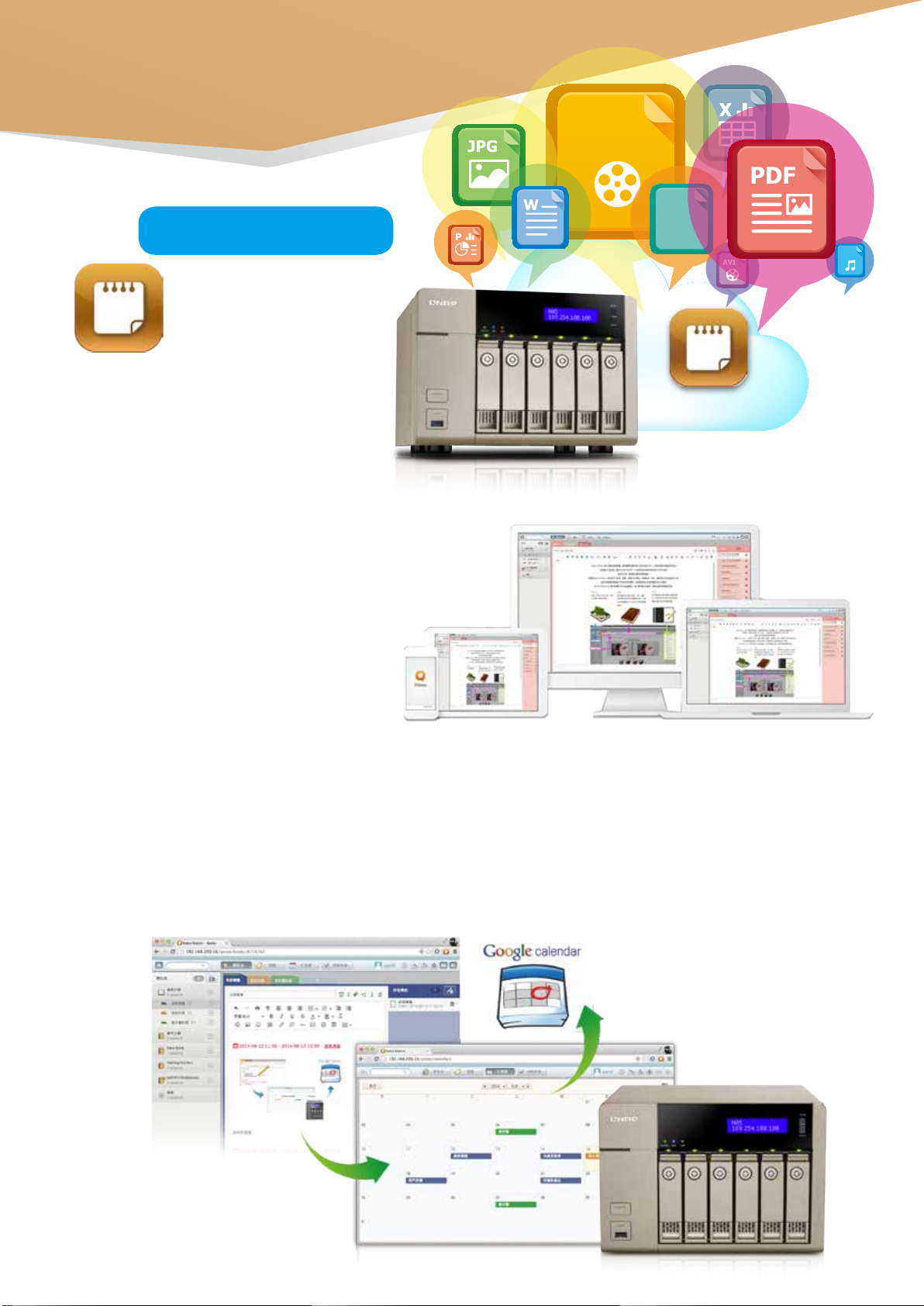

Notes Station 2.0
5
QNAP has now leveraged
its private cloud
functionality to introduce
Notes Station 2.0. It provides
the convenience of
notetaking on cloud-based services but
with the privacy and security of Turbo
vNAS. Users do not have to worry about
risks from public storage, and are able to
enjoy easier data access at all times.
Single workspace for
all note taking activity
With its 3-level structure (Notebooks,
Sections, and Notes), Notes Station 2.0
allows you to manage all your notes
systematically and flexibly whether it is a
note you write to yourself or for work. You
can jot your valuable ideas in Notes Station
and keep them safely accessible through
2.0
your own devices wherever you are.
RSS
mp3
Notes Station
Powerful editing
Notes Station 2.0 is capable of advanced editing. You can style the text by changing the size, font, or color. You can
also edit inserted images with the built-in photo editor to enrich your content.
Google Calendar support
The event in the Notes Station Calendar links to the note you created it from. You can update the calendar from Notes
Station 2.0 to your Google Calendar with a single click, so you will be reminded for every event.
Upload to Google Calendar
The events on your
Notes Station Calendar
57
Cost-efficient 10GbE Turbo vNAS
Music
PPT
PDF
DOC
DOC
PDF
PPT
Music
Evernote Users
Good News !
High-performance
encryption
You can encrypt your notes with
high-performance AES
encryption to protect against
unauthorized access.
256
-bit
RSS feeds import
If you have subscribed to RSS
feeds from news websites or blogs,
you can use Notes Station 2.0 to
automatically import the published
contents.
PDF import/export
Notes Station 2.0 can import
PDF files into Notes Station 2.0,
and export note files (i.e. Notes,
Sections, Notebooks) to PDF files.
When a notebook is exported, the
sections and notes of the notebook
transfer to the chapters and
contents of a PDF file respectively,
and vice versa
for the import
function.
Online preview
You can quickly view the attached files
in PDF, Word or PowerPoint format
online with Google Docs or Office
Online. Other file formats such as
photos, music and videos can be played
instantly with the built-in programs.
W
Notes sharing and collaboration
Notes Station 2.0 contributes to team work and networking. You can create a
link for your notes and publish them on your social networks or share them
through the apps on your smartphone. Thus, you can invite other people to
work on the same notes.
KIKI
Blogs
PC home
RSS
Blogs
David
Snapshot
You can use
the snapshot
function to
back up different revisions of your
notes. Your notes can be effortlessly
restored to an earlier version. The
QTS Snapshot is a great tool to record
the state of a note at different time
points. You can create up to 1,
snapshots manually or by schedule
and it is easy to retrieve files from
a specific point in time if they are
broken or mistakenly deleted.
Blogs
024
Evernote backup
Notes Station 2.0 comes with an import function to restore backups from
Evernote. In addition, you can directly access your notebooks in Evernote to
import them online to Notes Station without exporting.
58
App Center & Development
Platform
Add-on Values and Friendly Development Platform
The QTS App Center provides various apps for you to install on demand, enjoying more applications and increasing
the value of your purchase.
Powerful and rich-in-content
The App Center provides over
backup/sync, business, content management,
communications, developer tools, download,
entertainment, surveillance and utilities.
apps, including
100
Install on demand
Find what you need and install it immediately with just
one click.
Upgrade reminder
If newer versions of your installed apps are available, an
upgrade reminder will show on the QTS desktop to help
you keep your Turbo vNAS applications up-to-date.
Most Popular Apps
★
Gmail Backup
￭
Gmail Backup provides Gmail backup and
recovery functionality, allowing users to
create individual backup or domain account
backup tasks. Gmail can be backed up by
schedule and the content previewed through
a web management interface. Backed up
mail can be restored to the original mail
account or other accounts: just configure
the restore account, enter the account and
password and the user can restore mail to
the specied account.
：
59
Google Drive Sync App
￭
Google Drive is a cloud storage service provided
by Google that lets users save their les online for
accessing them anywhere. By installing the Google
Drive Sync app on your Turbo vNAS you can select
a shared folder to synchronize data with Google
Drive or simply use Google Drive as a backup
destination.
Cost-efficient 10GbE Turbo vNAS
Dropbox App
￭
The Dropbox service is a cloud-based
storage service that allows you to access
your photos, documents, and videos
anywhere, anytime with easy sharing.
The free space from the Dropbox service
is limited however, and to make it more
efcient you can connect it with your Turbo
vNAS to store les.
How to use the Dropbox App?
￭
The QNAP Dropbox app can synchronize your Dropbox account and your Dropbox folder on the Turbo vNAS in
both directions and in real-time. After you install the Dropbox QPKG and log into your Dropbox account, a Turbo
vNAS folder called “home" will be created and the synchronization process will start. With Real Time Remote
Replication (RTRR), a built-in Turbo vNAS function, you can easily back up les from your Dropbox account.
The following multimedia applications are disabled by default on the TVS-x63+ series to conserve
system resources. To enable them, go to “Control Panel" > “General Settings" > “System
Administration".
Video Station
￭
Build a corporate video website
Video Station is great for archiving and playing video
collections online. Just upload videos, and the Video
Station will smoothly play the video with an optimized
resolution for your device and bandwidth.
Easy video sorting
You can easily categorize your videos as company videos,
movies, TV shows, and music videos for greater organization.
Smart collection
Create a smart video collection that matches predefined criteria for names and ratings, making it easier to find the
videos you want to watch.
Easy video sharing
Share your videos with friends & family via email,
download link or social networking sites including
Facebook, Google+ and Twitter.
60
App Center & Development
Platform

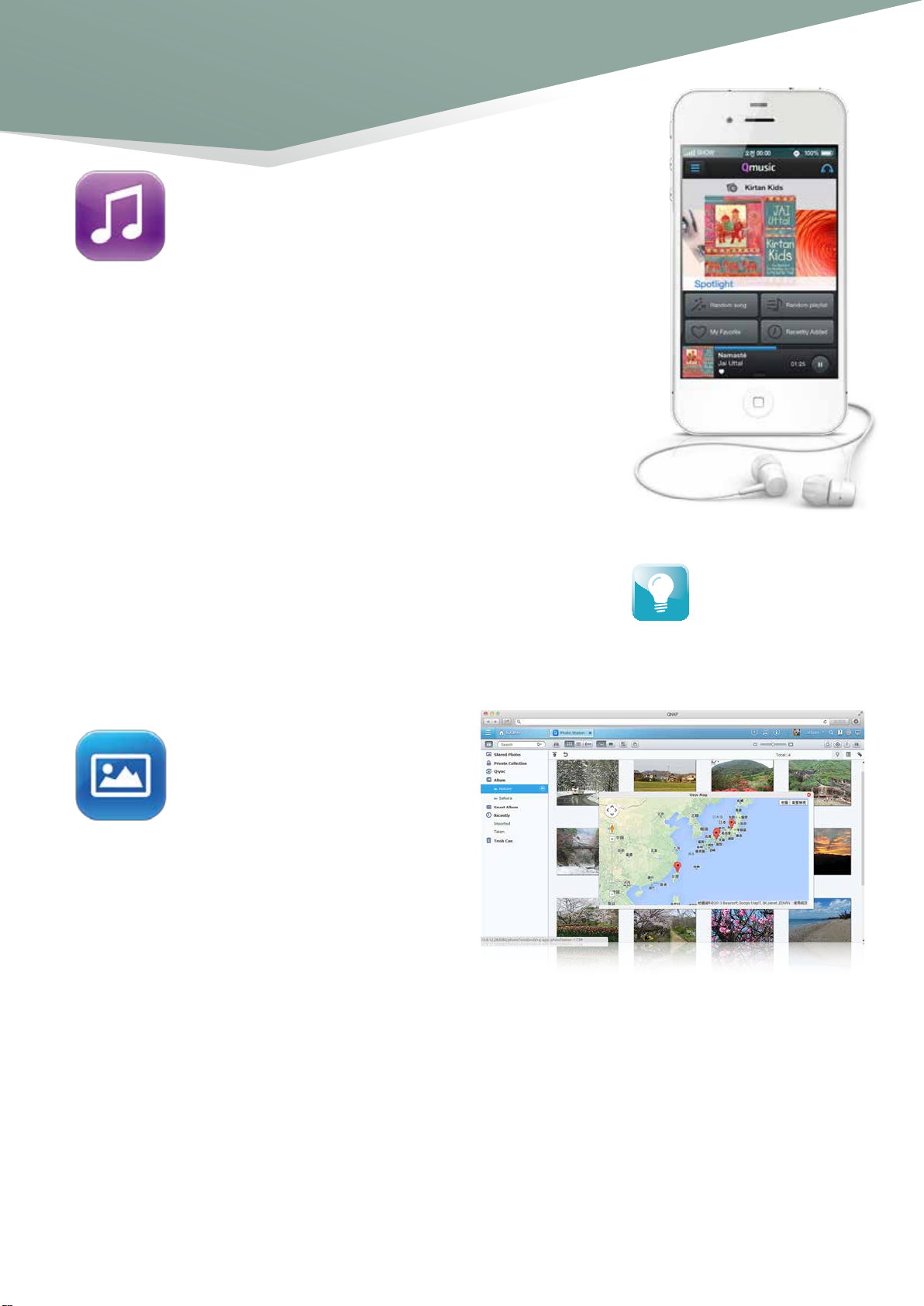

Music Station
￭
Organize huge music collections
Browse your music in multiple ways, create up to
music to feature it in a "My Favorites" collection.
Cloud music center
Access the Music Station via the Internet to enjoy your entire music collection
from anywhere on any device.
Listen to thousands of Internet radio stations
With the built-in TuneIn radio, you can listen to thousands of local and global
online radio programs. You can also manually add new radio stations.
Direct audio output
Turn your Turbo vNAS into a complete music system by connecting USB
speakers, sound card or DAC for direct audio output.
playlists, and rate your
200
The free Qmusic mobile app
allows you to listen to your
complete music collection
anytime and anywhere. Scan
the QR Code to download!
Photo Station
￭
Centralized management
All of your photos, including RAW photos, can be
centrally managed with the Photo Station.
Photo captions
Adding captions for photos can aid in search. For example, you can manually add a created date for selected photos
without dates to be able to see them on your timeline of photos.
Review photos on Google Maps
Retrace the steps of your photos by geo-tagging them and creating a map of your photo albums in Google Maps.
Private collection
Create a protected private collection of personal photos & videos that can only be accessed by you.
61
Cost-efficient 10GbE Turbo vNAS
JRE for x86 NAS
Mono
Play by slideshows
Create attractive slideshows using photos and music stored on your Turbo vNAS.
Group photo sharing
Share photos in groups by saving them in Team Folders in your Qsync folder, allowing people with access rights to
the Team Folders to browse those photos in their Photo Station.
Download Station
￭
Your 24/7 download center
Once you finish managing download tasks, just turn off your
computer and they will keep downloading until they are finished.
Powerful BT search engine
Easily find and add files to your download list with the built-in
search engine.
Wide range of supported downloads
Supports downloading from BT, PT, Magnet, FTP/FTPS, HTTP/HTTPS and RSS.
Third-party Development Platform
￭
With its open-source Linux kernel, QTS is a friendly development platform that allows software developers to create
all kinds of applications. Developers can also enjoy a more efficient R&D process with the backup, security, cloud
storage tools, and reliable Turbo vNAS hardware design.
Dedicated customer service, sales and R&D support
QNAP Turbo vNAS applications can be developed using the following three approaches：
：
Development Toolkit (API & SDK)
Developers can use the QNAP Development
Toolkit (API & SDK) to design applications that
run on client devices (such as smartphones
and PCs) to remotely manage and access files
stored on their Turbo vNAS.
：
NAS app development
OS needs, you can use VM integration to
install an alternative OS to run non-Linuxbased applications on the Turbo vNAS.
VM integration
needs, you can use VM integration to install
an alternative OS to run non-Linux-based
applications on the Turbo vNAS.
：
Depending on your
Depending on your OS
QDK: App Development Platform
QDK: App Development Platform
Value-Added
Integration
MYSQL
NAS API
Language
C C++
GCC complier
Java App
JRE for x86 NAS
PHP Perl
Python Ruby
Optware IPKG
.NET App
Mono
62
Hardware Specications
TVS-463-4G / TVS-463-8G TVS-663-4G / TVS-663-8G TVS-863-4G / TVS-863-8G TVS-863+-8G / TVS-863+-16G
Processor
TVS-
463-4
TVS-
Memory (RAM)
Flash
Number of RAM Slots
Max. Number of HDDs/SSDs
HDDs/SSDs Formfactor, Interface
Expansion Enclosure Support
Gigabit LAN Ports
10GbE
USB 3.0 Ports
Expansion Slot (PCIe)
IR Sensor
HDMI
LED Indicators
LCD with Buttons
Buttons
Dimensions (HxWxD)
Weight (Net/Gross)
Temperature and Humidity
Power Supply Specification
Power Consumption (W)
HDD Sleep
Typical Operation
S3 Sleep
RAID Type
USB One-Touch-Copy Backup
Virtualization Station
VPN Server (PPTP + OpenVPN)
Surveillance Station
Default IP Cameras
Max IP Cameras
File Sharing Capability
Max Users
Max User Groups
Max Shared Folders
Max Concurrent Connections
4 6 8
Power, Status, LAN, USB, HDD1-4Power, Status, LAN, USB, HDD1-
x
177.0
185.2
7.29
Single Disk, RAID 0, RAID 1, RAID
, RAID 6, RAID 10, RAID 5 + Spare,
5
x
180.0
235.0
x 7.09 x 9.25 inch
6.97
x
x
298.2
235.4
x 11.74 x 9.27 inch
34.77 41.56 46.21 48.21
50.38 58.81 70.45 77.60
2.26 2.19 2.35 2.84
JBOD
463-8
mm
mm
1600
TM
graphics
TVS-
TVS-
P)
(Pre-installed with a 10GbE NIC)
Power, Status, LAN, USB, HDD1-
x
x
185.2
298.2
x 11.74 x 9.27 inch
7.29
7.83
17.26 /19.62
235.4
/ 8.90 kg
mm
lb
863+-8
863+-16
8
G
G
AMD G-Series quad-core 2.4 GHz with Radeon
G / TVSG / TVS-
Yes (Optional with PCIe NIC) Yes (1 port)
185.0
7.28
G / TVS-
663-4
G / TVS-
663-8
" or 3.5" S ATA 6Gb/s, 3Gb/s; hot-swappable, with keylock
2.5
：
(Onboard
2
x
x 10.24 x 9.27 inch
6.18
13.62
2
1 1
Yes (QNAP RM-IR
Power, Reset, USB Auto Copy
x
260.2
235.5
/ 6.90 kg
/ 15.21 lb
ATX
250
Single Disk, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 5/6/10 + Spare, JBOD
Yes (PPTP： 15; OpenVPN： 15)
40
：
G
GB
863-4
4
：
G
GB
863-8
SO-DIMM DDR3L-
2
, expandable to max 4 ports via PCIe NIC)
mm
(optional license purchase)
8
MB
512
(Max 16 GB)
2
(UX-
P / UX-
800
5
002
(Mirrored Display)
2
6
Yes
o
C, 5-95% R. H.
0-40
W,
100-240
Yes
4096
512
512
1000
V AC, 50-60Hz, 5A
Yes
4
500
remote control)
：
GB
8
：
GB
16
Accessories
Expansion Enclosure
RAM
LAN Card
Remote Control
Item Order P/N
UX-
P
800
UX-
P
500
RAM-2GDR3L-SORAM-4GDR3L-SO-
RAM-8GDR3L-SO-
LAN-10G1T-D QNAP single-port 10 Gigabit 10GBASE-T network expansion card
LAN-10G1SR QNAP single-port 10 Gigabit SFP+ network expansion card
LAN-10G2T-D QNAP dual-port 10 Gigabit 10GBASE-T network expansion card
LAN-1G2T-D QNAP dual-port Gigabit network expansion card
RM-IR
002
Description
-bay USB 3.0 storage expansion enclosure; SATA 6Gb/s;
8
x
x
185.2
298.2
-bay USB 3.0 storage expansion enclosure; SATA 6Gb/s;
5
x
185.2
210.6
1600 2
1600 4
1600 8
QNAP infrared(IR) remote control
mm / 7.29 x 11.74 x 9.27 inch (H x W x D)
235.4
x
mm / 7.29 x 8.29 x 9.27 inch (H x W x D)
235.4
GB DDR3LGB DDR3L-
GB DDR3L-
SODIMM RAM module
1600
SODIMM RAM module
1600
SODIMM RAM module
1600
Software Specications
Operating System
• QTS 4.1 (embedded Linux)
Supported Client OS
• Windows® XP, Vista, Windows® 7 (32/64-
bit), Windows® 8 (32/64-bit), Windows®
Server
2003/2008 R2/2012
• Apple Mac OS X
• Linux & UNIX
Supported Browsers
• Microsoft Internet Explorer 10+
• Mozilla Firefox 8+
• Apple Safari 4+
• Google Chrome
Multilingual Support
• Chinese (Traditional & Simplified),
Czech, Danish, Dutch, English, Finnish,
French, German, Greek, Hungarian, Italian,
Japanese, Korean, Norwegian, Polish,
Portuguese (Brazil), Romanian, Russian,
Spanish, Swedish, Thai, Turkish
File System
• Internal Hard Drive： EXT
• External Hard Drive： EXT3, EXT4, NTFS,
FAT32, HFS+
Networking
• TCP/IP (IPv4 & IPv
• Dual Gigabit NICs with jumbo frame
(failover, multi-IP settings, port trunking/
NIC teaming)
• Service binding based on network
interfaces
• Proxy server (Squid available in App
Center)
• Proxy client
• DHCP client, DHCP server
• Protocols： CIFS/SMB, AFP (v3.3),
NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S),
Telnet, SSH, iSCSI, SNMP, SMTP, and
SMSC
• UPnP & Bonjour Discovery
• USB Wi-Fi
Not all IPv6 services are supported.
Security
• Network access protection with auto-
blocking： SSH, Telnet, HTTP(S), FTP, CIFS/
SMB, AFP
• CIFS host access control for shared
folders
• FIPS
volume-based data encryption*
• AES
• Importable SSL certificates
• Instant alert via email, SMS, beep, and
LCD panel
Storage Management
• QNAP flexible Volume/LUN with thin
provisioning and space reclaim
• RAID 0,1, 5, 6, 10, 5/6/10+ hot spares**
• Supports storage pool
• Online volume expansion
• Online storage pool expansion
• Online RAID capacity expansion and
online RAID level migration
• SMART data migration
• Storage expansion via QNAP UX-
UX-
• Bad block scan and hard drive S.M.A.R.T.
• Bad block recovery
• RAID recovery
• Bitmap support
Power Management
• Wake on LAN
• Internal hard drive standby mode
• Scheduled power on/off
• Automatic power on after power
recovery
• USB and network UPS support with
SNMP management
• System sleep mode (S3)
Access Right Management
• Batch users creation
• Import/Export users
• User quota management
• Local user access control for CIFS, AFP,
FTP, and WebDAV
• Application access control for Photo
802.11
validated AES
140-2
-bit external drive encryption*
256
P expansion units
800
4
：
Dual Stack)
6
ac adapter support
-bit
256
500
P/
Station, Music Station, Video Station, and
File Station
• Subfolder permissions support for CIFS/
SMB, AFP, FTP, and File Station
Domain Authentication Integration
• Microsoft Active Directory (AD) & Domain
Controller support
• LDAP server, LDAP client
• Domain users login via CIFS/SMB, AFP,
FTP, and File Station
myQNAPcloud Service
• Private cloud storage and sharing
• Free host name registration (DDNS)
• Auto router configuration (via UPnP)
• Web-based file manager with HTTPS
-bit encryption
2048
• CloudLink for remote access without
complicated router setup
• myQNAPcloud connect for easy VPN
connection (Windows® VPN utility)
Qsync
• Syncs files among multiple devices with
SSL support
• Selective synchronization for syncing
specific folders only
• Share team folder as a file center for
team collaboration (Maximum sync
tasks： 32)
• Shares files by links via email
• Policy settings for conflicted files and file
type filter support
• Version control： up to 64 versions.
• Incremental synchronization for HDD
space saving
• Supports Windows® & Mac OS
Web Administration
• Multi-window, multi-tasking based
system management
• Smart toolbar and dashboard for neat
system status display
• Dynamic DNS (DDNS)
• SNMP (v2 & v3)
• Resource monitor
• Network recycle bin for file deletion via
CIFS/SMB, AFP, and File Station
- Automatic cleanup
- File type filter
• Comprehensive logs (events &
connection)
• Syslog client/server
• System settings backup and restore
• Mobile app： Qmanager for remote
system monitoring & management
File Server
• File sharing across Windows®, Mac, and
Linux/UNIX
• Windows® ACL
• Advanced folder permission for CIFS/
SMB, AFP, FTP
• Shared folder aggregation (CIFS/SMB)
FTP Server
• FTP over SSL/TLS (Explicit)
• FXP support
• Passive ftp port range control
File Station
• Supports ISO Mounting (Up to
Files)
• Supports thumbnail display of
multimedia files
• Supports sharing download links and
upload links
• Drag-n-drop files via Google Chrome
and Mozilla Firefox
• Photo, music, and video preview and
playback with hardware-accelerated
transcoding
• File compression (ZIP or 7z)
• Creation of and sending download links
for sharing public files with expiration
time and password protection
• Support for displaying subtitles (.SRT,
UTF-8 format)
- Video seeking support for video playback
during on-the-fly transcoding
- Support slideshow playback in media
viewer
• Mobile App： Qfile for file browsing and
management
256
ISO
Backup Station
• Remote replication server (over rsync)
• Real-time remote replication (RTRR) to
another QNAP NAS or FTP server
• Works as both RTRR server & client with
bandwidth control
• Real-time & scheduled backup
• Encryption, compression, file filters, and
transfer rate limitations
• Encrypted replication between QNAP
NAS servers
• Desktop backup with QNAP NetBak
Replicator for Windows®
• Apple Time Machine backup support
• Data backup to multiple external storage
devices
• Synchronizes with cloud storage：
Amazon S3, ElephantDrive, Symform,
Dropbox, and Google Drive
• Third party backup software support：
Veeam backup & replication, Acronis True
Image, Arcserve backup, emc retrospect,
Symantec Backup Exec, etc.
Cloud Backup Station
• Amazon S
• Amazon Glacier
• Webdev-based cloud storage
• Microsoft Azure
• Open Stack
Storage Plug & Connect
• Creating and mapping shared folders
using QNAP Windows® Qfinder
• Creation of and connection to iSCSI
targets/LUN
iSCSI (IP SAN)
• iSCSI target with multi-LUNs per target
(Up to
• Support for LUN mapping & masking
• Online LUN capacity expansion
• Support for SPC-3 persistent reservation
• Support for MPIO & MC/S
• iSCSI LUN backup, one-time snapshot,
and restoration
• iSCSI connection and management by
QNAP Windows® Qfinder
• Virtual disk drive (via iSCSI initiator)
• Stack chaining master
• Max No. of virtual disk drives：
Virtualization Station
• Supports creating one Virtual Machine
(VM) to run an operating system such as
Windows®, Linux, Unix, and Android
• VM import from Virtual Appliances
• VM export into a virtual appliance in
OVF / QVM format
• VM clone
• VM snapshot
• HTML5-based shared remote console
Surveillance Station
• Supports over 2,
• Includes 4 free camera licenses, up to
40
purchase
• Instant playback to check recent events
• Online editing to change cameras when
in live view
• Visual aid by using e-maps
• Playback and speed control by shuttle
bar
• Video preview using playback timeline
• Intelligent Video Analytics (IVA) for
advanced video search
• Surveillance client for Mac
• Mobile surveillance app： Vmobile (iOS
and Android)
• Mobile recording app： Vcam (iOS and
Android)
VPN Server
• Secure remote access： PPTP &
OpenVPN VPN services
• Max number of clients：
VPN Client
• Supported VPN protocols： PPTP &
OpenVPN services
• PPTP authentication： PAP, CHAP, MS-
CHAP, MS-CHAPv
• PPTP encryption： None, AES 40/
bit, AES
3
targets/LUNs combined)
256
8
IP cameras
700
camera channels via additional license
30
256
2
bit
128
• OpenVPN encryption： None, AES
bit, AES
40/128
• Transmission package monitor
• OpenVPN port control
• OpenVPN link compression
HD (HybridDesk) Station
• Playback videos, music, photos on yout
TV with XBMC via HDMI output
• Watch various online contents such as
YouTube, Flickr, Picasa, Shoutcast, and
more.
• Web browser (Chrome, Firefox)
• Supports USB keyboard and mouse
• Supports QNAP Qremote app and the
official XBMC remote app
- Supports user login permissions
：
Note
- The playback and quality of some video
files may be affected due to the CPU and
GPU decoding abilities.
- Up to 7.1 channel audio passthrough is
supported
Transcode Management
• Transcode
p,
360
480
• Automatic video transcoding for watched
folders
• Hardware-accelerated transcoding
support
• Embed subtitles with videos in
background transcoding
Print Server
• Max. number of printers：
• Support for Internet Printing Protocol
• Print job display and management
• IP-based and domain name-based
privilege control
iTunes Server
• Audio and video sharing for Windows® &
Mac iTunes
AirPlay & Chromecast
• Streams videos, photos and music
from the NAS to Apple TV via Qfile or
QAirPlay&Chromecast's web-based
controller
• Streams videos, photos and music from
the NAS to TV with a Chromecast dongle
via Qfile , Qvideo or QAirPlay&Chromecast's
web-based controller
DLNA Server
• Supports DLNA/UPnP TVs and players
such as PlayStation 3 and Xbox
• Supported audio formats： AIFF, APE,
DSD (DSF, DFF), FLAC, M4A, M4A Apple
Lossless (ALAC), MP3, Ogg Vorbis, WAV
(PCM, LPCM), WMA, WMA PRO, WMA
VBR*
• Support CUE indexing files for APE, FLAC
audio format.
• Video and audio on-the-fly transcoding
*DRM-protected files are not supported.
App Center
• Over
100
software add-ons such as Photo Station,
Music Station, Video Station, Download
Station, Signage Station, Notes Station,
Digital TV Station and HappyGet.
* Somedata encryption functions may not
available in accordance with the legislative
restrictions of some countries.
** This feature may vary according to
different models.
Designs and specifications are subject to
change without notice.
bit
256
p video files to
1080
p, and
p resolutions
720
3
official and community
240
360
p,
Turbo vNAS
The Golden Cloud Series
TVS-x63+ Series
10GbE Turbo vNAS with Cutting-edge
Features for Cost-conscious Applications
TVS-863+
8GB DDR3L
Max 16GB RAM
PCIe
10GbE
1 Ethernet Port
TVS-463 TVS-663 TVS-863
Systems, Inc.
TEL : +886-2-2641-2000 FAX : +886-2-2641-0555 Email: qnapsales@qnap.com
Address：3F, No.22, Zhongxing Rd., Xizhi Dist., New Taipei City, 221, Taiwan
QNAP may make changes to specification and product descriptions at any time, without notice.
Copyright © 2015 QNAP Systems, Inc. All rights reserved.
QNAP® and other names of QNAP Products are proprietary marks or registered trademarks of QNAP Systems, Inc. Other products
and company names mentioned herein are trademarks of their respective holders.
AMD, the AMD logo, and combinations thereof are trademarks of Advanced Micro Devices, Inc.
Netherlands (Warehouse Services)
Email：nlsales@qnap.com
TEL：+31(0)107600830
Germany
Email：desales@qnap.com
TEL：+49-89-381562991
China
Email：cnsales@qnap.com.cn
TEL：+86-400-628-0079
India
Email：indiasales@qnap.com
US
Email：usasales@qnap.com
TEL：+1-909-595-2782
Thailand
Email：thsales@qnap.com
TEL：+66-2-5415988
P/N: 51000-023756-RS
201501 (EN) B
Loading...
