QNAP TVS-1282-I5-16G Technical data

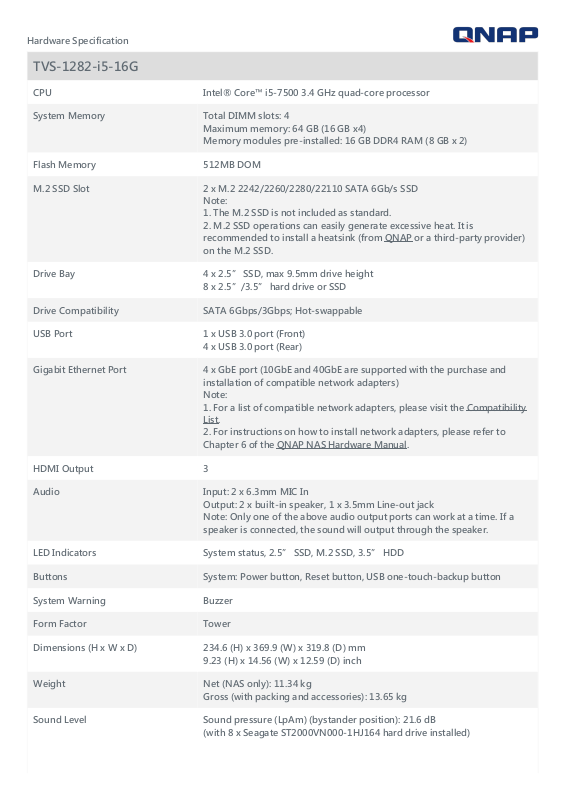

Hardware Specification

TVS-1282-i5-16G

CPU Intel® Core™ i5-7500 3.4 GHz quad-core processor

System Memory Total DIMM slots: 4

Maximum memory: 64 GB (16 GB x4)
Memory modules pre-installed: 16 GB DDR4 RAM (8 GB x 2)

Flash Memory 512MB DOM

M.2 SSD Slot 2 x M.2 2242/2260/2280/22110 SATA 6Gb/s SSD

Note:

1. The M.2 SSD is not included as standard.

2. M.2 SSD operations can easily generate excessive heat. It is
recommended to install a heatsink (from QNAP or a third-party provider)
on the M.2 SSD.

Drive Bay 4 x 2.5” SSD, max 9.5mm drive height

8 x 2.5”/3.5” hard drive or SSD

Drive Compatibility SATA 6Gbps/3Gbps; Hot-swappable

USB Port 1 x USB 3.0 port (Front)

4 x USB 3.0 port (Rear)

Gigabit Ethernet Port 4 x GbE port (10GbE and 40GbE are supported with the purchase and

installation of compatible network adapters)
Note:

1. For a list of compatible network adapters, please visit the Compatibility
List.

2. For instructions on how to install network adapters, please refer to
Chapter 6 of the QNAP NAS Hardware Manual.

HDMI Output 3

Audio Input: 2 x 6.3mm MIC In

Output: 2 x built-in speaker, 1 x 3.5mm Line-out jack
Note: Only one of the above audio output ports can work at a time. If a
speaker is connected, the sound will output through the speaker.

LED Indicators System status, 2.5” SSD, M.2 SSD, 3.5” HDD

Buttons System: Power button, Reset button, USB one-touch-backup button

System Warning Buzzer

Form Factor Tower

Dimensions (H x W x D) 234.6 (H) x 369.9 (W) x 319.8 (D) mm

9.23 (H) x 14.56 (W) x 12.59 (D) inch

Weight Net (NAS only): 11.34 kg

Gross (with packing and accessories): 13.65 kg

Sound Level Sound pressure (LpAm) (bystander position): 21.6 dB

(with 8 x Seagate ST2000VN000-1HJ164 hard drive installed)

Operating Temperature & Relative
Humidity

0-40˚C
5~95% non-condensing, wet bulb: 27˚C

Power Supply Unit Input: 100-240V~, 3-1.5A, 60-50Hz; Output 250W

PCIe Slot 3 (1* PCIe Gen3 x8; 2* PCIe Gen3 x4)

Fan System: 3 x 8 cm cooling fan

CPU: 1 x 9 cm fan

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory
slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors,
or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front
of operating NAS.
Designs and specifications are subject to change without notice.
