Qnap TVS-1271U-RP-I3 User Manual

3.2 GHz Processor 32 GB DDR3 RAM

Use your Turbo vNAS as a PC

Turbo vNAS

TVS-x71U Series

Intel® Core® i7/i5/i3 and Pentium processors

Provides 3,300+ MB/s throughput and 172,000+ IOPS superior performance Two internal mSATA cache ports for IO acceleration Scalable design, up to 1088TB raw capacity

7濿6[87XUERY1$66HULHV

TVS-1271U-RP-PT-4G TVS-1271U-RP-i3-8G

TVS-1271U-RP-i5-16G TVS-1271U-RP-i7-32G

TVS-871U-RP-PT-4G TVS-871U-RP-i3-4G

TVS-871U-RP-i5-8G

Dual PCIe expansion (PCIe Gen3 x8/PCIe Gen2 x4) for a maximum of 4x 10GbE or 8x 1GbE ports

Built-in QvPC (QNAP virtualized Personal Computer) technology: Use the Turbo vNAS as a PC

Supports transcoding and playing back 4K videos

The best storage solution for high-resolution file formats and video production workflows

VMware®, Microsoft® Hyper-V, Citrix® Ready, and Microsoft® VDI compatible

Optimized for file management, sharing and backing up business data (LUN backup)

4K 2K

MAX

RAM

Turbo vNAS

763UR



The 4th Generation Enhanced with the QvPC Technology

ŴŵġňŦůŦųŢŵŪŰůġŏłŔ



Cross-platform network storage for storing and sharing data

ĳııĳԑ

ĳııĳ

ŇŪŭŦġŔŦųŷŦųġ

Network storage device

ůťġňŦůŦųŢŵŪŰůġŏłŔ



$6

1$6

ųťġňŦůŦųŢŵŪŰůġŏłŔ



Scalable storage system with storage manager, myQNAPcloud, Qsync, HDMI output/ XMBC playback

763UR

As new technologies continue to emerge, QNAP further expands its product line-up of next-generation networked storage. From the rst-generation’s central le management server to the second-generation’s iSCSI SAN compatible unied storage system to the third-generation’s Turbo NAS with customizable apps, QNAP has been the leading storage solution provider. With the industry-rst QvPC Technology integrated in the fourth-generation NAS, our Turbo vNAS series are the world's rst NAS that can be transformed into a cost-eective PC substitute for business applications. The TVS-x71U series (the representative 4th generation QNAP Turbo vNAS) is built on Intel Core i7/i5/i3 (Haswell) and Pentium, integrated with QvPC technology to deliver superior performance for awless 4K content.

ĳııĹԑ

ĳııĹ

ĳıĲĲ

ĳıĲĲԑ

iSCSI SAN with network storage and surveillance system

763UR

ŵũġňŦůŦųŢŵŪŰůġŏłŔ



QTS 4 integrated with Virtualization Station and QNAP QvPC Technology

ĳıĲĵ

4K2K UHD

7KH(YROXWLRQRI1$6

7KH(YRO

796853

Table of Contents

Uniﬁed Storage Management .........................................................................................

File Storage, Management and Sharing (File Station) ..............................................

Q'center CMS (Central Management System) .............................................................

Virtualization Station .........................................................

QvPC Technology ................................................................................................................

Enterprise Solutions ...........................................................................................................

QTS 4.1.2 OS ..............................................................................

Mobile Apps & Utilities ......................................................................................................

...............................................

...........................................

App Center & Development Platform ...........................................................................

TVS-x71U series Hardware Introduction .....................................................................

Hardwar

Software Speciﬁcations .....................................................................................................

e Speciﬁcations ..................................................................................................

Uni¿ed Storage Management

Unified Storage Management

QNAP's Turbo vNAS business series is an unied storage system which can serve as iSCSI SAN storage and Turbo vNAS. The powerful Storage Manager can assist you manage iSCSI LUNs and volumes eciently.

Intelligent Storage Manager

炩

The QTS 4.1.2 Storage Manager neatly presents tools and options for managing system storage with an intuitive graphical interface. Pools, disks and iSCSI storage, the Storage Manager provides a centralized place to easily manage dierent hard drives (e.g. SSD HDD and SATA HDD) and to maximize storage usage of the tiered and unied storage.

6KDUHG

IROGHU

6WRUDJHSRRO 6WRUDJHSRRO

5$,'*URXS

Dashboard

炩

/81

)LOH/HYHO

9ROXPH

7XUERY1$6

+RWVSDUH

+''V

6KDUHG IROGHU

9ROXPH

5$,'*URXS 5$,'*URXS

/81

)LOH/HYHO

/81

%ORFN/HYHO

([SDQVLRQXQLWV

The Storage Manager dashboard presents an overview for IT administrators to easily check the storage allocation status. QTS 4.1.2 provides a more secure and flexible way to store and manage the NAS data. This next generation volume offers powerful features such as storage pooling with multiple RAID groups, thin provisioned volumes with space reclamation, and online capacity expansion. Just click “New Volume” and you can start to allocate capacity.

In addition to Storage Manager, IT administrators can also check the storage pool and volume status on File Station.

HDD Management

IT administrators can view the HDD information to check the HDD allocation status for RAID group. With the information, it can be ensured that there is no idle HDD for the maximized utilization of the storage resources.

Storage Pool

IT administrators can aggregate multiple RAID groups into a big storage pool to flexibly utilize the storage capacity as a whole, protect them using redundancy and allowing for better protection against multiple disk failures for large-capacity environments. Multiple volumes can now be created on the Storage Pool to provide exible deployment.

7XUERY1$6796[86HULHV6HUL

Flexible Volume

Allocation

QTS 4.1.2 allows creating multiple volumes on the Storage Pool for various applications in typical business environments with dierent workgroups. Each data volume and LUN can be extended without interrupting services.

Thin provisioning

Over-allocation allows a server to view more storage capacity than has been allocated in the storage pool. Furthermore, the physical storage capacity is used only when les are written by the application, thereby improving utilization rates.

Thick provisioning

The physical storage capacity is dedicated up front when the storage volume is initially allocated.

Efficiently use storage spaces with incremental allocation. Allocate all spaces specified and they cannot be used by other

volumes or LUNs.

Uni¿ed Storage Management

iSCSI LUN

炩

QTS 4.1.2 supports two types of LUNs for ecient storage utilization: block-level and le-level iSCSI LUNs. The Turbo vNAS also supports multiple types of congurations for server connections:

- single LUN or multiple LUNs per iSCSI target.

- multiple iSCSI targets for a single LUN, only used for clustered environments

Block-Level iSCSI LUN

Besides storing data, volumes can be utilized as an iSCSI LUN. The block-level iSCSI LUN provides less overhead which improves the overall read/write performance.

File-Level iSCSI LUN

Users can consider le-level iSCSI LUNs if there isn’t enough space for block-level iSCSI LUNs. The le-level iSCSI LUN can be used for creating a disk image for an iSCSI LUN.

Both block-level and file-level iSCSI LUNs support thin provisioning, space reclamation, and online capacity expansion. We recommend using block-level iSCSI LUNs unless there is a limitation on space usage.

Virtual Disk Drive -

炩

Virtual disks provide a more exible way for IT administrators to expand storage. By using the built-in iSCSI initiator to connect an iSCSI target of the Turbo vNAS, you can create a virtual disk on the local server. The Turbo vNAS can be a stack master to connect up to 8 virtual disks or stack targets, aggregating storage space from multiple NAS systems. Thus, all NAS users only need to connect to a single target to access the space from all of the network storage devices.

Increase exibility of storage expansion

Set as Stack Master

7XUERY1$6

/81$

/81%

/81&

7XUERY1$6

L6&6,

For every virtual disk on the local server, it will be seen as a single drive of disk arrays.

/81$ /81% /81&

Set as Stack Target

7XUERY1$6796[86HULHV6HUL

QNAP high-performance unied and tiered storage solutions

炩

Data used by enterprises continues to grow exponentially and with greater diversity in data types and importance. It is imperative to oer a secure and ecient storage solution that can process this enormous amount of data while minimizing the total cost of ownership.

Establishing a tired storage system based on eciency and capacity can aid in improving overall processing eciency. Enterprises can classify data accordingly by sharing folders with a file-based storage system and processing files that require more demanding data throughput with a block-based storage system to accommodate dierent usage models.

QNAP Turbo vNAS business series can exibly congure dierent tiers to hard drives on a single unit according to dierent data usage needs, delivering the best unied and tiered storage solution.

Tiered storage for better eciency

炩

In the cloud era, enterprises need a storage architecture that can provide rapid access to dynamically scalable and virtualized IT resources. Classifying data into Hot Data (frequently-accessed) and Cold Data (rarely-accessed) to store them in a tiered storage can help achieve this goal eciently and cost eectively. Businesses often use SSD to improve the overall workow of random IOPS demanding applications such as databases and virtualization. Dierent types of storage media are used for dierent purposes. Hence, it is better to utilize dierent storage media according to the system requirements.

Tier 1 Tier 2

Storage Type

Characteristic

Usage Scenario

Usage Example

Typical Use

Criterion

SSD SATA HDD

Balance of efﬁciency, capacity and usability Ubiquitous, convenient, and inexpensive

Online transaction processing (OLTP) Systems and ERP databases

Data, audio, email, database table, and video creation and other operations of the workﬂow in a virtualized environme

A wide variety of users and environments where performance is crucial

Weighs more on IOPS, throughput and resiliency Weighs more on data volume and low cost per TB

Archiving, online and ofﬂine backup storage, disaster recovery

Low cost and energy saving

Typical for data at rest

The following is a comprehensive comparison of general tiered storage devices.

Hard Drive

Features

Price $$$$$$ $

Capacity

Performance Very high Moderate-low

Interface SATA (Single Port) 6 Gb/s SATA (Single Port) 6 Gb/s

RPM N/A

External Continuous Transfer Performance

Average Response Time (Milliseconds)

Input/Output Operations Per Second (IOPS)

Unrecoverable bit read error

Mean Time Between Failures (MTBF, hours)

Solid State Drive (SSD) SATA Hard Drive

Low power consumption, no noise, antivibration, low heat, fast speed

MB/s

400-500

N/A R:9.5/W:8.

120,000/40,000

LBA per 10E

N/A

16 1

Large capacity, lower reliability and performance

500

7200

100-170

Less than

0.8

-RPM

MB/s

100

LBA per 10E

million

File Management

File Management (File Station)

File Station

炩

With File Station, you can easily manage, upload, download, share files, and enjoy media playback anywhere with a web browser. File Station brings conventional file operations performed on the computer desktop to the web browser.

File upload

Easily upload the les to your Turbo vNAS by dragging and-dropping them into File Station.

Photo slideshow

Right-click on selected photos to play a smooth slideshow.

Mutual file sharing

You can easily share multiple les in a shared folder with friends via a Share Link. By activating the file upload function, your friends will be granted the privilege to upload les to your File Station without requiring an user account. You can even set an expiration time for shared les.

Media streaming & playing

File Station supports VLC for multimedia streaming. Just click on your photos, music and videos to directly play them. The slideshow display helps gather media files in an organized manner for you to preview and play.

Click and play videos

TVS-x71U supports realtime transcoding which allows immediate and smooth video, music, and photo playback. No need to wait for the les to be converted in advance.

Real-time transcoding allows maximum 12 users to simultaneously connect and watch videos. Offline transcoding allows more users. Check page 19 to learn more about transcoding feature.

7XUERY1$6796[86HULHV6HUL

Advanced quick search

File Station provides smart filters for file searching and browsing by file size, modied date, le name, and so on. Popup thumbnails enable you to quickly & clearly preview files. File browsing is more intuitive with File Station.

Recycle bin

The recycle bin helps retrieve files accidentally deleted. It is categorized by shared folders to increase le retrieval eciency.

Check shared folder usage and space utilization

The updated user interface of QTS 4.1.2 File Station provides a detailed view of the designated volume and space usage of the shared folders to assist you manage space utilization.

Photo thumbnails preview

File Station makes file management easier by showing thumbnails of photos, music and videos.

Compress/Extract multiple files

If you need extra space you can easily compress files & folders into a Zip le. You can also easily unzip les straight to File Station.

File Management

Qle: Share les with mobile devices

You can install the Qfile app on your mobile device to browse and manage files stored on your Turbo vNAS anytime, anywhere.

Access from anywhere

Open Qle on your mobile device to browse les on the Turbo vNAS. You can open or share les, and easily rename, copy, move, download any selected les.

Auto-upload photos

Automatically upload photos to your Turbo vNAS whenever you take new photos. It works as a realtime backup of your precious photos.

Qle will download the le to your handheld device and send it via your

default email function. This file cannot exceed 20MB, so please ensure

there is enough free space on your device to save the le.

Install Qfile on your mobile device to browse and manage files stored on your Turbo vNAS anytime, anywhere.

7XUERY1$6796[86HULHV6HUL

Stream multimedia contents

Use Qfile to stream multimedia contents to AirPlay or DLNA-compatible devices and play to enjoy them.

Share files instantly

Qfile provides various ways for instant file sharing, including email or SMS. Qfile also provides Share Links to easily share large les. You can paste the Share Link on instant messenger such as LINE, WhatsApp, WeChat, and more to share les with others.

Your friends can click on the Share Link to download the les.

Q'center CMS

Q'center CMS (Central Management System)

Previously, IT administrators need to log in to Turbo vNAS units individually to check their status. The QNAP Q'center CMS (Central Management System) oers a platform to centrally manage multiple NAS units. You only need to install Q'center on the master NAS and set all other Turbo vNAS units as managed stations. You can also monitor and update rmware for all Turbo vNAS units at once with this centralized management utility.

Q'center Network Architecture

In order to use Q'center to monitor multiple Turbo vNAS units, you have to set up the master Turbo vNAS and other managed devices in the same network environment. QTS 4.1.2 provides the VPN server and VPN client function, making it easy for IT managers to establish the internal network architecture for Q’center deployment. Just set the master device as a VPN server and other devices the VPN clients, and the internal network environment will be established by VPN protocol automatically.

To learn more about QNAP's VPN function, please turn to Page 42.

(Q’center Master)

ŕŰŬźŰġŐŧŧŪŤŦ

Set as VPN Clients

ńŰųűŰųŢŵŦġŉŦŢťŲŶŢųŵŦų

Set as VPN Server

ŔũŢůŨũŢŪġŐŧŧŪŤŦ

Set as VPN Clients

ŔŪůŨŢűŰųŦġŐŧŧŪŤŦ

Set as VPN Clients

The Best Utility for IT Administrators

炩 ,QFUHDVH

1. User-Friendly Management Interface

Not only can you monitor the system status for all Turbo vNAS units, but you can also view their rmware information and system logs. You no longer need to log in to NAS units individually for such information. Besides viewing system information, IT administrators can update the rmware for all Turbo vNAS units at once with a single click.

IT Management Eciency

7XUERY1$6796[86HULHV6HUL

2. Simplify IT Asset Management

Q'center presents overall reports of all Turbo vNAS units based on the characteristics of a NAS system or its components such as model or disk capacity, helping you keep track of all your storage assets.

炩 (QKDQFH6\VWHP$YDLODELOLW\

Q'center has an email notification function to notify administrators of any predened system conditions. You can set up alert policies based on the criteria such as CPU usage or volume usage for a group of selected NAS units, and you will be alerted if any one of the criteria of a policy is met.

Increase Storage Utilization Rate

炩

IT administrators can monitor capacity usage on every Turbo vNAS to gain insight about space utilization. They can better allocate storage resources accordingly to maximize the utilization rate for each Turbo vNAS.

Enhance Reliability and Serviceability

炩

By monitoring CPU, memory usage and other performance indicators on a daily or long-term basis (e.g. monthly or yearly), you will gain a complete view of how well the system performs. You can also analyze how certain tasks (such as download, file conversion, or encryption) affect the overall system performance. Furthermore, IT administrators can check system performance anytime to help them redistribute tasks or loads among NAS units or upgrade their systems when they are running on resources.

The report function can generate a series of charts and graphs that display system information to help IT administrators proactively plan system upgrades and respond to system failures or degradation, as well as evaluate how the eective storage is used. Statistics collected can be kept for an entire year for capacity planning.

Virtualization Station

The TVS-x71U series supports Intel VT-x and virtual machine applications. Just download Virtualization Station from the App Center, and you can install & operate multiple operating systems including Windows, Linux, and UNIX. The virtual machines can be used in a variety of dierent ways to boost the functionality of your Turbo vNAS, just like having multiple computers with you.

1$6$33

0RUH

9LUWXDOL]DWLRQ6\VWHP

Ofﬁce

Linux

VM1 VM2

Storage Management

Security Management

Linux

NHUQHO

VM3 VM4

Virtualization technology is normally used in enterprise IT environments, but with the growing needs of a digital oce, virtualization is now our everyday applications. Many oces have printers, and when users want to print the documents stored on their Turbo vNAS and realized that the printer requires a Windows-only driver, they will need to boot up their PC just for this simple task.

Create multiple VMs on TVS-x71U

You can carry out the above scenario in a VM using the below steps.

Download Virtualization Station from the App Center and create a Windows-based VM

Install the printer drivers in the VM

Map the destination folder into the Windows-based VM and set the folder as a network drive

Access the VM remotely via a web browser to select a photo and then print it

7XUERY1$6796[86HULHV6HUL

The network usage of Virtualization Station is isolated from the Turbo vNAS. One Ethernet cable is reserved for the Turbo vNAS, and so you

will need to connect at least one more cable for the Virtualization Station.

How to map the destination folder into a Windows VM? Please follow these steps: (Using Windows 7 as an example)

Go to "Computer" and click "Map network drive"

Please enter the IP address of your Turbo NAS and click "Browser". Select the folder you want to use and

click "Finish".

This folder will appear as a network drive on your "Computer"

USB devices (USB Passthrough)

炩

QNAP Virtualization Station supports connecting USB devices to virtual machines. Commonly used USB devices can be connected to virtual machines, and you can select the device using Virtualization Station.

This can be used together with QVM Desk just like a PC. For document management, you can connect USB card readers/scanners to a Turbo vNAS via Virtualization Station and store scanned data directly to the Turbo vNAS without taking up Internet bandwidth.

Virtualization Station

The highlights of QNAP's exclusive virtualization technology

炩

Direct access to files & data via VM

Specic le formats cannot be opened directly by the Turbo vNAS, but the Virtualization Station makes it possible. Administrators can install Windows, Linux, and UNIX on the Turbo vNAS to run any supported application or le.

QTS File Station

Save bandwidth & time

Downloading a large amount of data to a local PC can take a long time and use up network bandwidth. When accessing data on the Turbo vNAS through virtual machines on the Virtualization Station, you can enjoy secure data transmission and save bandwidth & time as the data is not transmitted via physical network cables.

SolidWorks on Windows

Virtual Machine

Enhance security and save bandwidth

When accessing les & data on a virtual machine they are not transmitted outside of the Turbo vNAS. This provides a secure environment that prevents sensitive data from being intercepted and also saves bandwidth & network resources when you need to access large les.

Microsoft® Window®

Virtual Machine

Dedicated network for VM only

The Virtualization Station provides functions for network monitoring. You can monitor all NIC (network interface controller) trac and assign a specic NIC exclusively to a single VM.

User-based permissions settings

The Virtualization Station administrator can create users and set proper permissions for each Virtual Machine (VM), helping to efficiently manage and allocate VM resources for users with different needs. With these permissions, users can work independently on their VM without worrying about their work being interrupted or data being lost because another user has accidentally powered-o the VM.

User-based permissions include:

Console permissions: Control and View-only

VM controls: Snapshot and Advanced

7XUERY1$6796[86HULHV6HUL

Operate VMs as Remote Desktops

Enjoy utmost convenience by operating Windows, Linux and UNIX-based VMs as remote desktops. A list of buttons is provided on the left side of each individual VM display, allowing users to suspend, shutdown, force shutdown, reset, bring up key combinations function keys, and even take snapshots for the VMs.

Ctrl AIt Del

QNAP QVM Desk

QNAP QVM Desk supports local display for deploying virtual

applications on a big screen when connected to a HDMI

monitor, keyboard, and mouse. Compared to webpage

operations it's smoother, more secure, and worry-free to do on a

Turbo vNAS. Even when Internet connectivity is limited, you can

still access data and run virtual machines on a Turbo vNAS.

Linux Android

Windows

Budget-friendly QNAP Turbo vNAS for cloud computing

To meet the growing demand of cloud computing, solution providers oer a variety of services to their customers. Customers can leverage computing or application services with cloud computing in lieu of system maintenance and conguration. However, public cloud services can have shortcomings. Complying with high standards of security and evolving regulations as well as controlling long-term operating costs are among the major concerns of public cloud services. Most cloud computing pricing depends on the amount of resources consumed such as computing power and a subscription period. The integrated Virtualization Station of QNAP Turbo vNAS can help your enterprise develop a cost-eective strategy with the aforementioned tiered and unied storage to manage and store your data, potentially maximizing storage capabilities per TB. It is the industry’s best private cloud architecture to counterbalance the disadvantages of public cloud services.

AWS EC2

vCPU Cores:

Capacity

Available Region

Operating System

Price

Cloud CPU capacity measurement varies from vendor to vendor; here we only present it with vCPU core numbers.

The prices shown here are directly replicated from service providers’ websites.

The price does not include OS license fees for Virtualization Station.

Memory: 7.5 GiB

Storage: 32G SSD

Windows Server Windows Server

$0.

(m3.large)

Global Global Global U.S. Global

/ hr $0.

266

Rackspace

Pulibc Cloud

vCPU Cores: Memory: 4GB

Storage: 80 GB SSD

(General 1-4)

/ hr One-time investment

188

QNAP TVS-x71U series

Virtualization Station

vCPU Cores: Max. Memory: Max. 30GB Storage:

Windows, Linux, Unix and

Android

136

TB SSD

VMware vCHS Google IaaS

vCPU Cores: Memory: 8GB

Storage: 80 GB SSD

Windows Server Windows Server

Calculated annually Calculated annually

Memory: 7.5GB

Storage:

vCPU Cores:

GB SSD

375

QvPC Technology

About QvPC Techonology

炩

Based on Software-dened Everything, QvPC Technology is the result of years of R&D eort that QNAP has put into developing and perfecting its software and hardware expertise. QvPC Technology has consolidated a number of high-end technologies and latest IT trends including VM integration, multimedia transcoding, HDMI output, cloud integration, and NAS connection technologies, allowing users to operate Turbo vNAS as a PC when they plug in a keyboard, mouse and monitor. QvPC Technology can turn a NAS into a low-cost & high-performance 2-in-a box NAS that can function as a NAS and a PC. Whether you are working in a studio or at a remote site, you are assured to receive the best user experience.

QvPC Technology features HybridDesk Station (HD Station) as the user interface, which consists of QVM Desk, Defense Desk, and Local Display Desk and provides SMBs various software applications.

Linux

Virtualization

USB Pass-through

USB Connector

Station

QVM Desk

Defense Desk Local Display Desk

HD Station 2.0 (HybridDesk Station 2.0)

NAS Firmware

NAS Hardware Platform

All trademarks in this brochure are the property of their respective owners.

Connect a monitor with a HDMI cable, and you can enjoy a variety of applications with HD Station 2.0. You can initiate the service in QTS system and install different applications according to your needs.

QVM Desk

Defense Desk

Local Display Desk

7XUERY1$6796[86HULHV6HUL

The highlights of QNAP's exclusive QvPC Technology

HD Station 2.0 (HybridDesk Station 2.0)

炩

HD Station 2.0 is a monitor-based user interface

based on QNAP's exclusive QvPC Technology. Simply

plug in a keyboard, mouse, and HDMI monitor to a

TVS-x71U, and you can start the installation process

and access data without connecting to a PC, tablet,

or smartphone. <HD Station 2.0 >. A variety of local

display applications are available on HD Station

including QTS, Google Chrome, QVM, XBMC, and

Surveillance Station.

HD Station 2.0 is touchscreen enabled. Simply plug in a touchscreen monitor and start using it immediately

Streamlined installation: No complicated procedures

炩

necessary to install your Turbo vNAS.

After purchasing a Turbo vNAS, users usually install rmware from an installation disc and search for the Turbo vNAS on their network, or log in to the NAS manufacturer's website to complete the installation process. For users without relevant networking knowledge, this installation process may be dicult. Some users decide to purchase other external storage devices that can be instantly used (such as USB hard drives). However, these devices are "islands of information" that can only be accessed by the computer they are connected to. These storage solutions also oer no protection against failure, and are easily misplaced.

A Turbo vNAS is an ideal solution for storing data. With QvPC Technology users only need to plug in a HDMI monitor, keyboard, mouse and follow on-screen instructions to complete their NAS installation. Even users without any network knowledge can easily set up and install a Turbo vNAS. All les stored on a Turbo vNAS are protected with RAID technology and are accessible via the Internet anytime.

Turbo vNAS

Conventional installation: You need an disc or to log in to a website to complete the installation, and it can be complicated for general users.

Streamlined installation: simply plug in a monitor, keyboard and mouse and follow the on-screen instructions to complete the installation.

HDMI

Turbo vNAS

QvPC Technology

QNAP QVM Desk turns a Turbo vNAS into an oce PC

炩

Run Windows, Linux and Android virtual machines on a HDTV

Leveraging the virtualization technology, QNAP QVM Desk supports local display for a virtual interface and

turns the Turbo vNAS into a PC when connected to a HDMI monitor, keyboard, and mouse. Any les on the

TVS-x71U series can be opened using virtual machines running Windows, Android, Linux, and Unix through

QVM Desk. You can also instantly switch between dierent virtual machines to meet your needs, just like using

multiple PCs at the same time. Compared to the operations via a webpage, it's smoother, more secure, and

worry-free to do on a Turbo vNAS. Even when the Internet connectivity is limited, you can still access data and

run virtual machines on a Turbo vNAS.

Linux Android

Windows

7XUERY1$6796[86HULHV6HUL

Run Android on a NAS with QvPC

Have you ever feel constrained by the lack of storage space on your tablet or smartphone and have no idea

where to back up your files or what apps to delete for more space? With QvPC Technology, you can run

Android on a virtual machine, and back up apps or les like LINE, WeChat, Gmail, your phonebook, photos,

and chat messages from your Android device to the virtual machine with backup software like App Backup

& Restore and My Backup Pro. This way, the les on the pubic cloud can be stored on your private cloud. You

no longer need to worry about having diculty accessing your data anymore. In addition, your NAS can be

transformed to an Android device and the millions of apps on Google Play can be operated on it as well.

LINE Wechat Gmail Facebook

To learn more about QNAP Virtualization Station, please turn to Page 11.

QvPC Technology

Defense Desk 24/7 safeguards your

炩

oce and property

Live-view

QvPC Technology supports local display of live surveillance feeds on the screen with a QNAP remote control. You don't need an additional PC for live-view, nor do you need an Internet connection to check the stored video recordings. You can monitor up to 36 channels simultaneously, adjust PTZ functions, and conduct audio surveillance. QvPC also supports instant notification functions and will show alerts on the monitored page should any incident happens, helping you take immediate action and control the work environment more eciently.

Playback

You can connect your Turbo vNAS to a monitor to playback recordings. Just select a timeframe, and you can search the recordings within this period. It also supports video fast-forwarding and rewinding (up to 16x speed). You can quickly look for detailed images with the zoom function, and listen to audio for key background sounds during the playback.

To learn more about QNAP Surveillance Station, please turn to Page 25.

Manage Local Display Desk easily

炩

Quickly install QTS and access files

Just plug in an HDMI monitor/TV, keyboard and mouse to a TVS-x71U, and within a few simple steps you will complete installation and be able to access les using the QTS operating system.

7XUERY1$6796[86HULHV6HUL

Surf the web via Chrome/Firefox on TV

QvPC Technology supports HDMI-out and Google Chrome/Firefox, allowing you to surf the

web easily, and is ideal for oces to build an information search center with minimal costs.

Build an online music center with Spotify

Over a million songs can be found on Spotify. Create a media center and enjoy your music collections with your NAS while at work.

n songs can be found on Spotify. Create a media center and enjoy your music collections with

ile at work.

Qremote mobile app turns your mobile device into a handy remote control

iOS® and Android users can download the Qremote app to turn their smartphones into a remote control to conveniently play videos, music, and photos on TV via HD Station 2.0. The Ocial XMBC Remote app can also be used.

Enterprise Solutions

QNAP's Unique Transcoding Technology

Every year many SMBs produce hundreds of promotional videos for marketing purposes. However, due to the increasing use of HD videos (720p, 1080p), video ¿les are becoming increasingly large in size and can use lots of network bandwidth to share or play them over a network.

Transcode Management

炩

With the popularity of high-denition smartphones and digital cameras, video resolutions are getting higher. A higher resolution means larger le sizes and more bandwidth needed to stream it. Transcoding creates videos with optimal resolutions for sharing & watching in order to save bandwidth, but also retains the unaltered original video on the Turbo vNAS.

Smart transcoding adapts to suit dierent bandwidth

炩

The TVS-x71U series provides a range of resolutions to play/share videos according to different bandwidth limits. Higher resolutions need more bandwidth, and you can select the right resolution for your network environment to get the best viewing experience.

5HVROXWLRQ

1HWZRUN

Ethernet

Wi-Fi

(108.11 ac)

Wi-Fi

(108.11 a/b/n)

4G (LTE)

240p 360p 480p 720p 1080p

4K2K

7XUERY1$6796[86HULHV6HUL

Multi-mode transcoding function

4K 2K

Background hardware-accelerated transcoding

The TVS-x71U fully supports oine background transcoding for 4K (H.264) videos. Just add videos to the transcoding list and use the Turbo vNAS to convert the original high-resolution video for use with multiple resolutions. Then you can select an appropriate resolution when sharing or watching to match your device or network environment.

Auto transcoding

When you set a folder on the Turbo vNAS to be an autotranscoding folder, videos added to it will be automatically converted to a resolution you have set. For example, if you set the folder to 360p, videos added to this folder will be automatically transcoded to 360p as a background task .

On-the-fly transcoding

If you have many high-resolution videos, but did not transcode in advance, you can use on-the-y transcoding. This will adapt to meet bandwidth limits, with the Turbo vNAS transcoding in real time for directly watching the video.

Embed subtitles

By selecting the Embed Subtitles option in the Transcode Management function, you can embed subtitles to a video when converting a video to any resolution. The subtitles will then be displayed when a video is played on whatever device you are using.

Hardware-accelerated transcoding technology

With Intel® HD Graphics, video creation & conversion is faster, easier and can signicantly reduce the time needed when handling multiple on-the-y transcoding tasks.

Performance

Compare the transcoding time between the TVS-871U-RP-PT-4G and TS-870 with using the same high-resolution (1080p) video. Powered by an Intel Pentium® CPU with QNAP's exclusive transcoding technology, the TVS871U-RP-PT-4G is 16 times faster than the Celeron®-based TS-870.

TVS-871U-RP-PT-4G

TS-870

Test environment: The time spends for a two-hour video with 1080p resolution and in mkv format.

16X faster

1380 (VHF)

22296 (VHF)

Transcoding times (sec)

Enterprise Solutions

Virtualization Applications

The Turbo vNAS supports iSCSI & NFS protocols and is virtualization ready with compatibility for VMware®, Citrix®, and Microsoft® Hyper-V to provide buasinesses with powerful & exible storage solutions for virtualization applications.

Virtualization ready

炩

The Turbo vNAS supports iSCSI & NFS protocols and is virtualization ready with compatibility for VMware®, Citrix®, and Microsoft® Hyper-V to provide businesses with powerful & exible storage solutions for virtualization applications.

VAAI/Hyper-V Plug-in Support

炩

Use the free QNAP vSphere Client plug-in and QNAP SMI-S provider for SCVMM and managing the Turbo vNAS from the virtualization management client console is easy.

Secure and exible storage utilization

炩

The Turbo vNAS offers flexible management through creating and allocating iSCSI LUNs (Logical Unit Numbers), mapping and unmapping LUNs to and from iSCSI targets, and thin provisioning. CHAP authentication and LUN masking support reinforces secured deployment in virtualization applications.

NAS/IP SAN unied storage

炩

QTS supports NFS and iSCSI/IP-SAN storage solutions that can be utilized as network-shared storage of virtualized environments, helping to achieve an ecient cost-saving, energy-saving optimized storage capacity.

7XUERY1$6796[86HULHV6HUL

'HSO

7KLFN3

5HODWL

VAAI for iSCSI, VAAI for NAS

炩

The Turbo vNAS supports VMware VAAI for iSCSI and VAAI for NAS. Businesses can select either iSCSI or NFS as a centralized storage to boost performance. VAAI for iSCSI supports Full Copy (hardware-assisted copy), Block Zeroing (hardware-assisted zeroing), Hardware-assisted Locking, and Thin Provisioning with space reclaim. VAAI for NAS supports Full File Clone, Extended Statistics, and Reserve Space. The QNAP Turbo vNAS supports VAAI iSCSI and VAAI NAS to enhance storage performance in a virtualized environment.

QNAP Turbo vNAS: Boosted Performance by ODX

With ODX

Token

Ofﬂoad

Read

Virtual disk 1 Virtual disk 2

Other NAS

Windows Host 1

Read

Virtual disk 1

Token

QNAP Turbo vNAS

Data

Other NAS

Ofﬂoad

Write with

Token

Without ODX

Windows Host 2

Write

Data

Virtual disk 2

Results

R\PHQWWLPHIRUD*%

(DJHU=HURHGYLUWXDOGLVNORZHULVEHWWHU

900

750 600 450 300 150

5HODWLYHWLPHVHFRQGV

Storage for Microsoft

炩

746

VAAI: block zeroing

VAAI: Hardware-assisted Locking

URYLVLRQ

124

times faster!!

VAAI OFF VAAI ON

3HUIRUPDQFHGURS

9HU\VPDOO

SHUIRUPDQFHLPSDFW

*%90ORZHULVEHWWHU

2,100

1,750 1,400 1,050

700 350

5HODWLYHWLPHVHFRQGV

VAAI: full copy

YHWLPHIRUFORQLQJD

1,764

times faster!!

374

Hyper-V

With ODX support, the QNAP Turbo vNAS becomes a high-performance iSCSI solution under Windows Server 2012, including Hyper-V virtualized environments. QNAP storage enables full copies of virtual machines within the NAS without requiring the Windows hosts to read and write the data to highly reduce the load on Windows hosts and improving the performance of copy & move operations on Windows 2012 hosts. When providing QNAP storage to a Windows 2012 le server, the end user using a Windows 8 client workstation will also benet from the Ooaded copy process for large le transfers.

4.7

NAS management

炩

via SCVMM

QNAP SMI-S enables management of the QNAP Turbo vNAS directly through Microsoft System Center Virtual Machine Manager 2012 (SCVMM)

vSphere plug-in

炩

The vSphere plug-in allows users to manage the QNAP Turbo vNAS directly on the vSphere client, making datastore management more eective.

Enterprise Solutions

Major Applications for Enterprise

Multipurpose workstation for enterprise IT environment

IT Management Station

Powered by Mandriva® Pulse, IT Management Station is designed to simplify daily tasks and IT asset management for businesses of all sizes. Your Turbo vNAS becomes an IT system management server to help you centrally manage multi-OS & multi-site IT resources, applications and security with greater exibility.

炩$WWKHFRUHRI3XOVH

Comprehensive Inventory

Pulse automatically retrieves hardware & software information from your IT system using an inventory agent to provide you with reliable and timely data. It measures the potential of your inventory and runs your IT assets tactfully, thanks to dynamic groups, self populated from queries.

Mastering

Create generic disc images to carry out mass OS deployments.

Remote Control

Help your users in their everyday tasks by connecting from remote locations without compromising the security of their IT assets.

Cloning

As part of a scheduled or on-demand restoration, systems and their stored data can be fully backed up easily.

Deployment

Design, schedule and implement software installation on your IT assets.

Backup and Restore

Save time, optimize s tor age and protect data from accidental loss using incremental backups.

New features in Mandriva Pulse 2.0

炩

7XUERY1$6796[86HULHV6HUL

Reporting

Create and edit reports/graphs for better control of your IT assets and to anticipate future changes.

Pull Mode

Increase the compliance of your roaming devices for deploying packages needed in any environment.

Update Management

Centralize your software updates for greater control and security.

Software Convergence

Eciently deploy software using an automated process.

License Management

Optimize your software assets with an overview of used and available licenses.

Flexible management of your IT assets

炩

Multi-OS

Manage all your IT assets and virtual machines no matter if it is Windows, GNU/Linux, Mac or Unix.

Multi-site

Remotely & securely manage your sites via SSH tunnel, simultaneously controlling the bandwidth and conserving the availability of your network.

炩,QWXLWLYHWRROV

Features a desktop icon for quick self installation to facilitate access and remote control of new deployments.

A simple web interface with an intuitive dashboard for quick information regarding your IT assets.

A unique management interface for software licenses and automatic package management.

Enterprise Solutions

Surveillance Station

One of the standard Turbo vNAS applications, the Surveillance Station is professional network surveillance Video Management System (VMS) that can be activated in the QTS App Center to turn the Turbo vNAS into a professional Network Video Recorder (NVR) system for real-time monitoring, recording, playback, alarm notications, Intelligent Video Analytics (IVA), and management to safeguard your assets and property when used with supported IP cameras. The TVS-x71U series comes with 4 free camera channels, allowing users to easily build a surveillance system.

Live-view

Various remote monitoring modes

The Surveillance Station supports various monitoring modes to display up to 64 channels on a single screen. Users can also choose to sequentially display each channel or use dual displays for more information.

Highly-professional NVR system

Wide range of supported IP cameras

Surveillance Station is compatible with over 2,700 IP camera models across over 90 brands and ONVIF specifications, including those that support advanced features such as multi-streaming and sheye dewarping.

Comprehensive Turbo vNAS support

TVS-x71U offers 4 free IP camera channels and can be expanded to 72 channels to fulfill various surveillance deployment needs.

Cross-platform support

Surveillance Station works with all major web browsers including Google Chrome, Mozilla Firefox and Internet Explorer. With the QNAP QVR Client for Mac, users can enjoy a similar experience on their Macs.

PTZ (Pan/Tilt/Zoom) control

On the Surveillance Station web interface, you can directly adjust the PTZ (Pan/Tilt/Zoom) functions of supported cameras, greatly enhancing the convenience in remote monitoring.

Instant playback

On the Live-view page, whenever you want to check suspicious events of a camera channel you just missed, just hit Instant Playback to bring up the window to review recent events.

Visual aid by E-map

Just upload pictures of monitored locations to the Surveillance Station and drag & drop the IP camera icons to them on the E-map. Once an alarm event happens, the camera icons will ash to indicate the event type for you to be immediately alerted to take necessary actions.

Instant notification

When alarm recording is enabled and an event occurs, an alarm icon will be instantly shown on the monitoring page. The alert details can be viewed by clicking the icon.

Advanced storage technology protection

Surveillance Station is installed on the Turbo vNAS platform and is protected against loss, theft, and damage of recorded videos with the help of advanced security features and RAID technology.

Please note: You can also use USB webcams for Surveillance Station to record videos. Just install the QUSBCam App on a TVS-x71U from the QTS App Center to assist in building a small surveillance system for your office with USB webcams.

7XUERY1$6796[86HULHV6HUL

Playback

Preview recordings by thumbnails

You can move the mouse cursor over the timeline to preview video thumbnails to quickly identify and search for events. No need to play the video from the start and wait.

Intelligent Video Analytics (IVA)

IVA is an advanced way to quickly search videos corresponding to particular modes, greatly saving the time & eort of manually screening out matching videos. IVA includes motion detection, foreign/missing objects, out-of-focus and camera occlusion.

Real-time watermarking

The support of digital watermarking assists in verifying the authenticity of exported videos and snapshots by showing the exact recording date & time, camera name, and Turbo vNAS model name, making it essential when videos are needed as veriable evidence.

Playback and speed control by shuttle bar

With the speed control shuttle bar, you are able to fast forward playback by dragging the button to the right and to the left to rewind, helping you quickly nd the desired screenshots.

Flexible Management

Flexible camera access control

You can create up to 32 user accounts on the Surveillance Station and exibly assign them to dierent user groups with dierent rights for monitoring, playback, PTZ control, and audio monitoring.

Advanced event management

The system starts alarm recording when alarm events occur. Administrators can congure events and assign 7 types of event actions to ensure that they are alerted immediately, including recording, PTZ Control, alarm output, email notication, SMS notication, buzzer notication, and user-dened actions.

Expendable license management

The Surveillance Station comes with at least one free IP camera license for each Turbo vNAS by default. Administrators can expand the channel number by purchasing additional licenses based on their demands. This provides a exible and costeective method for scaling surveillance needs.

Manage large-scale camera

By connecting multiple Turbo vNAS units, you can simultaneously manage, monitor and playback up to 128 IP cameras with one Turbo vNAS.

Mobile apps

VMobile – Surveillance at anytime, anywhere

VMobile allows you to monitor the Surveillance Station anytime, anywhere using iOS and Android devices. It provides camera live-view, PTZ control, instant event notifications, video snapshot, video playback, and searching videos by date and time.

Vcam – Turn your mobile device into a camera

Vcam turns your mobile device into a network camera. With the Vcam mobile app, you can record any moment around you to your Turbo vNAS, saving the need in buying expensive IP cameras.

Enterprise Solutions

Signage Station

The Signage Station is a free Turbo vNAS app that allows businesses to create attractive menu boards, advertising posters, and business profiles and easily publish them to monitors and tablet devices to attract more customers.

Drive business growth and increase revenue

Your content can be presented on a web browser and when on the go, and you can even show your prole, business card and product catalogs on mobile devices and share on Facebook. The Turbo vNAS with the Signage Station is an ideal tool to present creativity and drive business growth.

Absolutely easy-to-use

iArtist Lite provides a drag-and-drop interface that allows you to flexibly embed videos, marquees, pictures, and PowerPoint slides on the canvas panel. With the layered playlist and timeline features, you can freely arrange the order of media objects. iArtist Lite also oers numerous templates for various scenarios, saving you lots of time & eort. Useful widgets such as audio, clock, RSS are also available to add to the designed content.

Instantly publish and conveniently revise

With iArtist Lite you can save your designs as dierent projects and upload them to multiple Turbo vNAS with Signage Station installed. Whenever you want to revise the content, just open iArtist Lite to update and publish instantly. You can fully control all your content in a timely way.

Collaboration increasing efficiency

The original content can be saved on a local computer or the Turbo vNAS with the help of the connection wizard. Content saved on the Turbo vNAS is accessible for every authorized user to increase the work efficiency in projects involving multiple members.

iArtist Lite Create your

炩

advertising content easily

How to make advertising content on iArtist Lite?

The concept of dynamic multimedia content is quite simple: just drag & drop media les to the iArtist Lite canvas and arrange it as required. Choose the device that you want to display, such as tablet, HDTV or smartphone. After selecting the device resolution you can select whether to present it in portrait or landscape.

Introduction of iArtist Lite functions: :

7XUERY1$6796[86HULHV6HUL

Add new content

Open previous content

Save content

Upload to Turbo vNAS

Preview design

Online template support

A B C D E F

Introduction of iArtist Lite tools:

tVideo, photo, and music: Add the file to the canvas from Windows.

tDigital & analog clock: Supports multiple types of clocks and formats, just drag &

drop to canvas.

tBackground image: Choose a background color or choose a background image.

tMask: Add an image mask to the content.

tText & banner: Edit the text on the banner you'd like to promote.

tRSS: Share an RSS link from a website to share messages.

tDigital menu board: Design a neat menu board, and edit the price and picture

anytime, anywhere.

tCombo menu board: Select the template and add the price and picture.

tHTML: Drop a website on the canvas for the most direct promotion.

tPPT and PDF: Easily add documents to the canvas including slideshows, retaining

the animations from the PPT.

Intuitive user interface with

ntuitive user int

imeline vie

timeline view

After dragging & dropping from the left panel to the canvas,

After dragging & dropp

each media file will have a corresponding timeline at the

ach media file will ha

bottom of the canvas to allow users to easily manage their

bottom of the canvas to

timing and placement.

iming and placement.

Enterprise Solutions

yg g,y y

mp4

Notes Station 2.0

services but with the privacy and security of Turbo vNAS. Users do not have to worry about risks from public storage, and are able to enjoy easier data access at all times.

QNAP has now leveraged its private cloud functionality to introduce Notes Station 2.0. It provides the convenience of notetaking on cloud-based

Single workspace for all notetaking activity

With its 3-level structure (Notebooks, Sections, and Notes), Notes Station 2.0 allows you to manage all your notes systematically and exibly whether it is a note you write to yourself or for work. You can jot your valuable ideas in Notes Station 2.0 and keep them safely accessible through your own devices wherever you are.

ections, and

manage all

whether it is

. You can jot .0 and keep

own devices

RSS

mp3

Notes Station 2.0

Powerful editing

Notes Station 2.0 is capable of advanced editing. You can style the text by changing the size, font, or color. You can also edit inserted images with the built-in photo editor to enrich your content.

Google Calendar Support

The event in the Notes Station Calendar links to the note you created it from. You can update the calendar from Notes Station 2.0 to your Google Calendar with a single click, so you will be reminded for every event.

Upload to Google Calendar

The events on your Notes Station Calendar

7XUERY1$6796[86HULHV6HUL

Mus


Music

Evernote Users

Good News !

High-performance encryption

You can encrypt your notes with high-performance AES 256-bit encryption to protect against unauthorized access.

RSS feeds import

If you have subscribed to RSS feeds from news websites or blogs, you can use Notes Station 2.0 to automatically import the published contents.

ŌŊŌŊ

ŃŭŰŨŴ

PDF import/export

Notes Station 2.0 can import PDF files into Notes Station 2.0, and export note les (i.e. Notes, Sections, Notebooks) to PDF files. When a notebook is exported, the sections and notes of the notebook transfer to the chapters and contents of a PDF file respectively, and vice versa for the import function.

Online preview

You can quickly view the attached files in PDF, Word or PowerPoint format online with Google Docs or Oce Online. Other le formats such as photos, music and videos can be played instantly with the built-in programs.

Notes sharing and collaboration

Notes Station 2.0 contributes to team work and networking. You can create a link for your notes and publish them on your social networks or share them through the apps on your smartphone. Thus, you can invite other people to work on the same notes.

őńġũŰŮŦ

RSS

ŃŭŰŨŴ

ŅŢŷŪť

ŃŭŰŨŴ

Snapshot

You can use the snapshot function to back up dierent revisions of your notes. Your notes can be effortlessly restored to an earlier version. The QTS Snapshot is a great tool to record the state of a note at dierent time points. You can create up to 1,024 snapshots manually or by schedule and it is easy to retrieve files from a specific point in time if they are broken or mistakenly deleted.

Evernote backup

Notes Station 2.0 comes with an import function to restore backups from Evernote. In addition, you can directly access your notebooks in Evernote to import them online to Notes Station without exporting.

Enterprise Solutions

All-inclusive data backup and disaster recovery

Backup Station

Protecting against potentially disastrous data loss is of paramount importance for all sizes of businesses from micro to enterprise. QNAP Turbo vNAS offers an all-inclusive backup and recovery solution with enormous storage capacity and superior transmission speed. With the functionalities in the Backup Station, data backup and recovery is simpler and more powerful regardless of your business's disaster recovery plan.

1. PC Backup

Windows users can install the free QNAP NetBak Replicator utility to back up ¿les from Windows PC - entire disk drives, documents, pictures, music, videos, fonts, emails, and more - to one or multiple Turbo vNAS units. With simple clicks, you can set up real-time backup, scheduled backup and auto-backup. You can set power off after the backup is ¿nished to save energy, ¿le ¿ltering to exclude files not to back up, and email notification

when backup is completed.

2. Mac Backup

Mac users can use the Mac Time Machine to back up data to the Turbo vNAS. You only need to set the Turbo vNAS as the backup destination on the Time Machine management page, and it's done.

7XUERY1$6796[86HULHV6HUL

Back up data on the Turbo vNAS for disaster recovery

ŅŢŵŢġńŦůŵŦų

)URP7XUERY1$6

WRH[WHUQDOVWRUDJH

)URP7XUERY1$6

WRDQRWKHU1$6

)URP7XUERY1$6

WRFORXGVWRUDJH

1. Local backup to external storage devices

Connect an USB device to one of the USB ports. Log into the QTS and go to “ Control Panel”>”Applications”>”Backup

Station” and create a job with the External Backup function.

2. Remote backup with RTRR/rsync services

- Use rsync protocol to execute scheduled backup to remote rsync server.

- Use RTRR (Real-Time Remote Replication) services for real time data backup to a remote Turbo vNAS or FTP server.

- Use RTRR to sync shared folders between two Turbo vNAS units.

3. Cloud backup to cloud storage

Users can back up the data from the Turbo vNAS to online cloud storage services, such as Amazon® S3, Amazon®

Glacier, Microsoft® Azure, Google® Cloud Storage*, IBM® SoftLayer, HP® Cloud, Rackspace®, ElephantDrive®, hicloud

S3, and CCIS. The Turbo vNAS also supports other types of cloud backup using S3, OpenStack Swift, WebDAV, or FTP

service. Furthermore, Turbo vNAS provides advanced functions such as data encryption, compression, download/

upload rate control and scheduled backup to suit your backup needs.

*Google® Cloud Storage will be available soon in the App Center for download.

QTS 4.1.2 OS

Intuitive & Simple QTS 4.1.2 OS

Based on Linux, QTS 4.1.2 is designed to be simple and exible while centralizing multiple applications eciently in the App Center.

Multi-Window: Simultaneous multi-window operation for easy usage.

Multi-Task: Improve work eciency by performing multiple tasks at the same time.

Multi-Device: Synchronize cross multiple devices anytime, anywhere.

Multi-App: Use a range of easy-to-manage apps and download more as needed.

Multi-Scenario: Customize your own cloud platform with multiple applications.

Intelligent Desktop

炩

QTS 4.1.2's intelligent desktop oers an intuitive, sleek, and easy-to-follow graphic user interface that simplies your Turbo vNAS experience. It allows you to open multiple application windows and simultaneously run multiple tasks. Application windows can be minimized to the toolbar to allow you to see an overview of the opened applications and switch between running applications.

6PDUWWRROEDU

%DFNJURXQGWDVNV

Displays all the active and scheduled tasks performed in the background.

([WHUQDOGHYLFHV

Access connected storage devices and safely eject them with a single click.

(YHQWQRWLILFDWLRQV

Updates you with system information including warnings and other error messages.

0DLQPHQX

All of your applications, system preferences, and additional apps installed from the App Center are neatly presented for you to quickly nd your desired app. Drag and drop frequently used icons to the desktop as shortcuts for easier access.

0XOWLSOHGHVNWRSV

The extended desktop workspace is specifically designed to improve your productivity. You can move apps to different desktops according to their category and freely switch between them.

4XLFNVHDUFK

Quickly search for system settings and QTS Help.

6PDUWGDVKERDUG

In just one click the smart dashboard presents all the important system information in a single panel. Drag any status to the desktop for constant monitoring.

7XUERY1$6796[86HULHV6HUL

Customized Login Page

Public photo wall and app shortcuts on the login page

炩

Customize the photo wall based on your company image and display it on the login page. Each app has its own

shortcut that you can place on the login page to allow direct access without the need to log into QTS rst.

(QDEOHWKLVRSWLRQDQG

'LVSOD\WKHDSSVKRUWFXWRQWKHORJLQSDJH

$SS VKRUWFXWV EHFRPH DYDLODEOH

&XVWRPL]HGDGPLQSKRWR

3XEOLFSKRWRZDOO

QTS 4.1.2 OS

NAS connection and network setting

Qfinder for

炩

connecting to a NAS

Instant connection and NAS setup

Qnder is a utility for Windows, Mac, and Linux that lets you quickly find and access the Turbo vNAS over LAN. Install Qfinder on your computer, open it, and double click your Turbo vNAS name and the login page is ready for you.

Easy access to NAS with Storage Plug & Connect

The Windows version of Qnder provides a convenient way to connect to the Turbo vNAS and map a network drive or virtual disk. By creating a shared folder on the Turbo vNAS and mapping it as a network drive, you can use it as if it were a local drive on your computer.

System network setup

炩

TCP / IP and service connection setup

TVS-x71U offers 4 Gigabit LAN ports. You can click on the QTS [Control Panel] > [System Settings] > [Network] to activate service connection, assigning QTS applications to one or more network interfaces (over LAN or wireless). The NAS will allow application access based on IP sources to optimize the LAN ports utilization for your network

environment.

7XUERY1$6796[86HULHV6HUL

Optimize network resources with high security

TVS-x71U offers 4 Gigabit LAN ports, and you can assign each port for different applications to optimize network resources and increase security (for example: Public IP, Intranet, Server Backend Network, VM Network, etc). When using Virtualization Station, the network trac from the virtual machines (VMs) is isolated from the network used by the Turbo vNAS. The bandwidth for the Turbo vNAS applications will not be impacted by the VM operations, and the VMs can have dedicated bandwidth for operating high-trac applications. Also, you can exibly install LAN cards and arrange other LAN ports for dierent VMs to use as a dedicated network resource.

796[8

6HUYLFH%LQGLQJ%\/$1SRUWV

Internet

,QWUDQHW6ZLWFK,QWUDQHW

5RXWHU

6HUYHU%DFNHQG1HWZRUN6ZLWFK

([FKDQJH

6HUYHU

7UDQVDFWLRQ

6HUYHU

3XEOLF,3'0=

(53

6HUYHU

901HWZRUN6ZLWFK

2IILFH1RWHERRN

9',FOLHQW

9',WKLQ&OLHQWVXVLQJ490

Port Trunking - Link Aggregation for high-speed and high-security file transmission

Including the practice mentioned above, 2 LAN ports can be used for Port Trunking - Link Aggregation, enabling IT administrators to set up link aggregation to increase total data transmission capabilities and achieve better eciency for IT operations. Failover, load balancing, and multi-IP settings are also supported.

5RXWHU

Internet

6ZLWFK

$JJUHJDWHG(WKHUQHW

/LQN$JJUHJDWLRQ

3RUW7UXQNLQJ

7XUERY1$6

90'HGLFDWHG1HWZRUN

'HVNWRS3&V

DF:L)L5RXWHU

9',FOLHQW

QTS 4.1.2 OS

Wi-Fi network settings

TVS-x71U supports Wi-Fi networks. Connect a USB Wi-Fi network card to the NAS, click QTS [Control Panel] > [System Settings] > [Network] > [Wi-Fi], and the available Wi-Fi access points will be listed. The QTS 4.1.2 supports 802.11ac WiFi network protocols. You can connect the TVS-x71U to a router supporting 802.11ac protocols for higher file transfer speeds.

A Turbo vNAS can support a USB Wi-Fi network card. Visit www.qnap.com for a full Wi-Fi network card compatibility list.

Dynamic DNS (DDNS) service

After connecting to the Internet, click [Control Panel] > [System Settings] > [Network] > [DDNS Service] to get the Internet IP address. The IP address can be a DHCP or a xed address according to your Internet Service Provider (ISP). You can use the IP address and register a DDNS on a DDNS server. By properly setting up DDNS, the Turbo vNAS ensures that it is always reachable by automatically updating its IP address with the DDNS service provider whenever the IP address changes.

Application Server

QTS 4.1.2 integrates numerous server functions, including Web Server and Printer Server.

Web Server

炩

QTS has a built-in Web Server with PHP/MySQL support

and allows hosting multiple websites and running web

applications on the Turbo vNAS such as Joomla, phpBB,

and other online marketing platforms.

7XUERY1$6796[86HULHV6HUL

Printer Server

炩

QTS supports Printer Server, with the support for IPP (Internet Printing Protocol), Samba, print job management, and Bonjour printing on Mac OS X. By connecting a compatible USB printer to the Turbo vNAS, members can instantly share the printer resources over the network at the same time (Max. 3 USB printers).

FTP Server

炩

Large file sharing

Use FTP for high-speed data transfer and increase the eciency of large le sharing.

Flexible settings

Use anonymous login, read/write, read-only control or bandwidth control to flexibly manage the access right control.

Secure access

Use the safe FTPS (FTP over SSL/TLS) connection to ensure secure data transmission.

QTS 4.1.2 OS

Security Management

QTS oers various security management options to protect the system from hacking and data from interception, theft, and loss. QTS security management meets the electronic requirements of HIPAA (Health Insurance Portability and Accountability Act), performing as an ideal storage solution to store medical records.

Privilege settings

Windows AD/ACL

QTS supports Windows AD/ACL to help IT administrators manage user account more effectively, and to simplify the process of privilege settings in large-scale organizations. QTS also supports SAMBA v4 that enables the Turbo vNAS to serve as a Windows domain controller to manage privilege settings.

LDAP Directory Service

QTS supports the LDAP protocol, integrating the Turbo vNAS into networks that have deployed an LDAP-based directory service such as OpenLDAP and greatly simplifying the efforts of managing a large amount of user accounts. QTS makes Turbo vNAS a LDAP server too.

Anti-hacking

IP blocking

IT administrators can set up the black and white lists to grant proper access from different users to the Turbo vNAS by IP address. It operates as a policy-based automatic IP blocking by enabling the network access protection command.

RADIUS Server

QTS RADIUS Server provides centralized authentication and authorization management for computers to connect and use a network service. The QTS RADIUS Server maintains a list of user accounts that are authorized for remote network access through dial-up equipment, WiFi access point, or VPN connections. IT administrators can easily apply access policies to multiple access points for a ne-grained control of network access.

Anti-theft

Hard drive encryption

QTS supports up to AES 256-bit encryption for internal drives and external USB/eSATA drives, and adopts a military-level FIPS 140-2 validated encryption, which is considered to be the highest security certification for compliance.

Anti-virus

QTS integrates the ClamAV antivirus toolkit to defend against the latest viruses, malware, worms, and Trojan horses with continuous free virus database updates, ensuring continuous business operation. An email notification upon task completion or virus detection is provided. QTS also supports McAfee virus scanner which is available in the QTS App Center with a free 30-day trial.

Anti-interception

VPN Server

QTS supports VPN Server, with VPN connections secured with up to 256-bit encryption. It is easy to configure and is seamless integrated with the QNAP myQNAPcloud service and Auto Router Conguration. Complicated port forwarding settings for PPTP and OpenVPN are therefore simplied.

Encrypted access

QTS supports SSL, SSH and SFTP for secure connection and data transfer. IT administrators can host websites on the Turbo vNAS and only allow access via HTTPS (SSL over HTTP) secure channel.

7XUERY1$6796[86HULHV6HUL

The best solution for secured communication –VPN + proxy server

VPN

Virtual private network (VPN) oers secure connections to access network resources and services across a public network. VPN offers a convenient solution for NAS users to build end-to-end encrypted tunnels to your Turbo vNAS. The builtin VPN functions in the Turbo vNAS supports two dierent congurations: a client-to-site VPN, which allows clients to securely connect back to the NAS, and a server-to-server VPN, which allows a Turbo vNAS to connect to another Turbo vNAS across a WAN. In the client-to-server VPN configuration, employees or users can access enterprise IT resources remotely through their mobile devices such as smartphones and tablets. Furthermore, they can also access websites that may be blocked in your network environment through the VPN service.

Turbo vNAS as a VPN Server

&RPSXWHUVDWKRPH

VPN server

1RWHERRNVDW6KDQJKDLRIILFH

DVVPDUWSKRQHV

ŊůŵųŢůŦŵ

ųŦŴŰŶųŤŦŴ

ŊůŵųŢůŦŵ

Internet

ŗőŏġŴŦųŷŦų

QTS 4.1.2 OS

Ũű

ŗőŏġŴŦųŷŦų

In the server-to-server VPN configuration, VPN can better protect your data when you use services like BitTorrent and eMule). By using this type of conguration, you can set up remote site backup with secure data transmission.

Turbo vNAS As a VPN Client for File Download

VPN server

ŗőŏġńŭŪŦůŵ

ŗőŏġŊőġĻĲĺĳįĲķĹįıįĳ

Internet

ŗőŏġœŰŶŵŦų

ŗőŏġŊőġĻĲĺĳįĲķĹįıĲ

ŗőŏġńŭŪŦůŵ

ŗőŏġŊőġĻĲĺĳįĲķĹįıįĴ

Turbo vNAS as a VPN Client for Off-site Backup

VPN server

ŕŰŬźŰġŰŧŧŪŤŦ

ŗőŏġŤŭŪŦůŵ

ŉŦŢťŲŶŢųŵŦųŴ

őųŪŷŢŵŦġůŦŵŸŰųŬ

ŉŰůŨġŌŰůŨġŰŧŧŪŤŦ

ŗőŏġŤŭŪŦůŵ

ŔũŢůŨũŢŪġŰŧŧŪŤŦ

ŗőŏġŤŭŪŦůŵ

Internet

ŗőŏġŴŦųŷŦų

ŊůŵųŢůŦŵġųŦŴŰŶųŤŦŴ

Internet

ŔŪůŨŢűŰųŦġŰŧŧŪŤŦ

ŗőŏġŤŭŪŦůŵ

7XUERY1$6796[86HULHV6HUL

Squid: the popular web proxy server

The web proxy provides cache and connection control for internet services like HTTP, FTP. For companies that need a boost to web response time and security, Squid can be leveraged to make your Turbo vNAS a web proxy server to protect other devices in your local network from internet attacks.

Caching: Improves response times and saves bandwidth required for web access by caching visited web content and other web resources.

Access control: blocks access to certain websites or restricts access for internet connections.

Logging: logs visits to web sites for generating statistics to aid in network management.

Load balancing: distributes the load to several web servers to accelerate service requests.

Turbo vNAS as a Proxy Server for Access Control

ŎŢųŬŦŵŪůŨġŤŰŮűŶŵŦųŴ

ŇŢŤŦţŰŰŬ

œŦŴŦŢųŤũġŢůťġťŦŷŦŭŰűŮŦůŵġŰŧġŤŰŮűŶŵŦų

Internet

ŔŢŭŦŴġŤŰŮűŶŵŦųŴ

ŕŸŪŵŵŦų

őųŰŹźġŴŦųŷŦų

Case study for VPN + proxy services

Company X decided to open an overseas branch to expand its sales. In a fast-paced, competitive business environment, it is more important than ever to keep your employees connected to the people and resources they work with every day. Hence, the management team of this company required using networking technology to reach this goal.

The IT personnel of Company X found that a QNAP Turbo vNAS is easy to set up and use. It not only provides everything needed for a data storage, but also oers VPN and web proxy services for network access to employees in the main oce, as well as home and branch oces. Furthermore, the consumption of bandwidth is minimized while improving the web access experience by using the web proxy function oered by Squid on the Turbo vNAS.

Now, the employees of Company X enjoy secure, high-speed connectivity to the Internet and their business networks—both inside and outside the oce to eciently retrieve product information as soon as it is announced. And the IT personnel rely on the scheduled backup from branch oces to the main oce for peace of mind.

ŎŢųŬŦŵŪůŨġŤŰŮűŶŵŦųŴ

ŔŢŭŦŴġŤŰŮűŶŵŦųŴ

ŐŧŧĮŴŪŵŦġŦŮűŭŰźŦŦŴĨ

ŵŢţŭŦŵŴ

ŗőŏġńŭŪŦůŵġĬġőųŰŹźġŔŦųŷŦų

Internet

ŗőŏġŴŦųŷŦų

QTS 4.1.2 OS

Uninterruptible Power Supply (UPS)

Activate the UPS support to ensure the Turbo vNAS is properly shut down if power fails. In the event of a power failure the Turbo vNAS will shut down automatically or enter auto-protection mode by probing the power status of the connected UPS unit. You can set up the function by clicking QTS [Control Panel] > [System Settings] > [External Device] > [UPS].

Case study for NAS connecting to a USB UPS

炩

You can set the Turbo vNAS to shut down or enter auto-protection mode if the power fails, and determine the action

after few minutes of the power failure. Once the auto-protection mode is activated, the Turbo vNAS will revert to the

state before power failure and continue to operate when the power restores.

UPS with SNMP management

炩

When the Turbo vNAS and the SNMP-based UPS server connect to the same network, you can select [SNMP

connection] and enter the IP address of SNMP UPS server to set up the power failure notication.

7XUERY1$6796[86HULHV6HUL

Multiple NAS units share USB UPS

炩

The network UPS "master" is connected to the UPS via USB cable. If the power fails, the UPS sends a notication to the

network UPS "master" via USB and all the UPS "slaves" are informed by the UPS master via Ethernet. To set your Turbo

vNAS as a UPS "slave": connect the UPS and the Turbo vNAS by USB, select [NetworkUPS slave], enter the IP address of

the master server, so the slave server will get notication when the power fails.

6WHS (QWHUWKH,3DGGUHVVRIWKHPDVWHUVHUYHU

6WHS 6HOHFW1HWZRUN836VODYH

QTS 4.1.2 OS

myQNAPcloud SmartLink

myQNAPcloud connection

炩

With the myQNAPcloud service it´s easy to create a personal/private cloud for enjoying your Turbo vNAS services safely and conveniently.

myQNAPcloud ID ( QID )

Access your Turbo vNAS by signing into your myQNAPcloud portal (www.myqnapcloud.com) with your "QID": a unique ID for you to access your Turbo vNAS and securely share your private data and les.

Publish and share

myQNAPcloud is an easy-to-setup service that simplies the steps in publishing Turbo vNAS content over the Internet. On QTS myQNAPcloud, you can select numerous web-based Turbo vNAS services, such as Photo Station, Music Station, and File Station to be published to the myQNAPcloud.com website. Likewise, you can easily view friends' public services on the myQNAPcloud.com website too.

Web-based file management

The myQNAPcloud portal enables you to manage multiple Turbo vNAS units in one place. With the easy-to-use management interface, you can simply download, move, and copy les on your Turbo vNAS, lessening the diculty in accessing multiple Turbo vNAS servers. All you need is to sign into myQNAPcloud.

Trustworthy file protection

To ensure the security of remote access service, myQNAPcloud strengthens keys on SSL Certicates to 2048-bits. The les on the Turbo vNAS are 100% under the NAS owner's control.

myQNAPcloud Connect

myQNAPcloud Connect application is designed for Windows PC users. By installing the myQNAPcloud Connect, users are able to connect to the Turbo vNAS and easily manage les by dragging-and-dropping within Windows Explorer.

7XUERY1$6796[86HULHV6HUL

CloudLink for easy remote access

炩

myQNAPcloud features the new CloudLink App (QPKG) for an easier remote access experience. Without any complex router settings, all you need to do is install the app and login with your myQNAPcloud ID (QID), then you can access to your Turbo vNAS through the myQNAPcloud.com website. CloudLink will automatically choose the best way to connect based on your network environment. CloudLink supports access to the Turbo vNAS via mobile devices with the Qfile/ Qmanager apps or via computer with the Qsync utility. Visit the QNAP App Center to download the CloudLink App (QPKG), and experience the new myQNAPcloud Smart Link remote access service.

3OHDVHQRWHWKH&ORXG/LQN$SS43.*UHTXLUHVILUPZDUHYRUQHZHU

Please note: the CloudLink App (QPKG) requires firmware v. 4.1.0 or newer.

QTS 4.1.2 OS

Qsync: A Powerful Utility for File Synchronization in Business & Personal Applications.

Public cloud files synchronization services such as Dropbox can greatly increase the efficiency and productivity of offices, but comes with certain drawbacks:

1. Security: there is the possibility of data leaks and interception of condential information.

2. Cost: the greater the size of your data storage needs, the greater the cost of the service.

With QNAP's Qsync utility on Turbo vNAS, IT administrators can create a Dropbox-like private cloud with a larger storage capacity to fulfill business needs. Any files added to the Qsync folder will be automatically accessible across multiple devices linked to the Turbo vNAS, and synchronized with dierent work groups exibly and eortlessly. With no additional costs or storage limits, Qsync can centralize les from dierent work groups and assist in teamwork on important projects anytime, anywhere.

7 reasons why you need Qsync

炩

1. Cross-device synchronization

Qsync turns your Turbo vNAS into a safe data center for les synchronization. Every le uploaded to the Qsync folder will be made available to multiple devices including computers, laptops and mobile devices. When you are away on a business trip, Qsync ensures that the most up-to-date les are accessible on all linked devices and reduces your need to rely on USB storage to carry les and on emails to get the latest les.

Synchronize with Windows

Synchronize with Mac

Synchronize with iPhone/Android

smartphones via Qle. Synchronize with

iPad via Qle HD

2. Intelligent offline editing

You can edit your files offline and once your device is

online, Qsync will automatically sync them. This offline

editing feature ensures your files are protected without

any information loss.

3. Flexible synchronization methods

Qsync has many sync settings to prevent taking up

significant storage space on your computer. With both

Full Sync and Smart Sync options, you can choose to

synchronize all the files in the Qsync folder or you can

enable the Smart Sync option to remove local les without

aecting the centralized les stored on your Turbo vNAS.

7XUERY1$6796[86HULHV6HUL

5. Auto-upload from mobile devices

You can enable the auto-upload option on the Qfile

mobile app and automatically sync your les to multiple

devices. Your meeting minutes, notes, and seminar recaps

will be automatically uploaded and synchronized as well.

4. Share files & folders more efficiently

You can create sub-folders within the Qsync folder, share each with dierent work groups and everyone with the same sub-folder is always kept up-to-date with the latest files. All your files are shared via drag-and-drop. With Qsync, your Turbo vNAS becomes an aggregative data center and greatly enhances teamwork exibility.

6. Integrated version controls protect against accidental deletion

7. High security

Qsync can create a private cloud within your intranet and benet from your existing secure network environment. The Turbo vNAS also supports HTTPS connection assisting in creating a safer, more reliable business network environment.

The Turbo vNAS will retain up to 64 versions of les when they are modified, allowing you to retrieve a specific previous version at any time. Even if you have accidentally deleted the file you can restore previous versions from the recycle bin. With capacity-ecient restoration, the reserved version only keeps the changes made to the le and assists in optimizing your storage space.

Mobile Apps & Utilities

Share files with mobile devices

You can install the Qfile app on your mobile device to browse and manage files stored on your Turbo vNAS anytime, anywhere.

Qle

炩

Access from anywhere

Open Qfile on your mobile device to browse files on the Turbo vNAS. You can open or share les, and easily rename, copy, move and download any selected les.

Stream multimedia contents

Browse and play the music, photos and videos on the Turbo vNAS. No more worries about the space limitation of your mobile device.

Auto-upload photos

Automatically upload photos to your Turbo vNAS whenever you take new photos. It works as a real-time backup of your precious photos.

Offline file reading

Download documents, photos or music from the Turbo vNAS to your mobile devices for oine reading.

Vmobile

炩

Mobile surveillance with ease

Vmobile is a professional surveillance mobile app for remotely managing the Surveillance Station of linked Turbo vNAS or the IP cameras of VioStor NVR.

More advanced functions

Besides real-time monitoring, the Vmobile allows you to remotely control the recording, snapshots, and playback. Once alarm events occur, an instant notification is also provided.

Qmanager

炩

Manage multiple NAS units

Add multiple Turbo vNAS units on Qmanager, and conveniently manage anyone of them anytime and anywhere.

Folder & file sharing

Create download links for shared folders or files and share via email or SMS. You can also share by email as attachments.

Monitor system status

Monitor your system information, such as CPU usage, memory usage, system event information, online users, etc. You can also check connection status to prevent suspicious invasion.

Remotely manage

With one click, you can use Qmanager to turn on/off or restart the Turbo vNAS, open or close Turbo vNAS services, and set up Wake on LAN.

7XUERY1$6796[86HULHV6HUL

Utilities

Work eciently and manage the Turbo vNAS smartly with the various easy-to-use and practical utilities.

Qnder

Qfinder is available for Windows, Mac, and Linux users to quickly nd and access the Turbo vNAS over the LAN. You can also update the rmware or set up Wake on LAN through the Qnder.

myQNAPcloud Connect

myQNAPcloud Connect is designed for Windows PC users to connect to the Turbo vNAS and easily manage les by drag-and-drop within the Windows Explorer.

Qsync

Qsync provides cross-platform synchronization. It creates a specic “Qsync folder” in your devices that you can simply drop les in, and synchronizes the les to all your devices linked to the Turbo vNAS.

NetBak Replicator

QNAP NetBak Replicator helps you easily back up files or the entire hard drive data from Windows PC to the Turbo vNAS. It also supports backing up to a remote server via FTP and WebDAV through the Internet.

App Center & Development Platform

The QTS App Center provides various apps for you to install on demand, enjoy more applications and increase the value of your purchase.

Powerful and packed with features

The App Center provides over 100 apps, including backup/ sync, business, content management, communications, developer tools, download, entertainment, surveillance, utilities and more.

Install in demand

Find what you need and install it immediately with just one click.

Upgrade reminder

If newer versions of your installed apps are available, an upgrade reminder will show on the QTS desktop to help you keep your Turbo vNAS applications up-to-date.

Most Popular Apps:

Gmail Backup

炩

Gmail backup provides Gmail backup and recovery functionality, allowing users to create individual backup or domain account backup tasks. Gmail can be backed up by schedule and the content previewed through a web management interface. Backed up mail can be restored to the original mail account or other accounts: just configure the restore account, enter the account and password and the user can restore mail to the specied account.

Google Drive Sync App

炩

Google Drive is a cloud storage service provided by Google that lets users save their files online for accessing them anywhere. By installing the Google Drive Sync QPKG on your Turbo vNAS you can select a shared folder to synchronize data with Google Drive or simply use Google Drive as a backup destination.

Google

sing them

7XUERY1$6796[86HULHV6HUL

Dropbox App

炩

The Dropbox service is a cloud-based storage service that allows you to access your photos, documents, and videos anywhere, anytime with easy sharing. However, the free space from the Dropbox service is limited. To make it more ecient you can connect it with your Turbo vNAS to store les.

How to use the Dropbox App?

The QNAP Dropbox app can synchronize your Dropbox account and your Dropbox folder on the Turbo vNAS in both directions and in real-time. After you install the Dropbox QPKG and log into your Dropbox account, a Turbo vNAS folder called “home" will be created and the synchronization process will start. With Real Time Remote Replication (RTRR), a builtin Turbo vNAS function, you can easily back up les from your Dropbox account.

The following multimedia applications are disabled by default on TVS-x71U to conserve system resources.

To enable them, go to “Control Panel" > “General Settings" > “System Administration."

Video Station

炩

Build a corporate video website

Video Station is great for archiving and playing video collections online. Just upload videos, and the Video Station will smoothly play the video with an optimized resolution for your device and bandwidth.

Easy video sorting

You can easily categorize your videos as company videos, movies, TV shows, and music videos for greater organization.

Smart collection

Create a smart video collection that matches predened criteria for names and ratings, making it easier to nd the videos you want to watch.

Easy video sharing

Share your videos with friends & family via email, download link or social networking sites including Facebook, Google+ and Twitter.

App Center & Development Platform

Music Station

炩

Organize huge music collections

Browse your music in multiple ways, create up to 200 playlists, and rate your music to feature it in a "My Favorites" collection.

Cloud music center

Access the Music Station via the Internet to enjoy your entire music collection from anywhere on any device.

Listen to thousands of Internet radio stations

With the built-in TuneIn radio, you can listen to thousands of local and global online radio programs. You can also manually add new radio stations.

Direct audio output

Turn your Turbo vNAS into a complete music system by connecting USB speakers for direct audio output.

The free Qmusic mobile app allows you to listen to your complete music collection anytime and anywhere. Scan the QR Code to download!

Photo Station

炩

Centralized management

All of your photos, including RAW photos, can be centrally managed with the Photo Station.

Photo captions

Adding captions for photos can aid in search. For example, you can manually add the date to selected photos and make them part of your timeline.

Review photos on Google Maps

Retrace the steps of your photos by geo-tagging them and creating a map of your photo albums in Google Maps.

Private collection

Create a protected private collection of personal photos & videos that can only be accessed by you.

7XUERY1$6796[86HULHV6HUL

-[$

Play by slideshows

Create attractive slideshows using photos and music stored on your Turbo vNAS.

Group photo sharing

Share photos in groups by saving them in Team Folders in your Qsync folder, and allows people with access rights to the Team Folders to browse those photos in their Photo Station.

Download Station

炩

Your 24/7 download center

Once you finish managing download tasks, just turn off your computer and they will keep downloading until they are nished.

Powerful BT search engine

Easily nd and add les to your download list with the built-in search engine.

Wide range of supported downloads

Supports downloading from BT, PT, Magnet, FTP/FTPS, HTTP/HTTPS and RSS.

Third-party Development Platform

With its open-source Linux kernel, QTS is a friendly development platform that allows software developers to create all kinds of applications. Developers can also enjoy a more ecient R&D process with the backup, security, cloud storage tools, and reliable Turbo vNAS hardware design.

Dedicated customer service, sales and R&D support

QNAP Turbo vNAS applications can be developed using the following three approaches:

Development Toolkit (API & SDK):

Developers can use the QNAP Development Toolkit (API & SDK) to design applications that run on client devices (such as smartphones and PCs) to remotely manage and access les stored on their Turbo vNAS.

NAS App (QPKG)

4'.$SS'HYHORSPHQW3ODWIRUP

Development:

Developers can design add-ons/apps for the Turbo vNAS and have them seamlessly integrate with data stored on the same platform. Developers can also distribute their apps via the QTS App Center.

9DOXH$GGHG ,QWHJUDWLRQ

VM Integration:

Depending on your OS needs, you can use VM integration to install an alternative OS to run nonLinux-based applications on the Turbo vNAS.

4'.$SS'HYHORSPHQW3ODWIRUP

/DQJXDJH

0<64/

1$6$3,

&&

*&&FRPSOLHU

-DYD$SS

-5(IRU[1$6

3+3 3HUO

3\WKRQ 5XE\

2SWZDUH,3.*

1(7$SS

0RQR

Hardware Introductions

Features

Generation Intel® Haswell Core™ i3/i5/i7 & Pentium Processors

炩

The TVS-x71U series, powered by the latest Intel® Haswell CPU with numerous options including Pentium-G3250(dual core), Core i3-4150 (dual core), Core i5-4590S (quad core), Core i7-4790S(quad core) processors, delivers high performance for CPU-consuming tasks such as running Virtualization Station and real-time 4K video playback and transcoding.

Throughput

IOPS

3,300

2,475

1,650

MB/s

825

Read

10 Gigabit LAN port x4 10 Gigabit LAN port x4

Testing Environment:

4 Client PC configuration: Intel(R) Core(TM) i7-2600 CPU, 16GB DDR3 RAM, Windows 7 professional 64-bit, Dual-port Intel X520 10GbE Server Adapter, IOMeter

sequential read and write. NAS configurations: TVS-1271U-RP-i3, Plextor PX-256MPro SSDs with RAID 5 configuration, QNAP LAN-10G2T-U dual-port 10GBase-T network adapter*2

QNAP full NAS accelerated-encryption technology

炩

2,180

Write Read

172,000

127,500

85,000

42,500

162,097

3,343

168,677

Write

The TVS-x71U series ensures the security of data by including full volume encryption that can encrypt photos, music,

videos, and documents in every shared folder of the Turbo vNAS. To ensure the data in TVS-x71U is completely

protected, just enable volume encryption function when installing TVS-x71U. Equipped with QNAP’s proprietary

encryption acceleration technology, the TVS-x71U delivers over XXXX MB/s read speed while encrypting the entire

hard disk, maximizing overall system performance while securing the data.

TVS-1271U-RP-i3 TVS-1271U-RP-i3

Throughput

2,800

2,100

1,400

MB/s

700

Testing Environment:

NAS :

- OS : QTS 4.1.2

- Volume type : RAID 5; 4 x Plextor PX-256M5Pro SSD

- Network environment : direct connection between NAS and PC, 1GbE LAN (MTU 1500); 10GbE with QNAP LAN-10G2T-U dual-port PCIe NIC (MTU 9000)

733

Upload

10 Gigabit LAN port x4 10 Gigabit LAN port x4

2,513

Download

10GB Transfer AES 256-bit

^ϮϱϲͲďŝƚŶĐƌǇƉƟŽŶ;ϮǆϭϬ'ďϲϰ<Ϳ

2,000

1,200

1,000

500

Client PCs :

- Intel® CoreTM i7-4770 3.40GHz CPU; DDR3 1600Hz 16GB; WD 1TB WD10EZEX; Intel Gigabit CT (MTU 1500); 10GbE with QNAP LAN-10G2T-D dual-port PCIe NIC (MTU 9000); Windows® 7 Professional 64bit SP1

- IOMeter conguration : Transferring 8GB le continuously to/from 4/2 PCs for 3 minutes. Block size : 64KB for SMB2.0 (Throughput)

526

Upload Download

1,623

7XUERY1$6796[86HULHV6HUL

SSD cache acceleration

炩

The TVS-x71U series supports SSD caching options (including two optional mSATA modules and 4 SSDs) to improve the

overall workow of IOPS-demanding applications such as virtualization and data center deployment. The SSD caching can

be easily utilized and managed with the QTS Storage Manager. The SSD cache adopts the Read Cache with Write Through

algorithm and can greatly improve random read performance and ensure data security.

SSD acceleration cache boosting system performance

SSD caching can greatly boost IOPS performance. It is perfect for improving the overall workflow of IOPS-demanding applications such as File Servers and online transaction processing (OLTP) systems. SSD caching allows SSDs to work with HDDs on the same NAS to achieve higher random access performance with lower cost.

RAID rebuild performance comparison

When a hard drive fails, a RAID configuration will enter a degraded mode that risks data protection. During this time if more hard drives fail, depending on the RAID level used, the data stored in the RAID group will be risking a data corruption crisis. It takes time for RAID rebuild no matter by manual or by hot-spare drive to replace the failed hard drive(s). The shorter the RAID rebuild time, the shorter the RAID conguration will be in degraded mode and the less risk for data corruption. Here we will list the common RAID rebuild time for comparison. When using eight 4TB SATA HDD in RAID 6, the RAID rebuild time after replacing a failed hard drive is approximately 3-7 days; but it takes only 12-24 hours when using SAS hard drives with SSD caching.Using SAS-enabled NAS systems with SAS hard drives can effectively shorten the RAID rebuilt time. Coupled with an SSD acceleration cache to share the IO process loading, the RAID rebuild time can be signicantly shortened, meaning lower risk of data corruption to safeguard your important data.

Hardware Introductions

DUHGIROGHUVRUF

Dual PCIe expansion slots

炩

The TVS-x71U series comes with two PCIe expansion slots: one PCIe Gen3x8 and one PCIe Gen2x4. You can choose to install two 10 GbE adaptors expansion cards.

High-speed 10Gb Ethernet LAN

炩

The TVS-x71U series includes 4 built-in Gigabit Ethernet ports, plus expansion opportunities for 10GbE adaptors. Excellent hardware design coupled with tremendous capacity makes the TVS-x71U ideal for editing large size videos on-the-y without transferring the videos between the TVS-x71U and desktop computers.

Advantages of 10GbE-ready TVS-x71U series

t)JHITQFFEEBUBUSBOTNJTTJPO

t)JHI*014

t-FTTXBJUJOHUJNFGPSJODSFBTFEQSPEVDUJWJUZ

QNAP supports optional 10GbE network expansion that can greatly improves bandwidth and provide transmission speed 10 times faster than GbE transmission.

4K digital production workflow in 10GbE Ethernet environment

In order to support the I/O bandwidth required for streaming and storing 4K videos, a reliable & scalable high-performance storage solution is vital. QNAP has been dedicated to satisfying the needs for storing and editing videos. With 10GbE network support, Turbo vNAS allows you to edit videos on-the-y, centrally manage all your les including Photoshop or Premiere, and share them easily with coworkers via NFS, AFT and SMB/CIFS protocols. Turbo vNAS also oers scalable expansion solution to store increasing business data.

9LGHRHGLWLQJZRUNVWDWLRQ

:RUNWHDP

$FFHVVYLGHRV

&UHDWHVKDUHGIROGHUVRUFRQQHFWYLDL6&6,

41$37XUERY1$6

*E( 6ZLWFK



*E(

6ZLWFK

6KDUHYLGHRV

/DUJHVWRUDJHFDSDFLW\



+LJKWKURXJKSXW

REXP-1600U-RP/REXP-1200U-RP

1120TB. This is especially

炩

SAS/SATA/SSD Expansion Units

The Turbo vNAS supports capacity expansion by connecting

multiple QNAP expansion enclosures via mini-SAS cables.

With the QNAP scale-up solution, the raw capacity of the

Turbo vNAS can be expanded up to 1120TB. This is especially

useful for large data applications, such as video surveillance,

data archiving, and TV broadcast storage.

up to lications, such as video surveillance, oadcast storage

REXP-1200U-RP

7XUERY1$6796[86HULHV6HUL

REXP-1600U-RP

Online capacity expansion

炩

Simply connect the REXP-1600U-RP/REXP-1200U-RP to the Turbo vNAS to scale up Turbo vNAS storage instantly. The Turbo vNAS will automatically detect the hard drives in the REXP-1600U-RP/REXP-1200U-RP as newly installed local drives. With the QTS Storage Manager, the Turbo vNAS capacity can then be expanded as a large volume seamlessly.

Missing mode protection

炩

If your REXP-1600U-RP/REXP-1200U-RP is accidentally disconnected, the Turbo vNAS enters missing mode and blocks I/O access to protect the stored data. The system can then recover from the missing mode to the normal state with data remaining intact.

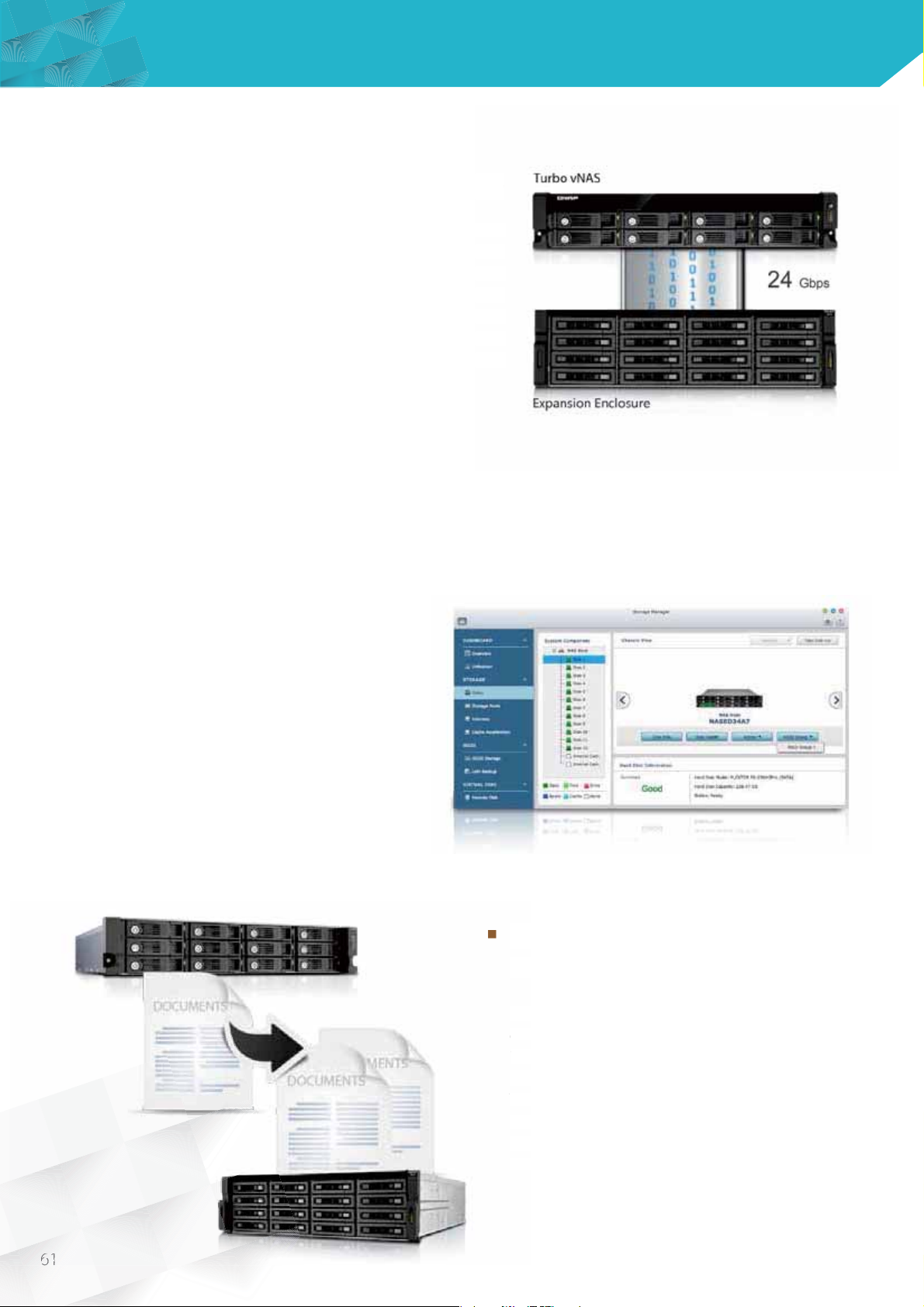

Hardware Introductions

High density,

炩

high eciency and highly scalable

The REXP-1600U-RP/REXP-1200U-RP supports 16/12 hard drives and 128TB/96TB raw capacity in 3U rack space. The REXP- 1600U-RP/REXP-1200U-RP has two SAS wide ports (IN port and OUT port) for host connectivity and daisy-chain respectively. Each SAS wide port combines four SAS channels(maximum 8 SAS channels supported per expansion enclosure). The solution delivers unprecedented performance of up to 24Gbps per host connection.

Powerful QTS Storage Manager

炩

QTS Storage Manager neatly presents tools and options for managing system storage with an intuitive graphical user interface, which simplies the process of NAS capacity expansion and REXP-1600U-RP/REXP-1200U-RP management. IT administrators can easily monitor the health status of REXP-1600U-RP/REXP-1200U-RP and the disks within it. When cascading multiple expansion enclosures in a rack, the Locate Disk and Locate Enclosure functions assist IT administrators for quick maintenance.

ard EXP and

vely.

m 8 tion

host

An excellent backup solution

炩

for the Turbo vNAS

In addition to expanding an existing volume, IT

administrators can use the REXP-1600U-RP/REXP1200U-RP as a budget-friendly external storage to

perform speedy and secure backup tasks for the

Turbo NAS. The QNAP RTRR (Real-Time Remote

Replication) or rsync service lets IT administrators

back up the Turbo NAS data to the REXP-1600U-RP/

REXP-1200U-RPon a real time or scheduled basis.

7XUERY1$6796[86HULHV6HUL

SAS/SATA 6Gbps HDDs and SSDs

炩

The REXP-1600U-RP/REXP-1200U-RP oers high exibility in hard drive selection. IT administrators can choose enterpriselevel SAS HDDs with high performance and high reliability for mission critical applications, low-cost but high-capacity SATA HDDs for large data archiving, or high-speed and high stability SSDs for I/O intensive operations.

The maximum raw storage capacity available by connecting QNAP expansion enclosures:

Turbo NAS Model

TVS-1271U-RP

RAID Expansion

Enclosure

REXP-1600U-RP

REXP-1200U-RP

No. of RAID

Expansion

Enclosure

8 140 1120

7 124 992

6 108 864

5 92 736

4 76 608

3 60 480

2 44 352

1 28 224

8 108 864

7 96 768

6 84 672

5 72 576

4 60 480

3 48 384

2 36 288

1 24 192

Total HDD No.

(NAS + Enclosure)

Max. Raw Capacity

(TB)*

Turbo NAS Model

TVS-871U-RP

RAID Expansion

Enclosure

REXP-1600U-RP

REXP-1200U-RP

No. of RAID

Expansion

Enclosure

8 136 1088

7 120 960

6 104 832

5 88 704

4 72 567

3 56 448

2 40 320

1 24 192

8 104 832

7 92 736

6 80 640

5 68 544

4 56 448

3 44 352

2 36 256

1 20 160

Total HDD No.

(NAS + Enclosure)

Max. Raw Capacity

(TB)*

*The maximum capacity is calculated by using 8TB HDDs.

Hardware Speci¿cations

TVS-871U-RP TVS-1271U-RP

TVS-

NAS

U-RP-PT-4GTVS-

871

U-RP-i3-4GTVS-

871

U-RP-i5-8GTVS-

871

U-RP-PT-4GTVS-

1271

U-RP-i3-8GTVS-

1271

U-RP-i5-16GTVS-

1271

U-RP-i7-32G

1271

Dual-core Intel®

Pentium® G

CPU

Memory

Flash

USB 2.0/3.0

Hard Drive

Maximum Raw

Capacity

Gigabit Ethernet port

10GbE

Ethernet port

PCIe Slot

Dimensions (H)x(W)x(D)

Weight

Power Supply

Fan

Sound Level

Power Consumption

(W)

Design and speciﬁcations are subject to change without notice.

3250 3.1

Processor

GB DDR

(Max. 32GB)

SATA 3Gbps hard dri

Net weight: 12.14 kg/ 26.76 lb ; Gros weight: 15.84 kg/ 34.

HDD Standby: 70.87, In Operation:

Dual-core Intel® Core ™

GHz

x 3.5-inch SATA 6Gbps,

* PCIe Gen.3 x8, 1* PCIe Gen.2 x4)

2 (1

(H) x

(H) x 18.98(W) x 21.02(D) inch

3.5

Input:

100-240

x 7 cm smart cooling fan

131.96

Quad-core Intel® Core ™

i3-

GHz

4150 3.5

Processor

GB DDR

(Max. 32GB)

ve or 2.5-inch SATA, SSD hard drive

(Max. 8)

(W) x

482

534

V AC, 50/60Hz Output:

41.9

HDD Standby: 69.35,

In Operation:

128.72

i5-

(Max. 32GB)

(D) mm

250

HDD Standby: 80.94,

In Operation:

GHz

4590S 3.0

Processor

GB DDR

lb Net weight: 11.74 kg/ 25.88 lb ; Gross weight: 15.34 kg/ 33.82 lb

W Input:

131.44

3250 3.1

Processor

GB DDR3

(Max. 32GB)

512

4/4

Optional

HDD Standby: 88.88,

In Operation:

Dual-core Intel®

Pentium® G

Dual-core Intel® Core ™

i3-

GHz

SATA 3Gbps hard drive or 2.5-inch SATA, SSD hard drive

HDD Standby: 87.89,

In Operation:

173

GHz

4150 3.5

Processor

GB DDR3

(Max. 32GB)

x 3.5-inch SATA 6Gbps,

* PCIe Gen.3 x8, 1* PCIe Gen.2 x4)

2 (1

(H) x

482

(H) x 18.98(W) x 21.02(D) inch

3.5

V~, 50-60Hz, 7A-3.5A Output:

100-240

x 7 cm smart cooling fan

176.27

ad-core Intel®

Core ™ i5-

Processor

(Max. 32GB)

(Max. 8)

(W) x

(D)

534

45.0

HDD Standby: 88.91, In Operation:

GHz

4590S 3.0

GB DDR3

500

174.64

Quad-core Intel® Core ™

i7-

HDD Standby: 89.82, In Operation:

4790S 3.2

Processor

GB DDR3

(Max. 32GB)

GHz

176.42

Accessories

Category Order P/N Description

RAID

Expansion

Enclosure

SAS Card

Cable

mSATA Flash

Rail Kit

10GbE Network

REXP-

U-RP Rackmount 16-bay RAID Expansion Enclosure

1600

REXP-

U-RP Rackmount 12-bay RAID Expansion Enclosure

1200

SAS-6G2E-U Dual-wide-port storage expansion card, SAS 6Gbps

CAB-SAS10M-

CAB-SAS05M-

FLASH-

LAN-10G2T-U Dual-port 10 GBase-T Network Expansion Card

8088

GB-MSATA Two

256

RAIL-B

LAN-1G2T-U Dual-port 1 GbE Network Expansion Card

Mini SAS external cable (SFF-

GB mSATA ﬂash modules

B01 series (Chassis) rail kit kg

8088

to SFF-

8088

), 1.0

), 0.5 m

Memory

RAM-4GDR3-LD-

RAM-8GDR3-LD-

1600 4

1600 8

GB DDR3 RAM,

MHz, long-DIMM

1600

MHz, long-DIMM

1600

Software Speci¿cations

Operating System

Ń QTS 4.1.2 (embedded Linux)

Supported Clients

Ń Windows XP, Vista, Windows 7 (32/64-bit),

Windows 8 (32/64-bit), Windows Server R2/

, Apple Mac OS X, Linux & UNIX

2012

Supported Browsers

Ń Google Chrome Ń Microsoft Internet Explorer 10+ Ń Mozilla Firefox 8+ Ń Apple Safari

Multilingual Support

Ń Chinese (Traditional & Simpliﬁed), Czech, Danish,

Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish

File System

Ń Internal Hard Drive: EXT Ń External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+

Networking

Ń TCP/IP (IPv4 & IPv6: Dual Stack) Ń Quad Gigabit NICs with jumbo frame (failover,

multi-IP settings, port trunking/NIC teaming)

Ń Service binding based on network interfaces Ń Proxy server (Squid available in App Center) Ń Proxy client Ń DHCP client, DHCP server Ń Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS,

SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC

Ń UPnP & Bonjour Discovery Ń USB Wi-Fi Adapter Support

Security

Ń Network access protection with auto-blocking: SSH,

Telnet, HTTP(S), FTP, CIFS/SMB, AFP

Ń CIFS host access control for shared folders Ń FIPS

140-2

data encryption*

Ń AES

-bit external drive encryption*

256

Ń Importable SSL certiﬁcates Ń Instant alert via eE-mail, SMS, beep, and LCD panel

* SomeThe data encryption functions may not

available in accordance with the legislative restrictions of some countries.

Storage Management

Ń QNAP ﬂexible Volume/LUN with thin provisioning

and space reclaim

Ń RAID 0,1, 5, 6, 10, + hot spare Ń Supports storage pool Ń Online volume expansion Ń Online storage pool expansion Ń Online RAID capacity expansion and online RAID

level migration

Ń SMART data migration Ń Storage expansion via QNAP REXP-

expansion unit

Ń Bad block scan and hard drive S.M.A.R.T. Ń Bad block recovery Ń RAID recovery Ń Bitmap support

Power Management

Ń Wake on LAN Ń Internal hard drive standby mode Ń Scheduled power on/off Ń Automatic power on after power recovery Ń USB and network UPS support with SNMP

management

Ń System sleep mode (S3)

Access Right Management

Ń Batch users creation Ń Import/export users Ń User quota management Ń Local user access control for CIFS, AFP, FTP, and

WebDAV

Ń Application access control for Photo Station, Music

Station, Video Station, and Multimedia Station

Ń Subfolder permissions support for CIFS/SMB, AFP,

FTP, and File Station

myQNAPcloud Service

Ń Private cloud storage and sharing with

myQNAPcloud id (QID)

Ń Free host name registration (DDNS) Ń Auto router (via UPnP) conﬁguration

validated AES

256

2003/2008

-bit volume-based

Pro

1000

Ń Web-based ﬁle manager with HTTPS

encryption

Ń Cloudlink for remote access without complicated

router setup

Ń myQNAPcloud connect for easy VPN

(Windows VPN utility)

Qsync

Ń Syncs ﬁles among multiple devices with SSL

support

Ń Selective synchronization for syncing speciﬁc

folders only

Ń Share team folder as a ﬁle center for team

collaboration (Maximum sync tasks: 32)

Ń Shares ﬁles by links via emaile-mail Ń Policy settings for conﬂicted ﬁles and ﬁle type ﬁlter

support

Ń Version control: up to 64 versions. Ń Incremental synchronization for HDD space saving Ń Supports Windows & Mac OS

Web Administration

Ń Multi-window, multi-tasking based system

management

Ń Movable Icons and personalized desktop Ń Smart toolbar and dashboard for neat system

status display on system status

Ń Smart fan Control Ń Dynamic DNS (DDNS) Ń SNMP (v2 & v3) Ń Resource monitor Ń Network recycle bin for ﬁle deletion via CIFS/SMB,

AFP, and File Station

- Automatic Cleanup

- File Type Filter

Ń Comprehensive logs (events & connection) Ń Syslog client/server Ń System settings backup and restore Ń Restore to factory default Ń Mobile app: Qmanager for remote system

monitoring & management

File Server

Ń File Sharing across Windows, Mac, and Linux/UNIX Ń Windows ACL Ń Advanced folder permission for CIFS/SMB, AFP, FTP Ń Shared folder aggregation (CIFS/SMB)

FTP Server

Ń FTP over SSL/TLS (Explicit) Ń FXP support Ń Passive ftp port range control

File Station

Ń Supports ISO Mounting (Up to Ń Supports thumbnail display of multimedia ﬁles Ń Supportsed sharinge download links and upload

links

Ń Drag-n-drop Files via Google Chrome and Mozilla

Firefox Browsers

Ń Photo, music, and video preview and playback with

hardware- accelerated transcoding

Ń File Compression (ZIP or 7z) Ń Creation of and sending download links for sharing

public ﬁles with expiration time and password protection

Ń Support for displaying subtitles display (*.SRT, UTF-

format)

- Video seeking support for video playback during on-the-ﬂy transcoding

- Support slideshow playback in media viewer

Ń Mobile App: Qﬁle for ﬁle browsing and

management)

Backup Station

Ń Remote replication server (over rsync) Ń Real-time remote replication (RTRR) to another

QNAP NAS or FTP server

Ń Works as both RTRR server & client with bandwidth

control

Ń Real-time & scheduled backup Ń Encryption, compression, ﬁle ﬁlter, and transfer rate

limitation

Ń Encrypted replication between QNAP NAS servers Ń Desktop backup with QNAP NetBak Replicator for

Wind ows

Ń Apple Time Machine backup support Ń Data backup to multiple external s torage devices Ń Third party backup software support: Veeam

backup & replication, Acronis True Image, Arcserve backup, EMC retrospect, Symantec Backup Exec, etc.

Cloud Storage Backup

Ń Amazon S

256

connection

ISO Files)

2048

-bit

Ń Amazon Glacier Ń WebDAV-based cloud storage Ń Microsoft Azure Ń Open Stack Ń Google Drive Ń Dropbox Ń ElephantDrive Ń Symform

Print Server

Ń Max. number of printers: Ń Support for Internet Printing Protocol Ń Print job display and management Ń IP-based and domain name-based privilege

control

Virtualization Station

Ń Support Virtual Machine (VM) creation to run an

operating system such as Windows, Linux, Unix and Android

Ń Support importing VM from the other virtual

platform, e.g. VirtualBox, VMware Workstation

Ń Support exporting VM with *.ovf, *.qvm formats Ń VM clone Ń VM snapshot Ń HTML5-based shared remote console Ń User-based permission setting Ń Support USB device pass-through Ń Support VM console display via HDMI

HD (HybridDesk) Station 2.

Ń Playbacks videos, music, photos on yout TV tv with

XBMC xbmc via HDMI hdmi output

Ń Watch various online contents such as YouTtube,

Flickr, Picasa, Shoutcast, and more, etc.

Ń Web browser (Chrome, Firefox) Ń Supports USB U.S. keyboard and mouse Ń Supports QNAP Qremote app and the ofﬁcial XBMC

remote app

- 4 new desktop themes

- Supports user login permissions

Signage Station

Ń Supports dynamic content includinges videos,

images, music, and text messages

Ń Supports multi- users collaboration Ń Supports searching via keywords, Ń Supports sharing via email and social networks

sharing

Ń Supports design software - iArtist Lite Ń Supports account authority management Ń Supports various web browsers for playback

(Chrome, Firefox, IE, Safari)

Ń Supports most- viewed, latest- released and

different categories content list

iSCSI (IP SAN)

Ń iSCSI target with multi-LUNs per target (Up to

targets/LUNs combined)

Ń Support for LUN mapping & masking Ń Online LUN capacity expansion Ń Support for SPC-3 persistent reservation Ń Support for MPIO & MC/S Ń iSCSI LUN backup, one-time snapshot, and

restoration

Ń iSCSI connection and management by QNAP

Windows Qﬁnder

Ń Virtual disk drive (via iSCSI initiator) Ń Stack chaining master Ń Max No. of virtual disk drives:

Server Virtualization & Clustering

Ń Server Virtualization & Clustering Ń VMware vSphere (ESXi 5.x) Ń VMware VAAI for iSCSI and VAAI for NAS Ń vSphere Plug-in Ń Citrix XenServer (6.2) Ń Windows Server Ń Supports Microsoft ODX Ń QNAP SMI-S provider for Microsoft SCVMM

Surveillance Station

Ń Supports over 2, Ń Includes 4 free camera licenses, up to 72 camera

channels via additional license purchase

Ń Instant playback to check the recent events Ń Online editing to change edit cameras when in live

view

Ń Visual aid by using e-maps Ń Playback and speed control by shuttle bar Ń Video preview using on playback timeline Ń Intelligent Vvideo Aanalytics (IVAiva) for advanced

video search

Ń Surveillance client for Mac Ń Mobile surveillance app: Vvmobile (iOS and

2012 R2

IP ip cameras

100

256

Hyper-V

Android)

Ń Mobile recording app: Vvcam (iOS and Android)

Notes Station

Ń Graphical web-based editor for taking notes Ń Integrate with NAS ﬁle system: insert attachment

or image from NAS ﬁle system

Ń Event calendar and to-do list Ń Image editor: a easy way to highlight the focus in

your image

Ń Support note publishing with a single link Ń Support key word search Ń Provide Chrome Extension: Notes Station Clipper Ń Clip web page content to your note Ń Mobile app: Qnotes

VPN Server

Ń Secure remote access: PPTP & OpenVPN VPN

services

Ń Max number of clients:

VPN Client

Ń Supported VPN protocols: PPTP & OpenVPN

services

Ń PPTP Authentication: PAP, CHAP, MS-CHAP, MS-

CHAPv

Ń PPTP Encryption: None, AES 40/ Ń OpenVPN Encryption: None, AES 40/

bit

256

Ń Transmission package monitor Ń OpenVPN port control Ń OpenVPN link compression

Domain Authentication Integration

Ń Microsoft Active Directory (AD) Ń Domain controller Ń LDAP server, LDAP client Ń Domain users login via CIFS/SMB, AFP, FTP, and

File Station

AirPlay & Chromecast

Ń Streams videos, photos and music from the NAS to

Apple TV via Qﬁle or QAirPlay&Chromecast's webbased controller

Ń Streams videos, photos and music from the NAS to

TV with a Chromecast dongle via Qﬁle , Qvideo or QAirPlay&Chromecast's web-based controller

App Center

Ń More than

add-ons (ex: Dropbox, Google Drive Sync, McAfee, WordPress, HappyGet II, etc.)

Ń Photo Station Ń Music Station Ń Video Station Ń iTunes Server Ń DLNA Server Ń AirPlay: Streams videos, photos and music from

NAS to Apple TV via Qﬁle or QAirPlay's web-based controller

Ń Digital TV Station Ń Download Station Ń HD Station + XBMC media player + Google Chrome

Mobile Apps

Ń Qﬁle: iOS, Android, Windows Phone 8+ Ń Qﬁle HD: iPad version Ń Qmanager: iOS, Android Ń Qmusic: iOS, Android Ń Qremote: iOS, Android Ń Qget: Android Ń Vmobile: iOS, iPad, Android

PC Utilities

Ń Qﬁnder: Windows, Mac, Linux Ń myQNAPcloud Connect: Windows Ń Qsync: Windows, Mac Ń NetBak Replicator: Windows Ń QGet: Windows, Mac, Linux Ń vSphere Client plug-in: Windows Ń Qsnap: Windows

Design and speciﬁcations are subject to change

without notice.

128

ofﬁcial and community software

100

bit, AES

128

256

bit, AES

bit

All New

QNAP Turbo vNAS Series

TVS-1271U-RP

High-speed 10GbE with dual PCIe Expansion

Use the NAS as a PC with Exclusive QvPC Technology

4K Hardware-accelerated Technology

4K 2K

Systems, Inc.

TEL : +886-2-2641-2000 FAX : +886-2-2641-0555 Email: qnapsales@qnap.com Address：3F, No.22, Zhongxing Rd., Xizhi Dist., New Taipei City, 221, Taiwan

QNAP® and other names of QNAP Products are proprietary marks or registered trademarks of QNAP Systems, Inc. Other products and company names mentioned herein are trademarks of their respective holders.

AMD, the AMD logo, and combinations thereof are trademarks of Advanced Micro Devices, Inc.

Netherlands (Warehouse Services)

Email：nlsales@qnap.com TEL：+31(0)107600830

Germany

Email：desales@qnap.com TEL：+49-89-381562991

China

Email：cnsales@qnap.com.cn TEL：+86-400-628-0079

MAX

RAM

TVS-871U-RP

India

Email：indiasales@qnap.com

Email：usasales@qnap.com TEL：+1-909-595-2782

Thailand

Email：thsales@qnap.com TEL：+66-2-5415988

P/N: 51000-023770-RS

201501 (EN) A

Qnap TVS-1271U-RP-I3 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
