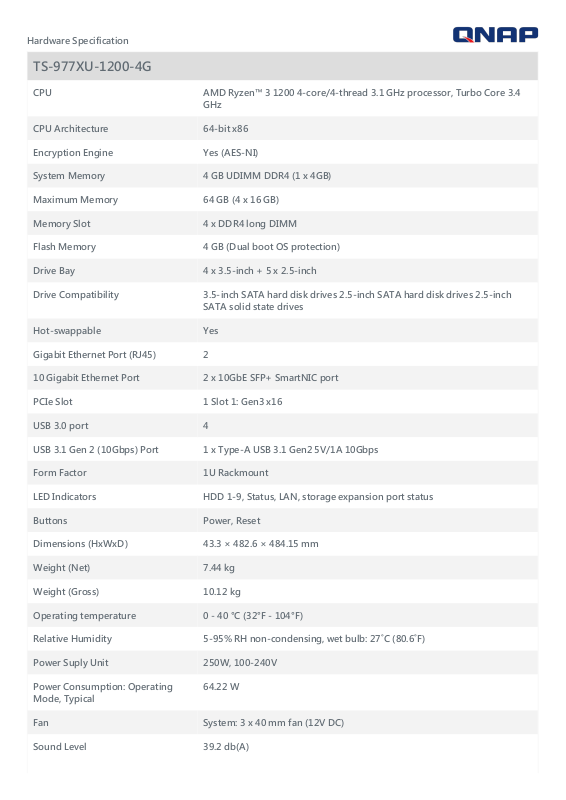

Hardware Specification
TS-977XU-1200-4G
CPU AMD Ryzen™ 3 1200 4-core/4-thread 3.1 GHz processor, Turbo Core 3.4
GHz
CPU Architecture 64-bit x86
Encryption Engine Yes (AES-NI)
System Memory 4 GB UDIMM DDR4 (1 x 4GB)
Maximum Memory 64 GB (4 x 16 GB)
Memory Slot 4 x DDR4 long DIMM
Flash Memory 4 GB (Dual boot OS protection)
Drive Bay 4 x 3.5-inch + 5 x 2.5-inch
Drive Compatibility 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch
SATA solid state drives
Hot-swappable Yes
Gigabit Ethernet Port (RJ45) 2
10 Gigabit Ethernet Port 2 x 10GbE SFP+ SmartNIC port
PCIe Slot 1 Slot 1: Gen3 x16
USB 3.0 port 4
USB 3.1 Gen 2 (10Gbps) Port 1 x Type-A USB 3.1 Gen2 5V/1A 10Gbps
Form Factor 1U Rackmount
LED Indicators HDD 1-9, Status, LAN, storage expansion port status
Buttons Power, Reset
Dimensions (HxWxD) 43.3 × 482.6 × 484.15 mm
Weight (Net) 7.44 kg
Weight (Gross) 10.12 kg
Operating temperature 0 - 40 °C (32°F - 104°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Suply Unit 250W, 100-240V
Power Consumption: Operating
Mode, Typical
64.22 W
Fan System: 3 x 40 mm fan (12V DC)
Sound Level 39.2 db(A)
System Warning Buzzer
Kensington Security Slot Yes
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory
slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors,
or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front
of operating NAS.
Designs and specifications are subject to change without notice.
