Read and understand all instructions before installing.
IMPORTANT
NOTE: If your shade does not have a fascia, you may
skip Steps 1,2, 3, and in step 10, install the shade
without adding a fascia.
QBASIC PLUS
MOTOR CONVERSION KIT
INSTALLATION INSTRUCTIONS

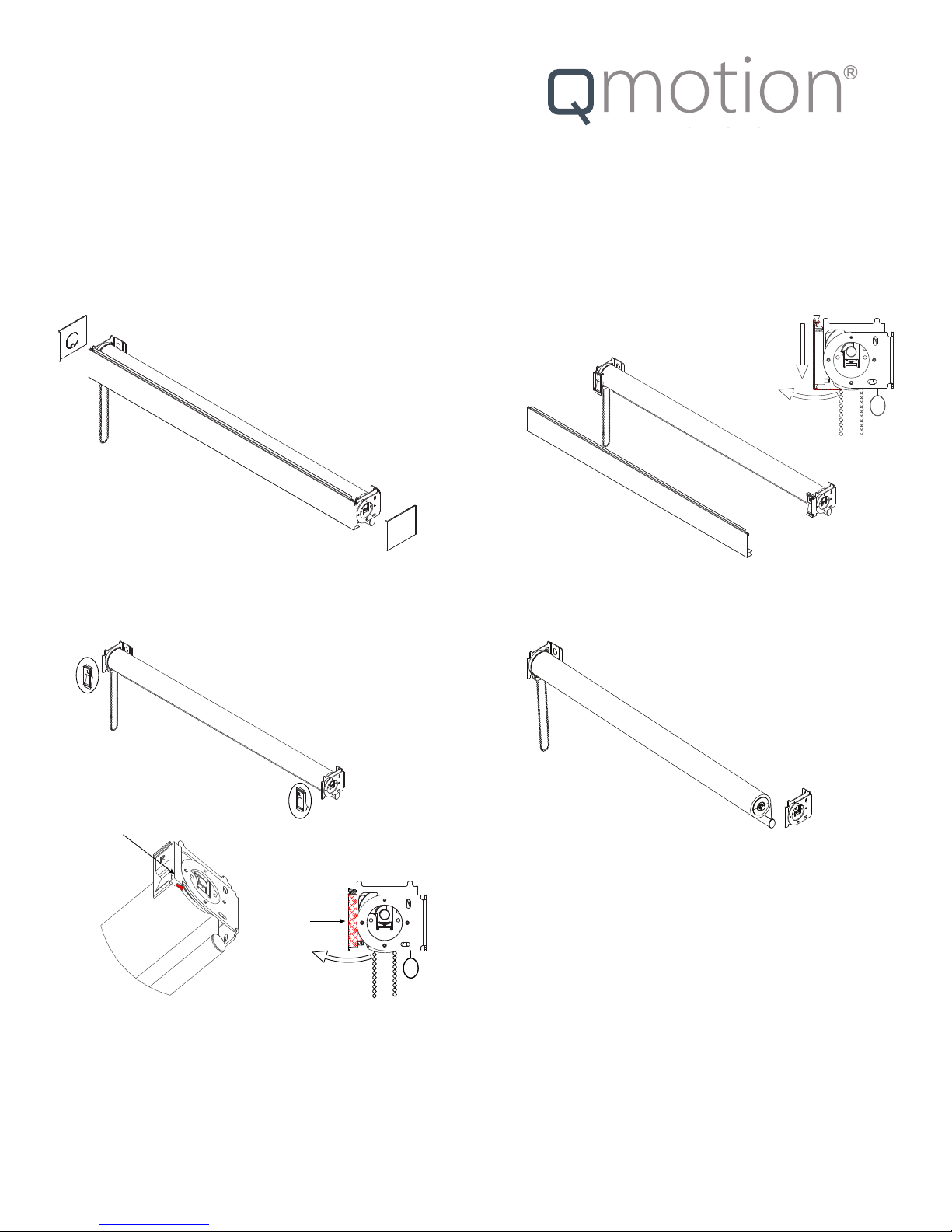

Step 1 Remove the End Caps.
End caps are
held on by magnets.
Step 3 Remove the Fascia Clips.
Step 2 Remove the Fascia.
Pull down gently
and rotate bottom of
Fascia towards you.
Step 4 Remove the Shade.
Lift up and then out
the end of the shade
opposite the Chain.
1
Push the snap feature
at the bottom of the
Fascia Clip towards the
center of the shade.
2
Rotate the bottom of
the clip toward you.
Fascia
Clip
Step 5 Remove the Clutch and Clutch Adapter.
Insert the Motor such that the batteries are accessible
Step 6 Insert the Motor
Remove the clear Battery Access Cover and discard.
through the Battery Change Port.
Step 7 Install the included Battery
Step 8 Remove the Manual Shade Bracket Insert.
Access Hole Cover as shown.
Unscrew the
three insert
screws
Step 9 Install the Motorized Shade Bracket Insert Step 10 Reinstall the Roller Shade, Fascia
Clips, Fascia, and End Caps in this order.
Attach bracket using three
screws just removed.
For more information visit us at qmotionshades.com or call 877.849.6070
© 2018 QMotion. QMotion is a trademark. All rights reserved.
Pub #9000278r1 04/2018
