ECP Series
23 in
(585 mm)
26.2 in
(664 mm)
16.23 in
(413 mm)
14.25 in
(
362 mm)
1.63 in
(42 mm)
2.88 in
(73 mm)
Wall Convector
C US
203845
Installation & Maintenance Instructions
Dear Owner,
Congratulations! Thank you for purchasing this new heater manufactured by Marley Engineered
Products. You have made a wise investment selecting the highest quality product in the heating industry. Please carefully read the installation and maintenance directions shown in this manual. You should
enjoy years of efficient heating comfort with this product from Marley Engineered Products... the industry’s leader in design, manufacturing, quality and service.
... The Employees of
Marley Engineered Products
!
Read Carefully - These instructions are written to help you
prevent difficulties that might arise during installation of
heaters. Studying the instructions first may save you considerable time and money later. Observe the following procedures and cut your installation time to a minimum. To reduce
risk of fire or electric shock:
1. Disconnect all power coming to heater at main service
panel before wiring or servicing.
2. All wiring must be in accordance with the National and
Local Electrical Codes and the heater must be grounded as
a precaution against possible electric shock.
3. Verify the power supply voltage coming to heater matches
the ratings printed on the heater nameplate before energizing.
4. This heater is hot when in use. To avoid burns, do not let
bare skin touch hot surfaces.
WARNING
5. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric
shock, fire, or damage to the heater.
6. To prevent a possible fire, do not block air intakes or
exhaust in any manner. Keep combustible materials, such
as crates, drapes, etc., away from heater. Do not install
behind doors, furniture, towels, or boxes.
7. A heater has hot and arcing (sparking) parts inside. Do
not use it in areas where gasoline, paint, or flammable
liquids are used or stored.
8. Use this heater only as described in this manual. Any
other uses not recommended by the manufacturer may
cause fire, electric shock, or injury to persons.
9. This heater is not approved for use in corrosive atmospheres such as marine, green house, or chemical storage
areas.
SAVE THESE INSTRUCTIONS
!
WARNING
TO REDUCE RISK OF FIRE OR ELECTRICAL SHOCK:
1. DONOTINSTALLHEATERUPSIDEDOWN ORSIDEWAYS.
2. DO NOT USE HEATER WITHOUTGRILLE.
3. FORWALLMOUNTINGONLY. DO NOTINSTALLHEATER
CLOSER THAN 3" (76 mm) TO THE FLOOR OR 12” (305
mm) TO ANY ADJACENT WALL SURFACE. DO NOT
INSTALLCLOSER THAN 18" (458mm)TO THE CEILING.
Recessed Installation of
Back box in Existing Construction
1. Provide a wall opening 14-1/2” (362mm) wide by 23-3/8”
(594mm) high at the desired mounting height, but no
loser than 3” (76mm) from floor and 12” (305mm) adja-
c
cent walls (See Figure 2) and 18” (458mm) to the ceiling.
Recessed in Wall in New Construction
Installation of Back Box
1. Mounting Back Box (See Figure 1).
a. Remove heater assembly from back box by removing
the four mounting screws on the sides.
. Place the back box between two 16” (406 mm) center-
b
to-center wall studs at the desired mounting height but
no closer than 3” (76 mm) to floor or 12” (305 mm) to
adjacent wall and 18” (458 mm) to the ceiling. Any
floor molding larger than 4” (102 mm) will interfere with
mounting so additional floor clearance will be required.
c. Remove the four small white hole caps on the sides of
the back box.
d. Adjust back box such that the top, bottom, and sides
will be flush with the finished wall surface. Secure the
back box in position with wood screws or nails as
shown in Figure 1.
ASTENER
F
(2 EACH SIDE)
BACK BOX
12” min
(305mm)
3” min
(76mm)
POWER SUPPLY
SOLE PLATE
Fig. 1: Locating Back Box Recessed in New Construction
2. Power Supply Wiring (See Figure 1).
NOTE: Wire Compartment Volume – 24 in
3
(386 cm3)
a. Remove the wiring compartment cover located in the
lower left corner of the back box.
b. Run a power supply cable into the area of the knock-
out in the bottom left hand corner of the back box. All
wiring must be in accordance with national and local
electrical codes. Refer to Table 1 for correct wire size.
c. Remove the knockout in the bottom left corner of the
back box and install a cable clamp. Insert power supply cable through cable clamp, allowing at least 6” (152
mm) of leads to extend inside the back box.
d. Ground the back box by connecting the supply ground
leadwire to the green ground screw located inside the
lower left corner of the back box. Connect the two
leadwires on the socket connector attached to the
wiring cover assembly to the power supply leads using
approved connectors.
e. Gently push wiring into the wiring compartment and
attach wiring compartment cover to back box. Make
sure wiring is not protruding or being pinched between
the wiring compartment cover and the back box.
23 3/8” MIN.
594 mm)
(
3” MIN.
76mm)
(
ROUND
G
SCREW
ACK BOX
B
CABLE CLAMP
14-1/2” MIN.
362mm)
(
12” MIN.
305 mm)
(
AIL OR SCREW
N
(2 EACH SIDE)
Fig. 2: Locating Back Box Recessed in Existing Construction
2. Power Supply Wiring
NOTE: Wire Compartment Volume – 24 in
3
a. Run a power supply cable inside the wall to the area
below the bottom left corner of the wall opening. All
wiring must be in accordance with national and local
electrical codes. Refer to Table 1 for correct wire size.
b. Remove heater assembly from back box by removing
the four mounting screws on the sides.
c. Remove the wiring compartment cover located in the
lower left corner of the back box.
d. Remove the knockout in the bottom left corner of the
back box and install a cable clamp. Insert power supply cable through cable clamp, allowing at least 6”
(152 mm) of leads to extend inside the back box.
e. Ground the back box by connecting the supply ground
leadwire to the green ground screw located inside the
lower left corner of the back box. Connect the two
leadwires on the socket connector attached to the
wiring cover assembly to the power supply leads using
approved connectors.
f. Gently push wiring into the wiring compartment and
attach wiring compartment cover to back box. Make
sure wiring is not protruding or being pinched between
the wiring compartment cover and the back box.
3. Mounting Back Box
a. Remove the four small white hole caps on the sides of
the back box.
b. Adjust back box such that the top, bottom, and sides
will be flush with the finished wall surface. Secure the
back box in position with wood screws or nails.
TABLE 1
MODEL WATTS VOLTS AMPS WIRE SIZE
ECP1024 1000W / 750W 240 / 208 4.2 / 3.6 14AWG
ECP1524 1500W / 1125W 240 / 208 6.3 / 5.4 14AWG
2
(386 cm3)
E
LEMENT
ELEMENT
CONNECTOR
ECP1024
1000 WATT MODELS ONLY
E
CP1524
LIMIT
GND
CONNECTOR
GNDL2
T
OP COIL
B
OTTOM COIL
L1
L2L1
LIMIT
BOTTOM COIL
T
OP COIL
1500 WATT MODELS ONLY
2
40/208 VAC 240/208 VAC
B
OX
BACK
HEATER
Heater Assembly
rille
G
RILLE MOUNTING
G
SCREW

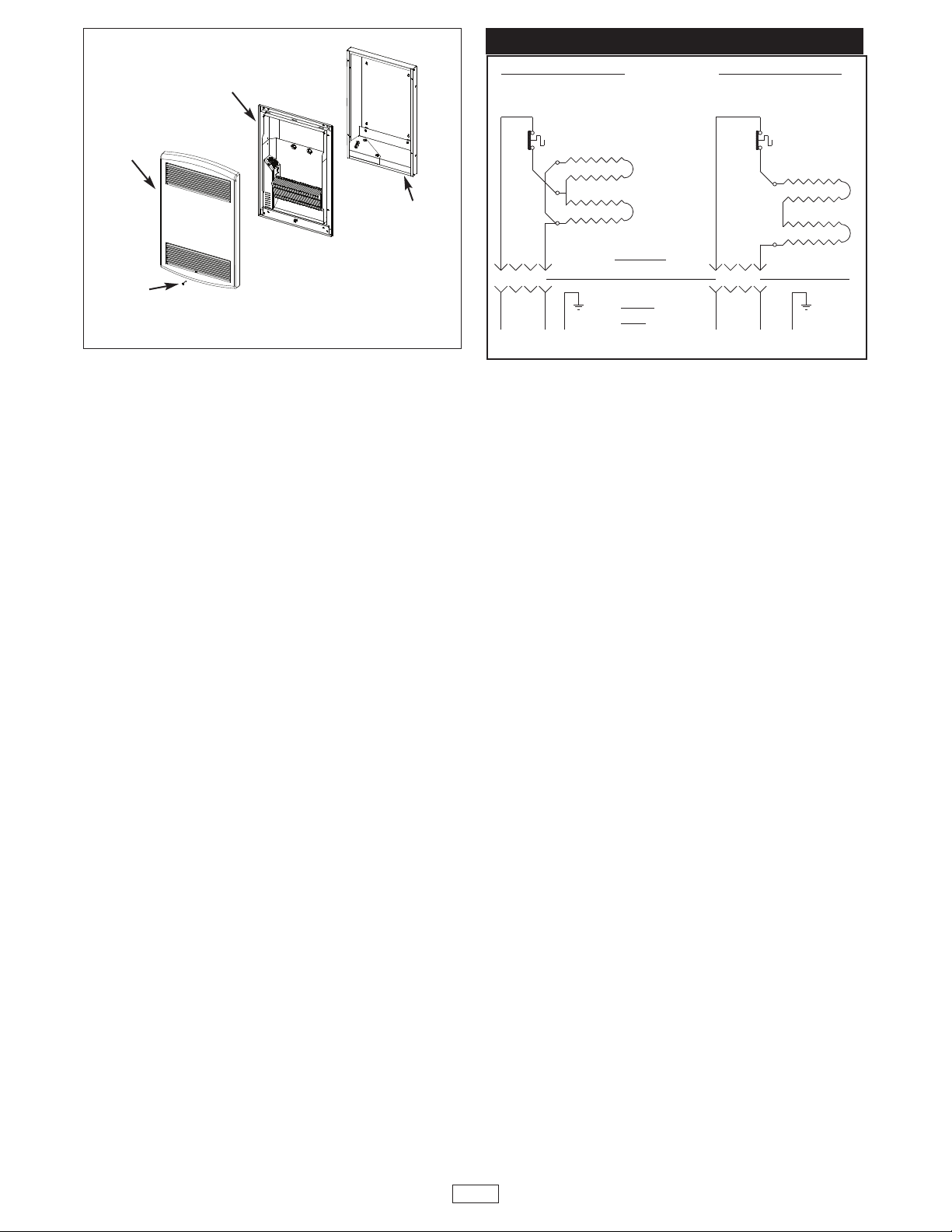

Fig. 3 Wall Surface Mount and Heater Assembly
WIRING DIAGRAM
BACK BOX
1. Remove heater assembly from back box by removing the
four mounting screws on the sides.
2. Secure back box to wall with knockouts in lower left corner using screws and anchors. Back box should be
mounted no closer than 3” (76 mm) from floor, 12” (305
mm) to adjacent walls and 18” (458 mm) to the ceiling.
NOTE: If heater is located in a high traffic area where it
may be subjected to vandalism or abuse, take extreme
care to see that the box is firmly attached to the wall.
3. Power Supply Wiring
NOTE: Wire Compartment Volume – 24 in
a. Run a power supply cable into the area of the lower
b. Remove the wiring compartment cover located in the
c. Remove the selected knockout in the bottom left cor-
d. Ground the back box by connecting the supply ground
e. Gently push wiring into the wiring compartment and
After back box is completely installed and wired and no further
construction dirt is expected, clean debris from back box.
Wall Surface Mounting Frame
(Optional)
(See Figure 3).
3
(386 cm3)
left corner of the surface mounted back box. All wiring
into the heater must be from the bottom or side of the
surface mounted back box. Do not route field wiring
into the back of the surface mounted back box. All
wiring must be in accordance with national and local
electrical codes. Refer to Table 1 for correct wire size.
lower left corner of the back box.
ner or side of the back box. Insert properly protected
power supply cable into the heater allowing at least 6”
(152 mm) of leads to extend inside the back box.
leadwire to the green ground screw located inside the
lower left corner of the back box. Connect the two
leadwires on the socket connector attached to the
wiring cover assembly to the power supply leads using
approved connectors.
attach wiring compartment cover to back box. Make
sure wiring is not protruding or being pinched between
the wiring compartment cover and the back box.
Installation of Heater Assembly and Grille
NOTE: Field wiring to heater is through line voltage
thermostat (supplied by others).
Operation
The heater is intended to be turned on and off by a remote line
voltage thermostat or some other controlling means suitable
for interrupting power to the heater.
1. Turn power to heater on at main switch panel. Turn
remote line voltage thermostat to demand heat. This
should energize the heating elements causing convective
heated air to flow from the air discharge grille on the top
face of the grille. This may take a minute to be noticeable
and will increase in temperature with time.
2. After the discharge air has become warm and room conditions become comfortable, adjust the remote wall thermostat to the desired position to obtain room comfort.
IMPORTANT INFORMATION
Cleaning and Maintenance
The heater should be cleaned annually to remove dust and
other foreign material that has collected during the heating
season. This is a simple operation when performed as follows:
1. Turn off the electric power at main line switch (or remove
all fuses) to disconnect electric power to the heater. THIS
IS IMPORTANT.
2. Remove the grille (Figure 4).
3. With a vacuum cleaner nozzle or dust cloth, remove dust
and other foreign material from the heater and grille.
4. After cleaning, reinstall the grille.
5. Turn on the main line switch (or replace fuses) to restore
power to the heater. The heater is now ready for another
season of operation.
6. The exterior surfaces should be wiped down with clean
damp cloth. Avoid using harsh solvents and products
leaving oil or wax residue.
1. Plug heater assembly into mating socket in back box
wiring cover. The plug and socket are “position sensitive”
so care should be taken regarding orientation. Attach
heater assembly to back box using the four screws used
during removal.
2. Mount front grille by aligning the two grille tabs with the top
slots in the heater frame assembly. Attach the bottom of
the grille to the heater frame assembly using the screw
provided (taped to the front bottom of the heater frame.)
3

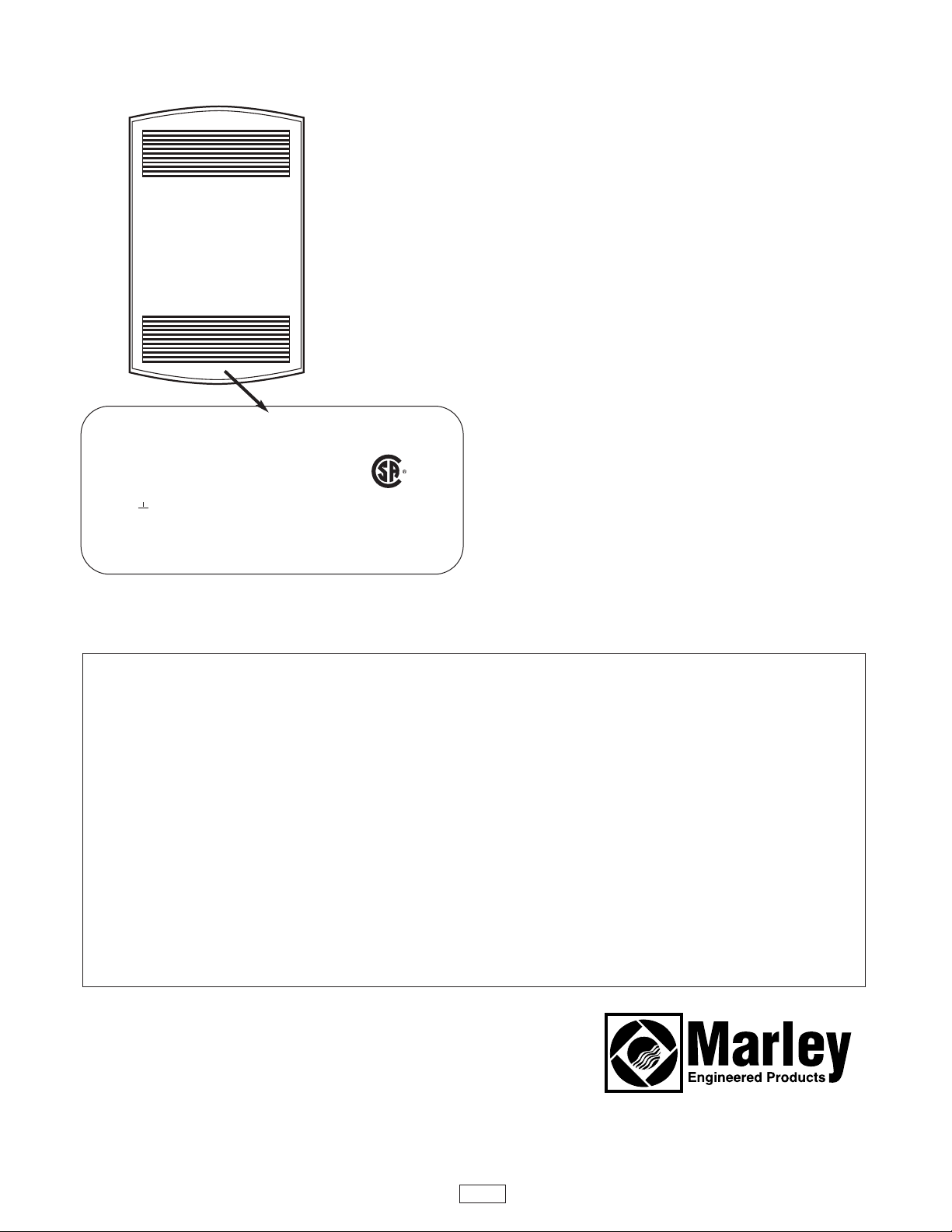

MODEL NO. ECP1524 DATE CODE:
ELECTRIC AIR HEATER
VOLTSAC 60 HZ AMPS WATTS
240 12.5 1500
FOR USE WITH BACK BOX MODEL
ECPBB UTILISER AVEC COFFRET
MARLEY ENGINEERED PRODUCTS
BENNETTSVILLE, SC 29512 USA 4104-2325-008
C US
203845
US Patent 6,132,310
OTHER PATENTS PENDING
All products manufactured by Marley Engineered Products are warranted against defects in workmanship and materials for one year from date of
LIMITED WARRANTY
installation, except heating elements which are warranted against defects in workmanship and materials for five years from date of installation. This
warranty does not apply to damage from accident, misuse, or alteration; nor where the connected voltage is more than 5% above the nameplate voltage; nor to equipment improperly installed or wired or maintained in violation of the product’s installation instructions. All claims for warranty work must
be accompanied by proof of the date of installation.
The customer shall be responsible for all costs incurred in the removal or reinstallation of products, including labor costs, and shipping costs incurred
to return products to Marley Engineered Products Service Center. Within the limitations of this warranty, inoperative units should be returned to the
nearest Marley authorized service center or the Marley Engineered Products Center, and we will repair or replace, at our option, at no charge to you
with return freight paid by Marley. It is agreed that such repair or replacement is the exclusive remedy available from Marley Engineered Products.
THE ABOVE WARRANTIES ARE IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, AND ALL IMPLIED WARRANTIES OF MERCHANTABILITYAND FITNESS FOR A PARTICULAR PURPOSE WHICH EXCEED THE AFORESAID EXPRESSED WARRANTIES ARE HEREBY
DISCLAIMED AND EXCLUDED FROM THIS AGREEMENT. MARLEY ENGINEERED PRODUCTS SHALL NOT BE LIABLE FOR CONSEQUENTIAL
DAMAGES ARISING WITH RESPECT TO THE PRODUCT, WHETHER BASED UPON NEGLIGENCE, TORT, STRICT LIABILITY, OR CONTRACT.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
For the address of your nearest authorized service center, contact Marley Engineered Products in Bennettsville, SC, at 1-800-642-4328. Merchandise
returned to the factory must be accompanied by a return authorization and service identification tag, both available from Marley Engineered Products.
When requesting return authorization, include all catalog numbers shown on the products.
470 Beauty Spot Rd. East
Bennettsville, SC 29512 USA
Part No. 5200-2636-001
ECR 37240
5/07
4
Loading...
