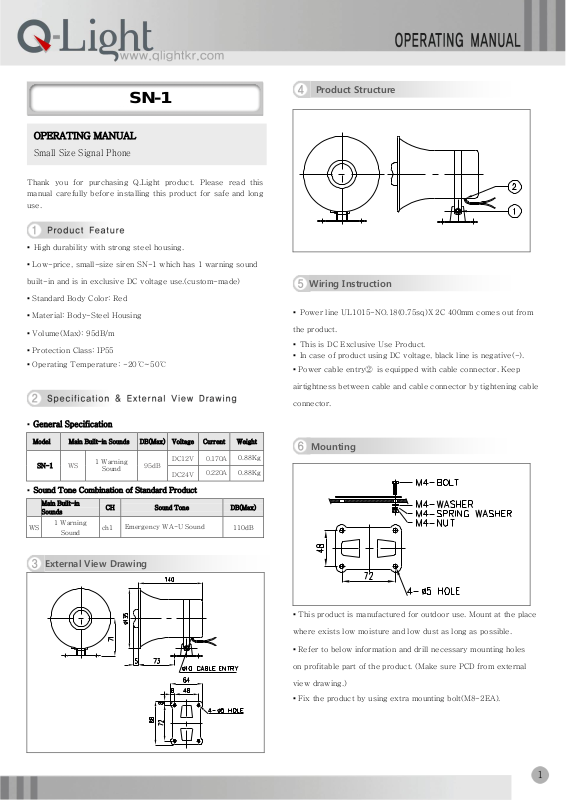

OPERATING MANUAL
Small Size Signal Phone
External View Drawing
Product Structure
Wiring Instruction
Mounting
SN-1
Thank you for purchasing Q.Light product. Please read this
manual carefully before installing this product for safe and long
use.
▪ High durability with strong steel housing.
▪ Low-price, small-size siren SN-1 which has 1 warning sound
built-in and is in exclusive DC voltage use.(custom-made)
▪ Standard Body Color: Red
▪ Material: Body-Steel Housing
▪ Volume(Max): 95dB/m
▪ Protection Class: IP55
▪ Operating Temperature: -20℃~50℃
▪ Power line UL1015-NO.18(0.75sq)Ⅹ2C 400mm comes out from
the product.
▪ This is DC Exclusive Use Product.
▪ In case of product using DC voltage, black line is negative(-).
▪ Power cable entry② is equipped with cable connector. Keep
airtightness between cable and cable connector by tightening cable
▪
General Specification
▪ Sound Tone Combination of Standard Product
connector.
▪ This product is manufactured for outdoor use. Mount at the place
where exists low moisture and low dust as long as possible.
▪ Refer to below information and drill necessary mounting holes
on profitable part of the product. (Make sure PCD from external
view drawing.)
▪ Fix the product by using extra mounting bolt(M8-2EA).
Page 2
Situation
Main reason
Solution
Sound Tone
Deterioration
or Volume
Decreasing
Supplying Voltage
Lower Than Rated
Voltage
Making Sure Using
Voltage
Too high sound tone
than the standard
Supplying Voltage
Higher than Rated
Voltage
Making Sure Using
Voltage
No sound
Problem with Horn
Contact Q.Light or Their
Agent
Wrong Wiring
Making Sure Wiring
No Power Supply
Making SurePower Supply
Adjustment of Horn Housing Angle
Caution
Q-LIGHT CO., LTD.
http://www.qlightkr.com
E-mail : [email protected]
Overseas Marketing Team /Plant
Tel) 055-328-4082Fax)055-328-4083
178-1 Woogye-Ri, Sangdong-Myun, Kimhae-Si,
KyungNam, Korea
Trouble shooting
If the angle of horn housing(angle of signal transmission) needs
adjustment, loose the bracket fixing bolt① on side of body and
adjust the angle. (Refer to structure drawing)
▪ This is designed for explosion proof and water proof/dust proof
product. When releasing the product for checking, connecting etc,
must keep airtight by making sure bolts.
▪ If using voltage is seriously higher or lower than rated voltage, it
can reduce the self-life of the product or can cause a problem
on product operating. Make sure the using voltage does not
exceed +/-5% of the rated voltage.
▪ If lens or body of the product is contaminated by chemicals such
as thinner, benzene, the product can be damaged, discolored
or deformed. Please be careful.
