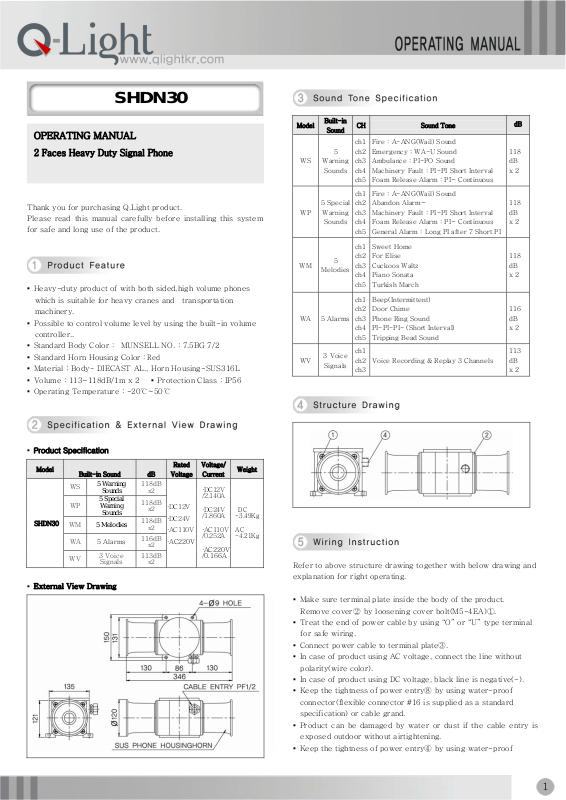

SHDN30
OPERATING MANUAL
2 Faces Heavy Duty Signal Phone
Thank you for purchasing Q.Light product.
Please read this manual carefully before installing this system
for safe and long use of the product.
▪ Heavy-duty product of with both sided,high volume phones
which is suitable for heavy cranes and transportation
machinery.
▪ Possible to control volume level by using the built-in volume
controller..
:
▪ Standard Body Color
▪ Standard Horn Housing Color
MUNSELL NO. : 7.5BG 7/2
: Red
▪ Material : Body- DIECAST AL., Horn Housing-SUS316L
▪ Volume : 113~118dB/1m x 2 ▪ Protection Class : IP56
▪ Operating Temperature : -20℃~50℃
Built-in
Model
Sound
WS
Warning
Sounds
5 Special
WP
Warning
Sounds
WM
Melodies
WA 5 Alarms
3 Voice
WV
Signals
CH Sound Tone
ch1
Fire : A-ANG(Wail) Sound
5
ch2
Emergency : WA-U Sound
ch3
Ambulance : PI-PO Sound
ch4
Machinery Fault : PI-PI Short Interval
ch5
Foam Release Alarm : PI~ Continuous
ch1
Fire : A-ANG(Wail) Sound
ch2
Abandon Alarm~
ch3
Machinery Fault : PI-PI Short Interval
ch4
Foam Release Alarm : PI~ Continuous
ch5
General Alarm : Long PI after 7 Short PI
ch1
Sweet Home
ch2
5
For Elise
ch3
Cuckoos Waltz
ch4
Piano Sonata
ch5
Turkish March
ch1
Beep(Intermittent)
ch2
Door Chime
ch3
Phone Ring Sound
ch4
PI-PI-PI- (Short Interval)
ch5
Tripping Bead Sound
ch1
Voice Recording & Replay 3 Channels
ch2
ch3
dB
118
dB
x 2
118
dB
x 2
118
dB
x 2
116
dB
x 2
113
dB
x 2
▪ Product Specification
Model
SHDN30
WS
WP
WM 5 Melodies
WA 5 Alarms
WV
Built-in Sound
5 Warning
Sounds
5 Special
Warning
Sounds
3 Voice
Signals

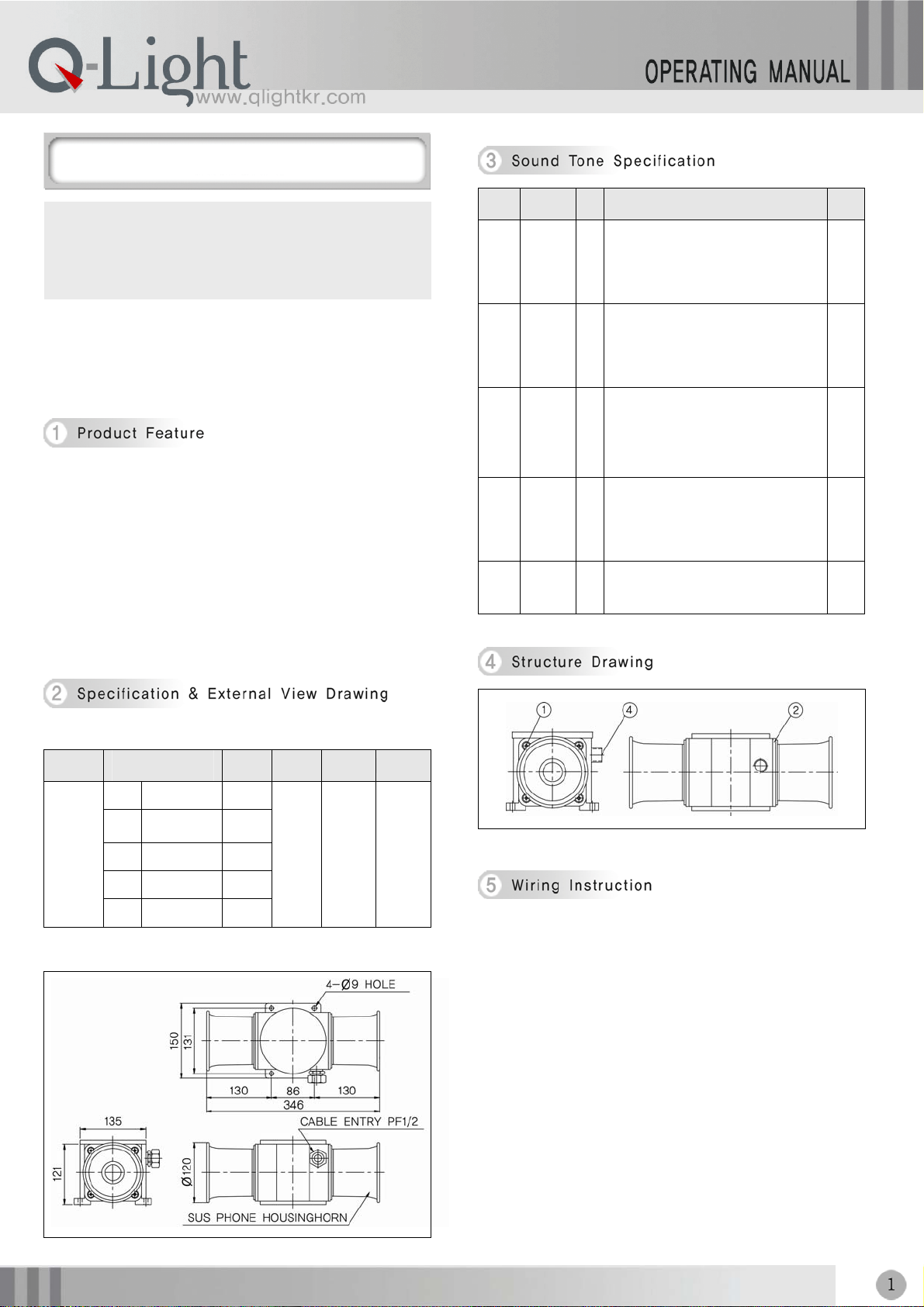

▪ External View Drawing
dB
118dB
x2
118dB
x2
118dB
x2
116dB
x2
113dB
x2
Rated
Voltage
·DC12V
·DC24V
·AC110V
·
AC220V
Voltage/
Current
·DC12V
/2.140A
·DC24V
/1.860A
·AC110V
/0.252A
·
AC220V
/0.166A
Weight
DC
-3.49Kg
AC
-4.21Kg
Refer to above structure drawing together with below drawing and
explanation for right operating.
▪ Make sure terminal plate inside the body of the product.
Remove cover② by loosening cover bolt(M5-4EA)①.
▪ Treat the end of power cable by using “O” or “U” type terminal
for safe wiring.
▪ Connect power cable to terminal plate③.
▪ In case of product using AC voltage, connect the line without
polarity(wire color).
▪ In case of product using DC voltage, black line is negative(-).
▪ Keep the tightness of power entry⑧ by using water-proof
connector(flexible connector #16 is supplied as a standard
specification) or cable grand.
▪ Product can be damaged by water or dust if the cable entry is
exposed outdoor without airtightening.
▪ Keep the tightness of power entry④ by using water-proof
Page 2
connector(flexible connector #16 is supplied as a standard
specification) or cable grand.
Product can be damaged by water or dust if the cable entry is
exposed outdoor without airtightening.

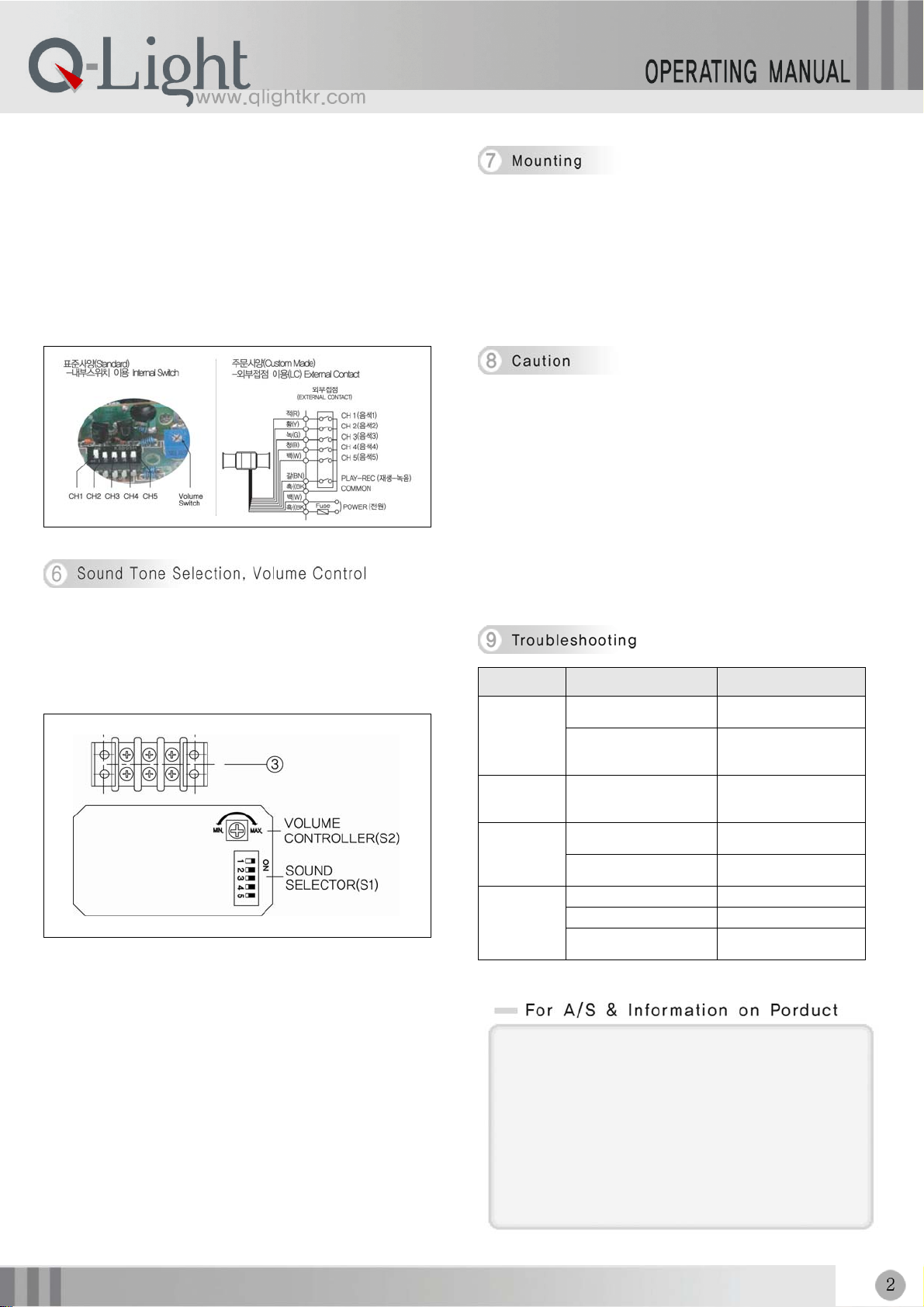

■ Wiring for LC(External Contact) Type – Custome Made
▪ In case of LC type which selets sound tone by external
contact, separate signal(sound tone) line come out. Connect
each line as below.
▪ Signal Line : UL1007-NO.22(0.3sq) 400mm
This product has a volume controller and sound tone selection
switch on assembling board for convenient use.
Refer to previous structure drawing,following drawing and
explanation for right operating. In the first,remove cover② by
loosening horn cover bolt① (Please refer to structure drawing)
▪ Sound Tone Selection
5 Warning sound tones are built-in this product. In case of
standard product, select preferable sound tone by using internal
sound tone selection switch(S1).
▪ Volume(dB) Control
Volume controller(S2) is built-in this product. Turn it clockwise
for increasing volume or turn it counterclockwise for decreasing
volume
▪ This product is manufactured for outdoor use. But,install with
vertical direction at a place or machine where exists no big
vibration and no strong impact as long as possible.
▪ Refer to below information and drill necessary mounting holes on
profitable part of the product.
(Make sure PCD from external view drawing.)
▪ Fix the product by using separate mounting bolt(M8-4EA).
▪ This product is explosion-proof, water-proof and anti-corrosion
type. When separate and assemble the product for wiring, repair
or check, keep the airtightnees of the product by tightening each
bolt and nut.
▪ If using voltage is seriously higher or lower than rated voltage, it
can reduce the self-life of the product or can cause a problem
on product operating. Make sure the using voltage does not
exceed +/- 5% of the rated voltage.
▪ If lens or body of the product is contaminated by chemicals such
as thinner, benzene, the product can be damaged, discolored
or deformed. Please be careful.
Situation Main Cause Solution
Sound Tone
Deterioration
or Volume
Decreasing
Higher
Volume(dB)
than Standard
Double Sound
Tone
No Sound
Supplying Voltage Lower
Than Rated Voltage
Wrong Selecting Voltage
Selection Switch to 220V
(In Case of AC Type)
Supplying Voltage Higher
than Rated Voltage
Short Circuit of Sound Tone
Signal Line
Error on Sound Tone
Selection Switch
Wrong Wiring Making Sure Wiring
No Power Supply Making Sure Power Supply
Problem with Horn
Making Sure Using
Voltage
Selecting Voltage
Selection Switch to 110V
Making Sure Using
Voltage
Making Sure Wiring
Contact Q.Light or Their
Agent
Contact Q.Light or Their
Agent
