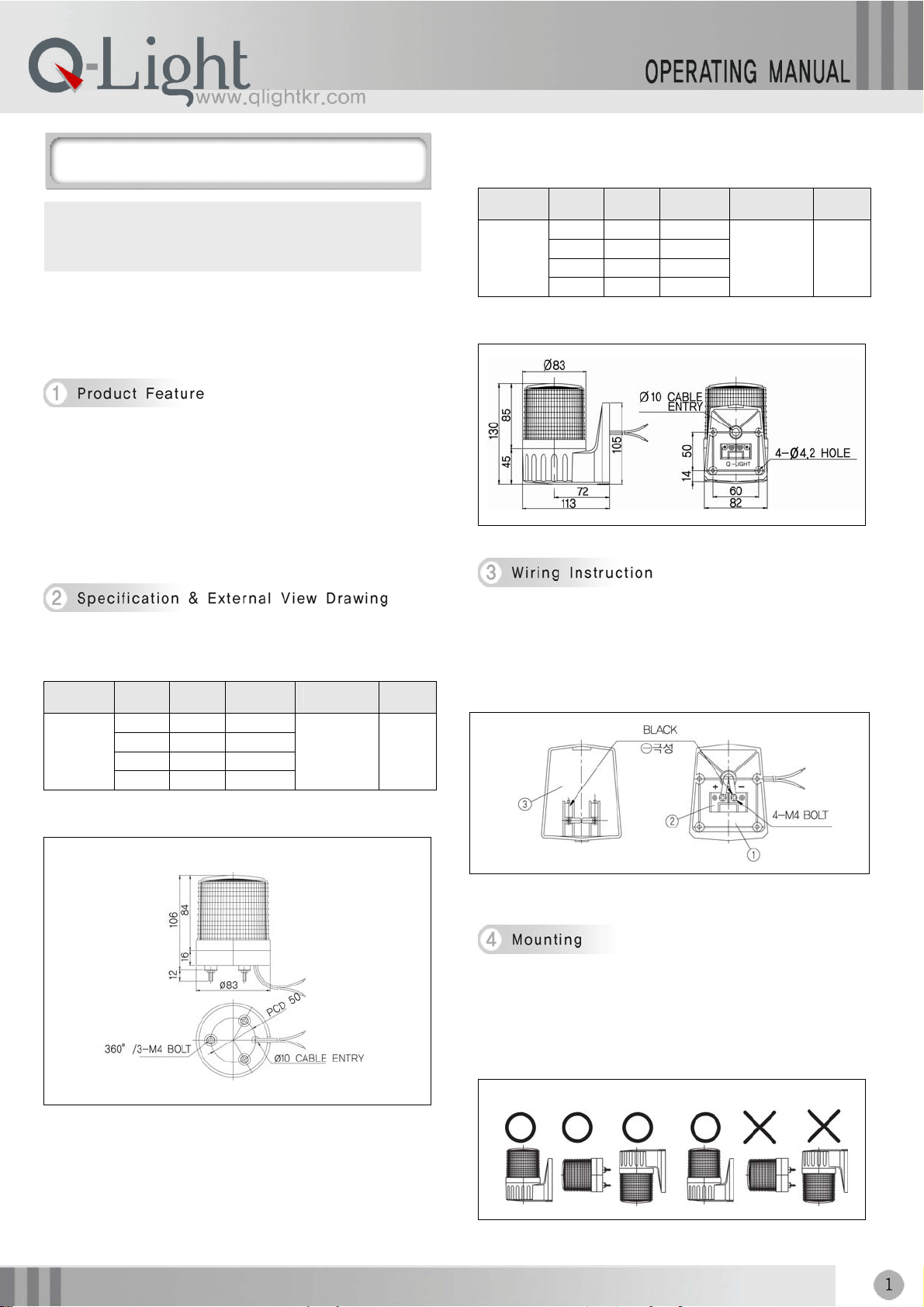

Page 1
S80S / S80AS
OPERATING MANUAL
Xenon Lamp Strobe Light
Thank you for purchasing Q.Light product.
Please read this manual carefully before installing this system
for safe and long use of the product.
▪ A product radiating strong strobe signal by xenon lamp and it is
suitable for a bright place and for the transmission of signal from
a distance.
▪ Lamp of connector type whose replacement is easy and simple.
▪ Material : Lens-AS, Body-ABS
▪ Flashes : 65-95/Min.
▪ Protection Class : S80S-IP23, S80AS-IP44
1)
S80S
▪ General Specification
Model
S80S
▪ External View Drawing
S80S
Rated
Voltage
DC12V 0.550A 0.22Kg
DC24V 0.480A 0.22Kg
AC110V 0.065A 0.20Kg
AC220V 0.056A 0.20Kg
Current Weight
Flashes Color
Red-R
Amber-A
60-80/Min.
Green-G
Amber-B
1)
S80AS
▪ General Specification
Model
S80AS
▪ External View Drawing
Power line UL1015-NO.16(1.25sq) x 2C 400mm comes out from
the product.
▪ In case of product using AC voltage, connect the line without
polarity(wire color).
▪ In case of product using DC voltage, black line is negative(-).
▪ If mounting is completed,power is supplied to body③ through
terminal plate② on mounting bracket①.
Rated
Voltage
DC12V 0.550A 0.49Kg
DC24V 0.480A 0.49Kg
AC110V 0.065A 0.68Kg
AC220V 0.056A 0.68Kg
Current Weight
Flashes Color
60-80/Min.
Red-R
Amber-A
Green-G
Blue-B
▪ This product was manufactured with the structure for indoor use.
Installing in any direction is okay for indoor use.
▪ Outdoor use is limited at a place where no water or very little
water percolates. Mounting also should be done only with
vertical standing shape.
indoor
outdoor

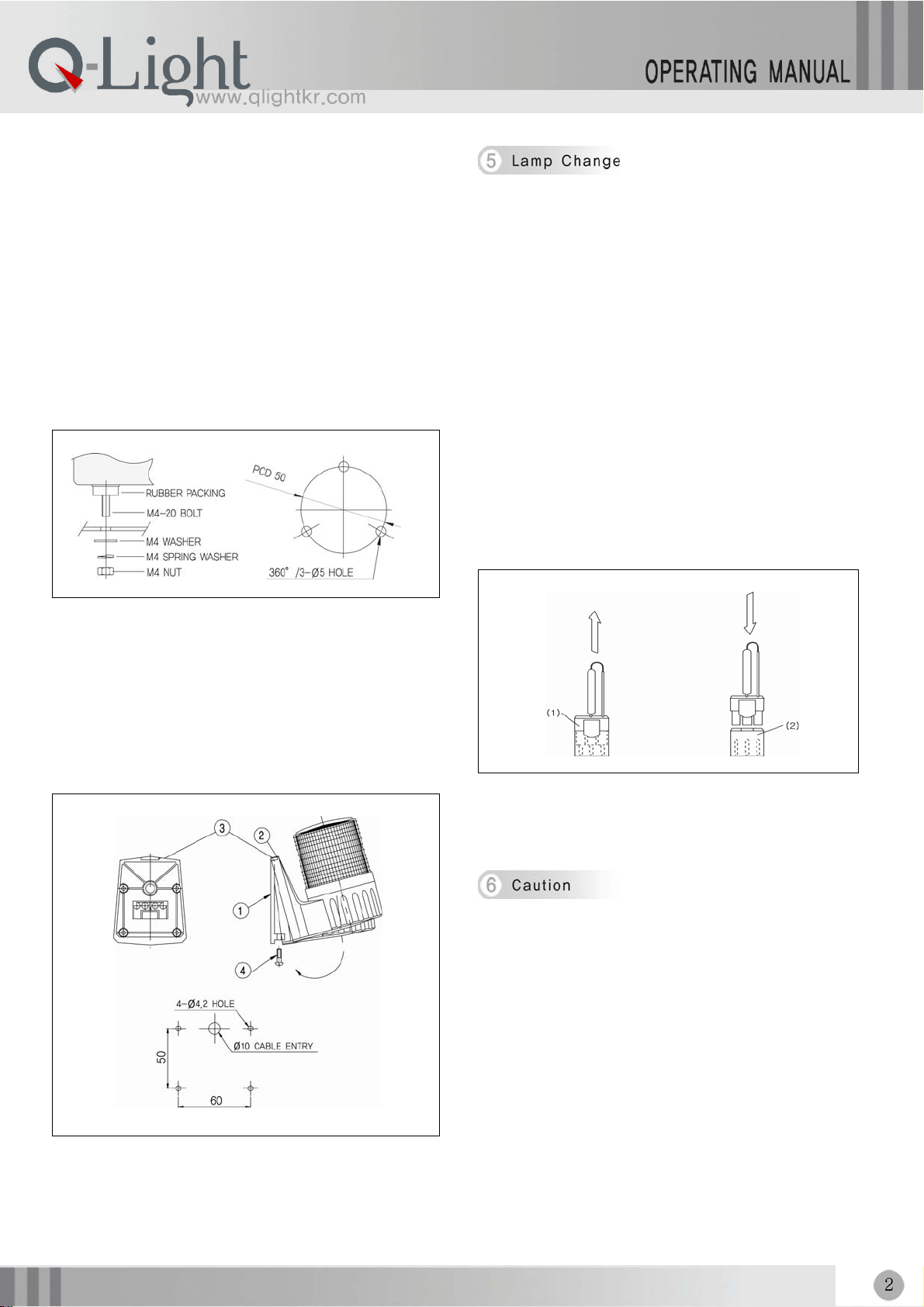

Page 2
▪ This product was manufactured with the structure for indoor use.
Installing in any direction is okay for indoor use.
▪ Outdoor use is limited at a place where no water or very little
water percolates. Mounting also should be done only with
vertical standing shape.
▪ Mount at the place where exists low vibration, low impact, low
moisture and low dust as long as possible.
▪ Refer to below information and drill necessary mounting holes on
profitable part of the product.
(Make sure PCD from external view drawing.)
1) S80S
▪ Fix the product by using nuts(M4-3EA) originally equipped on
mounting bolt on bottom of the product.
2) S80AS
▪ Stick the bracket① by using another extra bolt(M4-4EA).
▪ Refer to wiring instruction and connect power line.
▪ Hang the upper projecting part② of mounting surface of the
product on the groove③ of the bracket. Then, push it until
“click” is heard.
▪ Lock the bracket by fastening bolt④(M4 1EA) at the element’s
base of the body.
1) Warning ! Turn off Power
Must turn off power supply and change the bulb after at least
1 minute.
▪ Xenon lamp emits superheat while it is operating. Do not touch
the lamp until it gets fully cool. Earlier touch can cause burns on
hand or body. Be careful !
▪ Xenon lamp is operating with high voltage. Do not touch lamp or
assembling board without turning off power. It can cause an
electrical shock.
2) Lens Removal
Remove lens by turning it counterclockwise and make sure lamp
and flashing selection switch on assembling board.
3) Lamp Change
▪ Xenon lamp is a connector type. Pull up the lamp for removal.
▪ Insert the connector pin correctly into the groove for
assembling by referring following drawing.
Bulb Removing Bulb Fitting
4) Lens Assembling
Assemble the product in reverse order of separating.
▪ If using voltage is seriously higher or lower than rated voltage, it
can reduce the self-life of the product or can cause a problem
on product operating. Make sure the using voltage does not
exceed +/- 5% of the rated voltage.
▪ If lens or body of the product is contaminated by chemicals such
as thinner, benzene, the product can be damaged, discolored
or deformed. Please be careful.
▪ Do not give strong impact to the product. It can be a reason of
wire disconnection or short circuit.
▪ Do not strongly pull the wire out from the product. It can cause a
disorder.
Page 3
Situation Main Cause Solution
Damage on Lamp Change Lamp
Non Lighting
Irregular Strobe
Operating
Q-LIGHT CO., LTD.
http://www.qlightkr.com
E-mail : [email protected]
Seoul Office (Domestic Sales & A/S)
Tel) 02-2679-6152
Ansung BD A-312, 410-13 Sindorim-Dong, Guro-Gu, Seoul
Overseas Marketing Team / Plant
Tel) 055-328-4082 Fax) 055-328-4083
Plant #1 : 178-1 Woogye-Ri, Sangdong-Myun, Kimhae-Si,
KyungNam, Korea
Plant #2 : 417-1 Geumsa-Dong, Geumjung-Gu, Busan
Untied Lamp Connector Re-join Lamp Connector
No Power Supply Make Sure Power Supply
Supplying Voltage Lower
than Rated Voltage
Make Sure Using Voltage
