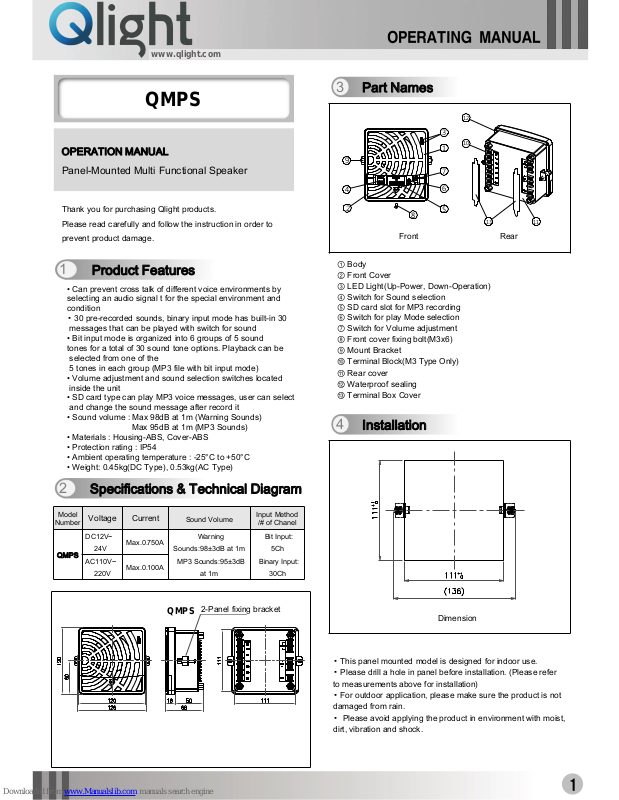

QMPS
OPERATION MANUAL
Panel-Mounted Multi Functional Speaker
Thank you for purchasing Qlight products.
Please read carefully and follow the instruction in order to
prevent product damage.
1
Product Features
• Can prevent cross talk of different voice environments by
selecting an audio signal t for the special environment and
condition
▪ 30 pre-recorded sounds, binary input mode has built-in 30
messages that can be played with switch for sound
• Bit input mode is organized into 6 groups of 5 sound
tones for a total of 30 sound tone options. Playback can be
selected from one of the
5 tones in each group (MP3 file with bit input mode)
• Volume adjustment and sound selection switches located
inside the unit
• SD card type can play MP3 voice messages, user can select
and change the sound message after record it
• Sound volume : Max 98dB at 1m (Warning Sounds)
Max 95dB at 1m (MP3 Sounds)
• Materials : Housing-ABS, Cover-ABS
• Protection rating : IP54
• Ambient operating temperature : -25°C to +50°C
• Weight: 0.45kg(DC Type), 0.53kg(AC Type)
Model
Number
Voltage Current
Sound Volume
Input
Method
/# of Chanel
QMPS
DC12V~
24V
Max.0.750A
Warning
Sounds:98±3dB at 1m
MP3 Sounds:95±
3dB
at 1m
Bit Input:
5Ch
Binary Input:
30Ch
AC110V~
220V
Max.0.100A
2
Specifications & Technical Diagram
1
QMPS
3
Part Names
① Body
② Front Cover
③ LED Light(Up-Power, Down-Operation)
④ Switch for Sound selection
⑤ SD card slot for MP3 recording
⑥ Switch for play Mode selection
⑦ Switch for Volume adjustment
⑧ Front cover fixing bolt(M3x6)
⑨ Mount Bracket
⑩ Terminal Block(M3 Type Only)
⑪ Rear cover
⑫ Waterproof sealing
⑬ Terminal Box Cover
4
Installation
▪ This panel mounted model is designed for indoor use.
▪ Please drill a hole in panel before installation. (Please refer
to measurements above for installation)
▪ For outdoor application, please make sure the product is not
damaged from rain.
▪ Please avoid applying the product in environment with moist,
dirt, vibration and shock.
<판넬 취부 치수>
Dimension
Front Rear
2-Panel fixing bracket
ww w.qlight.com
2
5
Wiring Instructions
▪ Fix the product by using two brackets provided with the
product. Please confirm if QMPS is fixed well after installation
of the product.
▪ In order to install QMPS, thickness of panel should be 1 to
10mm.
▪ Warning : Product may be damaged if customer uses
inappropriate tools or method during product installation.
Fixing bracket (2EA)
(LC)
<정방향>
<90°회전>
<180°회전>
Direction
▪ QMPS can be installed with front direction, 90°, and
180 °degree.
▪ Front direction installation is recommended except
special occasion since all parts are produced based on
front direction.
(External Transistor-NPN)
(LC)
(External Transistor-PNP)
(External Transistor-NPN)
(전원)
(전원)
Thickness of panel 1 to 10mm
<Front direction> < 90 degree> <180 degree>
ww w.qlight.com
ON DP
1 2 3
4
MP3 저장용
SD카드 슬롯
SOUND 설정 스위치 PLAY MODE 설정 스위치
음량 조절용 VULUME
3
7
How to Operate
1. Wire power supply into POWER connecter.
Power
Red LED on
2. Red indicator light turns on.
6. In case of using SD card(MP3), set the sound switch-no.1 ON.
QMPS
control panel
Green LED flashing
2
3
1
6
Operational Sequence
3. Turn M3 bolt left by using plus screwdriver.
4. Move front cover down.(Warning : Using too much force may
be reason of front cover separation while move it down.)
5. In case of using pre-recorded sound, set the sound switch-no.1
OFF.
OPEN FRONT
COVER
When product operates
DC12V type: come out DC11V
DC24V type: come out DC23V
AC type: come out DC24V±10%
▪ Pre-recorded sound
① Set the sound switch no.1 off.
② PLAY MODE control switch-Choose play mode(Bit input/Binary
input)
③ SOUND set-up switch- Select sound group using no.2,3 and 4
④ In case of bits input, 5 sound tones can be played(CH1~5)
⑤ For Binary input, 30 sound tones can be played.(CH1~5)
▪ MP3(SD card)
① Capacity is 32Gbyte.(File Format : Fat32)
② Create“MP3_FILE”folder in SD card and save the file by
following below instruction.
③ Number of characters shall not exceed 40 alphabets.
④ Insert SD card into the card slot
⑤ Set the sound switch-no.1 ON
⑥ PLAY MODE control switch-Choose play mode(Bit input/Binary
input)
⑦ For bits input, 5 sound tones can be played(CH1~5)
⑧ For Binary input, 30 sound tones can be played.(CH1~5)
SD card slot
for MP3
Play mode set-up switch
Volume control
Sound set-up switch
ww w.qlight.com
PLAY MODE
1
Bit Input
Mode
5 sounds can be played from the selected group
(choose one group from six groups)
2
Binary Input
Mode
Up to 30 sounds available for each model. Plays
sound only once (sequential signal input only)
3
Bit Input
Hold
Playback
Mode
5 sounds can be played from the selected group
(choose one group from six groups)
The sound is repeated if the input signal is
maintained. (sequential signal input only)
If the STOP signal is inputted, the sound is
turned off, and if the STOP signal is disabled the
sound is played repeatedly
4
Binary Input
Hold
Playback
Mode
Up to 30 sounds available for each model
The sound is repeated if the input signal is
maintained. (sequential signal input only)
If the STOP signal is inputted, the sound is
turned off, and if the STOP signal is disabled the
sound is played repeatedly
5
Bit Input
Sound
Reduction
Mode)
5 sounds can be played from the selected group
(choose one group from six groups)
You can reduce the volume(15dB) by using a
separate volume reduction signal line
(same as volume reduction signal input)
6
Binary Input
Sound
Reduction
Mode
Up to 30 sounds available for each model.
You can reduce the volume(15dB) by using a
separate volume reduction signal line
(same as volume reduction signal input).
7
Bit Input
Sequence
Memory Play
back Mode
5 sounds can be played from the selected group
(choose one group from six groups)
If the sound is inputted in a order, it will
remember the order and play each sound about
3 seconds .
The last input channel is fully played
(bit input mode only)
4
9. VOLUME CONTROL
- You can adjust the speakers sound output by using the volume dial.
VOLUME CONTROL
Volume
up
Volume
down
10. Insert flat-head driver into the hole. In case of turn right,
volumes up and turn left, volumes down. (Sound is disabled
once the dial turns right to MIN.)
Bit input type sound pattern group composition
Sound CH Sound Tone
WS
5 Warning
Sounds
CH1
Fire.A-ANG(560Hz-1.5kHz)
CH2
Emergency WA-U(Yelp)
(600Hz~1.5kHz)
CH3
Ambulance PI-PO(Hi-low)
(450Hz~900Hz)
CH4
Pi ik Pi ik(820Hz)
CH5
Machinery Fault(1kHz)
WP
5 Special
Warning
Sounds
(1st Group)
CH1
Fire.A-ANG(560Hz~1.5kHz)
CH2
Abandon Alarm(820Hz)
CH3
Pi ik Pi ik(820Hz)
CH4
High Expansion(1kHz)
CH5
7 Short PI. / 1 Long(1kHz)
WM 5 Melodies
CH1
Sweet Home
CH2
For Elise
CH3
Cuckoo's Waltz
CH4
Piano Sonata
CH5
Turkish March
WA 5 Alarms
CH1
Beep Intermittent
CH2
Door Chime
CH3
Phone Ring
CH4
PI.PI.PI Short
CH5
Tripping Beat
8
Sound pattern & combination
1. Multi functional product has 30 pre-recorded sound tones.
2. 30 sound tones in binary input mode supported. Bit input
mode has 5 sound tones within 1 group among 6 groups.
PLAY MODE
SELECTION
(Regardless of
direction)
1mm
7. PLAY MODE setting switch is used to choose the channel
input method or select various play modes.
• Rotate each space when choose PLAY MODE by using a
flat-head screwdriver regardless of direction.
8. Refer to the table below for switch features.
*Switch #0 and #9 are not used.
PLAY MODE SETUP
SWITCH
8
Test Mode
In test mode, Ch1 of group is
automatically played back
repeatedly.
To end the test mode, switch
back to the other modes.
ww w.qlight.com
Binary input type sound pattern group composition
Sound pattern
NO.
1 2 3 4 5
0
0 0 0 0 0
No sound
1
0 0 0 0 1
Fire.A-ANG(560Hz-1.5kHz)
2
0 0 0 1 0
Emergency WA-
U(Yelp)(600Hz~1.5kHz)
3
0 0 0 1 1
Ambulance PI-PO(Hi-low)
(450Hz~900Hz)
4
0 0 1 0 0
Di-ik(800Hz)
5
0 0 1 0 1
Pi-ik Pi-ik(820Hz)
6
0 0 1 1 0
Machinery Fault(1kHz)
7
0 0 1 1 1
Alarm(1kHz)
8
0 1 0 0 0
Sweet Home
9
0 1 0 0 1
For Elise
10
0 1 0 1 0
Cuckoo's Waltz
11
0 1 0 1 1
Piano Sonata
12
0 1 1 0 0
Turkish March
13
0 1 1 0 1
Magic Flute
14
0 1 1 1 0
Badinerie
15
0 1 1 1 1
Pineapple Rag
16
1 0 0 0 0
Beep Intermittent
17
1 0 0 0 1
Door Chime
18
1 0 0 1 0
Phone Ring
19
1 0 0 1 1
PI.PI.PI Short
20
1 0 1 0 0
Tripping Beat
21
1 0 1 0 1
Rel rel rel(730Hz~920Hz)
22
1 0 1 1 0
Slow Ambulance PI-PO
(820Hz~1.05kHz)
23
1 0 1 1 1
Wye
yong Wye yong
(770Hz~1.2kHz)
24
1 1 0 0 0
Phone ring 2(740Hz~910Hz)
25
1 1 0 0 1
Fire.A-ANG(770Hz~1.11kHz)
26
1 1 0 1 0
Oit Oit(500Hz~1.11kHz)
27
1 1 0 1 1
Pi o Pi o(940Hz~2.19kHz)
28
1 1 1 0 0
Slow Di o Di o(680Hz~840Hz)
29
1 1 1 0 1
Li long Li ling(420Hz~470Hz)
30
1 1 1 1 0
911 Siren(150Hz~1kHz)
ON = 1 / OFF = 0
CH1 CH2 CH3 CH4 CH5
▪ If using voltage is seriously higher or lower than rated
voltage, it can reduce the self-life of the product or can cause
a problem on product operating. Make sure the using voltage
does not exceed +/-5% of the rated voltage.
▪ If lens or body of the product is contaminated by chemicals
such as thinner, benzene, the product can be damaged,
discolored or deformed. Please be careful.
▪ Do not give strong impact to the product. It can be a reason
of wire disconnection or short circuit.
QLIGHT CO., LTD.
http://www.qlight.com
E-mail : trade@qlight.com
Overseas Marketing Team / Factory
Tel) 055-328-4082
Fax)055-328-3883
182-25, Mukbang-Ro, Sangdong-Myeon, Gimhae-Si,
Gyeongsangnam-Do, Korea (178-1, Ugye-Ri)
5
9
Caution
10
Trouble Shooting
Situation
Main
reason
Solution
No sound
Wrong Wiring Making Sure Wiring
No Power Supply
Making Sure power
Supply
Sound Tone
Deterioration
or Volume
Decreasing
Supplying Voltage Lower
Than Rated Voltage
Checking Voltage
Selection Switch
Output 2 kinds of
sounds
Signal sound line short
Making Sure
Connection
Problem Sound tone
Selection Switch
Contact Qlight or
Agent
3. Left channel switch allows the user to select from 30
available sound tones.
4. Channel switch will be substituted for external wiring in
case of LC type products.
ON
OFF
GROUP CH Sound tone
WO
5 Special
Warning
Sounds
(2nd Group)
CH1
Rel rel rel(730Hz~920Hz)
CH2
Slow Ambulance PI-PO
(820Hz~1.05kHz)
CH3
Wye yong Wye yong
(770Hz~1.2kHz)
CH4
Phone ring 2(740Hz~910Hz)
CH5
Fire.A-ANG(770Hz~1.11kHz)
WN
5 Special
Warning
Sounds
(3rd Group)
CH1
Oit Oit(500Hz~1.11kHz)
CH2
Pi o Pi o(940Hz~2.19kHz)
CH3
Slow Di o Di
o(680Hz~840Hz)
CH4
Li long Li ling
(420Hz~470Hz)
CH5
911 Siren(150Hz~1kHz)
Inquiry and Customer Service
11
Loading...
