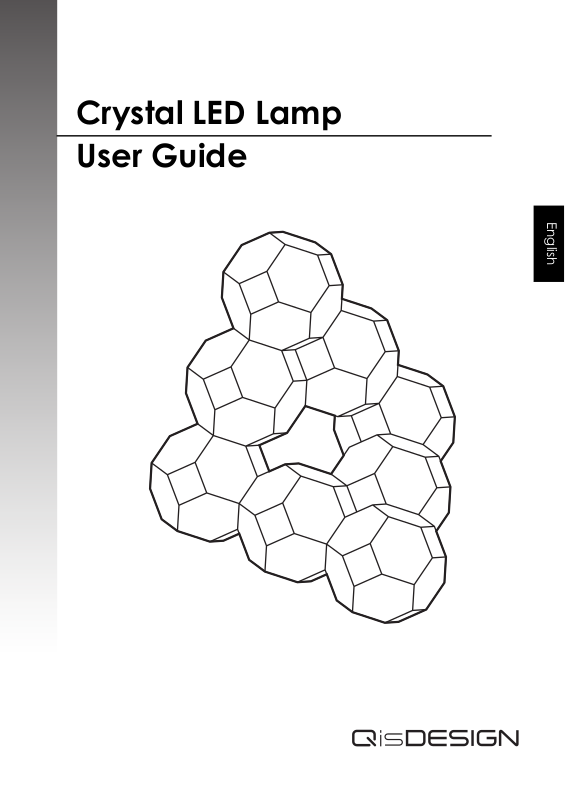

Crystal LED Lamp
User Guide

English

Introduction

Features

English

Package Contents

Thank you for purchasing the Coral LED (Light-Emitting Diode) Table Lamp. To ensure your
safety against any potential hazards and to optimize your lighting experience, please read
this guide carefully prior to use, and keep it in a safe place for future reference.

The features of this lamp include:

• Modular units that can be assembled: units of Crystal LED Lamp can be ssembled to create
various combinations either while on or off.

• Two pre-programmed lighting modes: Gradient (default), Full Spectrum.

• Semiconductive solid light source: no heat radiation and no fragile components inside
(shatter-free)

• No ultraviolet (UV) emissions. No need to worry about the risk of developing skin cancer

• Energy-conserving switching-type power supply

• CE certified

Check the packaging for the following items. If any is missing or damaged, please contact
the place of purchase immediately.

(A)

Crystal LED Table Lamp

Master Unit

(with DC power socket) x 1

(D) (E) (F)

Power Cord x 1

For Your Safety

This lamp has been tested and certified under strict regulations and standards for illuminating
devices. To ensure your safety, please pay attention to the warnings and cautions below,
and follow the instructions in this guide when using the lamp.

• To prevent electric shock, do not disassemble the lamp for any reasons.

• Do not attempt to modify the lamp. Doing so may cause the lamp to malfunction or result
in irrecoverable damage.

• Use only the supplied power adapter and connect only to a suitable outlet power (Model:
FSP024-DMCE1). Otherwise the lamp will fail to work normally or result in fire.

• Do not pull the power cord out of the power outlet by grasping the cable itself, as you may
damage the cable and the power outlet. Only ever remove the power cord by grasping
the plug on the end of the cable.

• Do not place any foreign objects inside any parts of the lamp. Doing so may cause the
lamp to malfunction.

• To avoid potential injuries, do not touch contact pins with wet objects or fingers.

• Place the lamp only on a flat and stable surface. Otherwise the lamp may topple over and
cause damage to it.

English2

Mode

(B) (C)

Check the number
of Slave Units
(without DC power
socket) included,
according to the
purchased model:

• NV01 _6: 5

• NV01 _8: 7

• NV01 _12: 11

Remote Control
x 1, including 1
mercury battery
(CR2025 3V)

Power Adapter x 1

User Guide x 1

In case of the following situations, unplug the lamp from the power outlet
immediately and contact the authorized service center or a qualified
service person for inspection or repair:

• When the outer casing of the lamp is broken

• When there are strange odors coming from the lamp

• When the lamp flickers

WARNING

CAUTION

• When the insulation of the lamp's wiring is damaged or frayed, and the
metal strings inside can be seen.

• When unknown chemical liquids are spilled on the lamp

• Do not use the lamp in a humid environment (like in a bathroom or
outdoors). Otherwise the components inside may short-circuit and result
in accidents.

• The lamp containes magnets. To avoid any damage or malfunction, the
lamp should be kept away from objects containing iron or magnetic
materials (e.g. paperclips or magnets).

• To prevent electric shock and product damage, never put wet objects
on the connectors (contact pins) on the unit.

• This lamp is designed for indoor use only. Do not use it outdoors.

• This lamp is not a toy. Keep it away from children.

• Never disassemble the lamp or remove any components from it, as
doing so may result in accidents and will void the product warranty.

Installation: Please follow the procedures below

1. Connecting the power cord to the master unit

Take the master unit and locate the power socket. Then, connect the DC output on the

1

power adapter to the power socket.

Connect the power cord to the AC input on the power adapter.

2

Plug the power cord into the wall outlet. When the lamp is successfully connected, the

3

master unit will start to flash to indicate: the lamp is on the standby status and can be
operated by remote control.

English

(A)

Connect one end of the power cord to
the power adapter

Connect the DC output from the power adapter
to the DC power socket on the master unit

Make sure "the master unit of Crystal LED lamp flashes" as a confirmation for
being connected. Afterwards, you can start to operate the Crystal LED Lamp
with the remote control.

(C)

(D)

Plug the power cord into the wall outlet

English 3
