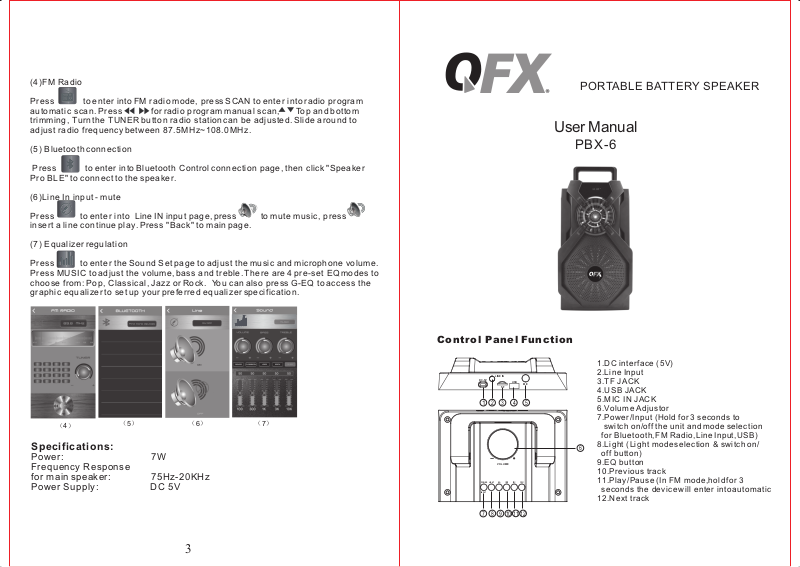

QFX PBX-6 User Manual

FM Radio

(4)

Press to enter into FM radio mode, press SCAN to enter into radio program
automatic scan. Press for radio program manual scan, Top and bottom
trimming, Turn the TUNER button radio station can be adjusted. Slide around to
adjust radio frequency between 87.5MHz~108.0MHz.

(5) Bluetooth connection

Press to enter into Bluetooth Control connection page, then click "Speaker
Pro BLE" to connect to the speaker.

(6)Line In input - mute

Press to enter into Line IN input page, press to mute music, press
insert a line continue play. Press "Back" to main page.

(7) Equalizer regulation

Press to enter the Sound Set page to adjust the music and microphone volume.
Press MUSIC to adjust the volume, bass and treble. There are 4 pre-set EQ modes to
choose from: Pop, Classical, Jazz or Rock. You can also press G-EQ to access the
graphic equalizer to set up your preferred equalizer specification.

PORTABLE BATTERY SPEAKER

User Manual

PBX-6

Control Panel Function

4

Specifications:

Power: 7W
Frequency Response
for main speaker: 75Hz-20KHz
Power Supply: DC 5V

3

1.DC interface (5V)

LINE IN

DC-5V

1

765

USB

MIC

TF

3

2

54

2.Line Input

3.TF JACK

4.USB JACK

5.MIC IN JACK

6.Volume Adjustor

7.Power/Input (Hold for 3 seconds to
switch on/off the unit and mode selection
for Bluetooth,FM Radio,Line Input,USB)

8.Light (Light mode selection & switch on/

6

VOLUME

off button)

9.EQ button

10.Previous track

LIGHTPOWER EQ

INPUT

11.Play/Pause (In FM mode,hold for 3
seconds the device will enter into automatic

12.Next track

11

8

7

12

9

10

POWER SOURCE

1.Please charge the unit at least 4 hours before first time using.

2.Long press the POWER/INPUT button on the top panel to switch on or off the speaker.

CHARGE THE BATTERY

When the battery is charging, the CHARGE STATUS lights red. After the battery has
fully charged, the light turns to green.

1.Connect the USB cable to the DC IN JACK of the speaker firmly.

2.When the battery is fully charged, please disconnect the USB cable from the speaker.

3.The speaker works normally when charging.

POWER/INPUT BUTTON

Press POWER/INPUT button on the top panel to select playing mode(LINE IN,USB,
BT,TF card OR FM).

LIGHT BUTTON

Press LIGHT button on the top panel to select light mode,there are 12 light modes
for selection.

EQ BUTTON

Press EQ button on the top panel to select EQ modes: Pop, Classical, Jazz and Rock.

PREVIOUS/NEXT BUTTON

By pressing PREVIOUS/NEXT button on the top panel ,you can select a specific song
from the play list.

PAUSE/PLAY BUTTON

To stop playing the current track, please press PAUSE/PLAY button on the top panel.
Press it once again to continue playing.

VOLUME ADJUSTMENT DIAL

Twist the dial anticlockwise to decrease the volume and clockwise to increase the
volume.

LINE IN JACK

1. Connect an audio cable (not included) to the LINE IN JACK of the speaker and to
the audio output socket on the external audio devices such as MP3 player, discman,
etc,then select LINE by pressing the POWER/INPUT button on the top panel .

2.Play from an external audio device.

TF JACK

Insert TF card directly for playing

USB JACK

Insert USB card directly for playing

MIC IN JACK

Plug in microphone directly for playing.

To control the device via your phone, please find and install the app " Speaker Pro ".
Open the App "Speaker Pro" on your phone, there are 8 function icons on the main
page :

1.Bluetooth Music play

2.USB card play
3

.Light control colour, brightness and light flash mode

FM Radio

4.

5.Control Bluetooth connect

6.Line In input - mute
7

.Equalizer,volume adjustment for music, Microphone

and quitar input.

8.TF card player

is as same as USB card play)

(1) Bluetooth Music play

Press to enter into Bluetooth Music play page, Press "Pick songs to play"
to Pick Song page to choose the song you want to play, press "Done" to return to
Bluetooth Music play page, also you can operate pause, play, backward, forward&
volume adjustment, repeat, random play. Press "Back" to return to the main page.

(2)USB card play
When inserting a USB into the speaker, press to enter the USB Card play
page. To choose a song and play music on the USB card, press "Play" to enter into
the play control page ,where you can operate pause, play, backward, forward &
volume adjustment. Press "List" to return to USB list page, press "Back" to return
to the main page.

(3) Light control colours, brightness and colour change mode

Press to enter into Light Control page, you can select any colour to show the
light colour on the speaker, as well as adjust the brightness of the light. To go back
to main page, press " " in the left corner.
Press "Profiles" to enter into Light Effect mode page, you can choose from a total
of 12 pre-set light effect modes. To return to Light Control page, press "Light"
in the left corner.

(The instruction for TF card play

1

2

3

4

5

6

7

8

FM FUNCTION

1.Press POWER/INPUT to select FM radio

2.Long press PLAY/PAUSE button on top panel for automatic searching and saving
the radio stations.
Press PREVIOUS/NEXT button to select a specific radio station.

Bluetooth:

Please press POWER/INPUT button on top panel to select Bluetooth mode.
Simultaneously open the Bluetooth setting on your phone, tablet or any other bluetooth
enabled audio device and select "PBX-6"(no need to match code),the unit and device
will then connected via Bluetooth. Press the "NEXT SONG" and "PREVIOUS SONG"
button on the top panel to select the song, press" PLAY/PAUSE" button to control the
playing status.

1

1 2 3

2
