Page 1

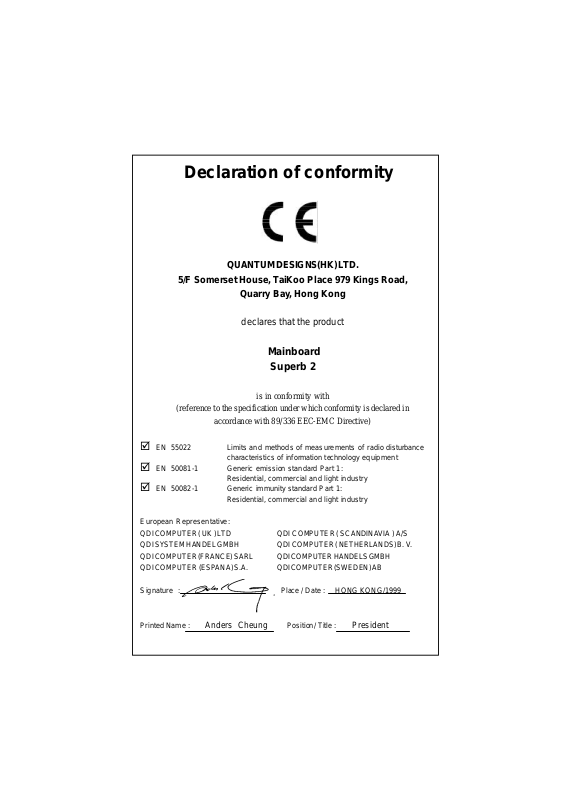

Declaration of conformity

QUANTUM DESIGNS(HK) LTD.

5/F Somerset House, TaiKoo Place 979 Kings Road,

Quarry Bay, Hong Kong

declares that the product

Mainboard

Superb 2

is in conformity with

(reference to the specification under which conformity is declared in

accordance with 89/336 EEC-EMC Directive)

þ EN 55022 Limits and methods of measurements of radio disturbance

characteristics of information technology equipment

þ EN 50081-1 Generic emission standard Part 1:

Residential, commercial and light industry

þ EN 50082-1 Generic immunity standard Part 1:

Residential, commercial and light industry

European Representative: QDI COMPUTER ( UK ) LTD QDI COMPUTER ( SCANDINAVIA ) A/S QDI SYSTEM HANDEL GMBH QDI COMPUTER ( NETHERLANDS) B. V. QDI COMPUTER (FRANCE) SARL QDI COMPUTER HANDELS GMBH QDI COMPUTER (ESPANA) S.A. QDI COMPUTER (SWEDEN) AB

Signature : Place / Date : HONG KONG/1999

Printed Name : Anders Cheung Position/ Title : President

Page 2

Declaration of conformity

Trade Name: QDI Computer ( U. S . A. ) Inc.

Model Name: Superb 2

Responsible Party: QDI Computer ( U. S. A.) Inc.

Address: 41456 Christy Street

Fremont, CA 94538

Telephone: (510) 668-4933

Facsimile: (510) 668-4966

Equipment Classification: FCC Class B Subassembly

Type of Product: Mainboard

Manufacturer: Quantum Designs (HK) Inc.

Address: 5/F, Somerset House, TaiKoo Place

979 Kings Road, Quarry Bay, HONG KONG

Supplementary Information:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Signature : Date : 1999

Page 3

CONTENTS

1. Introduction ............................................................... 1

Overview .......................................................................................... 1

Key Features.....................................................................................1

2. Installation Instructions ............................................. 5

External Connectors .............................................................. 5

PS/2 Keyboard & PS/2 Mouse Connector ............................................ 5

USB1 & USB2 .................................................................................... 5

Parallel Port Connector and Serial Port Connector................................ 5

Line-in jack, Microphone-in jack, Speaker-out jack

and MIDI/Joystick connector ............................................................... 6

ATX Power Supply Connector & Power Switch .................................. 6

Hard Disk LED Connector (HD_LED).................................................... 7

Reset Switch (RESET) .......................................................................7

Speaker Connector (SPEAKER) .......................................................... 7

Power LED Connector (PWR_LED) ..................................................... 7

Key_Lock Connector (KEY_L)............................................................ 7

ACPI LED Connector (GREEN_LED).................................................... 7

Hardware Green Connector (SLEEP).................................................. 7

Infrared Header (IrDA) .......................................................................8

Fan Connector (CPUFAN & CHSFAN) ................................................. 8

Wake-Up On LAN (WOL)....................................................................9

Wake-Up On Internal Modem (WOM) ................................................... 9

Digital Audio Connector (JP6, JP7) ...................................................... 9

Hardware Volume Control (JP4, JP5) ................................................ 10

Expansion Slots & I/O Ports description............................................. 10

Jumper Settings.......................................................................... 10

Clear CMOS ..................................................................................... 10

Enable/Disable on-board audio (JP3)................................................. 11

Page 4

CONTENTS

Enable keyboard password power-on function(JKB) .......................... 11

Memory Configuration..............................................................12

3. BIOS Description .............................................................. 13

Utility Support...........................................................................13

FLASH.EXE.......................................................................................... 13

AWARD BIOS Description ........................................................15

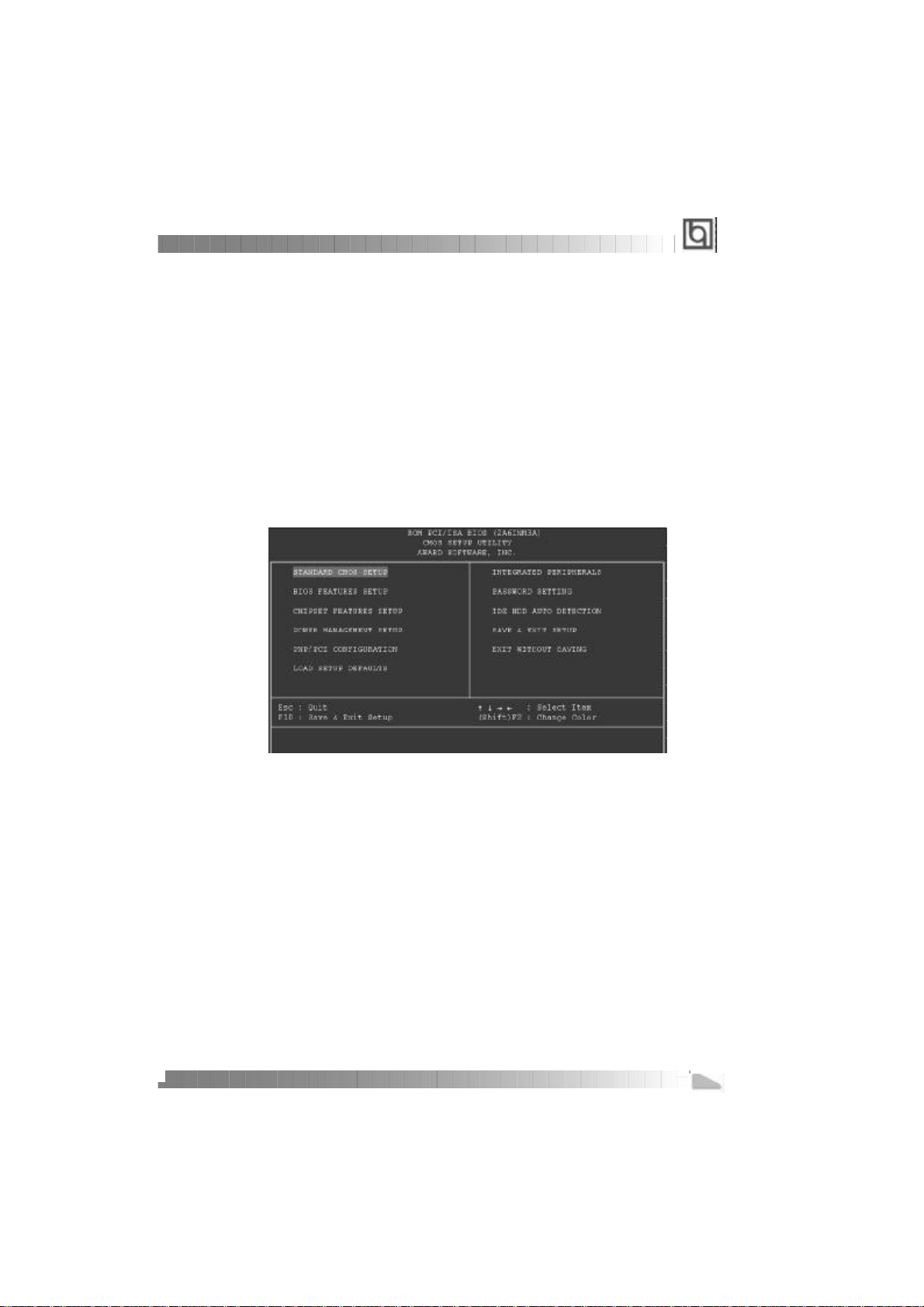

Entering Setup .....................................................................................15

Load Setup Defaults .......................................................................... 15

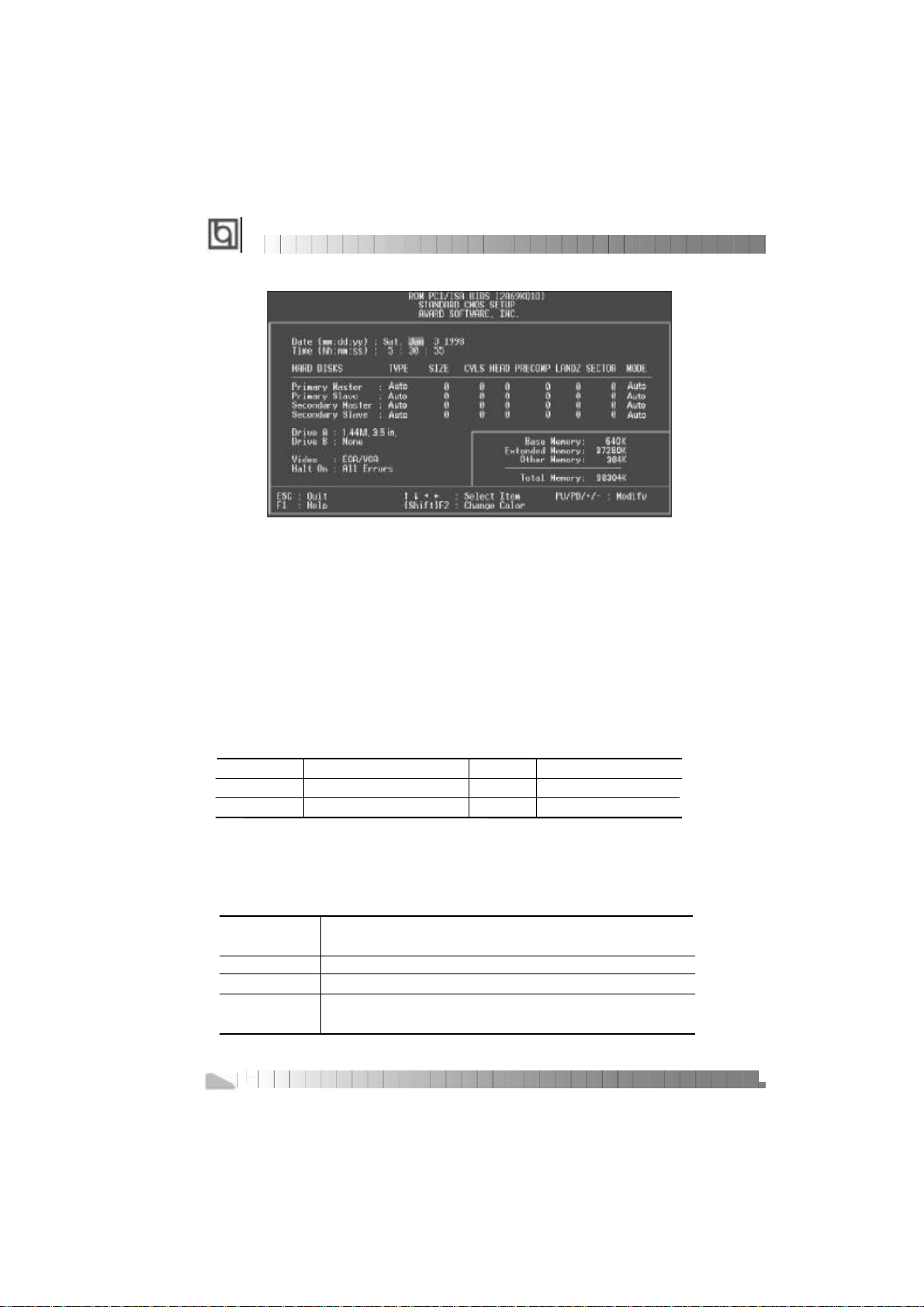

Standard CMOS Setup ....................................................................... 15

BIOS Features Setup ........................................................................ 18

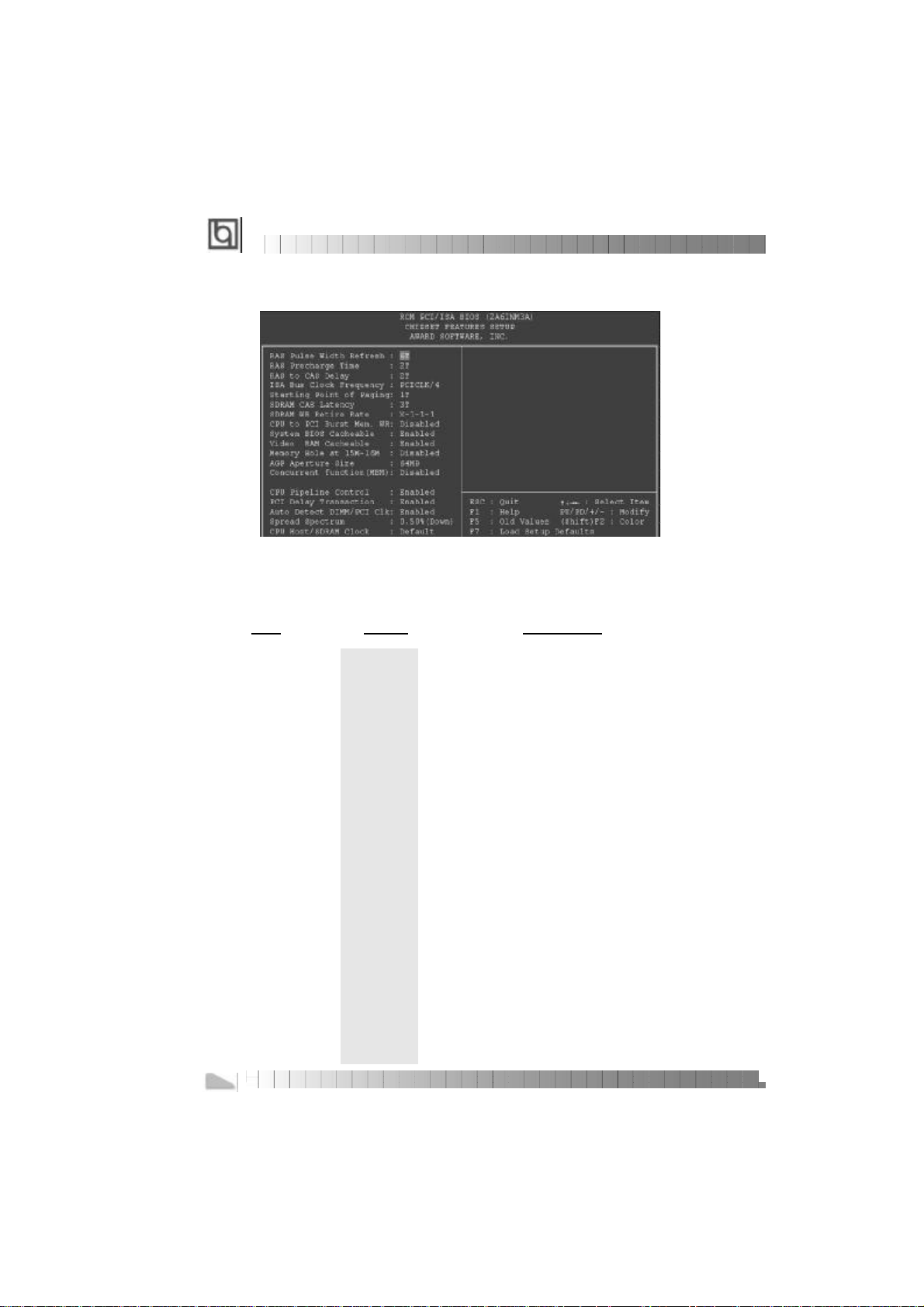

Chipset Features Setup...................................................................... 20

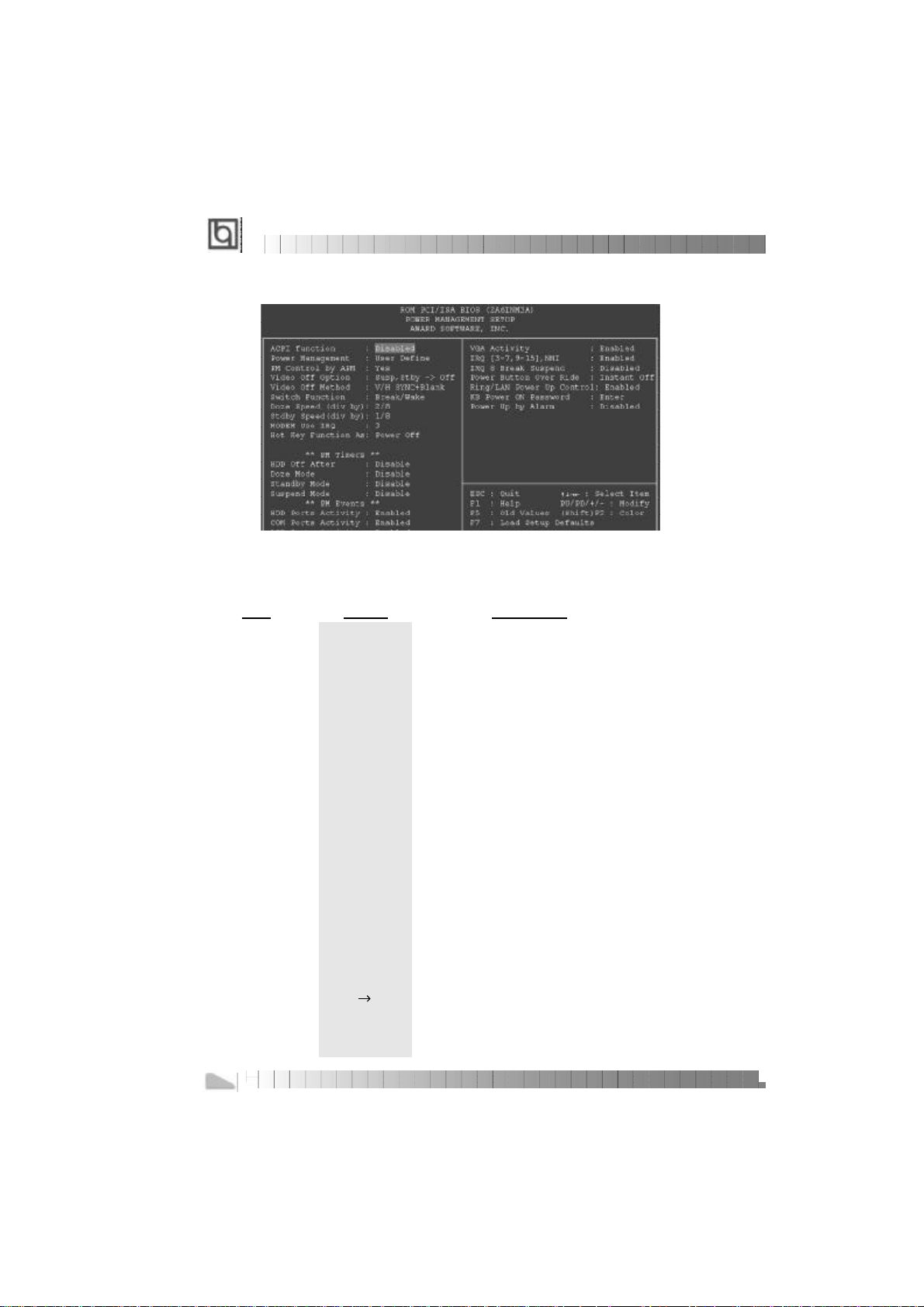

Power Management Setup ................................................................. 22

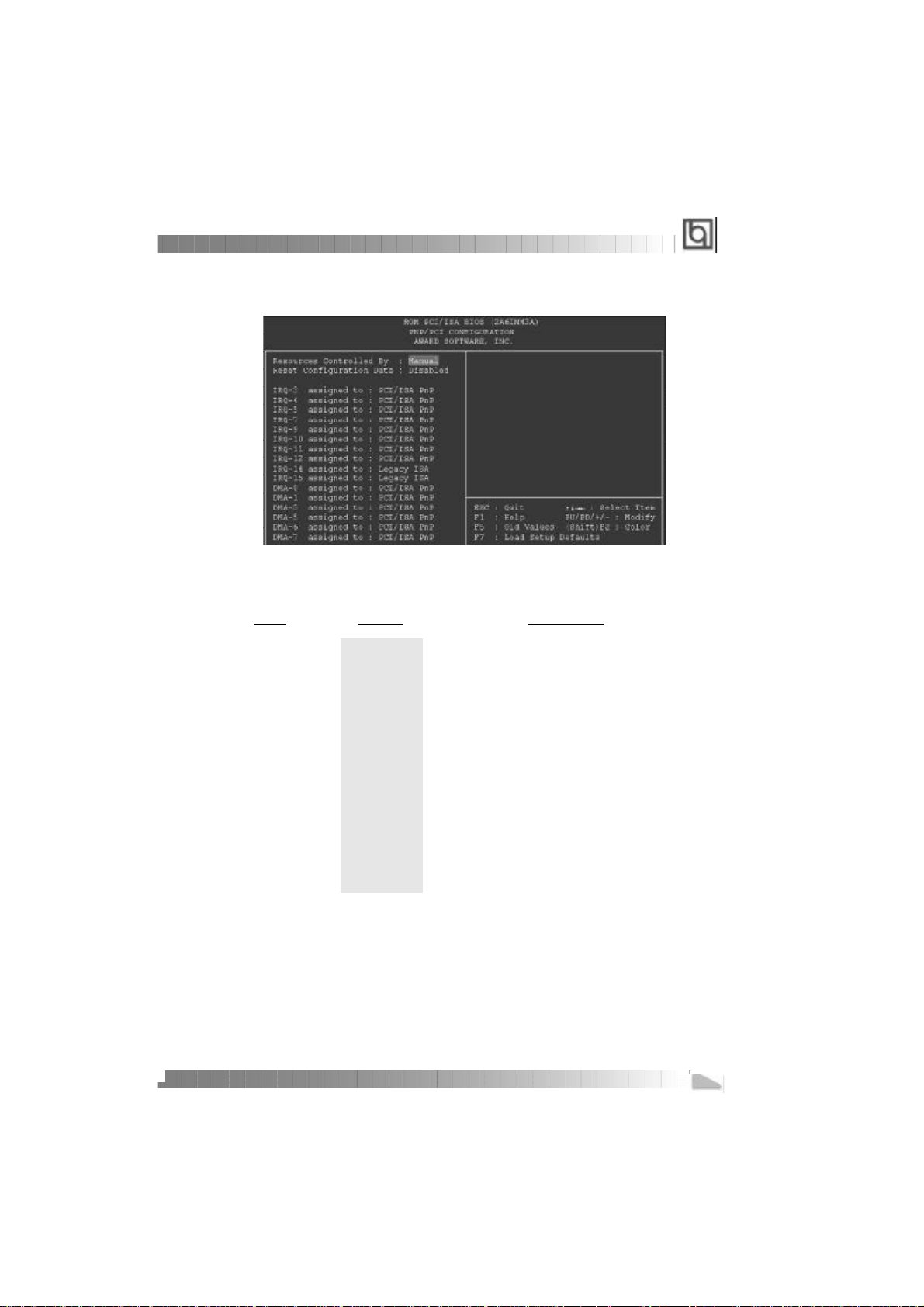

PNP/PCI Configuration Setup ............................................................... 25

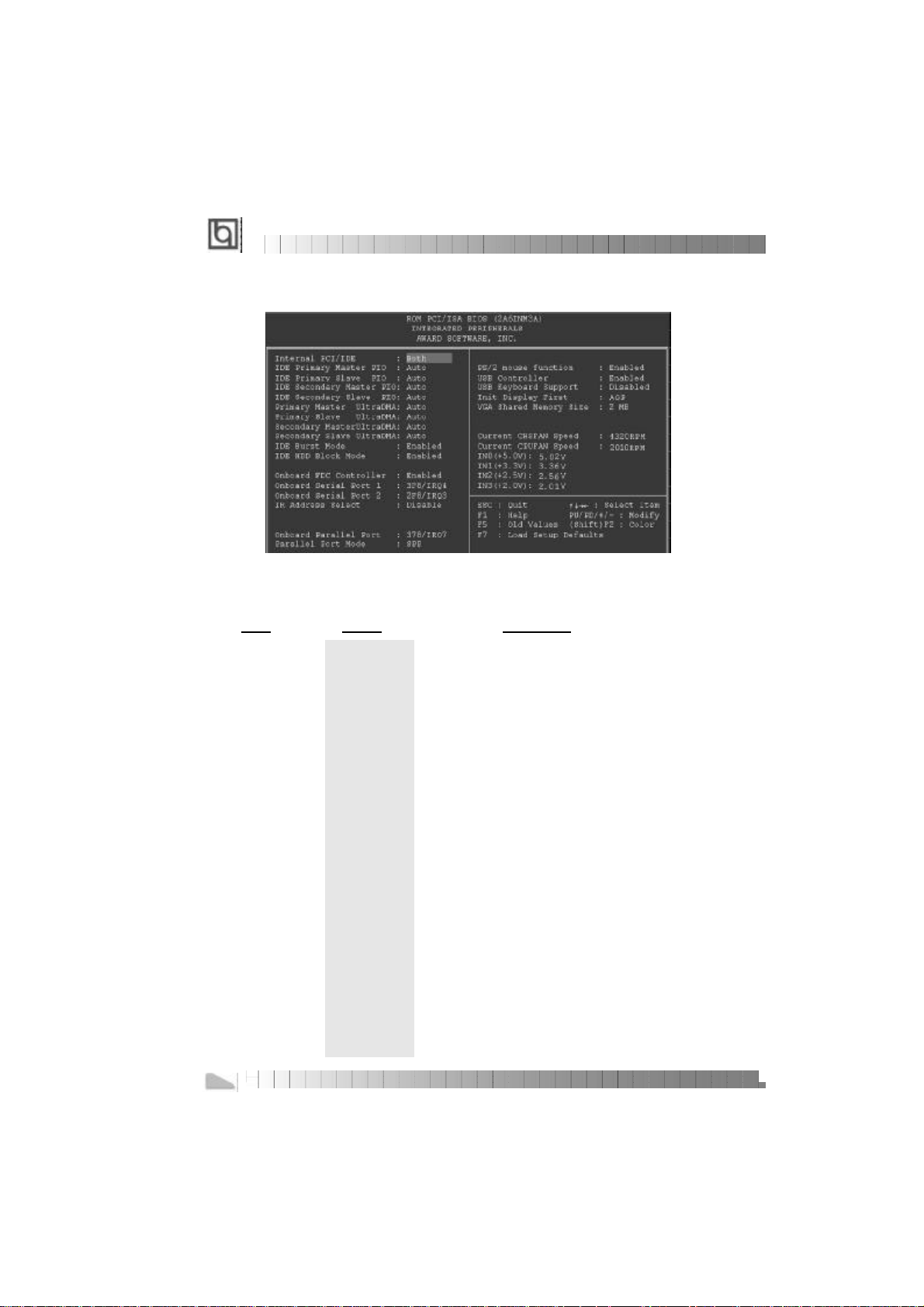

Integrated Peripherals ........................................................................ 26

Password Setting .............................................................................. 28

IDE HDD Auto Detection...................................................................... 29

Boot with BIOS defaults ..................................................................... 30

4. YAMAHA Audio Description ................................................. 31

Features..............................................................................................31

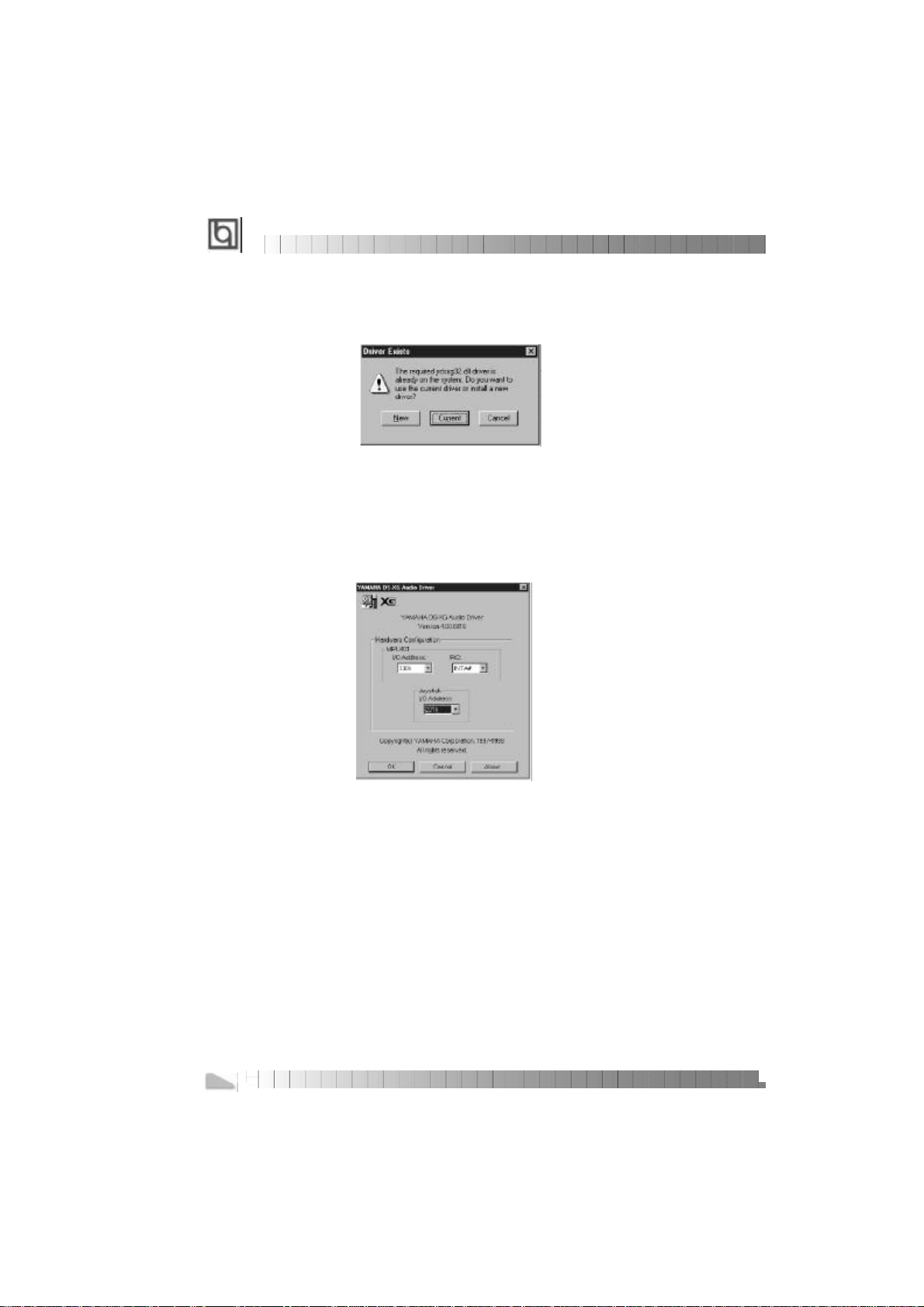

YAMAHA Software Installation.............................................................31

Installation of Windows 95/98 Driver.....................................................31

Installation of Dos/Windows 3.1X Driver ...............................................33

Installation of Windows NT 4.0 Driver ...................................................33

Appendix A QDI Mainboard Utility CD-ROM ......................... 35

Appendix B Boot Logo ........................................................ 36

Page 5

As widely known, SpeedEasy has been an advanced innovation of QDI.

As the development of Intel’ s new processor, the bus ratio of the processor has been locked, it’ s not necessary to setup the bus ratio either by hardware jumper or software BIOS. After installing the Intel Celeron

processor, setup the bus speed in “Chipset Features Setup” section of the BIOS.

We provide users with CPU overclock feature. The bus speed can be set as 66/75/83/100/112MHz. However, whether or not your system can be overclocked depends on your processor’ s capability. We do not guarantee the overclock system to be stable.

“CPU Clock Ratio Jumpless” option is reserved for bus ratio unlocked processor. For bus ratio locked processor, this option doesn’ t work.

For detailed information, please refer to “Chipset Features Setup” section of the BIOS.

Page 6

-- This page is intentionally left blank --

Page 7

Chapter 1

Introduction

Overview

The Superb 2 green mainboard utilizes the SiS620 chipset which integrates 2D/3D graphics and video acceleration, providing a highly integrated solution for fully compatible, high performance and cost-effective PC/microATX platform. It provides 66/100MHz system bus support for all Intel Celeron

PPGA 370 processors. Both 66MHz and 100MHz SDRAMs are supported. It also provides advanced features such as wake-up on LAN, wake-up on internal/external modem and keyboard password power-on function. The mainboard also offers optionally integrated Yamaha PCI audio for an exceptional AC’ 97 audio subsystem. The green function is in compliance with the ACPI specification.

Key Features

Form factor

l MicroATX form factor of 244mm x 201mm.

Microprocessor

l Supports Intel Celeron

PPGA 370 processors at 300A/333/366/400/433/466MHz

and future processors.

l Supports 66/100MHz host bus speed. l CPU core supply voltage adjustable from 1.3V to 3.5V through on- board switching

voltage regulator with VID(Voltage ID).

Chipset

l SiS620 :System Controller Integrated 3D Graphics l SiS5595:PCI-to-ISA Bridge

System memory

l Provides three 168 pin 3.3V unbuffered DIMM sockets.

l Supports both 66MHz and 100MHz SDRAMs. l Minimum memory size is 8MB, maximum memory size is 768MB. l SDRAM 64 bit data interface with ECC support.

Onboard IDE

l Supports two PCI PIO and Bus Master IDE ports.

Two fast IDE interfaces supporting four IDE devices including IDE hard disks and

Manual for Superb 2

Page 8

Introduction

CD - ROM drives.

Supports up to PIO Mode 4 timing.

Supports “Ultra DMA/33” and “Ultra DMA/66” Synchronous DMA mode transferringup

to 33/66 Mbytes/sec.

Integrated 16x32bit buffer for IDE PCI Burst Transfers.

Onboard I/O

Use SiS6801 super I/O chip.

One floppy port supporting up to two 3.5’ ’ or 5.25” floppy drives with 360K/720K/1.2M/1.44M/2.88M format.

Two high speed 16550 compatible UARTs(COM1/COM2/COM3/COM4 selective) with 16-byte send/receive FIFOs.

One enabled parallel port at the I/O address 378H/278H/3BCH with additional bi-direction I/O capability and multi-mode as SPP/EPP/ECP (IEEE 1284 compliant).

Circuit protection provided, preventing damage to the parallel port when a connected printer is powered up or operates at a higher voltage.

Supports LS-120 floppy disk drive.

Supports ZIP drives.

All I/O ports can be enabled/disabled in the BIOS setup.

Onboard AGP

Based on the onchip AGP graphics controller, integrated 2D/3D graphics and video

accelerators.

AGP 1.0/2.0 specification compliant.

Onboard 8MB SDRAM display memory achieves optimum 2D/3D performance

(manufacturing option).

Supports shared memory to 8MB when no display memory is on board.

Supports a maximum resolution of 1600x1200 at 85Hz when having 8MB onboard

video SDRAM.

Onboard Audio

Based on Yamaha YMF740 PCI audio controller and AC 97 audio decoder.

Compatible with Sound BlasterTM, Sound Blaster ProTM and Windows Sound

System TM.

PC97/PC98 specification compliant.

Provides onboard Line-in Jack, Speaker-out Jack and Microphone-in Jack.

Advanced features

PCI 2.2 specification compliant.

Provides Anti-Virus function.

Provides on-board PS/2 mouse and PS/2 keyboard ports.

Two USB ports supported.

Manual for Superb 2

Page 9

Chapter 1

Provides infrared interface.

Supports Windows 95/98 software power-down.

Supports wake-up on LAN and wake-up on internal/external modem.

Supports auto fan off when the system enters suspend mode.

Provides onboard 3.3V regulator to support ATX power supply without 3.3V output.

Supports system monitoring (integrated in SiS5595), monitors system voltages and fan speed.

Provides management application such as ManageEasy and LDCM(LANDesk

Manager). (manufacturing option)

Supports keyboard password power-on function.

BIOS

Licensed advanced AWARD BIOS, supports flash ROM with 2MB memory size,

plug and play ready.

Supports IDE CD-ROM or SCSI boot up.

Green function

Supports ACPI (Advanced Configuration and Power Interface) and ODPM (OS

Directed Power Management).

l Supports three green modes: Doze, Standby and Suspend.

Expansion slots

l 2 ISA slots and 3 PCI slots.

Client

Manual for Superb 2

Page 10

-- This page is intentionally left blank --

Manual for Superb 2

Page 11

chapter 2

Chapter 2

Installation Instructions

This section covers External Connectors, Jumper Settings and Memory Configuration. Refer to the mainboard layout chart for locations of all jumpers, external connectors, slots and I/O ports. Furthermore, this section lists all necessary connector pin assignments for your reference. The particular state of the jumpers, connectors and ports are illustrated in the following figures. Before setting the jumpers or inserting these connectors, please pay attention to the directions.

Be sure to unplug the AC power supply before adding or removing expansion cards or other system peripherals, otherwise your mainboard and expansion

cards might be seriously damaged.

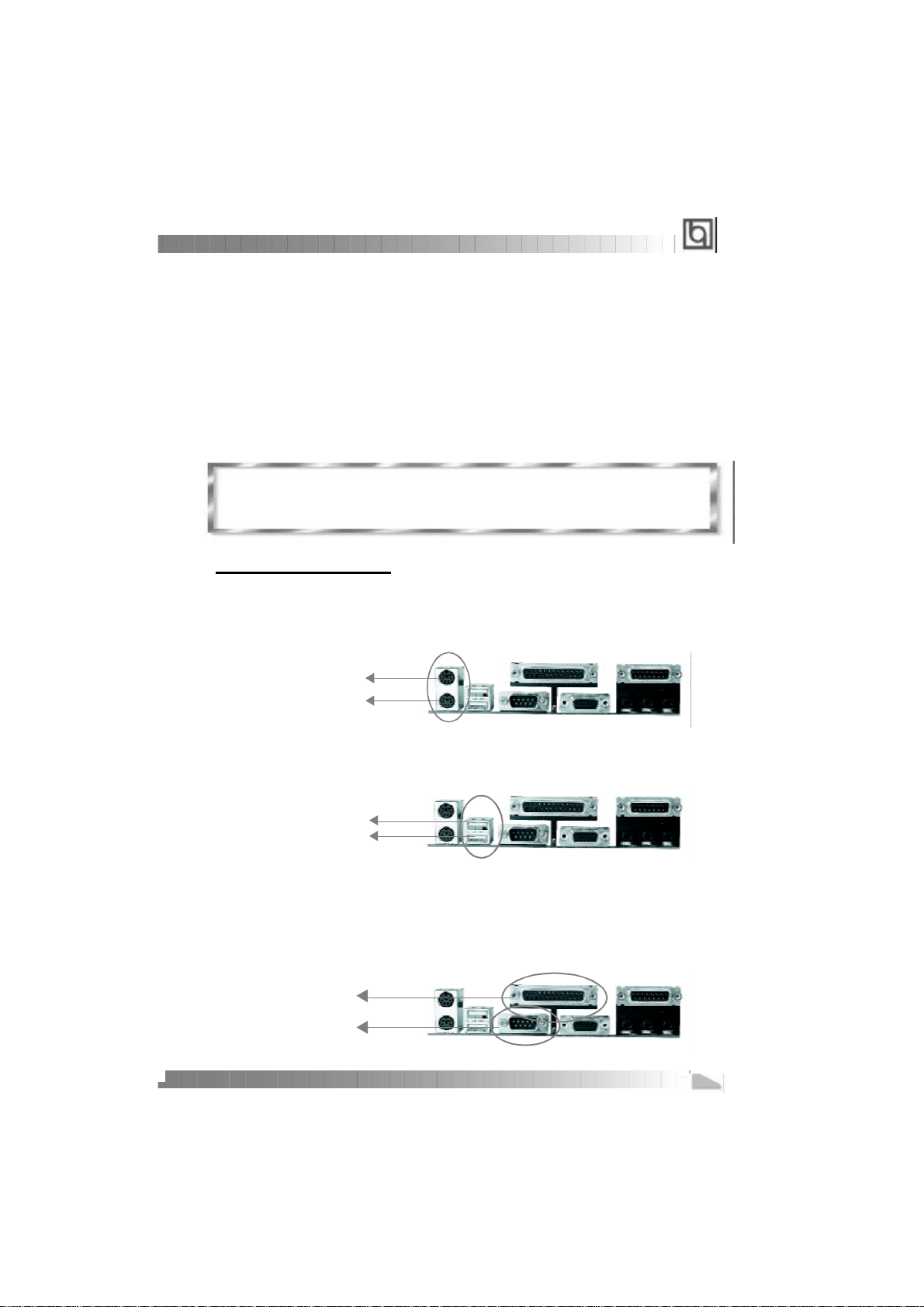

External Connectors

PS/2 Keyboard Connector, PS/2 Mouse Connector

PS/2 keyboard connector is for the usage of PS/2 keyboard. If using a standard AT size keyboard, an adapter should be used to fit this connector. PS/2 mouse connector is for the usage of PS/2 mouse.

PS/2 Mouse Connector

PS/2 Keyboard Connector

USB1, USB2

Two USB ports are available for connecting USB devices.

USB1 USB2

Parallel Port Connector and Serial Port Connector (UART1, UART2)

The parallel port connector can be connected to a parallel device such as a printer, while the serial port connectors can be connected to serial port devices such as a serial port mouse. You can enable/disable them and choose the IRQ or I/O address in “Integrated

Peripherals” from AWARD BIOS SETUP.

Parallel Port

UART1

Manual for Superb 2

Page 12

Installation Instructions

The serial port UART2 is not available on the back panel. Therefore, we provide a 9-pin ribbon cable with bracket for UART2 port. (manufacturing option)

UART2

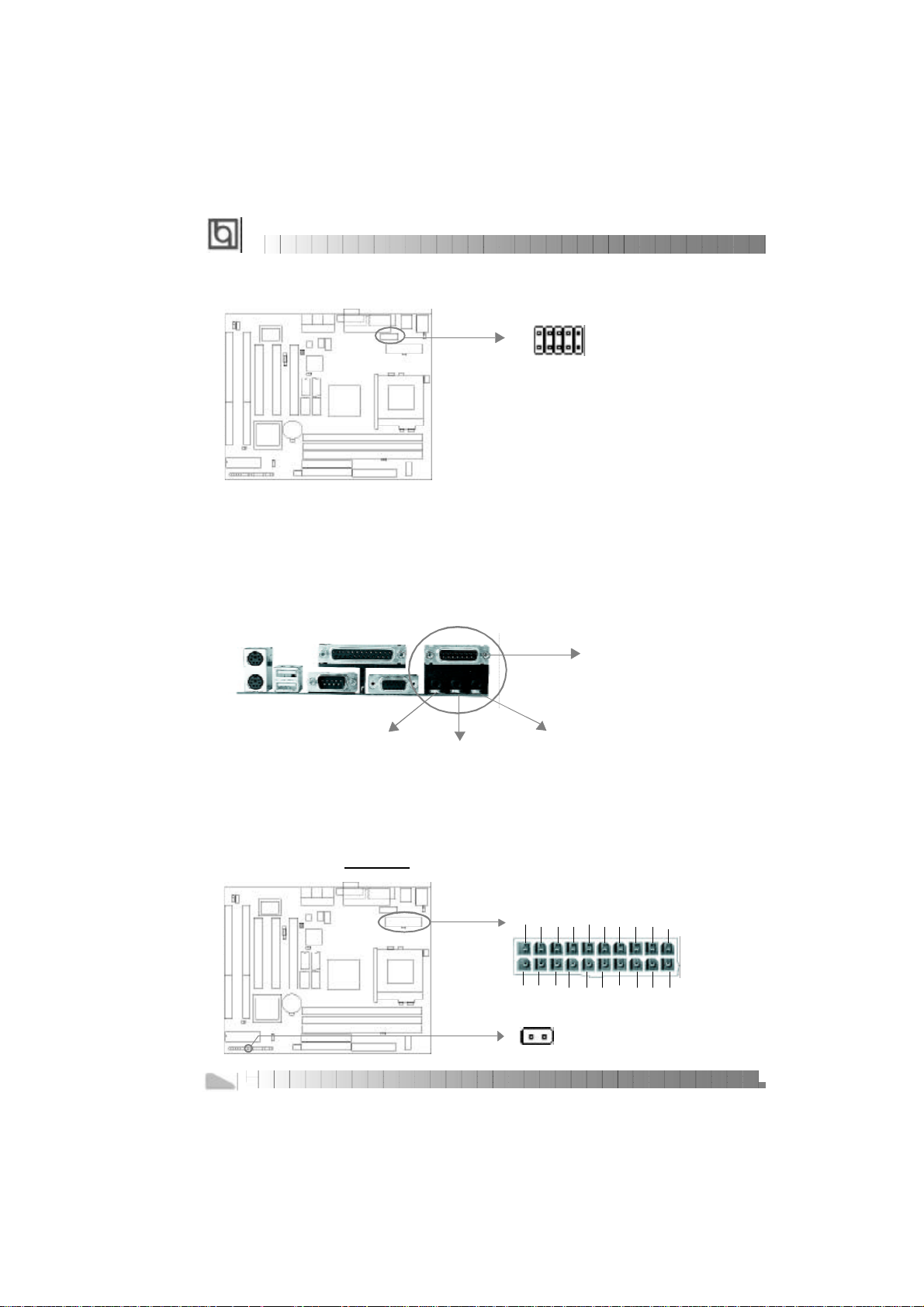

Line-in jack, Microphone-in jack, Speaker-out jack and MIDI/Joystick connector

The Line-in jack can be connected to devices such as a cassette or minidisc player for playback or recording. The Microphone-in jack can be connected to a microphone for voice input. The Speaker-out jack allows you to connect speakers or headphones for audio output from the internal amplifier. The MIDI/Joystick connector allows you to connect a game joystick or a MIDI device.

MIDI/Joystick

Speaker out

Line in

Microphone in

ATX Power Supply Connector & Power Switch (POWER)

Be sure to connect the power supply plug to this connector in its proper orientation. The power switch (POWER) should be connected to a momentary switch. When powering up your system, first turn on the mechanical switch of the power supply (if one is provided), then push once the power switch. When powering off the system, you needn’ t turn off the

mechanical switch, just Push once

the power switch.

Manual for Superb 2

ATX Power Supply Connector

3.3V 3.3V GND 5V GND 5V GND PS-OK 5VSB 12V

3.3V -12V GND PSON GND GND GND -5V 5V 5V

POWER

Page 13

chapter 2

Note:

1. If you change “soft-off by PWR-BTTN” from default “Instant-off” to “Delay 4 Secs” in the “POWER MANAGEMENT SETUP” section of the BIOS, the power switch should be pressed for more than 4 seconds before the system powers down.

2. Push the power switch once, within 10 seconds, the AC power supply powers on, enabling the system to be powered on.

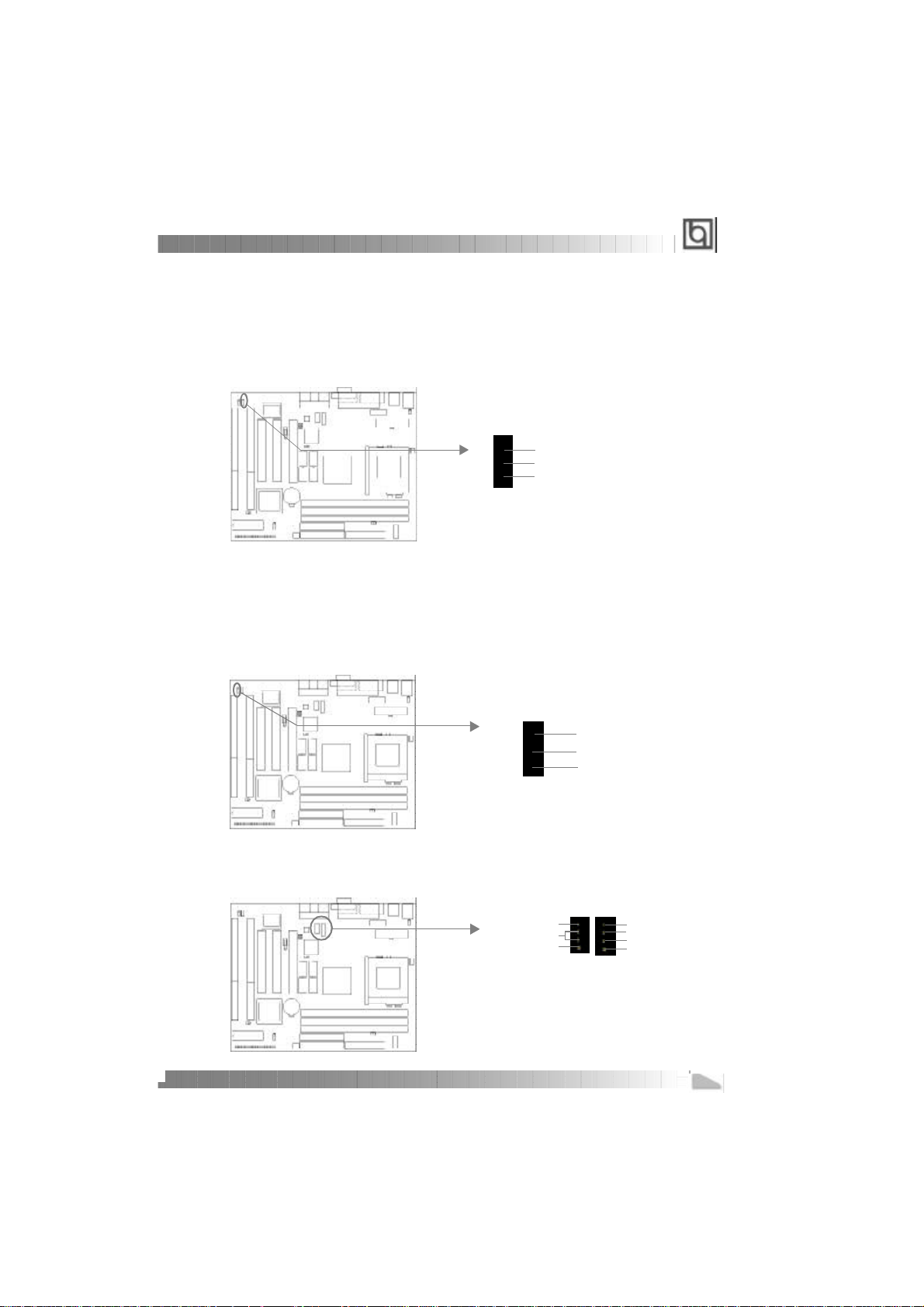

Hard Disk LED Connector (HD_LED)

The connector connects to the case’ s IDE indicator LED indicating the activity status of IDE hard disk. The connector has an orientation. If one way doesn’ t work, try the other way.

Reset Switch (RESET)

The connector connects to the case’ s reset switch. Press the switch once, the system resets. However, press the switch for more than 4 seconds, the system will be powered off.

Speaker Connector (SPEAKER)

The connector can be connected to the speaker on the case.

Power LED Connector (PWR_LED)

The power LED has two status. When the system is in power-off status, the LED is off. When the system is powered up, the LED is on. The connector has an orientation.

Key-Lock Connector (KEY_L)

The connector can be connected to the keyboard lock switch on the case for locking the keyboard.

ACPI LED Connector (GREEN_LED)

The ACPI LED has three status. When the system is in power-off status, the LED is off. When the system is powered up, the LED is on. When the system enters suspend mode, the LED will flash. The connector has an orientation.

Hardware Green Connector (SLEEP)

Push once the switch connected to this header, the system enters suspend mode.

Manual for Superb 2

Page 14

Installation Instructions

S P

L E D

H D _

L E D

R E S E T

P O W

N C

A K

K E Y

E D

P W

R _

L E D

C K

E Y _

E P

N _ L E D

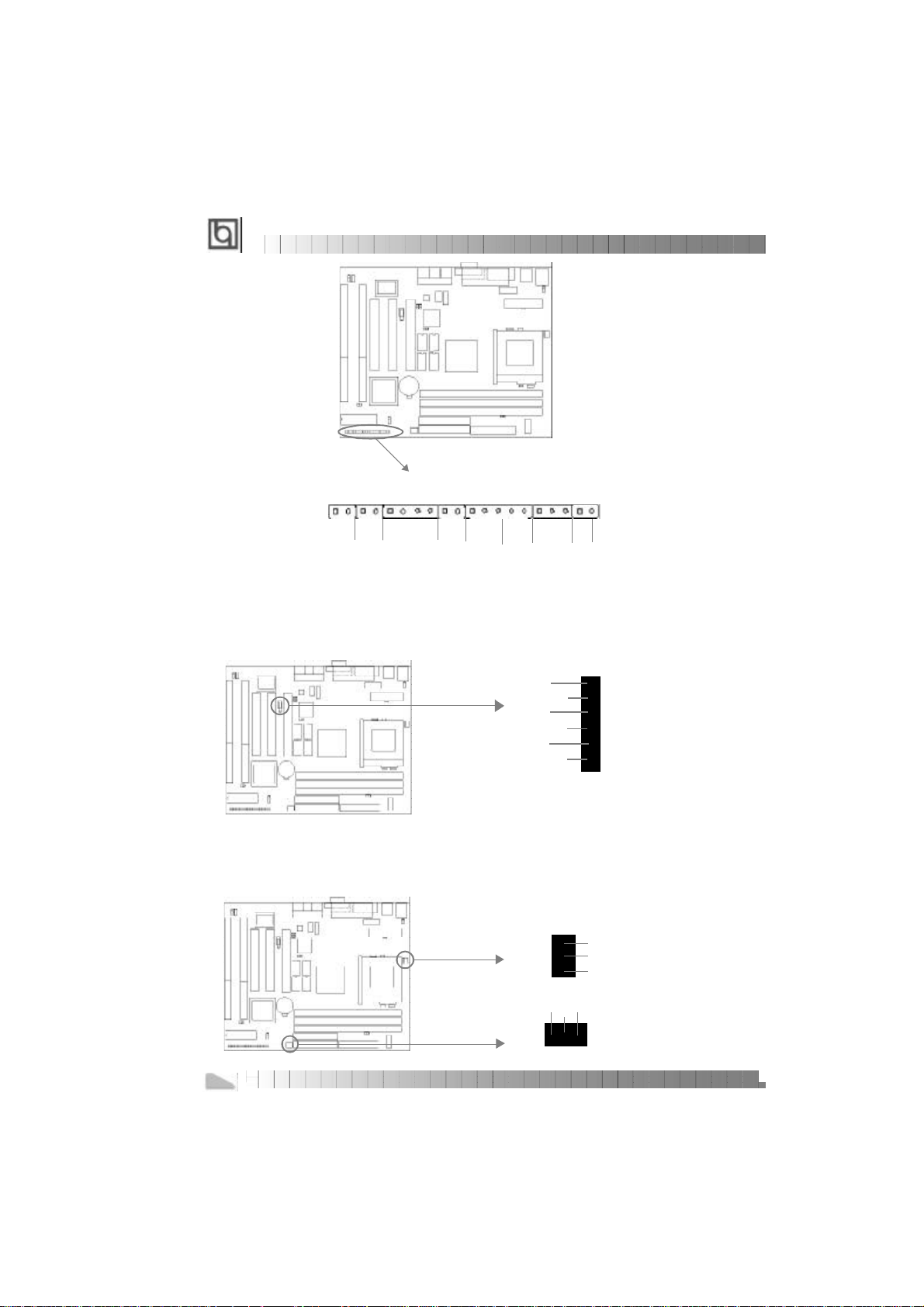

Infrared Header (IrDA)

This connector supports wireless transmitting and receiving. When using this function, configure the settings for IR Address, IR Mode and IR IRQ from the “INTEGRATED PERIPHERALS” section of the BIOS.

VCC

IRTX

GND

IRRX

VCC

Fan Connector (CPUFAN, CHSFAN)

The fan speed of these two fans can be detected and viewed in “Integrated Peripherals” section of the BIOS. These two fans will be automatically turned off after the system enters suspend mode.

CPUFAN

FAN GND +12V

SENSE

+12V

FAN GND

SENSE

CHSFAN

Manual for Superb 2

Page 15

chapter 2

Wake-Up On LAN (WOL)

Through the Wake-Up On LAN function, a wake event occurring from the network can wake up the system. If this function is to be used, please be sure an ATX 2.01 power supply of which 5VSB line is capable of delivering 720mA, and a LAN adapter which supports this function is used. Then connect this header to the relevant connector on the LAN adapter, set “Ring/LAN Power Up Control” as Enabled in the “POWER MANAGEMENT SETUP” section of the BIOS. Save & exit, then boot the operating system once to make sure this function takes effect.

+5V standby GND Signal for waking up (active high)

Wake-Up On Internal Modem (WOM)

Through the Wake-Up On Internal Modem function, the system which is in the power-off status can be powered on by a ring signal received from the internal modem. If this function is to be used, be sure an internal modem card which supports the function is used. Then connect this header to the relevant connector on the modem card, set “Ring/LAN Power Up Control” to Enabled in the “POWER MANAGEMENT SETUP” section of the BIOS. Save & exit, then boot the operating system once to make sure this function takes effect.

+5V standby Signal for waking up (active low)

GND

Digital Audio Connector (JP6, JP7)

JP6 is a Sony standard CD audio connector, and JP7 is a Mitsumi standard CD audio connector. They can be connected to a CD-ROM drive respectively through a CD audio cable.

CD Left channel

CD Right channel

Manual for Superb 2

GND

JP6

GND CD Left channel GND

CD Right channel

JP7

Page 16

Installation Instructions

Hardware Volume Control (JP4, JP5)

The onboard audio allows volume control with a push-switch operation. A single-push on the JP5 switch increases volume level by 1.5dB, while a single-push on the JP4 switch attenuates it by 1.5dB. Simultaneous pushing both switches S1 and S2 enables output muting.

JP5JP4

Expansion Slots & I/O Ports description

Slot / Port Description ISA 1 First ISA slot.

ISA2 Second ISA slot. PCI 1 First PCI slot. PCI 2 Second PCI slot. PCI 3 Third PCI slot. IDE 1 Primary IDE port. IDE 2 Secondary IDE port. FLOPPY Floppy Drive Port.

Jumper Settings

Jumpers are located on the mainboard, they represent, clear CMOS jumper JCC, enable keyboard password power-on function jumper JKB, and enable/disable onboard audio jumper JP3. Pin 1 for all jumpers are located on the side with a thick white line ( Pin1→ ), referring to the mainboard’ s silkscreen. Jumpers with three pins will be shown as to represent pin1 & pin2 connected and to represent pin2 & pin3 connected.

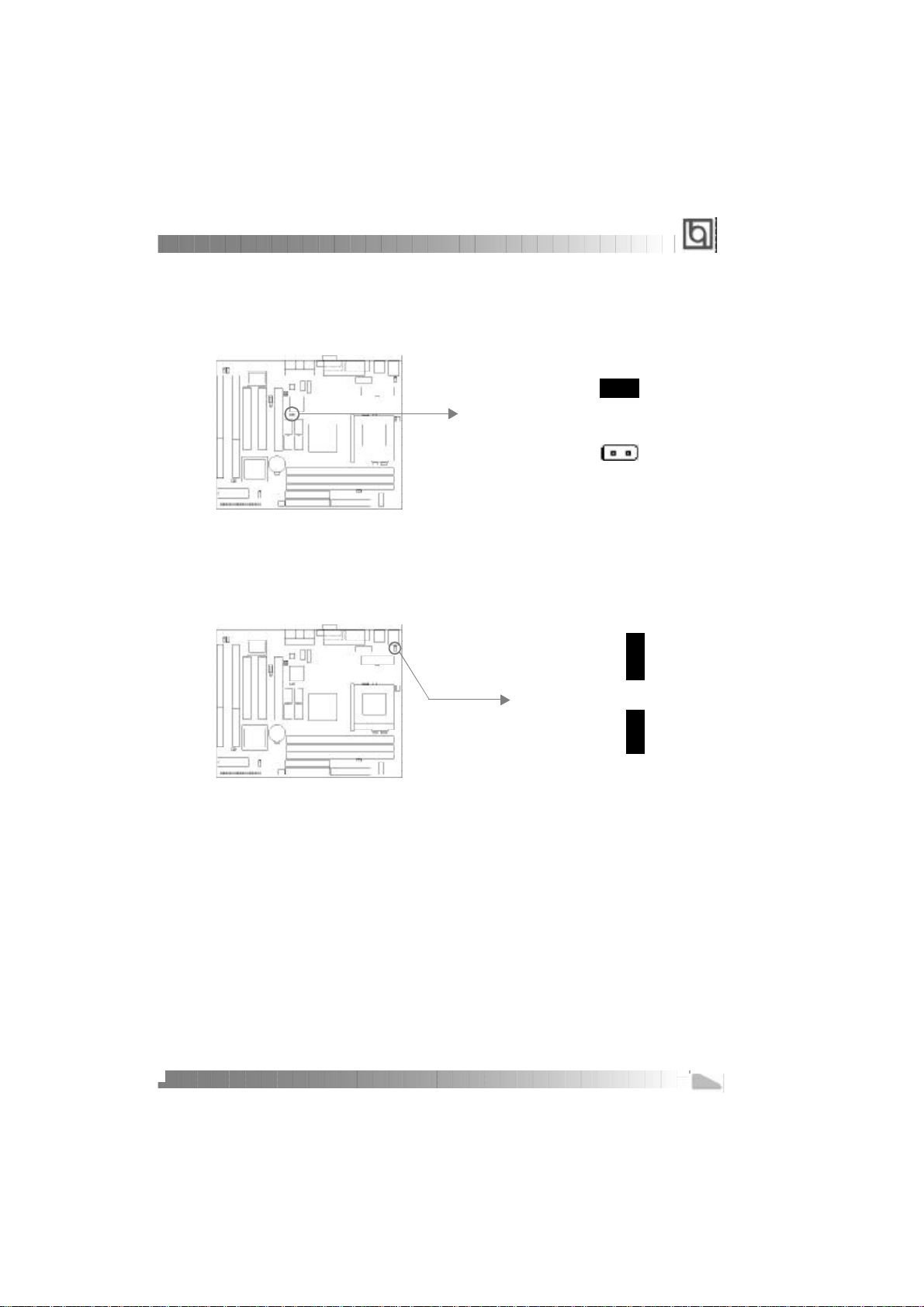

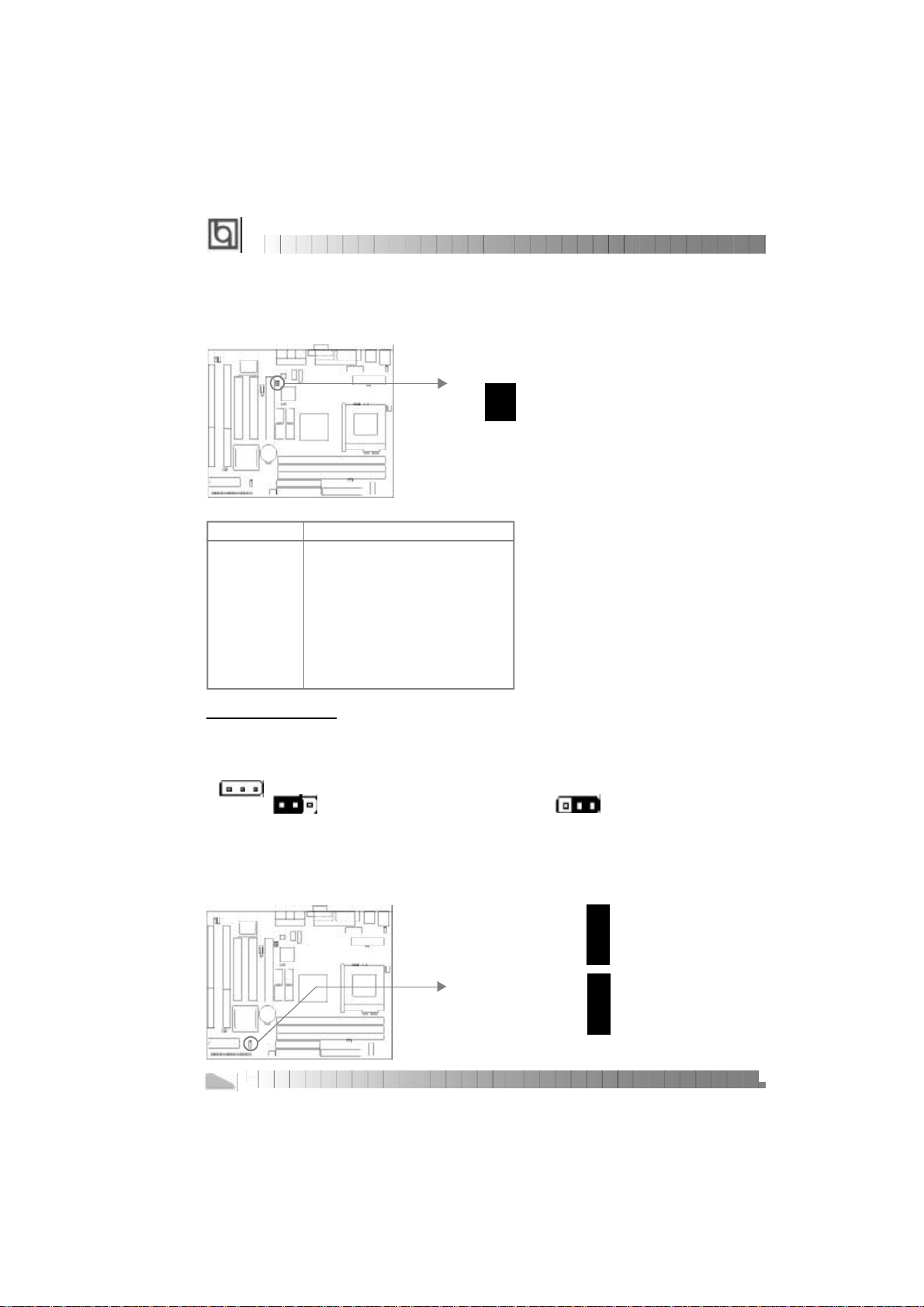

Clear CMOS (JCC)

If you want to clear CMOS, unplug the AC power supply first, close JCC (pin1 & pin2) once, set JCC back to the normal status with pin2 & pin3 connected, then power on the system.

Normal status:

Clear CMOS:

(Unplug the AC power supply)

Manual for Superb 2

JCC

1 2

JCC

Page 17

chapter 2

Enable/Disable on-board audio(JP3)

If you want to use the on-board audio, close JP3(default). Otherwise, set JP3 open to disable the on-board audio.

Enable on-board audio:

Disable on-board audio:

JP3

Enable keyboard password power-on function (JKB)

The mainboard provides the advanced keyboard password power-on function. When

wanting to use this function, set JKB with pin1 & pin2 closed.Otherwise, set JKB with pin2 & pin3 closed for disabling this function.

Disable:

Enable:

JKB

In order to implement this function, set “KB Power On Password” from the “Power Management Setup” section of the BIOS. Then you can power up the system either by using the keyboard or by the power switch.

1 2 3

Note:

1. If using this function, 5VSB line of the power supply should be capable of delivering enough current (eg. 200mA) for all the devices connected to the keyboard port, if not, you will be unable to power up the system using the keyboard.

2. If the AC power supply cuts off, the keyboard power on password should be set again when the AC power supply resumes, in order to implement this function.

Manual for Superb 2

Page 18

Installation Instructions

Memory Configuration

This mainboard provides three 168 pin 3.3V un-buffered DIMM sockets to support a flexible memory size ranging from 8MB to 384MB. Both 66MHz and 100MHz SDRAMs are supported. The following set of rules allows optimum configurations.

l The DRAM Timing register, which provides the DRAM speed grade control for the entire

memory array, must be programmed to use the timing of the slowest DRAMs installed.

l Possible SDRAM DIMM memory sizes are 8MB, 16MB, 32MB, 64MB, 128MB in each DIMM

socket.

Manual for Superb 2

Page 19

Chapter 3

BIOS Description

Utility Support:

FLASH.EXE

This is a flash memory write/read utility used for the purpose of upgrading your BIOS when necessary. Before doing so, please note:

l We strongly recommend you only upgrade BIOS when encountering problems. l Before upgrading your BIOS, review the description below to avoid making

mistakes, destroying the BIOS and resulting in a non-working system.

When you are encountering problems, for example, you find your system doesn’ t support the new CPU which is released after our current mainboard, you may therefore upgrade the BIOS.

Follow the steps exactly for a successful upgrade.

1. Create a bootable system floppy diskette, by typing Format A:/s from the DOS prompt under DOS6.xx or Windows 9x environment.

2. Copy FLASH.EXE from the directory \Utility located on the QDI Mainboard Utility CD

onto your new bootable diskette.

3. Download the updated BIOS file from the Website (http://www.qdigrp.com). Please be sure to download the suitable BIOS file for your mainboard.

4. Uncompress the file download, copy the BIOS file (xx.bin) onto the bootable diskette, and note the checksum of this BIOS which is located in readme file.

5. Reboot the system from the bootable diskette created.

6. Then run the FLASH utility at the A:\ prompt. During the process, the system will prompt : ‘ Do you want to save the BIOS(Y/N)’ . If you type ‘ Y’ , the system will prompt for the BIOS name. The system will also display the checksum which should be exactly the same as the checksum you copied from the readme file. Don’ t turn off power or reset the system until the BIOS upgrade has been completed.

Concerning how to run the FLASH utility, please refer to the following descriptions: Usage: FLASH [BIOSfile] [/c[<command...>]][/n] FLASH [BIOSfile] [/g] /c: Flashing memory will clear previous settings. Default allows settings to remain. <command> function definition: c: clear CMOS; p: clear PnP; d: clear DMI.

Manual for Superb 2

Page 20

BIOS Description

/n: programs BIOS without prompting. If this option is chosen:

Be sure your new BIOS is compatible with your mainboard. If not, the system will be damaged. /g: Retrieves BIOS file from BIOS ROM.

Examples: A:\FLASH.EXE BIOSfile.bin A:\FLASH.EXE BIOSfile.bin /cdpc/n A:\FLASH.EXE BIOSfile.bin /g

Note: FLASH utility runs incorrectly at Windows DOS prompt.

Manual for Superb 2

Page 21

Chapter 3

AWARD BIOS Description

Entering Setup

Power on the computer, when the following message briefly appears at the bottom of the screen during the POST (Power On Self Test), press <Del> key or simultaneously press the <Ctrl> + <Alt> + <Esc> keys, to enter the AWARD BIOS CMOS Setup Utility.

Press <Del> to enter SETUP

Once you have entered, the Main Menu (Figure 1) appears on the screen. The main menu allows you to select from nine setup functions and two exit choices. Use the arrow keys to select among the items and press the <Enter> key to accept or enter the sub-menu.

Figure-1 Main Menu

Load Setup Defaults

The Setup Defaults are common and efficient. It is recommended that users load the setup defaults first, then modify the needed configuration settings.

Standard CMOS Setup

The basic CMOS settings included in “Standard CMOS Setup” are Date, Time, Hard Disk Drive Types, Floppy Disk Drive Types, and VGA etc. Use the arrow keys to highlight

the item, then use the <PgUp> or <PgDn> keys to select the value you want in each item.

Manual for Superb 2

Page 22

BIOS Description

Figure-2 Standard CMOS Setup Menu

Hard Disk Primary Master/Primary Slave/Secondary Master/Secondary Slave

These categories identify the HDD types of 2 IDE channels installed in the computer system. There are three choices provided for the Enhanced IDE BIOS: None, Auto, and User. “None” means no HDD is installed or set; “Auto” means the system can auto-detect the hard disk when booting up; by choosing “user”, the related information should be entered regarding the following items. Enter the information directly from the keyboard and press < Enter>:

CYLS number of cylinders HEAD number of heads PRECOMP write pre-compensation LANDZ landing zone SECTOR number of sectors MODE HDD access mode

Video

Set this field to the type of video display card installed in your system.

EGA/ VGA Enhanced Graphics Adapter / Video Graphic Array. For EGA,

VGA, SEGA, SVGA, or PGA monitor adapters. CGA 40 Color Graphic Adapter, powering up in 40 column mode. CGA 80 Color Graphic Adapter, powering up in 80 column mode. MONO Monochrome adapter, including high resolution monochrome

adapters.

Manual for Superb 2

Page 23

Chapter 3

Halt On

This category determines whether or not the computer will stop if an error is detected during powering up.

No errors The system boot will not stop for any errors that may be

detected.

All errors Whenever the BIOS detects a non-fatal error, the system will

stop and you will be prompted.

All, But Keyboard The system boot will not stop for a keyboard error; but it will

stop for all other errors.

All, But Diskette The system boot will not stop for a disk error; but it will stop

for all other errors.

All, But Disk/Key The system boot will not stop for a keyboard or disk error, but it will

stop for all other errors.

Memory

This is a Display-Only Category, determined by POST (Power On Self Test) of the BIOS.

Base Memory The POST of the BIOS will determine the amount of base

(or conventional) memory installed in the system.

Extended Memory The BIOS determines how much extended memory is

presented during the POST.

Other Memory This is the memory that can be used for different

applications. Shadow RAM is most used in this area.

Total Memory Total memory of the system equals the sum of the above

memory.

Manual for Superb 2

Page 24

BIOS Description

BIOS Features Setup

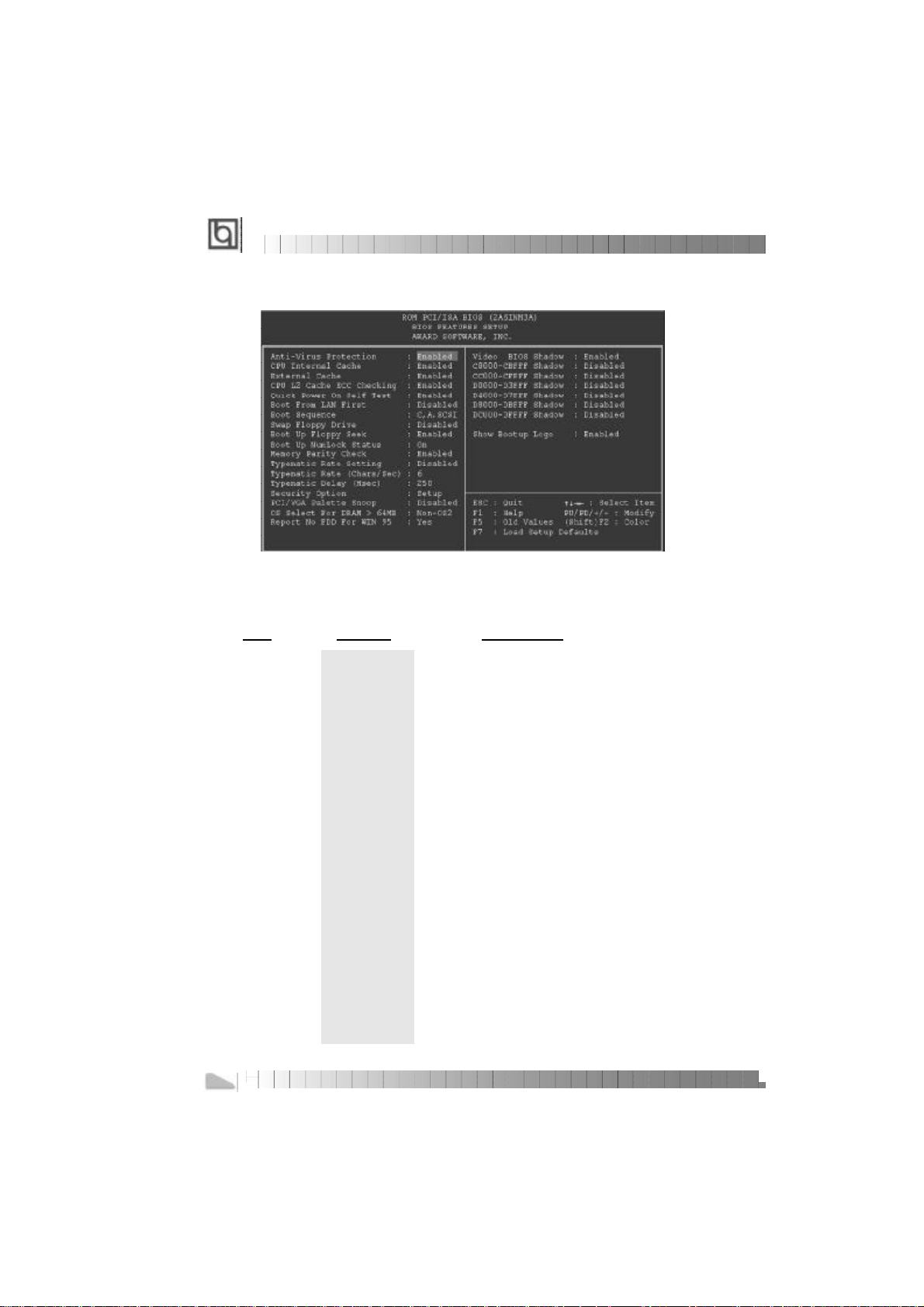

Figure-3 BIOS Features Setup Menu

The following indicates the options for each item and describes their meaning.

Item Option Description

l Anti-Virus Enabled Activated automatically when the system boots,

Protection causing a warning message to appear when

anything attempts to access the boot sector or hard disk partition table.

Disabled No warning message appears.

l CPU Internal Enabled Enabling this option speeds up memory access.

Cache Disabled However, it depends on CPU/chipset design.

l External Enabled Enables external L2 cache. This allows better

Cache performance.

Disabled Disables external cache.

l CPU L2 Cache Enabled Enables CPU L2 Cache ECC (Error Checking and

ECC Checking Correction) function.

Disabled Disables CPU L2 Cache ECC function.

l Quick Power Enabled Enables quick POST. BIOS will shorten or skip

On Self Test some check items during POST to speed up

POST after you power on the computer.

Disabled Normal POST.

l Boot From LAN Enabled Boot from LAN is ahead of any boot sequence

First selection (LAN Adapter must support this

function).

Disabled Does not boot from LAN first.

Manual for Superb 2

Page 25

Chapter 3

l Boot Sequence C,A,SCSI,... Any of these search sequence can be chosen

C,CDROM,A for booting.

LS/ZIP, C

l Swap Floppy Enabled Exchanges the assignment of A&B floppy drives.

Drive Disabled The assignment of A&B floppy drives are normal.

l Boot Up On Keypad is used as number keys.

Numlock Status Off Keypad is used as arrow keys.

l Memory Parity Enabled Enables the Error Checking & Correction if ECC

check memory is used.

Disabled Disables the ECC function.

l Typermatic Rate Enabled Enables typermatic rate and typermatic

Setting programming.

Disabled Disables typermatic rate and typermatic

programming. The system BIOS will use the default value of these two items.

l Typermatic Rate 6-30 Sets the speed of the typermatic rate

(chars/sec) (characters per second).

l Typermatic Delay 250-1000 Sets the time of the typermatic delay.

(Msec)

l Security Option System The system will not boot and access to Setup will

be denied if the correct password is not entered when prompted.

Setup The system will boot up, but access to Setup will

be denied if the correct password is not entered when prompted.

l PCI/VGA Palette Enabled Non-standard VGA cards such as graphics

Snoop Disabled accelerators or MPEG video cards may not show

colors properly. Enabling this can solve this problem.

l OS Select For Non-OS2 If your operating system is not OS/2, please select

DRAM>64MB this item.

OS2 If system DRAM is more than 64MB and the operating

system is OS/2, please select this item.

l Report NO FDD Yes Reports NO Floppy Disk Drive for WIN 95 to

for WIN 95 release IRQ6.

No Does not report No Floppy Disk Drive for WIN 95.

l Video BIOS Enabled Video BIOS will be copied to RAM. Video Shadow

Shadow will increase the video speed.

Disabled Video shadow is disabled.

l C8000~CBFFF Enabled Optional ROM will be copied to RAM by 16K bytes

Shadow: per unit. DC000-DFFFF Shadow: Disabled The shadow function is disabled.

l Show Bootup Enabled Enables the Logo when system boots up.

Logo Disabled Logo will not be shown when system boots up.

Manual for Superb 2

Page 26

BIOS Description

Chipset Features Setup

Figure-4 Chipset Features Setup Menu

The following indicates the options for each item and describes their meaning.

Item Option Description

l RAS Pulse Width 4T-7T Sets RAS pulse width. The smaller width enables

Refresh higher performance.

l RAS Precharge 2T-5T Default setting is suggested.

Time

l RAS To CAS Delay 2T-5T Adds a delay time between the assertion of RAS

and CAS. Without additional delay time.

l ISA Bus Clock PCICLK/3- Chooses the ISA bus clock.

Frequency PCICLK/4

7.159MHz

l Starting Point of 1T/2T/4T Default setting is suggested.

Paging /8T

l SDRAM CAS 2T Contains the information for SDRAM initialization

Latency 3T procedure.

l SDRAM WR Retire x-2-2-2 Controls the timing in which SIS620 writes data

Rate x-1-1-1 into SDRAM during burst cycles.

l CPU to PCI Burst Enabled Default setting is suggested.

Mem. WR Disabled

l System BIOS Enabled Besides conventional memory, the system BIOS

Cacheable Disabled area is also cacheable.

l Video RAM Enabled Besides conventional memory, video RAM area

Cacheable is also cacheable.

Disabled Video RAM area is not cacheable.

Manual for Superb 2

Page 27

Chapter 3

l Memory hole at Enabled Memory hole at 15-16M is reserved for

15M-16M expanded ISA card.

Disabled Does not set this memory hole.

l AGP Aperture Size 4~256 Sets the effective size of the Graphics Aperture

(MB) to be used in the particular PAC Configuration.

l Concurrent Enabled Default settiing is suggested.

function (MEM) Disabled

l CPU Pipeline Enabled There might be more than two pending cycles

Control at one time depending on the CPU performance.

Disabled Only one pending cycle is allowed at one time.

l PCI Delay Enabled Default setting is suggested.

Transaction Disabled

l Auto Detect Enabled Closes empty DIMM/PCI clock to reduce EMI.

DIMM/PCI CLK Disabled Does not close empty DIMM/PCI clock.

l Spread Spectrum 0.25%/0.50% Enables Spread Spectrum to reduce EMI.

Disabled Disables Spread Spectrum.

l CPU Host/SDRAM Default Default setting is 66/66MHz.

Clock 66/66MHz Sets CPU Host Bus Clock and SDRAM clock as

75/75MHz 66/66MHz, 75/75MHz, 83/83MHz, 100/100MHz 83/83MHz or 112/112MHz. 100/100MHz 112/112MHz

l CPU Clock Ratio Enabled The CPU bus ratio can be selected from 2.0, 2.5,

Jumpless 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5 and

8.0. Sets the CPU bus ratio according to your processor type. For bus ratio locked processor, this option doesn’ t work.

Disabled Disables this option.

Manual for Superb 2

Page 28

BIOS Description

Power Management Setup

Figure-5 Power Management Setup Menu

The following indicates the options for each item and describes their meaning.

Item Option Description

l ACPI function Disabled Invalidates ACPI function.

Enabled Validates ACPI function.

l Power Disabled Global Power Management (PM) will be

Management disabled.

User Define Users can configure their own Power Management

Timer.

Min Saving Pre - defined timer values are used. All timers are

in their MAX values.

Max Saving Pre - defined timer values are used. All timers are in

their MIN values.

l PM Control by No System BIOS will ignore APM when Power

APM Management is enabled.

Yes System BIOS will wait for APM’ s prompt before

entering any PM mode e.g. Standby or Suspend.

Note: If APM is installed, and there is a task running, even when the timer is time out, the APM will not prompt the BIOS to put the system into any power saving mode. But if APM is not installed, this option has no effect.

l Video Off Susp, Screen blanks after the system enters suspend

Option mode.

Stby Off Screen blanks after the system enters standby

mode.

Always On Screen is always on.

Manual for Superb 2

Page 29

Chapter 3

l Video Off Blank Screen The system BIOS will only blank off the screen

Method when disabling video.

V / H SYNC + In addition to Blank Screen, BIOS will also turn

off the V-SYNC & H - SYNC signals from VGA cards to monitor.

DPMS This function is enabled only for the VGA card

supporting DPMS.

Note: When the green monitor does not detect the V/H-SYNC signals, the electron gun will be turned off.

l Switch Function Break/Wake Sleep BTTN Enable.

Disabled

l Doze Speed 1/8 ~ 8/8 Selects the throttling duty cycle 12.5%, 25%......

(div by) 87.5%, 100% to slow down the processor speed

when the system is in doze mode.

l Stdby Speed 1/8 ~ 8/8 Selects the throttling duty cycle 12.5%, 25%.....

87.5%, 100% to slow down the processor speed when the system is in standby mode.

l MODEM Use IRQ 3, 5, 7, 9, 10, Special wake-up event for Modem.

(div by) 11 NA

l Hot Key Function Disabled Disables hot key.

As Suspend Set hot key (CTRL+ALT+Backspace) as suspend

Power Off /power off key.

l HDD Off After 1 ~ 15min Defines the continuous HDD idle time before the HDD

enters the power saving mode(motor off).

Disabled HDD’ s motor will not be off.

l Doze mode Disabled The system never enters Doze mode.

1Min ~ 1 Hr Defines the continuous idle time before the system

enters Doze mode. If any items defined in “PM Events” are On and activated, the system will be

woken up.

l Standby Mode Disabled The system never enters Standby mode.

Min ~ 1Hr Defines the continuous idle time before the system

enters Standby mode. If any items defined in “PM Events” are On and activated, the system will be woken up.

l Suspend Mode Disabled The system never enters Suspend mode.

Min ~ 1Hr Defines the continuous idle time before the system

enters Suspend mode. If any items defined in “PM Events” are On and activated, the system will be woken up.

Manual for Superb 2

Page 30

BIOS Description

l HDD Ports Enabled HDD ports activity will wake up the system from

Activity Doze/Standby/Suspend mode.

Disabled HDD ports activity will not wake up the system

from Doze/Standby/Suspend mode.

l COM Ports Enabled COM ports activity will wake up the system from

Activity Doze/Standby/Suspend mode.

Disabled COM ports activity will not wake up the system.

l LPT Ports Activity Enabled LPT port activity will wake up the system from

Doze/Standby/Suspend mode.

Disabled LPT port activity will not wake up the system.

l VGA Activity Enabled VGA activity reloads global timer.

Disabled VGA activity has no influence to global timer.

l IRQ [3-7, 9-15], Enabled Enables the events which can reload global timer.

NMI Disabled Does not influence the global timer.

l IRQ8 Break Enabled Generates a clock event.

suspend Disabled Does not generate a clock event.

l Power Button Instant Off The system will power off immediately once the

Over Ride the power button is pressed.

Delay 4 Sec The system will not power off until the power

button is pressed continuously for more than 4 seconds.

l Ring/LAN Power Enabled Allows the system to be powered on when a

up Control ring indicator signal comes up to UART1 or

UART2 from an external modem or comes up to WOM header from an internal modem card, or a remote wake up signal comes up to the WOL header from LAN adapter.

Disabled Does not allow wake up from internal/external

modem or wake up on LAN.

l KB Power On Enter Set keyboard power on password.

Password

l Power up Enabled RTC alarm can be used to generate a wake

by Alarm event to power up the system. Set any date or

time to power up the system.

Disabled RTC has no alarm function.

Manual for Superb 2

Page 31

Chapter 3

PNP/PCI Configuration Setup

Figure-6 PNP/PCI Configuration Setup Menu

The following indicates the options for each item and describes their meaning.

Item Option Description

l Resources Manual Assigns the system resources ( IRQ and DMA)

Controlled By manually .

Auto Assigns system resources (IRQ and DMA)

automatically by BIOS.

l Reset Configuration Enabled The system BIOS will reset configuration data

Data once, then automatically set this item as Disabled.

Disabled Disables the configuration data function.

l IRQ-3~IRQ-15 Legacy ISA The specified IRQ-x will be assigned to ISA only.

assigned to PCI/ISA PnP The specified IRQ-x will be assigned to PNP ISA

or PCI.

l DMA-0~DMA-7 Legacy ISA The specified DMA-x will be assigned to ISA only.

assigned to PCI/ISA PnP The specified DMA-x will be assigned to PNP ISA or

PCI.

Manual for Superb 2

Page 32

BIOS Description

Integrated Peripherals

Figure-7 Integrated Peripherals Menu

The following indicates the options for each item and describes their meaning.

Item Option Description

l Internal PCI/IDE Both Enables both primary and secondary IDE ports.

Disabled Disables both primary and secondary IDE ports. Primary Enables the primary IDE port only. Secondary Enables the secondary IDE port only.

l IDE Mode 0 - 4 Defines the IDE primary/secondary master/ slave

Primary/ Secondary PIO mode. Master/Slave PIO Auto The IDE PIO mode is defined by auto -detection.

l IDE Auto Ultra DMA mode will be enabled if Ultra DMA device

Primary/ Secondary is detected. Master/Slave UDMA Disabled Disables this function.

l IDE Burst Mode Enabled Default setting is suggested.

Disabled

l IDE HDD Block Enabled Allows IDE HDD to read/write several sectors at

Mode once.

Disabled IDE HDD only reads/writes a sector once.

l Onboard FDC Enabled Onboard floppy disk controller is enabled.

Controller Disabled Onboard floppy disk controller is disabled.

l Onboard 3F8/IRQ4, Defines the onboard serial port address and

Serial Port 1/2 2F8/IRQ3, required interrupt number.

3E8/IRQ4, 2E8/IRQ3,

Auto Onboard serial port address and IRQ are

automatically assigned.

Manual for Superb 2

Page 33

Award BIOS Description

Disabled Onboard serial port is disabled.

l IR Address Disabled Defines the IrDA addresses, IRQ and IR mode.

Select 2 E8H - 3E8F

2F8H - 3F8H

l Onboard Parallel 378/IRQ7, Defines onboard parallel port address and IRQ

Port 278/IRQ5, channel.

3BC/IRQ7 Disabled Onboard parallel port is disabled.

l Parallel Port SPP Defines the parallel port mode as standard

Mode EPP Parallel Port(SPP), Enhanced Parallel Port(EPP), or

ECP Extended Capabilities Port(ECP). ECP+EPP

l PS/2 mouse Enabled Enables PS/2 mouse function when using PS/2

Function mouse.

Disabled If don’ t use PS/2 mouse, disabling this option

can release the resource.

l USB Controller Enabled Enables onchip USB controller.

Disabled Disables onchip USB controller.

l USB Keyboard Enabled USB keyboard support is enabled.

Support Disabled USB keyboard support is disabled.

l Init Display First PCI SLOT Initializes the PCI VGA first.

AGP Initializes the AGP first. For PCI VGA or AGP, the

one initialized first functions.

l VGA Shared 2M/4M/8M If no onboard video memory is provided, part of

Memory Size main memory size(2M/4M/8M) can be set as shared

video memory. Default setting is 8MB.

None None of main memory is shared as video memory.

l Current CHSFAN 4320RPM RPM(Revolution Per Minute) speed of fan

Speed connected to the fan header CPUFAN or CHSFAN. Current CPUFAN 2010RPM Fan speed value is based on an assumption that Speed tachometer signal is two pulses per revolution; In

other cases, you should regard it relatively.

l INO(+5.0V) 5.02V Displays current voltage values including the

IN1(+3.3V) 3.36V significant voltages of the mainboard. +5.0V is the

IN2(+2.5V) 2.56V voltage from the ATX power supply. +3.3V is from IN3(+2.0V) 2.01V onboard regulator. +2.5V is the power supply for

clock chip. +2.0V is the CPU core voltage from the onboard switching power supply.

Manual for Superb 2

Page 34

BIOS Description

Password Setting

When this function is selected, the following message appears at the center of the screen to assist you in creating a password.

ENTER PASSWORD

Type the password, up to eight characters, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection.

To disable password, just press <Enter> when you are prompted to enter password. A message will confirm the password being disabled. Once the password is disabled, the system will boot and you can enter BIOS Setup freely.

PASSWORD DISABLED

If you have selected “System” in “Security Option” of “BIOS Features Setup” menu, you will be prompted for the password every time the system reboots or any time you try to enter BIOS Setup.

If you have selected “Setup” at “Security Optio” from “BIOS Features Setup” menu, you will be prompted for the password only when you enter BIOS Setup.

Supervisor Password has higher priority than User Password. You can use Supervisor Password when booting the system or entering BIOS Setup to modify all settings. Also you can use User Password when booting the system or entering BIOS Setup but can not modify any setting if Supervisor Password is enabled.

Manual for Superb 2

Page 35

Chapter 3

IDE HDD Auto Detection

The Enhanced IDE features are included in all Award BIOS. Below is a brief description of these features.

ROM PCI/ISA BIOS (2A69KQ10)

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE Primary Master:

Select Primary Master Option (N=Skip): N

OPTION SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE 2(Y) 541 525 32 0 1049 67 LBA

1 541 1050 16 65535 1049 63 NORMAL 3 541 525 32 65535 1049 63 LARG

Note: Some OSes (like SCO-UNIX) must use “NORMAL” for installation

ESC: Skip

Figure-8 IDE HDD Auto Detection Menu

1. Setup Changes

With auto-detection

• BIOS setup will display all possible modes supported by the HDD

including NORMAL, LBA and LARGE.

• If HDD does not support LBA modes, no “LBA” option will be shown.

• If number of physical cylinder is less than or equal to 1024, “LARGE”

option may not be shown.

• Users can select their appropriate mode .

With Standard CMOS Setup

CYLS HEADS PRECOMP LAND SECTOR MODE

ZONE Drive C: User(516MB) 1120 16 65535 1119 59 Normal Drive D: None(203MB) 684 16 65535 685 38 --------

When HDD type is in “user” type, the “MODE” option will be available for users to select their own HDD mode.

Manual for Superb 2

Page 36

BIOS Description

2. HDD Modes

The Award BIOS supports 3 HDD modes: NORMAL, LBA and LARGE.

NORMAL

Generic access mode in which neither the BIOS nor the IDE controller will make any transformation during accessing. The maximum number of cylinders, heads and sectors for

NORMAL mode are 1024,16 and 63. If the user sets his HDD to NORMAL mode, the maximum accessible HDD size will be 528

megabytes even though its physical size may be greater than that.

LBA (Logical Block Addressing) mode

A new HDD accessing method to overcome the 528 Megabyte bottleneck. The number of cylinders, heads and sectors shown in setup may not be the number physically contained

in the HDD. During HDD accessing, the IDE controller will transform the logical address described by

sector, head and cylinder number into its own physical address inside the HDD. The maximum HDD size supported by LBA mode is 8.4 Gigabytes.

LARGE mode

Some IDE HDDs contain more than 1024 cylinder without LBA support (in some cases, users do not want LBA). The Award BIOS provides another alternative to support these kinds of HDD.

BIOS tricks DOS (or other OS) into divising the number of cylinders is less than 1024 by dividing it by 2. At the same time, the number of heads is multiplied by 2. A reverse transformation process will be made inside INT13h in order to access the right HDD address.

If using Auto detect, the BIOS will automatically detect the IDE hard disk mode and set it as one of the three modes.

3. Remark

To support LBA or LARGE mode of HDDs, there must be some softwares involved which are located in Award HDD Service Routine(INT13h).It may fail to access a HDD with LBA (LARGE) mode selected if you are running under an Operating System which replaces the

whole INT 13h.

Boot with BIOS defaults

If you have made all the changes to CMOS values and the system can not boot with the CMOS values selected in setup, clear CMOS after power-down, then power on again. System will boot with BIOS default settings.

Manual for Superb 2

Page 37

Chapter 4

YAMAHA Audio Description

Onboard audio system is based on the high performance Yamaha YMF740 PCI audio controller and AC97 audio decoder. It incorporates the best features of Sound Blaster™, Sound Blaster™ Pro, Microsoft Windows Sound System and MPU-401 for all multimedia applica-

tions, entertainment, educational sound and business audio.

Features

l PC97/PC98 specification compliant. l PCI Bus Power Management rev1.0 compliant. l PCI Bus Master for audio:

Maximum 32-voice XG capital Wavetable.

Synthesizer including GM compatibility. DirectSound Hardware Acceleration. DirectMusic Hardware Acceleration.

Downloadable Sound (DSL) level-1.

l Supports PC/PCI for legacy DMAC(8237) emulation. l Legacy Audio compatibility.

Genuine OPL3.

Hardware Sound Blaster Pro compatibility.

MPU401 UART mode MIDI interface.

l Provides onboard Mic-in jack, Line-in jack, speaker-out jack and MIDI/Joystick

connector.

l Provides Hardware Volume Control.

YAMAHA Software Installation

Before you begin: All of the installation instructions assume that the CD-ROM disk is located in drive D: and

that Windows 95/98 is in C:\Windows. Replace either with the actual location if necessary.

1. Installation of Windows 95/98 Driver

There are two ways to install the Windows 95/98 drivers. One is by using normal PnP installation of Windows. Another is by using the Yamaha Driver Installer. Please note, if using normal PnP installation, the system will prompt you for the Yamaha audio driver during Windows 95/98 startup, direct the path to D:\DevDrv\Sound\Yamaha\Driver \Win95/98 and run setup.exe.

Manual for Superb 2

Page 38

YAMAHA Audio Description

Installation using the Yamaha Driver installer.

• Under Windows 95/98, insert the QDI Mainboard Utility CD into the CD-ROM drive.

• Direct the path to D:\DevDrv\Sound\Yamaha\Driver\Inst95/98 and run Setup.exe.

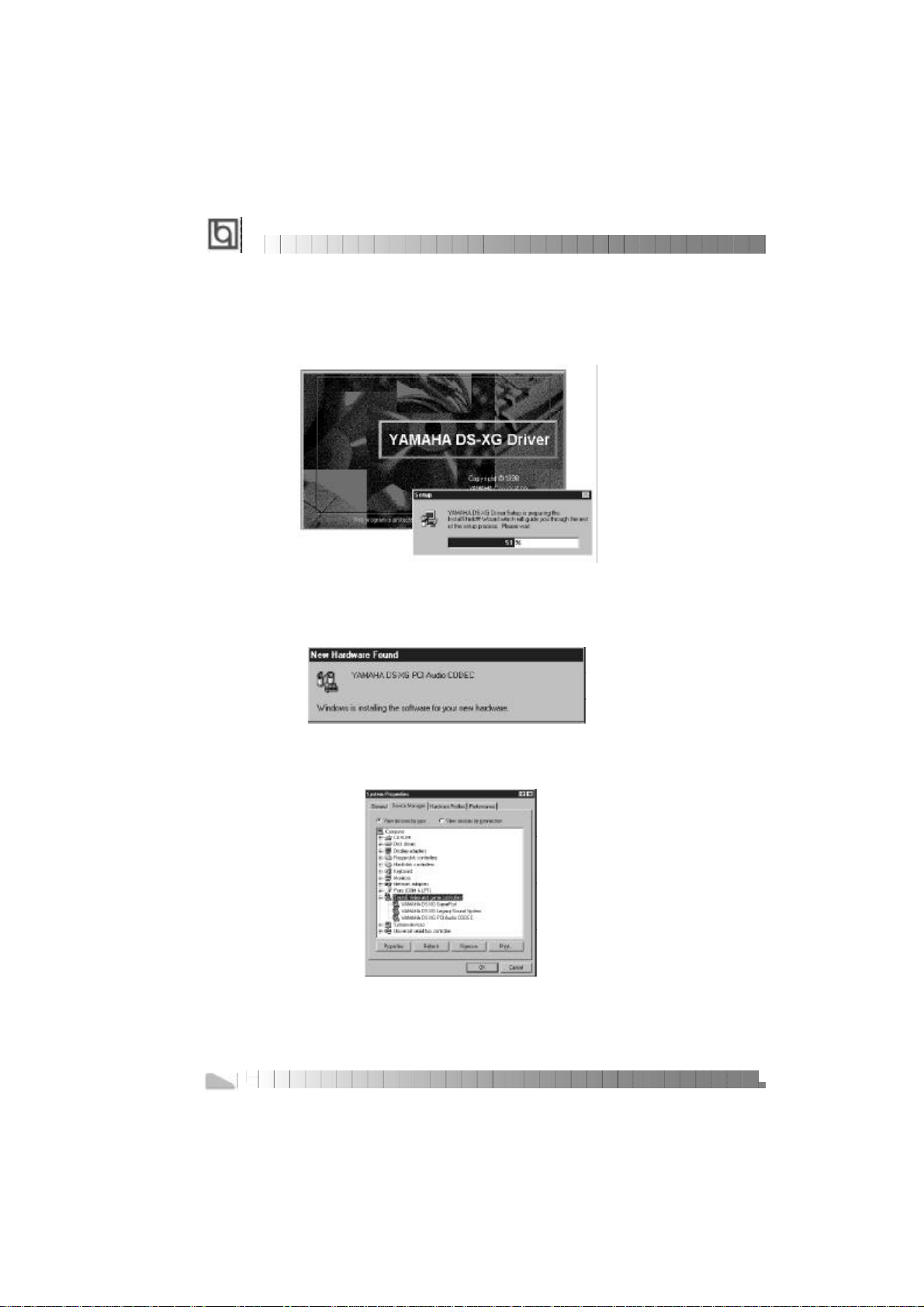

The Yamaha DS-XG Driver Setup will guide you through the setup process.

• Restart the computer when prompted.

• During Windows 95/98 startup, several New Hardware Found boxes will appear as

shown below.

• After completing the installation, the sound, video and game controllers should be

listed in Device Manager from System Properties as shown below.

For more information, please refer to the file inst95.pdf in the directory D:\DevDrv\Sound\Yamaha\Driver\Guide

Manual for Superb 2

Page 39

Chapter 4

2. Installation of Dos/Windows 3.1x Driver

Before installing the audio drivers from the CD-ROM, a CD-ROM drive must be installed and working properly in your system. If you have not yet installed a CD-ROM drive and associated driver, refer to your CD-ROM drive’ s documentation for instructions. Use the diskette provided with the CD-ROM drive to install the needed driver. To install the audio drivers from the CD-ROM:

• Start your system.

• Insert the QDI Mainboard Utility CD into your CD-ROM drive.

• At the DOS prompt, change to the drive containing your CD-ROM. For example, type D:.

• Change to the directory \DevDrv\Sound\Yamaha\Driver\RealDOS.

• Type INSTALL, then press <Enter>.

• Follow the instructions presented on the screen to complete the installation.

3. Installation of Windows NT 4.0 Driver

There are two ways to install the WindowsNT 4.0 drivers. One is by using normal audio installation of Windows NT4.0. Another is by using the Yamaha Driver Installer, direct the path to D:\DevDrv\Sound\Yamaha\ Driver\InstNT and run setup.exe.

Normal Audio Installation under Windows NT 4.0

• Log on to Windows NT 4.0.

• Insert the QDI Mainboard Utility CD into the CD-ROM drive.

• Double click the Multimedia icon in the Control Panel, then click on the Devices tab.

• Press the ADD button, and select “Unlisted or Updated Drivers”, then press the OK

button.

• A dialog box appears requesting the path of the location for the drivers. Click the

Browse button and direct the path to D:\DevDrv\Sound\Yamaha\Driver\winNT.

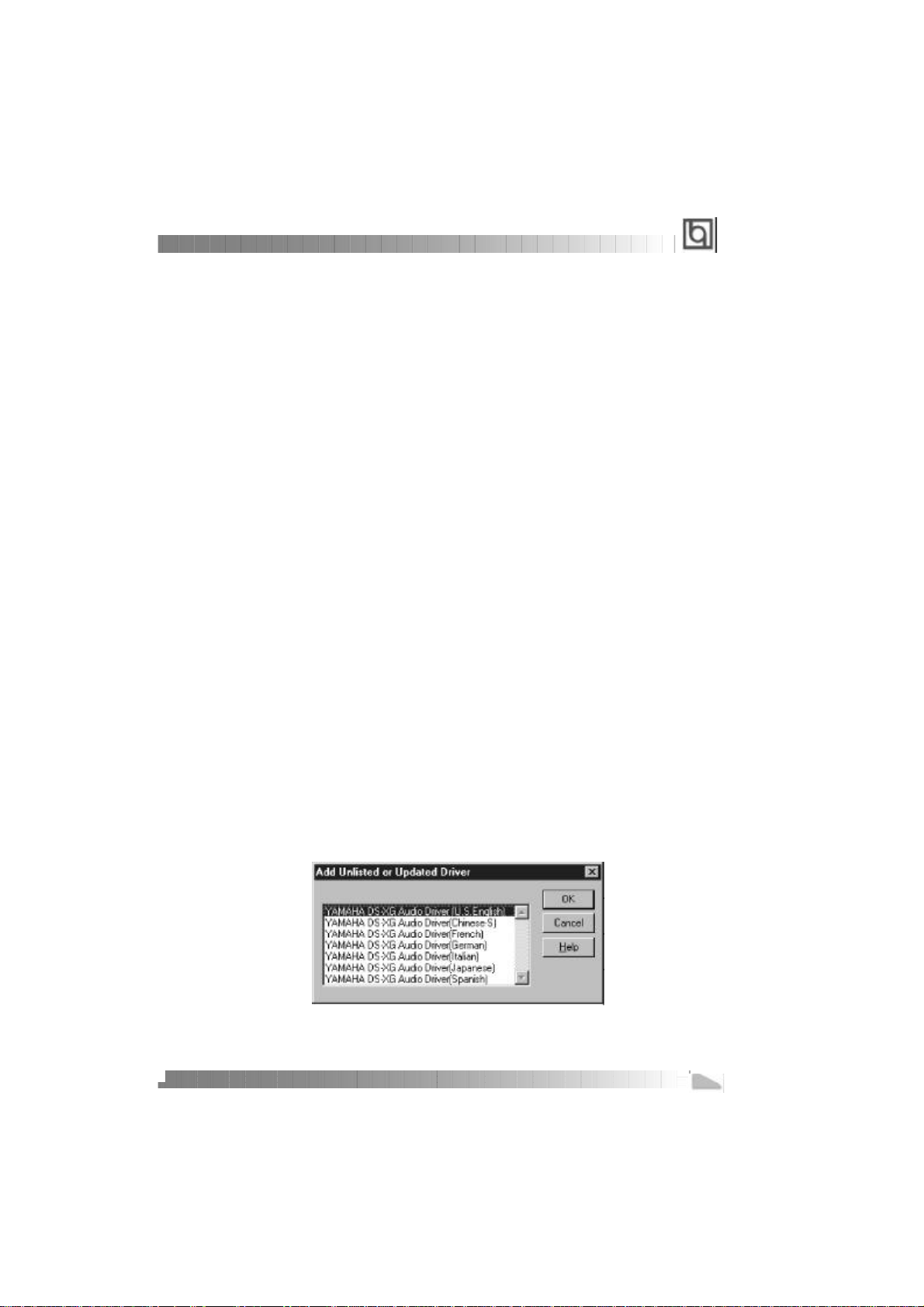

• The Add Unlisted or Updated Driver window then appears prompting you to select a

language. Click on the desired language in the list then click on the OK button.

Manual for Superb 2

Page 40

YAMAHA Audio Description

• If the Driver Exists window appears as shown below, click the New button to

overwrite the existing driver.

• Windows NT will now copy the necessary files to your computer. When the YAMAHA

DS-XG Audio Driver window appears, verify that the MPU401 I/O address, IRQ and

joystick I/O address settings are correct as shown in the figure below. Click the OK button to continue.

• You will be prompted to restart your computer now. Click the Restart Now button.

For more information, please refer to the file instnt.pdf in the directory D:\DevDrv\Sound\Yamaha\Driver\Guide

Manual for Superb 2

Page 41

Appendix

Appendix A

QDI Mainboard Utility CD-ROM

A QDI Mainboard Utility CD-ROM is supplied with each mainboard. The contents used for this mainboard are:

1. Chipset Drivers:

SiS620 Chipset Driver included in the directory \ChipDrv\SiS/SiS620\Idedrv is used for this mainboard. First copy the file Uide100.exe to a user directory on the hard disk and

extract it. Then install the SiS620 IDE driver accordingly:

a. For Window95/98, run ...\Win9X\Setup.exe for installation. b. For Windows NT, follow the steps contained in the readme file (...\NT\Readme.txt),

and install the SiS620 Chipset IDE driver.

2. Onchip VGA Drivers

The VGA drivers included in the directory \DevDrv\VGA\SiS620\CD-VER are for the SiS620 onchip VGA. Run \DevDrv\VGA\SiS620\CD-VER\Win9X\Setup.exe to install Window 95/98 driver. For Windows NT driver, when the system prompts for the driver, direct the path to

\DevDrv\VGA\SiS620\CD-VER\Winnt40.

3. Onboard Audio Drivers

The audio drivers included in the directory\DevDrv\Sound\Yamaha\Driver are for the onboard Yamaha YMF 740 PCI audio. Run \DevDrv\Sound\Yamaha\Driver\Real Dos\Install.exe to install Dos/Windows 3.1x driver. Run \DevDrv\Sound\Yamaha\Driver\Inst 95&98\Setup.exe to install Windows95 & 98 driver. Run \DevDrv\Sound\Yamaha\Driver\InstNT\Setup.exe to install Windows NT 4.0 dirver.

4. PC-cillin Anti-Virus software:

For Windows 95/98 English version, it is located in the directory \Pccillin\Win9X. Run Setup.exe for installation. For Windows NT English version, it is located in the directory \Pccillin\WinNT4.0. Run Setup.exe for installation. S/N is PNEF-9991-6558-5857-5535.

5. QDI Mainboard Utility:

The utilities located in the directory \Utility are: FLASH.EXE CBLOGO.EXE LF.EXE

Refer to the online help for information on how to use these utilities.

Manual for Superb 2

Page 42

Appendix

Appendix B.

Boot Logo

When you power on or reset your system, the picture shown below will appear on the screen.

If you press <Esc>, it switches to the booting message screen. Otherwise, it enters operating system directly. You can use “cblogo.exe” ( included on the QDI Mainboard Utility CD) to replace it by any other logo which you prefer. Regarding the method of using cblogo.exe utility, please refer to it’ s online help. If you don’ t prefer the logo displayed on the screen during boot up, set the “Show Bootup Logo” option as Disabled in the ‘ BIOS FEATURES SETUP’ section of the BIOS

* We reserve the right of modifying the default full-logo of QDI without further notification.

Manual for Superb 2

Page 43

P/N : 430- 01016- 401- 00

Manual Superb 2 Ver 1.0

Page 44

Item Checklist

Completely check your package. If you discover damaged or missing items, contact your retailer.

Superb 2 mainboard

QDI Mainboard Utility CD-ROM

I/O shield

1 IDE ribbon cable

1 floppy ribbon cable

1 9-pin ribbon cable with bracket for serial port 2 (manufacturing option).

User’ s manual

Notice

The information in this document is subject to change in order to improve reliability, design, or function without prior notice and does not represent a commitment on the part of this company. In no event will we be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or the possibility of such damages.

All trademarks are the property of their respective owners.

If you need any further information, please visit our web-site: “www.qdigrp.com”.

Page 45

Board Layout of

Superb 2 V1.0
