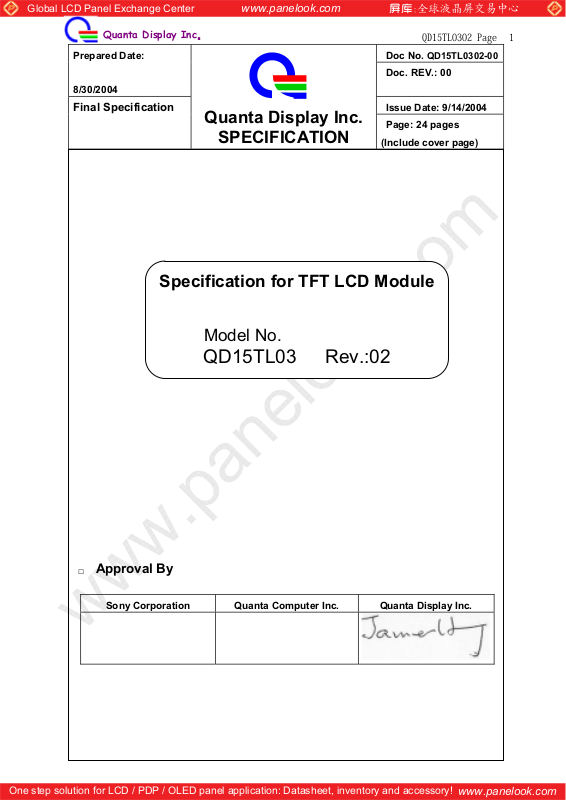

QDI QD15TL03 Specification

Global LCD Panel Exchange Center

.

www.panelook.com

Quanta Display Inc

Prepared Date:

8/30/2004

Final Specification











Specification for TFT LCD Module

Quanta Display Inc.

SPECIFICATION

QD15TL0302Page1

Doc No.

Doc. REV.: 00

Issue Date: 9/14/2004

Page: 24 pages

(Include cover page)

QD15TL0302-00

















Approval By



Model No.

QD15TL03 Rev.:02

Sony Corporation Quanta Computer Inc. Quanta Display Inc.




One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

.

www.panelook.com

Quanta Display Inc

These specification sheets are the proprietary product of Quanta Display Inc. (”QDI”) and

include materials protected under copyright of QDI. Do not reproduce or cause any third

party to reproduce them in any form or by any means, electronic or mechanical, for any

purpose, in whole or in part, without the express written permission of QDI.

The device listed in these technical literature sheets was designed and manufactured for use

in OA equipment.

In case of using the device for applications such as control and safety equipment for

transportation (aircraft, trains, automobiles, etc.), rescue and security equipment and various

safety related equipment which require higher reliability and safety, take into consideration

that appropriate measures such as fail-safe functions and redundant system design should

be taken.

Do not use the device for equipment that requires an extreme level of reliability, such as

QD15TL0302Page2

aerospace applications, telecommunication equipment (trunk lines), nuclear power control

equipment and medical or other equipment for life support.

QDI assumes no responsibility for any damage resulting from the use of the device, which

does not comply with the instructions, and the precautions specified in these technical

literature sheets.

Contact and consult with a QDI sales representative for any questions about this device.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

.

www.panelook.com

Quanta Display Inc

Revision History

REV. Date ECN NO. Change Content

0 9/14/2004 N/A Specification Initiation

QD15TL0302Page3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

.

×

×

www.panelook.com

Quanta Display Inc

1. Application

This specification applies to a color TFT-LCD module, QD15TL03 rev.02.

2. Overview

This module is a color active matrix LCD module incorporating amorphous silicon TFT

(Thin Film Transistor). It is composed of a color TFT-LCD panel; driver ICs, control circuit and

power supply circuit and a backlight unit. Graphics and texts can be displayed on a 1280

800 dots panel with 262,144 colors by using LVDS (L

interface and supplying +3.3V DC supply voltage for TFT-LCD panel driving and supply

voltage for backlight.

The TFT-LCD panel used for this module has very high aperture ratio. A low-reflection and

higher-color-saturation type color filter is also used for this panel. Therefore, high-brightness

and high-contrast image, which is suitable for the multimedia use, can be obtained by using

this module.

Optimum viewing direction is 6 o'clock.

QD15TL0302Page4

ow Voltage Differential Signaling) to

3

[Features]

1) High aperture panel; high-brightness or low power consumption.

2) Brilliant and high contrast image.

3) Small footprint and thin shape.

4) Light weight.

5) Wide Screen 15.4” WXGA

6) Lead free ( Pb contain is less than 1000ppm ) compliant

7) RoHS compliant

3. General Specifications

Parameter Specifications Unit

Display size 390.1 (15.4”) Diagonal mm

Active area 331.2×207.0 mm

Pixel format 1280 (H)×800 (V) Pixel

(1 pixel = R+G+B dots)

Pixel pitch 0.2588(H) × 0.2588 (V) mm

Pixel configuration R, G, B vertical stripe

Display mode Normally white

Unit outline dimensions (typ.)*1, 2

Mass 585 max. g

Surface treatment Haze 0; Hardness 2H; Low reflection (~2.5%)

*1.Note: excluding backlight cables. Outline dimensions are shown in this specification.

*2.Note: Please refer to outline drawing, the thickness spec. of screw nearby lamp side are

6.6 and 6.8mm max.

344.0(W)×222.0 (H)×6.35(T)max. mm

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

.

【
【

www.panelook.com

Quanta Display Inc

4. Input Terminals

4-1. TFT-LCD panel driving
CN1 (1 channel, LVDS signals – NSC/Ti standard and +3.3V DC power supply)

Using connector: FI-XB30Sx-HFxx/FI-X30Sx-HFxx/equivalent (JAE)

Interface Cable Pin Assignments

PIN NO . SYMBOL FUNCTION

1 VSS Ground

2 VDD Power Supply, 3.3 V (typical)

3 VDD Power Supply, 3.3 V (typical)

4 V EEDID DDC 3.3V power

5 NC Reserved for supplier test point

6 Clk EEDID DDC Clock

7 DATA EEDID DDC Data

8 Rin0- - LVDS differential data input (R0-R5, G0) (odd pixels)

9 Rin0+ + LVDS differential data input (R0-R5, G0) (odd pixels)

10 VSS Ground

QD15TL0302Page5

11 Rin1- - LVDS differential data input (G1-G5, B0-B1) (odd pixels)

12 Rin1+ + LVDS differential data input (G1-G5, B0-B1) (odd pixels)

13 VSS Ground

14 Rin2- - LVDS differential data input (B2-B5, HS, VS, DE) (odd pixels)

15 Rin2+ + LVDS differential data input (B2-B5, HS, VS, DE) (odd pixels)

16 VSS Ground

17 ClkIN- - LVDS differential clock input (odd pixels)

18 ClkIN+ + LVDS differential clock input (odd pixels)

19 VSS Ground

20 NC No connect

21 NC No connect

22 NC No connect

23 NC No connect

24 NC No connect

25 NC No connect

26 NC No connect

27 NC No connect

28 NC No connect

29 NC No connect

30 NC No connect

Note 1】Relation between LVDS signals and actual data shows below section (4-2).

Note 2】The shielding case is connected with signal GND.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

.

：

：

）

〜

〜

〜

〜

〜

〜

〜

〜

〜

〜

〜

〜

www.panelook.com

6

QD15TL0302Page

G5

R5

R0

6

6



)

5

11

DS90C363,DS90C383(National semiconductor

TFT-LCD side

(

RxOUT0

RxOUT6





G0

6

17

RxOUT12



B5

B0

Hsync

Vsync

RxOUT18



RxOUT19

Internal circuits

ENAB

RxOUT20



LVDS-TO-PARALLEL TTL

RxCLK OUT





CK

PLL

DS90CF364



RXIN0+(6)

RXIN0-(5)

RXIN1+(9)

RXIN1-(8)RXIN2+(12)

DS90C*363

）

5

DS90CF364(National semiconductor) Corresponding Transmitter

Computer side

TxIN 0



6

11

TxIN 6



6

17

TxIN12



6

RXIN2-(11)

TxIN19

TxIN18

RXCLKIN-(14)(14)

RXCLKIN+(1)

TTL PARALLEL-TO-LVDS

PLL

TxIN20

TxCLK IN

（

Using receiver

R5

R0

G5

G0

B5

B0

Hsync

Vsync

ENAB

CLK

Quanta Display Inc









4-2 Interface block diagram











Controller





















One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!





www.panelook.com

Global LCD Panel Exchange Center

.

Ｖ

Ｖ

℃ −

Ｖ 【

】

Ｖ

−

℃ 【

】

−

℃

【

℃

＝25℃

Ｖ

【

ｍＡ

【

−

−

−

−

−

−

【

】

−

−

Ω

【

】

＜t1≦
＜t2≦
＜t3≦

≦
≦
≦

t1

t2

t3

t4

t5

t6

www.panelook.com

Quanta Display Inc

4-3. Backlight driving

CN2: BHSR-02VS-1(JST)

Mating connector: SM02B-BHSS-1-TB (JST) or 87210-0200

Pin No. Symbol Function

1

Power supply for lamp

HIGH

(High voltage side)

2

Power supply for lamp

LOW

(Low voltage side)

5. Absolute Maximum Ratings

5-1 LCD module

Parameter Symbol Condition Ratings Unit Remark

Input voltage

VI

Ta=25

0.3 〜 VDD+0.3

+3.3V supply voltage VDD Ta=25℃ 0 〜 ＋ 4

Storage temperature Tstg

−25 〜 ＋60

QD15TL0302Page7

Note1

Note2

Operating temperature

Topa

0 〜 ＋50

(Ambient)

【Note1】LVDS signals

Note2】Humidity：95%RH Max. at Ta≦40℃.

Maximum wet-bulb temperature at 39

or less at Ta>40℃.

No condensation.

6. Electrical Characteristics

6-1.TFT-LCD panel driving Ta

Parameter Symbol Min. Typ. Max. Unit Remark

VDD Supply voltage VDD +3.0 +3.3 +3.6

Current dissipation IDD 370 450 550

V

Permissive input ripple voltage

Differential input High

Threshold voltage Low

Terminal resistor

RP

V

TH

V

TL

R

T

–100

100

100 mV p-p Vcc=+3.3V

+100 mV V

mV

Note2】

Note3】

=+1.2V

CM

Differential
input

Rush current I

1.5 A Rise time

RUSH

470uS

Note1

Note1】 V

Note2

【

: Common mode voltage of LVDS driver.

CM

On-off conditions for supply voltage

0

0

0

400 ms

200 ms

200 ms

10 ms

50 ms

50 ms

t4

t5

t6

VDD

DATA

10%

90%

90%

10%

CCFL

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

10%

www.panelook.com

Global LCD Panel Exchange Center

.

≦

≦

＜

【

www.panelook.com

Quanta Display Inc

Vcc-dip conditions

1) 2.5 V
td

2) Vcc

Vcc-dip conditions should also follow the On-off conditions for supply voltage

Note3】 Typical current situation :

Max. current situation : Dot on / off pattern

Min. current situation : Full white pattern

VDD=+3.3V (typ. / Mosaic pattern)

Vcc＜3.0 V

10 ms

2.5 V

t

d

32X36 Mosaic pattern.



QD15TL0302Page8

vcc

3.0V

2.5V
