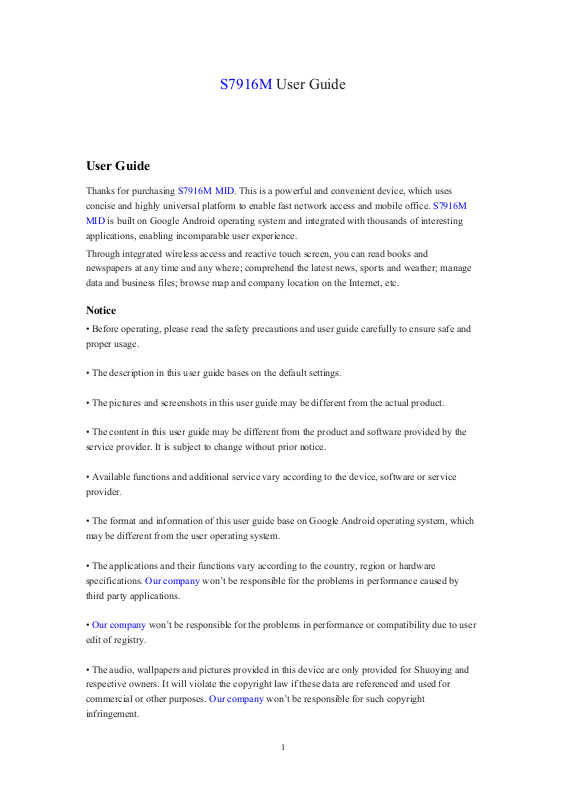

S7916M User Guide

User Guide

Thanks for purchasing S7916M MID. This is a powerful and convenient device, which uses concise and highly universal platform to enable fast network access and mobile office. S7916M

MID is built on Google Android operating system and integrated with thousands of interesting

applications, enabling incomparable user experience.

Through integrated wireless access and reactive touch screen, you can read books and newspapers at any time and any where; comprehend the latest news, sports and weather; manage data and business files; browse map and company location on the Internet, etc.

Notice

• Before operating, please read the safety precautions and user guide carefully to ensure safe and proper usage.

• The description in this user guide bases on the default settings.

• The pictures and screenshots in this user guide may be different from the actual product.

• The content in this user guide may be different from the product and software provided by the service provider. It is subject to change without prior notice.

• Available functions and additional service vary according to the device, software or service provider.

• The format and information of this user guide base on Google Android operating system, which may be different from the user operating system.

• The applications and their functions vary according to the country, region or hardware specifications. Our company won’t be responsible for the problems in performance caused by third party applications.

• Our company won’t be responsible for the problems in performance or compatibility due to user edit of registry.

• The audio, wallpapers and pictures provided in this device are only provided for Shuoying and respective owners. It will violate the copyright law if these data are referenced and used for commercial or other purposes. Our company won’t be responsible for such copyright infringement.

• Please keep this user guide properly for future reference.

Contents

Introduction of device and accessories

Accessories.............................................................3

Battery charging.............................................................3

Appearance.............................................4

Turning on/off

.......................................................4

...........................................................3

Touch screen usage............................................5

Operation interface.........................................................5

Connecting to PC through USB........................................7

Application introduction.........................................................8

Basic settings

Settings Wireless & networks Sound Display Storage

.............................................................10

...........................................................10

.................................................................10

.................................................................11

Battery.................................................................11

.............................................................12

Apps Accounts & sync Location services Security

.................................................................13

Language & input Backup & reset

Date & time...........................................................14

About tablet.............................................................14

...........................................................12

.............................................................13

.........................................................13

...........................................................14

Troubleshooting....................................................15

Safety precautions...................................................16

Store and use the device properly......................................17

Introduction of device and accessories

Accessories

After unpacking, check whether the following items are provided:

• Main unit

• User Guide

• USB cable

• Adapter

• According to the device model and region, the provided items may be different, which depend on local available software and accessories or service providers.

• You can purchase our accessories from our company, which can provide better compatibility.

Our company won’t be responsible for any incompatibility or damage caused by third party

accessories.

Battery charging

The device is equipped with built-in battery. Charge the battery before using the device for the first time. It is recommended to charge at least ten hours for the first time, and charge normally thereafter.

Only use approved charger (input: AC110~240V 50/60Hz; output: DC5V/2A). Our company won’t be responsible for any battery explosion or device damage caused by unapproved charger.

• The user can’t replace the built-in battery. Please contact the service provider for the information on battery replacement.

• You can charge the battery with the charger or USB cable.

• When the battery charge is lower than 15%, the device will send alert tone and display the low battery message. The battery icon the device switches off automatically. Charge the battery before using.

• If the battery electricity is completely run out, the device can’t be turned on even when connecting the power adapter. Charge for a while and then turn on the device.

• You can use the device while charging, but the charging time will be extended.

• While charging, the battery icon will scroll, the LED changes to blue, and the touch screen may be invalid because the voltage isn’t stable. In this case, please disconnect the power

adapter.

• It is normal that the device becomes hot while charging, and the device life or performance won’t be affected.

• If the device can’t be charged normally, please send the device and charger back to our company for maintenance.

• When the battery is fully charged

disconnect the power adapter.

also will be blank. If the battery voltage is too low,

(battery icon stops scrolling and LED turns off), please

The charging requires about 3 hours. Since the battery is consumable and gradually wastes, the charging time will be shortened. The initial capacity of the battery is 2300mAh.

The battery will be consumed faster if browser or WLAN is running in background. To save

battery electricity, turn off useless applications. You can also reduce the time of backlight and

decrease the brightness of display, or press [ ] to switch to sleep mode.

Appearance:

Number #

1 2

3 4 5 6

Description

Back，Press the Back key to return to previous interface

VOL，VOL+ / VOL-

Power，Power on/off Earphone Jack，3.5mm standard earphone jack MIC jack，Build-in mic jack MicroUSB jack，Used to connect to PC for data transmission, charging and

connecting to external USB flash drive

TF-card jack，External T-FLASH card, support 2G~32G

Turning on/off

To turn on the device, press and hold [ ]

To turn off the device, press and hold [ ] for 5S, and then select Power off

Lock screen: press the Power key to lock or unlock the screen.

Touch screen usage

S7916M has 7” capacitive touch screen, with which you can select items or execute functions

easily. Before using, please comprehend the notice and basic operation of touch screen.

• Do not use sharp object to avoid scratching the touch screen.

• Do not contact other electronic devices with the touch screen, or else ESD may cause failure of the touch screen.

• Do not contact water with the touch screen, which may have failure in wet environment or

water.

• The touch screen has a detection layer, which can detect the weak charge sent out by human body. To achieve the best results, please touch the screen with fingertip. Do not operate with stylus, pen or any sharp object.

The following operations are available to control the touch screen:

• Tap: tap once to select or start a function, option or application

• Tap and hold: tap and hold an item for at least two seconds

• Drag and drop: tap and drag an item and drop at desired position

• Double tap: quickly tap an item twice

• Slide: slide up, down, left or right to browse list or screen

• If there is no operation in specified time, the screen turns off automatically. Press [

] to wake

up the screen

Operation interface

When the screen wakes up, you can view the device status and access applications. Scroll left or right to select a main screen panel

Unlocking:

After turned on, the device enters unlocking interface; tap and hold

and enter the main interface:

, and drag to to unlock

Main interface description:

1 ○2

○

3 ○4 ○5 ○6 ○7 ○8 ○9 ○10

○

1 Search

○

2 Click to view all applications

○

3 Return

○

4 Return to desktop directly

○

5 Task

○

6 Volume –

○

7 Volume +

○

8 Current time

○

9WIFI signal

○

10 Battery status

○

☆Click any icon to run it.

☆Click and drag the icon to move it to another place on the screen.

☆Click and drag the icon to

Adding and deleting shortcuts on main screen

• Add shortcuts to applications: tap and hold an application icon in the list, drag and drop to desired position on the main screen. The shortcut icon of this application will be added to the main screen.

to delete it from the desktop.
