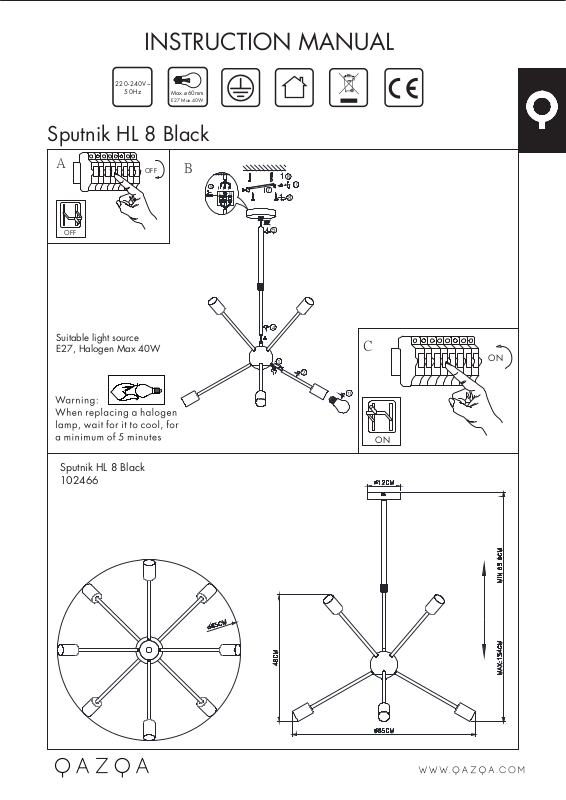

QAZQA Sputnik HL 8 Black Users Guide

220-2 40 V~

50Hz

Max.ø60mm

E27 Max.40W

Sputnik HL 8 Black

OFF

OFF

Suitable light source
E27, Halogen Max 40W

6

9

L

N

10

7

8

5

4

1

2

11

ON

ON

Sputnik HL 8 Black
102466

SAFETY INSTRUCTION

Pl ease study the instruction manual and bel ow information carefully before insta lli ng or using
th is product. Ple ase k eep this user manual for further reference

1. The luminaires may only be installed by authorized and qualified technicians according the valid
regulations for electrical installation.

2. M ain tenanc e of t he luminaires is l imi ted to their surfaces. During maintenance no moisture c an co me

in to co nta ct wi th an y areas of the t erm ina l con nec tio ns or v olt age c ont rol par t s.

3. The electrical supply must be switched off at the outset, preferably by means of a switch in the distribution
box, before any installation, maintenance or repair work is undertaken.

4. Exterior lighting must not be installed during rain.

5. Take account of the minimal separation distance from other objects and the room required around the fitting.

6. If in any doubt, consult a professional, taking local installation requirements into account. Some countries
stipulate that lighting may be installed only by registered installers.

7. Clamping screws in electrical connections must be adequately tightened. This is particularly the case with 12V
low voltage conductors.

8. When replacing a halogen lamp, wait for it to cool, for a minimum of 5 minutes.

9. Clean with a clean, dry cloth or brush, use no solvents or abrasives. Avoid dampness on all electrical
components

10. Take account of all available technical information.

11. Take note of the symbols when connecting wires:
N =N eutral L =Live =Earth

12. Meaning of symbols:

For indoor use only, where direct contact with water is impossible

This icon indicates the level of water-proof and dust-proof

IPX X

Protection Class I: the fitting must be earthed

Protection Class II: the fitting is doubled insulated and does not require ear thing

Protection Class III: the fitting is low voltage

III

0.5 m

Minimum distance from lighted objects (meters)

Only the self-shielded halogen lamp should be used with the luminaire

8mm

Strip the wire to the indicated length (mm);different items require different length

Connect using the specified cable; different items require different cables

3x

min .0,75 mm²

Max .ø50m m

220 -240V ~

The type of lamp and maximum size and wattage indicated in each lighting unit must not

GU10

be exceed; different items require different kind of light sources with different bulb icons

2Max .50W

The armature is designed to work only with the indicated voltage. Different items require

50H z

different working voltage.

The luminaire can be used in combination with a dimmer

Lig ht Angl e

55º

The reference light angle and light space of the luminaire

35c m²

This luminaire cannot be disposed together with normal domestic waste in standard rubbish
can, but you have to bring it to a staging area for electrical waste
