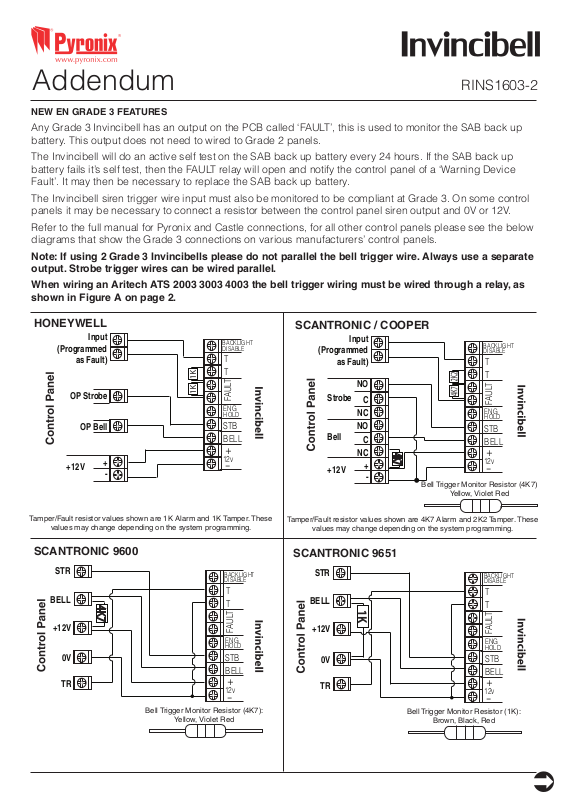

Pyronix Invincibell Grade 3 Addendum

Addendum RINS1603-2

NEW EN GRADE 3 FEATURES

Any Grade 3 Invincibell has an output on the PCB called ‘FAULT’, this is used to monitor the SAB back up battery. This output does not need to wired to Grade 2 panels.

The Invincibell will do an active self test on the SAB back up battery every 24 hours. If the SAB back up battery fails it’s self test, then the FAULT relay will open and notify the control panel of a ‘Warning Device Fault’. It may then be necessary to replace the SAB back up battery.

The Invincibell siren trigger wire input must also be monitored to be compliant at Grade 3. On some control panels it may be necessary to connect a resistor between the control panel siren output and 0V or 12V.

Refer to the full manual for Pyronix and Castle connections, for all other control panels please see the below diagrams that show the Grade 3 connections on various manufacturers’ control panels.

Note: If using 2 Grade 3 Invincibells please do not parallel the bell trigger wire. Always use a separate output. Strobe trigger wires can be wired parallel.

When wiring an Aritech ATS 2003 3003 4003 the bell trigger wiring must be wired through a relay, as shown in Figure A on page 2.

HONEYWELL

Input

(Programmed

as Fault)

OP Strobe

OP Bell

BACKLIGHT DISABLE

T T

FAULT

ENG

HOLD

STB BELL

+12V

Tamper/Fault resistor values shown are 1K Alarm and 1K Tamper. These

values may change depending on the system programming.

12v

SCANTRONIC 9600

STR

BELL

BACKLIGHT DISABLE

T T

SCANTRONIC / COOPER

Input

(Programmed

as Fault)

Strobe

Bell

+12V

Tamper/Fault resistor values shown are 4K7 Alarm and 2K2 Tamper. These

values may change depending on the system programming.

C NC NO

C NC

Bell Trigger Monitor Resistor (4K7)

Yellow, Violet Red

BACKLIGHT DISABLE

T T

FAULT

ENG

HOLD

STB BELL

12v

SCANTRONIC 9651

STR

BELL

BACKLIGHT DISABLE

T T

+12V

FAULT

ENG

HOLD

STB BELL

12v

Bell Trigger Monitor Resistor (4K7):

Yellow, Violet Red

+12V

FAULT

ENG

HOLD

STB BELL

12v

Bell Trigger Monitor Resistor (1K):

Brown, Black, Red



MENVIER

ARITECH CD9503/CD15003

TRIG-

STB-

HO-

HO+

ATS 2003 3003 4003

BACKLIGHT DISABLE

T T

FAULT

ENG

HOLD

STB BELL

12v

Bell Trigger Monitor Resistor (470Ω):

Yellow, Violet, Brown

Tamper RTN Input #

BACKLIGHT DISABLE

T T

FAULT

ENG

HOLD

STB BELL

12v

Bell Trigger Monitor Resistor (4K7):

Yellow, Violet Red

BACKLIGHT DISABLE

T T

FAULT

ENG

HOLD

STB BELL

12v

ATS 2000, 3000, 4000

NOTE:

The STRB output needs to be

programmed as BELL

The INT output needs to be

programmed as STROBE

Figure A

STRB

INT

12V 0V T NC C NO

Relay ZA 200.

Tamper RTN

Input #

S-

S+

AUX-

Bell Trigger Monitor Resistor (4K7):

Yellow, Violet Red

BACKLIGHT DISABLE

T T

FAULT

ENG

HOLD

STB BELL

12v



TEXECOM

Input

(Programmed

as Fault)

BACKLIGHT DISABLE

T T

RISCO (GARDTEC)

Input

(Programmed

as Fault)

BACKLIGHT DISABLE

T T

OP Strobe

OP Bell

FAULT

ENG

HOLD

STB BELL

+12V

Tamper/Fault resistor values shown are 4K7 Alarm and 2K2 Tamper. These

values may change depending on the system programming.

Bell Trigger Monitor Resistor (470Ω):

12v

Yellow, Violet, Brown

GUARDALL PX48i

COM

RTN

STB

BACKLIGHT DISABLE

T T

FAULT

ENG

HOLD

STB BELL

12v

Strobe

FAULT

ENG

HOLD

STB

Bell

BELL HOLD

SAB TAMP

Tamper/Fault resistor values shown are 6K8 Alarm and 4K7 Tamper.

These values may change depending on the system programming.

Bell Trigger Monitor Resistor (4K7):

Yellow, Violet Red

BELL

12v

PYRONIX (Pre-Version 9)

Input

(Programmed

as Fault)

PGM Strobe

PGM Bell

BACKLIGHT DISABLE

T T

FAULT

ENG

HOLD

STB BELL

+12V

Bell Trigger Monitor Resistor (10K):

12v

Brown, Black, Orange

CASTLE (Pre-Version 9 - EURO 46)

Input

(Programmed

as Fault)

Strobe

Bell

BACKLIGHT DISABLE

T T

FAULT

ENG

HOLD

STB BELL

+12V

Tamper/Fault resistor values shown are 4K7 Alarm and 2K2 Tamper. These

values may change depending on the system programming.

Bell Trigger Monitor Resistor (470Ω):

Yellow, Violet, Brown

12v

Tamper/Fault resistor values shown are 4K7 Alarm and 4K7 Tamper. These

values may change depending on the system programming.

CASTLE (Pre-Version 9 - EURO 76, 162, 280)

Input

(Programmed

as Fault)

Strobe

Bell

BACKLIGHT DISABLE

T T

FAULT

ENG

HOLD

STB BELL

+12V

Tamper/Fault resistor values shown are 4K7 Alarm and 2K2 Tamper. These

values may change depending on the system programming.

Bell Trigger Monitor Resistor (10K):

Brown, Black, Orange

12v

If you require any further assistance please contact Customer Support:

0845 6434 999 or 01709 535225. Hours: 8am - 6:30pm.

customer.support@pyronix.com. www.pyronix.com

INVINCIBELL BELL TRIGGER MONITORING INSTALLATION GUIDE

x MINIMUM BELL TRIGGER MONITORING VOLTAGE = 1.6 VOLTS

x MAXIMUM BELL TRIGGER MONITORING VOLTAGE = 3 VOLTS

Step 1:

x Wire the Invincibell as shown in the Invincibell installation instructions, but leave the Bell

Trigger wire disconnected.

INVINCIBELL (GRADE 3)

FA ULT

BACKLIGHT

DISABLE

ENG

HOLD

STB

BELL

12v

CONTROL PANEL

Step 2:

x When the Invincibell is powered up make sure that the Invincibell Tamper Switch is in its open

state. This will ensure that the Bell Trigger Monitor is disabled until the Invincibell Tamper

Switch is closed. This open tamper state on initial power up will prevent the bell from making

any noise, and it will ensure an easier installation.

Step 3:

ROLP

x At the control panel measure the DC voltage between the 0 Volt Bell Hold off connection, and

the Bell Trigger output connection. If the measured DC voltage is 12 Volts or above, then fit a

1K resistor between the 0 Volt Bell Hold off connection and the Bell Trigger output connection.

Now move to STEP 4. If the measured DC voltage is 0 Volts then move straight to STEP 7.

13.0V

CONT

BELL TRIGGER OUTPUT

0V HOLD OFF NEGATIVE

ANEL

CONT

BELL TRIGGER OUTPUT

1 K

0V HOLD OFF NEG ATIVE

ANEL

Step 4:

x At the control panel measure the DC voltage across the 1K resistor which has been inserted

between the 0 Volt Bell Hold off connection and the Bell Trigger output connection . The

measured DC voltage reading will be close to the readings shown in the table below.

APPROXIMATE MEASURED VOLTAGE REQUIRED MONITORING RESISTOR

6.8 Volts 470 ohms

4.5 Volts 1K

4.2 Volts 1K

3.4 Volts No resistor required

3.1 Volts No resistor required

2.3 Volts No resistor required 0 Volts See STEP 7

Step 5:

x At the control panel remove the 1k resistor from the 0 Volt Bell Hold off connection and the

Bell Trigger output connection. Replace the 1k resistor with the chosen value of resistor from

the table above. Insert and screw down the Bell Trigger wire into the control panel Bell output

connection. Make a final measurement of the DC Voltage at the Invincibell between the 0 Volt

Bell Hold off connection and the Bell Trigger output, the Bell Trigger Monitor voltage will read

between 1.6 Volts and 3.0 Volts DC.

INVINCIBELL

1.6V-3.0V

BELL

12v

Step 6:

ROLP

x Close the Invincibell case lid and Tamper Switch and the Bell Trigger Monitoring will be fully

operational.

Step 7:

x If 0 Volts is measured when following instruction number 3, then ONLY fit a 4k7 resistor

between the control panel +12 Volt Bell Hold off connection and the Bell Trigger output

connection. The Bell Trigger wire can now be inserted and screwed down in the control panel

Bell Trigger output connection.

CONT

ANEL

CONT

ANEL

BELL TRIGGER OUTPUT

4 K

0V HOLD OFF NEGATIVE

Most Panels fit within the table above if you have any doubts please contact technical support for

assistance:

Telephone: +44(0)845 6434 999 (local rate) or +44(0)1709 535225

Opening Hours: 8:00am – 6.30pm, Monday to Friday

+12V HOLD OFF POSITIVE
