Pyramid Car Audio 2200, 700, 2600, 1000, 1200 User Manual

...
Page 1
PB PB PB PB PB 2600
700 1000 1100 1500
USER'S MANUAL
PB PB PB 2200 PB 2700
1700
www.pyramidcaraudio.com
Page 2
congratulations...
on your purchase of a Pyramid America Series amplifier. This amplifier extends the Pyramid tradition into a totally new series of amps, designed from the ground up to deliver the power, performance and flexibility the modern car audio enthusiast demands.
When you check the list of features offered by the PB 700, PB 1000, PB 1100, PB 1200, PB 1500, PB 1700, PB 2200, PB 2600, PB 2700, you’ll know you made the right choice with a Pyramid Power amplifier.
Page 3
table of contents
1
Page 4
general features
2
Page 5
general features
3
Page 6
general features
4
Page 7
2 ch amp PB700 • PB1000 • PB1100 • PB1500 • PB2600
pb700 pb 1000 pb1100 pb 1500 pb 2600
power LED protection LED
Remote Bass Boost
high pass frequency control low pass frequency control bass boost level
crossover mode selector
speaker connections
high level inputs low level inputs input level control
power terminals
power fuse
5
Page 8
features and specifications
2 ch amp PB 700 • PB 1000 • PB 1100
crossover mode selector
input level control
low pass frequency control
high pass frequency control
Remote Bass Boost Plug in the Remote Bass Boost Control wire in here.
bass boost level control
low level inputs
high level inputs
power LED
protection LED
power fuse
power terminals
when used with normal, full range systems, set this switch to “FULL.” If you wish to use the internal crossover to power a driver of specific frequency range, use the “LOWPASS” or “HIGHPASS” settings.
use this control to match the outputs of your head unit to the amplifier. Starting with your head unit set at about the 2 o’clock position, increase the amp level control until distortion begins to occur, and reduce slightly from this point.
when the crossover selector switch is in “low pass” mode, this control sets the upper frequency limit for audio program sent to the speakers.
when the crossover selector switch is in “high pass” mode, this control sets the lower frequency limit for audio program sent to the speakers.
this control permits adjustment of the bass level up to an increase of approximately 18 dB.
this amp features gold-plated RCA input jacks for high impedance input. Use these with car stereo output which uses RCA-type connector cables.
if your car stereo lacks RCA-type output jacks, you may connect speaker output leads to these input connectors.
this indicator is illuminated when power is applied. this indicator is illuminated when built-in protection circuitry is activated. the fuse protects the amplifier and your car’s electrical system from short
circuit conditions. use these connectors to deliver power, ground and remote turn-on control
to the amplifier.
output power @ 14.4v DC, 1KHz
RMS Power @ 4 Ohms RMS Power @ 2 Ohms
Maximum Power Output
frequency response
input impedance
low level inputs
high level inputs
input sensitivity
low level inputs
high level inputs
power supply voltage
matching speaker impedance
stereo mode
bridged mode
maximum current draw
dimensions (W x H x L)
mm
inches
40 Watts x 2 60 Watts x 2 350 Watts x 2
50 Watts x 2 70 Watts x 2 500 Watts x 2
15 Hz-30 KHz
10K Ohms 100 Ohms
250mV
2.5V
14.4V DC Neg. Ground (10.5-16V)
2-4 Ohms 4-8 Ohms
15A 15A
271 x 60 x 175
10.7 x 2.4 x 6.9
271 x 60 x 190
10.7 x 2.4 x 7.5
50 Watts x 2 75 Watts x 2 550 Watts x 2
6
15A
271 x 60 x 210
10.7 x 2.4 x 8.3
speaker connections
these terminals are 14K gold plated to guarantee high conductivity and minimum signal loss.
Page 9
features and specifications
2 ch amp PB1500 • PB2600
crossover mode selectors
input level controls
low pass frequency controls
high pass frequency controls
CH3/4 Remote Bass Boost Plug in the Remote Bass Boost Control wire in here.
bass boost level controls
low level inputs
high level inputs
power LED
protection LED
power fuse
when used with normal, full range systems, set these switches to “FULL.” If you wish to use the internal crossovers to power a driver of specific frequency range, use the “LOWPASS” or “HIGHPASS” settings.
use these controls to match the outputs of your head unit to the amplifier. Starting with your head unit set at about the 2 o’clock position, increase the amp level controls until distortion begins to occur, and reduce slightly from this point.
when one or both of the crossover selector switches is in “low pass” mode, one can set the upper frequency limit for audio program sent to the speakers.
when the one or both of crossover selector switch is in “high pass” mode, one can set the lower frequency limit for audio program sent to the speakers.
this control permits adjustment of the bass level up to an increase of approximately 18 dB in either or both pairs of channels.
this amp features gold-plated RCA input jacks for high impedance input. Use these with car stereo output which uses RCA-type connector cables.
if your car stereo lacks RCA-type output jacks, you may connect speaker output leads to these input connectors.
this indicator is illuminated when power is applied. this indicator is illuminated when built-in protection circuitry is activated. the fuse protects the amplifier and your car’s electrical system from short
circuit conditions.
output power @ 14.4v DC, 1KHz
RMS Power @ 4 Ohms RMS Power @ 2 Ohms
Maximum Power Output
frequency response
input impedance
low level inputs
high level inputs
input sensitivity
low level inputs
high level inputs
power supply voltage
matching speaker impedance
stereo mode
bridged mode
maximum current draw
dimensions (W x H x L)
mm
inches
65 Watts x 2 125 Watts x 2 750 Watts x 2
90 Watts x 2 150 Watts x 2 1300 Watts x 2
15 Hz-30 KHz
10K Ohms 100 Ohms
250mV
2.5V
14.4V DC Neg. Ground (10.5-16V)
2-4 Ohms 4-8 Ohms
20 A 30 A
271 x 60 x 250
10.7 x 2.4 x 9.8
271 x 60 x 300
10.7 x 2.4 x 11.8
7
power terminals
speaker connections
use these connectors to deliver power, ground and remote turn-on control to the amplifier.
these terminals are 14K gold plated to guarantee high conductivity and minimum signal loss.
Page 10
Remote Bass Boost
features and controls
4 ch amp PB1200 • PB1700 • PB2200 • PB2700
pb 1200 pb 1700 pb 2200 pb 2700
ch 3/4 input level control ch 3/4 high level inputs
ch 3/4 low level inputs ch 3/4 crossover mode selector switch ch 3/4 bass boost level control ch 3/4 low pass frequency control ch 3/4 high pass frequency control
protection LED power LED
speaker connections
ch 1/2 input level control ch 1/2 high level inputs
ch 1/2 low level inputs
ch 1/2 crossover mode selector switch ch 1/2 bass boost level control ch 1/2 low pass frequency control ch 1/2 high pass frequency control
power terminals
power fuse
8
Page 11
features and specifications
4 ch amp PB1200 • PB1700
9
Page 12
features and specifications
4 ch amp PB2200 • PB2700
10
Page 13
pb700 pb 1000 pb1100 pb 1500
electrical connections
2 ch amp PB700 • PB1000 • PB1100
PB1500 • PB2600
pb 2600
11
12V battery
head unit
to remote turn-on
+12V
Page 14
pb 1200 pb 1700 pb 2200 pb 2700
electrical connections
4 ch amp PB1200 • PB1700 • PB2200 • PB2700
12
to remote turn-on
+12V
12V battery
head unit
Page 15
pb700 pb 1000
using low level inputs
stereo input connections
2 ch amp PB700 • PB1000 • PB1100
PB1500 • PB2600
pb1100 pb 1500 pb 2600
using high level inputs
head unit
LL RR
from speaker terminals
L/R Audio
Outputs
head unit
13
Y Adaptors
PLEASE NOTE! If using high level inputs, do not use the low level RCA inputs at the same time!
Page 16
pb700 pb 1000
using low level inputs
mono input connections
2 ch amp PB700 • PB1000 • PB1100
PB1500 • PB2600
pb1100 pb 1500 pb 2600
To a second amplifier
To a second amplifier
using high level inputs
head unit
RRLL
from speaker terminals
head unit
14
Y Adaptors
PLEASE NOTE! If using high level inputs, do not use the low level RCA inputs at the same time!
wiring harnesswiring harness
Page 17

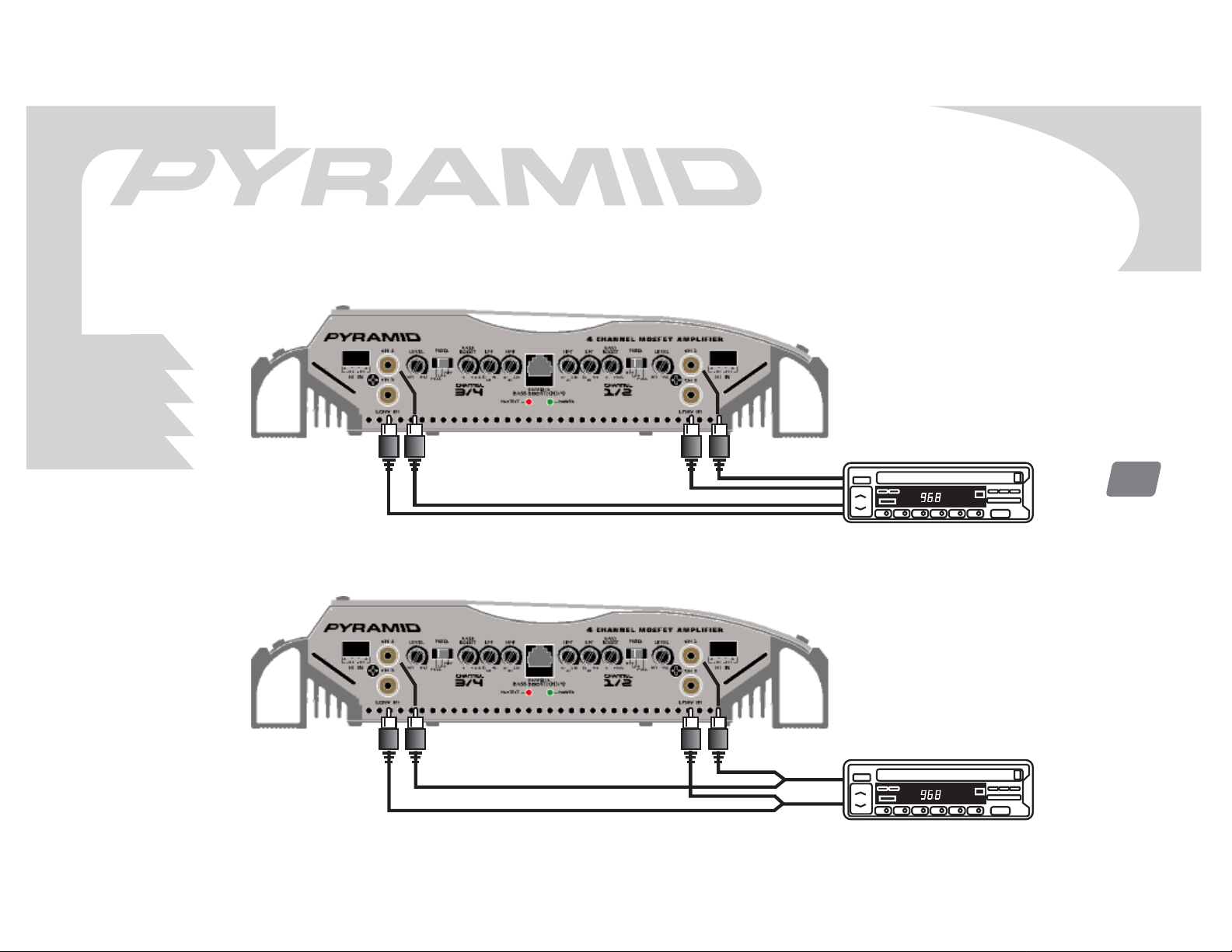

Stereo
input connections
4 ch amp PB1200 • PB1700 • PB2200 • PB2700
pb 1200 pb 1700 pb 2200 pb 2700
4 CH Stereoinput connections using
L/R REAR
Audio Outputs
2 CH Stereoinput connections using
low level inputs
low level inputs
L/R FRONT
Audio Outputs
head unit
15
Y adaptors
R
L
Page 18
pb 1200 pb 1700 pb 2200 pb 2700
high level
4 ch amp PB1200 • PB1700 • PB2200 • PB2700
4 CH floating ground connections
4 CH floating ground connections
Stereo input connections
16
4 CH harness wiring for common ground connections
ORANGE BLACK BLACK ORANGE
PLEASE NOTE! If using high level inputs, do not use the low level RCA inputs at the same time!
L R FRONTLRREAR
from speaker terminals
ORANGE
BLACK BLACK
ORANGE
CH 3/4
ORANGE BLACK BLACK ORANGE
CH 1/2
L R FRONTRLREAR
ORANGE
BLACK BLACK
ORANGE
from speaker terminals
Page 19
mono
input connections
4 ch amp PB1200 • PB1700 • PB2200 • PB2700
pb 1200 pb 1700 pb 2200 pb 2700
4 CH monoinput connections using
RIGHT FRONT Audio Outputs
RIGHT REAR Audio Outputs
2 CH monoinput connections using
low level inputs
head unit
LEFT FRONT Audio Outputs
17
LEFT REAR Audio Outputs
low level inputs
Y adaptors
L
R
Page 20
pb 1200
high level mono
4 ch amp PB1200 • PB1700 • PB2200 • PB2700
4 CH floating ground connections
input connections
pb 1700 pb 2200 pb 2700
PLEASE NOTE! If using high level inputs, do not use the low level RCA inputs at the same time!
ORANGE BLACK BLACK ORANGE
4 CH harness wiring
for common ground connections
18
RL
ORANGE
BLACK BLACK
ORANGE
from speaker terminals
Page 21
pb700 pb 1000 pb1100 pb 1500
Stereo Output Mode
speaker connections
2 ch amp PB700 • PB1000 • PB1100
PB1500 • PB2600
pb 2600
LEFT speaker
19
Bridged Mono Output Mode
RIGHT speaker
MINIMUM
SPEAKER
IMPEDANCE
4 OHMS!
speaker
Page 22
pb 1200 pb 1700 pb 2200 pb 2700
4 ch amp PB1200 • PB1700 • PB2200 • PB2700
4 CH Output Mode
LR
FRONT speakers
Bridged Dual Mono Output Mode
RL
speaker connections
20
REAR speakers
speakers
LR
MINIMUM
SPEAKER
IMPEDANCE
4 OHMS!
Page 23
pb 1200 pb 1700 pb 2200 pb 2700
speaker connections
4 ch amp PB1200 • PB1700 • PB2200 • PB2700
2 CH Stereo Output Mode with Subwoofer Output
L
SUBWOOFER
SPEAKERS
21
MINIMUM
SPEAKER
R
IMPEDANCE
4 OHMS!
Page 24
mounting and installation
22
Page 25
protection circuitry
troubleshooting
23
Page 26
precautions notes
24
Page 27
15
