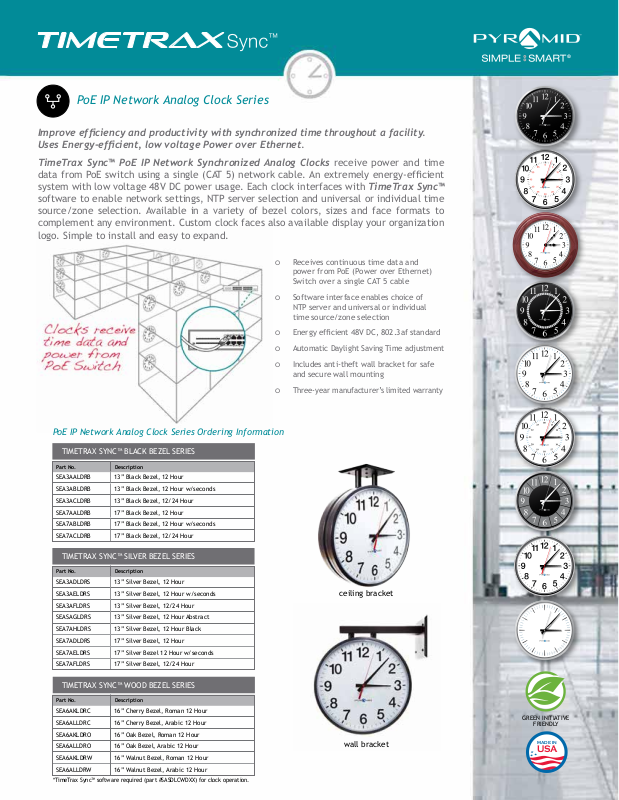

Page 1
PoE IP Network Analog Clock Series
Improve efciency and productivity with synchronized time throughout a facility.
Uses Energy-efcient, low voltage Power over Ethernet.
TimeTrax Sync™ PoE IP Network Synchronized Analog Clocks receive power and time
data from PoE switch using a single (CAT 5) network cable. An extremely energy-efcient
system with low voltage 48V DC power usage. Each clock interfaces with TimeTrax Sync™
software to enable network settings, NTP server selection and universal or individual time
source/zone selection. Available in a variety of bezel colors, sizes and face formats to
complement any environment. Custom clock faces also available display your organization
logo. Simple to install and easy to expand.
O Receives continuous time data and
power from PoE (Power over Ethernet)
Switch over a single CAT 5 cable
O Software interface enables choice of
NTP server and universal or individual
time source/zone selection
O Energy efcient 48V DC, 802.3af standard
O
Automatic Daylight Saving Time adjustment
O Includes anti-theft wall bracket for safe
and secure wall mounting
O
Three-year manufacturer’s limited warranty
®
PoE IP Network Analog Clock Series Ordering Information
TIMETRAX SYNC™ BLACK BEZEL SERIES
Part No. Description
SEA3AALDRB 13” Black Bezel, 12 Hour
SEA3ABLDRB 13” Black Bezel, 12 Hour w/seconds
SEA3ACLDRB 13” Black Bezel, 12/24 Hour
SEA7AALDRB 17” Black Bezel, 12 Hour
SEA7ABLDRB 17” Black Bezel, 12 Hour w/seconds
SEA7ACLDRB 17” Black Bezel, 12/24 Hour
TIMETRAX SYNC™ SILVER BEZEL SERIES
Part No. Description
SEA3ADLDRS 13” Silver Bezel, 12 Hour
SEA3AELDRS 13” Silver Bezel, 12 Hour w/seconds
SEA3AFLDRS 13” Silver Bezel, 12/24 Hour
SEASAGLDRS 13” Silver Bezel, 12 Hour Abstract
SEA7AHLDRS 13” Silver Bezel, 12 Hour Black
SEA7ADLDRS 17” Silver Bezel, 12 Hour
SEA7AELDRS 17” Silver Bezel 12 Hour w/seconds
SEA7AFLDRS 17” Silver Bezel, 12/24 Hour
TIMETRAX SYNC™ WOOD BEZEL SERIES
Part No. Description
SEA6AKLDRC 16” Cherry Bezel, Roman 12 Hour
SEA6ALLDRC 16” Cherry Bezel, Arabic 12 Hour
SEA6AKLDRO 16” Oak Bezel, Roman 12 Hour
SEA6ALLDRO 16” Oak Bezel, Arabic 12 Hour
SEA6AKLDRW 16” Walnut Bezel, Roman 12 Hour
SEA6ALLDRW 16” Walnut Bezel, Arabic 12 Hour
*TimeTrax Sync™ software required (part #SASDLCWDXX) for clock operation.
ceiling bracket
wall bracket
GREEN INITIATIVE
FRIENDLY
MADE IN
USA
Page 2
PoE IP Network Analog Clock Series
SPECIFICATIONS
Time Base Microprocessor
Time Update
Frequency
Time Update
Method
Power 48V DC, CAT 5 Cable, 802.3af standard
Average Current
Consumption
Operating
Temperature
Mounting Double Face Wall or Ceiling (ABS 13” Bezel)
Dial Material Polystyrene
Lens Material Non glare, shatterproof transparent polycarbonate
Bezel Material Reinforced Hardwood
Bezel Color/Finish Black or Silver Cherry, Oak or Walnut
Dial Format 12 Hour, 12 Hour with 12 Hour or Roman
Dimensions (Dia x D) 13.25” x 2.5” (13”) 16.5” x 2.25”
Weight 3lbs (1.36kg) (13”) 5.5lbs (2.49kg)
Shipping Weight 3.75lbs (1.7kg) (13”) 7.5lbs (3.40kg)
Warranty 3-Year manufacturer’s limited warranty
Guarantee 30-Day money back guarantee
Compliance IEEE 802.af/ANSI X3.263
Includes Security wall bracket and key, User Guide
Continuous
NTP, SNTP
70mA
-30°F (-33.44°C) to 130°F (54.44°C)
Acrylonitrite
Butadiene Styrene
(ABS)
Finish
seconds, 12/24 Hour or Numeral
Custom
(33.6cm x 6.35cm) (41.9 x 5.7)
17” x 2” (17”)
(43.1cm x 5.08cm)
4.3lbs (1.95kg) (17”)
5.45lbs (2.47kg) (17”)
12.5” (31.75cm)
13.25” (33.65cm)
13” Clock Series
12.5” (31.75cm)
16.25in
16.5” (41.91cm)
20.25in
16” Wood Clock Series
2” (5.08cm)
2.25” (5.71cm)
®
1.75” (4.44cm)
1.75” (4.44cm)
ACCESSORIES
SASDLCWDXX* TimeTrax Sync™ Software
APOEPI Ethernet Port Injector & 6’ power cable
42227-1 20’ Category 5E Ethernet Cable
42320 Dual 13” Analog Clock Wall Bracket
42443 Dual Analog & Digital Clock Ceiling Bracket
42314 15” Wire Clock Guard
42315 19” Wire Clock Guard
42690 16.5” Polycarbonate NEMA4 Clock Cover
42606 Analog Security Mount Replacement
42281 Wall Clock Security Mount Replacement Key
*Required for clock operation.
MADE IN
USA
SynchronizeEthernet
888.479.7264 [email protected] pyramidtimesystems.com
16” (40.6cm)
17” (43.1cm)
17” Clock Series
Power up with PoE.
Power over Ethernet IP Clocks
simply connect to existing
Ethernet Intrastructure with
a single CAT 5 Ethernet cable.
© 2017 Pyramid Time Systems, LLC. All Rights Reserved.
2” (5.08cm)
4
1.75” (4.44cm)
1 34567891011121314151617181920212223T
