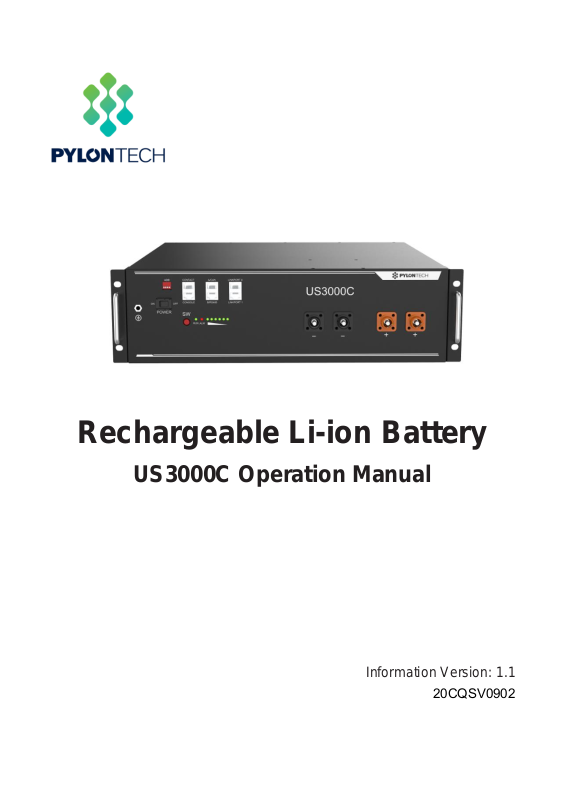

Pylontech US3000C Operation Manual

Rechargeable Li-ion Battery

US3000C Operation Manual

Information Version: 1.1

20CQSV0902

This manual introduces US3000C from Pylontech. Please read this manual
before you to install the battery and follow the instruction carefully during the
installation process. Any confusion, please contact Pylontech immediately for
advice and clarification.

1. Safety Precautions 1

1.1 Before Connecting 2

1.2 In Using 2

2. Introduction 3

2.1 Features 3

2.2 Specification 4

2.3 Equipment interface instruction 6
Definition of RJ45 Port Pin 8

3. Safe handling of lithium batteries guide 10

3.1 Schematic diagram of solution 10

3.2 Danger label 10

3.3 Tools 11

3.4 Safety gear 11

4. Installation and operation 12

4.1 Package items 12

4.2 Installation location 13

4.3 Grounding 15

4.4 put into cabinet or racks 16

4.5 Put into bracket 18

4.6 power on 21

4.7 Power off 22

4.8 Multi-group mode 23

5. Trouble shooting. 25

6. Emergency Situations 28

7. Remarks 29

1

1. Safety Precautions

Reminding

1) It is important and necessary to read the user manual carefully (in the

accessories) before installing or using battery. Failure to do so or to follow
any of the instructions or warnings in this document can result in electrical
shock, serious injury, or death, or can damage battery, potentially rendering
it inoperable

2) If the battery is stored for long time, it is required to charge them every six
months, and the SOC should be no less than 90%

3) Battery needs to be recharged within 12 hours, after fully discharged

4) Do not install the product in outdoor environment, or an environment out of
the operation temperature or humidity range listed in manual.

5) Do not expose cable outside

6) Do not connect power terminal reversely.

7) All the battery terminals must be disconnected for maintenance

8) Please contact the supplier within 24 hours if there is something abnormal.

9) Do not use cleaning solvents to clean battery

10) Do not expose battery to flammable or harsh chemicals or vapors

11) Do not paint any part of battery, include any internal or external components

12) Do not connect battery with PV solar wiring directly

13) The warranty claims are excluded for direct or indirect damage due to items
above.

14) Any foreign object is prohibited to insert into any part of battery

2

Warning

1.1 Before Connecting

1) After unpacking, please check product and packing list first, if product is

damaged or lack of parts, please contact with the local retailer

2) Before installation, be sure to cut off the grid power and make sure the

battery is in the turned-off mode

3) Wiring must be correct, do not mistake the positive and negative cables,

and ensure no short circuit with the external device

4) It is prohibited to connect the battery and AC power directly

5) The embedded BMS in the battery is designed for 48VDC, please DO NOT

connect battery in series

6) Battery must connect to ground and the resistance must be less than 0.1Ω

7) Please ensured the electrical parameters of battery system are compatible

to related equipment

8) Keep the battery away from water and fire.

1.2 In Using

1) If the battery system needs to be moved or repaired, the power must be

cut off and the battery is completely shutdown

2) It is prohibited to connect the battery with different type of battery.

3) It is prohibited to connect batteries with faulty or incompatible inverter

4) It is prohibited to disassemble the battery (QC tab removed or damaged);

5) In case of fire, only dry powder fire extinguisher can be used, liquid fire

extinguishers are prohibited

6) Please do not open, repair or disassemble the battery except staffs from

Pylontech or authorized by Pylontech. We do not undertake any consequences
or related responsibility which because of violation of safety operation or
violating of design, production and equipment safety standards.

3

2. Introduction

US3000C lithium iron phosphate battery is the new energy storage products
developed and produced by Pylontech, it can be used to support reliable power
for various types of equipment and systems.
US3000C has built-in BMS battery management system, which can manage
and monitor cells information including voltage, current and temperature.

2.1 Features

1) NEW: Build-in soft-start function able to reduce current strike when inverter
need to start from battery.

2) NEW: Dual active protection on BMS level.

3) NEW: Automatic address setting when connect in multi-group.

4) NEW: Support wake up by 5~12V signal from RJ45 port.

5) NEW: Support upgrade battery module from upper controller via CAN or
RS485 communication.

6) NEW: Enable 95% depth of discharge, available for the inverter which
completely follow Pylontech latest protocol to operate.

7) The module is non-toxic, non-polluting and environmentally friendly

8) Cathode material is made from LiFePO4 with safety performance and long
cycle life

9) Battery management system (BMS)has protection functions including over-
discharge, over-charge, over-current and high/low temperature

10) The system can automatically manage charge and discharge state and
balance voltage of each cell

11) Flexible configuration, multiple battery modules can be in parallel for
expanding capacity and power

12) Adopted self-cooling mode rapidly reduced system entire noise

13) The module has less self-discharge, up to 6 months without charging it on

shelf, no memory effect, excellent performance of shallow charge and

4

discharge

14) Small size and light weight, standard of 19-inch embedded designed
module is comfortable for installation and maintenance

15) Compatible with the US2000C, US3000, and US2000.

2.2 Specification

5

Basic Parameters

US3000C

Nominal Voltage (V)

48

Nominal Capacity (Wh)

3552

Usable Capacity (Wh)

3374.4

Dimension (mm)

442*420*132

Weight (Kg)

32

Discharge Voltage (V)

44.5 ~ 53.5

Charge Voltage (V)

52.5 ~ 53.5

Recommend Charge/Discharge Current (A)

37

Max. Charge/Discharge Current (A)

74

Peak Charge/Discharge Current (A)

90A@15sec

Communication

RS485, CAN

Depth of discharge (%)

95

Configuration (max. in 1 battery group)

16pcs

Working Temperature

0℃~50℃ Charge

-10℃~50℃ Discharge

Shelf Temperature

-20℃~60℃

Protective class

I

IP rating of enclosure

IP20

Humidity

5 ~ 95%(RH)

Altitude(m)

<2000

Certification

TÜV / CE / UN38.3/UL

Design life

10+ Years (25℃/77℉)

Cycle Life

>4,500 25℃

Reference to standards

IEC62619, IEC63056,

IEC62040, IEC62477-1,

UL1973,UL1642,VDE2510-50,

IEC61000-6-2,IEC61000-6-3,

UN38.3

6

2.3 Equipment interface instruction

Power Switch

ON: ready to turn on.
OFF: power off. For storage or shipping.

Start

Turn on: press more than 0.5s to start the battery module
Turn off: press more than 0.5s to turn off the battery.

RUN

Green LED lighting to show the battery running status

Alarm

Red LED flashing to show the battery has alarm; lighting to show the battery is
under protection.

SOC
6 green LEDs to show the battery’s current capacity.

ADD Switch

Dip1: RS485 baud rate 1: 9600; 0: 115200
Dip2~4, reversed.

Console

For manufacturer or professional engineer to debug or service.

7

Pin3

232-TX

Pin4*

+5~+12V for wake up

Pin5*

GND for wake up

Pin6

232-RX

Pin8

232-GND

*Wake up signal shall ≥0.5Sec, current between 5~15mA. After send wake up signal, the voltage shall

disappear for normal operation.

Contact

Pin1

Input, passive signal. On: turn off battery. Off: normal.
Pin2

Pin3

Output1. On: stop charge.
+

Pin4

-

Pin5

Output2. On: stop discharge.
+

Pin6

-

Pin7

Output3. On: BMS error.
+

Pin8

-

Output request signal voltage ≤25V

CAN

500 Kbps. 120Ω. For connection to LV-HUB, inverter, or upper battery.

RS485

9600 or 115200 bps.120Ω. For connection to inverter, or slave battery.

Link Port 0, 1

for communication between multiple parallel batteries.

8

Definition of RJ45 Port Pin

A/CAN

B/RS485

Pin1

Shall be NULL.
If not, may influence BMS function.

Pin2

Pin3

Pin4

CAN-H

CAN-H (single group)

Pin5

CAH-L

CAN-L (single group)

Pin6

CAN-GND

CAN-GND (single group)

Pin7

485A

485A

Pin8

485B

485B

Power Terminals

Power cable terminals: there are two pair of terminals
with same function, one connects to equipment, the
other one paralleling to other battery module for capacity
expanding.
For power cables uses water-proofed connectors. must
keep pressing this Lock Button while pulling out the
power plug.

LED Status Indicators

Condition

RU

N

ALR 1 2

3

4 5 6

Power off

- - - - - - - - Power on

● ● ● ● ● ● ●

●

Idle/Normal

● - - - - - -

-

Charge

●

-

Show soc; highest LED flash

on: 0.5s; off 0.5s

Discharge

●

Show soc

Alarm

ALR:●; Other LEDs are same as above.

System

error/Protect

- ● - - -

- -

●/●

ON

9

●

flash, on: 0.3s; off: 3.7s

●/●

flash, on:0.5s; off: 1.5s

BMS basic function

Protection and alarm

Management and monitor

Charge/Discharge End

Cells Balance

Charge Over Voltage

Intelligent Charge Model

Discharge Under Voltage

Charge/Discharge Current Limit

Charge/Discharge Over Current

Capacity Retention Calculate

High/Low Temperature(cell/BMS)

Administrator Monitor

Short Circuit

Operation Record

Power Cable Reverse

Soft start of inverter

10

3. Safe handling of lithium batteries guide

3.1 Schematic diagram of solution

3.2 Danger label

11

3.3 Tools

Wire cutter

Crimping modular plier

Screwdriver

NOTE

Use properly insulated tools to prevent accidental electric shock or short circuits.
If insulated tools are not available, cover the entire exposed metal surfaces of
the available tools, except their tips, with electrical tape.

3.4 Safety gear

It is recommended to wear the following safety gear when dealing with the
battery pack

Insulated gloves

Safety goggles

Safety shoes

12

4. Installation and operation

4.1 Package items

Unpacking and check the Packing List

1) For battery module package:

Two power cables and one communication cable for each battery package:

Grounding cable:

2) For battery system connects to inverters:

Two long power cables (current capacity 120A, constant 100A) and one
communication cable for each energy storage system:

NOTE

These three cables are belonging to External Cable Kit, NOT in battery
package. They are in another extra small cable box. If there is anything

missed please contact dealer.

180

180

180

3000

4.2 Installation location

Make sure that the installation location meets the following conditions:

1) The area is completely water proof

2) The floor is flat and level.

3) There are no flammable or explosive materials.

4) The ambient temperature is within the range from 0°C to 50°C.

5) The temperature and humidity is maintained at a constant level.

6) There is minimal dust and dirt in the area.

7) The distance from heat source is more than 2 meters.

8) The distance from air outlet of inverter is more than 0.5 meters.

9) The installation areas shall avoid of direct sunlight.

10) There is no mandatory ventilation requirements for battery module, but

please avoid of installation in confined area. The aeration shall avoid of
high salinity, humidity or temperature.

13

14

Caution

If the ambient temperature is out of the operating range, the battery stops
operating to protect itself. The optimal temperature range for the battery pack
to operate is 10°C to 40°C. Frequent exposure to harsh temperatures may
deteriorate the performance and life of the battery.

15

4.3 Grounding

Grounding cables shall be 10AWG or higher yellow-green cables. After
connection, the resistance from battery grounding point to Ground connection
point of room or installed place shall smaller than 0.1Ω.

1) based on metal directly touch between the module’s
surface and rack’s surface. If using painted rack the
corresponding place shall remove the painting.

2) install a grounding cable to the grounding point of the
modules.

16

4.4 put into cabinet or racks

Put battery modules into cabinet and connect the cables:

1) Put the battery into the cabinet

2) Drive the 4 pcs screws

3) Connect the cables between battery modules

17

4) Connect the cables to inverter

18

4.5 Put into bracket

1) Dismantle the 2 holders of battery.

19

2) Put the battery into 2 pcs of bracket.

3) Use 4 location holes, stack the batteries together. And connect the 4 locker
together.

20

4) Maximum 4 in stack.

NOTE
After installation, do not forget to register online for full warranty:

http://www.pylontech.com.cn/service/support

Caution

1) a suitable breaker between battery system and inverter is required.

2) all the installation and operation must follow local electric standard.

21

4.6 power on

Double check all the power cable and communication cable.

3) Switch on all the battery modules:

4) The one with empty Link Port 0 is the Master Battery Module, others are
slaves (1 master battery configure with maximum 15 slave batteries):

5) Press the red SW button of master battery to power on, all the battery
LED light will be on one by one from the Master battery:

22

Note:

1) After the battery module powered on, the soft-start function takes 3sec to
active. After soft-starts battery ready to output high power.

2) During capacity expansion or replacement, when parallel different

SOC/voltage of module together, please maintain the system in idle for
≥15mins or till the SOC LEDs becomes similar(≤1dot difference) before
normal operation.

4.7 Power off

1) Turn external power source off.

2) Press red SW switch of master battery. Then all batteries will off.

3) Switch Power switch OFF.

23

4.8 Multi-group mode

By RS485: DO NOT need LV-HUB.
Connect power cable first:

1) each pair of cable hold max 100A constant current. Connect enough pairs

of cable based on calculation of system current.

2) Suitable protection breaker between battery system and inverter is

required.

3) Make sure all dip switch of master batteries are R0XX, then turn ON

batteries.
R: is the baud rate of RS485 needed, all master batteries shall be the same.

4) After all batteries running and buzzer of master battery in group1 rings 3

times. Means all groups are online.

The interruption of each RS485 command shall at least≥1s.

24

By CAN:
Connect power cable first:

1) each pair of cable hold max 100A constant current. Connect enough pairs
of cable based on calculation of system current.

2) Suitable protection breaker between battery system and inverter is required.

3) connect power cable of LV-HUB

4) Make sure all dipswitch is X0XX, then turn ON batteries.

5) After all batteries running and buzzer of master battery in group1 rings 3
times. Means all groups are online.

6) Change the dip switch of master battery in group1 to X1XX. Then connect
communication cable between LV-HUB and master battery in group 1.

7) Then turn ON LV-HUB.
Detailed information please refer to manual of LV-HUB.

25

5. Trouble shooting.

Problem determination based on

1) Whether the battery can be turned on or not

2) If battery is turned on, check the red light is off, flashing or lighting

3) If the red light is off, check whether the battery can be charged/discharged

or not.

Possible conditions:

1) Battery cannot turn on, switch ON and press the red SW the lights are all
no lighting or flashing.

a) Capacity too low, or module over discharged.

solution: use a charge or inverter to provide 48-53.5V voltage. If battery can
start, then keep charge the module and use monitor tools to check the
battery log.
If battery terminal voltage is ≤45Vdc, please use ≤0.05C to slowly charge
the module to avoid affect to SOH.

If battery terminal voltage is ＞45Vdc, it can use ≤0.5C to charge.
If battery cannot start, turn off battery and repair.

2) The battery can turn on, but red light is lighting, and cannot charge or
discharge. If the red light is lighting, that means system is abnormal, please
check values as following

b) Temperature: Above 60℃ or under -10℃, the battery could not work.

Solution: to move battery to the normal operating temperature range
between 0℃ and 50℃

c) Current: If current exceeds 90A, battery protection will turn on.

Solution: Check whether current is too large or not, if it is, change the
settings on power supply side.

26

d) High Voltage: If charging voltage above 54V, battery protection will turn on.

Solution: Check whether voltage is too high or not, if it is, to change the
settings on power supply side. And discharge the module.

e) Low Voltage: When the battery discharges to 44.5V or less, battery

protection will turn on.
Solution: Charge the battery till the red light turns off.

f) Cell voltage high. The module voltage is lower than 54V, SOC LED does

not all on. When discharge the module protection disappear.
Solution: keep charge the module by 53-54V or keep the system cycle. The
BMS can balance the cell during cycling.

3) Unable to charge and discharge with red LED on. The temperature is 0~50
degree. Use charger to charge, not possible. Use load to discharge, not
possible.

g) Under permanent protection. The single cell voltage has been higher than

4.2 or lower than 1.5 or temperature higher than 80 degree. Solution: Switch
off the module and contact your local distributor for repair.

4) Unable to charge and discharge without red LED on. The temperature is
0~50 degree. Use charger to charge, not possible. Use load to discharge,
not possible.

h) Fuse broken.

Solution: Switch off the module and contact your local distributor for repair.

Caution
Buzzers indicate high risk faulty condition

5) Buzzer rings.

i) Reverse connection of cables.

Solution: Power off all battery and inverters. Disconnect breaker. Check the
cable connection and disconnect all power cables. Check the power port
damaged or not.

27

then try turn on the single module, without any cable connected. If no alarm,
then it is reverse connection of cables. Switch off the module and contact
your local distributor.

j) MOSFAIL.

Solution: Power off all battery and inverters. Disconnect breaker. Check the
cable connection and disconnect all power cables. Check the power port
damaged or not.

then try turn on the single module, without any cable connected. If still
buzzer rings. Then it is mosfail. Switch off the module and contact your local

distributor.

6) After switch On, the module turns on directly

k) BMS failure.

Solution： Switch off the module and contact your local distributor.

Excluding the points above, if the faulty is still cannot be located, turn off

battery and repair.

28

6. Emergency Situations

1) Leaking Batteries
If the battery pack leaks electrolyte, avoid contact with the leaking liquid or
gas. If one is exposed to the leaked substance, immediately perform the
actions described below.
a) Inhalation: Evacuate the contaminated area and seek medical attention.
b) Contact with eyes: Rinse eyes with flowing water for 15 minutes and

seek medical attention.

c) Contact with skin: Wash the affected area thoroughly with soap and

water and seek medical attention.
Ingestion: Induce vomiting and seek medical attention.

2) Fire
NO WATER! Only dry powder fire or carbon dioxide extinguisher can be
used; if possible, move the battery pack to a safe area before it catches fire.

3) Wet Batteries
If the battery pack is wet or submerged in water, do not let people access it,
and then contact Pylontech or an authorized dealer for technical support.
Cut off all power switch on inverter side.

4) Damaged Batteries
Damaged batteries are dangerous and must be handled with the utmost
care. They are not fit for use and may pose a danger to people or property.
If the battery pack seems to be damaged, pack it in its original container,
and then return it to Pylontech or an authorized dealer.

Caution

Damaged batteries may leak electrolyte or produce flammable gas.

29

7. Remarks

Recycle and disposal

In case a battery (normal condition or damaged) needs disposal or needs
recycling, it shall follow the local recycling regulation (i.e. Regulation (EC) Nº
1013/2006 among European Union) to process, and using the best available
techniques to achieve a relevant recycling efficiency.

Maintenance

1) It is required to charge the battery at least once every 6 months, for this
charge maintenance make sure the SOC is charged to higher than 90%

2) Every year after installation. The connection of power connector, grounding
point, power cable and screw are suggested to be checked. Make sure
there is no loose, no broken, no corrosion at connection point. Check the
installation environment such as dust, water, insect etc. make sure it is
suitable for IP20 battery system.

3) If the battery is stored for long time, it is required to charge them every six
months, and the SOC should be higher than 90%

Pylon Technologies Co., Ltd.

No. 73, Lane 887, ZuChongzhi Road, Zhangjiang Hi-Tech Park
Pudong, Shanghai 201203, China

T+86-21-51317699 | F [phone]
E [e-mail]
W www.pylontech.com.cn
