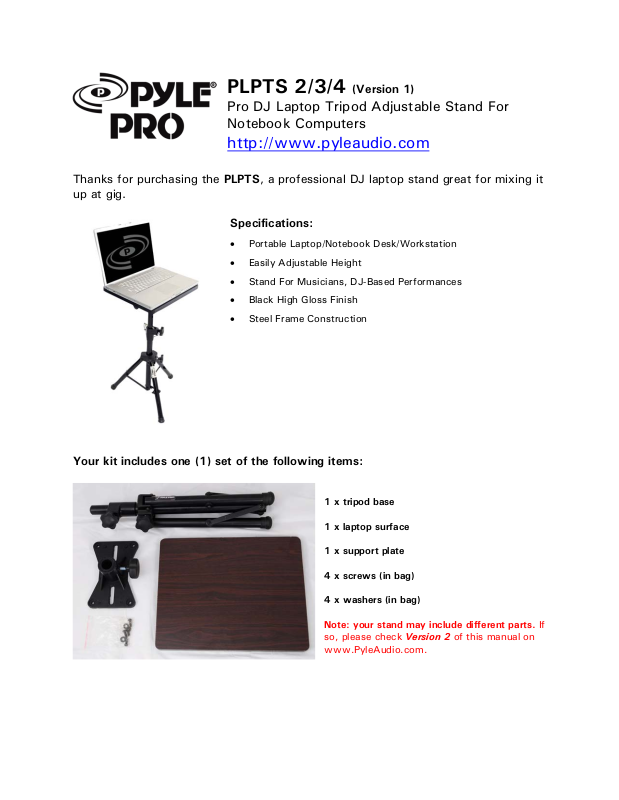

PLPTS 2/3/4 (Version 1)
Pro DJ Laptop Tripod Adjustable Stand For
Notebook Computers
http://www.pyleaudio.com
Thanks for purchasing the PLPTS, a professional DJ laptop stand great for mixing it
up at gig.
Specifications:
Portable Laptop/Notebook Desk/Workstation
Easily Adjustable Height
Stand For Musicians, DJ-Based Performances
Black High Gloss Finish
Steel Frame Construction
Your kit includes one (1) set of the following items:
1 x tripod base
1 x laptop surface
1 x support plate
4 x screws (in bag)
4 x washers (in bag)
Note: your stand may include different parts. If
so, please check Version 2 of this manual on
www.PyleAudio.com.
1. Start by flipping over the laptop surface.
You should see a set of four holes.
4. Next, we need to setup the tripod stand.
There are two knobs. Loosen knob (a) to raise
the height of the stand. Loosen knob (b) to
open up the tripod base. Tighten these knobs
when you have found the appropriate setting.
2. Lay the support plate on top, making sure
to line up the holes on the plate to the holes
on the laptop surface.
3. Insert a washer into each of the four screw
hole beds, and then screw in each screw.
5. To attach the laptop surface to the tripod
stand, unscrew the knob on the support plate,
place on the tripod stand, and then tighten
the knob. You’re done!
