Pyle Pro PYD1955, PYD1911 User Manual

PYD191 1/PYD1955

4 channel

professional

with MP3 Player

pro series

Your PYLE PRO Series Performance Mixer

is a sophisticated control center, perfect for mixing sound from multiple playback sources such as
microphones, tuners, CD players, turntables or the audio outputs from a VCR. This mixer is ruggedly
constructed for home or professional use. Wide range volume controls permit you to adjust sound levels
accurately to achieve just the right mix for playing through your speaker system or for recording.

Please read this manual thoroughly before you attempt to set up and use the mixer. It contains a
range of suggestions and instructions to insure safe usage. Set up and used properly, you can expect
years of trouble-free service from this product.

Owner’s Manual Table of Contents

i

Input/Output Features

1

Features and Controls: PYD-1911

2

Features and Controls: PYD-1955

3

Features and Controls:MP3 Player

4

Features and Controls:MP3 Player

5

Presetting Controls Before Use
Connecting the Mixer Inputs

7

Using the Gain Controls
Connecting the Mixer’s Outputs

to Amplifiers
to Recorders
to Zone Speakers

Using Headphones

8

Connecting the Lamp
Using the Mixer Controls

9

Turning On the Mixer
Monitoring (”Cueing”) Inputs
Mixing Inputs
Adding Equalization to the Mix

10

Adding External Effects to the Mix
Using the MicrophoneTalkover Mode
Microphone Tone and Level Controls
Using the MIC Kill Frequency Switches
Using the Mono/Stereo Switch

11

Using the Crossfader w/Assign Switches
Using the Digital Sampler

12

Troubleshooting
Care and Maintenance

13

Specifications
Warranty

Input/Output Features: all models

Effects Send/Receive jacks permits you to either include
externally generated effects (such as a digital sampler or synth)
IN the mix, or to process the mixed sound (echo reverb, etc.).

(PYD-1955)

Stereo Line Inputs let you connect most
high-level audio sources, such as CD
players, tape deck, tuner, VCR or MP3.

MP3 USB to connect the USB data cable
between the mixer and your computer.

Output Jacks to connect the mixer to a
receiver or amplifier – choose to use cables
with either 1/4” plugs or RCA plugs.

Zone Output Jacks to connect the mixer
to a second receiver or amplifier powering
speakers in the DJ booth or in a remote
location

Record Output Jacks to connect the
mixer to a tape deck for recording the
mixed program

i – Pyle Pro Mixer PYD1911/1955 Owner’s Manual

Dual Purpose Stereo Inputs for
using a turntable with a magnetic
cartridge OR a high level input
source

Input Select Switches – set these
switches based on what is plugged
into Phono1/Line1 and Phono2/Line3
input jacks

Ground Screw

for turntables

MIC2 Microphone
connector permits

you to connect a
balanced or
unbalanced low
impedance microphone
with 1/4” plug.

Features and Controls: PYD1911 Mixer

MIC 1 Combo Input Jack For
connecting a balanced or unbalanced
low impedance microphone with XLR­type or 1/4” plug

MIC 2 Input Jack (on input panel)

For connecting a balanced or
unbalanced low impedance microphone
with 1/4”plug

MIC Frequency Kill Switches Allows
you to kill the selected frequency range
instantly for interesting effects. LED
lights to indicate kill is activated.

MIC Talkover Allows you to lower the
level of the input sources so you can talk
them using the DJ Mic

MIC1/2 Level Controls Lets you control
the MIC levels as they enter the mix

MIC1/2 Tone Controls

Channel Gain Control Lets you adjust the gain of the input source

Channel Input Selector Lets you choose the input source to play

for each channel

Channel CUE Switch Allows you to monitor the selected audio
input source and prepare it prior to mixing it in.

Dual Display Meter Indicates the levels of Left and Right Master
Channels

10-Band Equalizer Allows you to tailor the mixer output to suit
your taste or performance environment. Each frequency range can
be cut or boost by up to 10dB.

MP3 PLAYER

BNC Lamp Adaptor Allows

you to connect a 12V/3W
lamp to light the panel

Power Switch and LED
Indicator

Equalizer On/Off Switch

Effect Switch
(Send/Receive) Lets you

connect a sound effect
device, such as reverb,
sampler, etc. and either play
the signal from it or play
another input through it.

Headphone Level Control

Headphone Jack

Accepts headphones with
1/4” plug

MEMORY SOLT Allows you
for the use of external
memory slot for SD card.

Headphone CUE/PGM
Control Allows you to listen

simultaneously or separately
to the CUE material or the
active program

USB on Allows you to activate the USB data cable

Zone Level Control Lets you control the mixer’s overall ZONE

volume level, if you set up remote speakers or DJ booth monitors

Zone Mono/Stereo Selector

Zone Balance Control

Master Level Control Lets you control mixer’s overall volume level

Master Mono/Stereo Selector

Master Balance Control

Channel Assign Switch Lets you select the input source to be mixed

by the Crossfade Slider Control

Crossfade Slider Control Allows you to smoothly switch between
the input sources assigned to Channel A and Channel B

connection.

Pyle Pro Mixer PYD1911/1955 Owner’s Manual – 1

Features and Controls: PYD1955 Mixer

Channel Gain Control Lets you adjust the gain of the input source

Channel Input Selector Lets you choose the input source to play

for each channel

Channel CUE/Sample Switch Allows you to monitor the selected
audio input source and set up the destination channel for the sampled
signal

Dual Display Meter Indicates the levels of Left and Right Master
Channels

Master Level Control Lets you control mixer’s overall volume level

Master Mono/Stereo Selector

MIC 1 Combo Input Jack For

connecting a balanced or unbalanced
low impedance microphone with XLR­type or 1/4”plug

MIC 2 Input Jack (on input panel)

For connecting a balanced or
unbalanced low impedance microphone
with 1/4”plug

MIC Frequency Kill Switches Allows
you to kill the selected frequency range
instantly for interesting effects. LED
lights to indicate kill is activated.

MIC Talkover Allows you to lower the
level of the input sources so you can talk
them using the DJ Mic

MIC1/2 Level Controls Lets you control
the MIC levels as they enter the mix

MIC1/2 Tone Controls

Master Balance Control

10-Band Equalizer Allows you to tailor the mixer output to suit

your taste or performance environment. Each frequency range can
be cut or boost by up to 10dB.

Zone Balance Control

Zone Mono/Stereo Selector

Zone Level Control Lets you control the mixer’s

overall ZONE volume level, if you set up remote
speakers or DJ booth monitors

BNC Lamp Adaptor Allows
you to connect a 12V/3W
lamp to light the panel

Power Switch and LED
Indicator

Equalizer On/Off Switch

Effect Switch
(Send/Receive) Lets you

connect a sound effect
device, such as reverb,
sampler, etc. and either play
the signal from it or play
another input through it.

Headphone Level Control

Headphone Jack

Accepts headphones with
1/4” plug

MEMORY SOLT Allows you
for the use of external
memory slot for SD card.

Headphone CUE/PGM
Control Allows you to listen

simultaneously or separately
to the CUE material or the
active program

USB on Allows you to activate the USB data cable
connection.

MP3 PLAYER

Sampler Start/Stop Controls the start and stop

of the sampling process

Sampler Mode Selector Selects the function of
the sampler section

Sampler Pitch Control Lets you control the
sampled signal’s pitch

Sampler CUE Switch Allows you to monitor the
desired sample signal

Sampler Level Control Lets you adjust the volume
of the desired sample signal as it enters the mix

2 – Pyle Pro Mixer PYD1911/1955 Owner’s Manual

Channel Assign Switch Lets you select the input source to be mixed
by the Crossfade Slider Control

Crossfade Slider Control Allows you to smoothly switch between
the input sources assigned to Channel A and Channel B

Features and Controls: MP3 Player

Features:

1. Support MP3 playback

2. Digital output volume control

3. 5 preset EQ control

4. USB interface

5. Built-in 32MB flash

6. Graphic LCD display

7. Secure Digital (SD) card

LCD Display Panel

1. A-B:It indicates the periodic repeat setting.

2.

3.

4. MP3:It indicates the MP3 music source is implemented.

5. CARD:It indicates the Secure Digital Card message at the external mode.

6. VOL 0-40:It indicates the status of volume level.

7. FILE NUMBER:The initial 2 digits indicate the file number.

8. TIME COUNTER:The last 4 digits indicate the min/sec of the played file.

9. DATA T (Transfer):It indicates the player status is being uploaded or downloaded in the mode of

10. Flat/Pop/Jazz/Classic/Rock:It indicates the status of 5 preset EQ.

:It indicates the playing or pause mode.
1/ALL:It indicates the status of player, REPEAT 1 or REPEAT ALL.

internal player or external SD card.

Control Buttons

1. MODE:to select the internal (built in memory) or external (SD card) mode.

2. A-B (REPEAT):to repeat A point to B point of the song periodically, press the button once to set
up the starting point (A) or the period, and press again to set up the ending point (B) of the period.

3. REPEAT:
playing of all songs.

(SKIP): To backward or search for the previous file.

4.

(SKIP): To forward or search for the next file.

5.

6. EQ:Press to select 5 options of programmed Flat, Pop, Jazz, Classic, and Rock EQ control.

7. STOP:To stop the playing of MP3 player.

8. VOL-:To decrease the output volume level.

9. VOL+:To increase the output volume level.

10.

11. USB ON:Press to activate the USB data cable connection between the mixer and computer.

12. MEMORY SLOT:For the use of external memory slot for SD card.

:Press (PLAY) once to play MP3; press (PAUSE) again to halt.

1 indicates the repeating playing of a single song; ALL indicates the repeating

CAUTIONS:

1. PLEASE ALWAYS FORMAT THE MEMORY WHEN IT IS USED FIRST TIME.

2. PLEASE INSERT OR EJECT THE SD CARD ONLY UNDER THE MP3 IS ON "STOP" OR THE MIXER IS
ON "POWER OFF" CONDITIONS.

3. PLEASE DO NOT DISCONNECT THE USB DATA CABLE UNDER UPLOADING OR DOWNLOADING.

Pyle Pro Mixer PYD1911/1955 Owner’s Manual – 3

Features and Controls: MP3 Player

Installing the MP3 Driver

1. Connect the USB DATA CABLE with the used computer.

2. Connect the USB DATA CABLE with the mixer and turn it on.

3. If your computer i s equipped with the Windows 95/98/98SE, please download the MP3 driver at
WWW.PYLEAUDIO.COM; If your computer is equipped with the Windows ME/XP/2000, this procedure
is not required.

4. The windows will get new hardware and install the MP3 driver automatically.

Operating the MP3

1. Connect the USB DATA CABLE to the mixer and the used computer, and turn on the mixer.

2. get to the "PORTABLE DISK" in the Windows explorer.

3. check the size of portable disk by clicking the right button with the pointer over the portable disk
icon, and open the "PROPERTIES".

4. Go on to the next step #5 with everything being correct, otherwise, move the pointer on the
portable disk icon and click the right mouse button, and do "FORMAT" complete than "DEFRAGMENTER"
if the properties going down.

5. Please copy the song files in the computer and than go to portable disk, click PASTE, the computer
will download the files to the portable disk automatically.

6. If you want to download other types of files, please just repeat the last step. If you want to move
out the files, please CUT the files and PASTE them to the location you wnat them to be.

7. If the files are from the internet, you can just save them in the portable disk. however, it would
be more convenient for you to get them next time with saving the files in your hard drive first.

8. CAUTION:The MP3 player would be shut down if you disconnect the USB DATA CABEL during the
files' are being downloaded.

System Requirements:

1. Intel Pentium III 166MHZ or up processor.

2. The Windows 95/98/98SE are required to download the MP3 driver at WWW.PYLEAUDIO.COM;
The Windows ME/XP/2000 are not required.

3. The free hard disk space of 20MB or up.

4. The RAM capacity of 32MB or up.

5. One USB port available.

4 – Pyle Pro Mixer PYD1911/1955 Owner’s Manual

Presetting the Controls Before Use

Power On/Off
Balance
Gain
Tone Controls, Treble, Mid & Bass
MIC 1/2, CH 1/2/3/4, Master & Cue Levels
Crossfader

OFF
MID
MID
0
0
CENTER

Since sudden high output levels from your Pyle Pro mixer can damage not only audio devices connected
to the mixer output but your hearing as well (especially if you are using headphones), please adjust
the mixer’s controls BEFORE connecting AC power or turning on the unit.

Set up the mixer controls like this before you start:

CONTROL SETTING

Connecting the Mixer Inputs

This mixer permits connection of up to eight (8) audio input sources,and two microphones. Such a
system might include, for example:

Two Microphones
Two Turntables
Six CD players

Two Microphones
Eight CD players

Two Microphones
Two Turntables
Three CD players
Three Cassette Decks

Two Microphones
Two Turntables
Four CD players
One Rhythm Synth
One Cassette Deck

Please observe
the following:

LOW LEVEL PHONO 1 or PHONO 2 mixer audio input jacks (an audio
source output with a volume control is HIGH LEVEL).

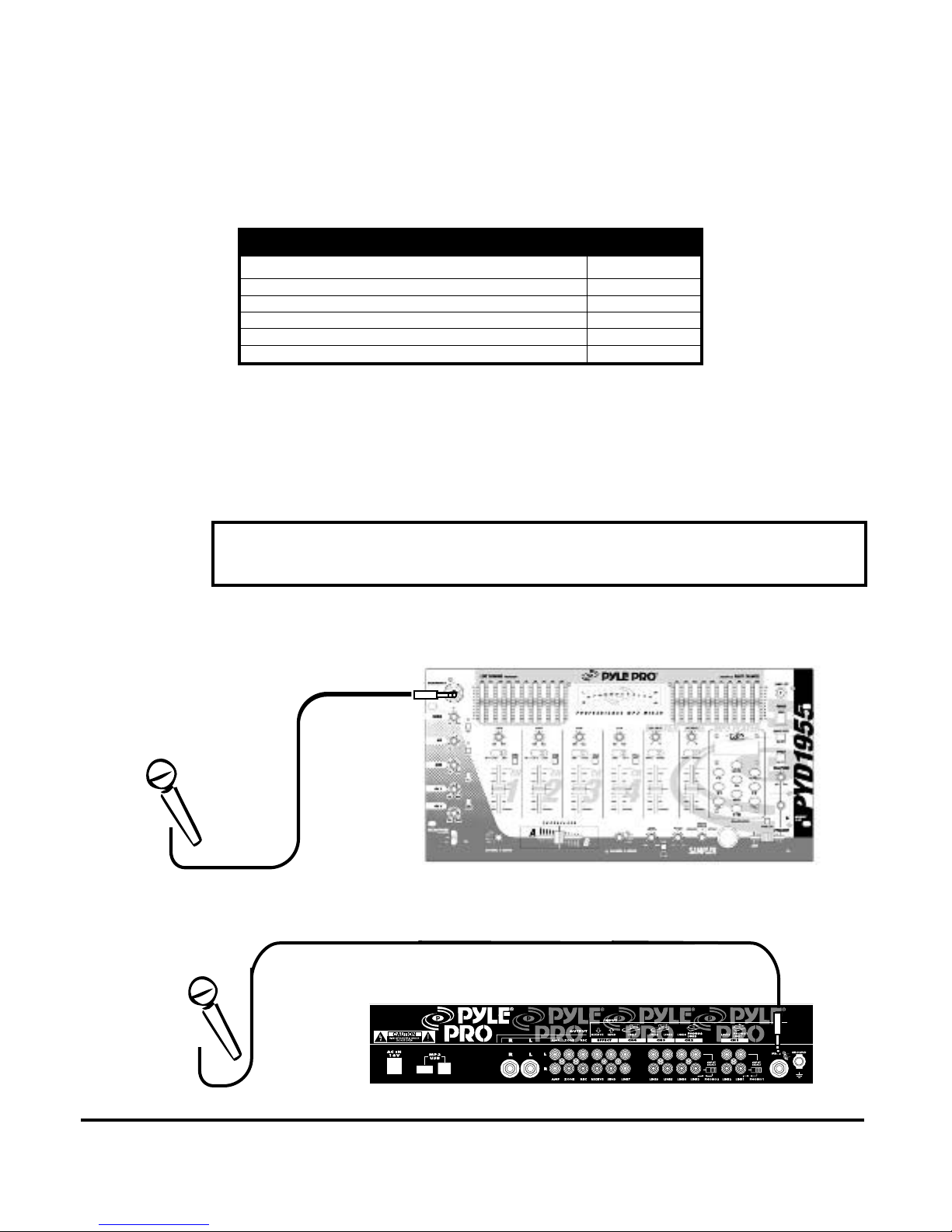

Connecting Microphones

Microphone 1. Connect a balanced/unbalanced low impedance (600 Ohm) XLR type mic OR a low

impedance mic with a 1/4” plug to the MIC 1 jack in the upper left corner of the mixer control panel.

Use 1/4” or
XLR-type jack

MIC 1

Microphone 2. Connect a high quality balanced/unbalanced low impedance (600 Ohm) microphone
with a 1/4” plug to the MIC 2 jack on the lower left corner of the mixer’s back panel.

Do not connect any audio source with a HIGH LEVEL OUTPUT to the

MIC 2

Use 1/4”
jack

Pyle Pro Mixer PYD1911/1955 Owner’s Manual – 5

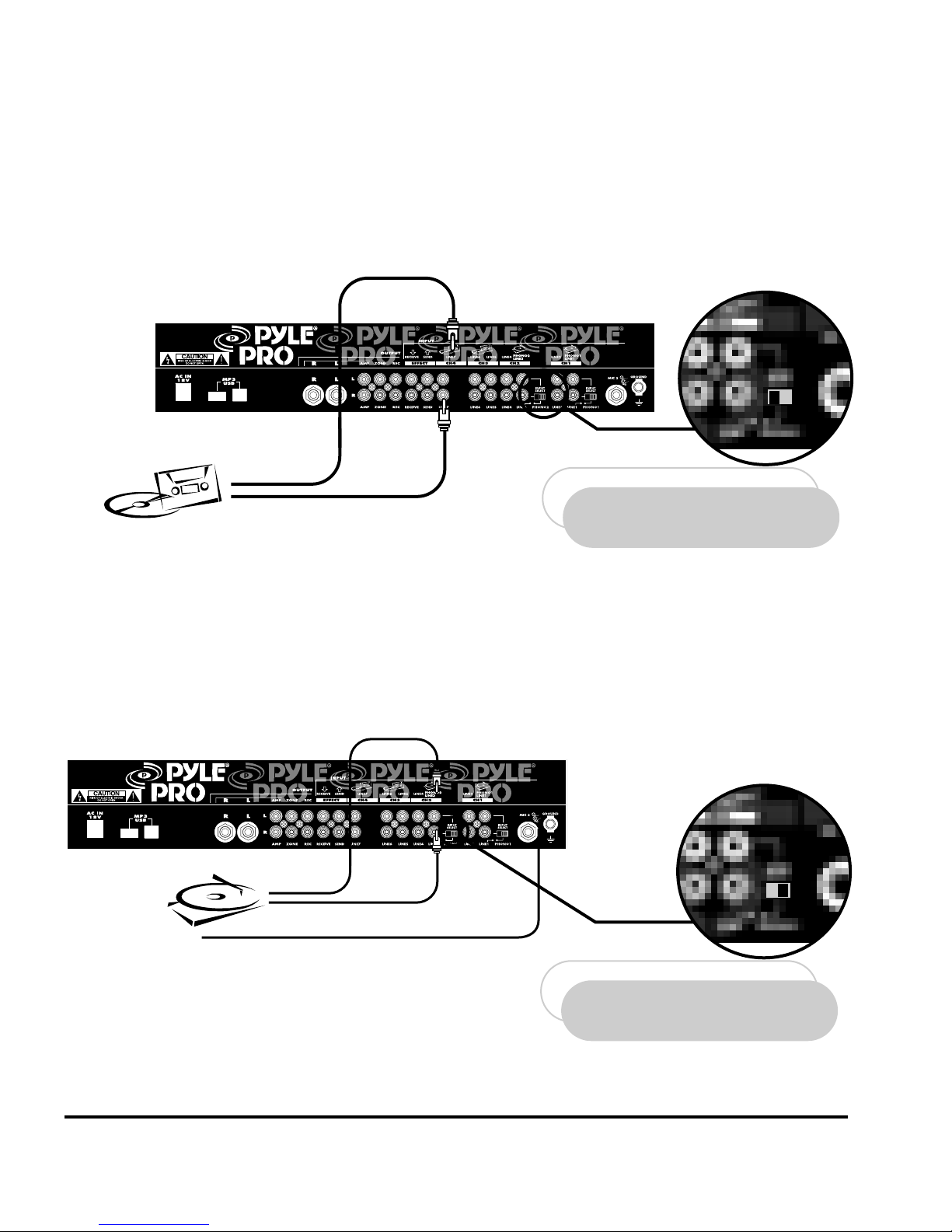

Connecting High Level Output Audio Sources

Connect up to 8 such sources (tuner, cassette deck, CD Player, camcorder VCR or MP3) to the input
jacks for Line 1 (if not being used as Phono 1 input), Line 2, Line 3 (if not being used as Phono 2
input), Line 4, Line 5 and Line 6. Please note that Phono 1 and Line 1 (as well as Phono 2 and Line

3) use the same jacks. The selector switch(e)s below the jacks should be set to Line position if the
jacks are used for the High Level input sources described here.

Use RCA type
patch cables

High Level Output
Audio Source

LEFT output

RIGHT output

CD player, cassette deck, camcorder, VCR, etc.

NOTE!

If you use a High Level Output Audio Source(s)
in the Phono1/Line1 (and/or Phono2/Line3)
input jack(s), be sure to place the Input Select
switch in the LINE1 (and/or LINE3) position(s)!

Connecting Turntables and Other Level Output Audio Sources

Connect up to 2 turntables to the Phono 1 and Phono 2 input jacks. Please note that Phone 1 and
Line 1 (as well as Phono 2 and Line 3) use the same jacks. The selector switch below the jacks should
be set to Phono position if the jacks are used for phono inputs.

When using a turntable, you should also securely connect its ground wire (usually green or black)
to the Ground screw on the input panel of the mixer.

Use RCA type
patch cables

Magnetic cartridge turntable

LEFT output

RIGHT output

GROUND wire from turntable

NOTE!

If you use a Turntable in the Phono1/Line1
(and/or Phono2/Line3) input jack(s), be sure
to place the Input Select switch in the PHONO1
(and/or PHONO2) position(s)!

6 – Pyle Pro Mixer PYD1911/1955 Owner’s Manual

Using the Channel Input Gain Controls

Tape Deck
Amplifier/Receiver

OFF
OFF

FLAT

Adjusting the Gain controls for each channel permits you to fine tune the level of each of the audio
inputs, since input levels usually vary. Rotate the Gain controls clockwise to increase levels. After
you preset the gain levels for each input, it is recommended that you do not adjust them further,
as you can cause sound level imbalances during a mix.

Connecting the Mixer Outputs

Output to an Amplifier

To play the mixer’s output signal through your speaker system (for events such as parties, dances,
conferences, etc.) connect an audio patch cord (not supplied) from the mixers AMP L and R jacks
to your receiver amplifier’s left and right input jacks.

This mixer features two kinds of output jacks for you to choose from: RCA style and 1/4” type. DO
NOT USE BOTH SIMULTANEOUSLY.

Output to a Tape or Digital Audio Recorder

To play the mixer’s output signal through your speaker system (for events such as parties, dances,
conferences, etc.) connect an audio patch cord (not supplied) from the mixers REC L and R jacks
to your receiver/amplifier’s left and right input jacks.

Zone Output

To monitor the mixer output to a second set of speakers in the DJ booth (or in a remote location)
connect an audio patch cord (not supplied) from the mixers ZONE L and R jacks to your secondary
amplifier’s left and right input jacks.

CAUTION: In order to avoid sudden unpleasant sound output,
adjust the output devices controls to these settings before you
connect the mixer’s output jacks to these devices’ input jacks.

OUTPUT DEVICE SETTINGCONTROL

POWER
POWER

TONE

Pyle Pro Mixer PYD1911/1955 Owner’s Manual – 7

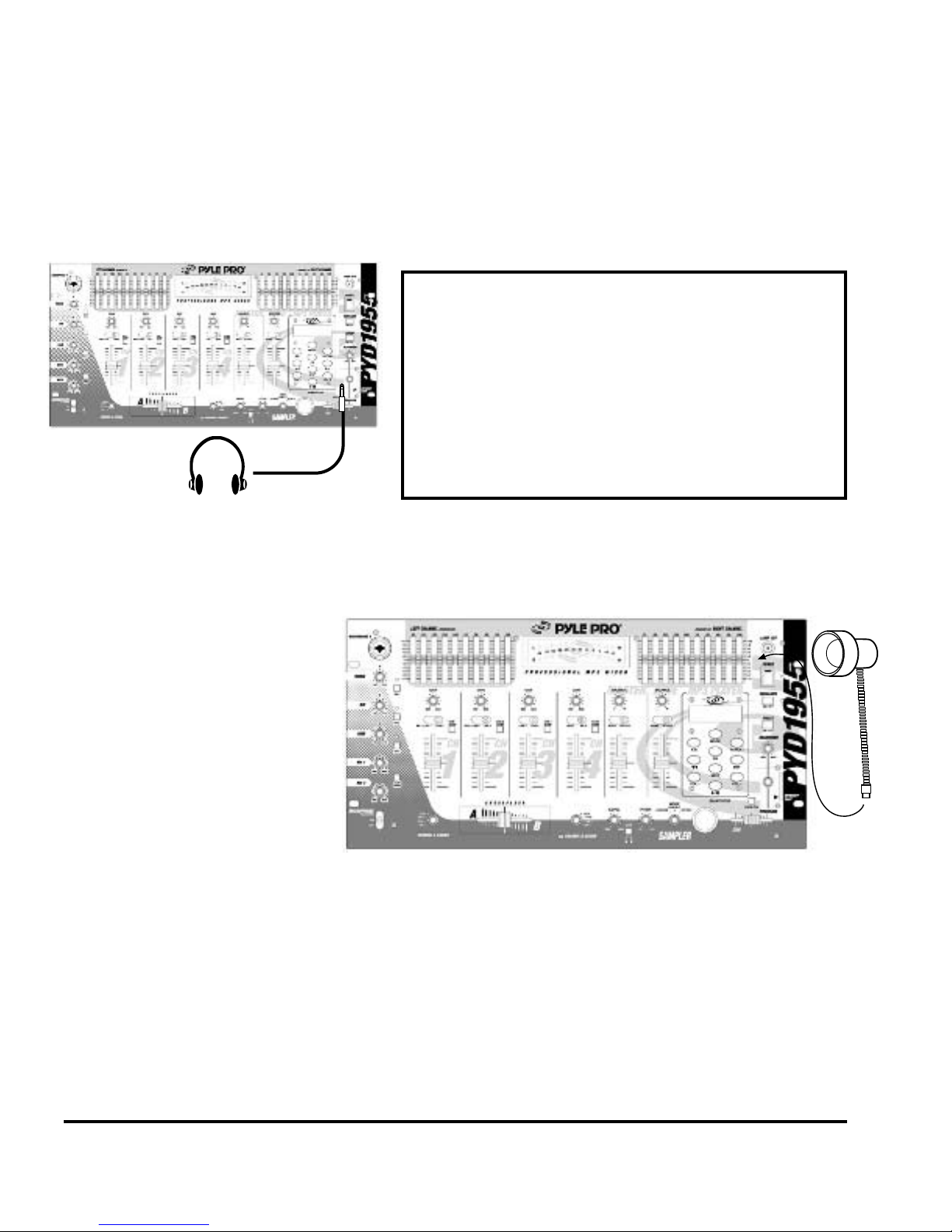

Using Headphones

Plug a pair of stereo headphones (not supplied) with a 1/4” jack into the Phones input. Using
headphones not only affords you the opportunity to listen privately, but also enables you to monitor
(”cue”) the incoming audio sources so you can locate an exact passage or section before mixing it
in. It also gives you the opportunity to set up the relative volume level of the upcoming passage
before it joins the mix.

Listen Safely! Please observe the following:

Do not listen at extremely high volume levels. Extended,
high-volume listening can lead to permanent hearing loss.
Follow these guidelines to protect your hearing, especially
when using headphones.

Always start by setting the volume level to the lowest
possible level before listening.

Put headphones on, and then gradually increase the
volume as necessary.

Once you set the volume level do not increase it. Over

a period of time, your ears adapt to a volume level and there
is a temptation to increase it. Even though such an increase
may not cause discomfort, it might still damage your hearing.

Stereo Headphones

Connecting the Lamp

If you wish to intall a console lamp
(not supplied), simply insert the
plug end of an appropriate 12V/3W
gooseneck style or similar lamp into
the lamp socket provided in the
upper right corner of the mixer
control panel. Power is supplied to
this lamp when the mixer power
switch is turned on.

12V/3W lamp

8 – Pyle Pro Mixer PYD1911/1955 Owner’s Manual

Using the Mixer Controls

Turning on the Mixer

1. Turn on the output amplifier and temporarily set its volume to the minimum setting.

2. On the mixer, turn ON the power switch. The adjacent power LED will illuminate.

3. Turn on the audio input sources you wish to mix, and set them to play (or talk continuously into
the microphone).

4. To monitor the audio input sources so that you can decide when to mix in each input, see “Monitoring
‘Cueing’ the Inputs.”

5. To mix the audio input sources so that you can play them through your amplifier system or record
them on your tape deck, see “Mixing the Inputs.”

Monitoring (”Cueing”) the Inputs

1. Set the CUE ASSIGN switch of the input source (MIC , CH1, CH2, CH3 or CH 4) you wish to

monitor.

2. Adjust the Headphone Level control to a comfortable listening level.

3. The Headphone CUE/PGM control permits you to switch easily from listening to CUE material to

the playing PROGRAM sound. You can also listen to both simultaneously by moving the Headphone

CUE/PGM control to a point midway between the two ends.

PYD-1955: This model has an additional CUE on the sampler module for you monitor the sampled

signal being applied. To monitor a sampled signal, press the SAMPLE ASSIGN button for the
channel to which the sample has been saved, and then press the SAMPLE CUE button to audition
this sound.

Mixing the Inputs

There are a maximum of ten input sources available at one time, including two microphone inputs.
Both microphone input sources are always available as part of the mix, if desired. Each of the four
audio channels can be linked to two different input sources, and one of these sources for each channel
is available for mixing.Turn on all the available audio sources and be sure they are providing sound
before continuing.

1. Select the Channel Input Selectors for each channel, choose the audio sources you want to mix
for each channel (i.e., choose PHONO1/LINE2 or LINE2).

2. Set the Mic and Channel Level controls all to within the8-10range.

3. Slide the MASTER volume control toward 10 until you get an average reading of 0 on both Output
Level LED Meters. The output level displayed in the meters represents the TOTAL output from all
the channels supplying audio to the mix. NOTE: Once you set this level, we suggest you do not
change it!

4. If you add or change input sources, adjust the corresponding MIC1, 2 or CH1, CH2, CH3 or CH4 level

control(s) to maintain the average reading of 0 on the LED meters.

5. To change the overall sound level, adjust the RECEIVER/AMPLIFIER (NOT THE MIXER) volume
control to the desired volume.

Pyle Pro Mixer PYD1911/1955 Owner’s Manual – 9

Adding Equalization to the Mix

You can further tailor the sound processed through the mixer to match your acoustic surroundings
or suit your personal preferences by using the ten frequency sliders for each channel. To engage the
equalization module, press the Equalization On/Off Switch. The LED next to the switch will be
illuminated, indicated the EQ mode has been engaged.

Each one of the sliding controls boosts or cuts the selected frequency by up to 12 dB. If you leave
a slider at the center (”0”) position, the corresponding frequency range for that stereo channel will
be left unaffected (”flat”). Please note that in order to provide a smooth range of control, the frequency
ranges overlap slightly. Therefore, for example, if you raise the level in the 2K range, the 1K and
4K ranges are also slightly affected.

Adding External Effects to the Mix

To connect a sound effect device such as an echo reverb or digital sampler processor, first connect
the EFFECTS SEND jacks to the external device’s AUDIO IN jacks using RCA type cables. Then connect
the device’s audio outputs to the EFFECTS RECEIVE jacks on the mixer.

To activate the loop with which now has an outboard processor, press the Effects Switch.The effect
devices are now in the audio chain. Be sure the device is ON.

Using the Microphone

Incorporating Voice into the Mix

To blend voice from the microphones with the audio program material, first be sure the MIC/TALKOVER
switch is set to the ON position. (In this position, the MIC channel is mixed into the program like
any other audio input source.)

Then adjust the corresponding MIC level controls to increase or decrease the microphone level (this
will not affect the main volume inputs). When a microphone is not in use, set the MIC/TALKOVER
switch to OFF.

Talkover Mode

Talkover mode allows a voice to be heard clearly through the microphone by attenuating all the other
audio input sources. This mode is engaged by setting the Talkover Switch to the TALKOVER position.

Microphone Tone Controls

These BASS, MID and TREBLE controls, permit you to tailor the tone frequencies of the MIC inputs
processed through the mix. Left in their center positions, the sound is unaffected (”flat”).

Microphone Level Controls

The independent MIC1 and MIC2 controls permit you to increase or decrease the levels of these
microphones within the mix.

Using the MIC Frequency Kill Switches

For unique circumstances or interesting special effects, you can completely eliminate the bass, mid
or treble frequency range from the MIC channels by pressing the Kill button for that range. When
the Kill mode is active, the LED above the button will be illuminated.

10 – Pyle Pro Mixer PYD1911/1955 Owner’s Manual

Using the Mono/Stereo Mode Switch

When the MASTER MONO/STEREO switch is in the MONO position, the mixer combines the right and
left channels and sends them to the OUTPUT R and L jacks. These combined outputs can be used
by a monoaural amplifier, such as a PA amp.

In the STEREO position, right and left channels remain separate. The mixer outputs can be used by
a stereo amplifier or recorder.

The ZONE MONO/STEREO switch works similarly, except that its setting affectstheZONER&LOuts.

Using the Crossfader with the Assign Switches

For crossfading effects, you can assign any of the four channels to either A or B sides of the crossfade
mix using the Crossfade assign knobs.

When the crossfade slider is in the center position, the two assigned channels play equally. Sliding
the control towards the A position will increase the level of A and fade out B proportionally to the
distance from center. Likewise, sliding the control towards the B position will increase the level of
B and fade out A.

Using the Digital Sampler (PYD-1955)

The PYD-1950 mixer contains a digital sampler circuit which can record 5 different samples to the
internal recording IC. These samples can then be assigned to CH 1, CH 2, CH 3, CH 4 and the MIC
channel for playback. At the time of playback, the SPEED control can be adjusted to change the pitch
of the sample.

Follow these steps to record a sample:

1. Play the audio source for recording as a sample.

2. While it is playing, press the desired cue/sample channel assign button (i.e., CH 1, CH 2, CH 3,
CH 4 or MIC).

3. To record the source to that channel, set the SAMPLER MODE switch to the RECORD position and

press the START/STOP button to begin recording. The LED will go on, indicating recording is in
progress. To stop recording, press the START/STOP button again. Please note that the recording
IC is limited to 12-second samples, so in the event you do not press stop, it will automatically
stop after 12 seconds

4. To playback the recorded sample ONCE, turn the SAMPLER MODE switch to SINGLE, and press
START/STOP. The LED will go on, indicating that a sample is playing. Pressing START/STOP
during playback will stop the playback.

Each time you press the START/STOP control, the unit will replay the recorded sample from the
beginning and play it through the end of the recorded sound. Rapid, consecutive pressing of the
START/STOP button will create an interesting stuttering effect.

5. To playback the record sample repeatedly (”looping”), set the SAMPLER MODE switch to
REPEAT, and press START/STOP. The mixer will play the sampled recording all the way through,
and thenrepeat it until you press the START/STOP button.

6. To adjust the speed of the playback signal, rotate the SAMPLE PITCH control to reduce or
increase the pitch of the sample during playback.

7. To adjust the level of the sample playback as it enters the mix, rotate the SAMPLE LEVEL
to increase or decrease the level.

Pyle Pro Mixer PYD1911/1955 Owner’s Manual – 11

Troubleshooting

Your mixer should require very little maintenance. If you have problems, refer to the chart below
for possible solutions. If you cannot solve the problem, contact a qualified technician for assistance.

PROBLEM POSSIBLE SOLUTION

Nothing works

No signal from an
audio input
source

Hum from PHONO

Hum from other
source

Feedback is
present

Care and Maintenance

Your Pyle Pro Mixer is an example of superior design and craftsmanship. The following suggestions will help
you care for your mixer so you can enjoy years of use:

• Check the AC connection. Make sure the AC outlet is “live.”

• Check the power connection to the rest of the system (receiver/amplifier, etc.)

• Check the control setting

• Check the connection between the mixer and the input source

• Check that the turntable’s ground wire (usually black or green) is fastened securely to the GROUND
SCREW on the mixer input panel

• Make sure there are no low level inputs connected to the LINE input jacks

• Move the microphone further away from the output speakers, or use a directional microphone

• Keep the mixer dry. If it gets wet, wipe immediately.

• Use the mixer only in well-ventilated installations.

• Handle the mixer gently and carefully - do not drop!

• Keep the mixer away from dust and dirt.

• Wipe occasionally with a damp cloth to keep it looking new. Do not use harsh chemicals, solvents or detergents!

12 – Pyle Pro Mixer PYD1911/1955 Owner’s Manual

Pyle Pro Mixer PYD1911/1955 –13
Owner’s Manual

Please complete warranty card, detach and return

Place

Stamp

Here

PYLE PRO Audio, Inc.
1600 63rd Street
Brooklyn, NY 11204

Specifications

PYD1911/1955

Input Sensitivity/Impedance

Mic 1-2
Phono 1-2
Line 1-7

1.5 mV/600 Ohms, bal/unbal

3.0 mV/50K Ohms

150.0 mV/27K Ohms

Output Level

Amp
Zone
Record

Frequency Response

2.0 V/10-kOhms

2.0 V/10-kOhms
150mV/10-kOhms

20Hz – 20kHz +/- 3 dB

S/N Ratio (at 1 kHz)

Mic
Phono
Line

>60 dB/1.5mV input
>70 dB/3.0mV input
>80 dB/150.0 mV input

Distortion

Mic
Phono
Line

0.20%

0.05%

0.03%

Limited Warranty

All PYLE PRO products are carefully constructed and tested before shipment.
Units purchased in the USA are warranted to be free of defects in material
and workmanship for two (2) years from the date of purchase. This warranty
is limited to the original retail purchaser of the mixer.

Should the unit fail due to factory defects in material or workmanship, your
unit will be repaired or replaced at the sole discretion of PYLE.

To obtain warranty service, you must first call our Consumer Return Hotline
at [phone] to obtain a Return Authorization Number. This R.A. # must
appear on the outside of your package and on all paperwork relating to your
return.

When returning the unit to us for warranty service, it must be carefully
packed and shipped, prepaid, to:

Equalizer

Control Frequencies

30, 60, 120, 250, 500
1K, 2K, 4K, 8K, and 16KHz

Boost/Cut Range

+/- 10 dB from center

MIC Tone Control

Treble
Mid
Bass

Talkover Attenuation

Echo Delay Time

(PYD-1920/1940)

Sampling Length

(PYD-1950)

Power Source

Dimensions, inches

(mm)

R.A.#: _____________
PYLE PRO Service Center
1600 63rd Street

You must also include the following items with your return:

• A copy of your sales receipt or other proof of purchase

• A brief letter, indicating the problem you are experiencing with the product

• Include in your letter your return address, daytime phone number and R.A. number

• Also include a check or money order for $20.00 for return

shipping, handling and insurance, or provide your Visa/MC number with expiration date.

Our obligation under this warranty is limited to the repair or replacement
of the defective unit when it is returned to us prepaid. This warranty will
be considered void if the unit was tampered with, improperly serviced or
subject to misuse, neglect or accidental damage.

Brooklyn, NY 11204

10kHz; +10/-30dB
1 kHz; +10/-30dB
100Hz; +10/-30dB

-16dB

50mS-120mS

12 Seconds

120 VAC, 60Hz/230 VAC, 50 Hz

19.0 x 4.13 x 9.45
(482 x 105 x 240)

Please complete warranty card, detach and return

Thank you for purchasing this PYLE
product. To activate your
warranty, please mail this card
within 10 days.

PYLE PRO MIXERS

Name

Address

City, State ZIP

Model No. Serial #

Date of Purchase

Purchased at:

Music Products Store

Catalog Merchandiser

Sound Contractor/Installer Mail Order

Other

warranty registration card

(if available)

www.pyleaudio.com

14 – Pyle Pro Mixer PYD1911/1955

Owner’s Manual
