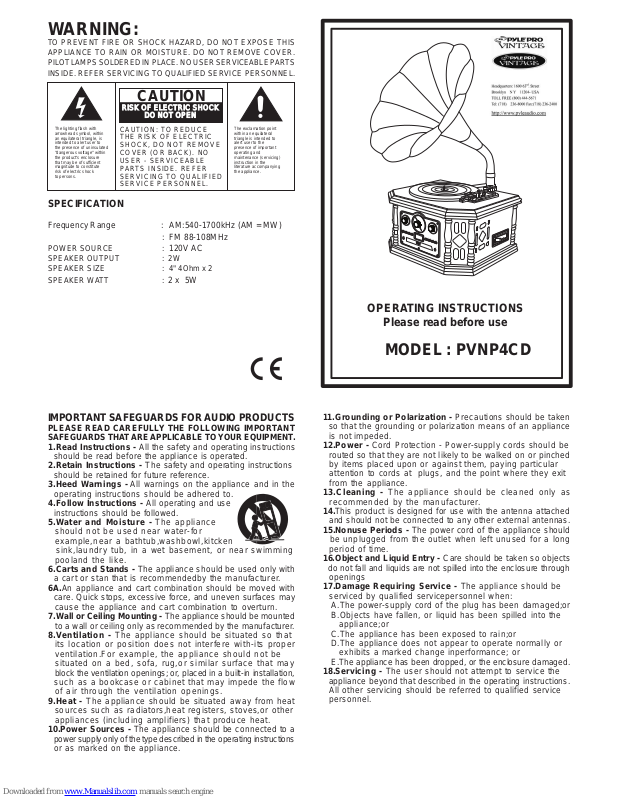

Pyle Pro PVNP4CD Operating Instructions Manual

MODEL : PVNP4CD

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DO NOT REMOVE COVER. PILOT LAMPS SOLDERED IN PLACE. NO USER SERVICEABLE PAR TS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

SPECIFICATION

Frequency Range : AM:540-1700kHz (AM = MW) : FM 88-108MHz

POWER SOURCE :

120V AC

SPEAKER OUTPUT : 2W SPEAKER SIZE : 4" 4Ohm x 2

SPEAKER WATT :

2 x 5W

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER - SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lighting flash with arrowhead symbol, within an equilateral triangle, is intended to alert user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert user to the presence of important operating and maintenance (servicing) instruction in the literature accompanying the appliance.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

AM/FM

LINE IN

F .SKIP

B.SKIP

PROGRAM

REPE

P L AY/

P AUSE

STOP

OPEN/CLOSE

T APE/ LINE IN

PHONO

RADIO

IMPORT ANT SAFEGUARDS FOR AUDIO PRODUCTS

PLEASE READ CAREFULLY THE FOLLOWING IMPORTANT SAFEGUARDS THAT ARE APPLICABLE TO YOUR EQUIPMENT.

1. Read Instructions - All the safety and operating instructions

should be read before the appliance is operated.

2. Retain Instructions - The safety and operating instructions should be retained for future reference.

3.Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.

4. Follow Instructions - All operating and use instructions should be followed.

5.Water and Moisture - The appliance should not be used near water-for example,near a bathtub,washbowl,kitcken

sink,laundry tub, in a wet basement, or near swimming

pooland the like.

6.Carts and Stands - The appliance should be used only with a cart or stan that is recommendedby the manufacturer. 6A.An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

7.Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

8.Ventilation - The appliance should be situated so that its location or position does not interfere with-its proper ventilation.For example, the appliance should not be situated on a bed, sofa, rug,or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.

9.Heat - The appliance should be situated away from heat sources such as radiators,heat registers, stoves,or other appliances (including amplifiers) that produce heat.

10.Power Sources - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.

11.Grounding or Polarization - Precautions should be taken so that the grounding or polarization means of an appliance is not impeded.

12.Power - Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, and the point where they exit from the appliance.

13.Cleaning - The appliance should be cleaned only as recommended by the manufacturer.

14.This product is designed for use with the antenna attached and should not be connected to any other external antennas.

15.Nonuse Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.

16.Object and Liquid Entry - Care should be taken so objects do not fall and liquids are not spilled into the enclosure through openings

17.Damage Requiring Service - The appliance should be serviced by qualified servicepersonnel when:

A.The power-supply cord of the plug has been damaged;or B.Objects have fallen, or liquid has been spilled into the

appliance;or

C.The appliance has been exposed to rain;or D.The appliance does not appear to operate normally or

exhibits a marked change inperformance; or

E.The appliance has been dropped, or the enclosure damaged.

18.Servicing - The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.

OPERATING INSTRUCTIONS

Please read before use

Power up the unit

Plug the 12V, 1A AC adaptor(not included) into the AC adaptor Jack(26) at the rear of the unit. Turn the Volume Knob (4) clock-wise to turn on the unit.

Radio/Tuner function

Turn the “Function” knob (1) to Radio, then select Am/Fm channel by sliding the “Am/Fm” slide switch (14). To select radio station, adjust the T uning knob (3) at the centre of the unit to select your favorite station. In order to achieve better FM reception, extend the FM antenna (27).

CD function

Turn the “Function” Knob (1) to CD, then press “Open/Close” button (7) to place CD into CD tray. Press again to close the CD door. Please “Play/Pause” button (6) to start playing CD. Press “Play/Pause” button one more time to select pause mode. Press “B. Skip”(13) or “F. Skip”(15) to select your ideal track. Press “Stop” button(8) to stop playing. For repeat function, press “Repeat button” (5) once to repeat one single track and press one more time to repeat all tracks. Press again to cancel repeat function. To program the tracks, press “Program Button” (16), then press “B. Skip” (13) or “F.Skip” (15) button to select your ideal track and press “Program button”. The unit can program up to 19 tracks.

Main Unit

1. Function Knob

2. Dial Scale

3. Tuning Knob

4. Volume Knob

5. Repeat Button

6. Play/Pause Button

7. CD door Open/Close Button

8. Stop Button

9. Line-in Jack

10. CD Led Display

11. CD Door

12. 3.5mm Headphone Jack

13. B. Skip Button

14. Am/Fm Band Slide Switch

15. F. Skip Button

16. Program Button

17. Speaker

18. Eject Button

19. Tape Slot

20. Turntable Shaft

21. Turntable Platter

22. 45 rpm Adaptor

23. Tone Arm

24. 33, 45 and 78 rpm Slide Switch

25.Tone Arm Lock/Tone Arm Rest

26.AC Power Cord

27.FM Antenna

Phono function

Turn the “Function” Knob (1) to Phono. Place the record onto the turntable (20). Select the turntable speed by sliding the “33/45/78 rpm” switch(24) on the right side of the turntable. Unlock the tone arm(23) by release the lock(25), then lift up the tone arm and gently place the tone arm onto the record to play. If want to stop, lift up the tone arm and place it back to the arm rest(25). Re-mark : Place the 45rpm adaptor(22) at the centre before placing 45 rpm record onto the turntable.

Cassette function

Turn the “Function” Knob (1) to Tape/Line In. Insert the cassette tape into the cassette slot(19), the cassette tape will automatically play. Press the “Inject” button(18) gently to skip forward and fully press this button to inject the cassette tape

Aux input & output function

Turn the “Function” Knob (1) to Tape/Line In. Connect wires into the Aux in jack(9) at the front

AM/FM

TAPE/ LINE IN

PHONO VOLUME

OFF

RADIO

PHONES LINE IN

F.SKIPB.SKIP PROGRAM REPEAT

PLAY/PAUSE

STOP OPEN/CLOSE

AM/FM

IPOD/ LINE IN

PHONO VOLUME

OFF

RADIO

PHONES LINE IN

F.SKIPB.SKIP PROGRAM REPEAT

PLAY/PAUSE

STOP OPEN/CLOSE

1 2 3 4

18 19

20 21 22

25 24 23

11 10 9

6 7

Instruction to install the metal horn

1.Place metal part A at the rear of the cabinet and use 3 pcs of copper color screws to secure it.

2.Insert metal part B into metal part A and secure with a gold screw.

3.Place metal part C around metal part A to increase support and secure it by using 4 pcs of black color screws at the rear of cabinet and a gold screw to hold metal A and C together.

4.Connect the metal horn with metal part C by use two pieces of gold screws

Parts included A.Metal part A B.Metal part B C.Metal part C D.Metal Horn E.3 pcs of copper color screws F.4 pcs of gold color screws G.4 pcs of black color screws

(Screwdriver included)

27 26

Aux output is the Jack of "RCA output"(28) at the back.

USB host link to PC for recording function

28.RCA Out(Aux output)

29.USB Jack

USB Jack link to PC for converting vinyl into PC in MP3 format with the help of certain software pre-install in PC
