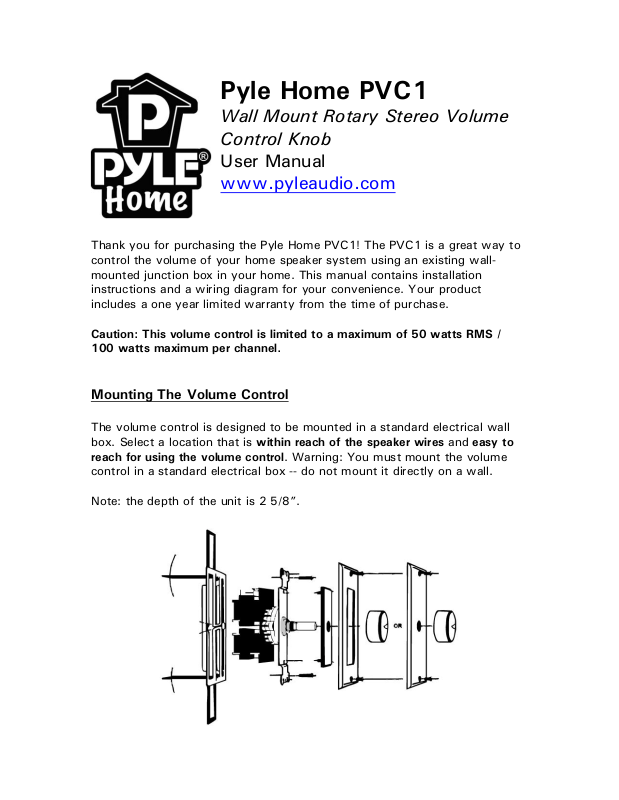

Pyle Pro PVC1 User manual

Pyle Home PVC1

Wall Mount Rotary Stereo Volume
Control Knob

User Manual

www.pyleaudio.com

Thank you for purchasing the Pyle Home PVC1! The PVC1 is a great way to
control the volume of your home speaker system using an existing wall­mounted junction box in your home. This manual contains installation
instructions and a wiring diagram for your convenience. Your product
includes a one year limited warranty from the time of purchase.

Caution: This volume control is limited to a maximum of 50 watts RMS /
100 watts maximum per channel.

Mounting The Volume Control

The volume control is designed to be mounted in a standard electrical wall
box. Select a location that is within reach of the speaker wires and easy to
reach for using the volume control. Warning: You must mount the volume
control in a standard electrical box -- do not mount it directly on a wall.

Note: the depth of the unit is 2 5/8”.

Connections

1.) Run 4-Conductor speaker cable
from the amplifier (positive and negative
for both the left and right channel) to the
volume control - marked  and .
Similarly, run 2-conductor speaker cable
from each of the first pair of speakers to
the volume control. Label the cables for
future reference.

2.) Measure the depth of the volume
control to make sure your Volume Control will fit in the j-box.

3.) Connect the speaker cable to the volume control:

a. Strip ¼” of insulation from the end of each cable

b. Tightly twist the wires in each cable until there are no frayed ends.

c. Insert the 4-conductor speaker cable from the amplifier into the input
terminals.

d. Insert the two 2-conductor speaker cables from the first pair of
speakers into the output terminals.

4.) Connect additional speakers in parallel.

5.) Make sure that all connections between your amplifier and the volume
control, and between the volume control () and each speaker, are in
“phase”, that is (+) to (+) and (-) to (-).

6.) Turn the volume knob to the “off” position (all the way down.)

7.) Screw J-box into place

8.) Put on faceplate and screw in place using the screws.
